Negative Lens: Spreads Light Out.

Negative Lens: Spreads Light Out. Myopia corrected. Myopia is corrected with a negative lens that compensates for the excess power of the cornea and lens. The focus point is moved backwards. Surgical Corrections. RK: small cuts around edge of cornea PRK: laser reshapes surface of cornea

yetta
Download Presentation

Negative Lens: Spreads Light Out.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Negative Lens: Spreads Light Out.

  2. Myopia corrected Myopia is corrected with a negative lens that compensates for the excess power of the cornea and lens. The focus point is moved backwards.

  3. Surgical Corrections RK: small cuts around edge of cornea PRK: laser reshapes surface of cornea LASIK: laser reshapes internal layers of cornea Implantable lens and rings

  4. Hyperopia (Farsighted) When the eye is hyperopic, the eye is too short and the point of focus is in behind of the retina. A blurry image falls on the retina.

  5. Positive Lens: Focuses Light; Magnifier

  6. Hyperopia corrected Hyperopia is corrected by placing an additional, positive lens in front of the eye. The stronger the lens, the more the focus point is moved forward.

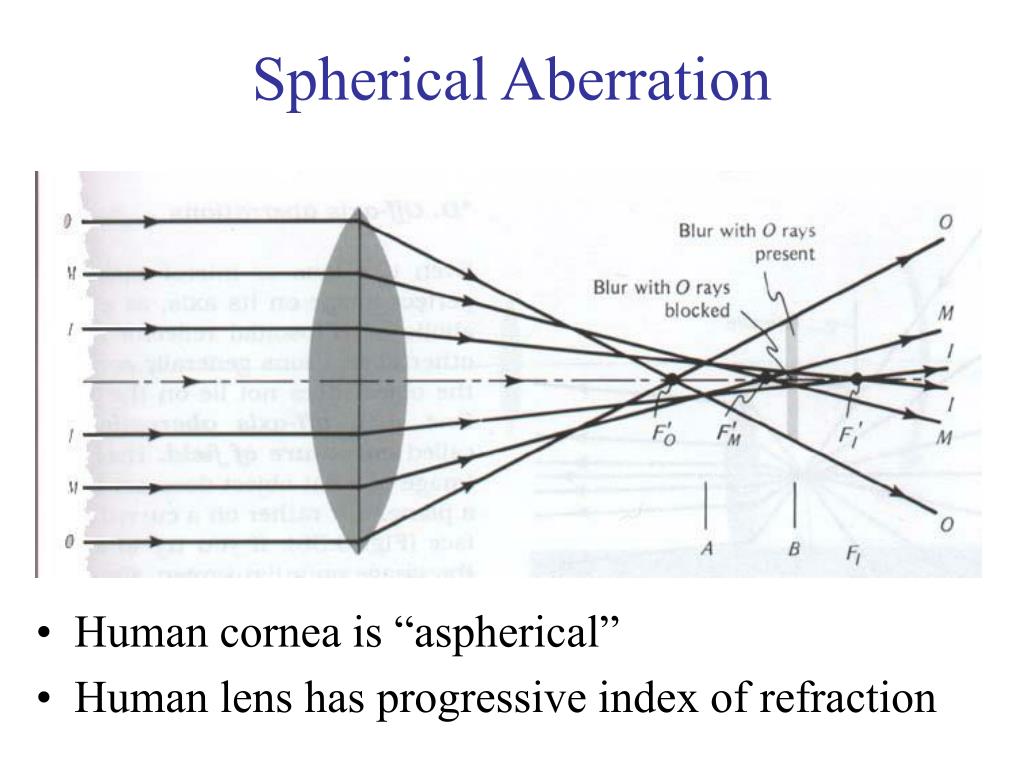

  7. Spherical Aberration Human cornea is “aspherical” Human lens has progressive index of refraction

  8. Current Research Question: Why are some eyes myopic or hyperopic? Why are so many eyes emmetropic? Not random as after birth % emmetropic increases. Most cases of myopia start later, in teens. Associate with “close-work”. Two theories: Extra muscular forces for accommodation etc. Misguided growth

  9. Astigmatism Christman, 1971, p.150.

  10. Radial Zakia, 1997, p.220.

  11. Accommodation

  12. The Lens & Accommodation The lens changes shape to focus objects at different distances. Can also compensate for some myopia, hyperopia Marmor & Ravin, 1997, p.16

  13. Presbyopia Presbyopia Marmor & Ravin, 1997, p.17

  14. Accommodation vs Age Fixed Focus by 50 “Presbyopia” Gregory, 1997, p.39.

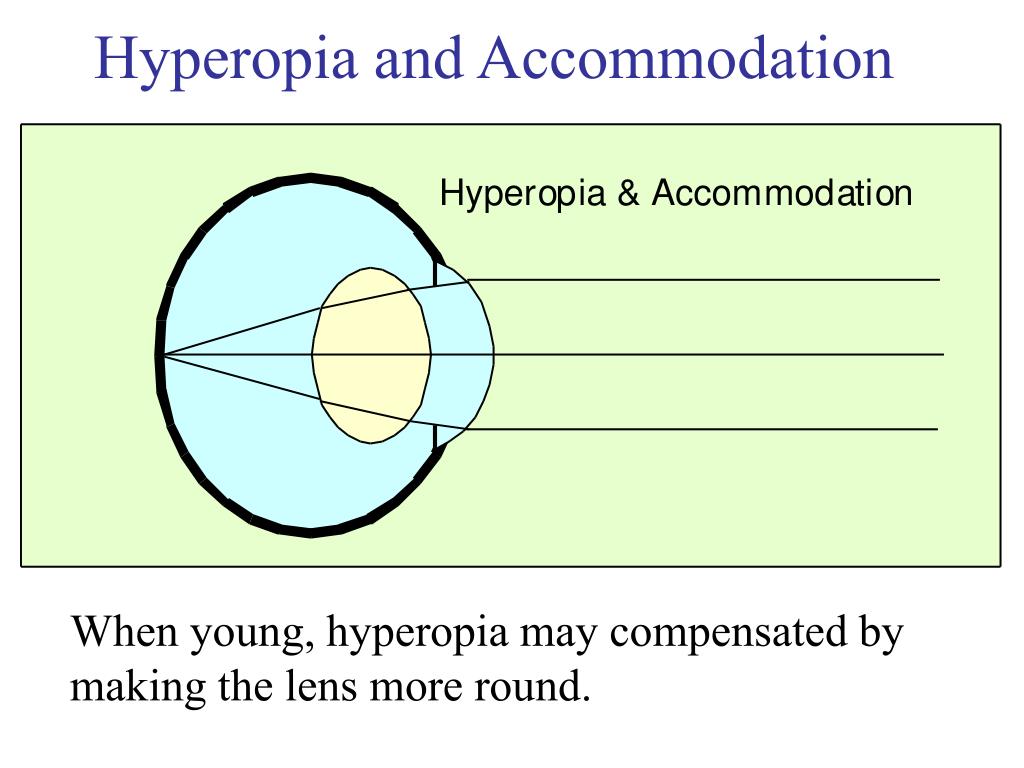

  15. Hyperopia and Accommodation When young, hyperopia may compensated by making the lens more round.

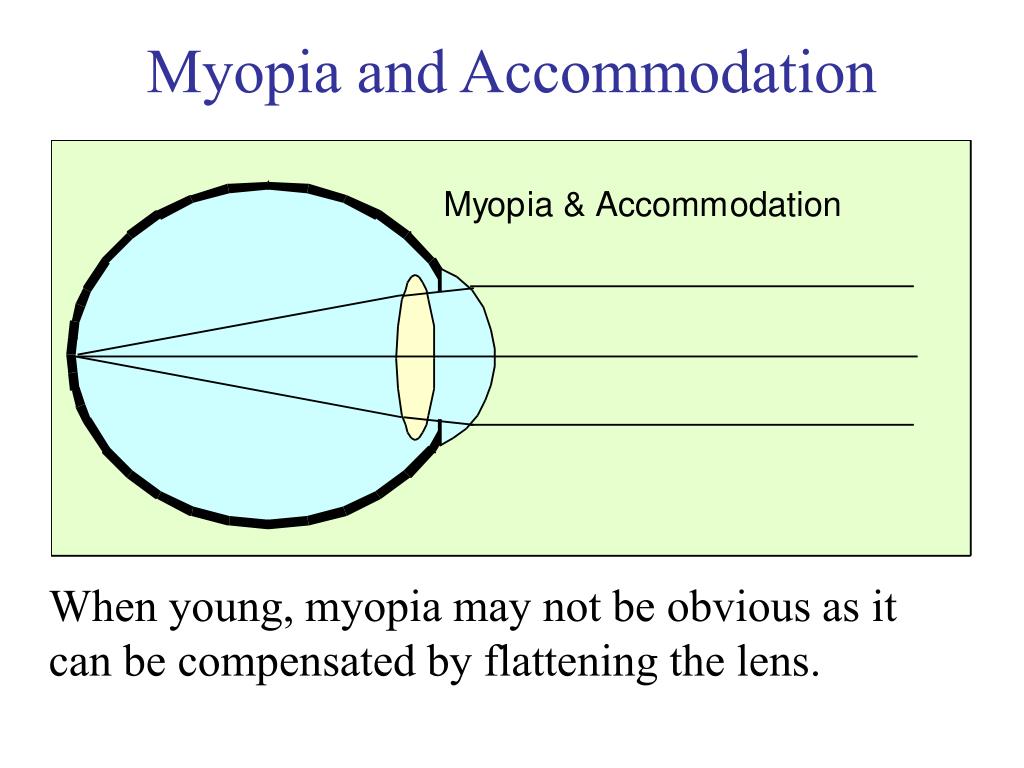

  16. Myopia and Accommodation When young, myopia may not be obvious as it can be compensated by flattening the lens.

  17. Presbyopia Yellowing Opaque (Cataracts) The Lens and Aging

  18. Cataract: young .
