Chapter One Introduction to Pipelined Processors

1. Chapter One Introduction to Pipelined Processors

2. Principle of Designing Pipeline Processors (Design Problems of Pipeline Processors)

3. Job Sequencing and Collision Prevention

4. Job Sequencing and Collision Prevention • Consider reservation table given below at t=0

5. Job Sequencing and Collision Prevention • Consider next initiation made at t=1 • The second initiation easily fits in the reservation table

6. Job Sequencing and Collision Prevention • Now consider the case when first initiation is made at t = 0 and second at t = 2. • Here both markings A1 and A2 falls in the same stage time units and is called collision and it must be avoided

7. Terminologies

8. Terminologies • Latency: Time difference between two initiations in units of clock period • Forbidden Latency: Latencies resulting in collision • Forbidden Latency Set: Set of all forbidden latencies

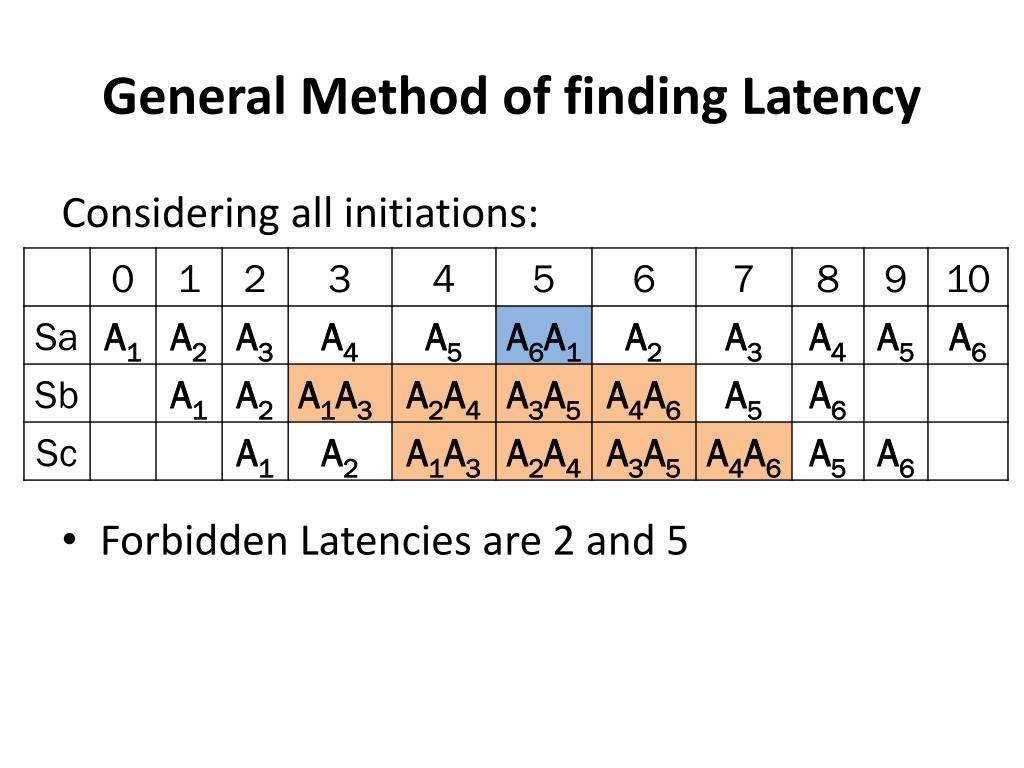

9. General Method of finding Latency Considering all initiations: • Forbidden Latencies are 2 and 5

10. Shortcut Method of finding Latency • Forbidden Latency Set = {0,5} U {0,2} U {0,2} = { 0, 2, 5 }

11. Terminologies • Initiation Sequence : Sequence of time units at which initiation can be made without causing collision • Example : { 0,1,3,4 ….} • Latency Sequence : Sequence of latencies between successive initiations • Example : { 1,2,1….} • For a RT, number of valid initiations and latencies are infinite

12. Terminologies • Initiation Rate : • The average number of initiations done per unit time • It is a positive fraction and maximum value of IR is 1 • Average Latency : Theaverage of latency of a given latency sequence AL = 1/IR

13. Terminologies • Latency Cycle: • Among the infinite possible latency sequence, the periodic ones are significant. E.g. { 1, 3, 3, 1, 3, 3,… } • The subsequence that repeats itself is called latency cycle. E.g. {1, 3, 3}

14. Terminologies • Period of cycle: The sum of latencies in a latency cycle (1+3+3=7) • Average Latency: The average taken over its latency cycle (AL=7/3=2.33) • To design a pipeline, we need a control strategy that maximize the throughput (no. of results per unit time) • Maximizing throughput is minimizing AL

15. Terminologies • Control Strategy • Initiate pipeline as specified by latency sequence. • Latency sequence which is aperiodic in nature is impossible to design • Thus design problem is arriving at a latency cycle having minimal average latency.

16. Terminologies • Stage Utilization Factor (SUF): • SUF of a particular stage is the fraction of time units the stage used while following a latency sequence. • Example: Consider 5 initiations of function A as below

17. Terminologies • SUF of stage Sa is number of markings present along Sa divided by the time interval over which marking is counted. • SUF(Sa) = SUF(Sb) = SUF(Sc) = 10/14

18. Terminologies • Let SU(i) be the stage utilization factor of stage i • Let N(i) be no. of markings against stage i in the reservation table • Suppose we initiate pipeline with initiation rate (IR), then SU(i) is given by

19. SUF

20. Terminologies • Minimum Average Latency (MAL) • Thus SU(i) = IR x N(i) • SU(i) ≤ 1  IR x N(i) ≤ 1 N(i) ≤ 1/IR  N(i) ≤ AL • Therefore

21. State Diagram • Suppose a pipeline is initially empty and make an initiation at t = 0. • Now we need to check whether an initiation possible at t = i for i > 0. • bi is used to note possibility of initiation • bi = 1  initiation not possible • bi = 0  initiation possible

22. State Diagram bi 1 0 1 0 0 1

23. State Diagram • The above binary representation (binary vector) is called collision vector(CV) • The collision vector obtained after making first initiation is called initial collision vector(ICV) ICVA = (101001) • The graphical representation of states (CVs) that a pipeline can reach and the relation is given by state diagram

24. State Diagram • States (CVs) are denoted by nodes • The node representing CVt-1 is connected to CVt by a directed graph from CVt-1 to CVt and similarly for CVt* with a * on arc

25. Procedure to draw state diagram • Start with ICV • For each unprocessed state, say CVt-1, do as follows: • Find CVt from CVt-1 by the following steps • Left shift CVt-1 by 1 bit • Drop the leftmost bit • Append the bit 0 at the right-hand end

26. Procedure to draw state diagram • If the 0th bit of CVt is 0, then obtain CV* by logically ORing CVt with ICV. • Make a new node for CVt and join with CVt-1 with an arc if the state CVt does not already exist. • If CV* exists, repeat step (c), but mark the arc with a *.
