GPU Acceleration in Registration

1. GPU Acceleration in Registration Danny Ruijters 26 April 2007

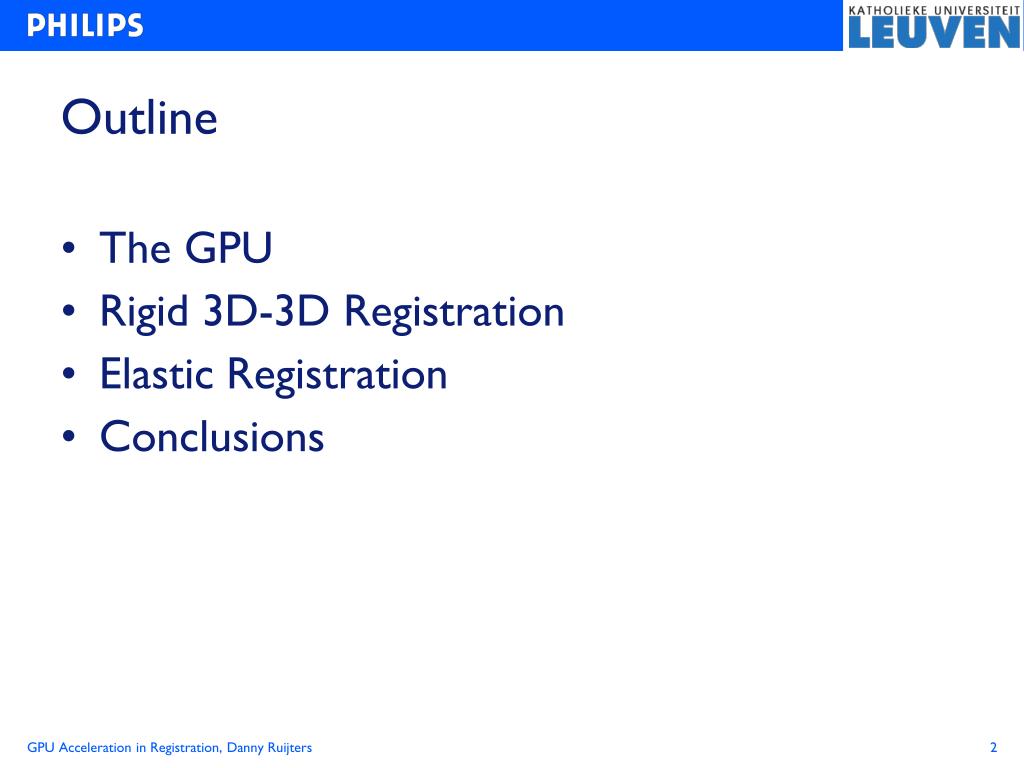

2. Outline • The GPU • Rigid 3D-3D Registration • Elastic Registration • Conclusions

3. The GPU

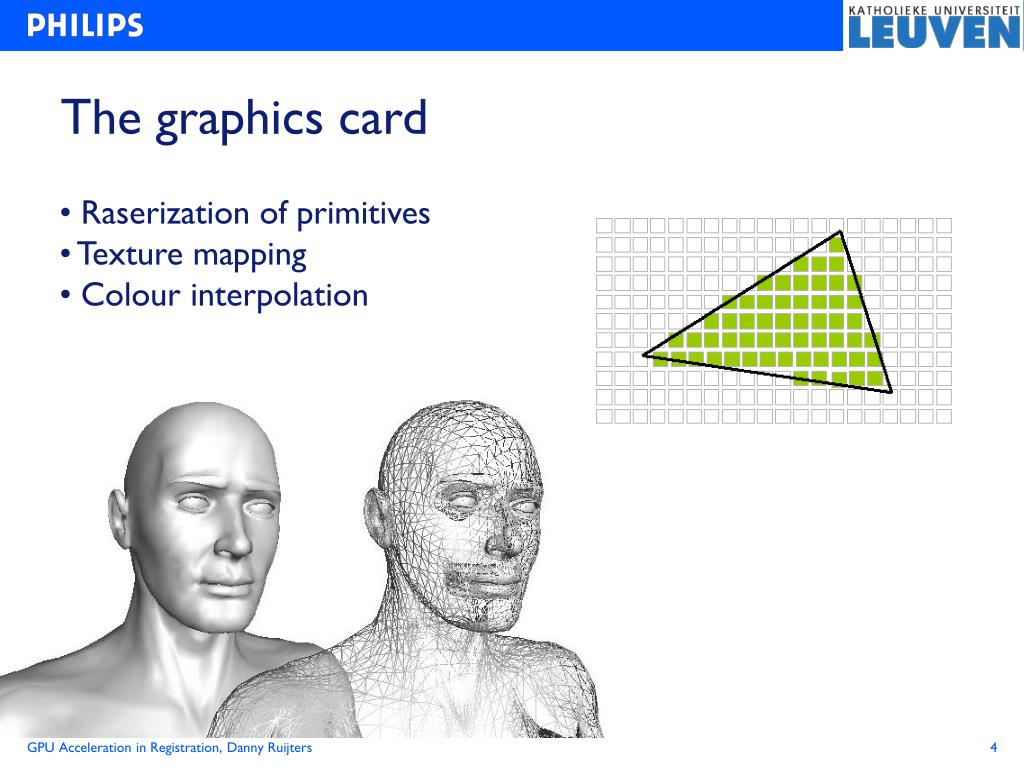

4. The graphics card • Raserization of primitives • Texture mapping • Colour interpolation

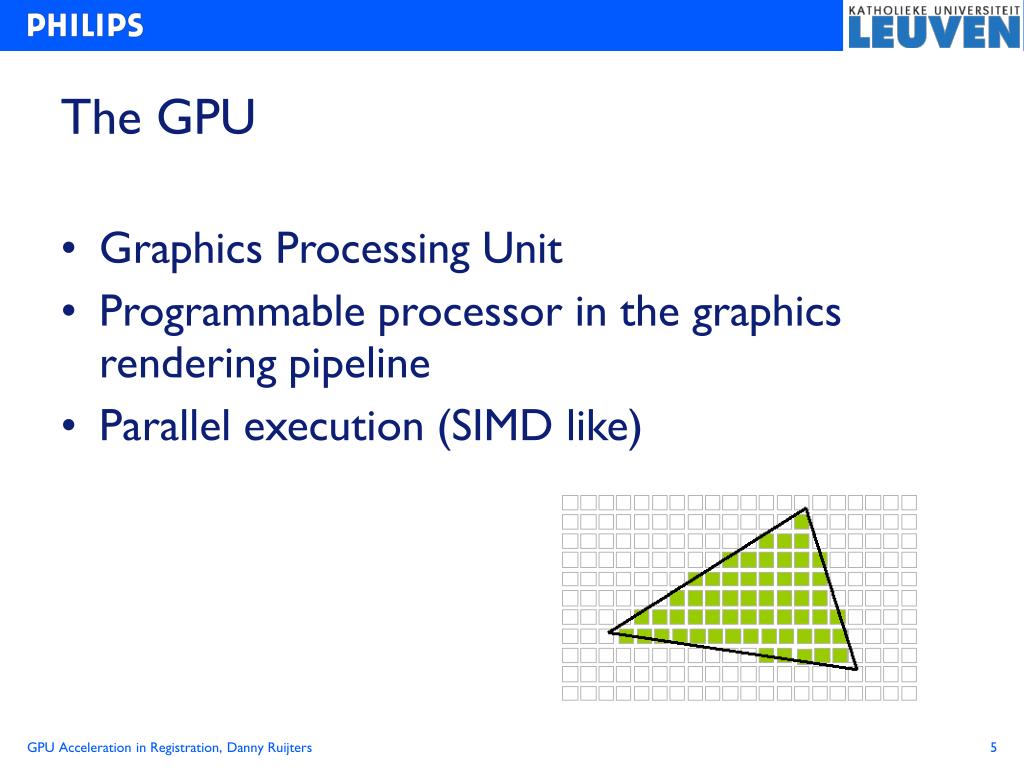

5. The GPU • Graphics Processing Unit • Programmable processor in the graphics rendering pipeline • Parallel execution (SIMD like)

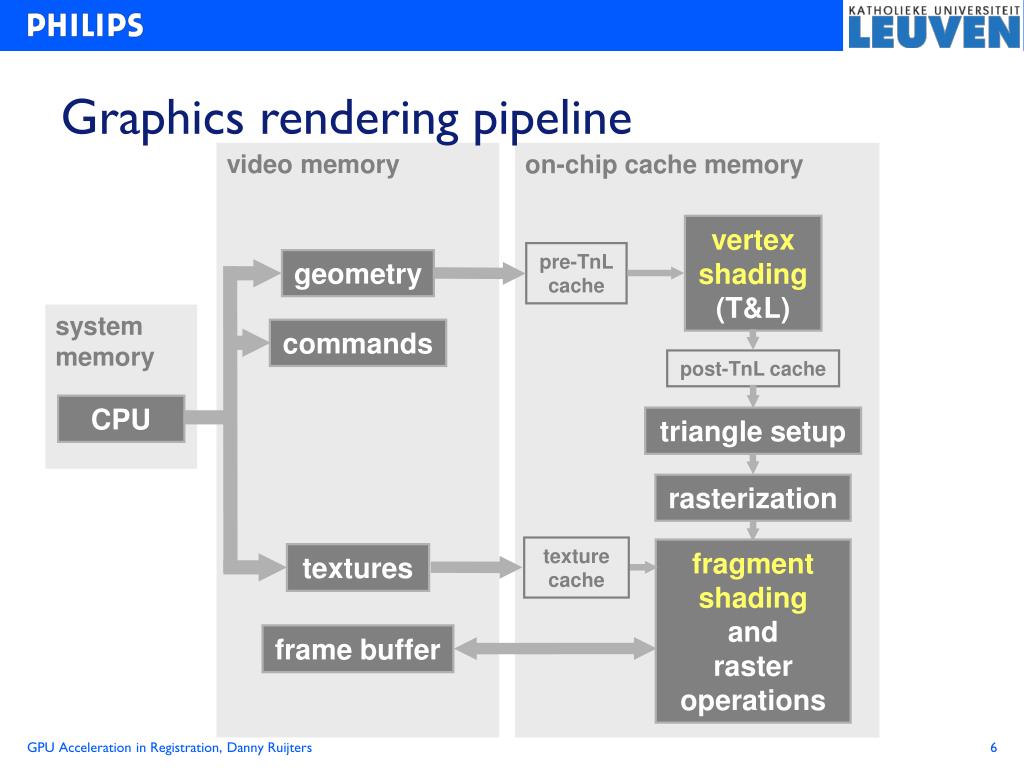

6. video memory on-chip cache memory vertex shading (T&L) pre-TnL cache geometry system memory commands post-TnL cache CPU triangle setup rasterization texture cache fragment shading and raster operations textures frame buffer Graphics rendering pipeline

7. video memory on-chip cache memory transfer limited vertex shading (T&L) pre-TnL cache transform limited geometry system memory commands post-TnL cache setup limited CPU triangle setup texture limited raster limited rasterization CPU limited fragment shader limited fragment shading and raster operations texture cache textures frame buffer frame buffer limited Bottlenecks

8. 128 processing units Local cache Shared memory

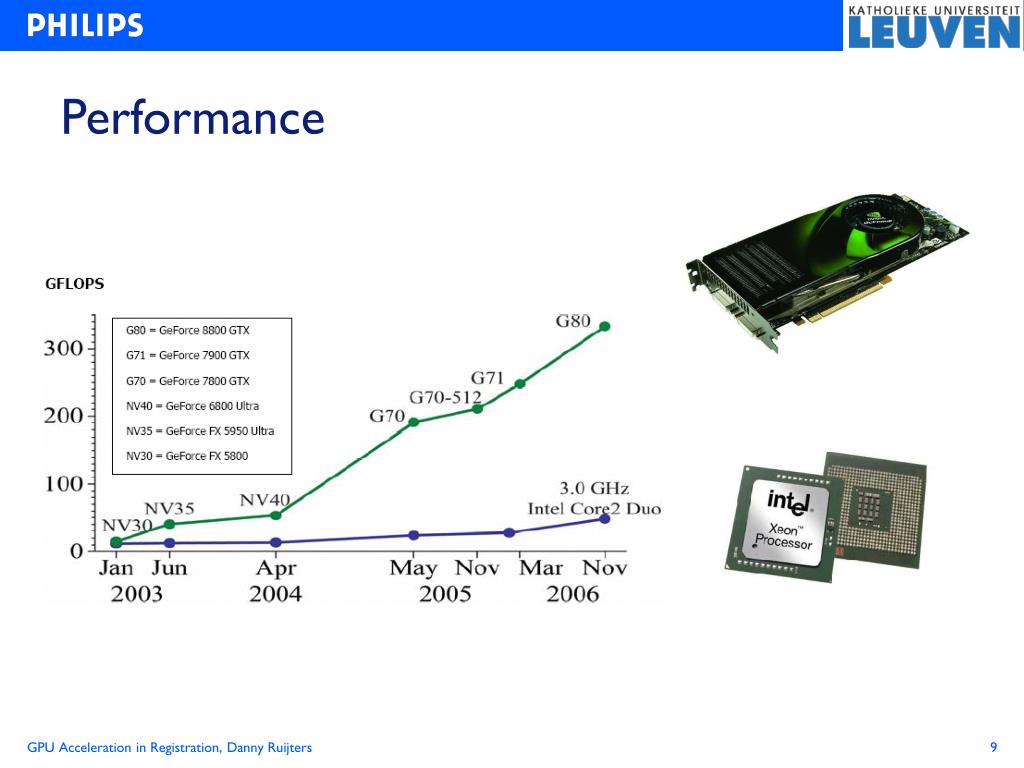

9. Performance

10. Performance • Parallelism & pipelining (up to 16 parallel pipelines) • Vector processor • Moore’s Law: CPU: 2* performance per 18 months • GPU: 2* performance per 6 months

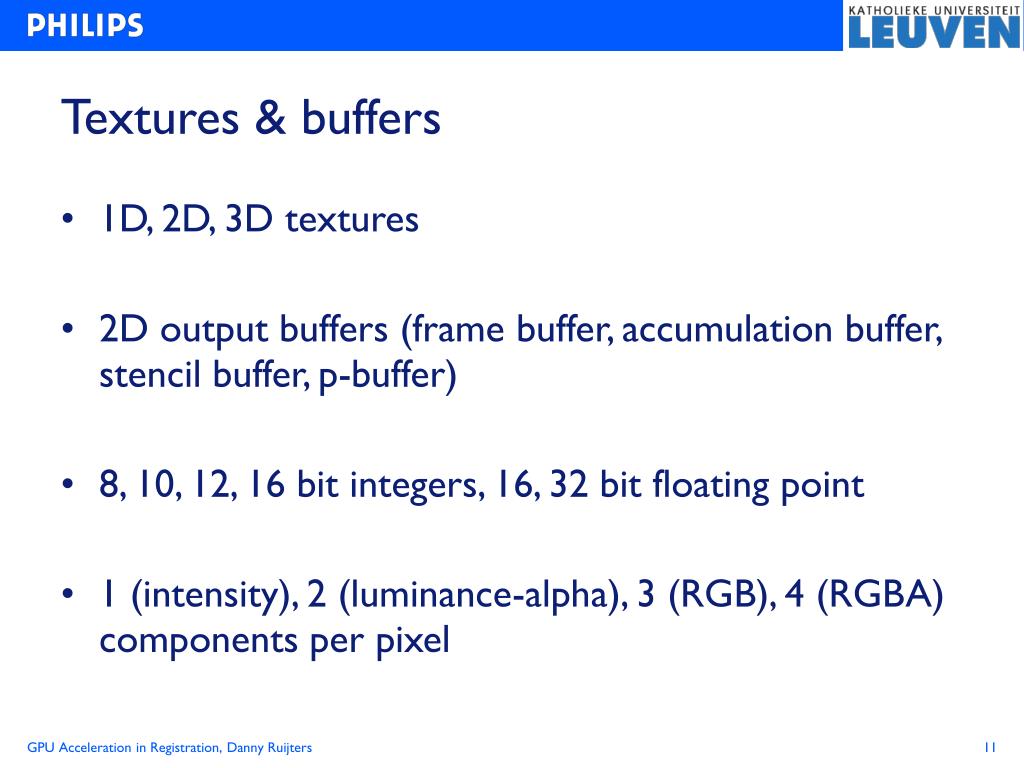

11. Textures & buffers • 1D, 2D, 3D textures • 2D output buffers (frame buffer, accumulation buffer, stencil buffer, p-buffer) • 8, 10, 12, 16 bit integers, 16, 32 bit floating point • 1 (intensity), 2 (luminance-alpha), 3 (RGB), 4 (RGBA) components per pixel

12. Historic overview GPU • RenderMan (1988, pre-history) • Intel MMX (SIMD, 1997, pre-history) • Register combiners (nVidia, 1999, bronze age) • Vender specific APIs (2001, iron age) • Generic assembly-like language (2002, middle-ages) • Different high-level languages (2003, industrial age) • CUDA: general purpose C-like language (2007, modern age)

13. Register combiners (1999, bronse age) // Stage 0 // spare0.rgb = gradient dot ViewDir, spare1.rgb = -(gradient dot ViewDir) glCombinerInputNV(GL_COMBINER0_NV,GL_RGB,GL_VARIABLE_A_NV,GL_TEXTURE0_ARB,GL_EXPAND_NORMAL_NV,GL_RGB); glCombinerInputNV(GL_COMBINER0_NV,GL_RGB,GL_VARIABLE_B_NV,GL_CONSTANT_COLOR1_NV,GL_EXPAND_NORMAL_NV,GL_RGB); glCombinerInputNV(GL_COMBINER0_NV,GL_RGB,GL_VARIABLE_C_NV,GL_TEXTURE0_ARB,GL_EXPAND_NEGATE_NV,GL_RGB); glCombinerInputNV(GL_COMBINER0_NV,GL_RGB,GL_VARIABLE_D_NV,GL_CONSTANT_COLOR1_NV,GL_EXPAND_NORMAL_NV,GL_RGB); glCombinerOutputNV(GL_COMBINER0_NV,GL_RGB,GL_SPARE0_NV,GL_SPARE1_NV,GL_DISCARD_NV,GL_NONE,GL_NONE,GL_TRUE,GL_TRUE,GL_FALSE);

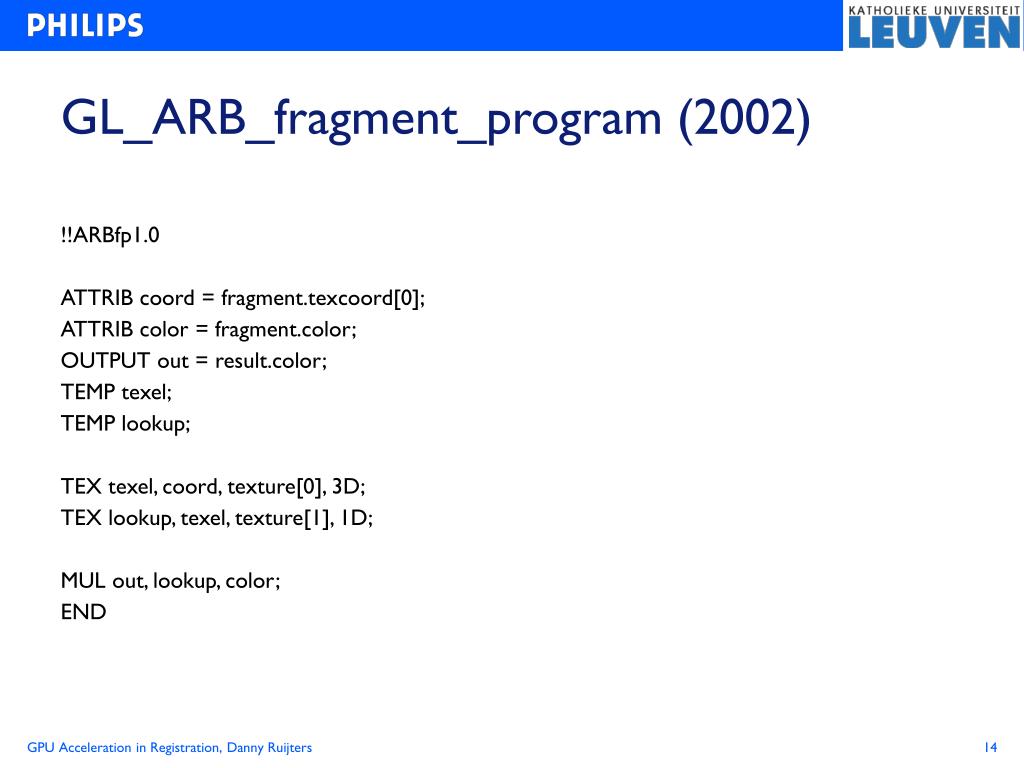

14. GL_ARB_fragment_program (2002) !!ARBfp1.0 ATTRIB coord = fragment.texcoord[0]; ATTRIB color = fragment.color; OUTPUT out = result.color; TEMP texel; TEMP lookup; TEX texel, coord, texture[0], 3D; TEX lookup, texel, texture[1], 1D; MUL out, lookup, color; END

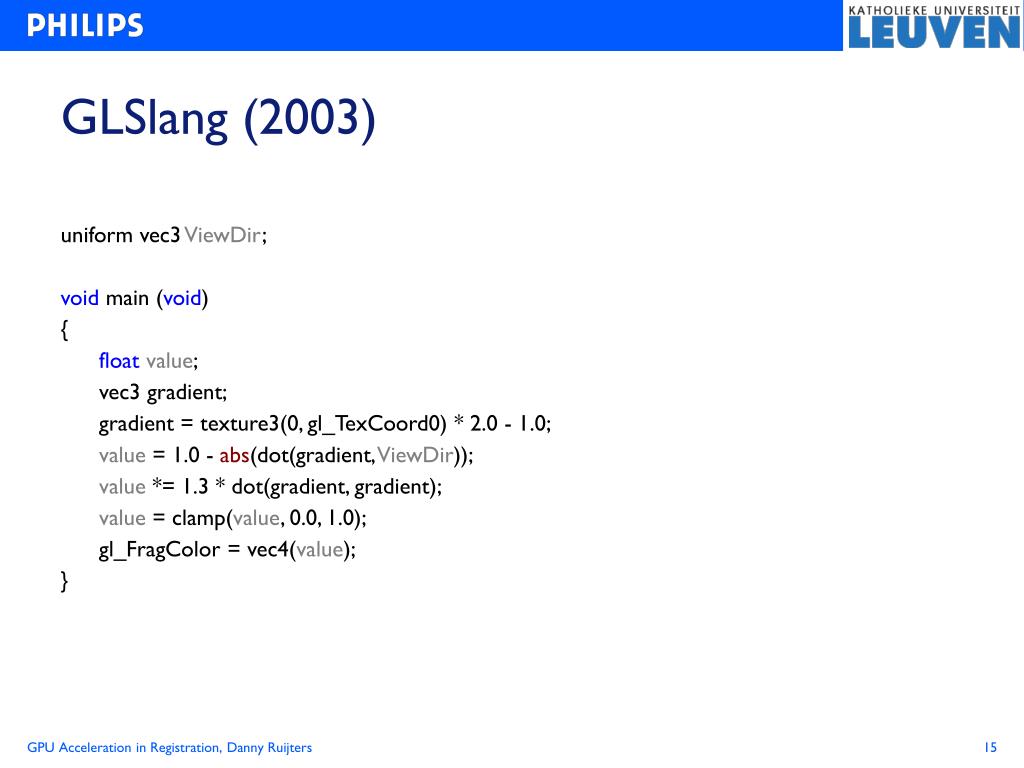

15. GLSlang (2003) uniform vec3 ViewDir; void main (void) { floatvalue; vec3 gradient; gradient = texture3(0, gl_TexCoord0) * 2.0 - 1.0; value = 1.0 - abs(dot(gradient, ViewDir)); value *= 1.3 * dot(gradient, gradient); value = clamp(value, 0.0, 1.0); gl_FragColor = vec4(value); }

16. CUDA (2007) • Compute Unified Device Architecture • General purpose C-like language • nVidia only • Very recently released

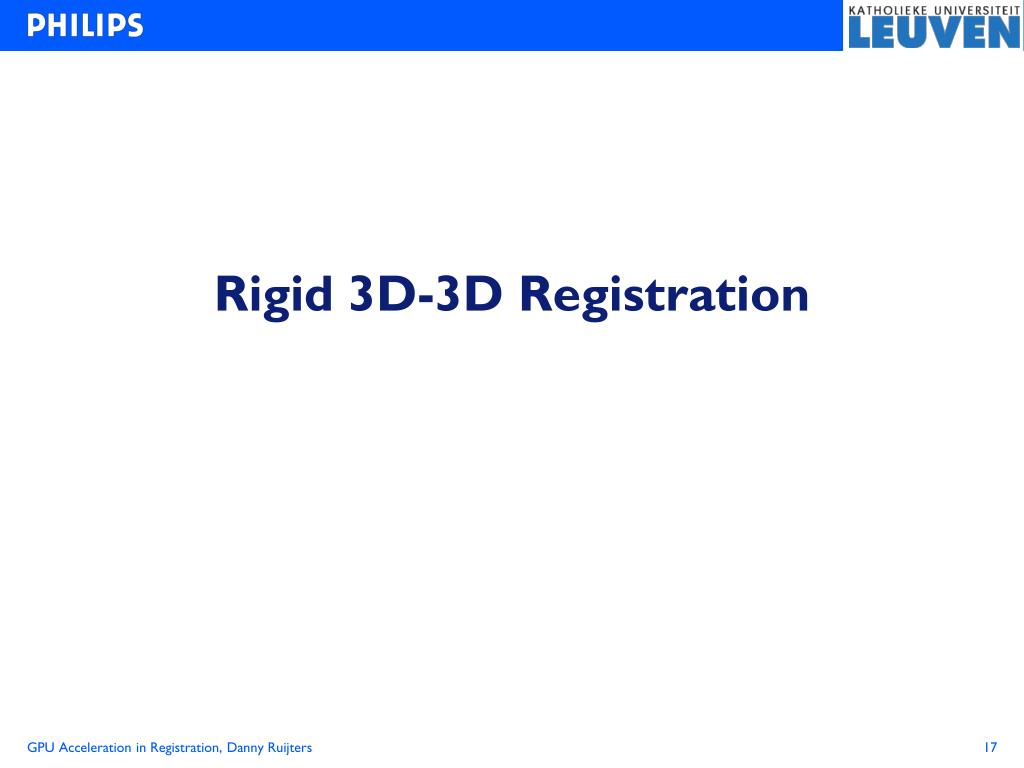

17. Rigid 3D-3D Registration

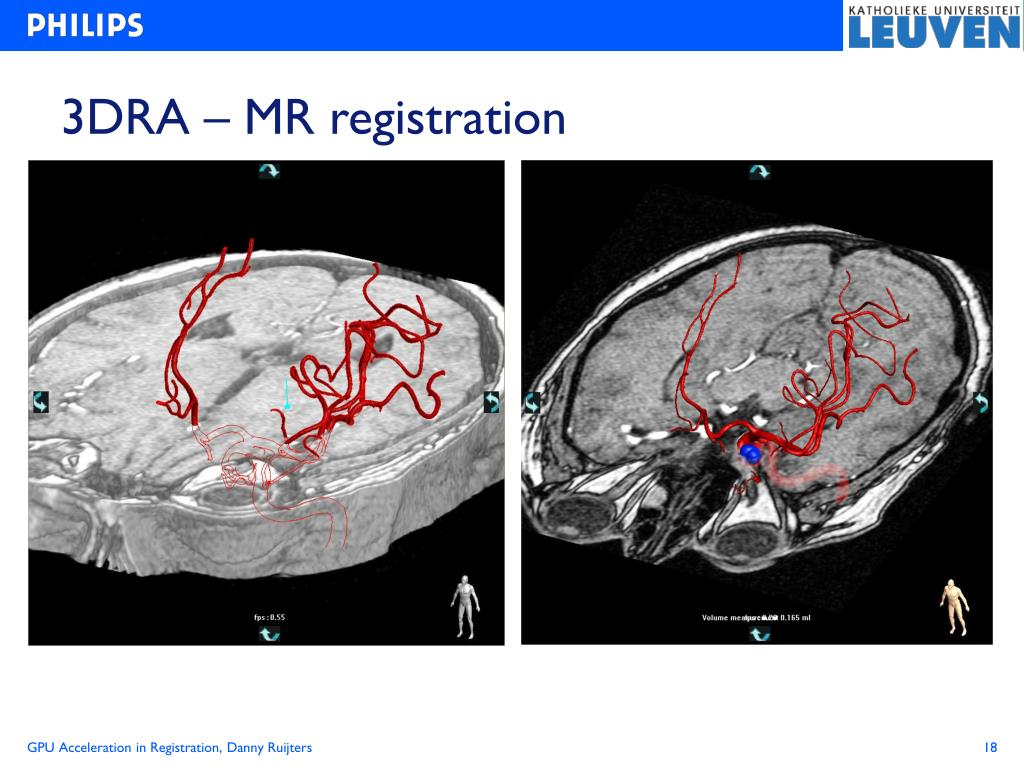

18. 3DRA – MR registration

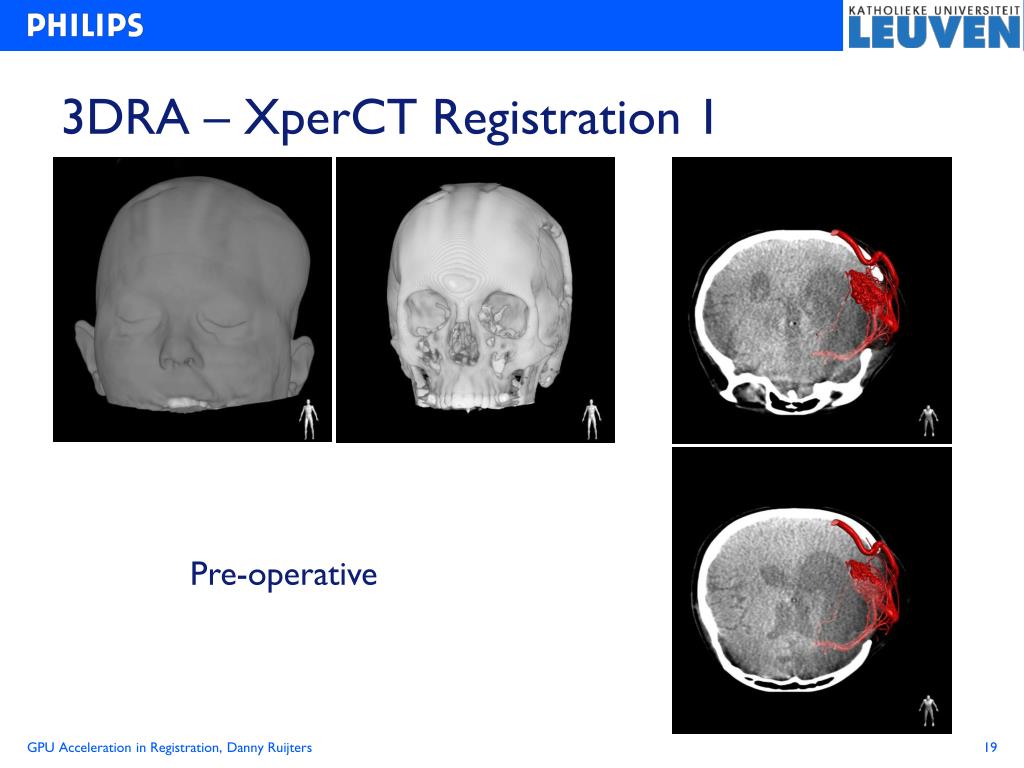

19. 3DRA – XperCT Registration 1 Pre-operative

20. 3DRA – XperCT Registration 2 Post-operative: verification of the embolization

21. 3DRA Slice

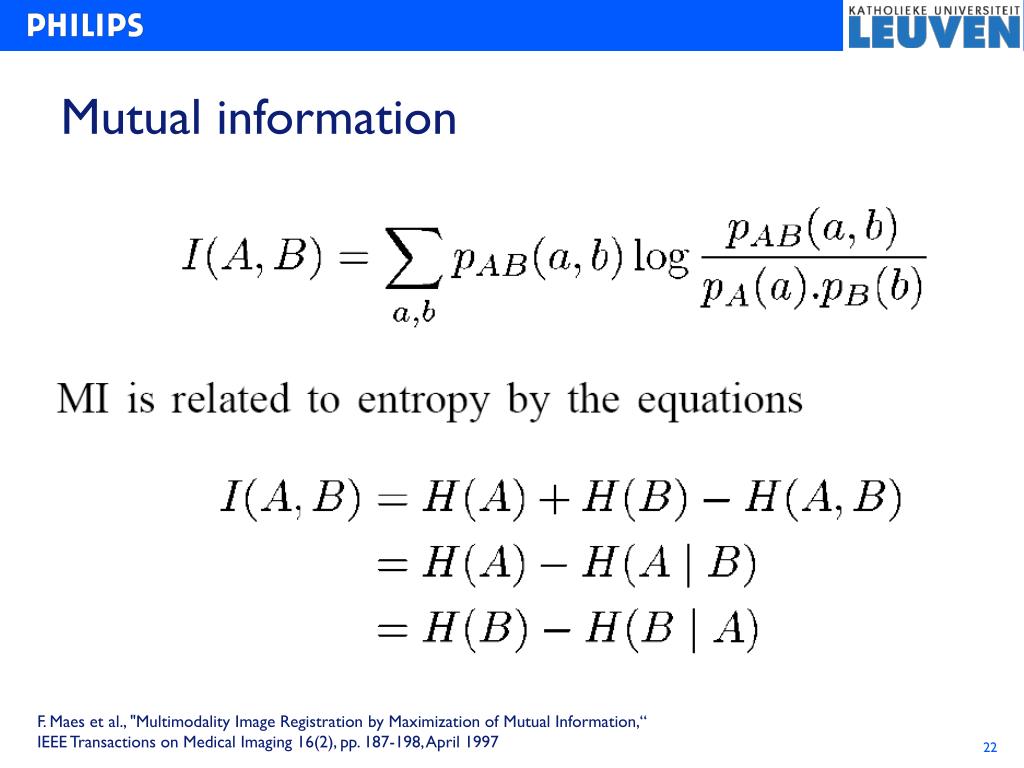

22. Mutual information F. Maes et al., "Multimodality Image Registration by Maximization of Mutual Information,“ IEEE Transactions on Medical Imaging 16(2), pp. 187-198, April 1997

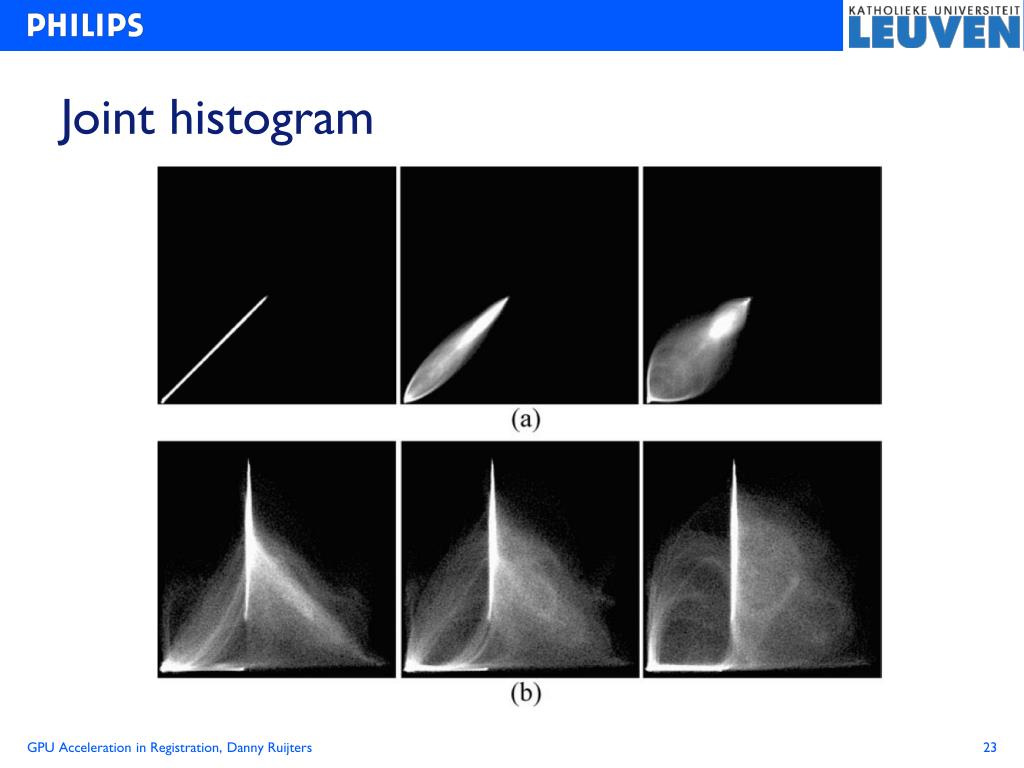

23. Joint histogram

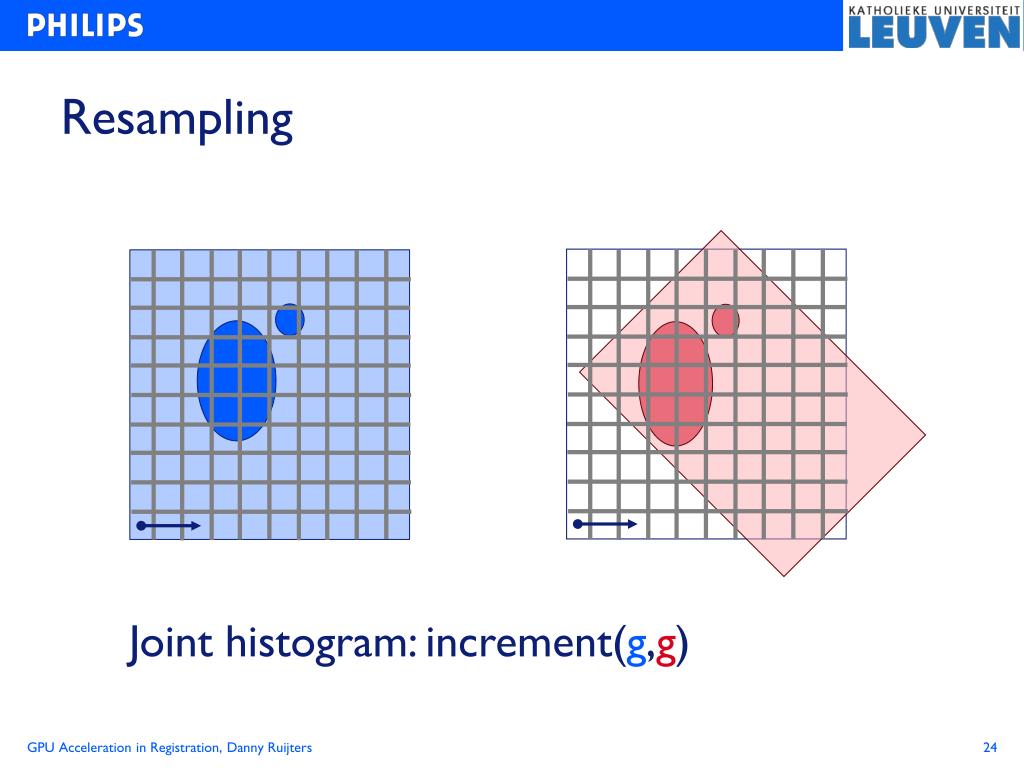

24. Resampling Joint histogram: increment(g,g)

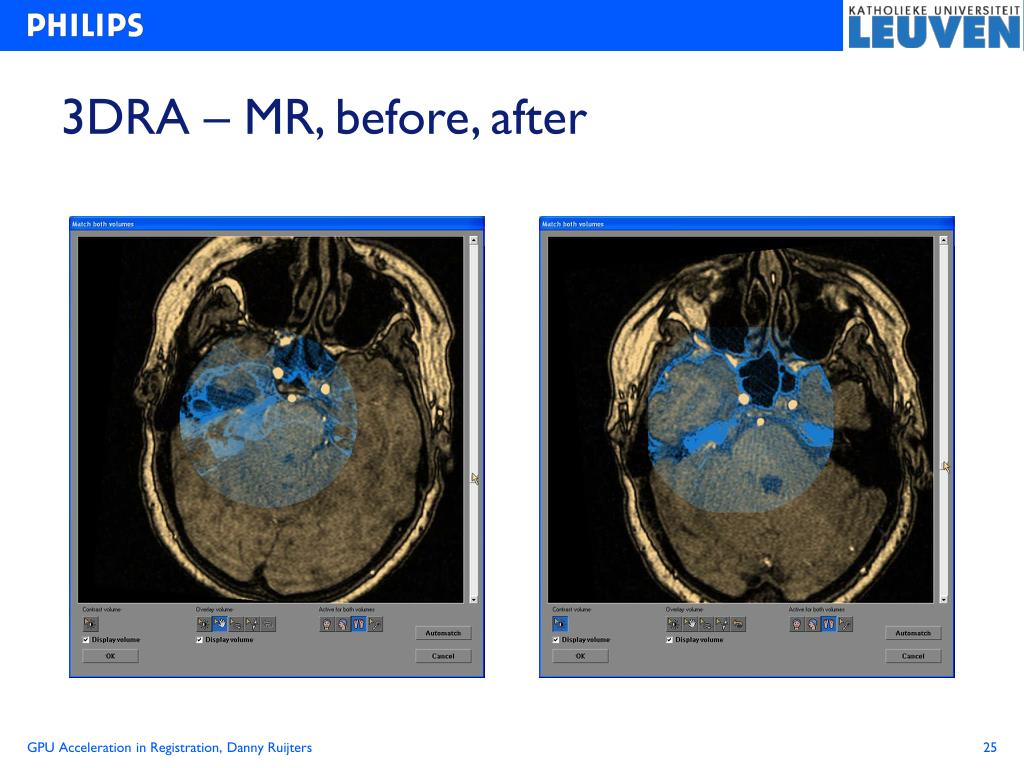

25. 3DRA – MR, before, after

26. 3DRA – MR: CPU interpolation

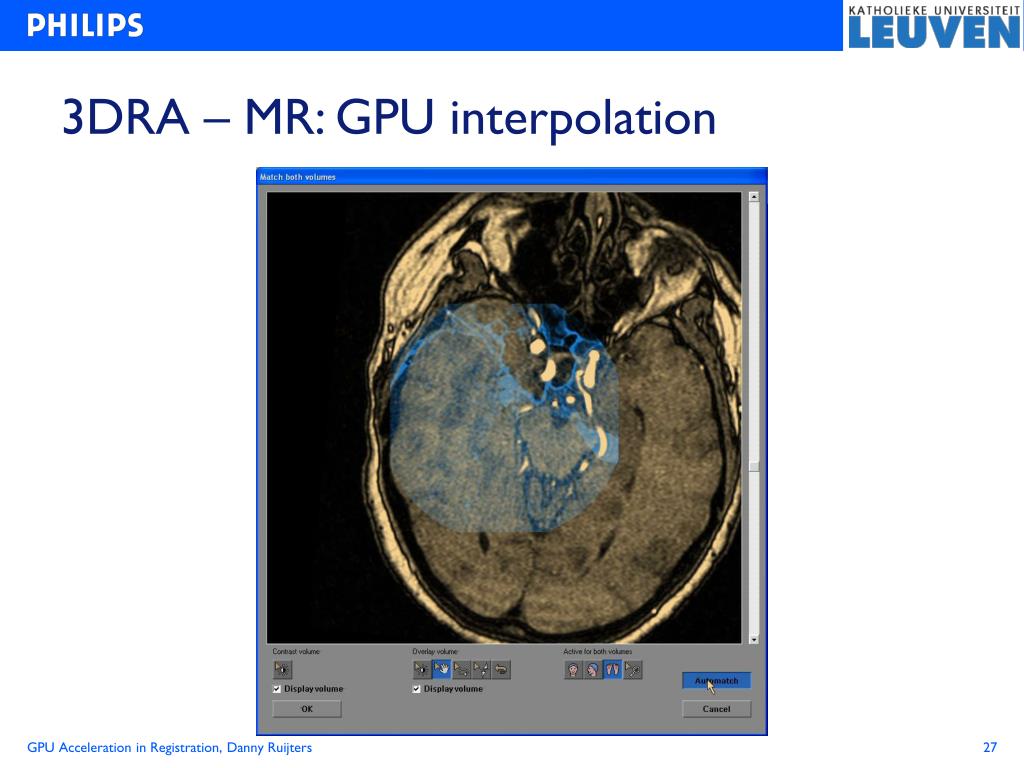

27. 3DRA – MR: GPU interpolation

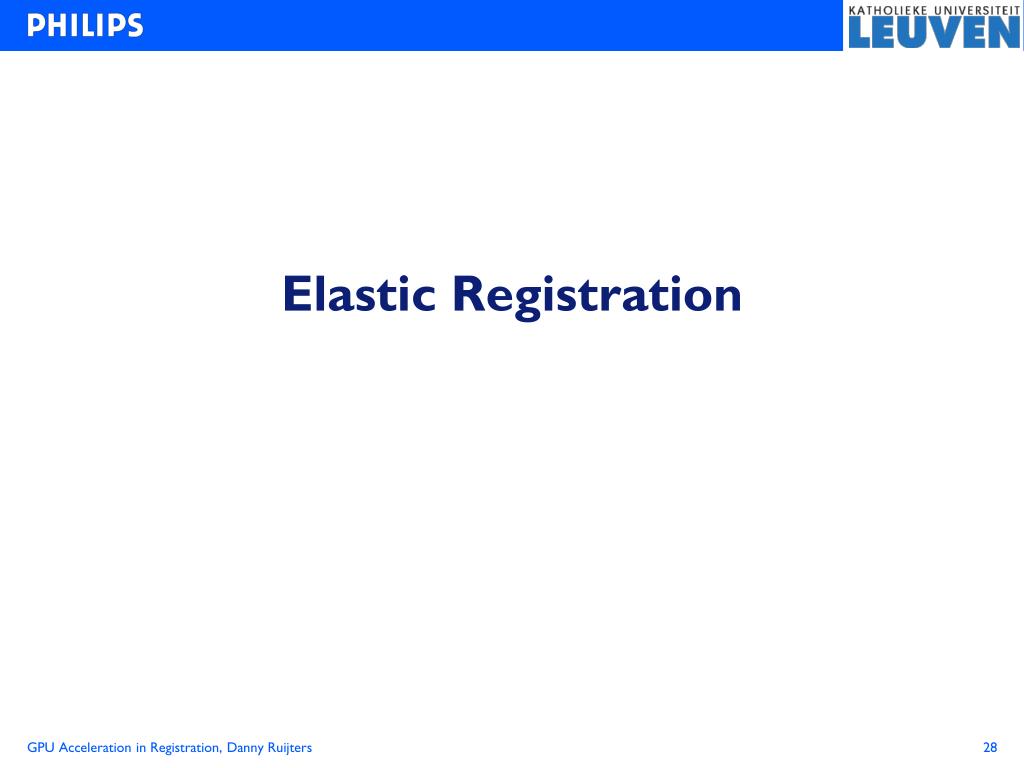

28. Elastic Registration

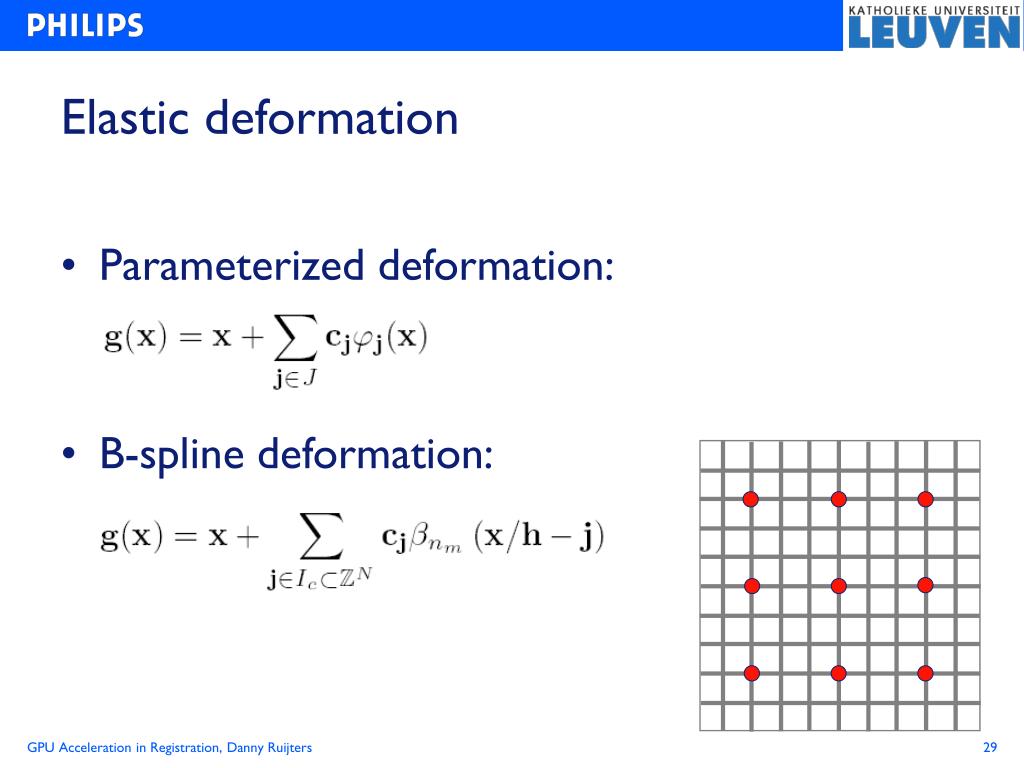

29. Elastic deformation • Parameterized deformation: • B-spline deformation:

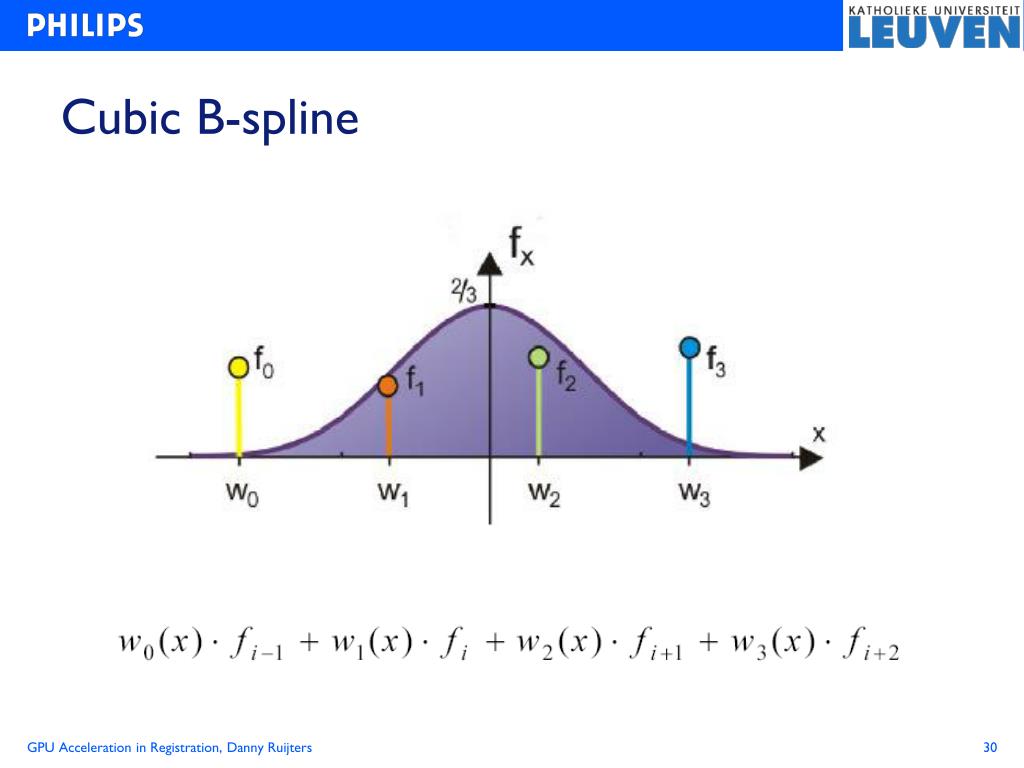

30. Cubic B-spline

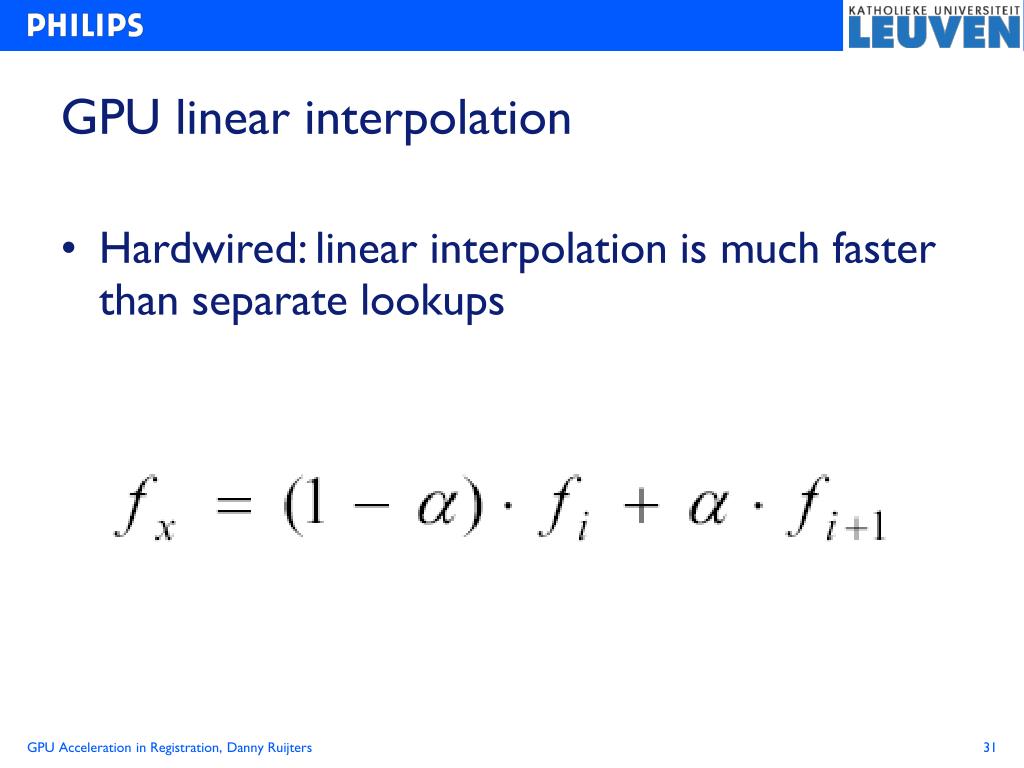

31. GPU linear interpolation • Hardwired: linear interpolation is much faster than separate lookups

32. = GPU Cubic Interpolation • Compose cubic interpolation from weighted sum of linear interpolations: C. Sigg, M. Hadwiger, “Fast Third-Order Texture Filtering”, GPU Gems 2

33. = Outline of proof

34. GPU Cubic Interpolation • 2D: 4 linear-interpolated lookups, instead of 16 direct lookups • 3D: 8 linear-interpolated lookups, instead of 64 direct lookups

35. GPU Linear Interpolation Accuracy

36. Linear deformation, linear interpolation

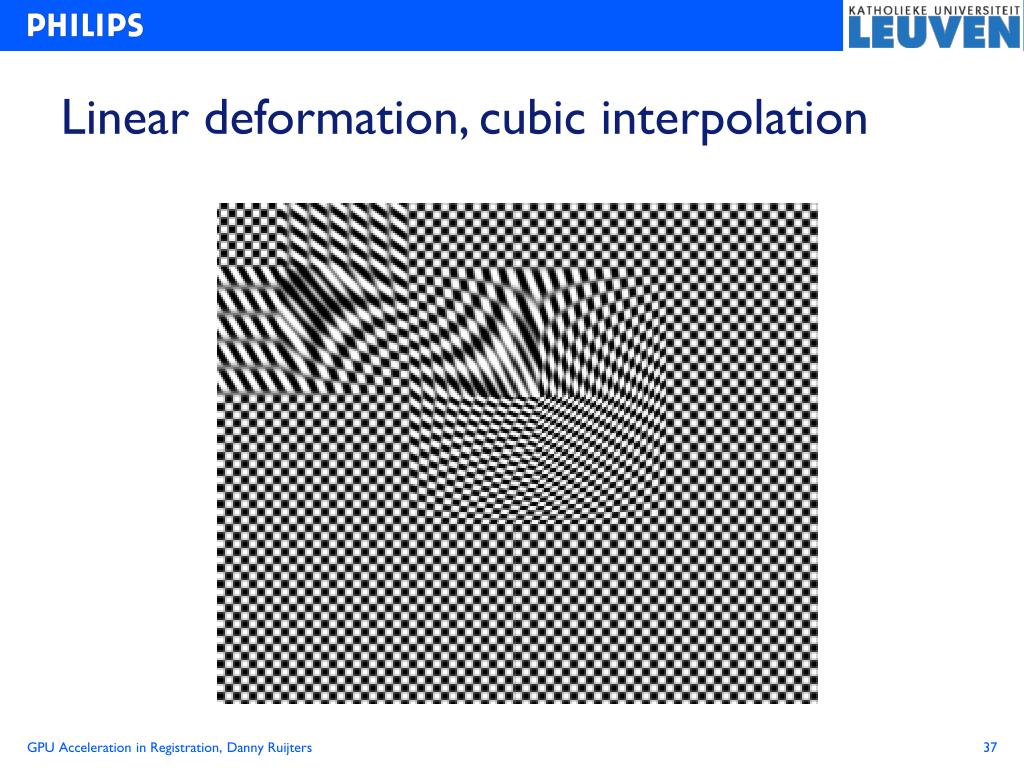

37. Linear deformation, cubic interpolation

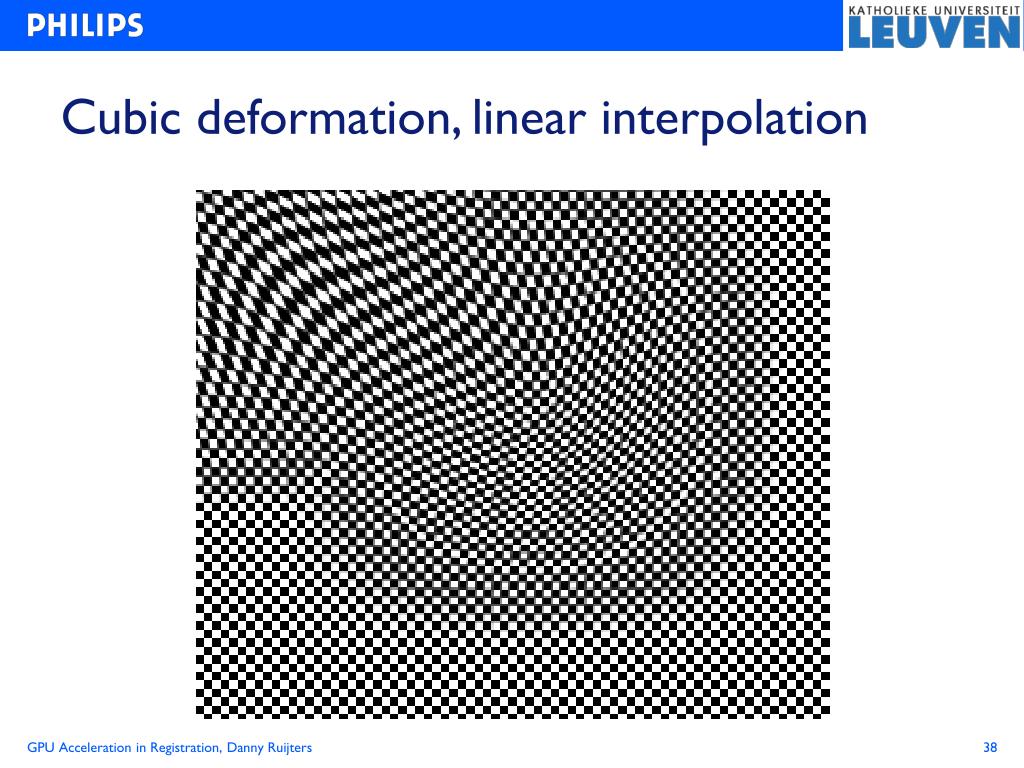

38. Cubic deformation, linear interpolation

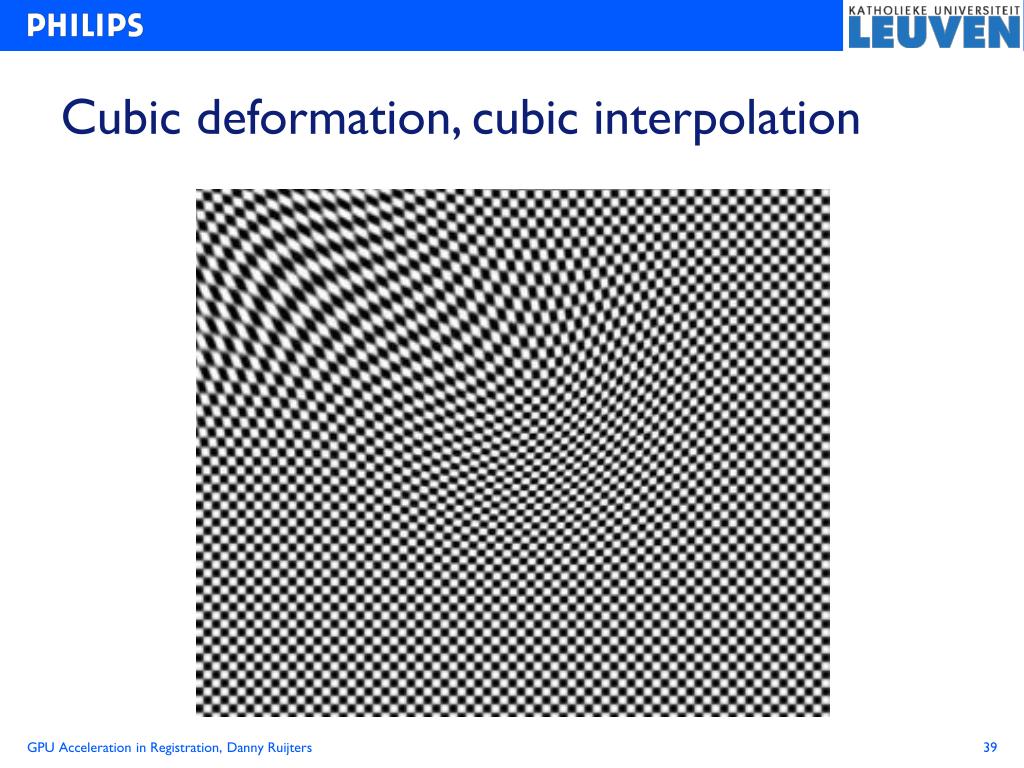

39. Cubic deformation, cubic interpolation

40. Optimization • Many parameters: huge parameter space • Solution: use derivatives like Jacobian, Hessian • Examples: Gradient Descent, Quasi-Newton, Levenberg-Marquardt

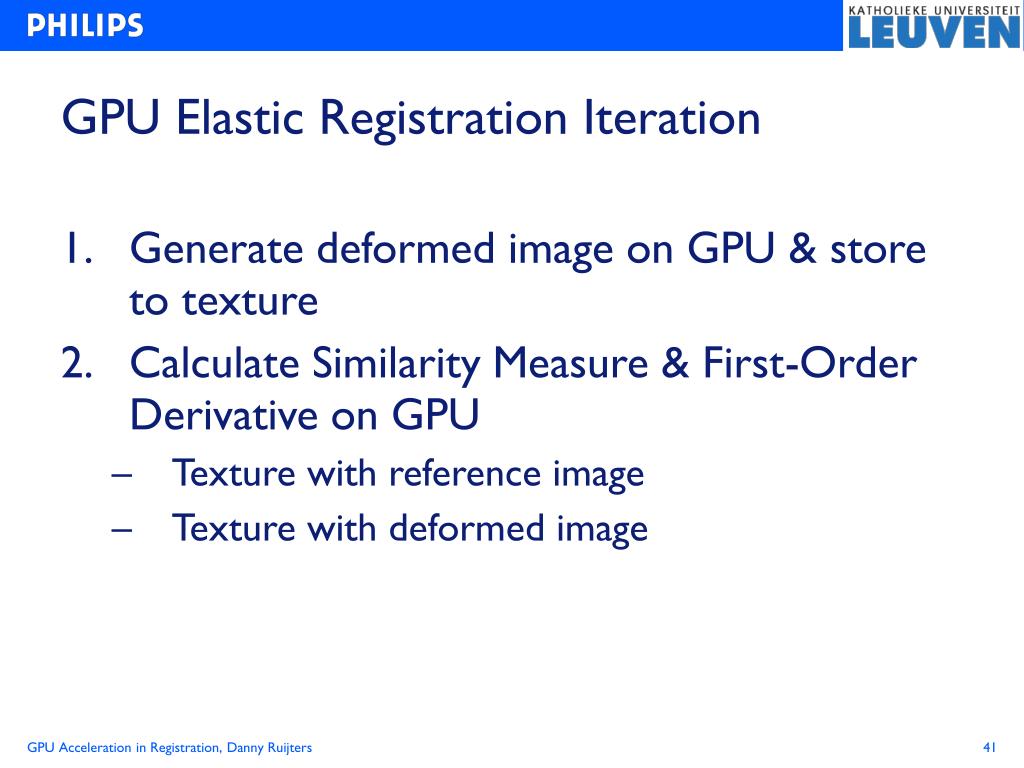

41. GPU Elastic Registration Iteration • Generate deformed image on GPU & store to texture • Calculate Similarity Measure & First-Order Derivative on GPU • Texture with reference image • Texture with deformed image

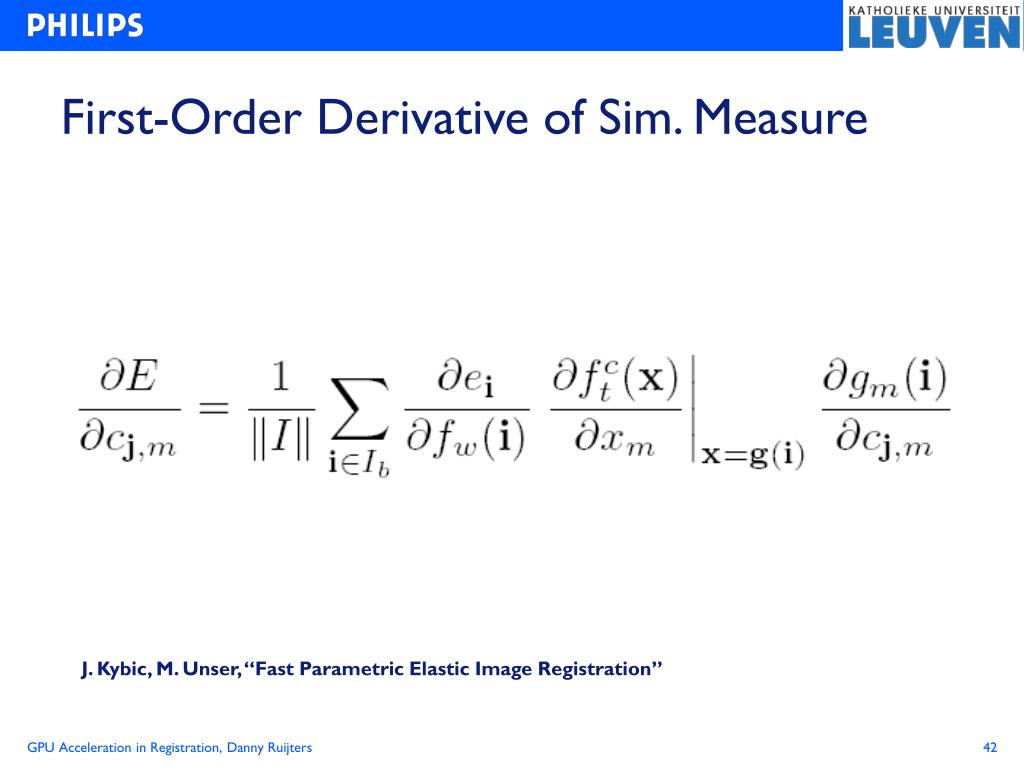

42. First-Order Derivative of Sim. Measure J. Kybic, M. Unser, “Fast Parametric Elastic Image Registration”

43. Derivative of the Similarity Measure SSD:

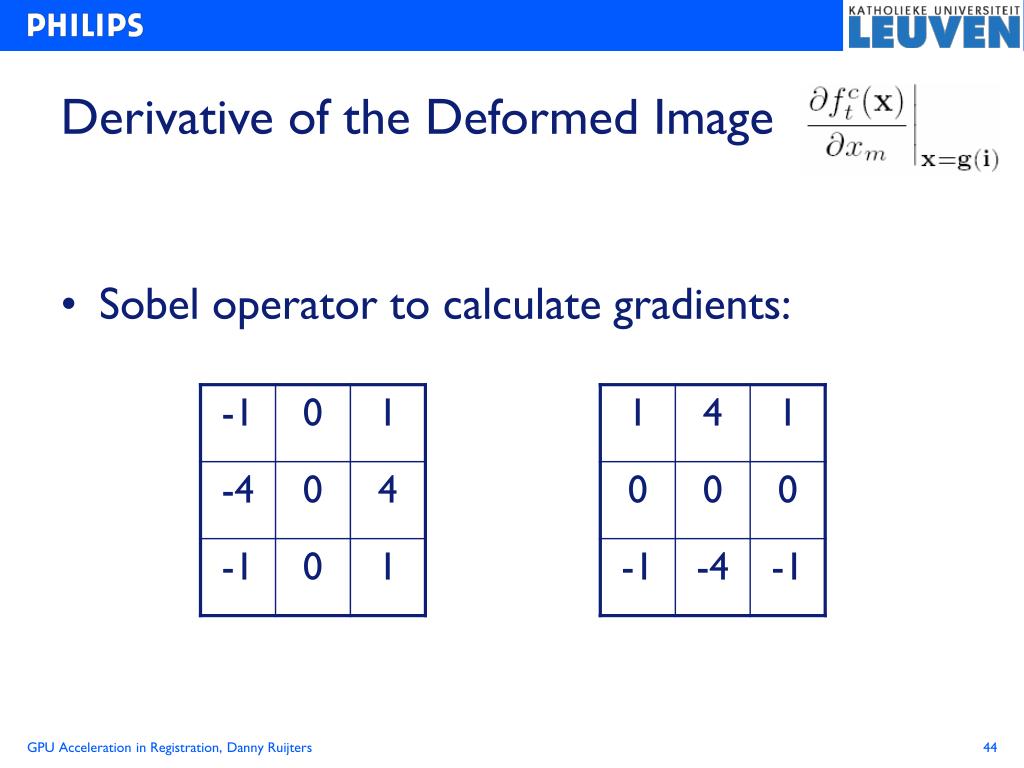

44. Derivative of the Deformed Image • Sobel operator to calculate gradients:

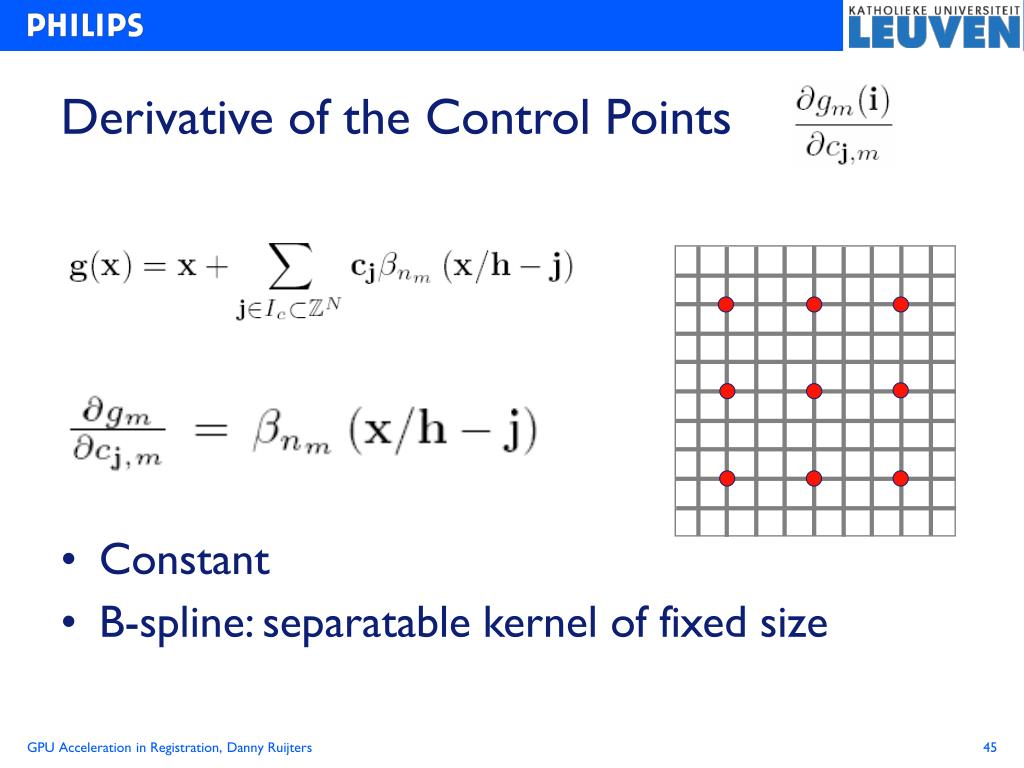

45. Derivative of the Control Points • Constant • B-spline: separatable kernel of fixed size

46. Original Fluoroscopy Sequence

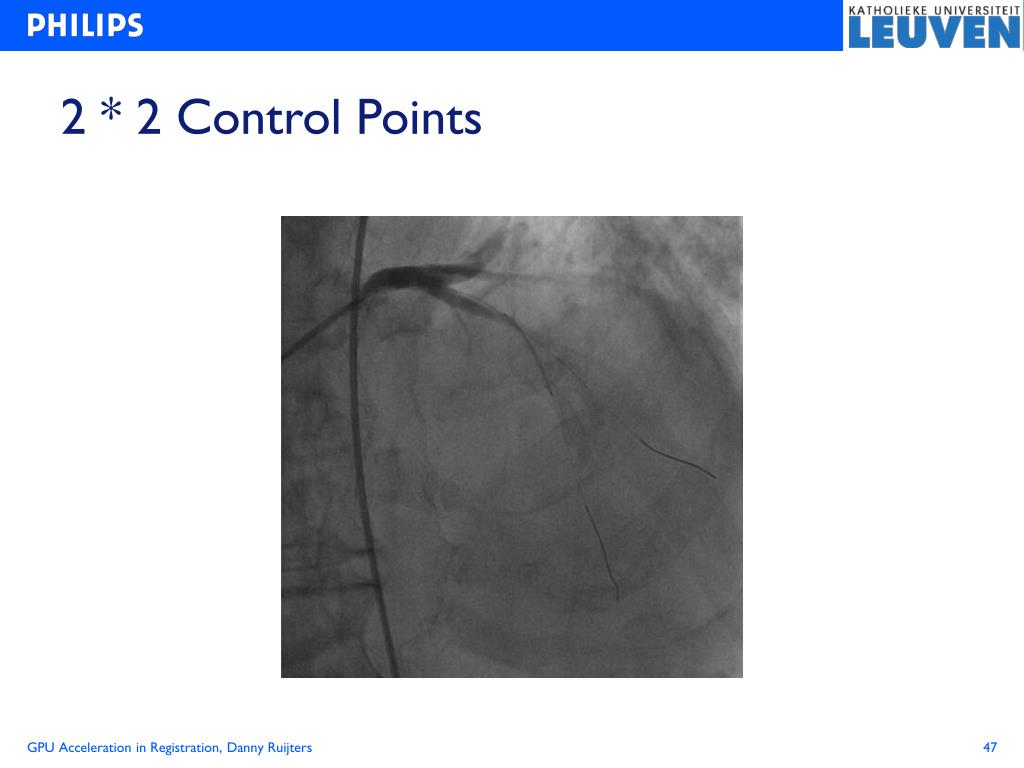

47. 2 * 2 Control Points

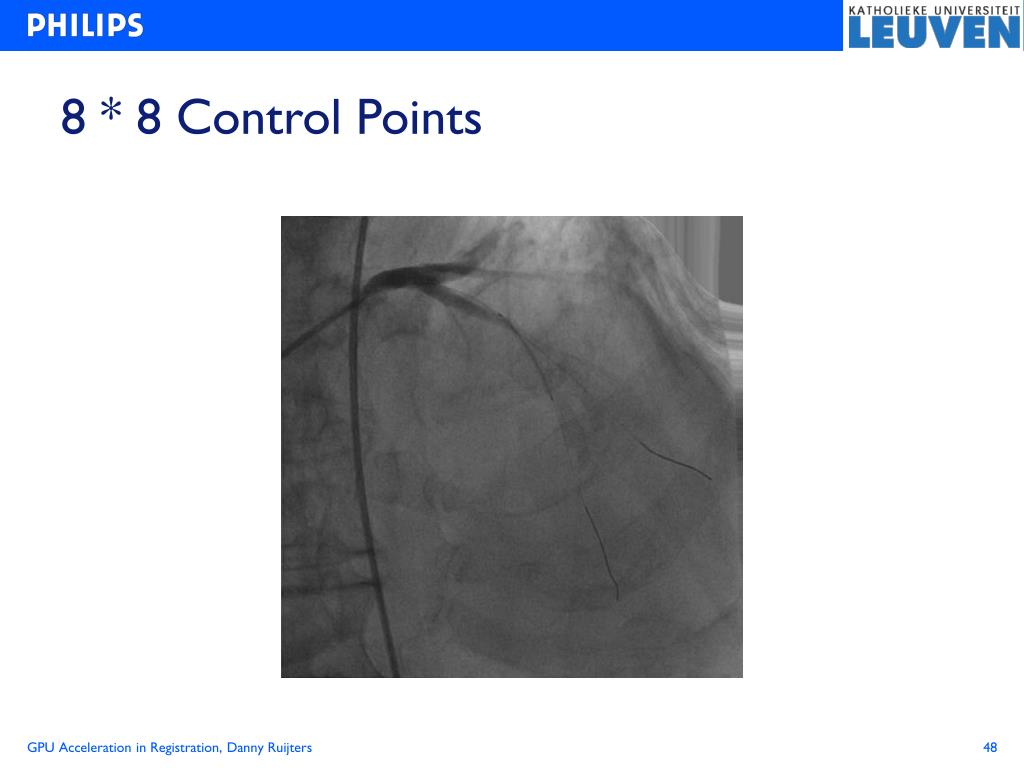

48. 8 * 8 Control Points

49. Deformation Field

50. GPU Elastic Registration • 40 images: Quasi Newton: 16 seconds • Gradient Descent: 63 seconds • 8 * 8 Control Points: rest motion • Multi-resolution deformation field, with reduced parameters (discussed with Dirk Loeckx)
