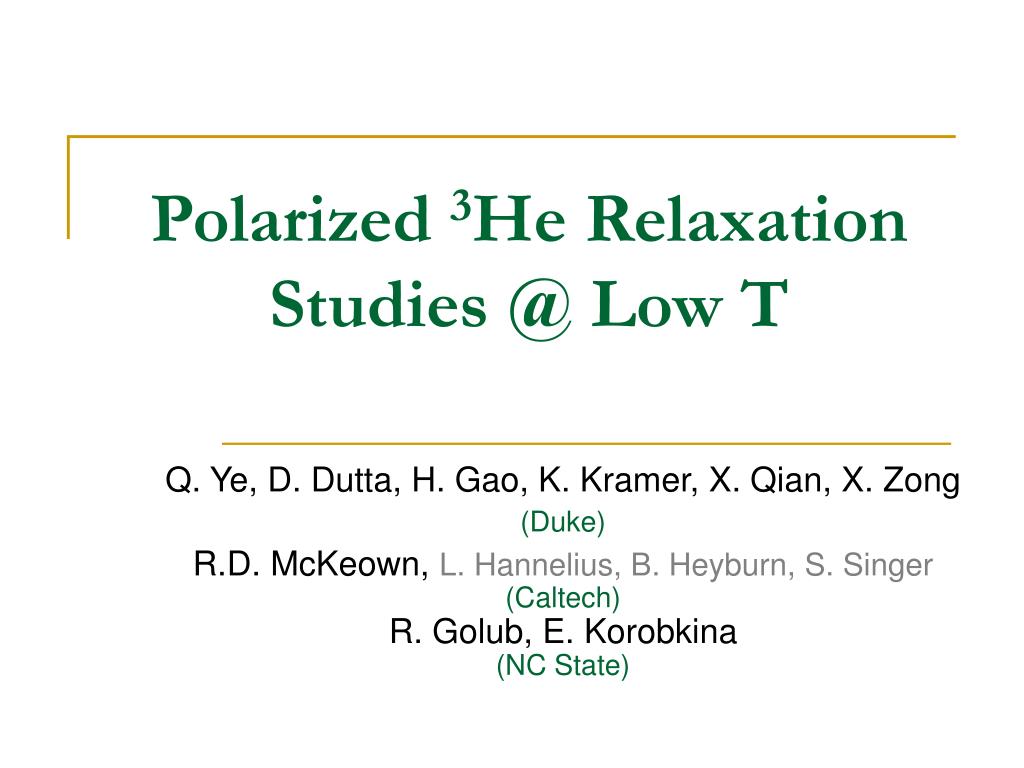

Polarized 3He Relaxation Studies @ Low T

Q. Ye, D. Dutta, H. Gao, K. Kramer, X. Qian, X. Zong

(Duke)

R.D. McKeown, L. Hannelius, B. Heyburn, S. Singer(Caltech) R. Golub, E. Korobkina(NC State)

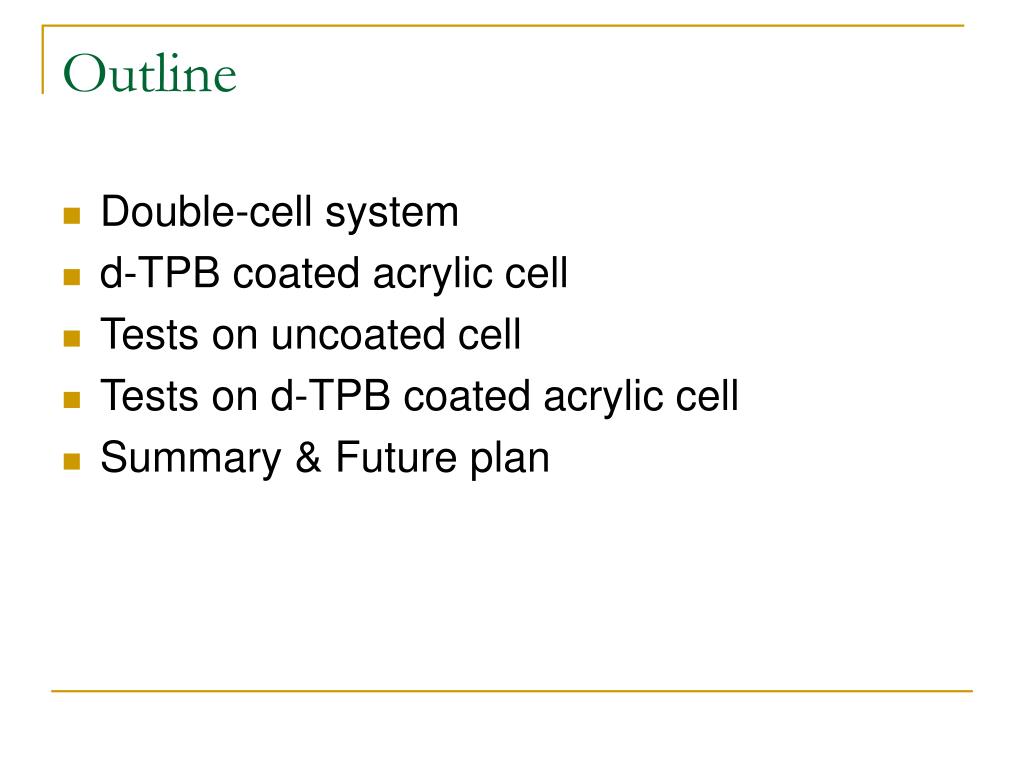

Outline

Outline

  • Double-cell system

  • d-TPB coated acrylic cell

  • Tests on uncoated cell

  • Tests on d-TPB coated acrylic cell

  • Summary & Future plan


Double cell system

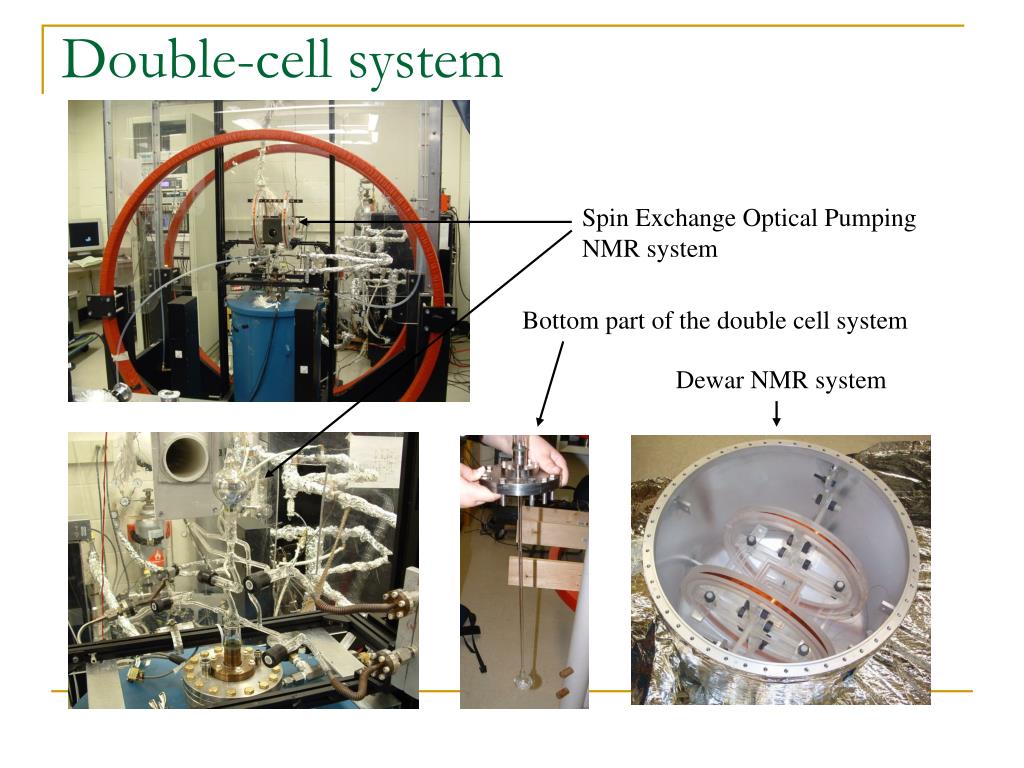

Double-cell system

Spin Exchange Optical PumpingNMR system

Bottom part of the double cell system

Dewar NMR system


Spin exchange optical pumping seop

Spin Exchange Optical Pumping (SEOP)

  • 37Rb:

  • Rb vapor in a weak B field is optically pumped

  • Spin exchange with 3He gas

1s22s22p63s23p64s23d104p65s1

Rb heated to 1800C, holding field 7G or 21G

Buffer gas N2 let the electrons decay without emitting photons


Nmr polarimetry adiabatic fast passage

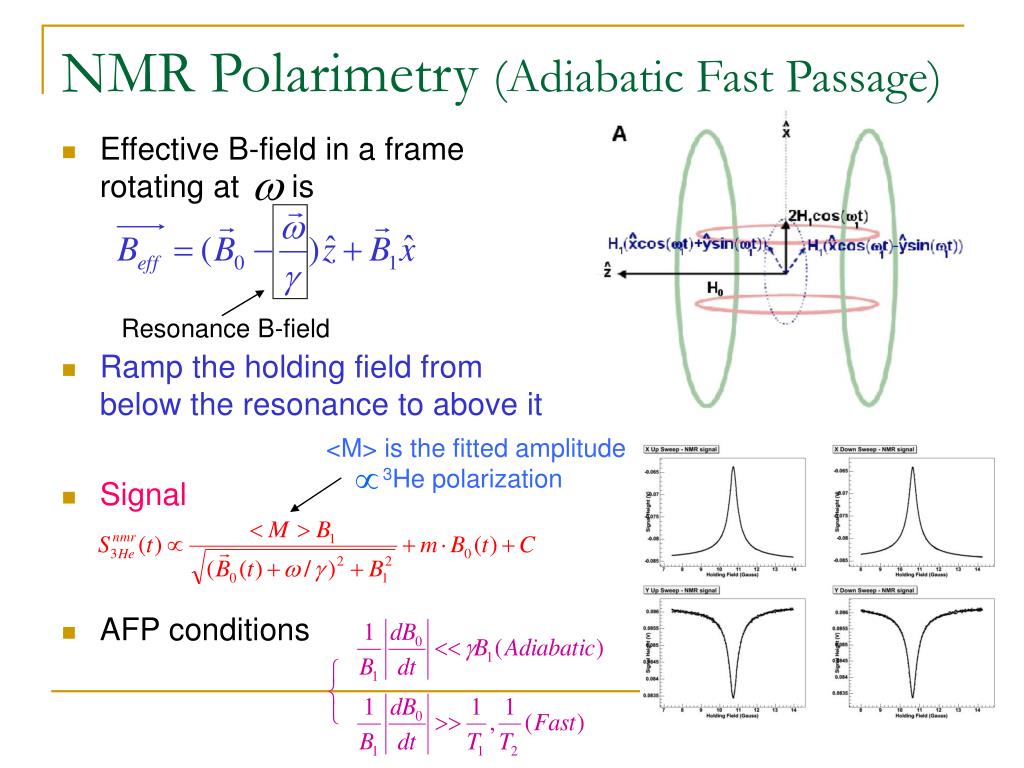

NMR Polarimetry (Adiabatic Fast Passage)

  • Effective B-field in a framerotating at is

  • Ramp the holding field from below the resonance to above it

  • Signal

  • AFP conditions

Resonance B-field

<M> is the fitted amplitude3He polarization


Good acrylic cell attached

Good acrylic cell attached

About 1.5mm clearance, should minimize the use of d-TPB.

5.08cm

3.68cm


Tests with acrylic cells

Tests with acrylic cells

  • Test with an uncoated acrylic cell (Jul.-Sep.)

  • Coated the cell with protonated material (trial)

  • Coated two cells with d-TPB material and tested them - Cell 1 (Oct. – Nov.)- Cell 2 (Nov. – Now)


Results from top glass cell

Results from top glass cell

3He 0.0014mol N2 1.9e-4mol

3He 0.0041mol N2 2.8e-4mol

300K, 21G


Results from uncoated acrylic cell

Results from uncoated acrylic cell

21G, 2.05K, fix 3He amount, vary 4He amount


Results from uncoated acrylic cell1

Results from uncoated acrylic cell

fix 3He: 4He= 0.0014mol:0.081molvary B-field & Temperature


Results from d tpb coated acrylic cell

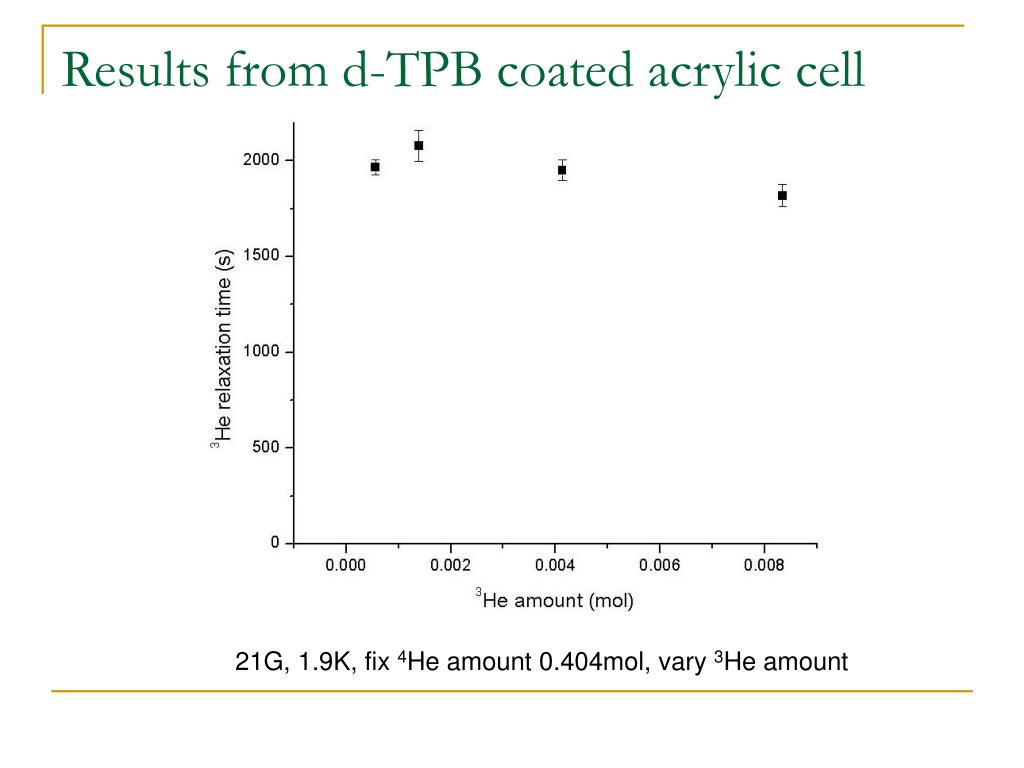

Results from d-TPB coated acrylic cell

21G, 1.9K, fix 4He amount 0.404mol, vary 3He amount


Results from d tpb coated acrylic cell1

Need more tests to verify

Results from d-TPB coated acrylic cell

Measured after one month

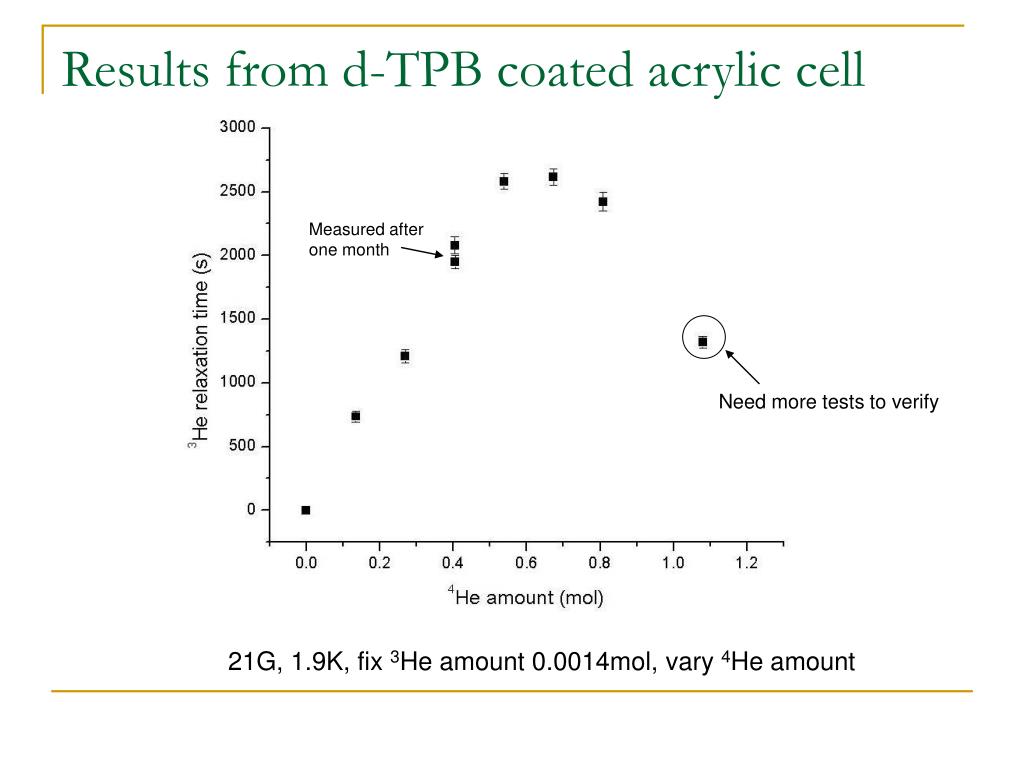

21G, 1.9K, fix 3He amount 0.0014mol, vary 4He amount


4 he layer calculation

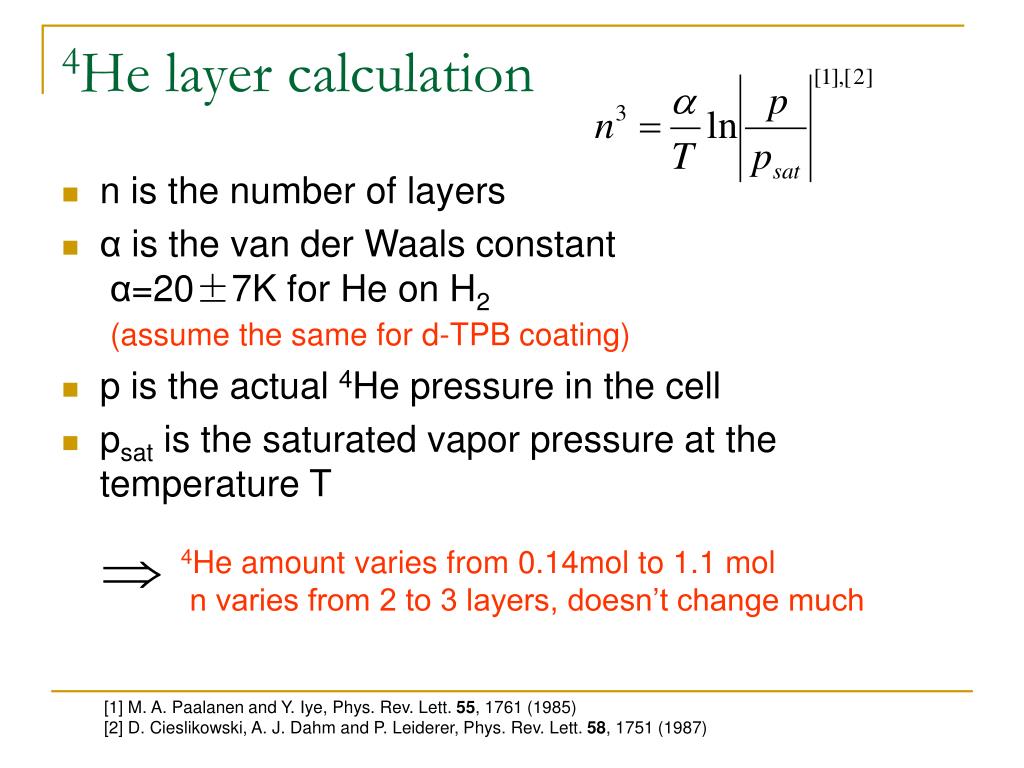

4He layer calculation

  • n is the number of layers

  • α is the van der Waals constantα=20±7K for He on H2(assume the same for d-TPB coating)

  • p is the actual 4He pressure in the cell

  • psat is the saturated vapor pressure at the temperature T

4He amount varies from 0.14mol to 1.1 mol

n varies from 2 to 3 layers, doesn’t change much

[1] M. A. Paalanen and Y. Iye, Phys. Rev. Lett. 55, 1761 (1985)

[2] D. Cieslikowski, A. J. Dahm and P. Leiderer, Phys. Rev. Lett. 58, 1751 (1987)


Discussion of the data

Wall relaxation time, no bottom(a constant Tmax)

Diffusion time from the liquid surface to the bottom

The top and the side are coated with 4He layers

Gas 3He

Liquid 4He

Discussion of the data

  • Bob Golub’s model

  • Assume cell bottom is bad surface

  • D ~ 1e-4 cm2/s


Discussion of the data1

The top and the side are coated with 4He layers

Gas 3He

Liquid 4He

Discussion of the data

  • Dipangkar solved the diffusion equation

  • Assume most of the relaxation comes from the bottom when solving for the liquid 4He part

  • As more 4He is put in, the further 3He is away from the bottom

C1 diffusion constant of the 4He film times the fraction of the surface covered with impuritiesC2 the fraction of area covered with impurities


Discussion of the data2

Need more tests to verify

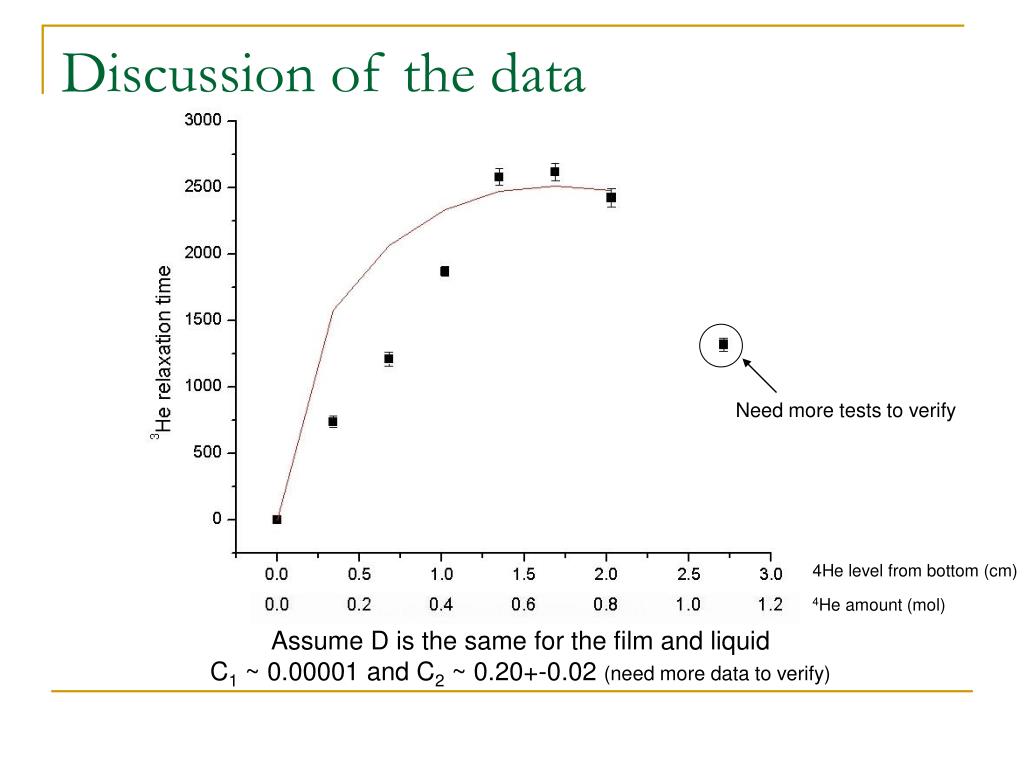

Discussion of the data

4He level from bottom (cm)

4He amount (mol)

Assume D is the same for the film and liquidC1 ~ 0.00001 and C2 ~ 0.20+-0.02 (need more data to verify)


Discussion of the data3

Discussion of the data

4He level from bottom (cm)

4He amount (mol)

Assume D is the same for the film and liquidFitting all the 8 points, C1 ~ 0.00001 and C2 ~ 0.23+-0.02(need more data to verify)


Summary future plans

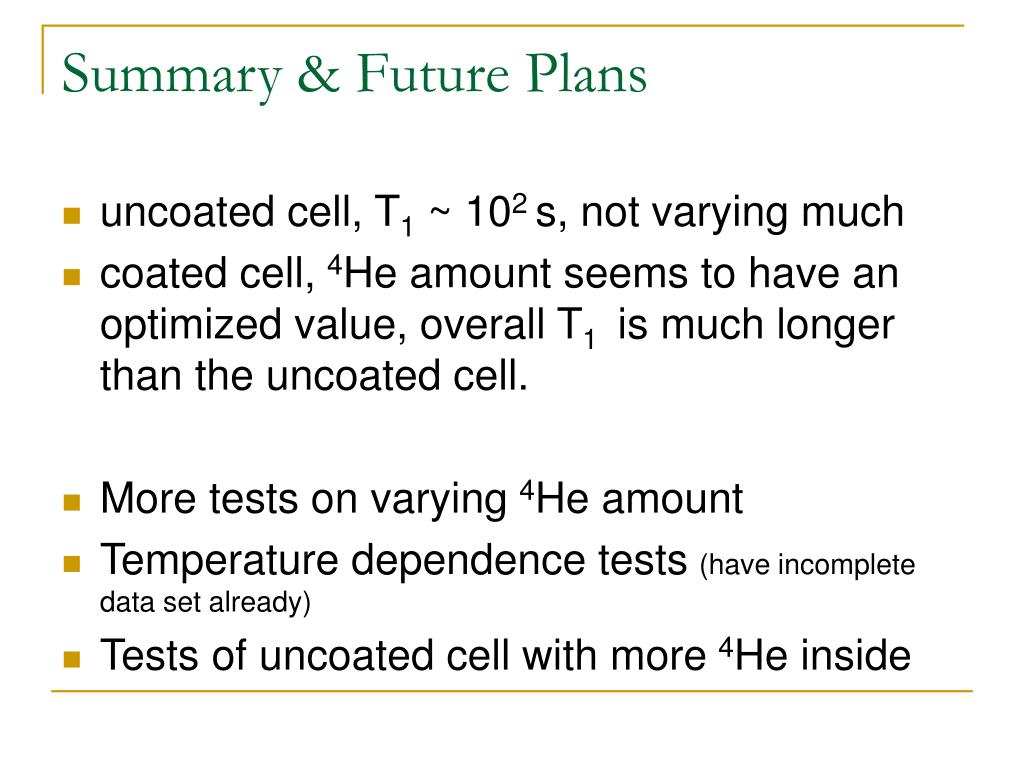

Summary & Future Plans

  • uncoated cell, T1 ~ 102 s, not varying much

  • coated cell, 4He amount seems to have an optimized value, overall T1 is much longer than the uncoated cell.

  • More tests on varying 4He amount

  • Temperature dependence tests (have incomplete data set already)

  • Tests of uncoated cell with more 4He inside


Reference

Reference

[1] M. A. Paalanen and Y. Iye, Phys. Rev. Lett. 55, 1761 (1985)

[2] D. Cieslikowski, A. J. Dahm and P. Leiderer, Phys. Rev. Lett. 58, 1751 (1987)

[3] M. Jimbert and J. Dupont-Roc, J. of Low Temp. Phys. 76, 435 (1989)
