  1. Calculating Resistance in Series and Parallel Circuits Basic Formulas for Rapid Computation of Circuit Resistance

  2. Topics of Discussion • Resistance totaling values, dependent on the circuit structure • Knowing how to calculate resistance depending on circuit structure • Understanding these basics can save valuable time and effort

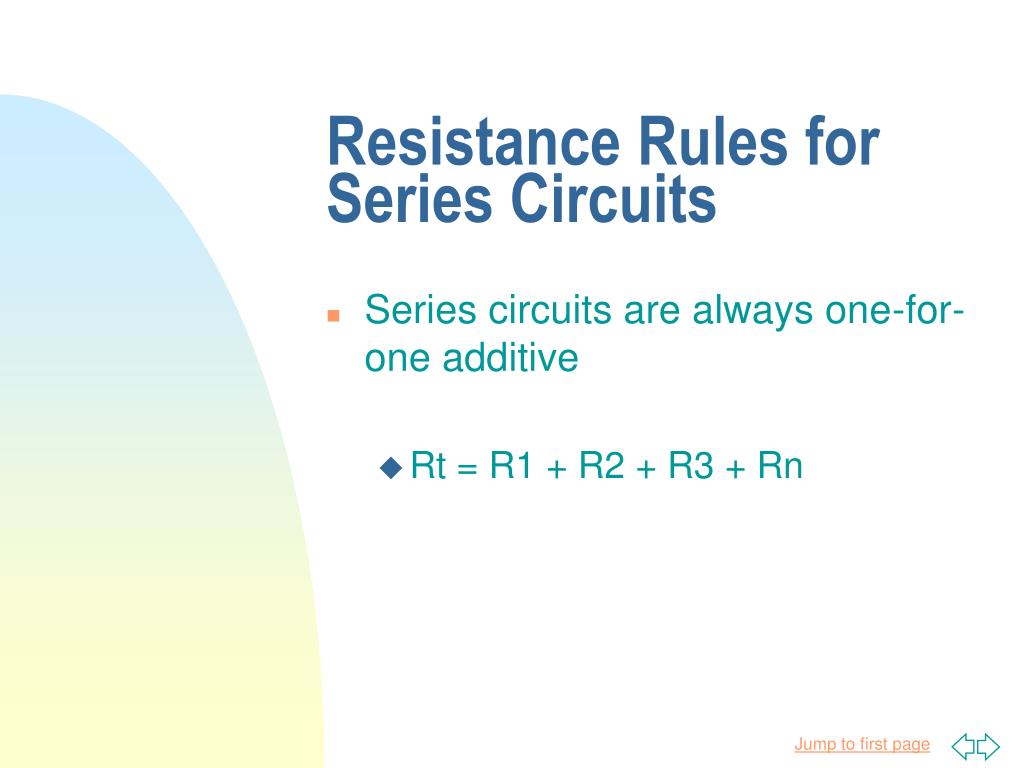

  3. Resistance Rules for Series Circuits • Series circuits are always one-for-one additive • Rt = R1 + R2 + R3 + Rn

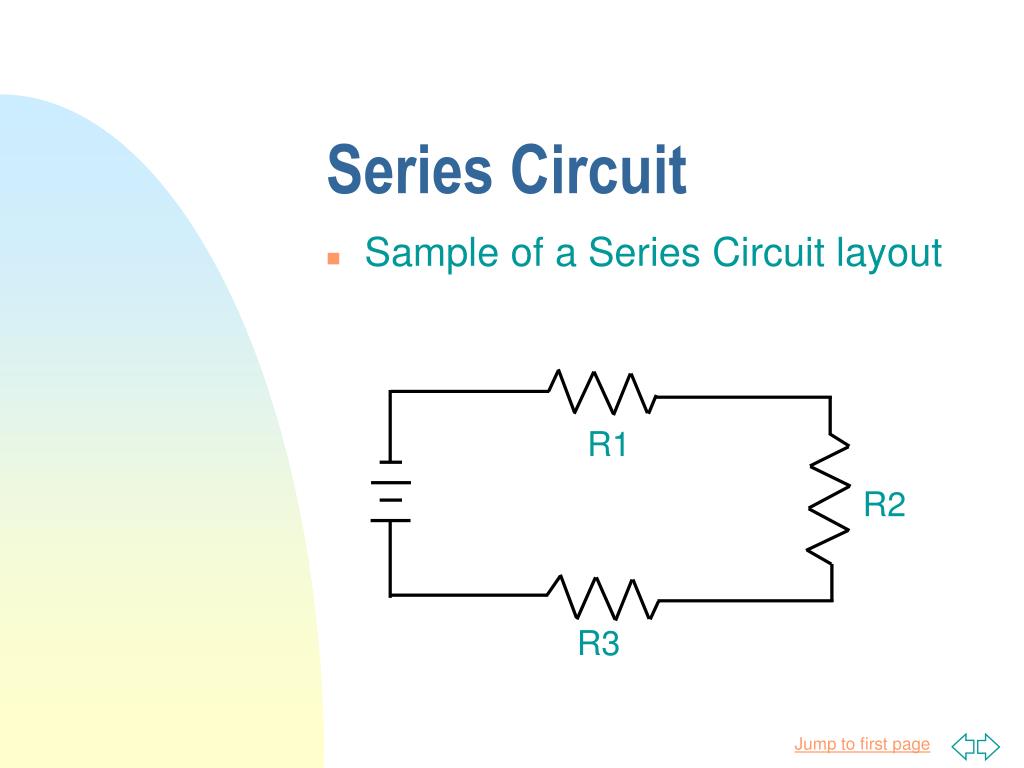

  4. Series Circuit • Sample of a Series Circuit layout R1 R2 R3

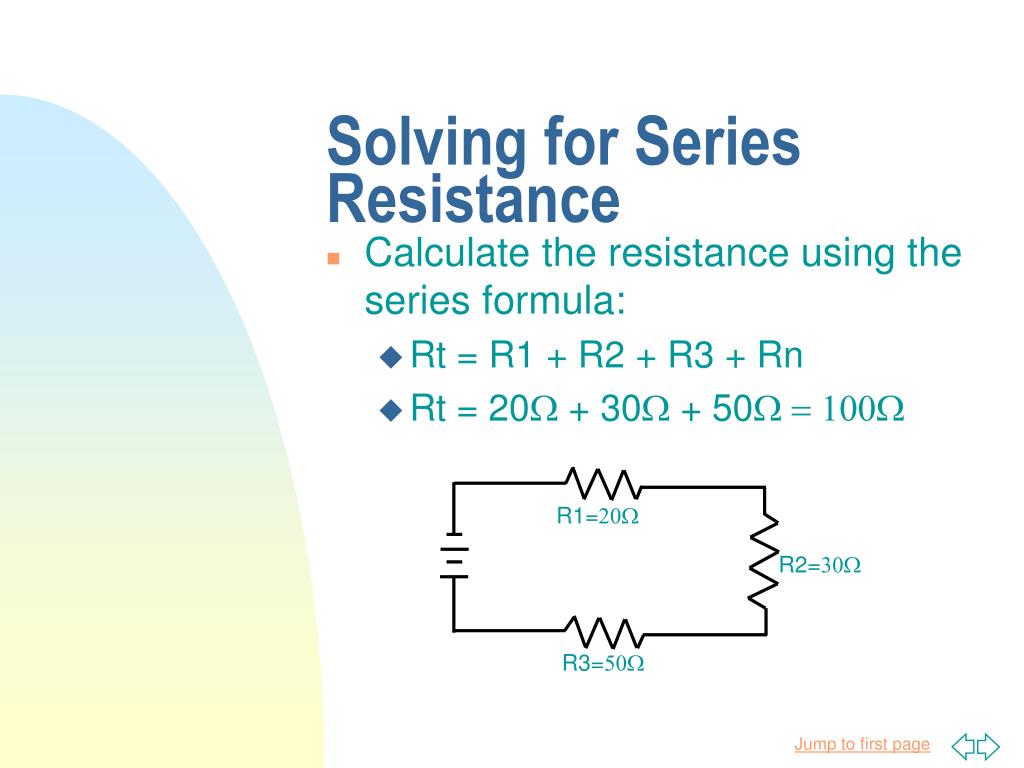

  5. Solving for Series Resistance • Calculate the resistance using the series formula: • Rt = R1 + R2 + R3 + Rn • Rt = 20W + 30W + 50W = 100W R1=20W R2=30W R3=50W

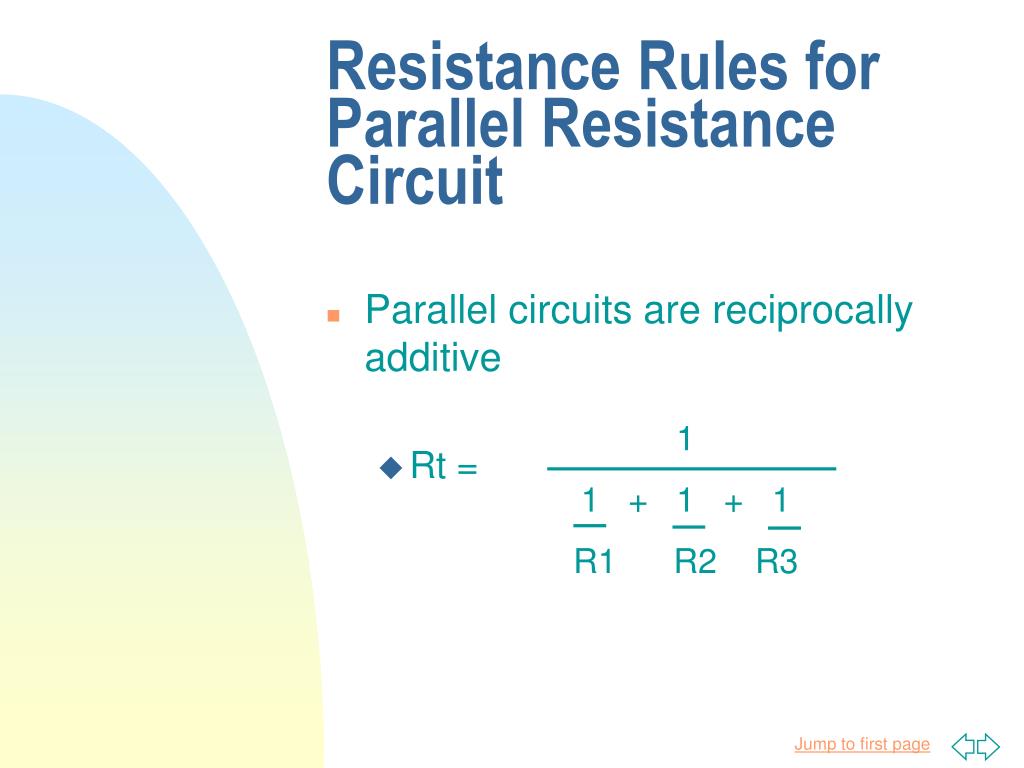

  6. Resistance Rules for Parallel Resistance Circuit • Parallel circuits are reciprocally additive • Rt = 1 1 + 1 + 1 R1 R2 R3

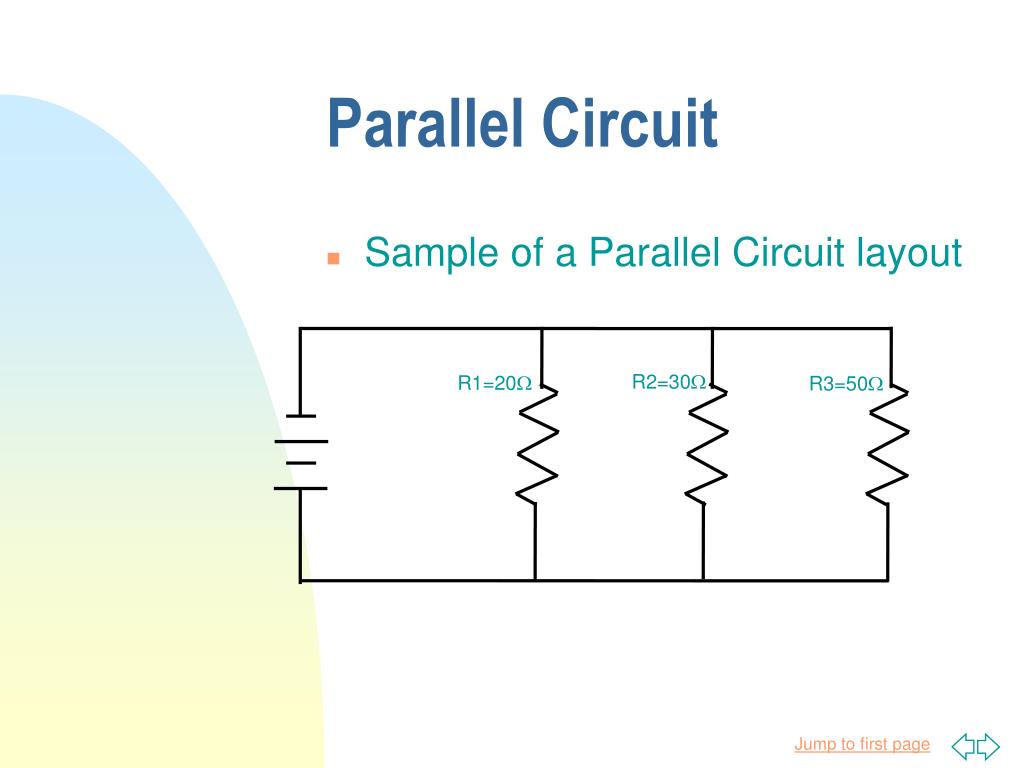

  7. Parallel Circuit • Sample of a Parallel Circuit layout R2=30W R1=20W R3=50W

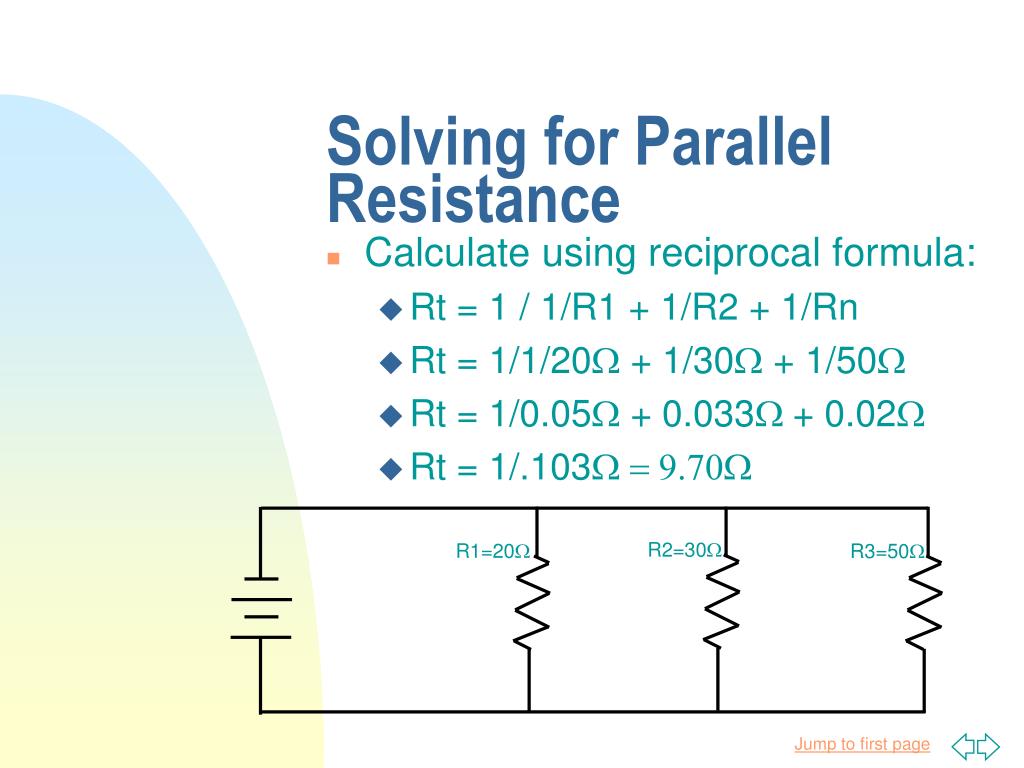

  8. R2=30W R1=20W R3=50W Solving for Parallel Resistance • Calculate using reciprocal formula: • Rt = 1 / 1/R1 + 1/R2 + 1/Rn • Rt = 1/1/20W + 1/30W + 1/50W • Rt = 1/0.05W + 0.033W + 0.02W • Rt = 1/.103W = 9.70W

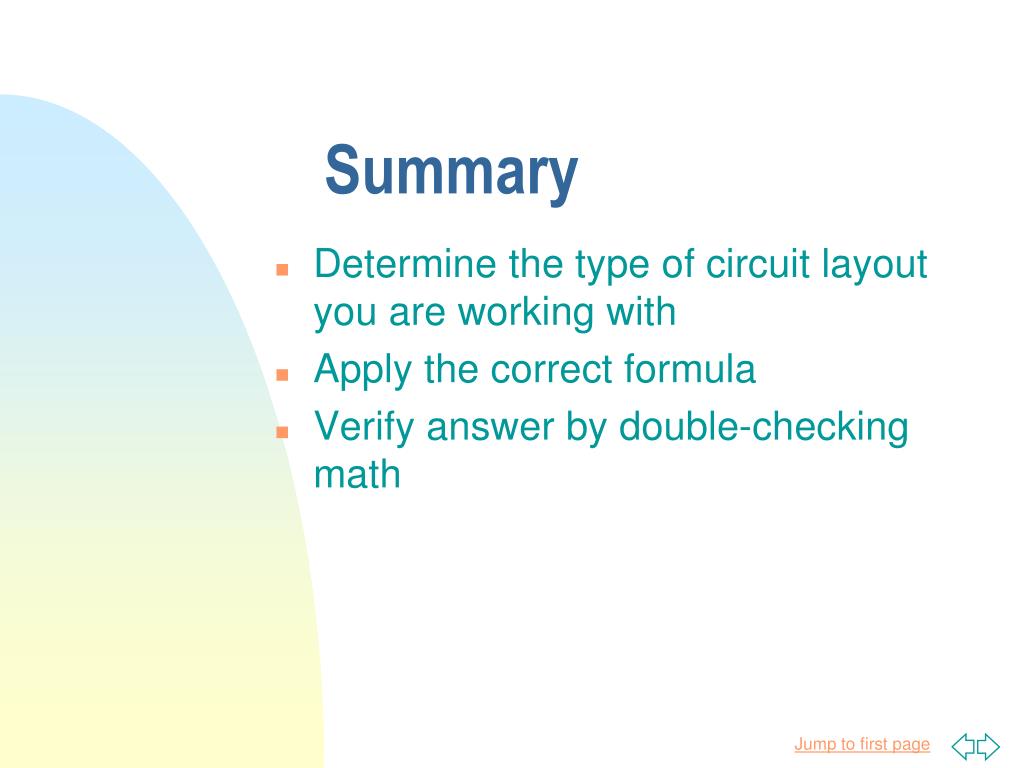

  9. Summary • Determine the type of circuit layout you are working with • Apply the correct formula • Verify answer by double-checking math
