The Heat Equation

Time Dependent Problem. The Heat Equation. time step. Example:. Time Dependent Problem. The Heat Equation. Weak Formulation ( variational formulation). Fix a time t. Multiply equation (1) by and then integrate over the domain. Green’s theorem gives.

yardan
Download Presentation

The Heat Equation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

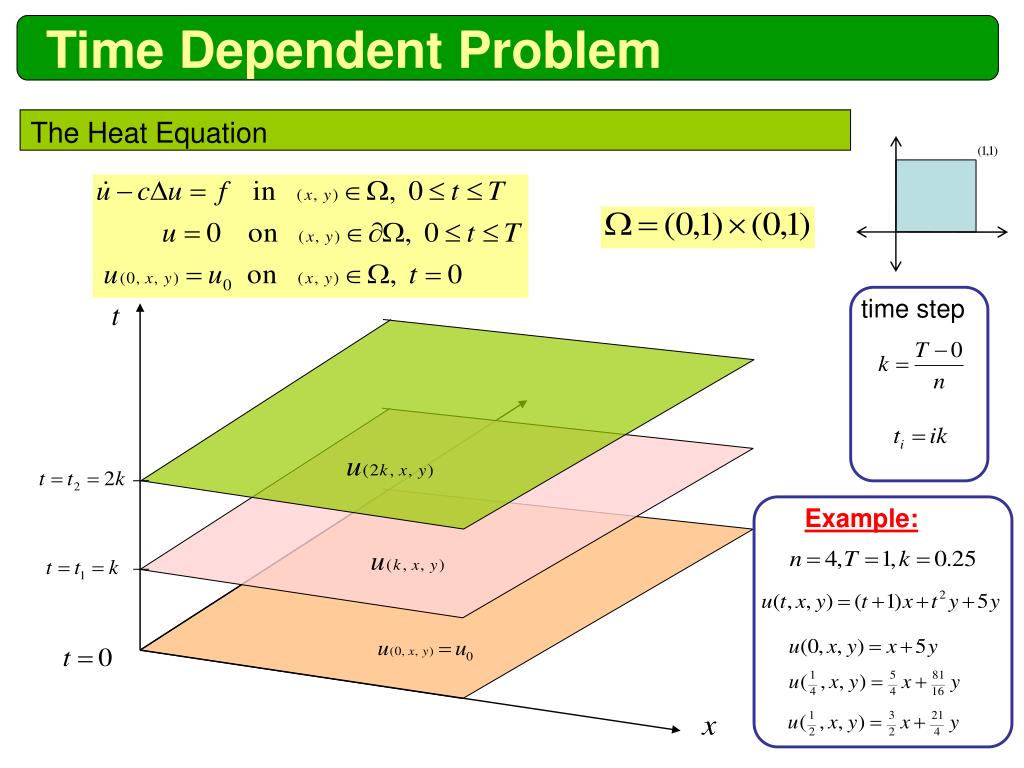

  1. Time Dependent Problem The Heat Equation time step Example:

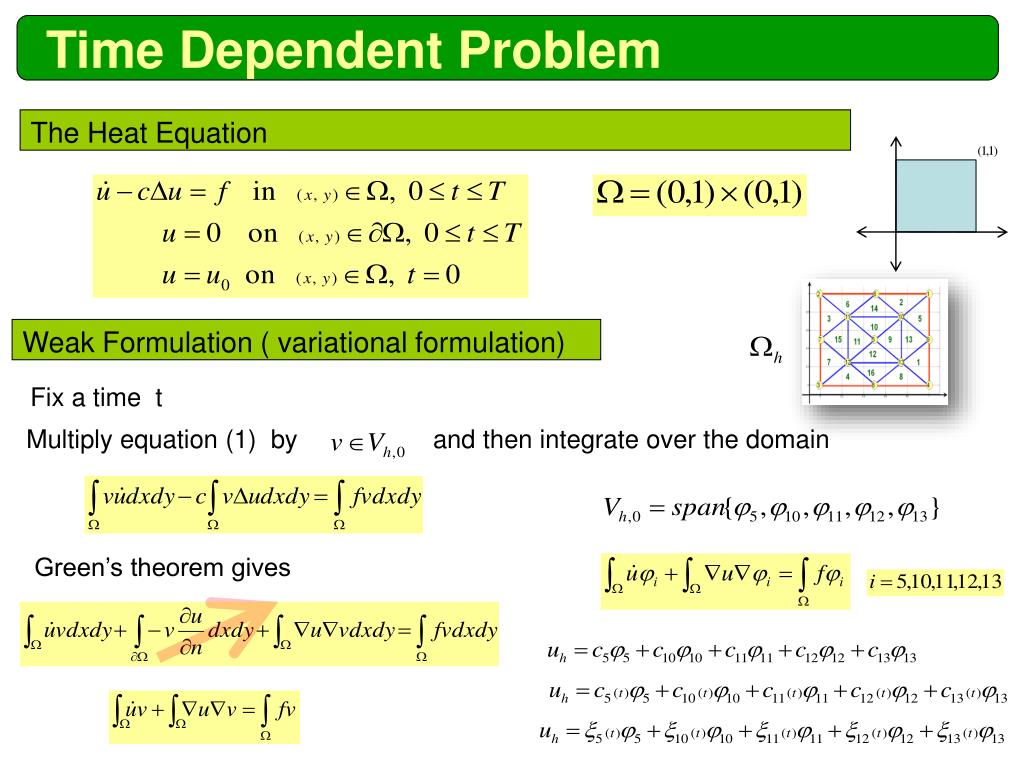

  2. Time Dependent Problem The Heat Equation Weak Formulation ( variational formulation) Fix a time t Multiply equation (1) by and then integrate over the domain Green’s theorem gives

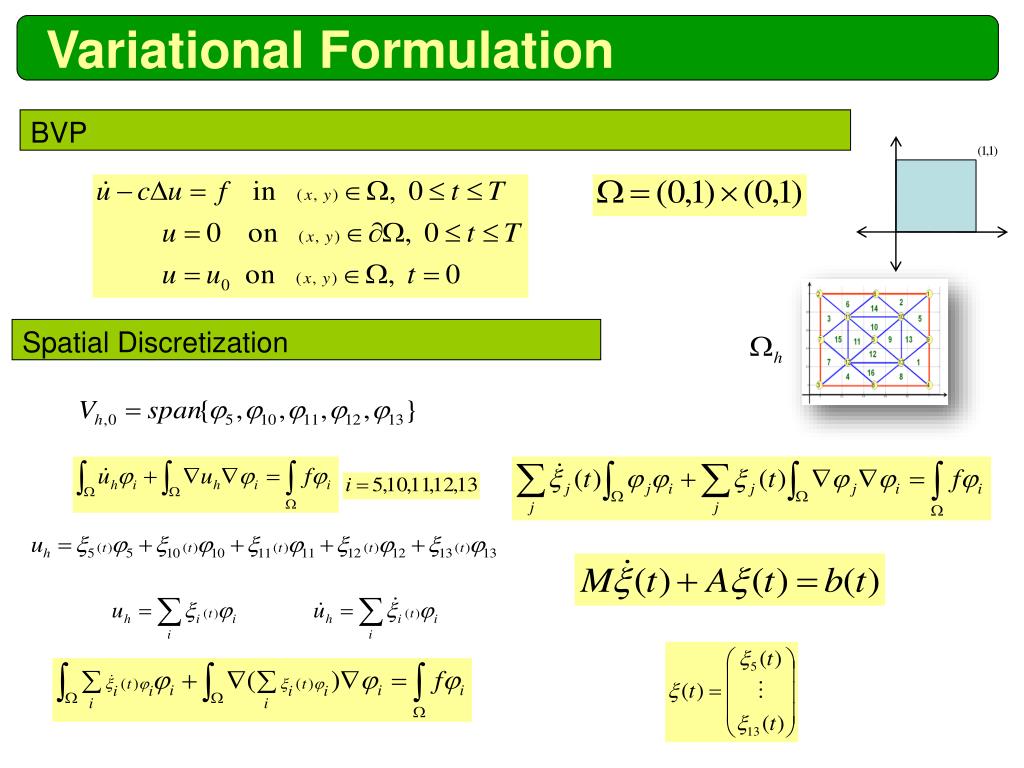

  3. Variational Formulation BVP Spatial Discretization

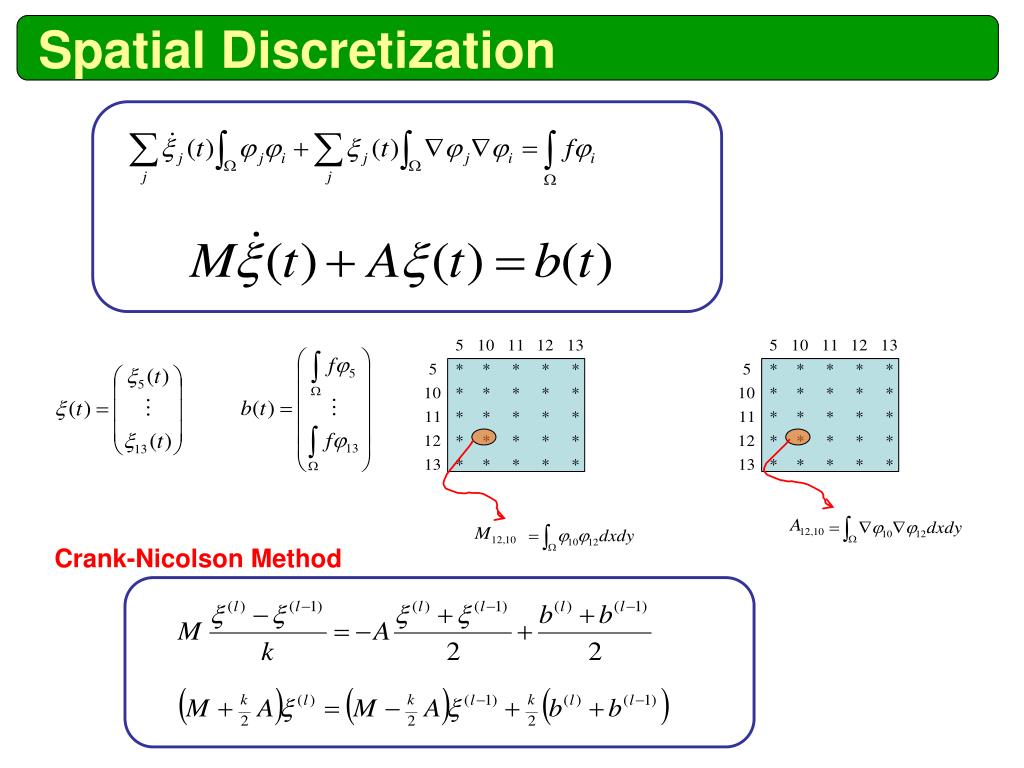

  4. Spatial Discretization Crank-Nicolson Method

  5. Time Discretization case case

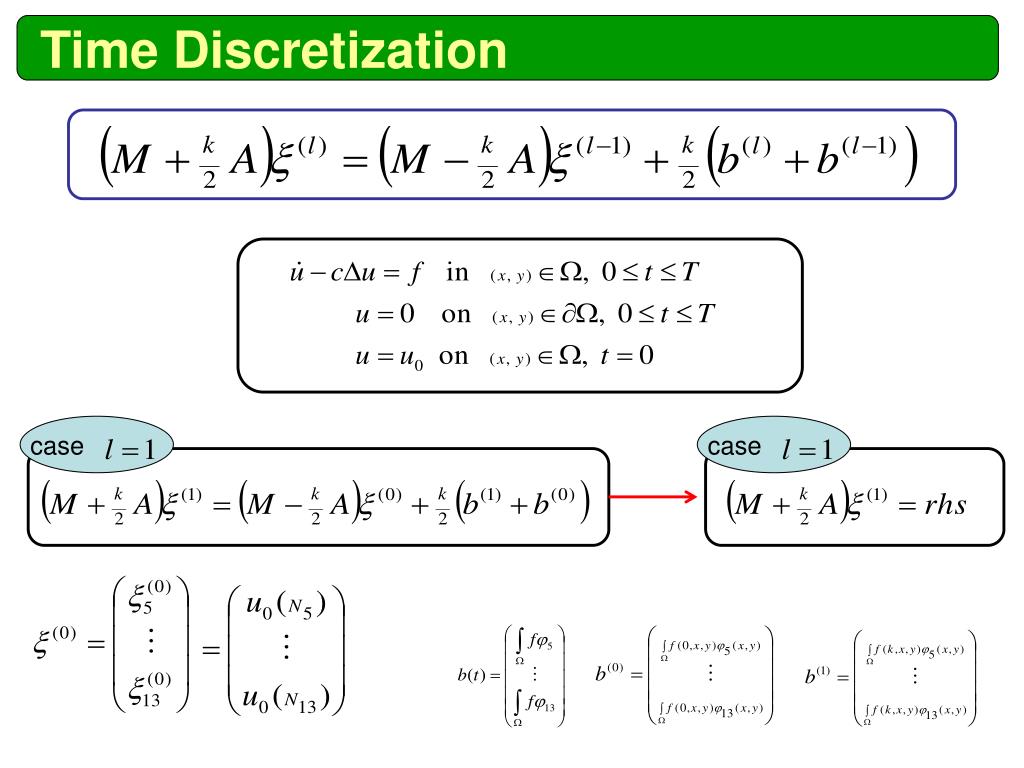

  6. Time Discretization case case case case case case

  7. Time Discretization Solve the linear system of equations to find Solve the linear system of equations to find Solve the linear system of equations to find Solve the linear system of equations to find

  8. Time Discretization BVP

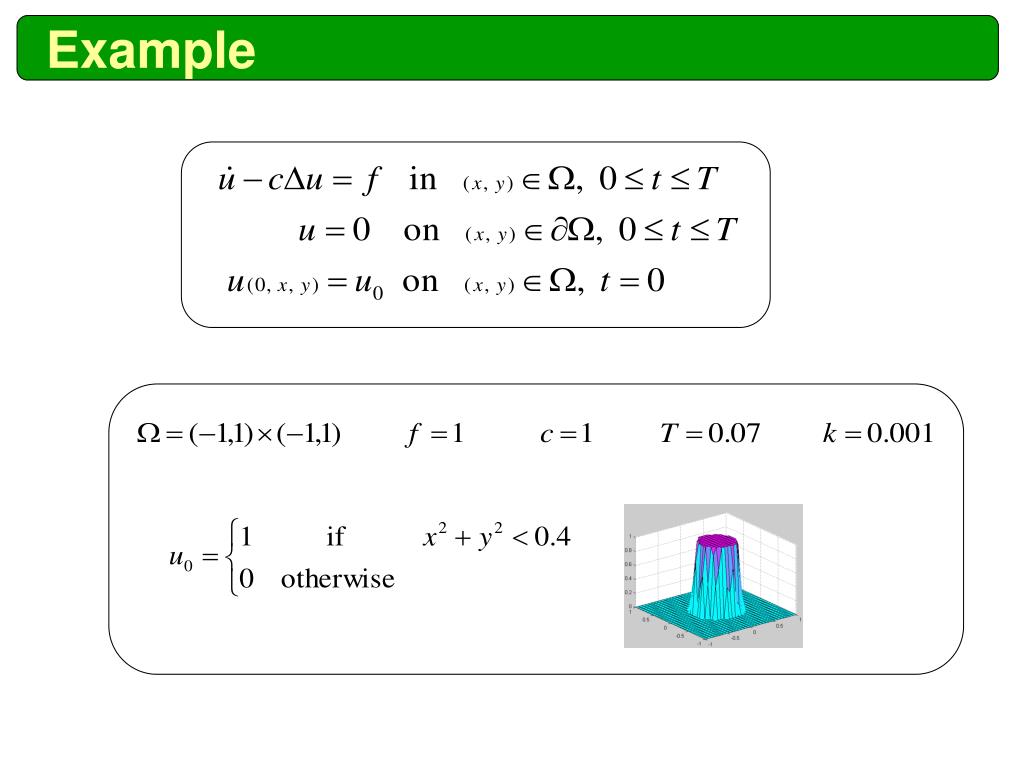

  9. Example

  10. Computer Implementation function [u1]=HeatSolver2D(p,e,t) k = 0.001; % time step T = 0.07; % final time n = T/k; np = size(p,2); % number of nodes x = p(1,:)'; y = p(2,:)'; % node coordinates u1 = sparse(np,n); % set zero IC ix=find(sqrt(p(1,:).^2+p(2,:).^2)<0.4); u1(ix,1)=ones(size(ix)); M = MassMatrix(p,t); %primary mass matrix A = StiffMatrix(p,t); %primary stiff matrix [A,M] = boundary(A,M,p,t,e); % M,A after imbosing boundary bound = unique([e(1,:) e(2,:)]); % boundary nodes inter = setdiff([1:np],bound); % interior nodes bold = Vec_b(0,p,e,t,bound,inter); for l = 2:n % time loop time = l*k; bnew = Vec_b(time,p,e,t,bound,inter); LHS = (M + 0.5*k*A); % Crank-Nicholson rhs = (M - 0.5*k*A)*u1(inter,l-1) + 0.5*k*(bnew + bold); bold = bnew; u1(inter,l) = LHS\rhs; end % draw.m %To speed up the plotting, we interpolate to a rectangular grid. x=linspace(-1,1,31);y=x; [unused,tn,a2,a3]=tri2grid(p,t,u1(:,1),x,y); % Make the animation newplot; nframes = size(u1,2); Mv = moviein(nframes); umax=max(max(u1)); umin=min(min(u1)); for j=1:nframes,... u=tri2grid(p,t,u1(:,j),tn,a2,a3);i=find(isnan(u));u(i)=zeros(size(i));... surf(x,y,u);caxis([uminumax]);colormap(cool),... axis([-1 1 -1 1 0 1]);... %contourf(x,y,u);colormap(cool) Mv(:,j) = getframe;... pause(0.01) end download all files

  11. Computer Implementation function M = MassMatrix(p,t) np = size(p,2); nt = size(t,2); M = sparse(np,np); for K = 1:nt loc2glb = t(1:3,K); % local-to-global map x = p(1,loc2glb); % node x-coordinates y = p(2,loc2glb); % node y- area=polyarea(x,y); MK = [2 1 1; 1 2 1; 1 1 2]/12*area; % element mass matrix M(loc2glb,loc2glb) = M(loc2glb,loc2glb)+ MK; end function [A,M] = boundary(A,M,p,t,e); np = size(p,2); % total number of nodes bound = unique([e(1,:) e(2,:)]); % boundary nodes inter = setdiff([1:np],bound); % interior nodes A = A(inter,inter); % modify stiffness matrix M = M(inter,inter); % Mass matrix matrix function [area,b,c] = Gradients(x,y) area=polyarea(x,y); b=[y(2)-y(3); y(3)-y(1); y(1)-y(2)]/2/area; c=[x(3)-x(2); x(1)-x(3); x(2)-x(1)]/2/area; function b = Vec_b(time,p,e,t,bound,inter); f = inline('time.*sin(x).*cos(y)','time','x','y'); np = size(p,2); nt = size(t,2); b = zeros(np,1); for K = 1:nt loc2glb = t(1:3,K); x = p(1,loc2glb); y = p(2,loc2glb); area = polyarea(x,y); bK = [f(time,x(1),y(1)); f(time,x(2),y(2)); f(time,x(3),y(3))]/3*area; % element load vector b(loc2glb) = b(loc2glb)+ bK; % add element loads to b end b = b(inter); % modify load vector function A = StiffMatrix(p,t) np = size(p,2); nt = size(t,2); A = sparse(np,np); for K = 1:nt loc2glb = t(1:3,K); % local-to-global map x = p(1,loc2glb); % node x-coordinates y = p(2,loc2glb); % node y- [area,b,c] = Gradients(x,y); AK = (b*b'+c*c')*area; % element stiff mat A(loc2glb,loc2glb) = A(loc2glb,loc2glb)+ AK; end

  12. T=0 One time step After 10 time steps Steady state solution

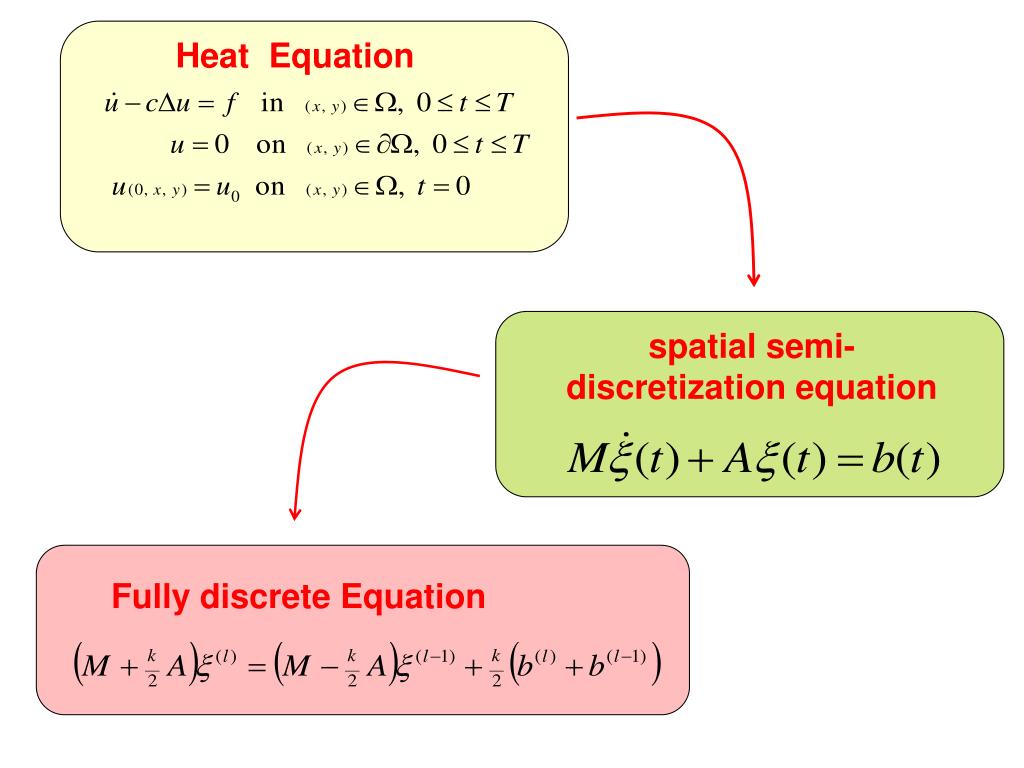

  13. Heat Equation spatial semi-discretization equation Fully discrete Equation

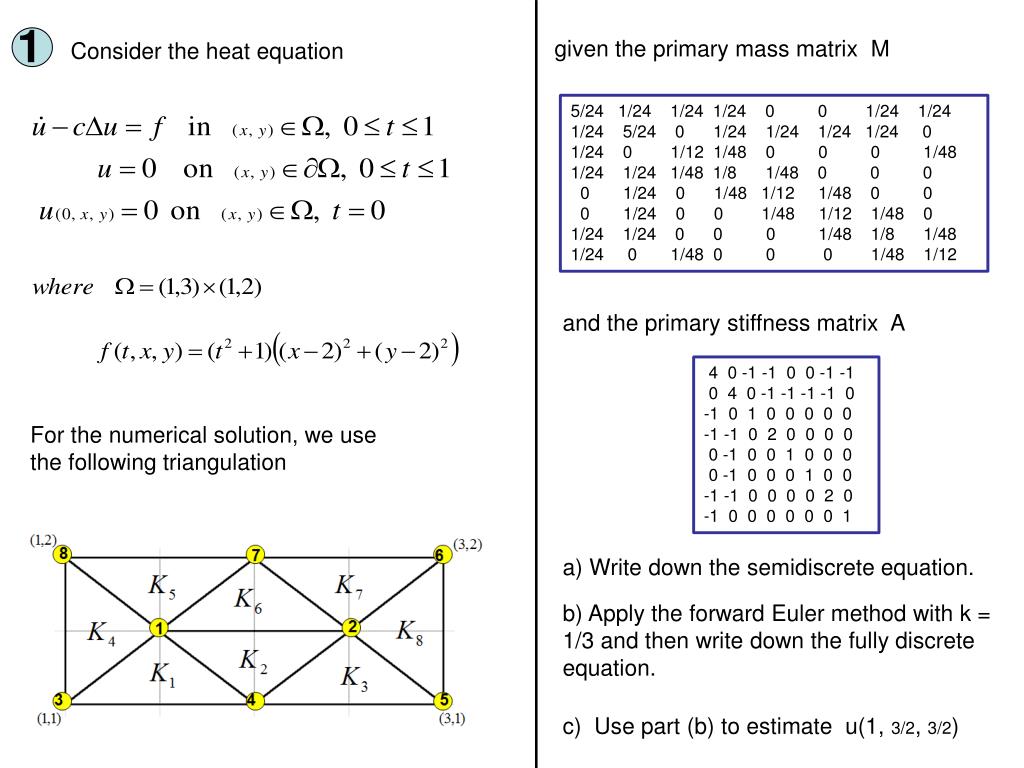

  14. 1 given the primary mass matrix M Consider the heat equation 5/24 1/24 1/24 1/24 0 0 1/24 1/24 1/24 5/24 0 1/24 1/24 1/24 1/24 0 1/24 0 1/12 1/48 0 0 0 1/48 1/24 1/24 1/48 1/8 1/48 0 0 0 0 1/24 0 1/48 1/12 1/48 0 0 0 1/24 0 0 1/48 1/12 1/48 0 1/24 1/24 0 0 0 1/48 1/8 1/48 1/24 0 1/48 0 0 0 1/48 1/12 and the primary stiffness matrix A 4 0 -1 -1 0 0 -1 -1 0 4 0 -1 -1 -1 -1 0 -1 0 1 0 0 0 0 0 -1 -1 0 2 0 0 0 0 0 -1 0 0 1 0 0 0 0 -1 0 0 0 1 0 0 -1 -1 0 0 0 0 2 0 -1 0 0 0 0 0 0 1 For the numerical solution, we use the following triangulation a) Write down the semidiscrete equation. b) Apply the forward Euler method with k = 1/3 and then write down the fully discrete equation. c) Use part (b) to estimate u(1, 3/2, 3/2)
