Acfs under scrutiny

ACFS Under Scrutiny

Luca Canali, CERN

Dawid Wojcik, CERN

UKOUG Conference, Birmingham, Nov 2010


Outline

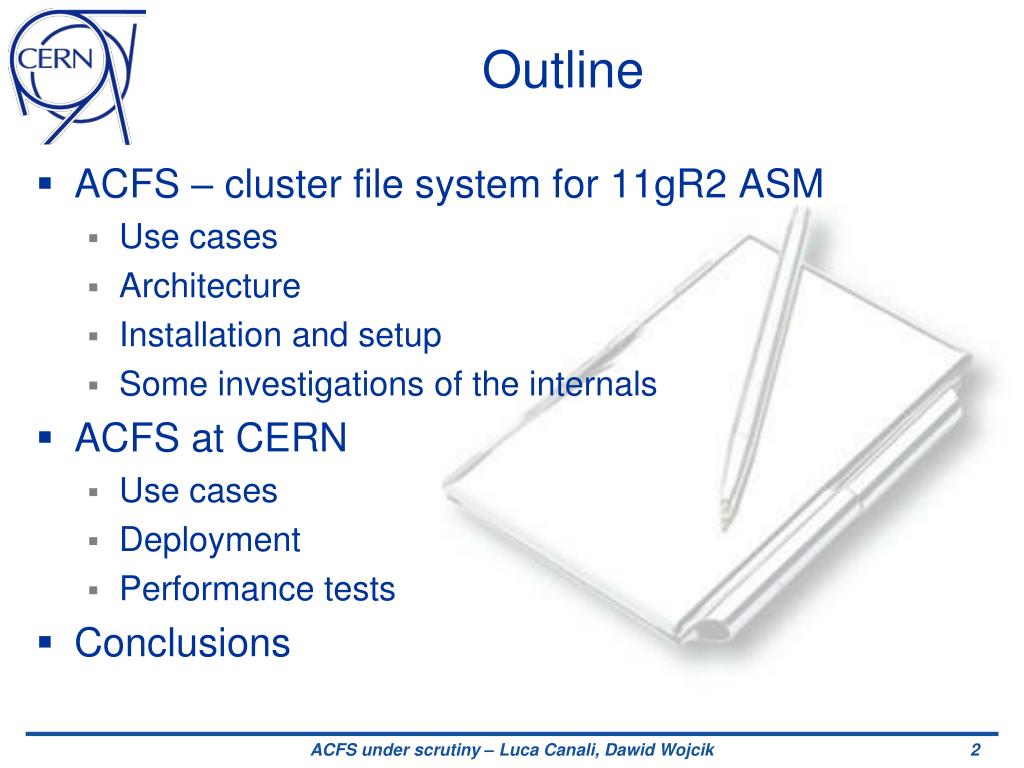

Outline

  • ACFS – cluster file system for 11gR2 ASM

    • Use cases

    • Architecture

    • Installation and setup

    • Some investigations of the internals

  • ACFS at CERN

    • Use cases

    • Deployment

    • Performance tests

  • Conclusions

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs use cases

ACFS Use Cases

  • Use cases for ACFS with Oracle

    • Automatic Diagnostic Repository (ADR) for 11g RDBMS

      • unified logging structure for RAC

    • RDBMS related usage: BFILES, datapump dump files, ETL files, miscellaneous log files (RMAN), etc

    • Can also be used for Oracle RDBMS home binaries

      • shared or non-shared

      • Allows to take snapshots before applying a patch or a patchset

  • Use cases of ACFS as generic file system

    • Can be deployed for custom applications and application servers

    • No need to have RDBMS installation, only clusterware 11.2

    • Performance, maintenance and high availability

    • DBAs will find it easy to use

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Asm and acfs architecture

ASM and ACFS – Architecture

Oracle RAC or Single Instance DBs

Applications

Grid Infrastructure

Clusterware 11.2

ASM

Oracle DatabaseFiles

ASM Cluster File System (ACFS)

Third Party File System

(optional)

ASM dynamic Volume Manager (ADVM)

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Asm and acfs

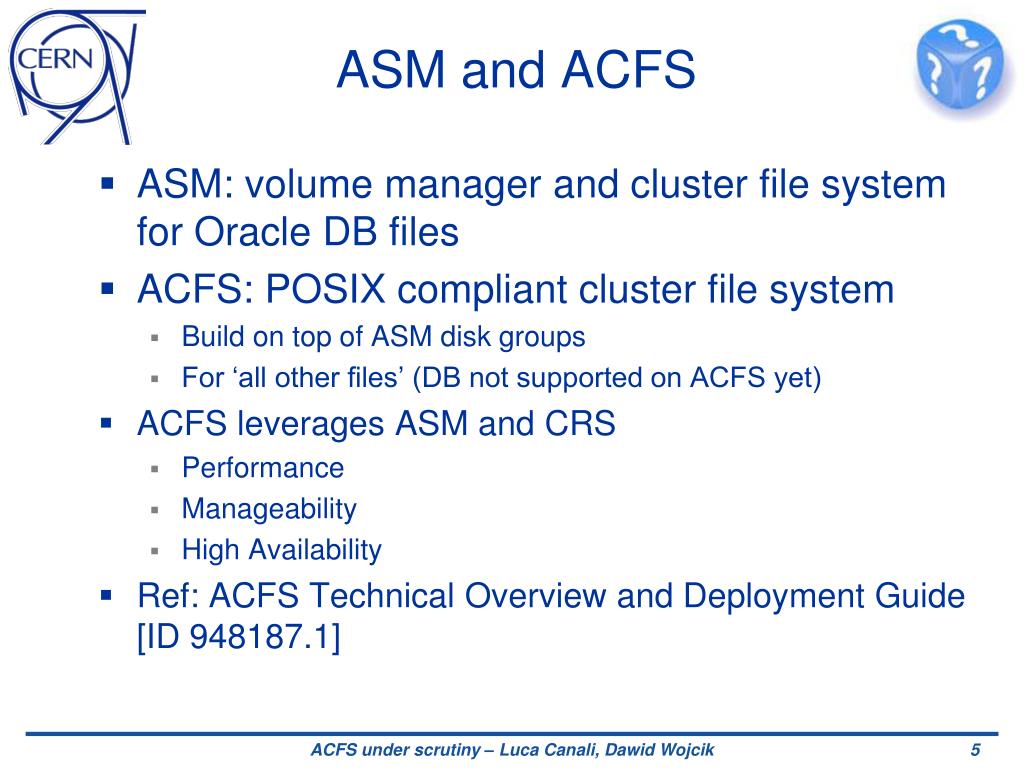

ASM and ACFS

  • ASM: volume manager and cluster file system for Oracle DB files

  • ACFS: POSIX compliant cluster file system

    • Build on top of ASM disk groups

    • For ‘all other files’ (DB not supported on ACFS yet)

  • ACFS leverages ASM and CRS

    • Performance

    • Manageability

    • High Availability

  • Ref: ACFS Technical Overview and Deployment Guide [ID 948187.1]

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Automatic storage management

Automatic Storage Management

  • ASM (Automatic Storage Management)

    • Oracle’s cluster file system and volume manager for Oracle databases

    • HA: fault tolerant, online storage reorganization/addition

    • Performance: stripe and mirroring everything

    • Commodity HW: Physics databases at CERN use ASM normal redundancy (similar to RAID 1+0 across multiple disks and storage arrays)

Failgroup1

Failgroup2

Failgroup3

Failgroup4

DATA_DiskGroup

RECOVERY_DiskGroup

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Asm dynamic volume manager

ASM Dynamic Volume Manager

  • ASM Dynamic Volume Manager (ADVM)

    • New feature in Oracle Clusterware 11.2

    • Volumes are implemented as ASM files

    • exposed to OS as block devices:/dev/asm/volume_name-x

    • Configurableredundancy, stripe width and stripe columns

    • A dirty region logging file is created if redundancy is mirror or high

    • On top of ADVM volume one can create any file system (ext3, ACFS, ...)

  • Volumes can be resized online

    • File system must also support online resize (ACFS, grow: ext2, ext3, ext4)

  • Further investigations on internals:

    • v$asm_volume, v$asm_file, x$kffxp

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Asm cluster file system

ASM Cluster File System

  • What is ACFS

    • ASM-based Cluster File System – new in Oracle 11.2

      • Built on top of ADVM volumes

      • Can be used cluster-wide or single-node only

    • Multi platform support (11.2.0.2)

    • Can be shared using NFS, CIFS, …

    • Online file system expansion / shrink

    • Mirror protection when using NORMAL or HIGH redundancy diskgroups/volumes

    • Read-only snapshots built-in

    • Replication, security realms, encryption and tagging introduced in 11.2.0.2

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs integration with the oracle software stack

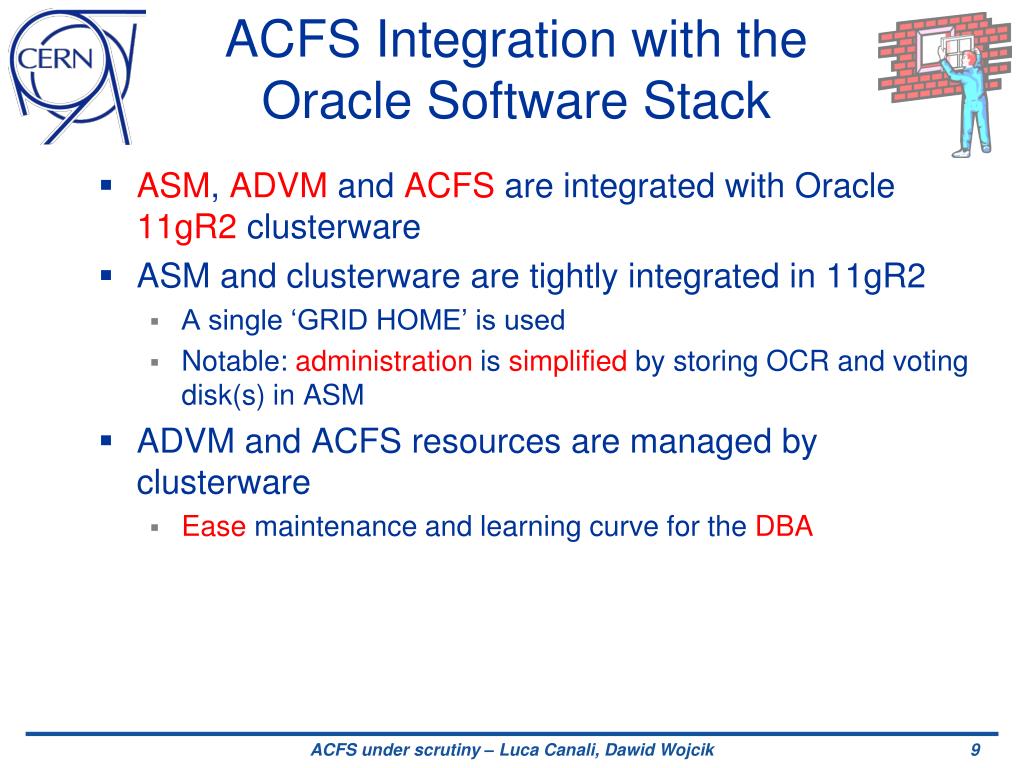

ACFS Integration with the Oracle Software Stack

  • ASM, ADVM and ACFS are integrated with Oracle 11gR2 clusterware

  • ASM and clusterware are tightly integrated in 11gR2

    • A single ‘GRID HOME’ is used

    • Notable: administration is simplified by storing OCR and voting disk(s) in ASM

  • ADVM and ACFS resources are managed by clusterware

    • Ease maintenance and learning curve for the DBA

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs crash recovery

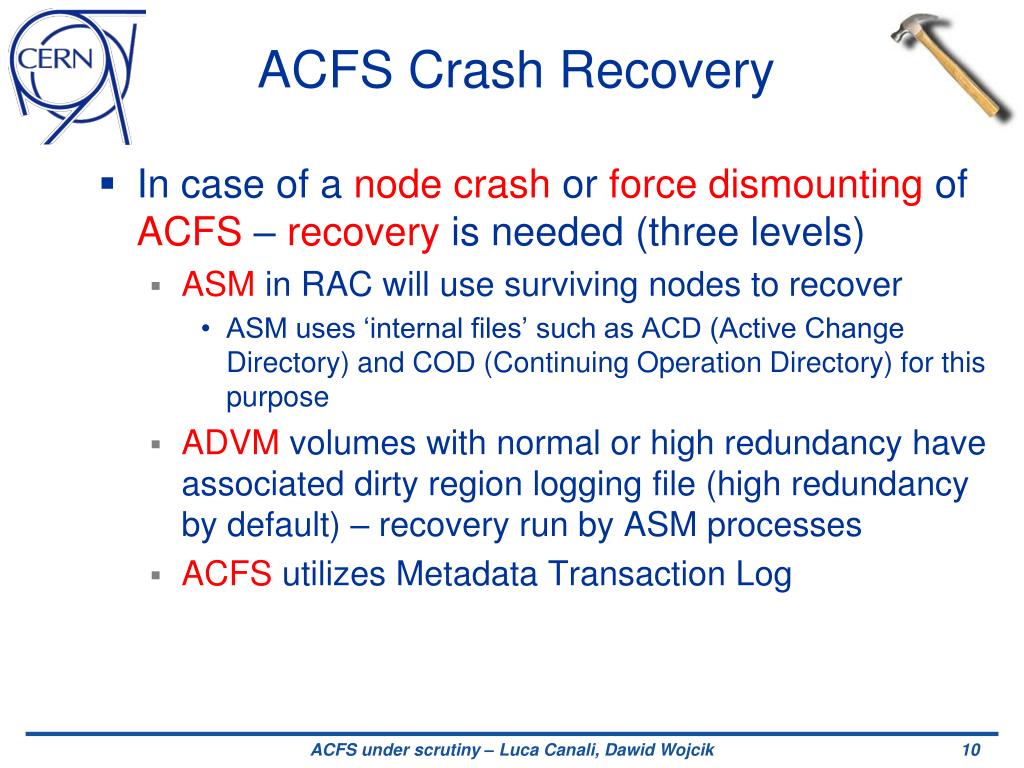

ACFS Crash Recovery

  • In case of a node crash or force dismounting of ACFS – recovery is needed (three levels)

    • ASM in RAC will use surviving nodes to recover

      • ASM uses ‘internal files’ such as ACD (Active Change Directory) and COD (Continuing Operation Directory) for this purpose

    • ADVM volumes with normal or high redundancy have associated dirty region logging file (high redundancy by default) – recovery run by ASM processes

    • ACFS utilizes Metadata Transaction Log

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs setup

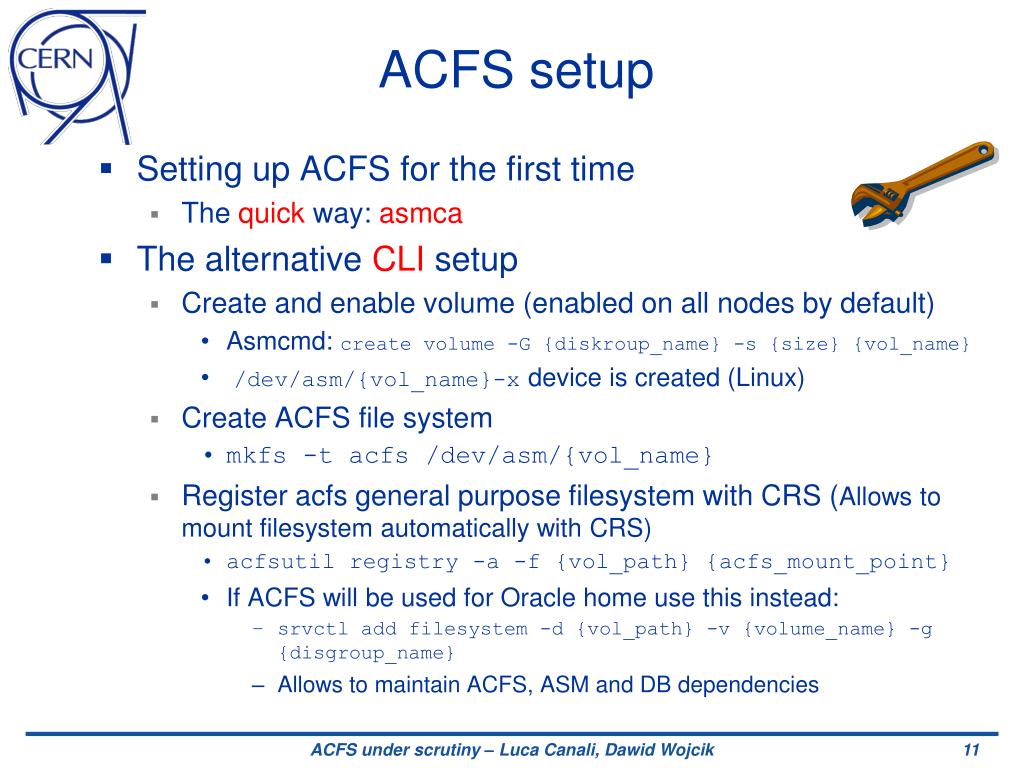

ACFS setup

  • Setting up ACFS for the first time

    • The quick way: asmca

  • The alternative CLI setup

    • Create and enable volume (enabled on all nodes by default)

      • Asmcmd: create volume -G {diskroup_name} -s {size} {vol_name}

      • /dev/asm/{vol_name}-x device is created (Linux)

    • Create ACFS file system

      • mkfs -t acfs /dev/asm/{vol_name}

    • Register acfs general purpose filesystem with CRS (Allows to mount filesystem automatically with CRS)

      • acfsutil registry -a -f {vol_path} {acfs_mount_point}

      • If ACFS will be used for Oracle home use this instead:

        • srvctl add filesystem -d {vol_path} -v {volume_name} -g {disgroup_name}

        • Allows to maintain ACFS, ASM and DB dependencies

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Asm and acfs internals

ASM and ACFS internals

  • New ASM background processes in 11gR2

    • Used to manage interaction ADVM and ASM, IO fencing and clusterware membership

      • One can see them with ps -elf | grep ASM

    • Volume Driver Background (VDBG)

    • Volume Background (VBG#) processes

    • Volume Membership Background (VMB)

    • ACFS background process

  • More details on metalink note [ID 883028.1]

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs advm and linux

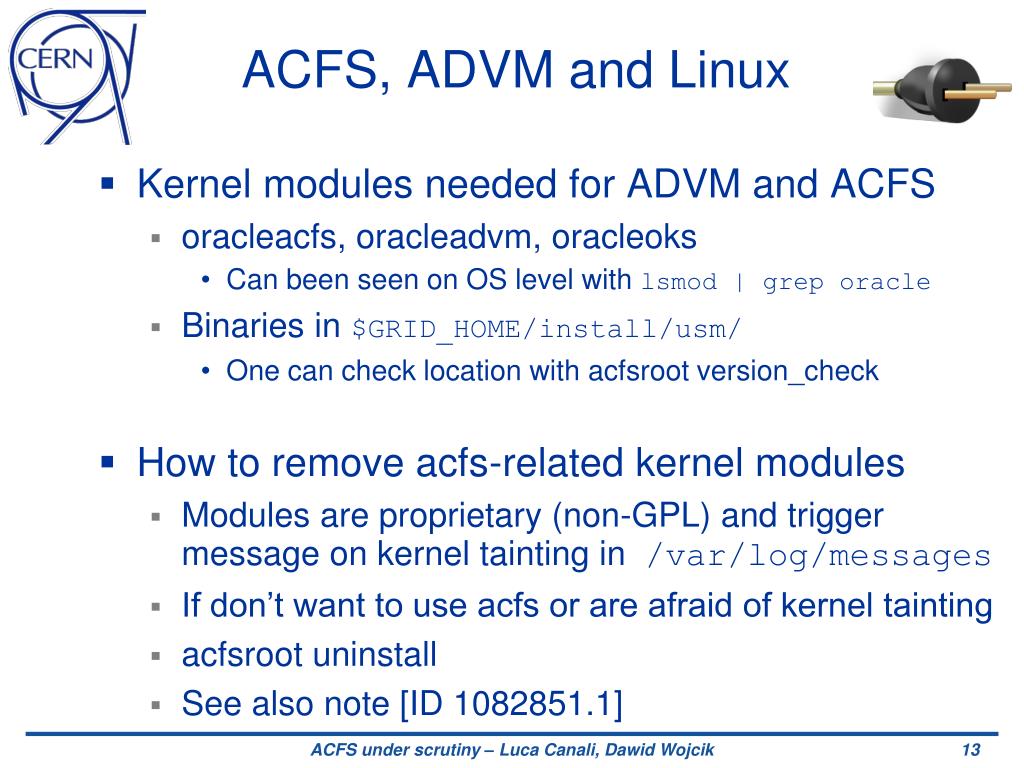

ACFS, ADVM and Linux

  • Kernel modules needed for ADVM and ACFS

    • oracleacfs, oracleadvm, oracleoks

      • Can been seen on OS level with lsmod | grep oracle

    • Binaries in $GRID_HOME/install/usm/

      • One can check location with acfsroot version_check

  • How to remove acfs-related kernel modules

    • Modules are proprietary (non-GPL) and trigger message on kernel tainting in /var/log/messages

    • If don’t want to use acfs or are afraid of kernel tainting

    • acfsroot uninstall

    • See also note [ID 1082851.1]

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs command line tools

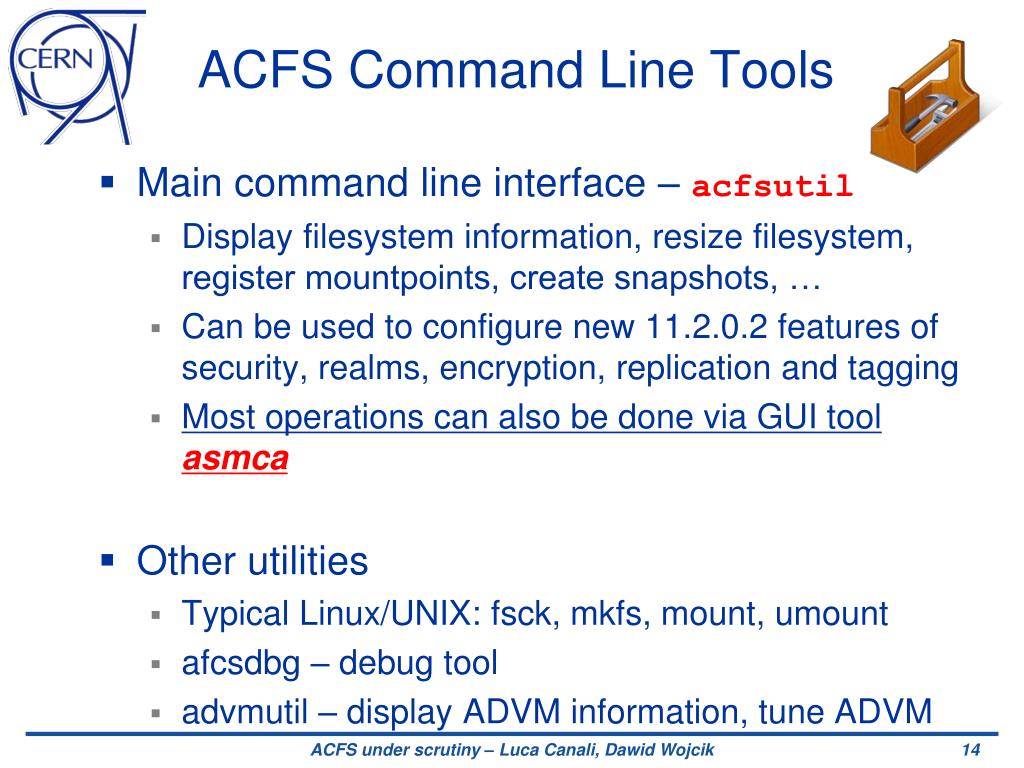

ACFS Command Line Tools

  • Main command line interface – acfsutil

    • Display filesystem information, resize filesystem, register mountpoints, create snapshots, …

    • Can be used to configure new 11.2.0.2 features of security, realms, encryption, replication and tagging

    • Most operations can also be done via GUI tool asmca

  • Other utilities

    • Typical Linux/UNIX: fsck, mkfs, mount, umount

    • afcsdbg – debug tool

    • advmutil – display ADVM information, tune ADVM

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs snapshots

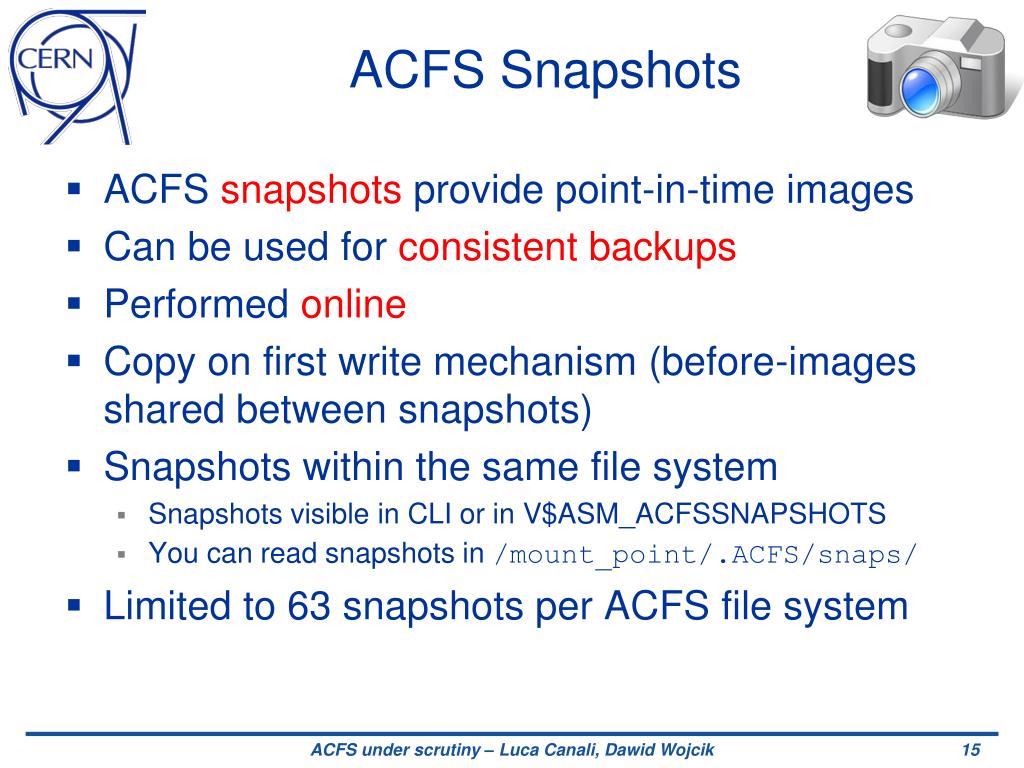

ACFS Snapshots

  • ACFS snapshots provide point-in-time images

  • Can be used for consistent backups

  • Performed online

  • Copy on first write mechanism (before-images shared between snapshots)

  • Snapshots within the same file system

    • Snapshots visible in CLI or in V$ASM_ACFSSNAPSHOTS

    • You can read snapshots in /mount_point/.ACFS/snaps/

  • Limited to 63 snapshots per ACFS file system

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs replication

ACFS Replication

  • File system level replication from one primary site to another

    • Can replicate whole ACFS filesystem or only tagged fragments

    • Changes on the primary system captured to replication logs

    • Replication logs send by background processes to destination cluster and replayed there

    • Logs deleted from both system after applying

    • Replication logs stored in the same filesystem – check for free space!

    • Replication can be set-up with acfsutil

  • Possible use case:

    • Replicate ACFS file system data in Data Guard setup

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Cern experience with acfs

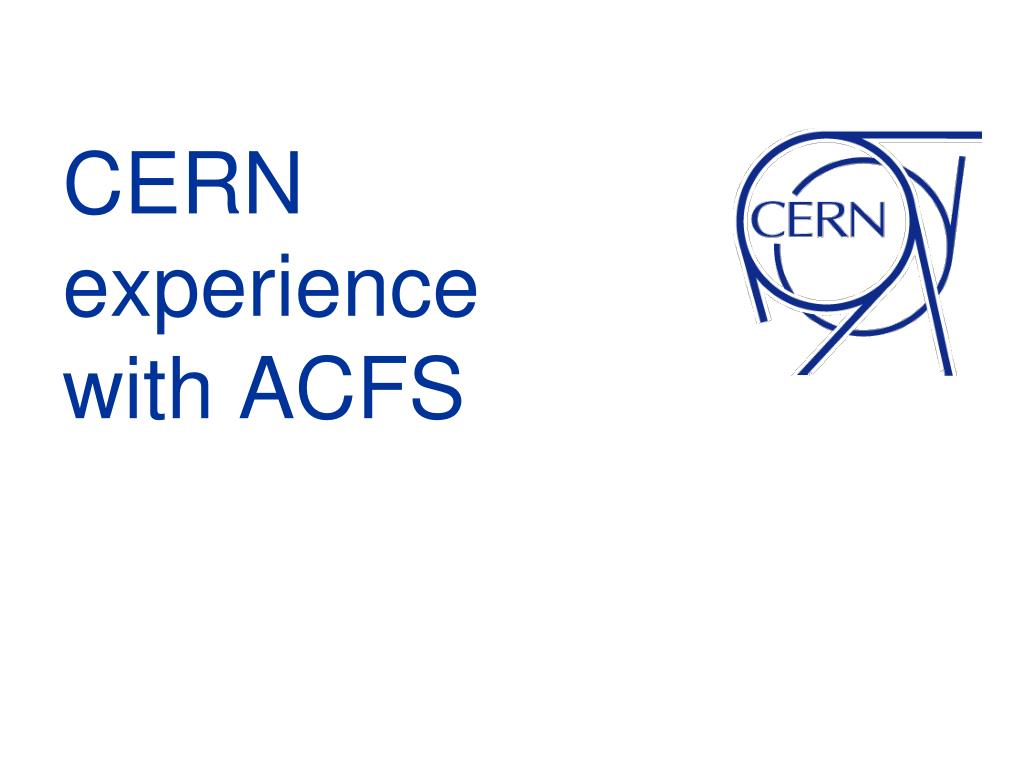

CERN experience with ACFS


Physics db hw a typical setup

Physics DB HW, a typical setup

  • Dual-CPU quad-core blade servers, 24GB memory, Intel Nehalem low power; 2.26GHz clock

  • Redundant power, mirrored local disks, 4 NIC (2 private/ 2 public), dual HBAs, “RAID 1+0 like” with ASM

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs and asm on low cost storage

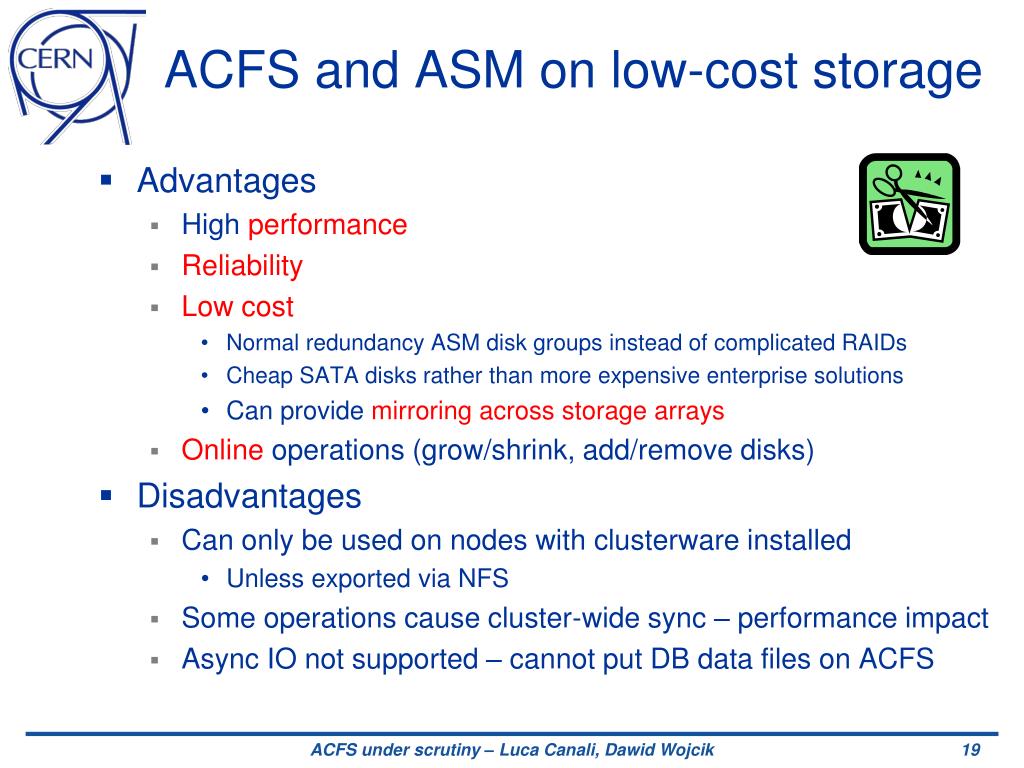

ACFS and ASM on low-cost storage

  • Advantages

    • High performance

    • Reliability

    • Low cost

      • Normal redundancy ASM disk groups instead of complicated RAIDs

      • Cheap SATA disks rather than more expensive enterprise solutions

      • Can provide mirroring across storage arrays

    • Online operations (grow/shrink, add/remove disks)

  • Disadvantages

    • Can only be used on nodes with clusterware installed

      • Unless exported via NFS

    • Some operations cause cluster-wide sync – performance impact

    • Async IO not supported – cannot put DB data files on ACFS

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs use cases at cern

ACFS use cases at CERN

  • ACFS is used in production at CERN

    • General purpose cluster file system for backup & monitoring cluster – fast and reliable

    • Repository of oracle binaries

    • Temporary storage for large exports/imports

  • Other usages predicted after moving to Oracle 11.2

    • Automatic Diagnostic Repository (ADR)

    • Export/import directory for each cluster DB

    • Local Oracle homes (?) – snapshots can be used before patching

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Acfs test setup

ACFS test setup

  • 64 SATA II, 7k2 RPM, 400GB lower end disks

  • JBOD configuration – visible to ASM as 64 LUNs

  • 45% of each disk’s capacity used for DATA diskgroup

    • For improved IOPS and throughput (OS level partitioning)

  • ASM normal redundancy used – 10.5TB diskgroup

  • Two 800GB and 80GB ADVM normal redundancy volumes created for tests

    • ACFS, ext2 and ext3 file systems created on ADVM volumes

    • No difference in speed between small and large file systems in any of the tests (80GB vs 800GB)

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Tests conducted

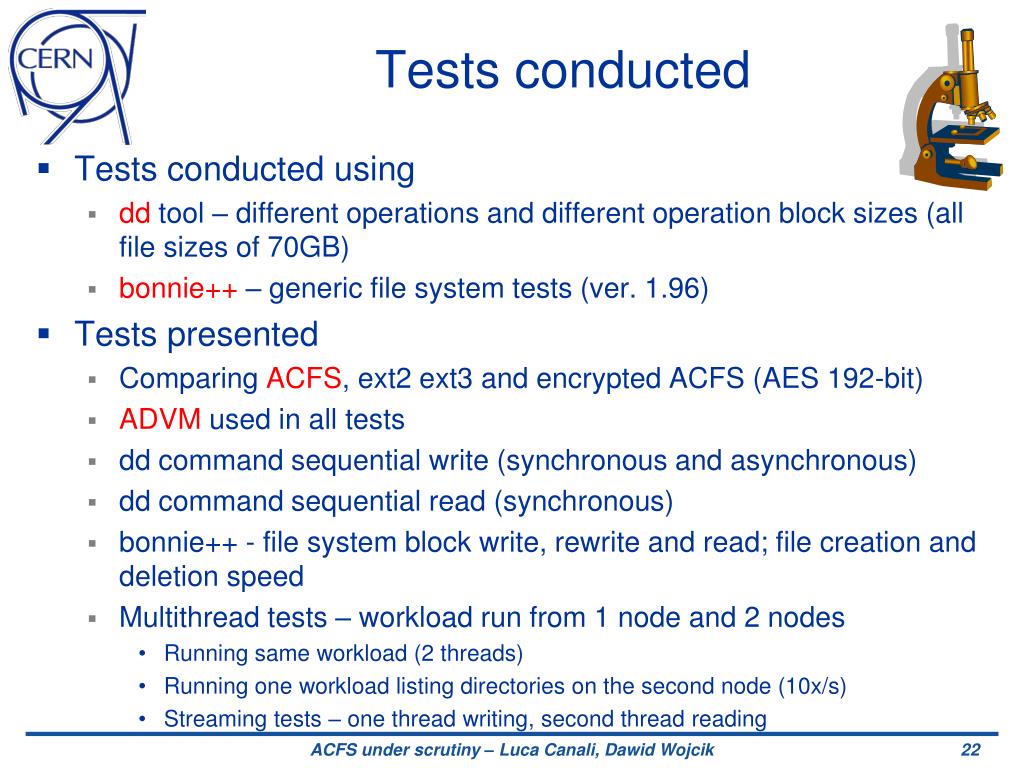

Tests conducted

  • Tests conducted using

    • dd tool – different operations and different operation block sizes (all file sizes of 70GB)

    • bonnie++ – generic file system tests (ver. 1.96)

  • Tests presented

    • Comparing ACFS, ext2 ext3 and encrypted ACFS (AES 192-bit)

    • ADVM used in all tests

    • dd command sequential write (synchronous and asynchronous)

    • dd command sequential read (synchronous)

    • bonnie++ - file system block write, rewrite and read; file creation and deletion speed

    • Multithread tests – workload run from 1 node and 2 nodes

      • Running same workload (2 threads)

      • Running one workload listing directories on the second node (10x/s)

      • Streaming tests – one thread writing, second thread reading

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Write test results results in our enviroment

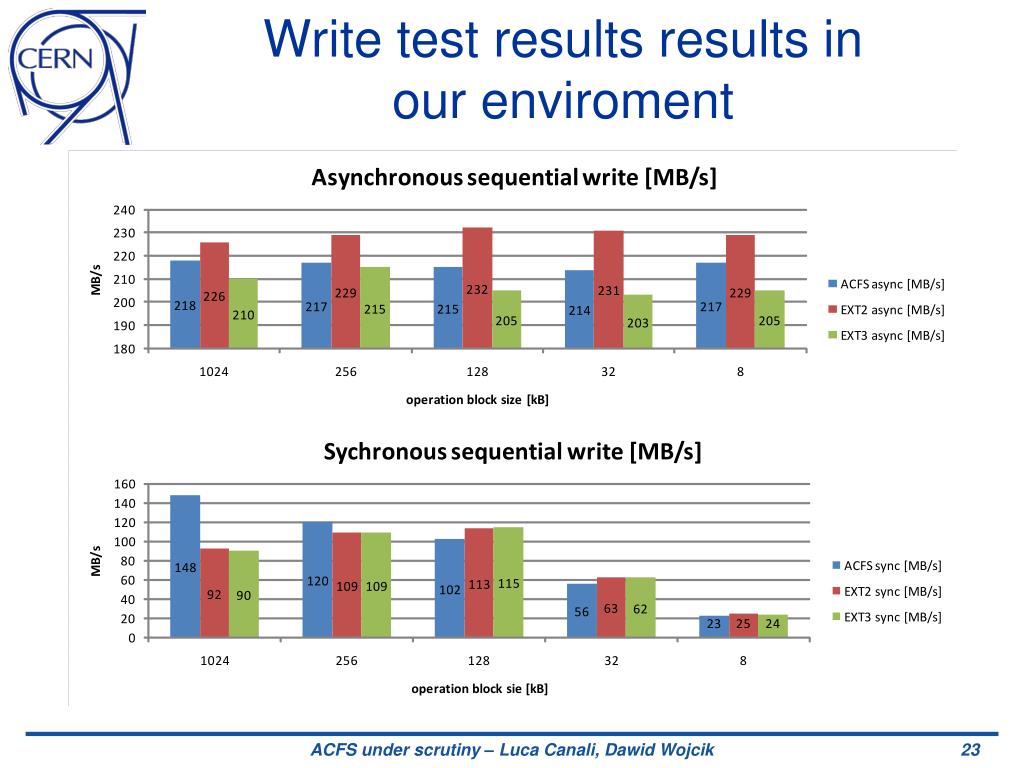

Write test results results in our enviroment

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Read and write results in our enviroment

Read and write results in our enviroment

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Bonnie test results results in our enviroment

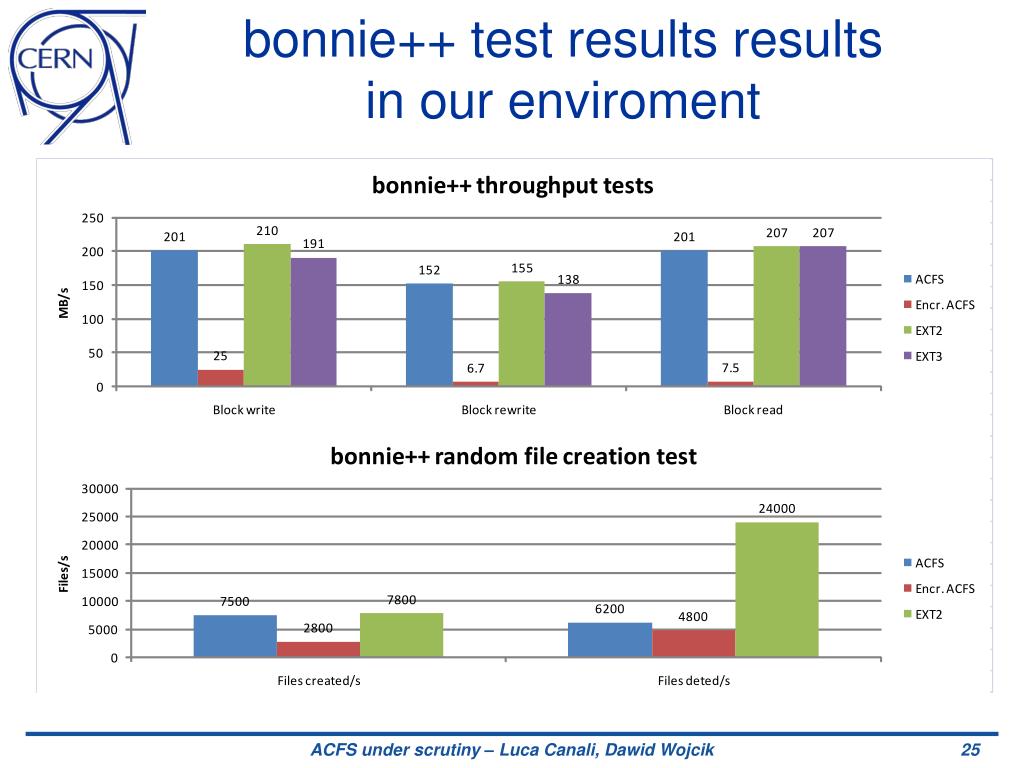

bonnie++ test results results in our enviroment

ACFS under scrutiny – Luca Canali, Dawid Wojcik


Multithread test results results in our enviroment

Multithread test results results in our enviroment

ACFS under scrutiny – Luca Canali, Dawid Wojcik

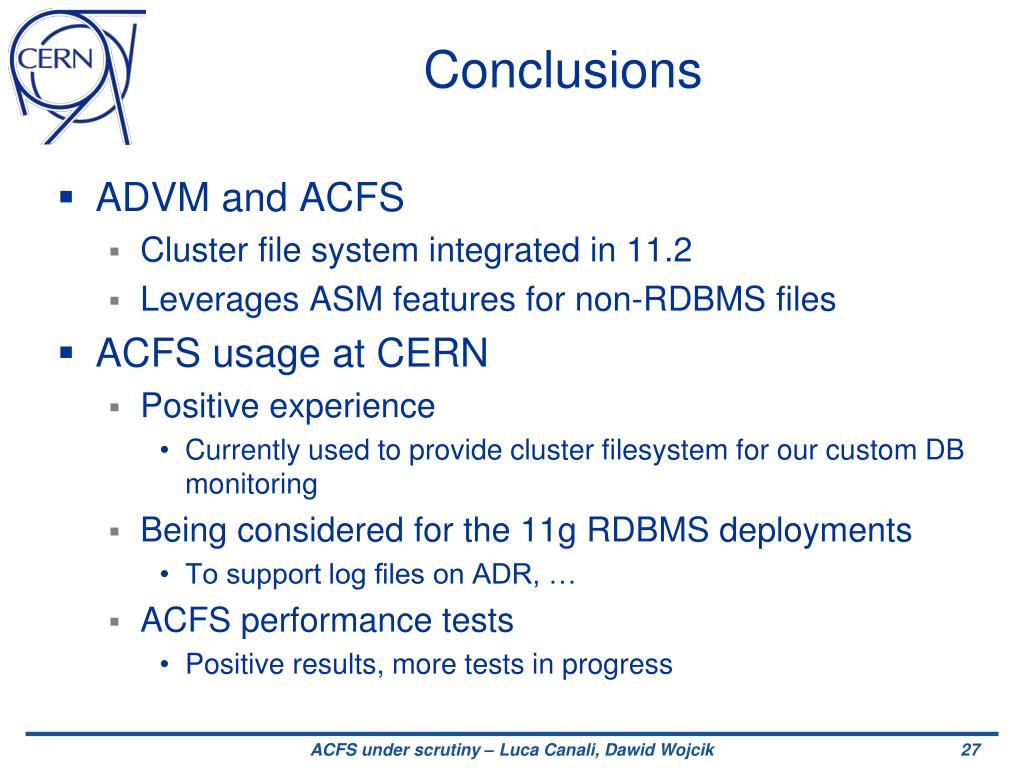

Conclusions

Conclusions

  • ADVM and ACFS

    • Cluster file system integrated in 11.2

    • Leverages ASM features for non-RDBMS files

  • ACFS usage at CERN

    • Positive experience

      • Currently used to provide cluster filesystem for our custom DB monitoring

    • Being considered for the 11g RDBMS deployments

      • To support log files on ADR, …

    • ACFS performance tests

      • Positive results, more tests in progress

ACFS under scrutiny – Luca Canali, Dawid Wojcik

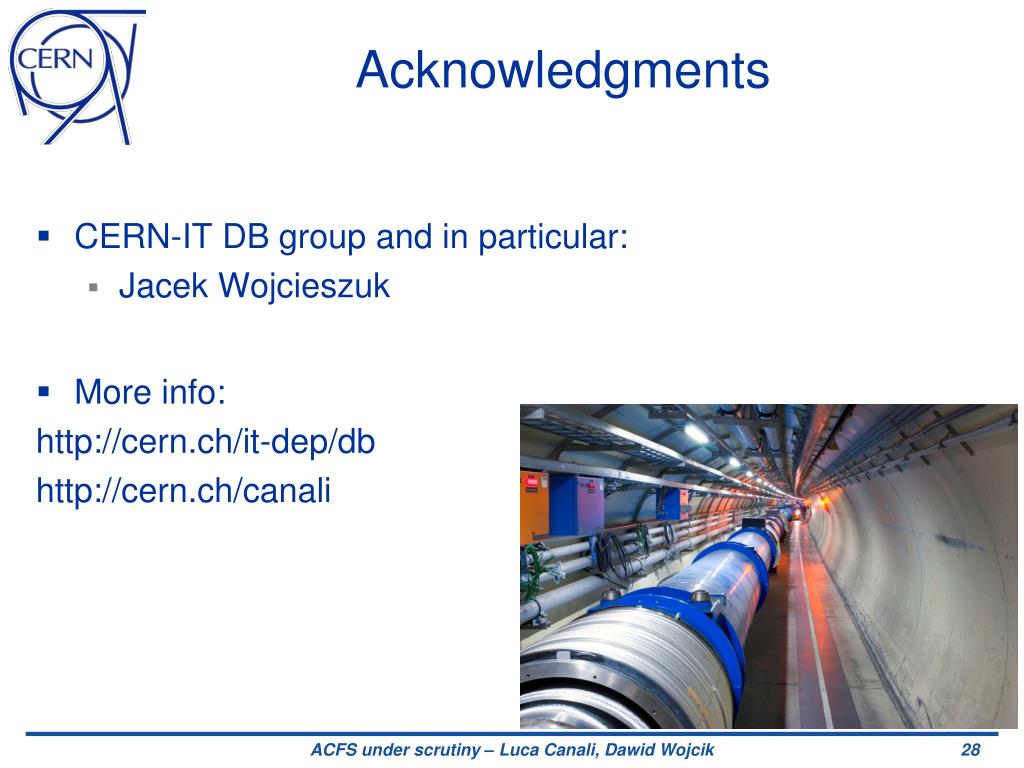

Acknowledgments

Acknowledgments

  • CERN-IT DB group and in particular:

    • Jacek Wojcieszuk

  • More info:

    http://cern.ch/it-dep/db

    http://cern.ch/canali

ACFS under scrutiny – Luca Canali, Dawid Wojcik


  • Login
