A continuous media data rendering system for visualizing psychological impression transition

A Continuous Media Data Rendering System For Visualizing Psychological Impression-Transition

†Fujiko Yara ([email protected])

‡Naofumi Yoshida ([email protected])

‡Shiori Sasaki ([email protected])

†Yasushi Kiyoki ([email protected])

† Faculty of Environmental Information, Keio University

‡ Graduate School of Media and Governance, Keio University


Application example and demonstration

I feel Psychological Impression-Transitionlonely, tired….

Fufufu♪

Lighting


Music

Smell

Application Example and Demonstration

  • We will show the demonstration of our system.

  • Our system makes a user’s feeling change by rendering media data continuously.


Overview
Overview Psychological Impression-Transition

In this presentation, we show

  • Implementation method of continuous media data rendering system to visualizing a psychological impression-transition.

  • Experimental results for the feasibility of our system.

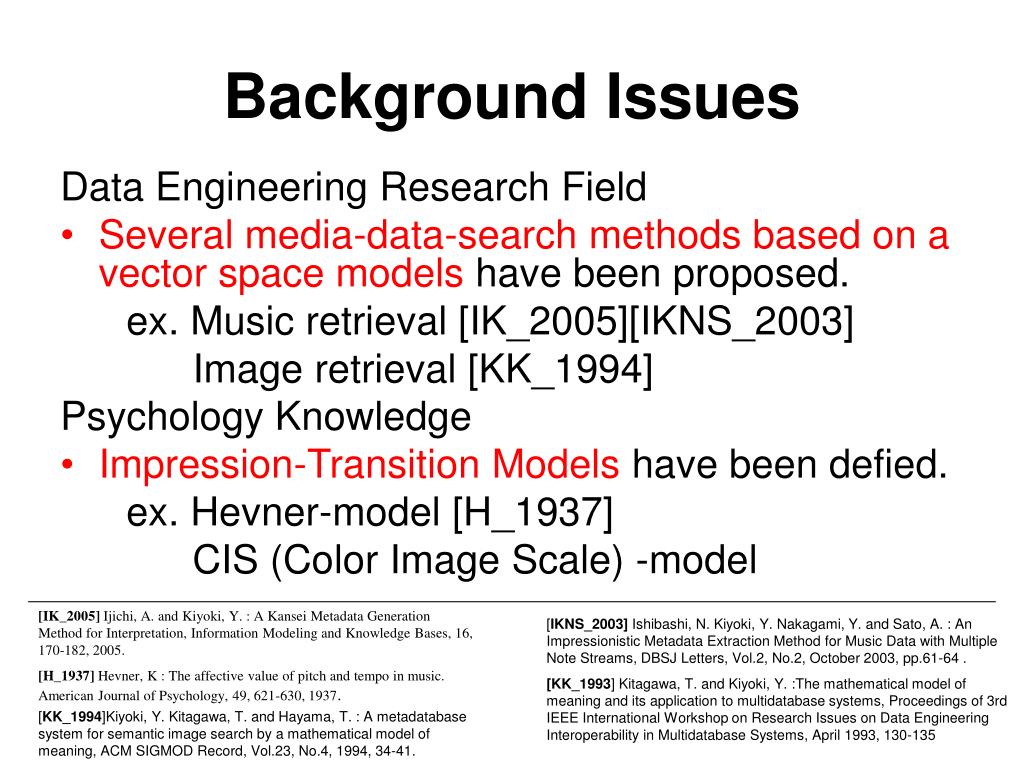

Background issues
Background Issues Psychological Impression-Transition

Data Engineering Research Field

  • Several media-data-search methods based on a vector space models have been proposed.

    ex. Music retrieval [IK_2005][IKNS_2003]

    Image retrieval [KK_1994]

    Psychology Knowledge

  • Impression-Transition Models have been defied.

    ex. Hevner-model [H_1937]

    CIS (Color Image Scale) -model

[IK_2005] Ijichi, A. and Kiyoki, Y. : A Kansei Metadata Generation Method for Interpretation, Information Modeling and Knowledge Bases, 16, 170-182, 2005.

[H_1937] Hevner, K : The affective value of pitch and tempo in music. American Journal of Psychology, 49, 621-630, 1937.

[KK_1994]Kiyoki, Y. Kitagawa, T. and Hayama, T. : A metadatabase system for semantic image search by a mathematical model of meaning, ACM SIGMOD Record, Vol.23, No.4, 1994, 34-41.

[IKNS_2003] Ishibashi, N. Kiyoki, Y. Nakagami, Y. and Sato, A. : An Impressionistic Metadata Extraction Method for Music Data with Multiple Note Streams, DBSJ Letters, Vol.2, No.2, October 2003, pp.61-64 .

[KK_1993] Kitagawa, T. and Kiyoki, Y. :The mathematical model of meaning and its application to multidatabase systems, Proceedings of 3rd IEEE International Workshop on Research Issues on Data Engineering Interoperability in Multidatabase Systems, April 1993, 130-135


System overview

result 1 Psychological Impression-Transition

start-query

goal-query

Transition metric

Lw1

Distance metric

Lw2

start-query

goal-query

Iw2

・・・

Lw3

CIS-model

start-media data

Lw1

Iw3

terminal-media data

Hevner-model

Impression-Transition DB

Vector Space

Start-point-query

Goal-point-query

Start-media data

Goal-media data

Multi Media DB

Sensor DB

Color DB

Music DB

System Overview


Impression transition model and derivation of kansei

Allocated by impression-words Psychological Impression-Transition

CIS-model

Allocated by color gradation

Hevner-model

Impression-Transition Model and Derivation of Kansei

  • The necessity of continuous impression-transition.

  • In psychological impression-transition models, media data are allocated continuously by something to define.

  • We think the continuous relationships of these models show derivation of Kansei stay constant.


Implementation method 1 8

Psychological Impression-Transition

■Impression-Words in Longman Dictionary▲ Impression-Words expressing Media data

  • [KK_1994] Kiyoki, Y. Kitagawa, T. and Hayama, T. : A metadatabase system for semantic image search by a mathematical model of meaning, ACM SIGMOD Record, Vol.23, No.4, 1994, 34-41.

  • Longman Dictionary of Contemporary English, Longman, 1987

Implementation Method (1/8)

  • Step 1 : Creating an impression-words vector space of media data and mapping the impression-words of media contents into it.

  • We have implemented this system using the Mathematical Model of Meaning (MMM) [KK_1994].

  • The MMM search space is created by using the Longman Dictionary of Contemporary English.

  • The impression-words of media data are mapped into this impression-word vector space.

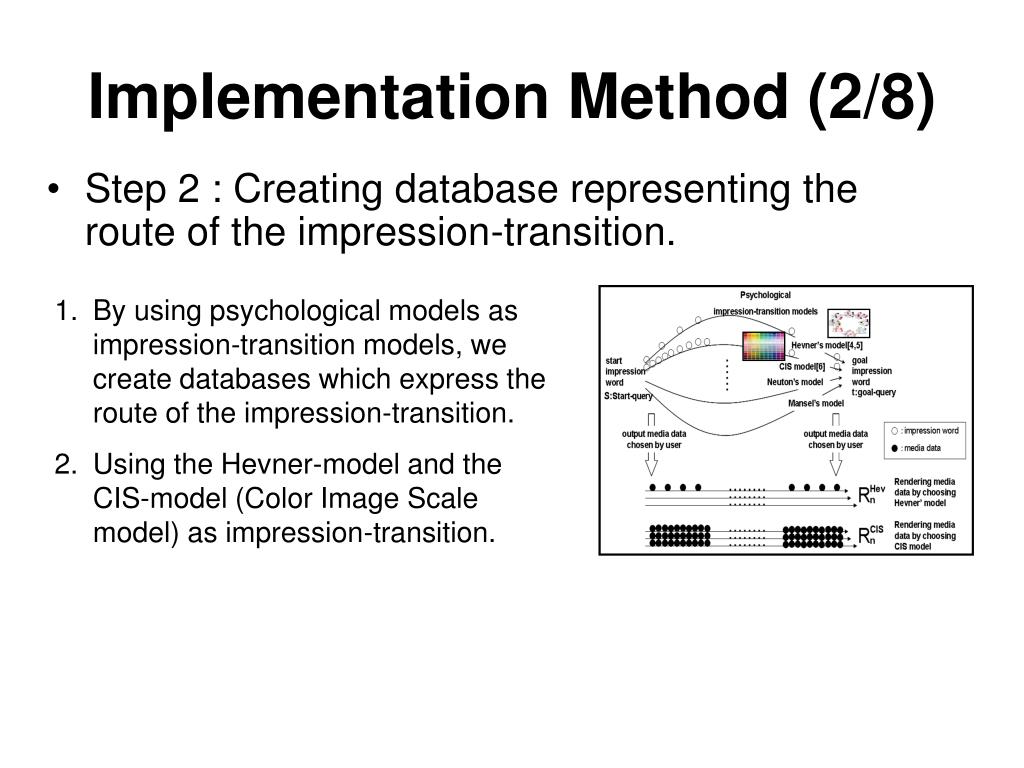

Implementation method 2 8
Implementation Method (2/8) Psychological Impression-Transition

  • Step 2 : Creating database representing the route of the impression-transition.

  • By using psychological models as impression-transition models, we create databases which express the route of the impression-transition.

  • Using the Hevner-model and the CIS-model (Color Image Scale model) as impression-transition.


Implementation method 3 8

Psychological Impression-Transition

terminal-query

start-query

start-impression

terminal-impression

Implementation Method (3/8)

  • Step 3 : Submitting two query words (starting-query and terminal-query) into the impression space.

  • A user submits two query words into MMM search space created in step1.

  • Two query are not always words used in Longman Dictionary, so in next step, two query words are converted into the words used in Longman Dictionary.

■Impression-Words in Longman Dictionary

▲ Impression-Words expressing Media data

● Query words

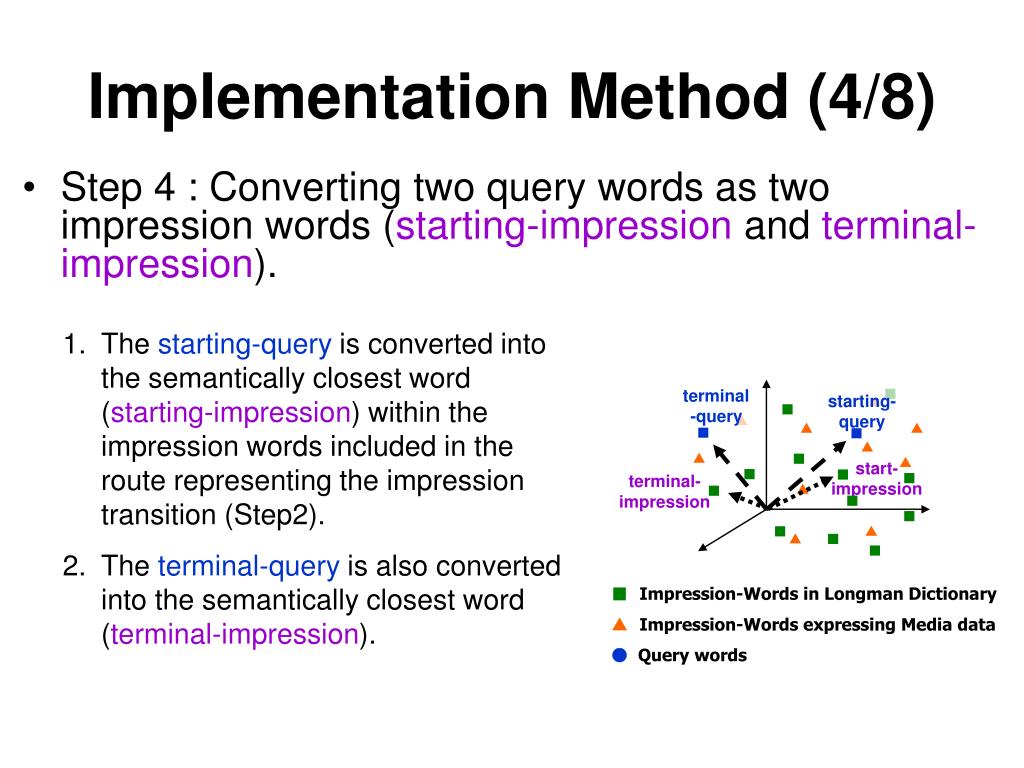

Implementation method 4 8

Psychological Impression-Transition

terminal-query

starting-query

start-impression

terminal-impression

Implementation Method (4/8)

  • Step 4 : Converting two query words as two impression words (starting-impression and terminal-impression).

  • The starting-query is converted into the semantically closest word (starting-impression) within the impression words included in the route representing the impression transition (Step2).

  • The terminal-query is also converted into the semantically closest word (terminal-impression).

■Impression-Words in Longman Dictionary

▲ Impression-Words expressing Media data

● Query words

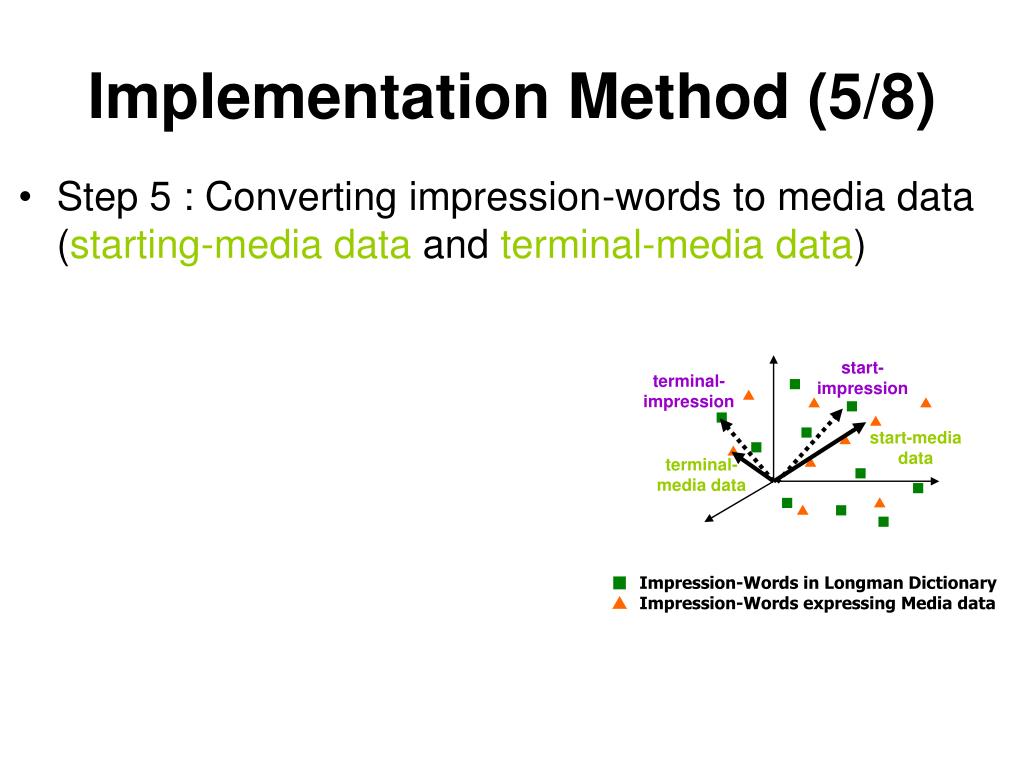

Implementation method 5 8

start-impression Psychological Impression-Transition

terminal-impression

start-media data

terminal-media data

Implementation Method (5/8)

  • Step 5 : Converting impression-words to media data (starting-media data and terminal-media data)

■Impression-Words in Longman Dictionary▲ Impression-Words expressing Media data

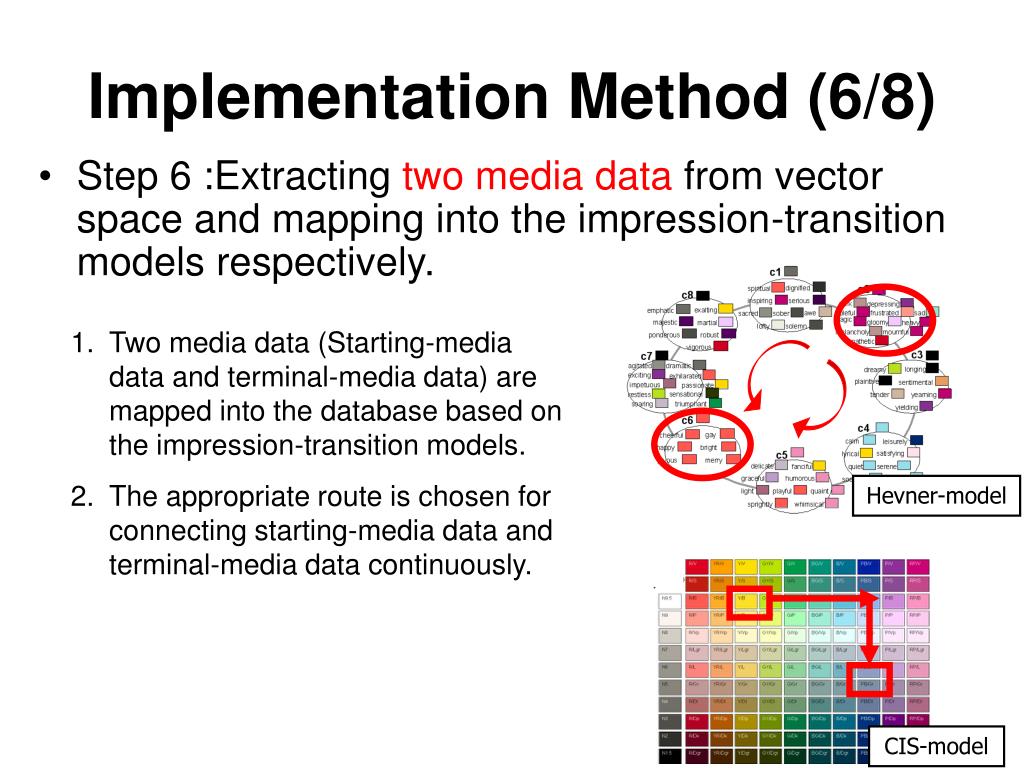

Implementation method 6 8

CIS-model Psychological Impression-Transition

Hevner-model

Implementation Method (6/8)

  • Step 6 :Extracting two media data from vector space and mapping into the impression-transition models respectively.

  • Two media data (Starting-media data and terminal-media data) are mapped into the database based on the impression-transition models.

  • The appropriate route is chosen for connecting starting-media data and terminal-media data continuously.


Implementation method 7 8

Allocated by impression-words Psychological Impression-Transition

CIS-model

Allocated by color gradation

Hevner-model

Implementation Method (7/8)

  • Step 7 : Choosing the route on the impression-transition model for rendering media data for visualization by color data.

  • To realize rendering the media data continuously, the route from starting-media data to terminal-media data is chosen.

  • According to taking time, the way how to walk on the impression-transition is decided.

  • The way how to walk must be uniformed like chess.


Implementation method 8 8
Implementation Method (8/8) Psychological Impression-Transition

  • Step 8 :Rendering the sequence of output media data generated in Step7.

  • We render the set of color data generated in Step7 along the selected route using the impression-transition model.

  • A personal computer is used to display the rendering of the set of color data.


Experimental results 1 3 confuse comfortable

(start-point-query= Psychological Impression-Transition“confuse”,goal-point-query=”comfortable”

R=shortest (右回り))

Results Example

(start-point-query=“confuse”,goal-point-query=”comfortable”,

R=longest (左回り))

(start-point-query=“confuse”,goal-point-query=”comfortable”

R=第4節5(B))

Experimental Results (1/3)[confuse → comfortable]

  • These results of the set of color data show the feasibility of our continuous media data rendering system for visualizing the change of psychological impression-transition.

CIS-model

Hevner-model

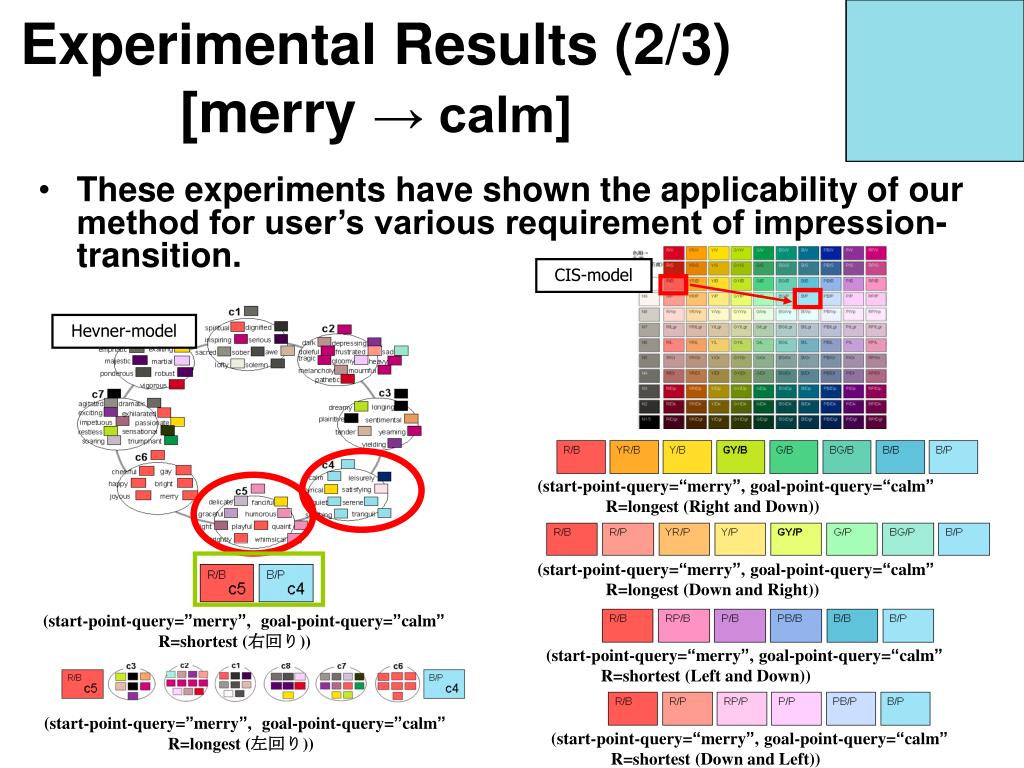

Experimental results 2 3 merry calm

CIS-model Psychological Impression-Transition

Hevner-model

(start-point-query=”merry”, goal-point-query=”calm”

R=shortest (右回り))

(start-point-query=”merry”, goal-point-query=”calm”

R=longest (左回り))

Results Example

(start-point-query=“merry”, goal-point-query=“calm”

R=longest (Right and Down))

(start-point-query=“merry”, goal-point-query=“calm”

R=longest (Down and Right))

(start-point-query=“merry”, goal-point-query=“calm”

R=shortest (Left and Down))

(start-point-query=“merry”, goal-point-query=“calm”

R=shortest (Down and Left))

Experimental Results (2/3)[merry → calm]

  • These experiments have shown the applicability of our method for user’s various requirement of impression-transition.


Experimental results 3 3 simple graceful

CIS-model Psychological Impression-Transition

Hevner-model

Results Example

(start-point-query=“simple” goal-point-query=“graceful”,

R=longest (Right and Down))

(start-point-query=“simple”goal-point-query=“graceful”,

R=longest (Right and Down))

(start-point-query=“simple”goal-point-query=“graceful”,

R=longest (Right and Down))

(start-point-query=“simple”,

goal-point-query=“graceful”)

(start-point-query=“simple”goal-point-query=“graceful”,

R=longest (Right and Down))

Experimental Results (3/3)[simple → graceful]

  • Our method has applicability for various strength of relationship between two query words, even if the two impression-words have a weak relationship in the vector space.


Summary
Summary Psychological Impression-Transition

  • Our method makes it possible to implement visualizations of the continuous change of impression-transition, according to impression-words expressed for starting point and terminal point.

  • By the implementation and experiments using color data as output media data, we have clarified the feasibility of our method for visualizing the change of impression-transition from starting point to terminal point by using the research results of musical psychology and color psychology.


Future work
Future Work Psychological Impression-Transition

  • We will design aggregate functions for color data expression in the experiments using psychological word groups by the Hevner-model.

  • We will approach to the computation mechanisms of continuous transition of impression.


References
References Psychological Impression-Transition

  • [KK_1993] Kitagawa, T. and Kiyoki, Y. :The mathematical model of meaning and its application to multidatabase systems, Proceedings of 3rd IEEE International Workshop on Research Issues on Data Engineering Interoperability in Multidatabase Systems, April 1993, 130-135

  • [KK_1994] Kiyoki, Y. Kitagawa, T. and Hayama, T. : A metadatabase system for semantic image search by a mathematical model of meaning, ACM SIGMOD Record, Vol.23, No.4, 1994, 34-41.

  • [KKH_1995] Kiyoki, Y. Kitagawa, T. and Hitomi, Y. : A fundamental framework for realizing semantic interoperability in a multidatabase environment, Journal of Integrated Computer-Aided Engineering, Vol.2, No.1, Jan.1995, 3-20.

  • [AS_1994] Aiello, R. and Slobada, J.A.: Musical perceptions, Oxford University Press, 1994.

  • [IK_2005] Ijichi, A. and Kiyoki, Y.:A Kansei Metadata Generation Method for Interpretation, Information Modeling and Knowledge Bases, 16, 170-182, 2005.

  • Longman Dictionary of Contemporary English, Longman, 1987

  • [H_1937] Hevner, K. : The affective value of pitch and tempo in music, American Journal of psychology, 49, 621-630.

  • [IKNS_2003] shibashi, N. Kiyoki, Y. Nakagami, Y. and Sato, A. : An Impressionistic Metadata Extraction Method for Music Data with Multiple Note Streams, DBSJ Letters, Vol.2, No.2, October 2003, pp.61-64 .


Thank you for your attention
Thank you for your attention. Psychological Impression-Transition

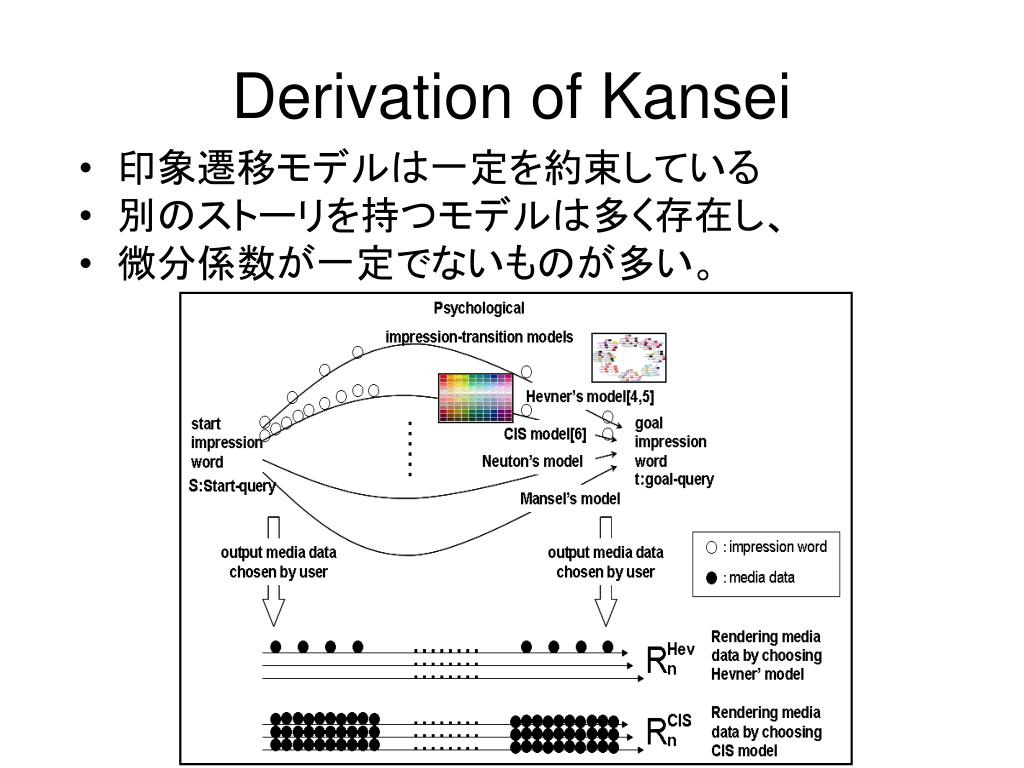

Derivation of kansei
Derivation of Kansei Psychological Impression-Transition

  • 印象遷移モデルは一定を約束している

  • 別のストーリを持つモデルは多く存在し、

  • 微分係数が一定でないものが多い。

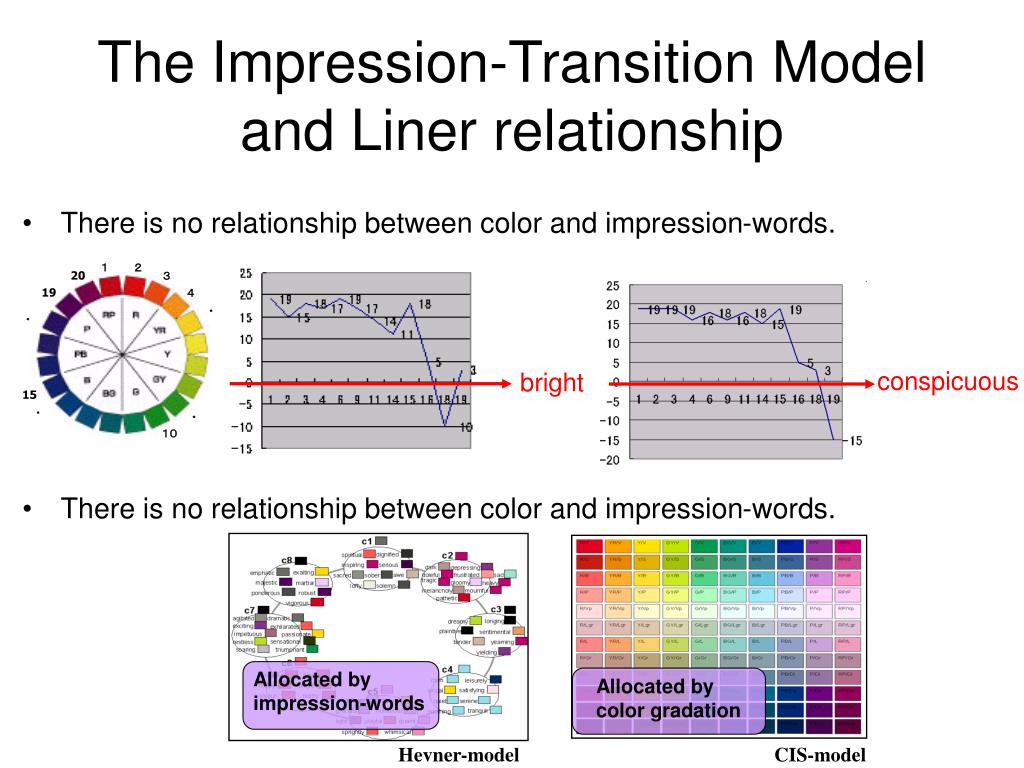

The impression transition model and liner relationship

Allocated by impression-words Psychological Impression-Transition

20

19

CIS-model

bright

Allocated by color gradation

conspicuous

15

10

Hevner-model

The Impression-Transition Model and Liner relationship

  • There is no relationship between color and impression-words.

  • There is no relationship between color and impression-words.

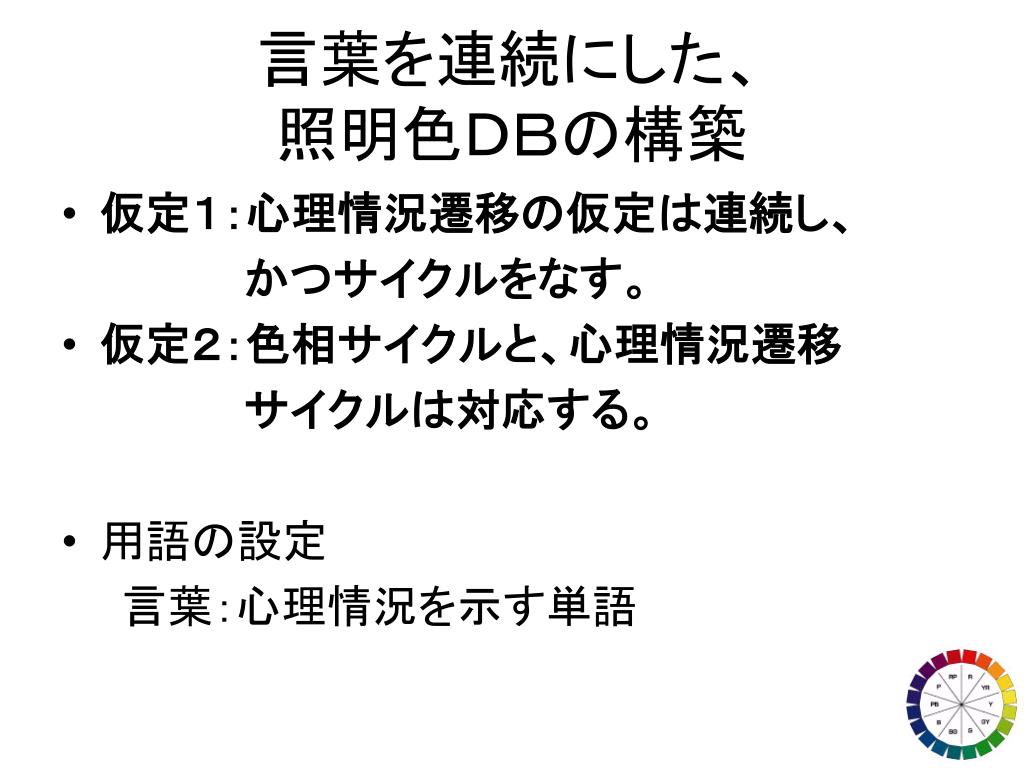

言葉を連続にした、 Psychological Impression-Transition照明色DBの構築

  • 仮定1:心理情況遷移の仮定は連続し、

          かつサイクルをなす。

  • 仮定2:色相サイクルと、心理情況遷移

          サイクルは対応する。

  • 用語の設定

      言葉:心理情況を示す単語

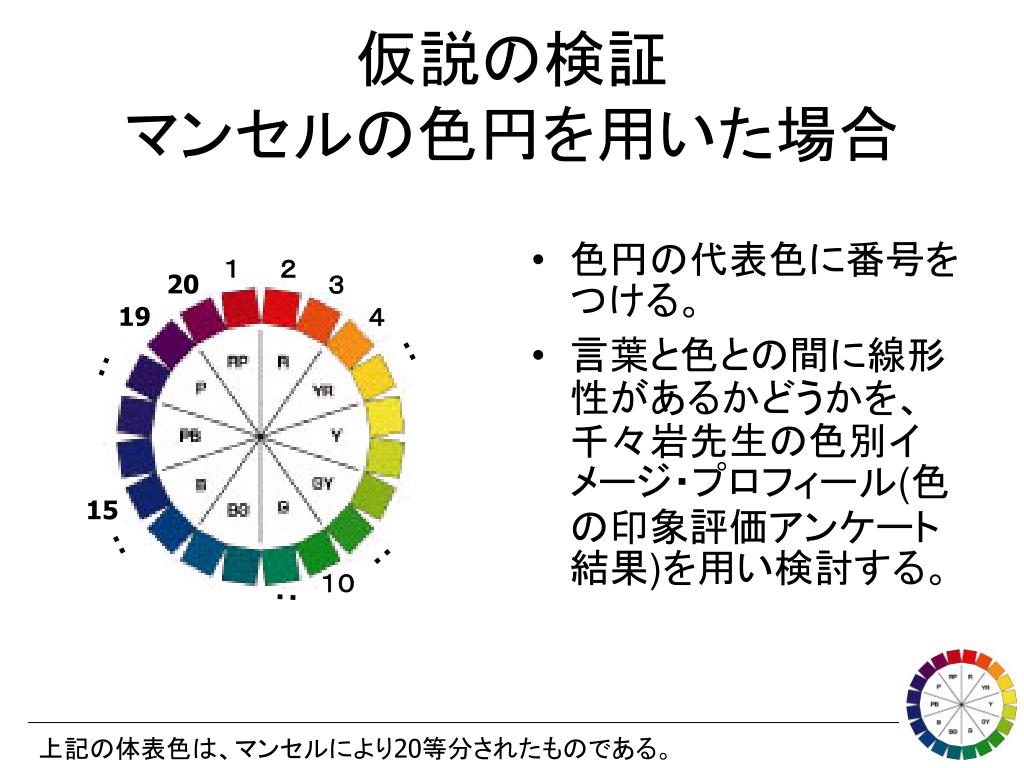

仮説の検証 Psychological Impression-Transitionマンセルの色円を用いた場合

  • 色円の代表色に番号をつける。

  • 言葉と色との間に線形性があるかどうかを、千々岩先生の色別イメージ・プロフィール(色の印象評価アンケート結果)を用い検討する。

20

19

・・

・・

15

・・

・・

10

・・

上記の体表色は、マンセルにより20等分されたものである。


マンセルの色円と言葉の間に線形性はあるか?マンセルの色円と言葉の間に線形性はあるか?

  • 結果  ・・・・ないっぽい
