  1. DRAGONSupercomputing 2004 Presentation PlansOctober 6, 2004 National Science Foundation

  2. Supercomputing 2004 • Three DRAGON experiments/demonstrations • Realtime e-VLBI • Realtime, between Westford and GGAO, using real instruments • Fallback to RT using stored data • With conventional IP access (cross traffic), and • With DRAGON light paths • VLSR • Demo DRAGON VLSR’s capability to manage ethernet switches and • interface with production GMPLS stacks on commercial products • NARB • Demo multi-domain automated provisioning. • All photonic wavelength inter-domain signaling and routing

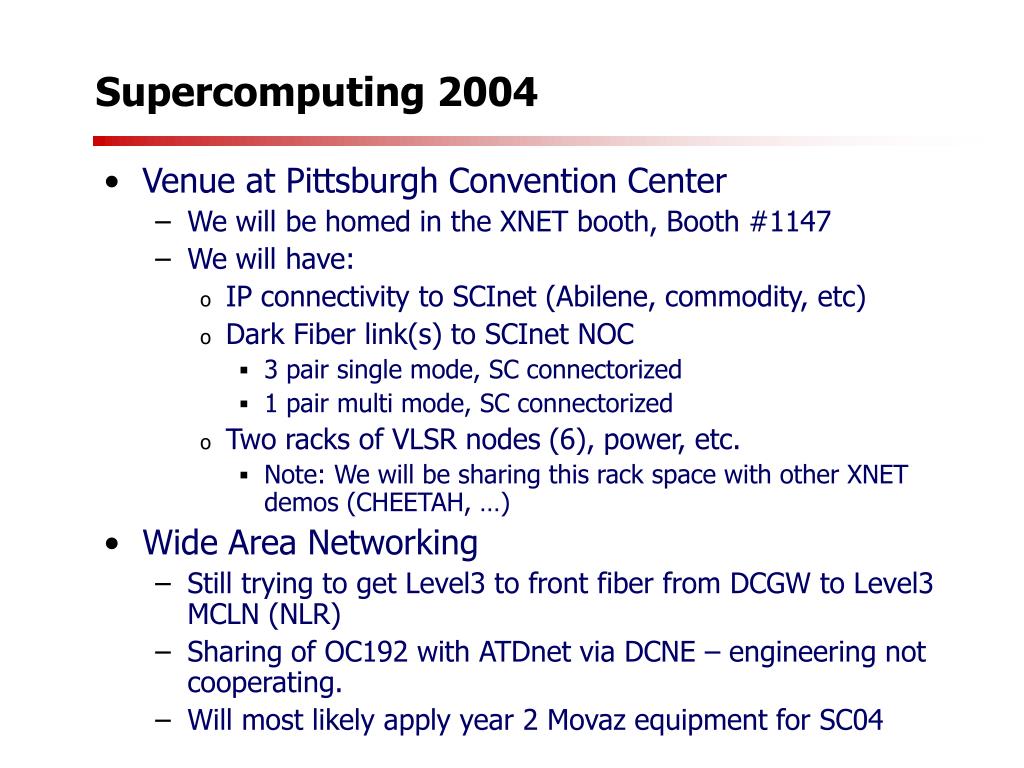

  3. Supercomputing 2004 • Venue at Pittsburgh Convention Center • We will be homed in the XNET booth, Booth #1147 • We will have: • IP connectivity to SCInet (Abilene, commodity, etc) • Dark Fiber link(s) to SCInet NOC • 3 pair single mode, SC connectorized • 1 pair multi mode, SC connectorized • Two racks of VLSR nodes (6), power, etc. • Note: We will be sharing this rack space with other XNET demos (CHEETAH, …) • Wide Area Networking • Still trying to get Level3 to front fiber from DCGW to Level3 MCLN (NLR) • Sharing of OC192 with ATDnet via DCNE – engineering not cooperating. • Will most likely apply year 2 Movaz equipment for SC04

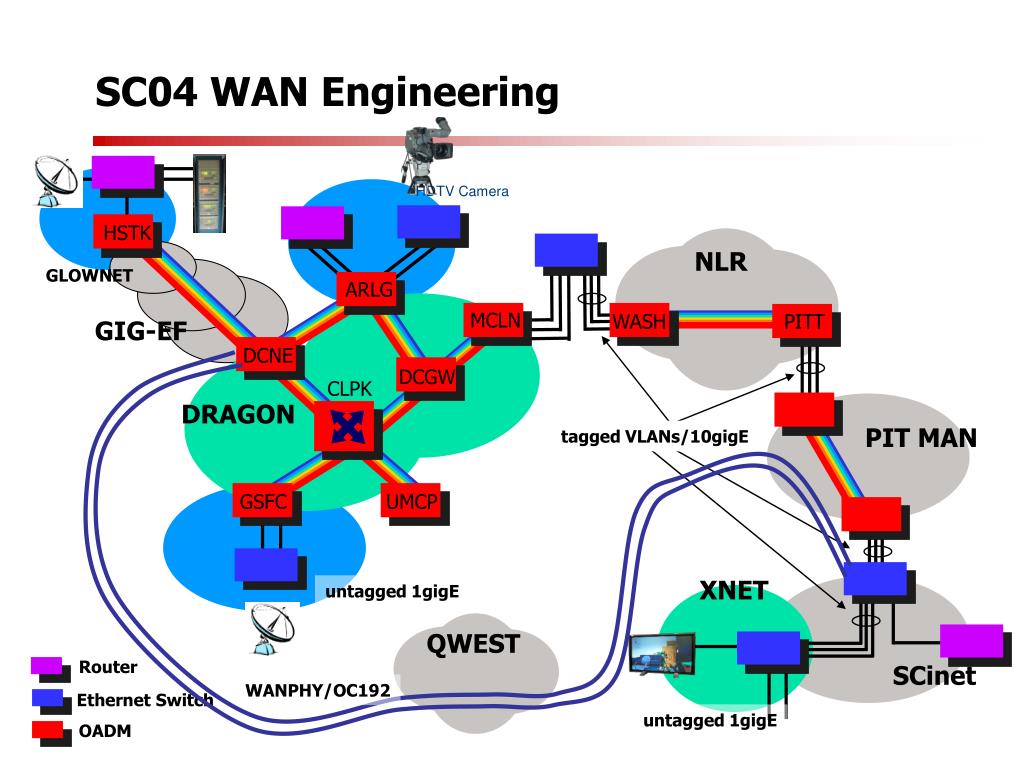

  4. HDTV Camera SC04 WAN Engineering HSTK NLR GLOWNET ARLG MCLN WASH PITT GIG-EF DCNE DCGW CLPK DRAGON PIT MAN tagged VLANs/10gigE GSFC UMCP XNET untagged 1gigE QWEST Router SCinet WANPHY/OC192 Ethernet Switch untagged 1gigE OADM

  5. DRAGON Demonstrations • E-VLBI • HSTK, GGAO over IP (with crosstraffic) • HSTK, GGAO over DRAGON • Virtual Label Switched Routers • Demonstrates open source GMPLS protocol stacks • Dynamic provisioning of p2p ethernet light paths • Inter-Domain NARB path provisioning • Multi-domain path computation • Optically transparent inter-domain routing/signaling • HD-CVAN • SMPTE-292 from Wash DC over light path(s) • If WDC link not available, then we’ll do something in the booth • Or Ultra Grid over 1ge in Xnet – • In booth, and hopefully over WAN

  6. Real time E-VLBI SC2004 Experiment#1 Haystack Bossnet Display station only Westford Pittsburgh Convention Center DRAGON Goddard GGAO

  7. eVLBI SC04 Experiment #1a RT eVLBI over R&E IP networks Westford GigE Mk5 Eth 512 mbs acquisition GigE Haystack Mk5 Eth DRAGON/GIG-EF Corr GigE Mk5 Eth M10 OC48pos / dwdm H2 NASA Goddard GigE M40 Mk5 F10 OC48pos MAX GSFC 512 mbs acquisition GigE OC48pos M160 C12016 M160 H1 GigE Packet loss due to other cross traffic

  8. eVLBI SC04 Experiment #1b RT eVLBI over DRAGON using dedicated light paths Westford Mk5 Eth 512 mbs acquisition GigE Haystack Mk5 Eth Dedicated GigE VLAN Corr Mk5 Eth M10 MPLS LSP /OC48pos /dwdm NASA Goddard M40 F10 Mk5 F10 GigE / DWDM Dedicated GigE VLAN 512 mbs acquisition

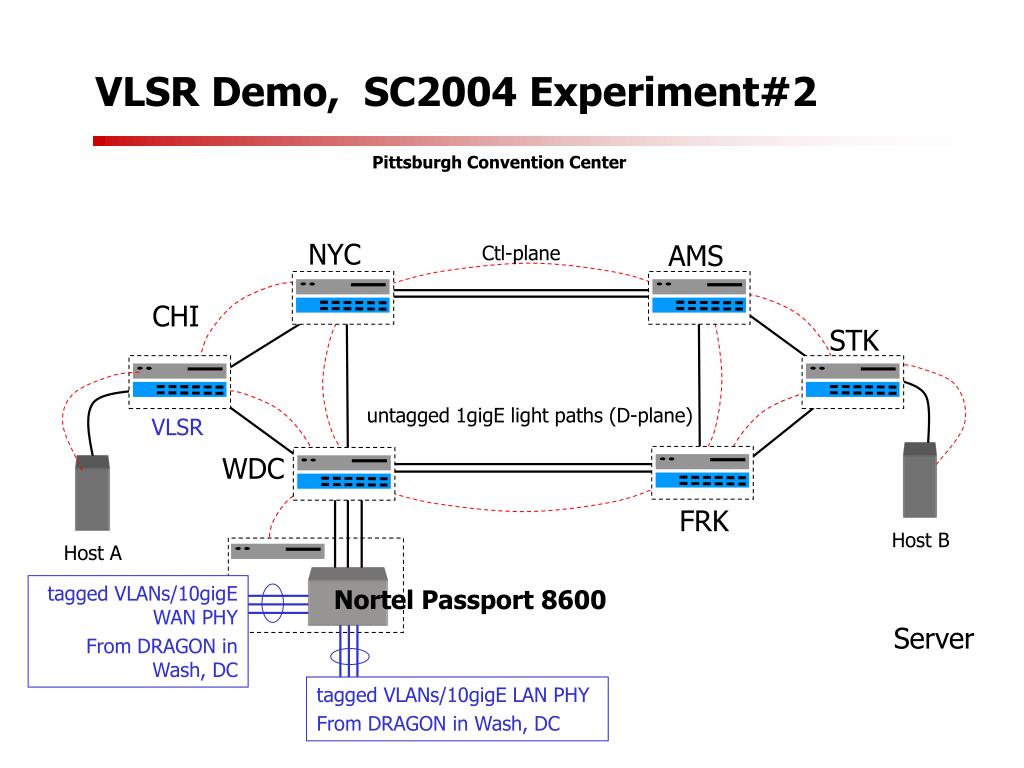

  9. VLSR Demo, SC2004 Experiment#2 Pittsburgh Convention Center NYC AMS Ctl-plane CHI STK untagged 1gigE light paths (D-plane) VLSR WDC FRK Host B Host A tagged VLANs/10gigE WAN PHY From DRAGON in Wash, DC Nortel Passport 8600 Server tagged VLANs/10gigE LAN PHY From DRAGON in Wash, DC

  10. Inter-Domain NARB demo SC04 Experiment #3

  11. HD-CVAN SC04 Experiment #4
