  1. Network Connectivity Options Currently offered by Wyless

  2. Option 1: Standard, no VPN • Mobile-originate traffic only • Outbound traffic can be filtered by white listing IP addresses or ports (such as blocking all traffic except for customer's public-facing server) • Useful when there is no requirement to initiate a session to the cellular device

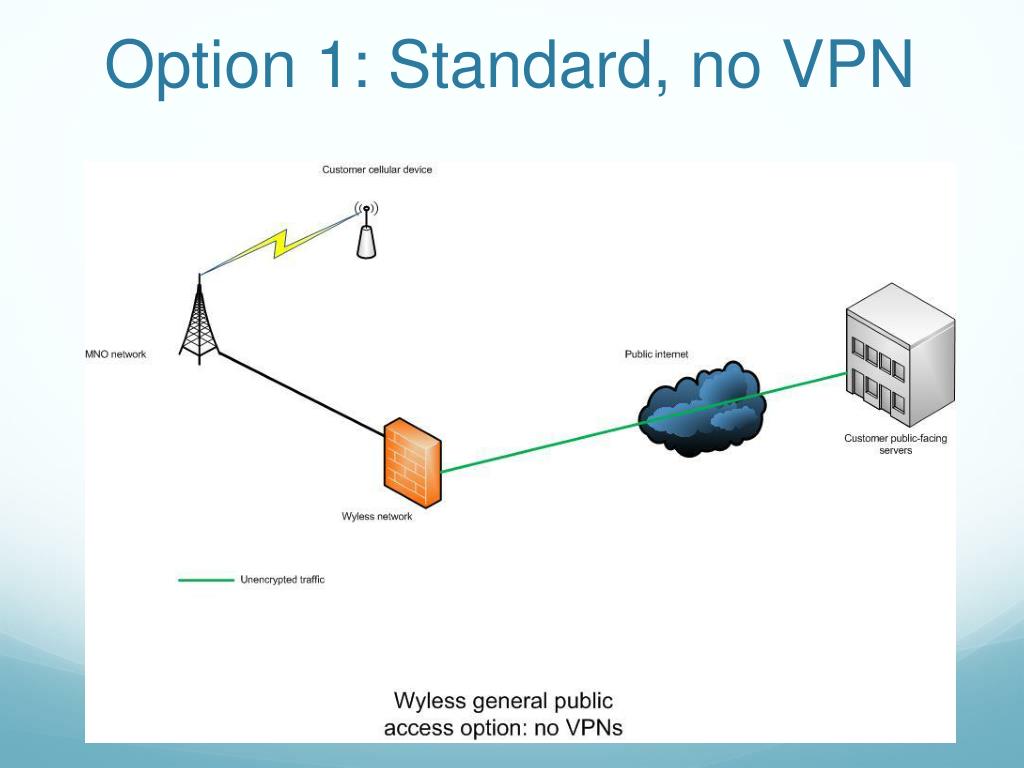

  3. Option 1: Standard, no VPN

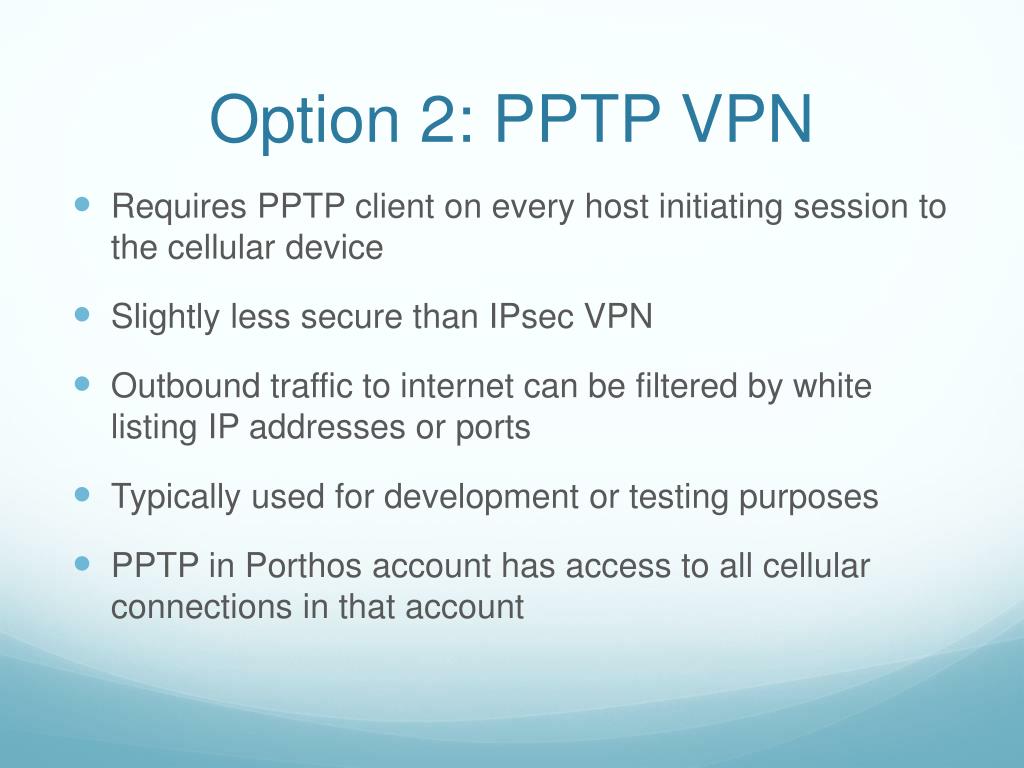

  4. Option 2: PPTP VPN • Requires PPTP client on every host initiating session to the cellular device • Slightly less secure than IPsec VPN • Outbound traffic to internet can be filtered by white listing IP addresses or ports • Typically used for development or testing purposes • PPTP in Porthos account has access to all cellular connections in that account

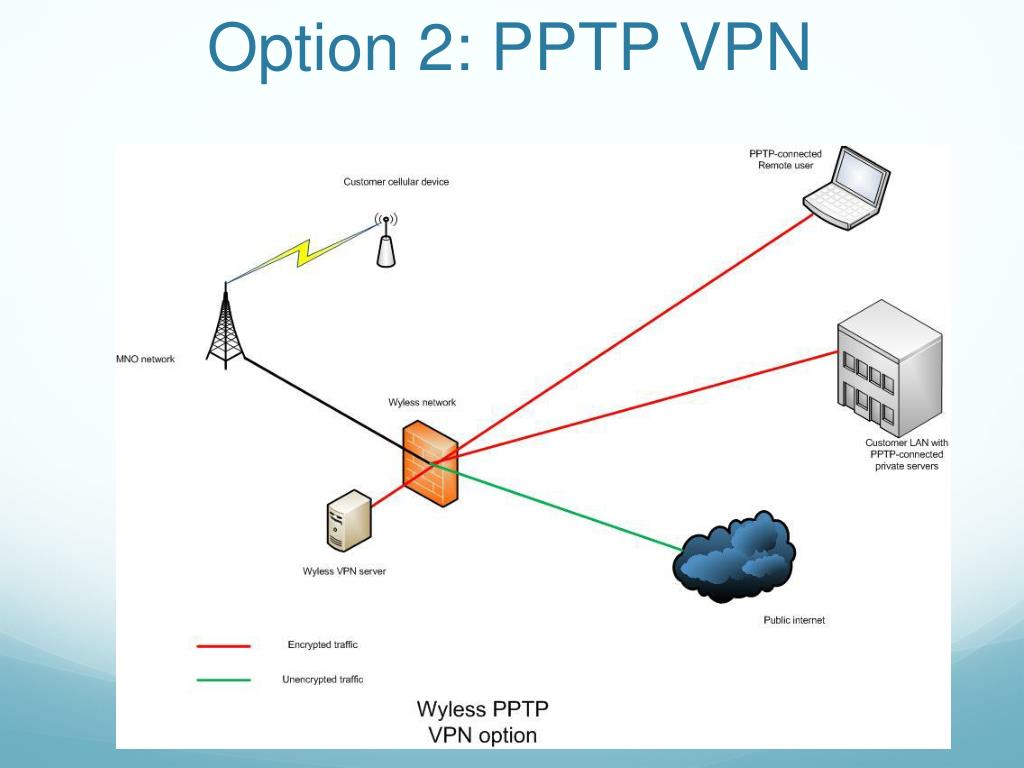

  5. Option 2: PPTP VPN

  6. Option 3a: Standard IPsec VPN • Only traffic intended directly for customer's LAN goes over the IPsec tunnel • Outbound traffic to internet can be filtered by whitelisting IP addresses or ports • Most popular and easiest type of IPsec to set up

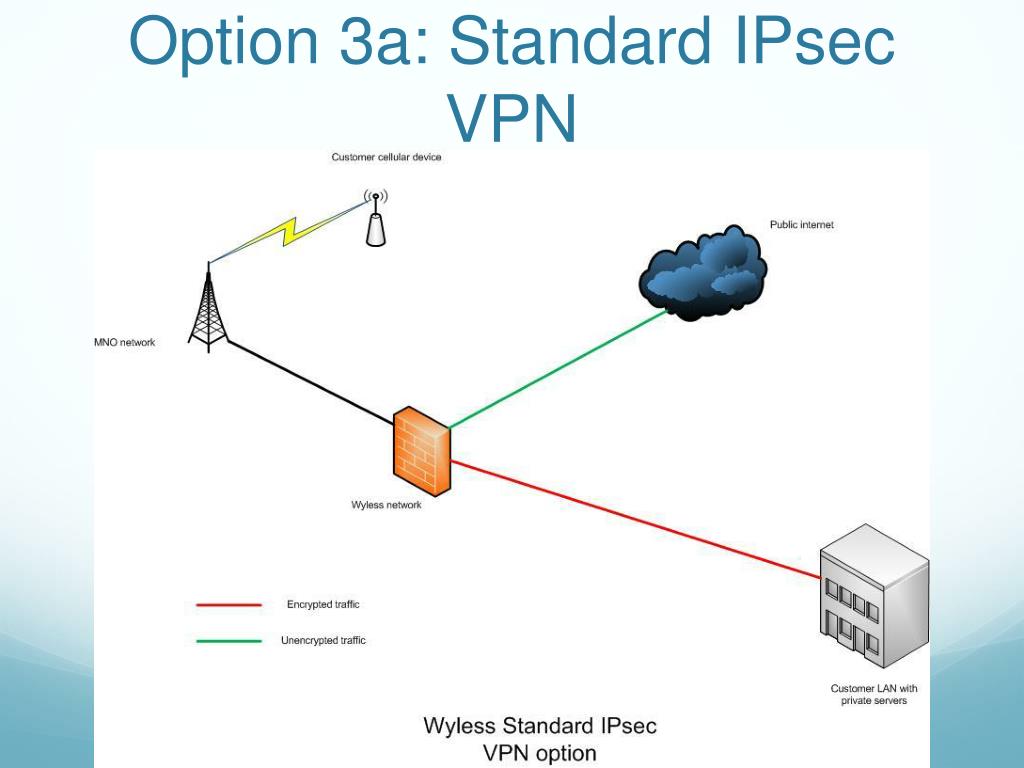

  7. Option 3a: Standard IPsec VPN

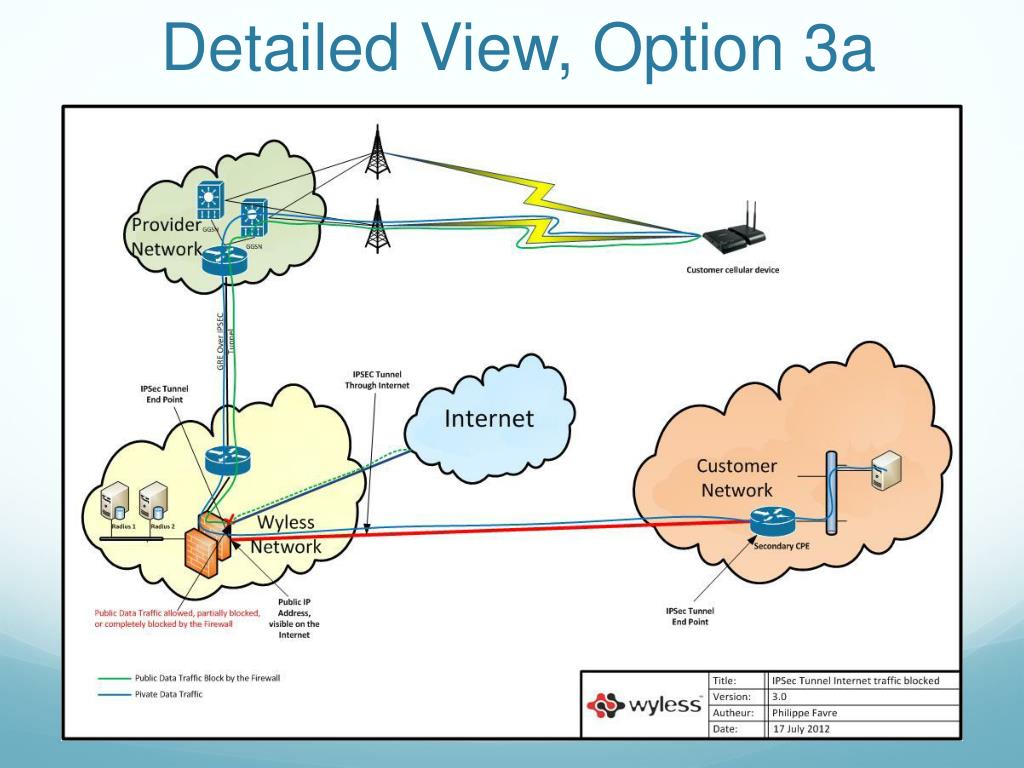

  8. Detailed View, Option 3a

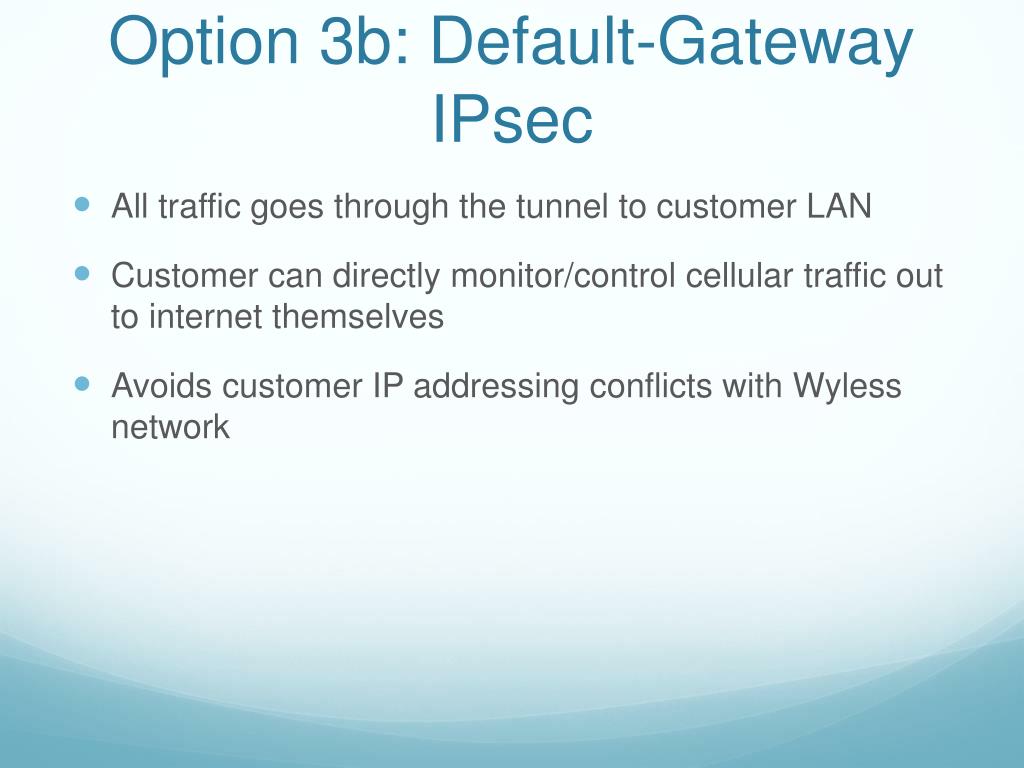

  9. Option 3b: Default-Gateway IPsec • All traffic goes through the tunnel to customer LAN • Customer can directly monitor/control cellular traffic out to internet themselves • Avoids customer IP addressing conflicts with Wyless network

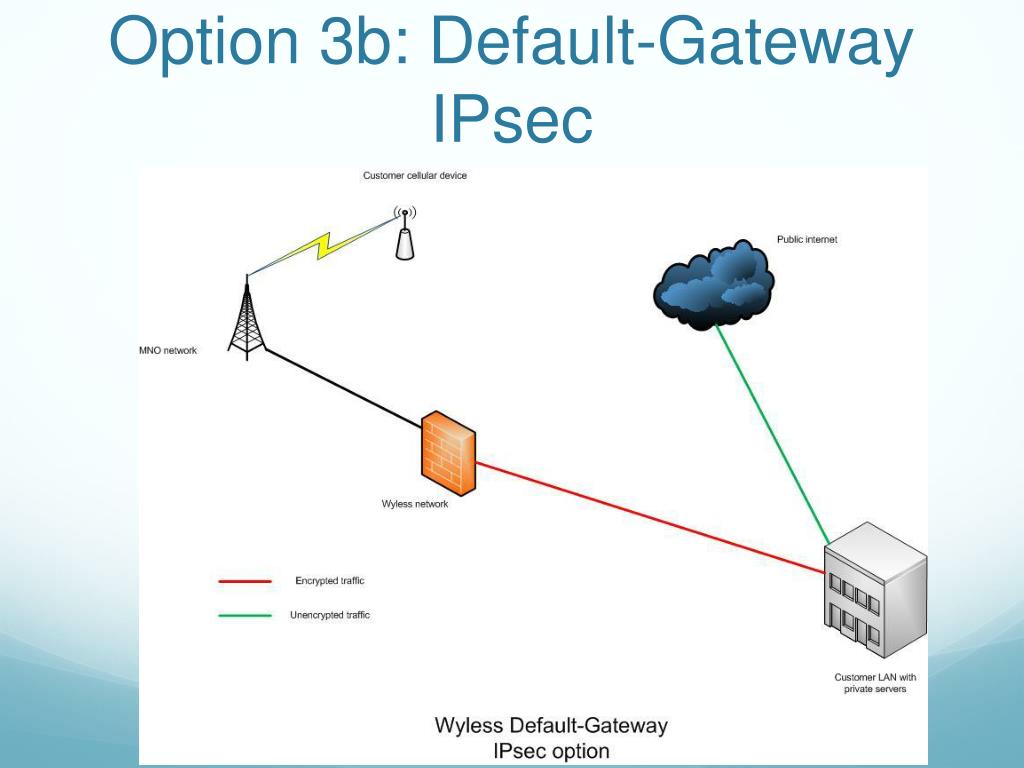

  10. Option 3b: Default-Gateway IPsec

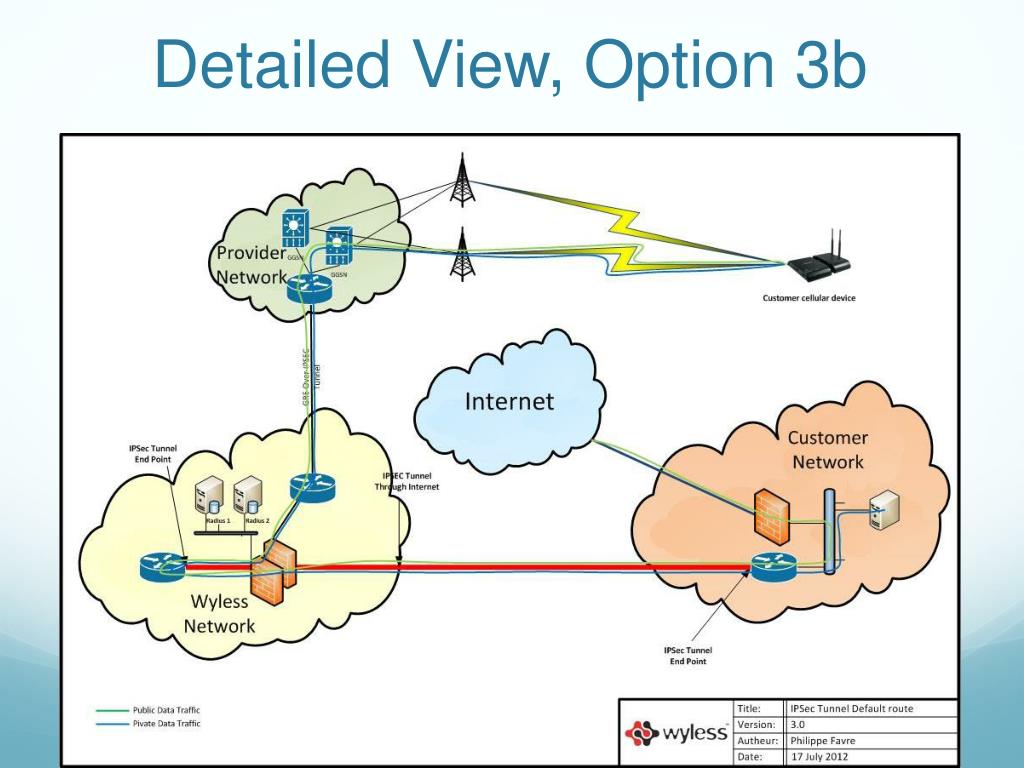

  11. Detailed View, Option 3b

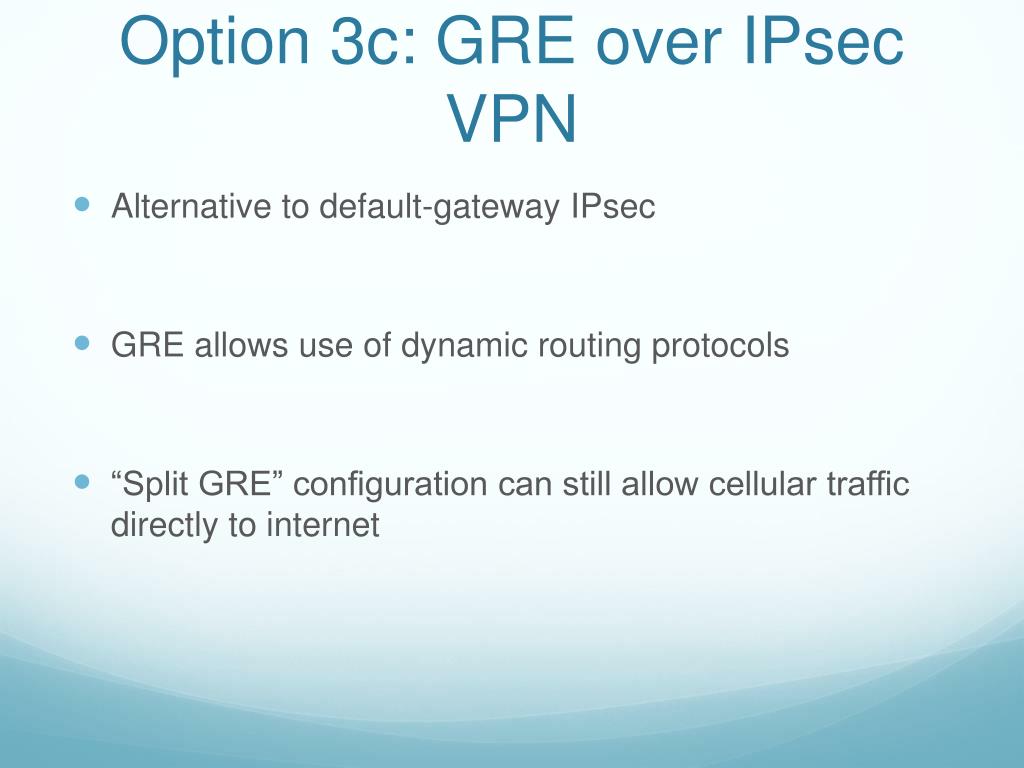

  12. Option 3c: GRE over IPsec VPN • Alternative to default-gateway IPsec • GRE allows use of dynamic routing protocols • “Split GRE” configuration can still allow cellular traffic directly to internet

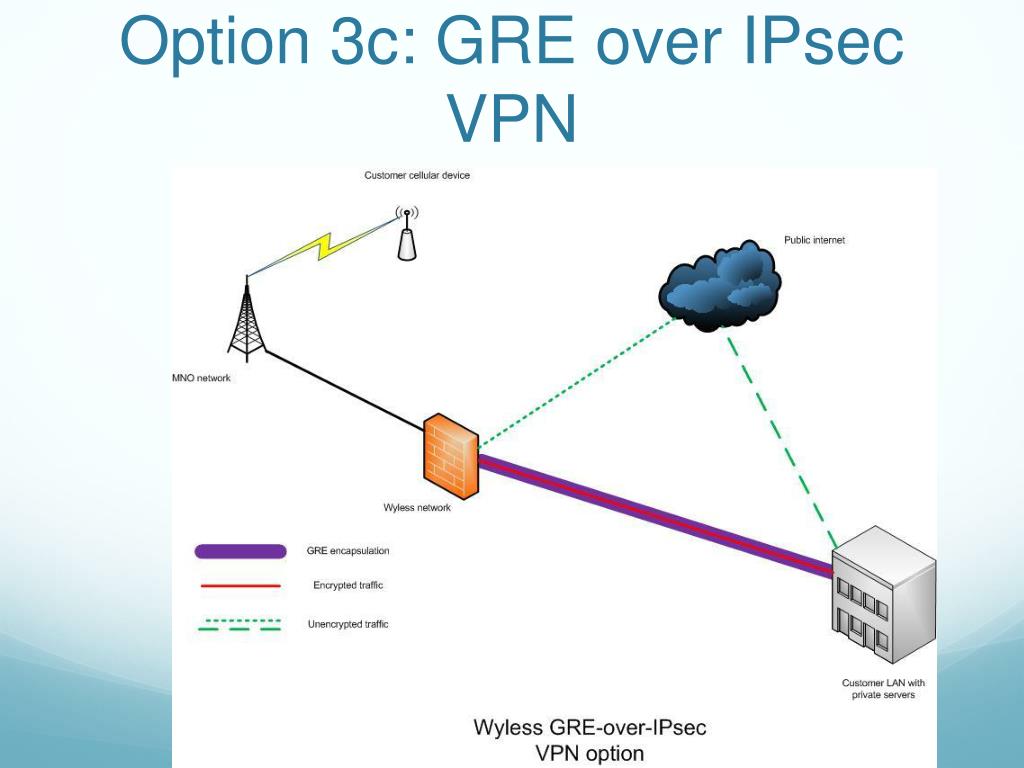

  13. Option 3c: GRE over IPsec VPN

  14. Option 4: MPLS connectivity • alternative to GRE-IPSec • Requires customer provided router(s) and circuit(s) into our datacenter

  15. Option 4: MPLS Connectivity

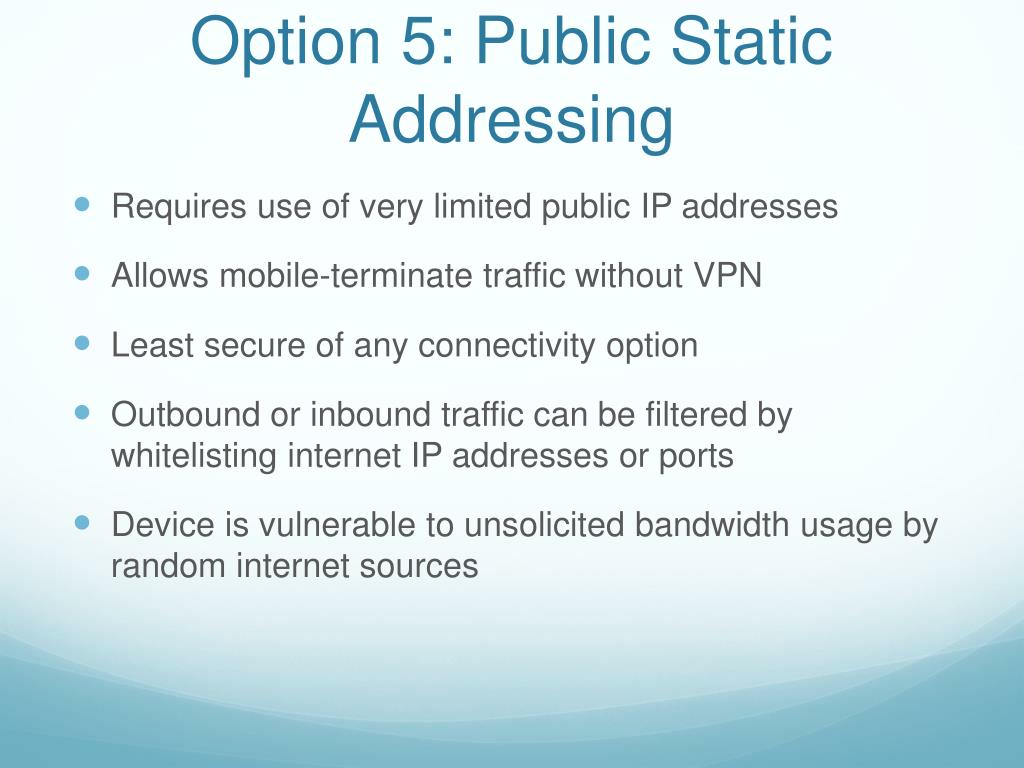

  16. Option 5: Public Static Addressing • Requires use of very limited public IP addresses • Allows mobile-terminate traffic without VPN • Least secure of any connectivity option • Outbound or inbound traffic can be filtered by whitelisting internet IP addresses or ports • Device is vulnerable to unsolicited bandwidth usage by random internet sources

  17. Option 5: Public Static Addressing
