Presentation Transcript


Modern method on accident investigation

MODERN METHOD ON ACCIDENT INVESTIGATION

V.P.GHOLAP

V.LAKSHMAN

S.BHATTACHARYA

P.K.GHOSH

AERB


Modern method on accident investigation

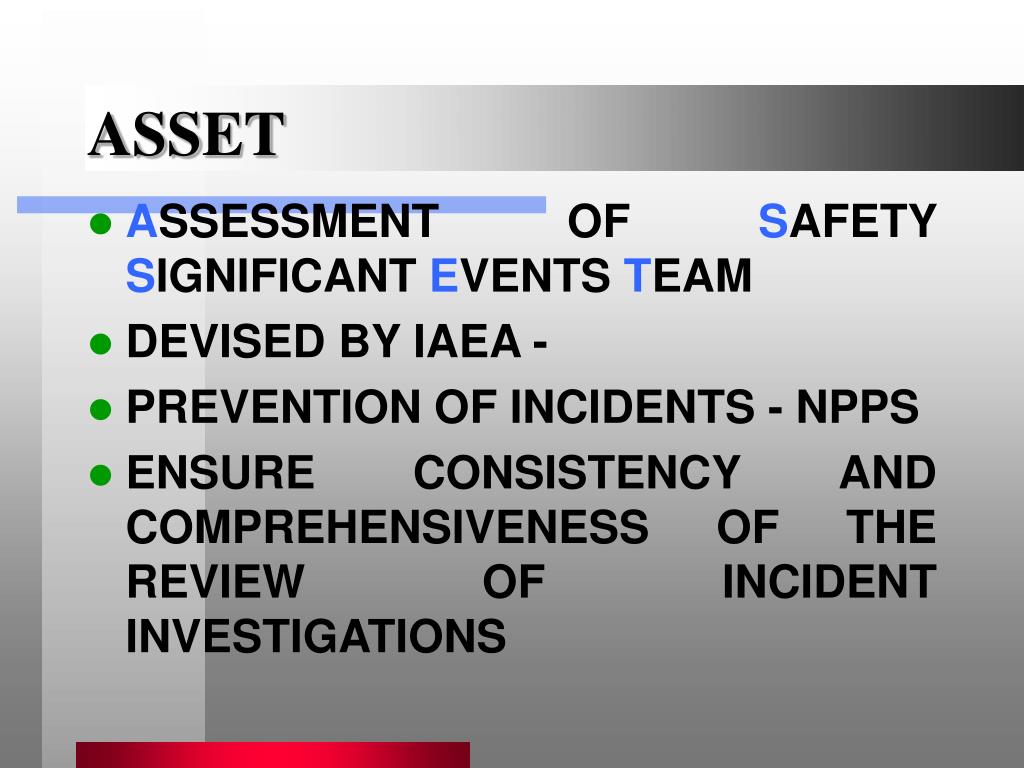

ASSET

  • ASSESSMENT OF SAFETY SIGNIFICANT EVENTS TEAM

  • DEVISED BY IAEA -

  • PREVENTION OF INCIDENTS - NPPS

  • ENSURE CONSISTENCY AND COMPREHENSIVENESS OF THE REVIEW OF INCIDENT INVESTIGATIONS


Asset approach philosopy

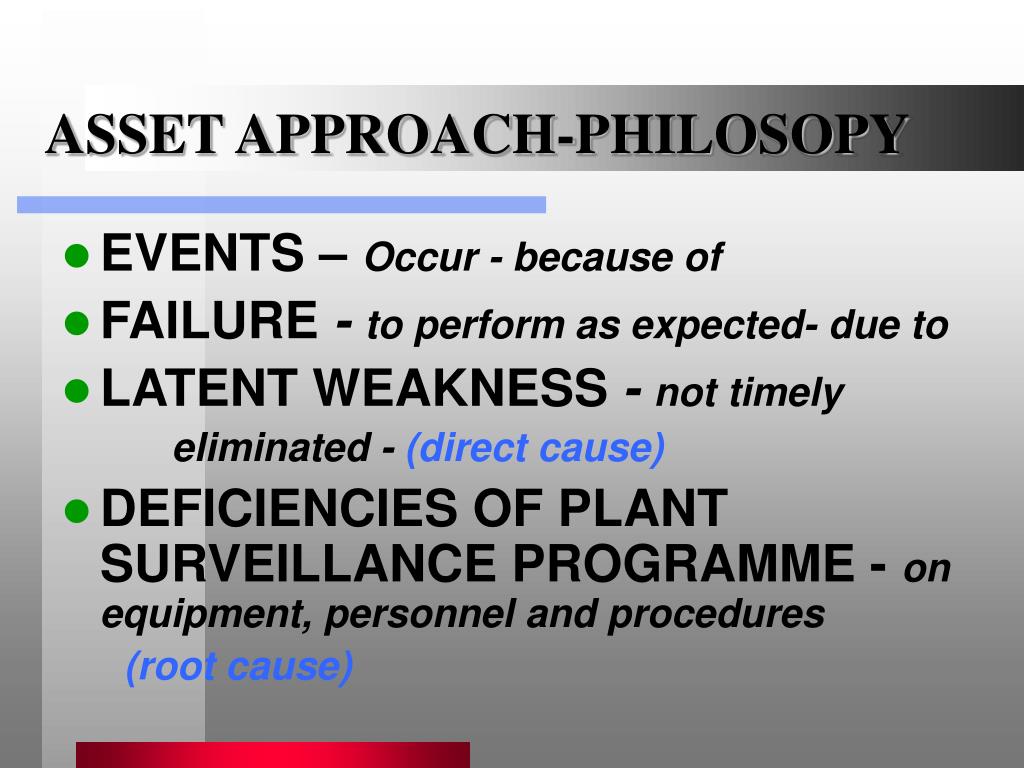

ASSET APPROACH-PHILOSOPY

  • EVENTS – Occur - because of

  • FAILURE - to perform as expected- due to

  • LATENT WEAKNESS - not timely

    eliminated - (direct cause)

  • DEFICIENCIES OF PLANT SURVEILLANCE PROGRAMME - on equipment, personnel and procedures

    (root cause)


Asset methodology

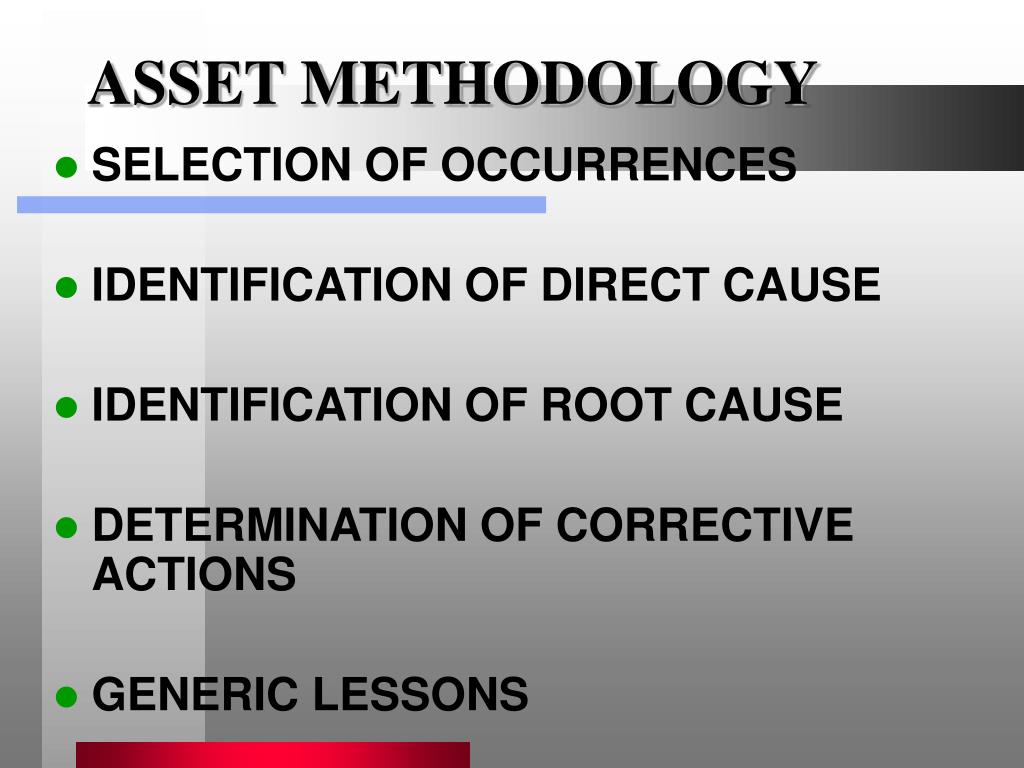

ASSET METHODOLOGY

  • SELECTION OF OCCURRENCES

  • IDENTIFICATION OF DIRECT CAUSE

  • IDENTIFICATION OF ROOT CAUSE

  • DETERMINATION OF CORRECTIVE ACTIONS

  • GENERIC LESSONS


Asset methodology 1

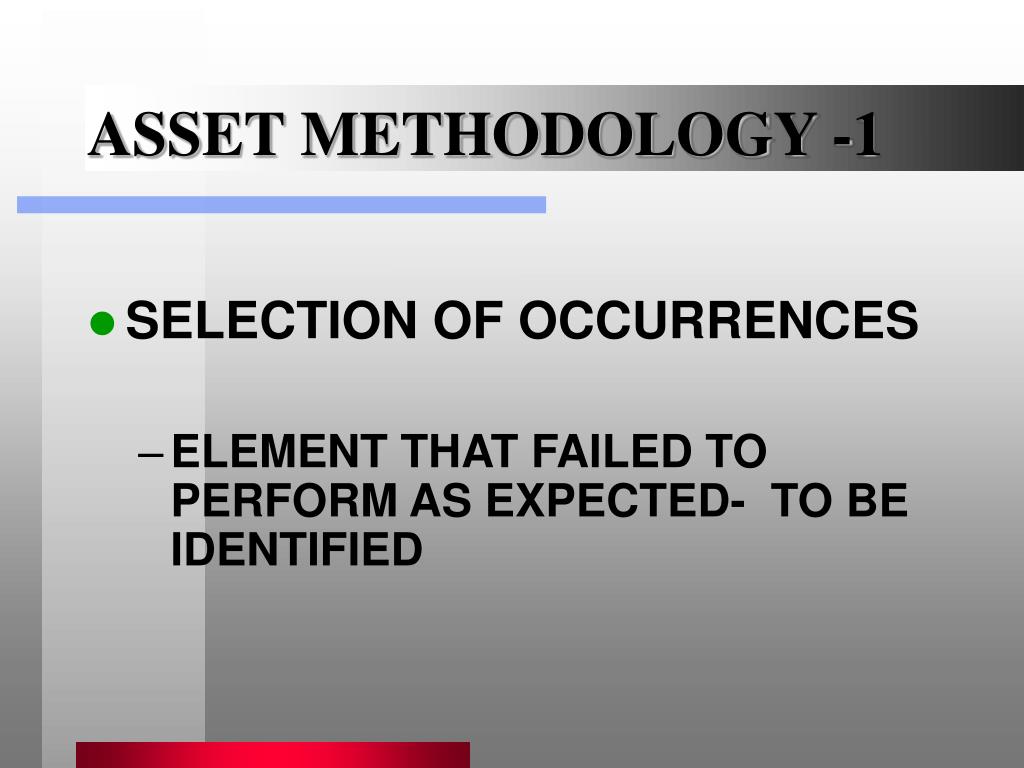

ASSET METHODOLOGY -1

  • SELECTION OF OCCURRENCES

    • ELEMENT THAT FAILED TO PERFORM AS EXPECTED- TO BE IDENTIFIED


Asset methodology 2

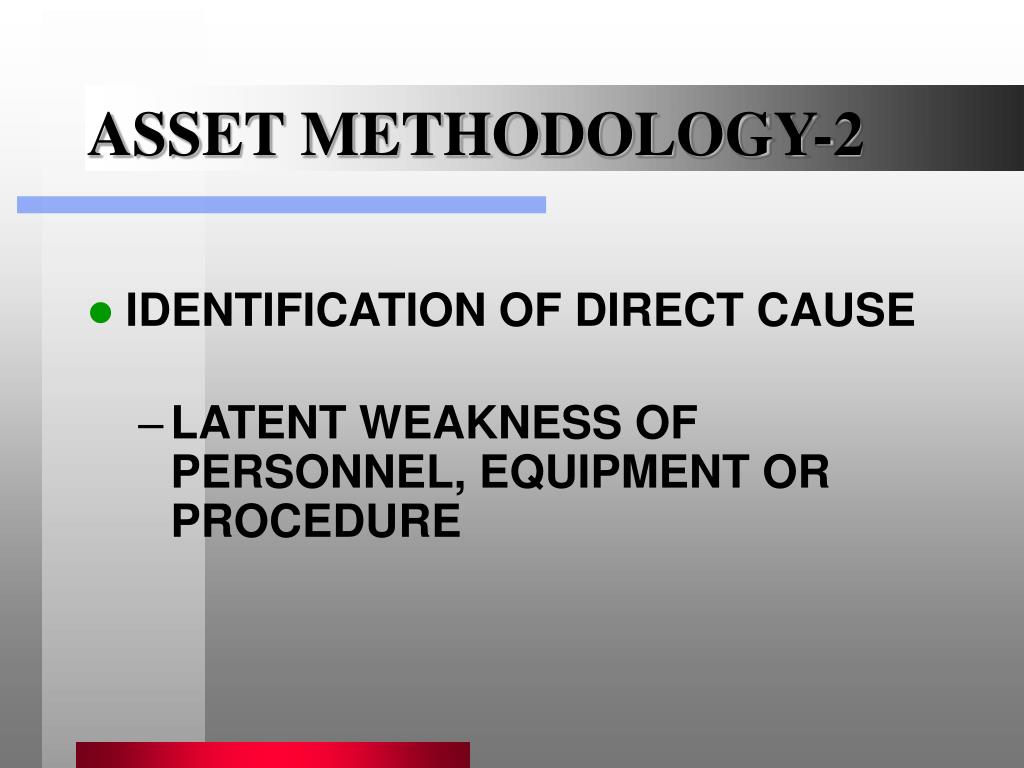

ASSET METHODOLOGY-2

  • IDENTIFICATION OF DIRECT CAUSE

    • LATENT WEAKNESS OF PERSONNEL, EQUIPMENT OR PROCEDURE


Asset methodology 3

ASSET METHODOLOGY -3

  • IDENTIFICATION OF ROOT CAUSE

    • DEFICIENCY IN DETECTION OF ERROR AND RESTORATION OF ROOT CAUSE


Asset methodology 4

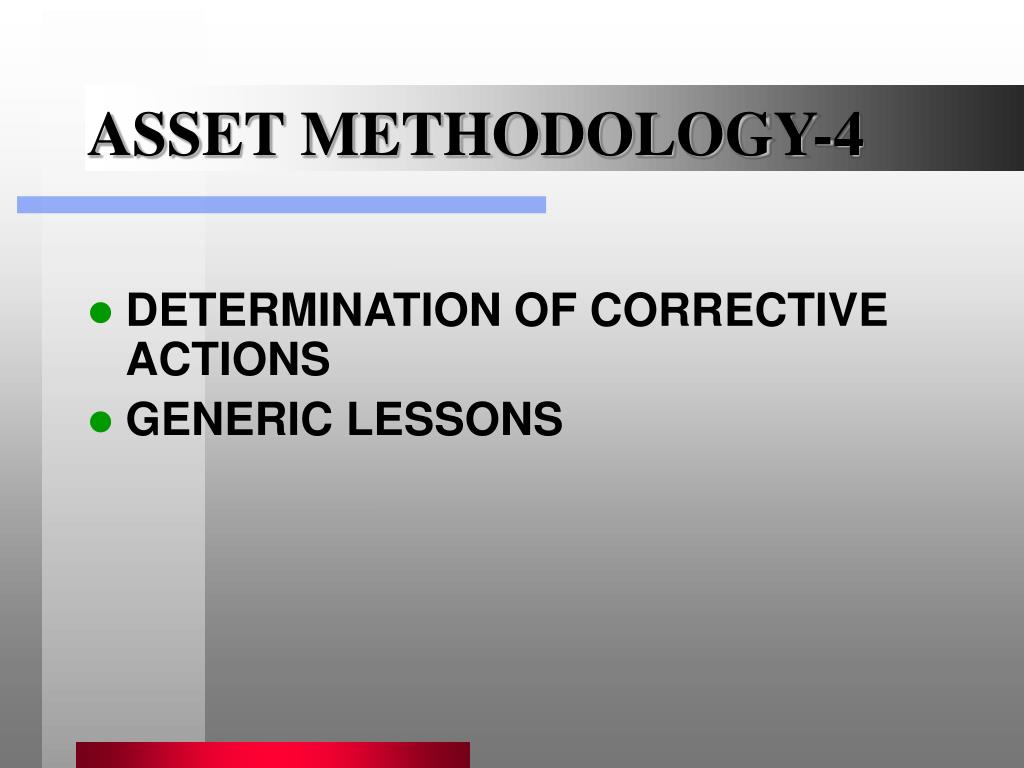

ASSET METHODOLOGY-4

  • DETERMINATION OF CORRECTIVE ACTIONS

  • GENERIC LESSONS


Investigation steps

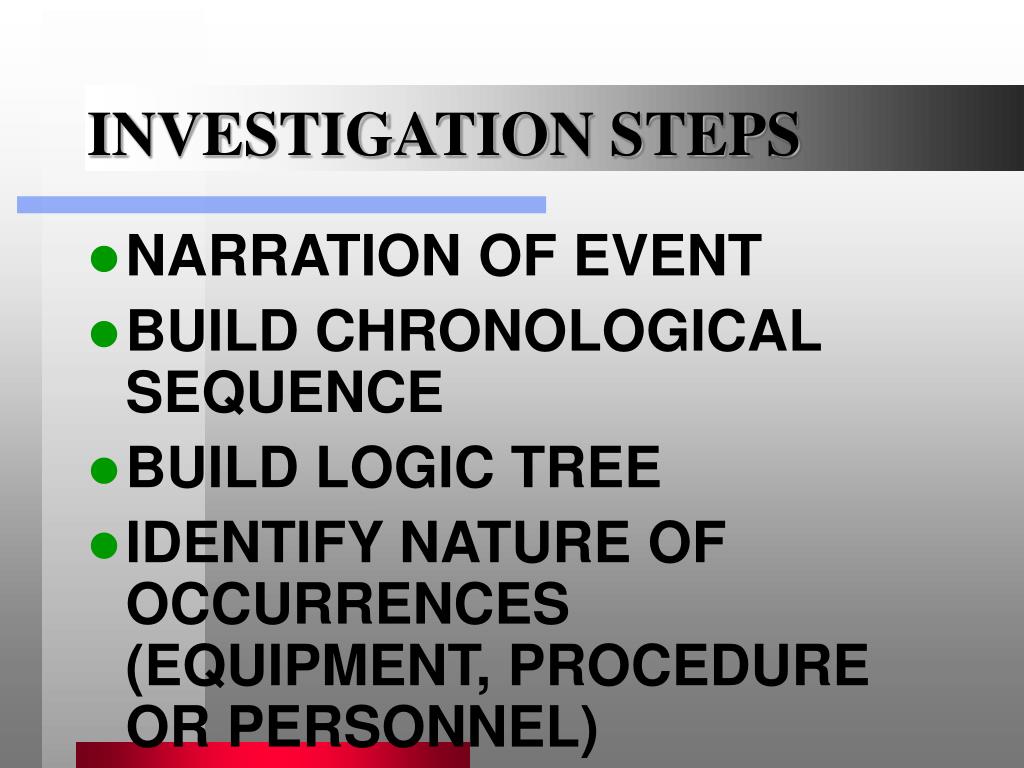

INVESTIGATION STEPS

  • NARRATION OF EVENT

  • BUILD CHRONOLOGICAL SEQUENCE

  • BUILD LOGIC TREE

  • IDENTIFY NATURE OF OCCURRENCES (EQUIPMENT, PROCEDURE OR PERSONNEL)


Investigation steps contd

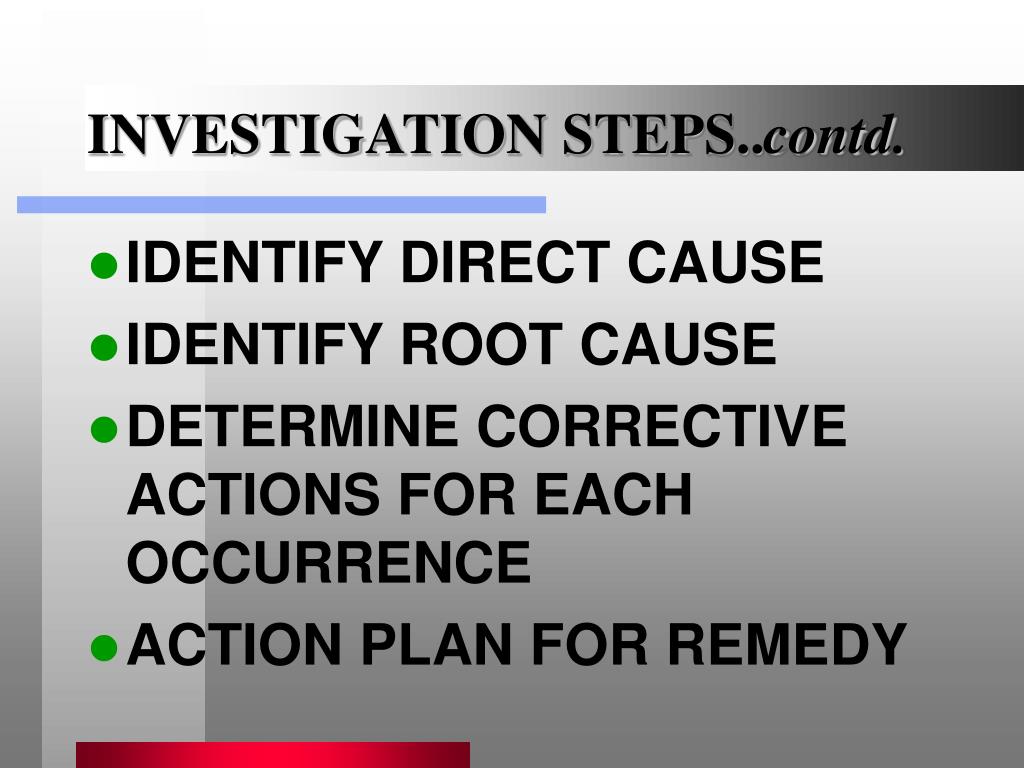

INVESTIGATION STEPS..contd.

  • IDENTIFY DIRECT CAUSE

  • IDENTIFY ROOT CAUSE

  • DETERMINE CORRECTIVE ACTIONS FOR EACH OCCURRENCE

  • ACTION PLAN FOR REMEDY


Case study fatal accident at kaiga 3 4

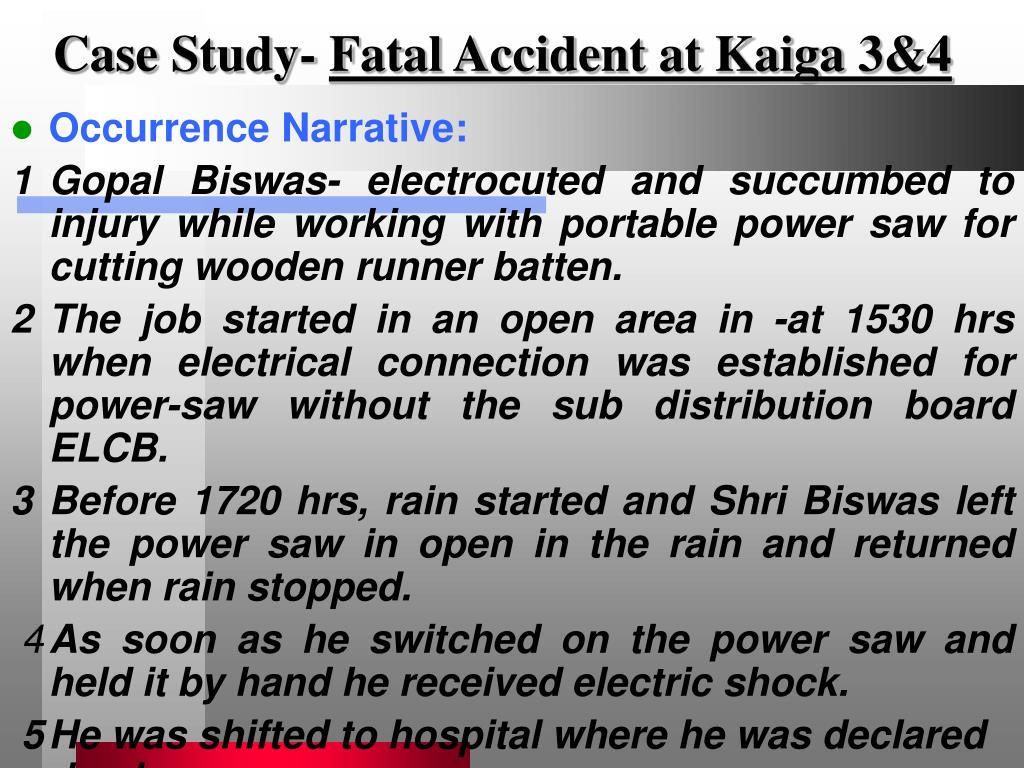

Case Study- Fatal Accident at Kaiga 3&4

  • Occurrence Narrative:

    1Gopal Biswas- electrocuted and succumbed to injury while working with portable power saw for cutting wooden runner batten.

    2The job started in an open area in -at 1530 hrs when electrical connection was established for power-saw without the sub distribution board ELCB.

    3Before 1720 hrs, rain started and Shri Biswas left the power saw in open in the rain and returned when rain stopped.

    4As soon as he switched on the power saw and held it by hand he received electric shock.

    5He was shifted to hospital where he was declared dead.


Case study fatal accident at kaiga 3 41

Case Study- Fatal Accident at Kaiga 3&4

  • Chronological Sequence:

    1530 hrs work started

    1700 hrs- rain started

    1720 hrs – rain stopped

    1720 hrs – portable saw was switched on and the user suffered electrocution

    1730 hrs operator was taken to hospital declared and dead.


Case study fatal accident at kaiga 3 42

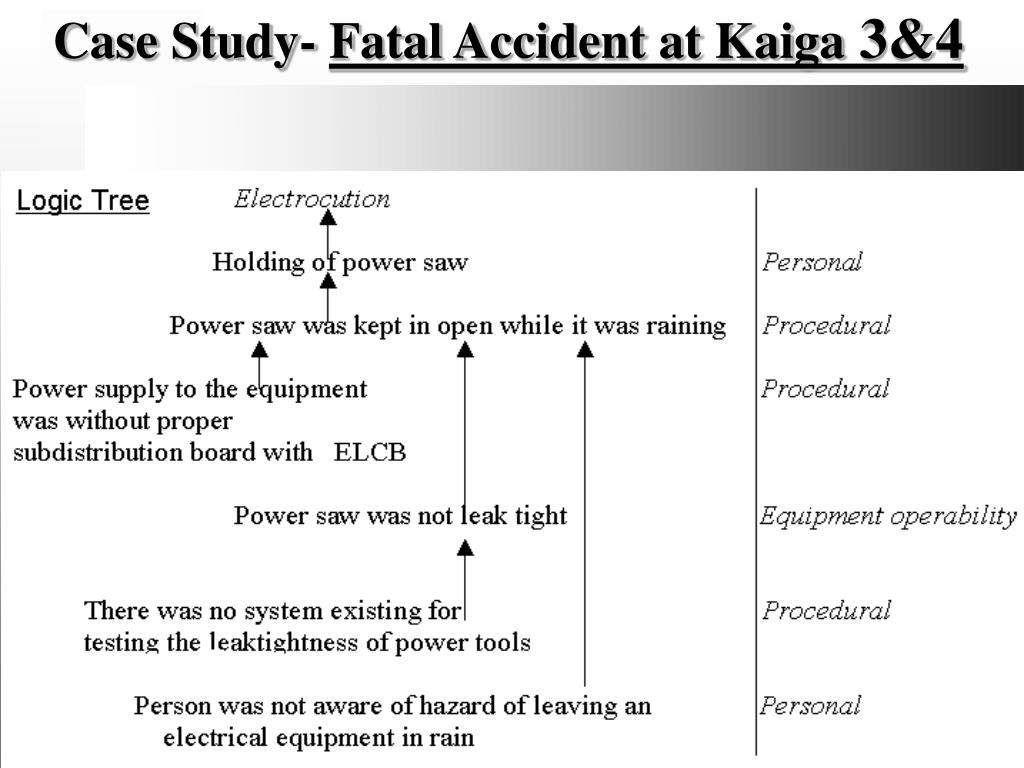

Case Study- Fatal Accident at Kaiga 3&4


Case study fatal accident at kaiga 3 43

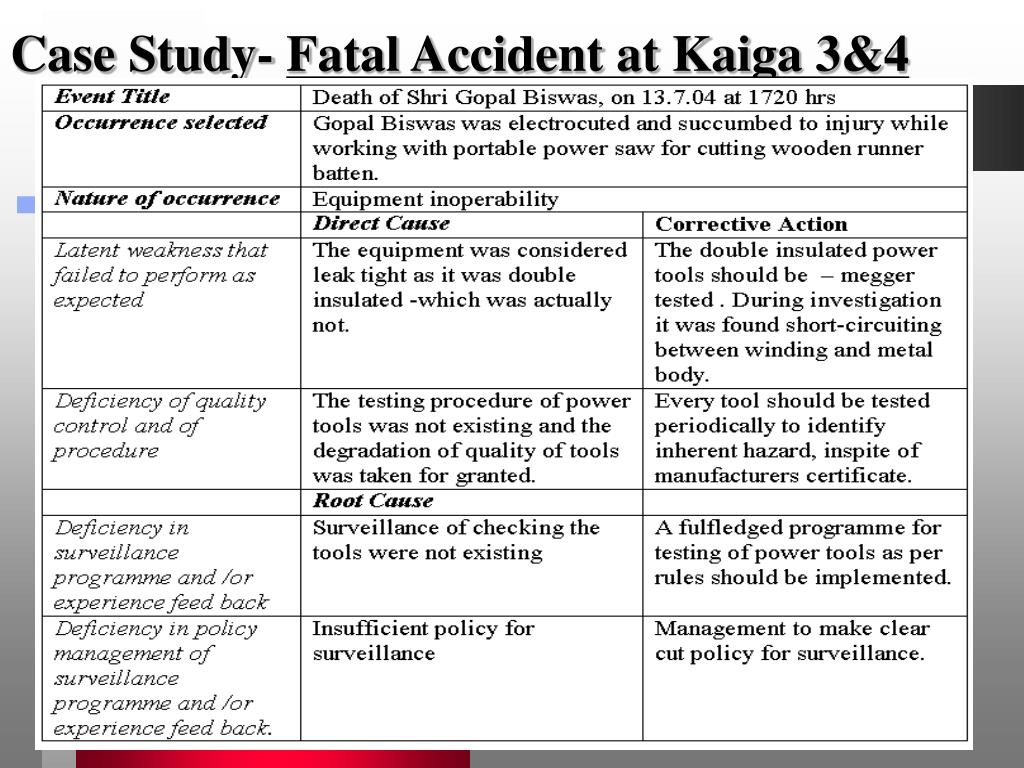

Case Study- Fatal Accident at Kaiga 3&4


Case study fatal accident at kaiga 3 44

Case StudyFatal Accident at Kaiga 3&4


Applicability

APPLICABILITY

  • APPLICABLE TO ANY INDUSTRIAL ACTIVITY WHERE THE INDUSTRY’S MANAGEMENT OR THE RELEVANT REGULATORY BODY WANT TO PREVENT ACCIDENTS AND INCIDENTS.

  • APPLICABLE AS A TOOL OF MANAGEMENT TO HAVE PRACTICAL DAILY CONTROL OF EVENTS AND PREVENTION OF SIGNIFICANT SAFETY RELATED EVENTS.
