1. Selected Aromatic Amines by Gas Chromatography Mass Spectrometry: Challenges of Mainstream Cigarette Smoke Alexandra Martin October 3, 2013

2. Outline • What are PAAs and why are they important? • Smoke Collection 101 • Brief history of PAA analysis • New challenges - FDA HPHC list • SPE clean-up • GC-MS parameters – EI vs. NCI • Validation results • LOD/LOQ • Accuracy • Precision

3. What Are PAAs and Why Are They Important?

4. Background • Tobacco smoke contains more than 4,000 chemical compounds. • Characterization of this matrix has been the focus of scientists for many years. • One of the goals of this work has been to identify the compounds primarily responsible for serious health effects. • IARC Monographs on the Evaluation of Carcinogenic Risks to Humans - Classification

5. PAA Classifications and Reporting Requirements

6. The Original Four PAAs 1-aminonaphthalene 2-aminonaphthalene 3-aminobiphenyl 4-aminobiphenyl

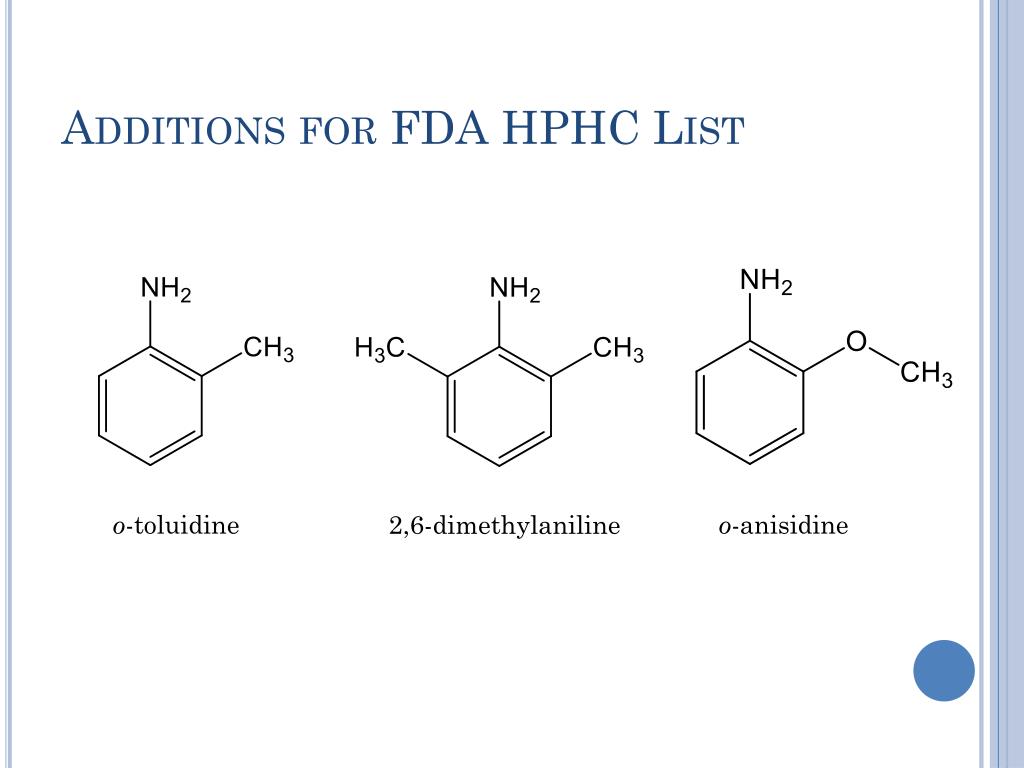

7. Additions for FDA HPHC List o-toluidine 2,6-dimethylaniline o-anisidine

8. Smoke Collection

9. Cerulean 20-Port Smoking Machine

12. Total Particulate Matter (TPM) from 5 KY 3R4F Cigarettes

13. Brief History of PAA Analysis

14. American Health Foundation Method • “On the Analysis of Aromatic Amines in Tobacco Smoke”. C. Patrianakos, K.D. Brunnemann and D. Hoffmann, American Health Foundation, Valhalla New York 10595. • Presented at the 31st TCRC, Greensboro, NC, October 1977. C. Patrianakos and D. Hoffmann, “Chemical Studies on Tobacco Smoke LXIV. On the Analysis of Aromatic Amines in Cigarette Smoke”, J. Anal. Toxicol.,3, 150-154 (1979).

15. AHF Method (1977) Smoke Collection - 210 cigs Impingers w/ 5% HCl [Add ISTDs] Liquid:Liquid Extraction w/ Ether Dry and Concentrate Derivatize (PFPA)

16. AHF Method (1977) Continued… Wash, Dry, Evaporate Florisil – 10 g Fraction (75 mL), Evaporate Florisil – 30 g Fraction 1 (500 mL) and Fraction 2 (400 mL) Evaporate each to 2 mL GC-MS or GC-ECD Analysis

17. Health Canada Method • Health Canada Official Test Method T-102, 1999 • Based upon Pieraccini et al 1992 • Modifications • CFP for trapping, not impinger • Smaller volume solvent used • Fewer evaporation steps • Much better LOQs G.Pieraccini, F. Luceri and G. Moneti, “New Gas-chromatographic/Mass Spectrometric Method for the Quantitative Analysis of Primary Aromatic Amines in Main- and Side-stream Cigarette Smoke. I”, Rapid Communications in Mass Spectrometry, 6, 406-409 (1992).

18. HC T-102 Method (1999) Smoke Collection - 10 cigs Extraction of CFP w/ 5% HCl [Add ISTDs] Liquid:Liquid Extraction w/ Hexane Derivatize (TMA / PFPA) Florisil SPE (3 g) GC-MS Analysis

19. New Challenges: FDA HPHC List

20. Goals of New Method • One method to determine all 7 PAAs. • No evaporation steps. • Evaluate SPE clean-up to reduce solvent use and improve reproducibility and efficiency of method. • Retain the advantages of NCI (lower detection limits, improved selectivity).

21. New Sample Preparation Scheme(Arista Method) Smoke Collection (CFP) Extraction of CFP w/ 5% HCl [Add ISTDs] SPE Clean-Up and Solvent Exchange (DCM) Derivatize (PFPA) GC-MS Analysis (NCI)

22. SPE Advantages • Selectivity Can selectively retain/release compounds of interest. • Requires small volumes of solvent New method uses 8-10 mL vs. 60-70 mL with liquid:liquid. • Efficiency Can process many more samples in a batch with manifolds of up to 24 ports. Effectively isolates and concentrates analytes of interest!

23. Why is Clean-up Important? • Response Interferences can swamp the system and reduce sensitivity. • Sample Throughput Dirty samples can destroy the chromatography and suppress the detector response and can increase down time due to system maintenance. • Quantitation With GC/MS by NCI PAAs have simple spectra - quantitation is based on one significant daughter ion. Clean-up and separation are critical!

24. KY 3R4F Extracts(No SPE Clean-up)

25. KY 3R4F Extracts(Cation Exchange Only)

26. KY 3R4F Extracts(Cation Exchange plus Silica)

27. Which Would You Inject?

28. Chromatograms of 3R4F Extracts(ISO Smoking Regime) Cation plus Si SPE Cation SPE only

29. Chromatograms of 3R4F Extracts(ISO Smoking Regime) Cation plus Si SPE Cation SPE only

30. Chromatograms of Standard Solutions(Why Clean Samples are Important!) 1

31. Chromatograms of Standard Solutions(Why Clean Samples are Important!) 1 2

32. Chromatograms of Standard Solutions(Why Clean Samples are Important!) 1 2 3

33. Why Derivatization?

34. Detection - EI • Electron Ionization M + e- → M+ + 2e- • M+ produces a characteristic fragmentation pattern or a “mass spectrum” specific to each compound.

35. Detection – NCI • Chemical Ionization (methane) CH4 + e-→ CH4+ + 2e- • The electrons have much lower energies. Most compounds cannot form stable negative ions but react with the CH4+ (PCI). • If a compound can capture and hold an extra electron and retain a negative charge, it can be observed in NCI mode. MF + e- → MF- → [M-H]- + HF

36. EI vs. NCI Spectra for o-Toluidine

37. EI vs. NCI Spectra for 4-Aminobiphenyl

38. Chromatogram of Low Standard (EI vs. NCI) EI

39. Chromatogram of Low Standard (EI vs. NCI) EI NCI

40. Chromatograms of a Cigar Extract(EI vs. NCI) o-toluidine EI 1-aminonaphthalene 2,6-DMA 2-aminonaphthalene 3-aminobiphenyl 4-aminobiphenyl o-anisidine o-toluidine NCI 2,6-DMA 1-aminonaphthalene o-anisidine 2-aminonaphthalene 3-aminobiphenyl 4-aminobiphenyl

41. Method Validation

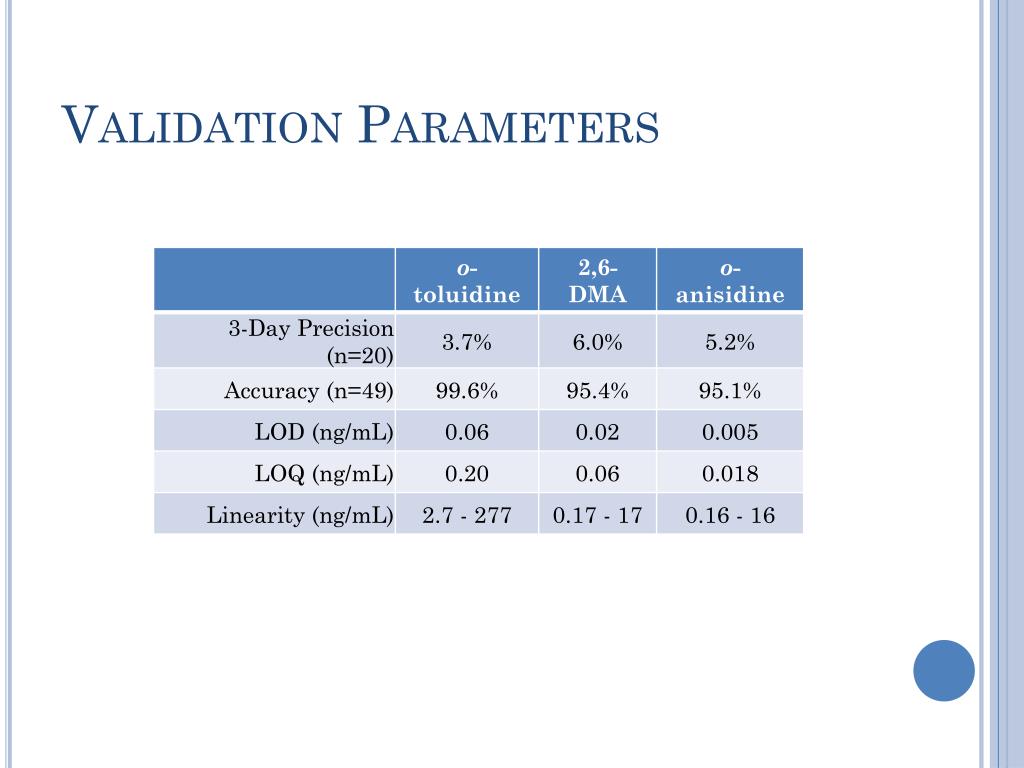

42. Validation Parameters

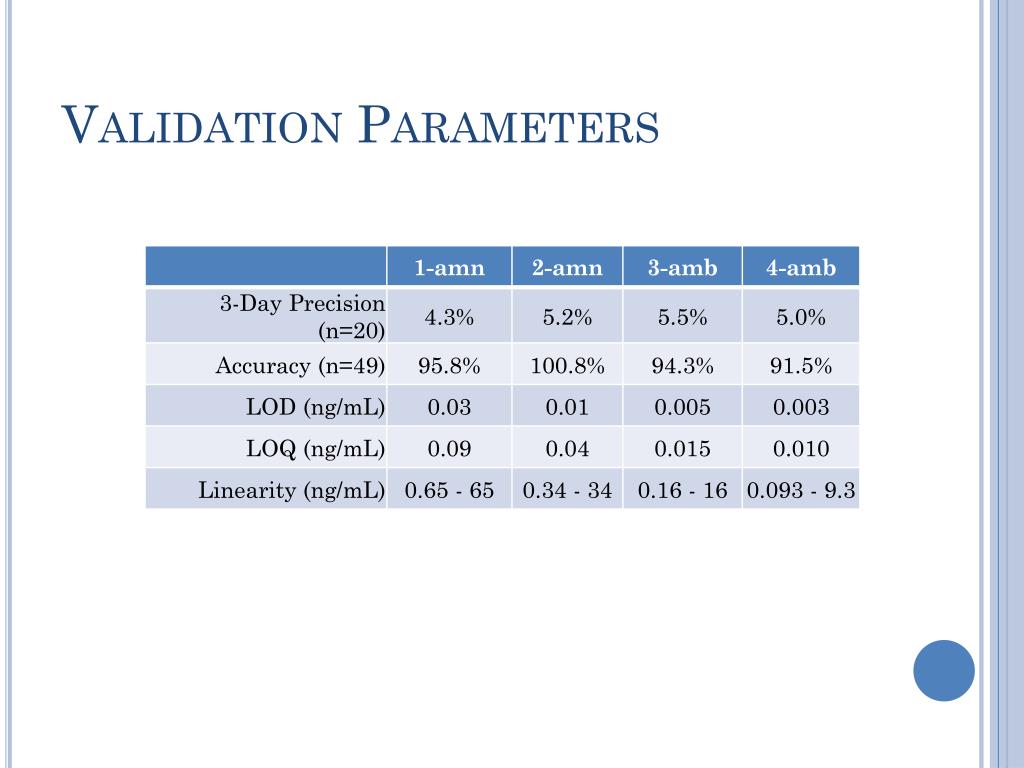

43. Validation Parameters

44. Method Comparison(We’ve Come a Long Way, Baby)

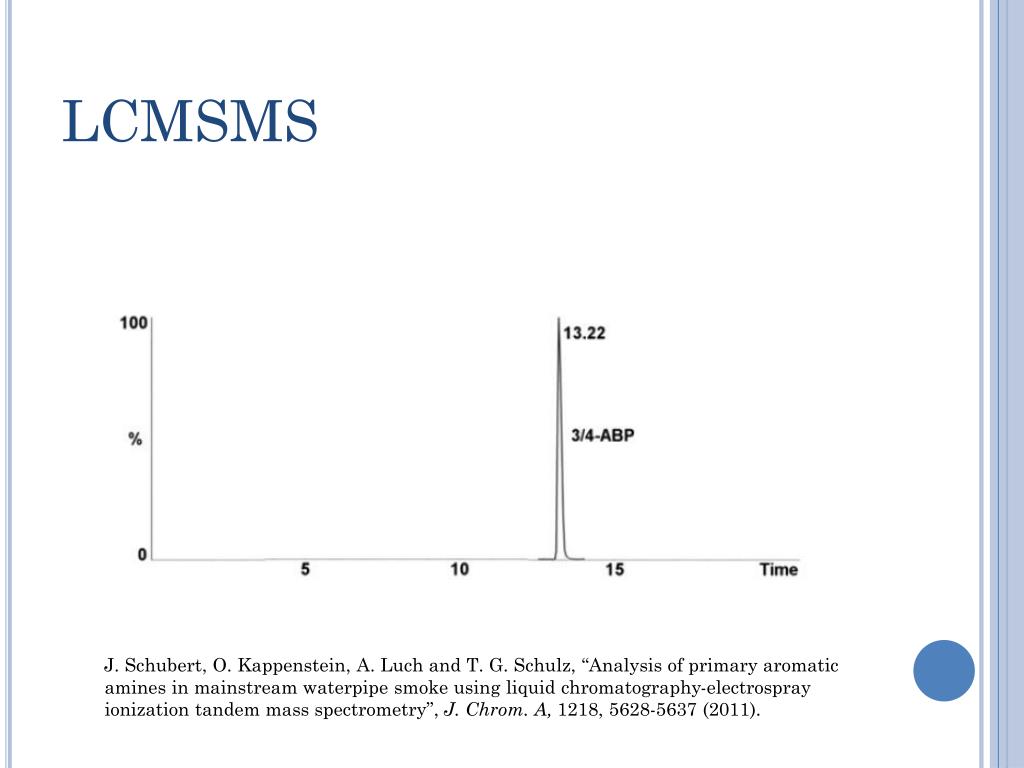

45. LCMSMS J. Schubert, O. Kappenstein, A. Luch and T. G. Schulz, “Analysis of primary aromatic amines in mainstream waterpipe smoke using liquid chromatography-electrospray ionization tandem mass spectrometry”, J. Chrom. A, 1218, 5628-5637 (2011).

46. Summary • Achieving lower and lower detection limits in complicated matrix requires both improving clean-up (SPE) and selectivity of the instrument (NCI). • The method presented here demonstrates excellent detection limits, selectivity, accuracy and precision. • It is robust, efficient and fit-for-purpose, accommodating the regulatory requirements of Health Canada, ANVISA and the US FDA.
