Conflation of aquatic habitat data for linking stream and landscape features

1. Conflation of aquatic habitat data for linking stream and landscape features Mindi Sheer, NOAA fisheries – Northwest Fisheries Science Center, Seattle Bernard Catalinotto – DES, Maryland

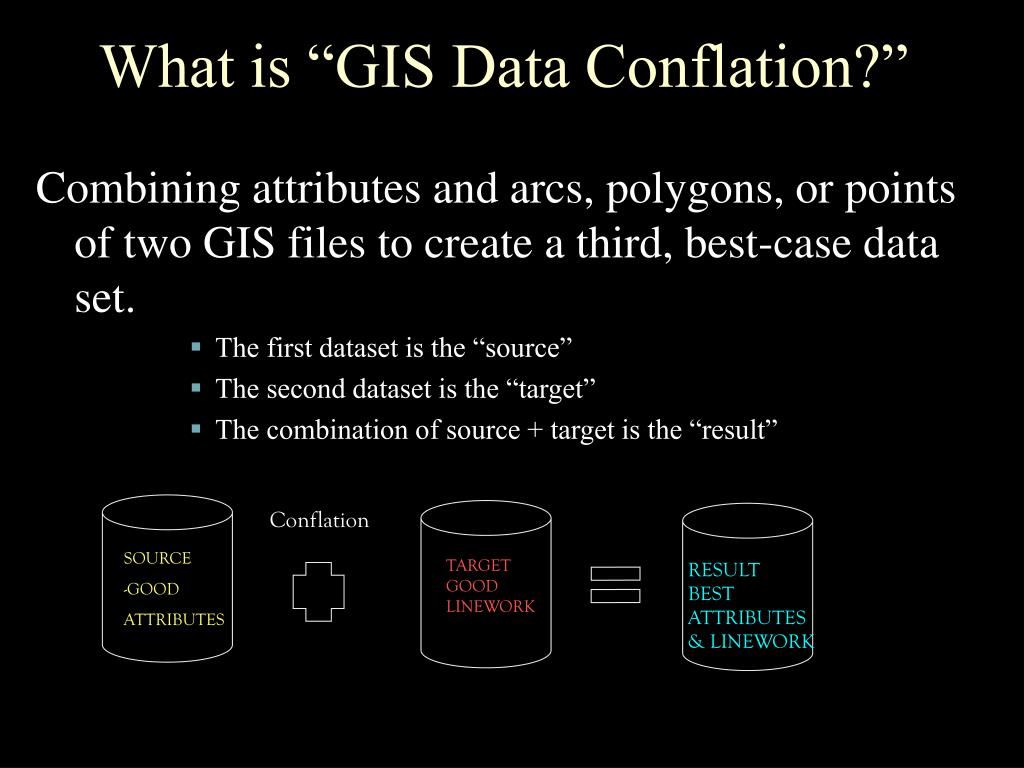

2. Conflation SOURCE -GOOD ATTRIBUTES TARGET GOOD LINEWORK RESULT BEST ATTRIBUTES & LINEWORK What is “GIS Data Conflation?” Combining attributes and arcs, polygons, or points of two GIS files to create a third, best-case data set. • The first dataset is the “source” • The second dataset is the “target” • The combination of source + target is the “result”

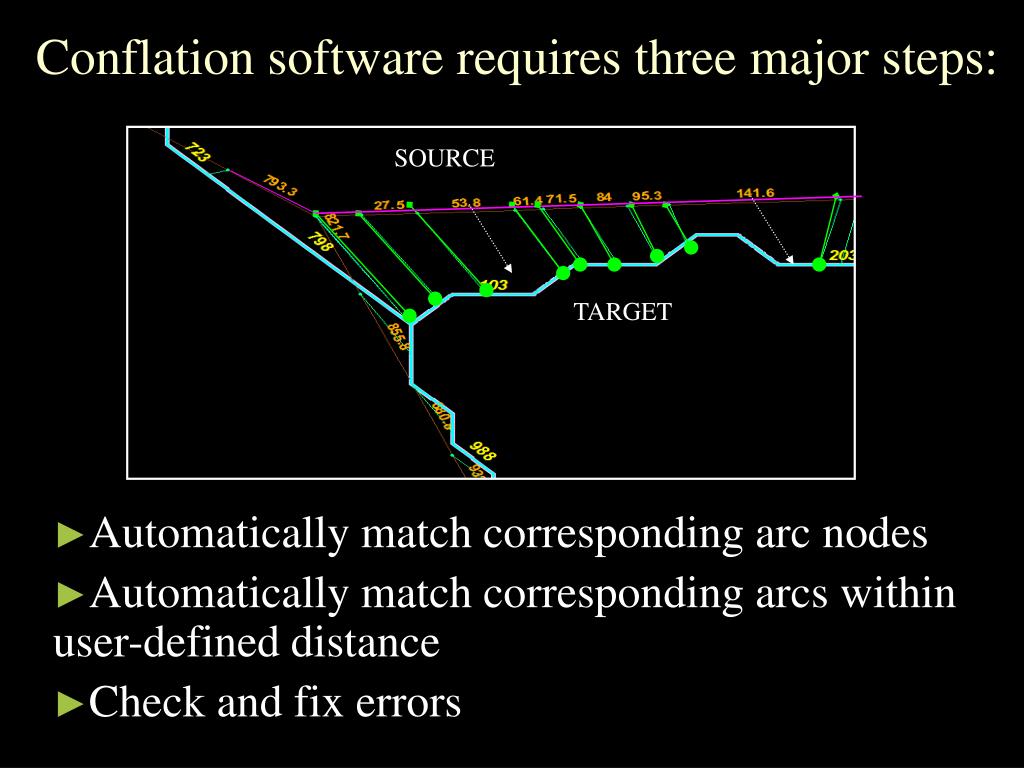

3. Conflation software requires three major steps: SOURCE TARGET • Automatically match corresponding arc nodes • Automatically match corresponding arcs within user-defined distance • Check and fix errors

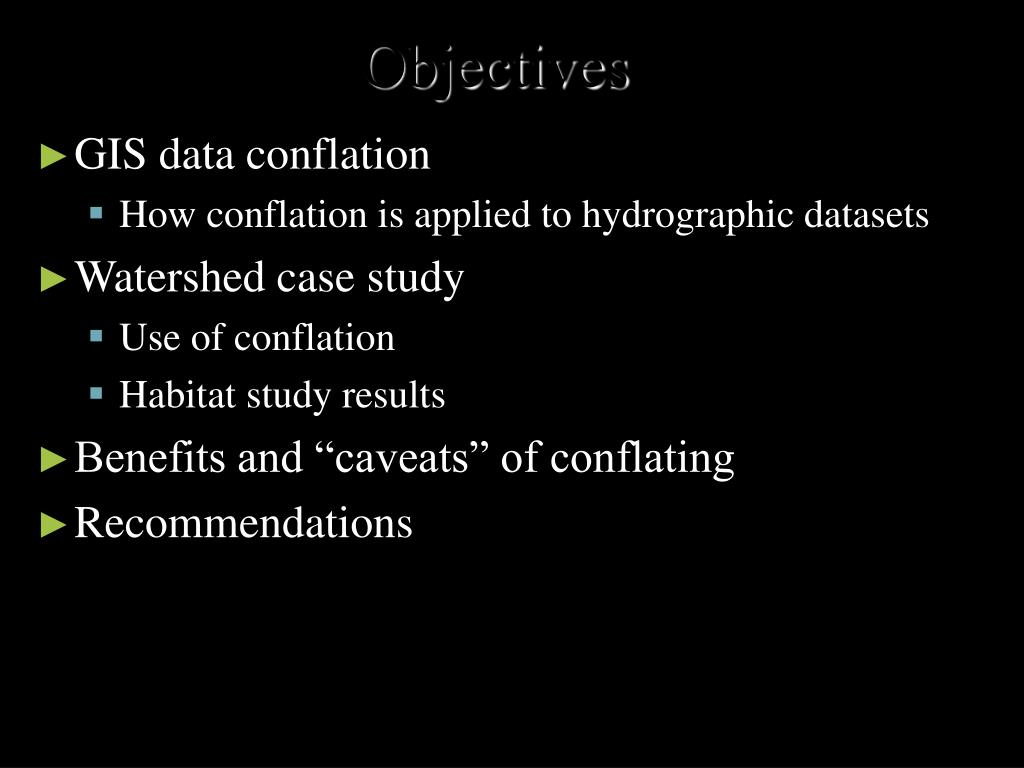

4. Objectives • GIS data conflation • How conflation is applied to hydrographic datasets • Watershed case study • Use of conflation • Habitat study results • Benefits and “caveats” of conflating • Recommendations

5. GIS Data Conflation - Example • US Census Bureau: • Realigning 50 million TIGER file road & hydro arcs, 3200 counties Target – 1:6,000 & 1:2,000 (photogrammetry) Source – 1:100,000 DIME (1970)

6. Why conflate streams? • Highly variable spatial representation of stream features • Limitations in positional accuracy, density, and sinuousity of 100k streams, can result in inaccurate results Multiple methods & sources of stream hydrography

7. Stream Length 100k streams Stream density Stream sinuousity

8. Project Background The challenge: 1. Stream hydrography & land cover to correlate landscape & fine-scale stream morphology 2. Validation of DEM-based modeled stream Sources: Oregon Dept. of Fish and Wildlife Surveys (1:100,000) DEM hydro (1:24,000)

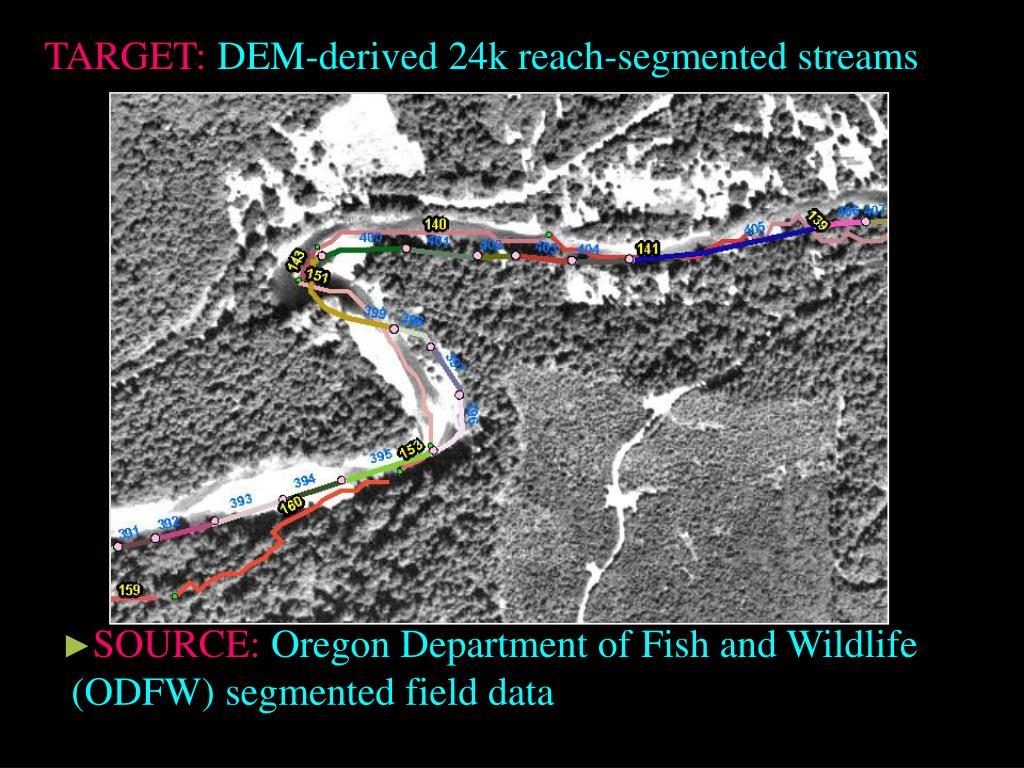

9. TARGET: DEM-derived 24k reach-segmented streams • SOURCE: Oregon Department of Fish and Wildlife (ODFW) segmented field data

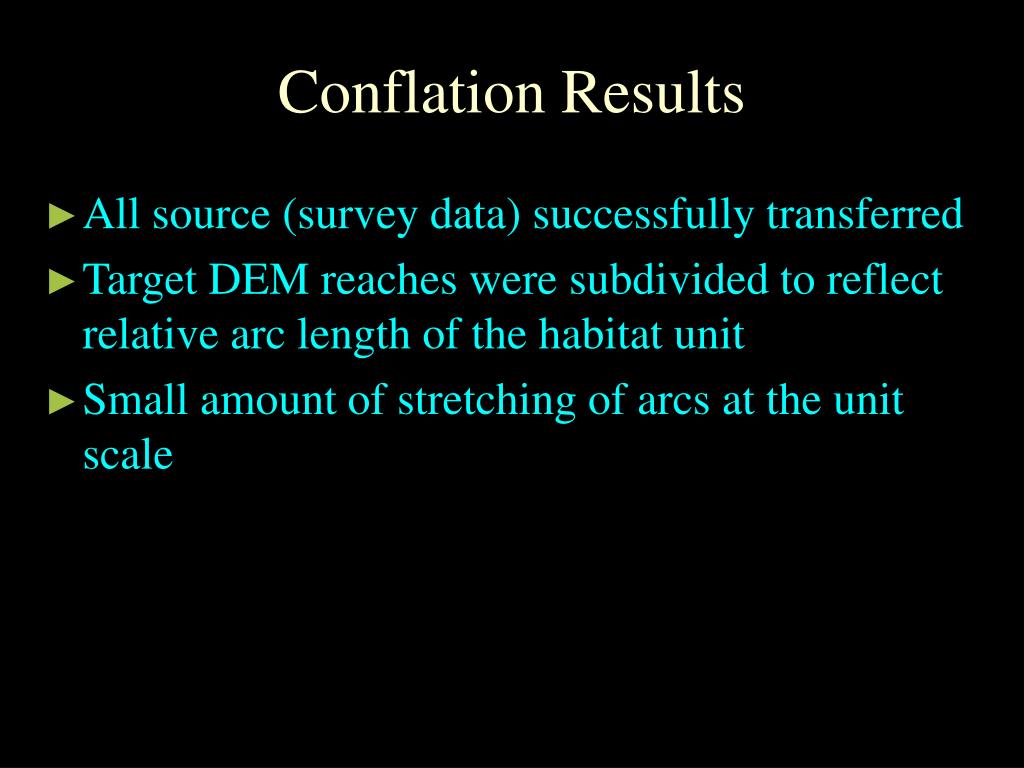

10. Conflation Results • All source (survey data) successfully transferred • Target DEM reaches were subdivided to reflect relative arc length of the habitat unit • Small amount of stretching of arcs at the unit scale

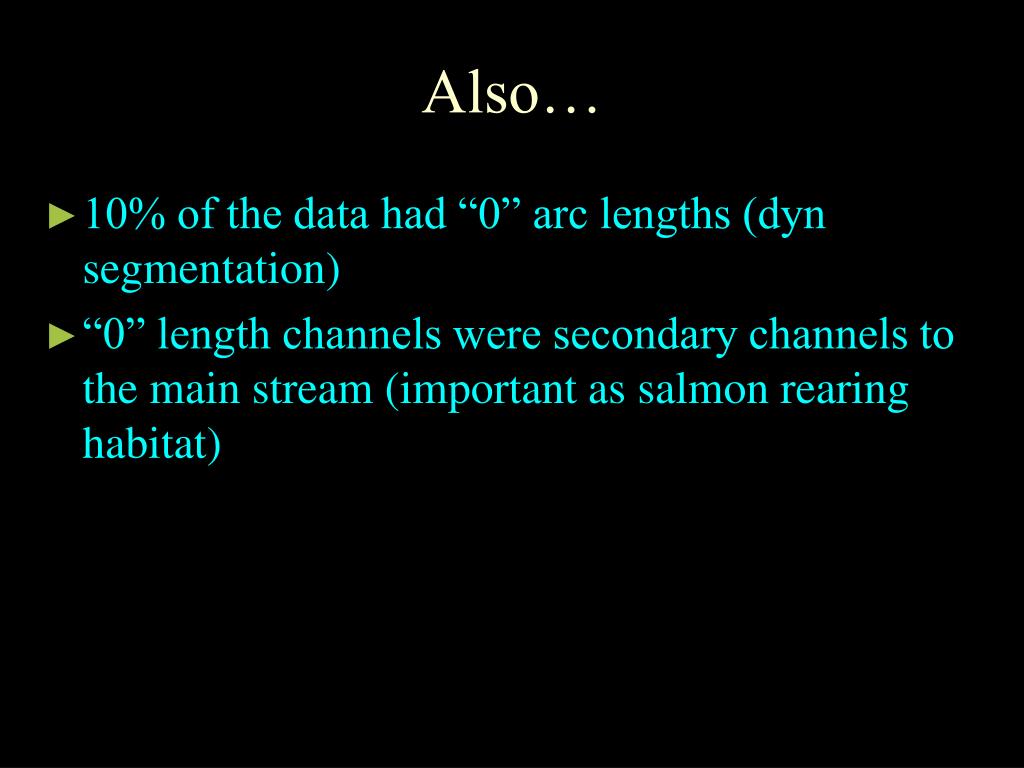

11. Also… • 10% of the data had “0” arc lengths (dyn segmentation) • “0” length channels were secondary channels to the main stream (important as salmon rearing habitat)

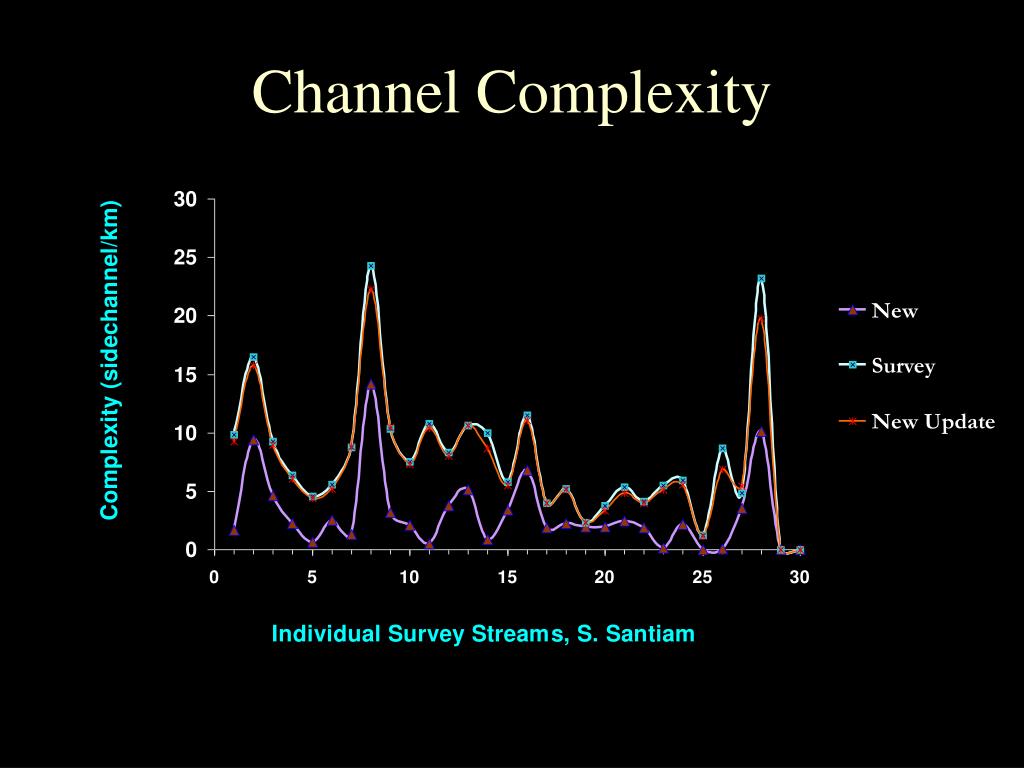

12. Channel Complexity

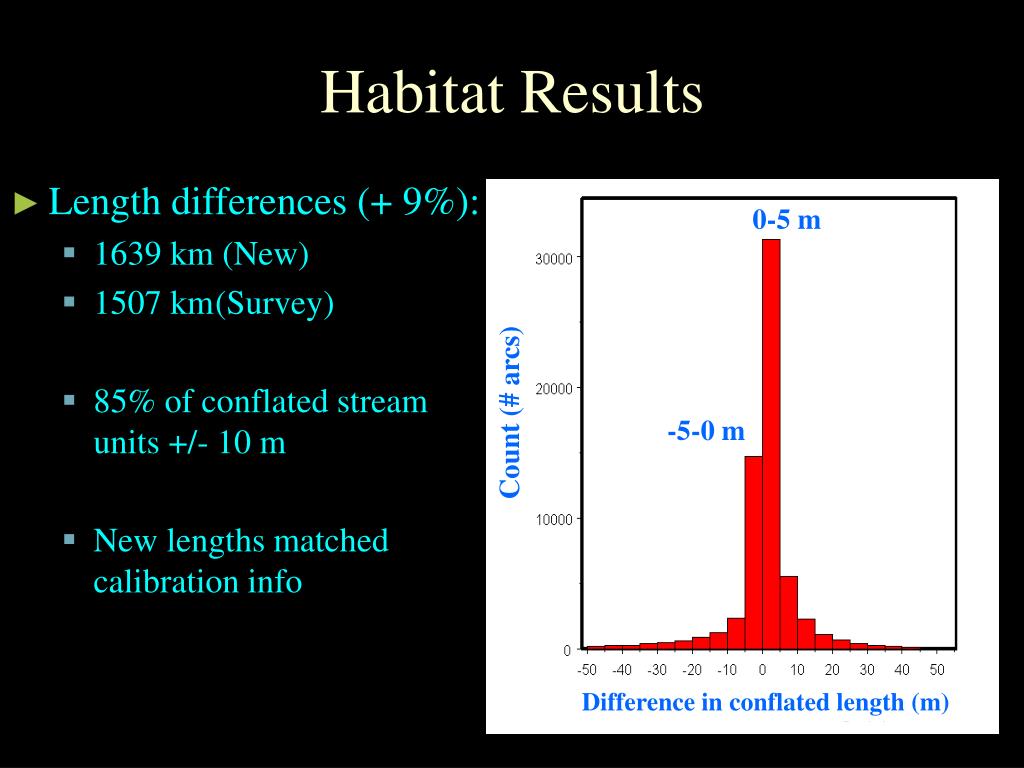

13. 0-5 m Count (# arcs) -5-0 m Difference in conflated length (m) Habitat Results • Length differences (+ 9%): • 1639 km (New) • 1507 km (Survey) • 85% of conflated stream units +/- 10 m • New lengths matched calibration info

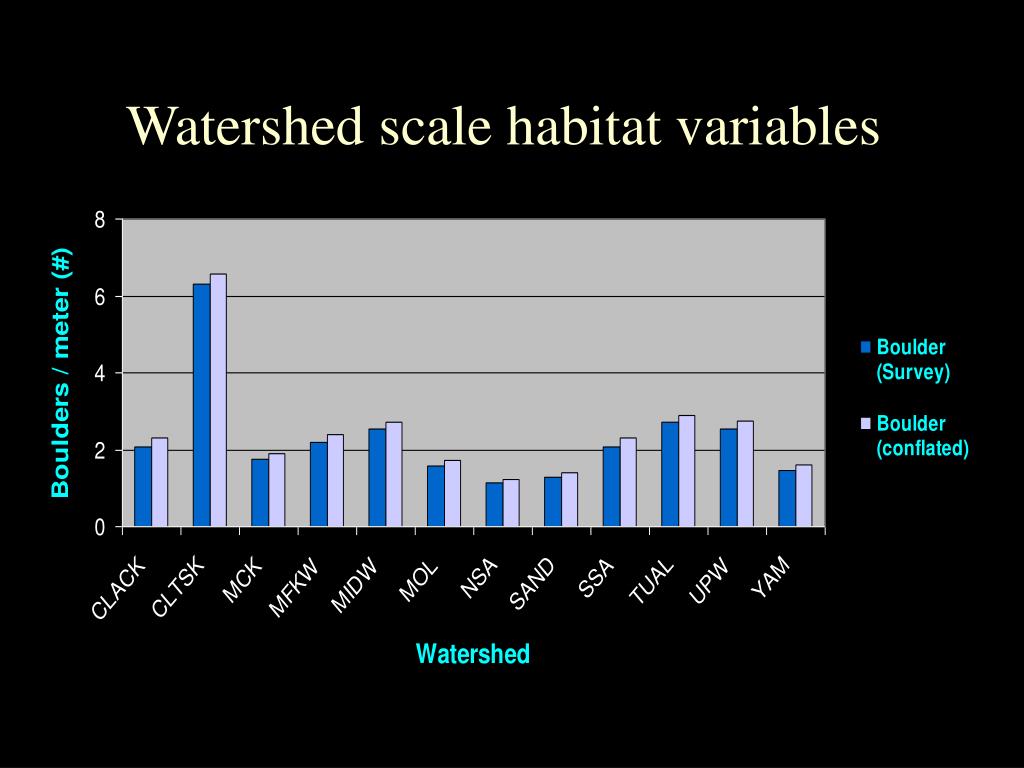

14. Watershed scale habitat variables

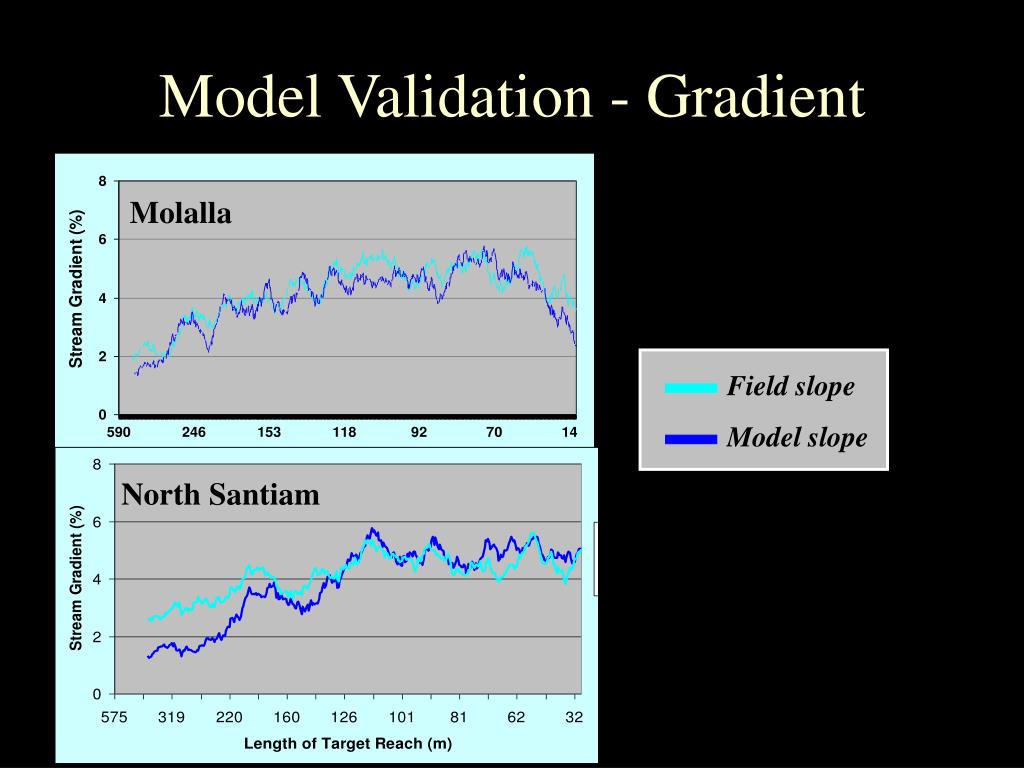

15. Model Validation - Gradient Molalla Field slope Model slope North Santiam

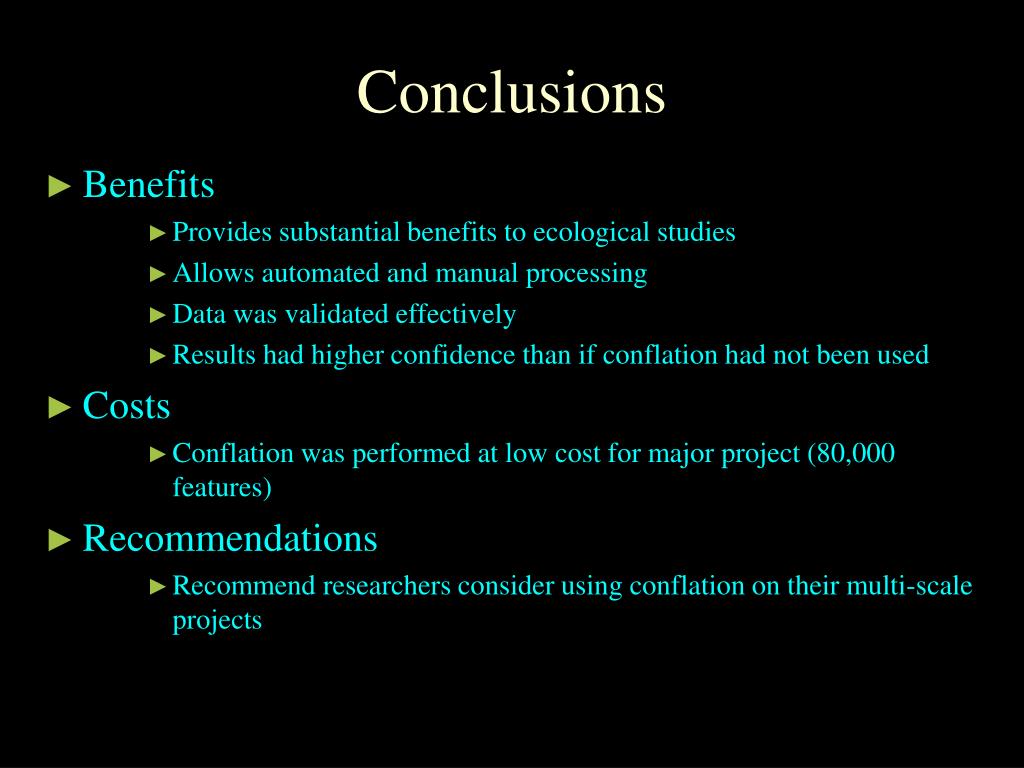

19. Conclusions • Benefits • Provides substantial benefits to ecological studies • Allows automated and manual processing • Data was validated effectively • Results had higher confidence than if conflation had not been used • Costs • Conflation was performed at low cost for major project (80,000 features) • Recommendations • Recommend researchers consider using conflation on their multi-scale projects

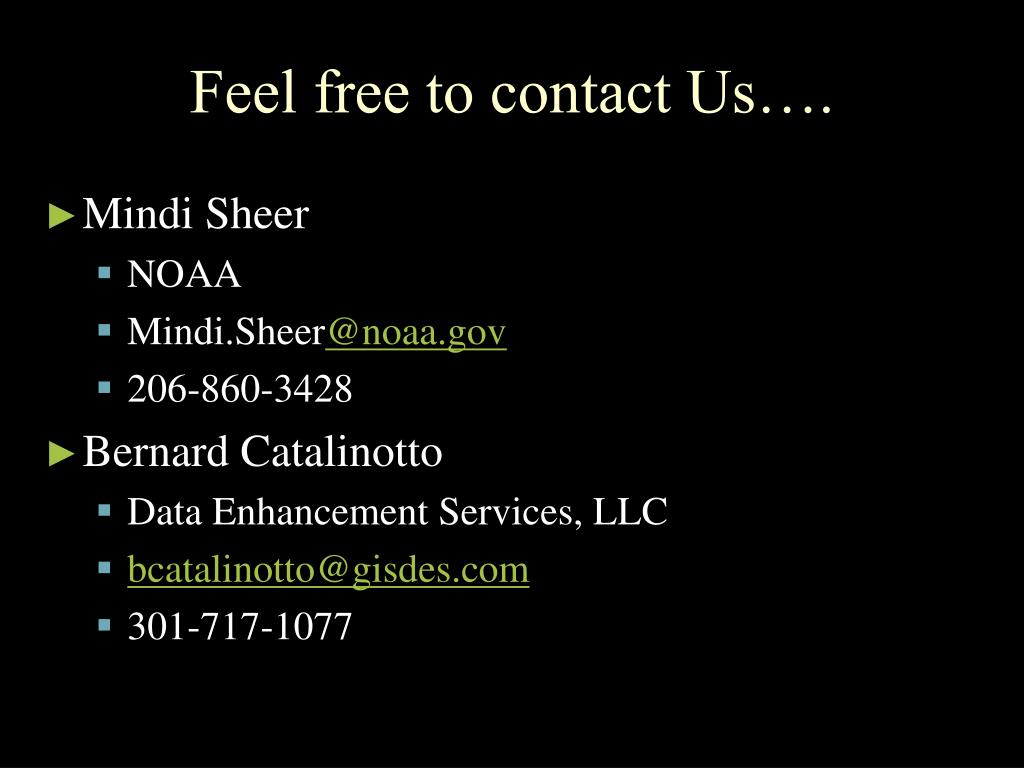

20. Feel free to contact Us…. • Mindi Sheer • NOAA • Mindi.Sheer@noaa.gov • 206-860-3428 • Bernard Catalinotto • Data Enhancement Services, LLC • bcatalinotto@gisdes.com • 301-717-1077
