ASYS Line Call Presentation


Asys line call

ASYS Line Call

Safety

Information

Communication

Convenience


Functions

Functions

  • Up-and download of jobs to machines

  • Line configuration by jobs

  • Configuration of single modules possible

  • Log file for all error and status messages.

  • Parameter check before processing new job

  • Status and error messaging by SMS, cell phone, pager, e-mail

  • Choose importance of message by priority

  • Integration of non-Asys machines possible


Operation

Operation

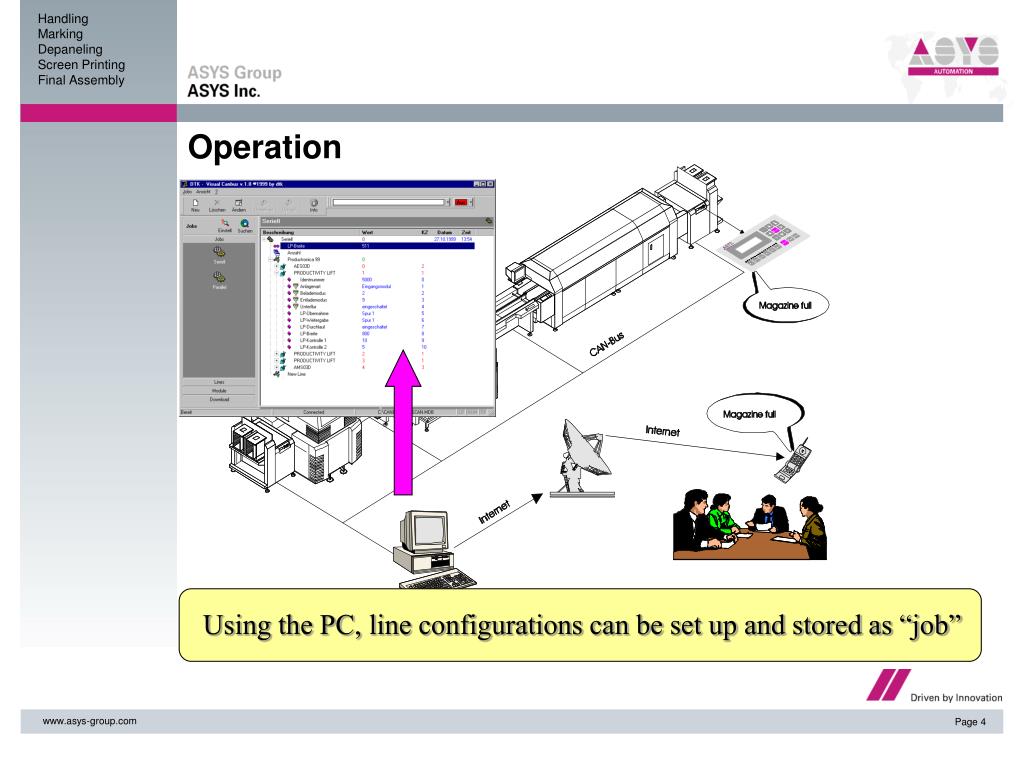

Using the PC, line configurations can be set up and stored as “job”


Operation1

Operation

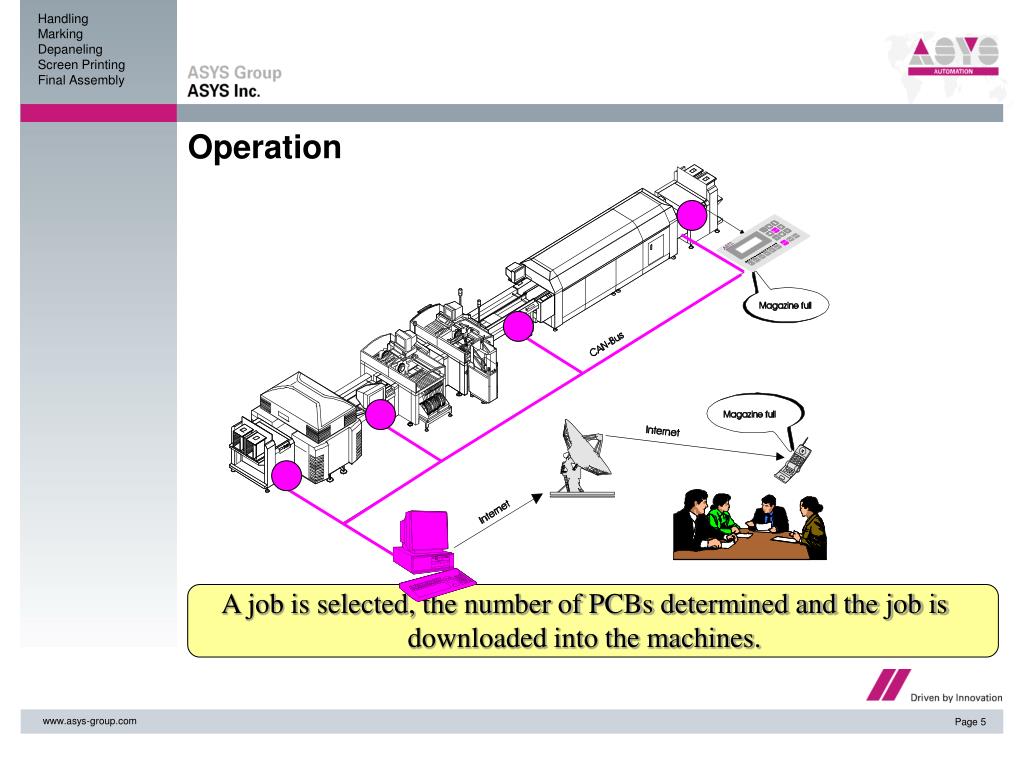

A job is selected, the number of PCBs determined and the job is downloaded into the machines.


Operation2

Operation

Machines are adjusted to the new set of parameters (new job)


Operation3

Operation

Standby

Start

Machines in stand by, waiting for first board of new job.

Automatic or manual start of new job at first machine.


Operation4

Operation

Sequential line configuration

?

?

?

When processing a PCB, the job number is transmitted to the next

machine and verified with the existing settings.


Operation5

Operation

Magazine

full

Magazine

full

Status and error messages can be transmitted via the line PC to a

pager, cell phone or by e-mail.
