Presentation Transcript


Prague site report

PRAGUE site report


Overview

Overview

  • Supported HEP experiments and staff

  • Hardware on Prague farms

  • Statistics about running LHC experiment’s DC

  • Experience


Experiments and people

Experiments and people

  • Three institutions in Prague

    • Academy of Sciences of the Czech Republic

    • Charles University in Prague

    • Czech Technical University in Prague

  • Collaborate on experiments

    • CERN – ATLAS, ALICE, TOTEM, *AUGER*

    • FNAL – D0

    • BNL -STAR

    • DESY – H1

  • Collaborating community 125 persons

    • 60researchers

    • 43 students and PHD students

    • 22 engineers and 21 technicians

  • LCG Computing staff – takes care of GOLIAS (farm at IOP AS CR) and SKURUT (farm located at CESNET)

    • Jiri Kosina – LCG, experiment software support, networking

    • Jiri Chudoba – ATLAS and ALICE SW and running

    • Jan Svec – HW, operating system, PbsPro, networking, D0 SW support (SAM, JIM)

      • Vlastimil Hynek – run D0 simulations

    • Lukas Fiala – HW, networking, web


Available hw in prague

Available HW in Prague

GOLIAS

  • Two independent farms in Prague

    • GOLIAS – Institute of Physics AS CR

      • LCG2 (testZone - ATLAS & ALICE production), D0 (SAM and JIM installation)

    • SKURUT – CESNET, z.s.p.o.

      • EGEE preproduction farm, also used for ATLAS DC

      • Separate nodes used for GILDA (tool/interface developed at INFN to allow new users to easily use grid and demonstrate it’s power) with GENIUS installed on top of user interface

    • Sharing of resourcesD0:ATLAS:ALICE= 50:40:10 (dynamically changed when needed)

  • GOLIAS:

    • 80 nodes (2 CPUs each), 40 TB

      • 32 dual CPU nodes PIII1.13GHz, 1GB RAM

      • In July 04 bought new 49 dual CPU Xeon 3.06 GHz, 2 GB RAM (WN)

        • Currenlty considering, if HT should be on/off (memory, scheduler problems in older(?) kernels).

      • 10 TB disk space, we use LVM to create 3 volumes with 3 TB, one per experiment, nfs mounted on SE.

      • In July 04 + 30 TB disk space, now in tests (30 TB XFS NFS-exported partition. Unreliable with pre-2.6.5 kernels, newer seem reliable so far)

      • PBSPro batch system

    • New server room: 18 racks, more than half empty yet, 180 kW secured input electric power


Available hw in prague1

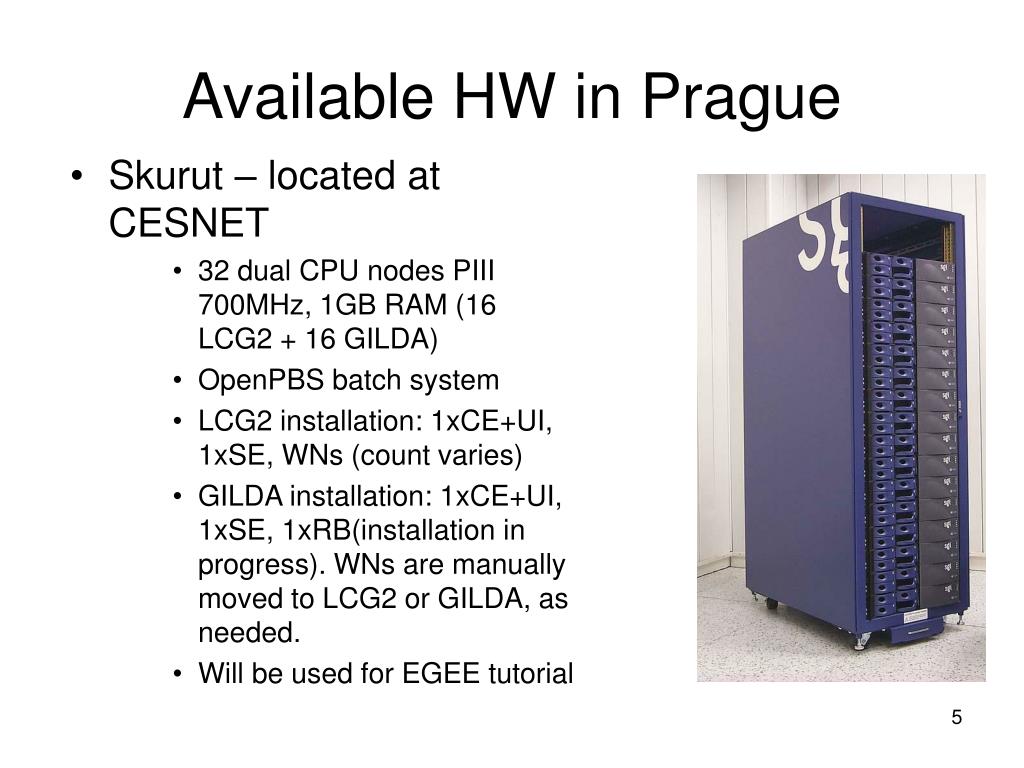

Skurut – located at CESNET

32 dual CPU nodes PIII 700MHz, 1GB RAM (16 LCG2 + 16 GILDA)

OpenPBS batch system

LCG2 installation: 1xCE+UI, 1xSE, WNs (count varies)

GILDA installation: 1xCE+UI, 1xSE, 1xRB(installation in progress). WNs are manually moved to LCG2 or GILDA, as needed.

Will be used for EGEE tutorial

Available HW in Prague

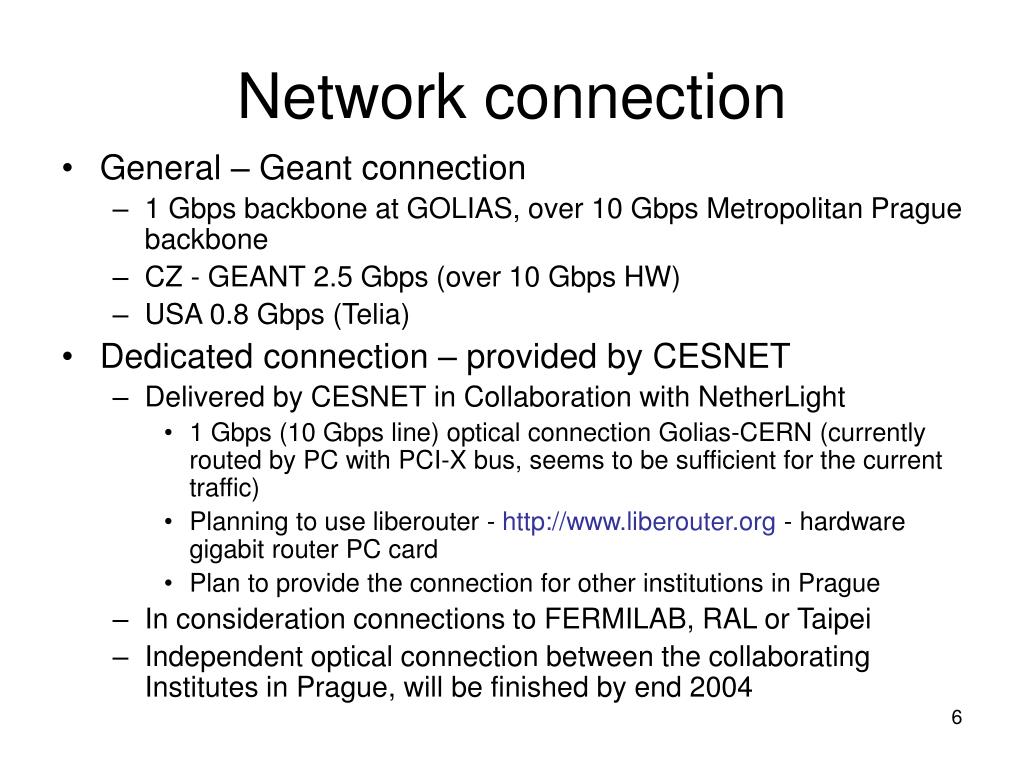

Network connection

Network connection

  • General – Geant connection

    • 1 Gbps backbone at GOLIAS, over 10 Gbps Metropolitan Prague backbone

    • CZ - GEANT 2.5 Gbps (over 10 Gbps HW)

    • USA 0.8 Gbps (Telia)

  • Dedicated connection – provided by CESNET

    • Delivered by CESNET in Collaboration with NetherLight

      • 1 Gbps (10 Gbps line) optical connection Golias-CERN (currently routed by PC with PCI-X bus, seems to be sufficient for the current traffic)

      • Planning to use liberouter - http://www.liberouter.org - hardware gigabit router PC card

      • Plan to provide the connection for other institutions in Prague

    • In consideration connections to FERMILAB, RAL or Taipei

    • Independent optical connection between the collaborating Institutes in Prague, will be finished by end 2004


Data challenges

Data Challenges


Atlas july 1 september 21

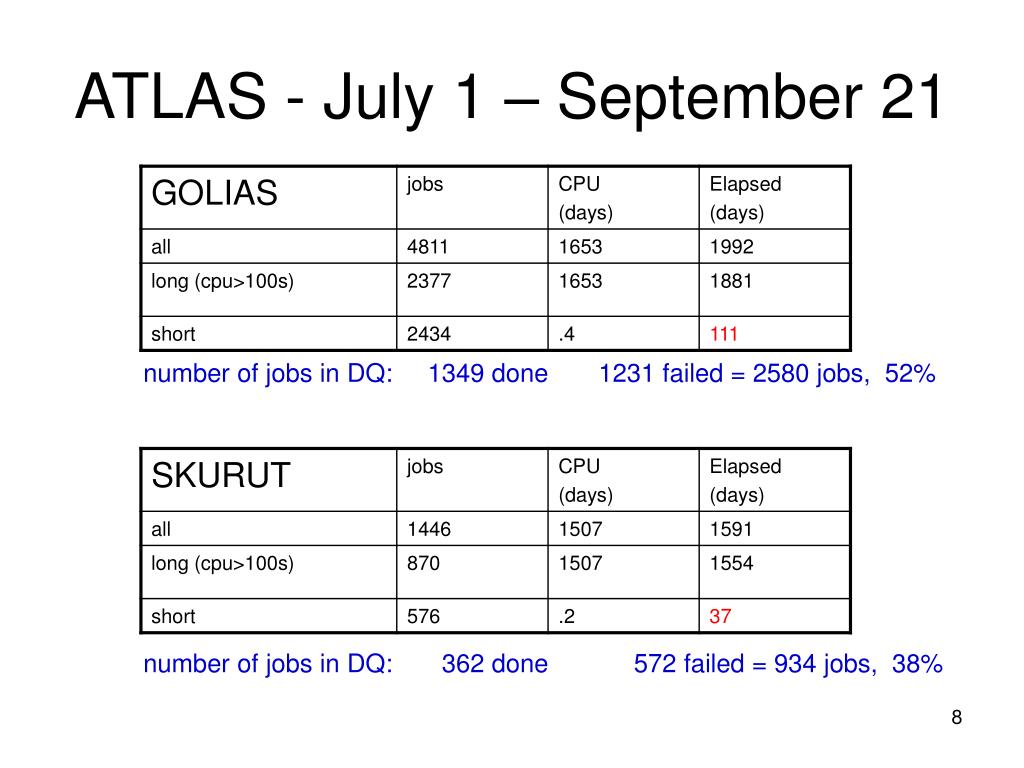

ATLAS - July 1 – September 21

number of jobs in DQ: 1349 done 1231 failed = 2580 jobs, 52%

number of jobs in DQ:362 done572 failed = 934 jobs, 38%


Local job distribution

Local job distribution

  • GOLIAS

    • not enough ATLAS jobs

2 Aug

23 Aug

ALICE

D0

ATLAS


Local job distribution1

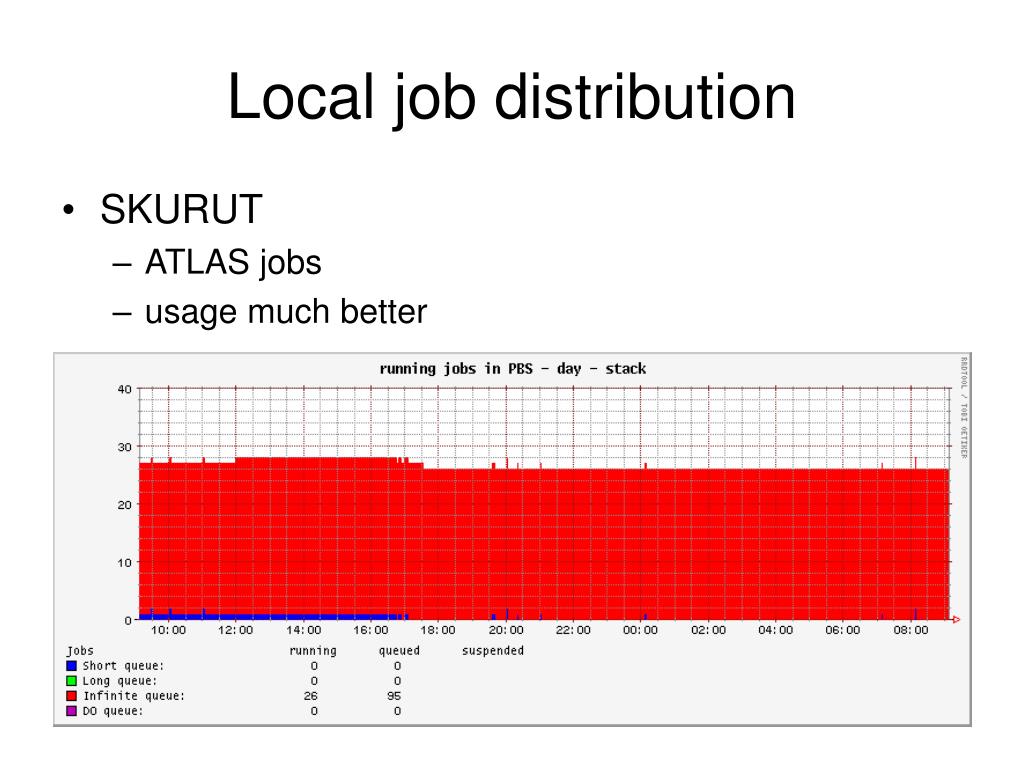

Local job distribution

  • SKURUT

    • ATLAS jobs

    • usage much better


Atlas cpu time

ATLAS - CPU Time

Xeon 3.06GHz

PIII1.13GHz

hours

hours

PIII700MHz

queue limit: 48 hours

later changed to 72 hours

hours


Statistics for 1 7 6 10 2004 atlas jobs distribution

Statistics for 1.7.-6.10.2004 ATLAS - Jobs distribution


Atlas real and cpu time

ATLAS - Real and CPU Time

very long tail for real time – some jobs were hanging during IO operation


Atlas total statistics

ATLAS Total statistics

  • Total time used:

    • 1593 days of CPU time

    • 1829 days of real time


Alice jobs 1 7 6 10 04

ALICE jobs 1.7.- 6.10. 04


Alice

ALICE


Alice total statistics

ALICE Total statistics

  • Total time used:

    • 2076 days of CPU time

    • 2409 days of real time


Lcg installation

LCG installation

  • LCG installation on GOLIAS

    • We use PBSPro. In cooperation with Peer Haaselmayer (FZK), “cookbook” for LCG2+PBSPro was created (some patching is needed)

    • Worker nodes – the first node installation is done using LCFGng, then immediately it is switched off

    • From then on everything is done manually - we find it much more convenient and transparent and manual installation guide helps.

    • Currently installed LCG2 version 2_2_0

  • LCG installation on SKURUT

    • almost default LCG2 installation, only with some PBS queues properties tweaking

    • we recently found that openpbs in LCG2 already contains required_property patch, which is very convenient for better resource management

      • currently trying somehow to integrate this feature into PBSPro
