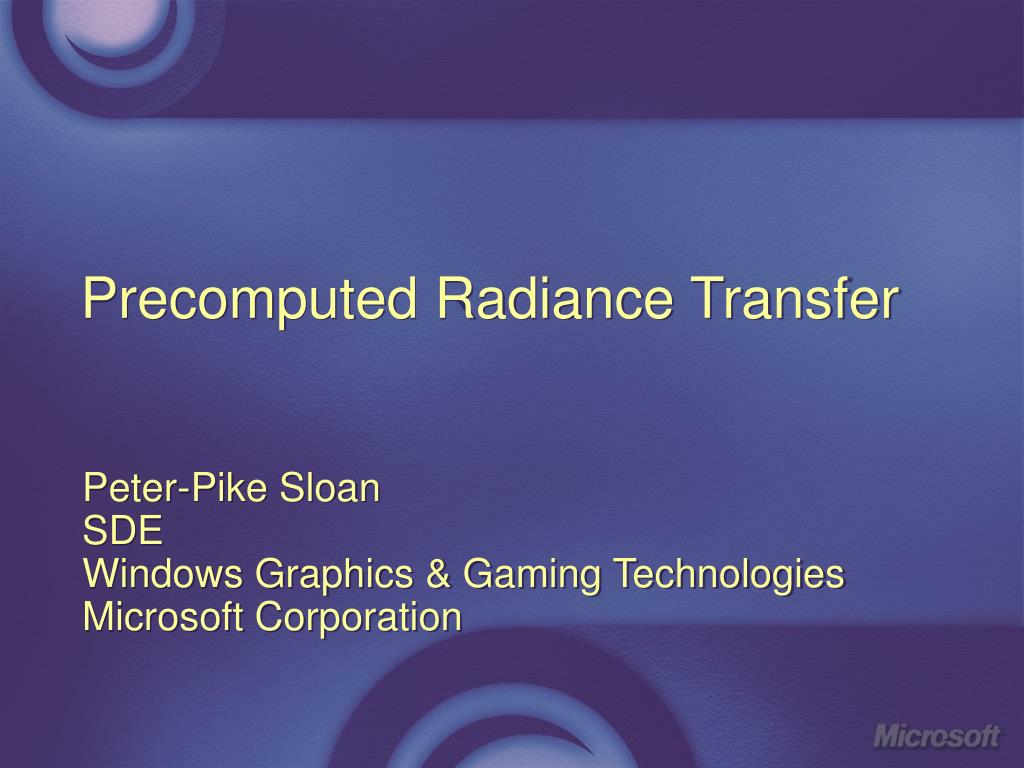

Precomputed Radiance Transfer

Peter-Pike Sloan

SDE

Windows Graphics & Gaming Technologies

Microsoft Corporation


Challenges in rendering l.jpg

Challenges in Rendering

  • Generating realistic images interactively is hard

  • Many dimensions of complexity

    • Geometric complexity

    • Material complexity

    • Meso-scale complexity

    • Lighting complexity

    • Transport complexity

    • Synergy

  • This talk focuses on techniques that enable more lighting/transport complexity


Material complexity l.jpg

Material Complexity

  • Models how light interacts with a surface

    • Assume the “structure” of the material is below the visible scale

    • Simple variation

      • Twist maps


Meso scale complexity l.jpg

Meso-Scale Complexity

  • Variations at a visible scale - not geometry

    • Bump/Roughness maps

    • Parallax Mapping/BTFs extreme examples of this


Lighting complexity l.jpg

Lighting Complexity

  • What kind of lighting environment is an object in?

    • Directional/point lights

    • Directional + ambient

    • “Smooth” (low frequency) lighting

    • Completely general


Lighting complexity6 l.jpg

Lighting Complexity

  • What kind of lighting environment is an object in?

    • Directional/point lights

    • Directional + ambient

    • “Smooth” (low frequency) lighting

    • Completely general


Lighting complexity7 l.jpg

Lighting Complexity

  • What kind of lighting environment is an object in?

    • Directional/point lights

    • Directional + ambient

    • “Smooth” (low frequency) lighting

    • Completely general


Lighting complexity8 l.jpg

Lighting Complexity

  • What kind of lighting environment is an object in?

    • Directional/point lights

    • Directional + ambient

    • “Smooth” (low frequency) lighting

    • Completely general


Transport complexity l.jpg

Transport Complexity

  • How light interacts with objects/scene at a visible scale

    • Shadows

    • Inter-reflections

    • Caustics

    • Translucency (subsurface scattering)


Transport complexity10 l.jpg

Transport Complexity

  • How light interacts with objects/scene at a visible scale

    • Shadows

    • Inter-reflections

    • Caustics

    • Translucency (subsurface scattering)


Transport complexity11 l.jpg

Transport Complexity

  • How light interacts with objects/scene at a visible scale

    • Shadows

    • Inter-reflections

    • Caustics

    • Translucency (subsurface scattering)


Transport complexity12 l.jpg

Transport Complexity

  • How light interacts with objects/scene at a visible scale

    • Shadows

    • Inter-reflections

    • Caustics

    • Translucency (subsurface scattering)


Some of all of this l.jpg

Some of All of This

  • Real scenes have all of these forms of complexity

  • Extreme realism in one form of complexity is not necessarily that interesting

    • Incredible material models that are completely homogenous and lit by a single directional light

    • Great lighting environments for diffuse surfaces with no shadows


What is precomputed radiance transfer prt l.jpg

What is Precomputed Radiance Transfer (PRT)?

  • Parameterize an object’s response to lighting, expressed in some basis

  • Partition into two processes

    • Offline transport simulator precomputes spatially varying linear operators that map lighting in given basis to exit radiance

    • Run time render the object using the current viewing/lighting environment using precomputed data


Prt teaser demo l.jpg

PRT Teaser Demo


Terminology l.jpg

Terminology


Terminology17 l.jpg

Terminology


Terminology18 l.jpg

Terminology


Terminology19 l.jpg

Terminology


Rendering equation l.jpg

Rendering Equation


Rendering equation21 l.jpg

Rendering Equation

Radiance leaving pointpin directiond


Rendering equation22 l.jpg

Rendering Equation

Radiance emitted from pointpin directiond


Rendering equation23 l.jpg

Rendering Equation

Integral over directionsson the hemisphere aroundp


Rendering equation24 l.jpg

Rendering Equation

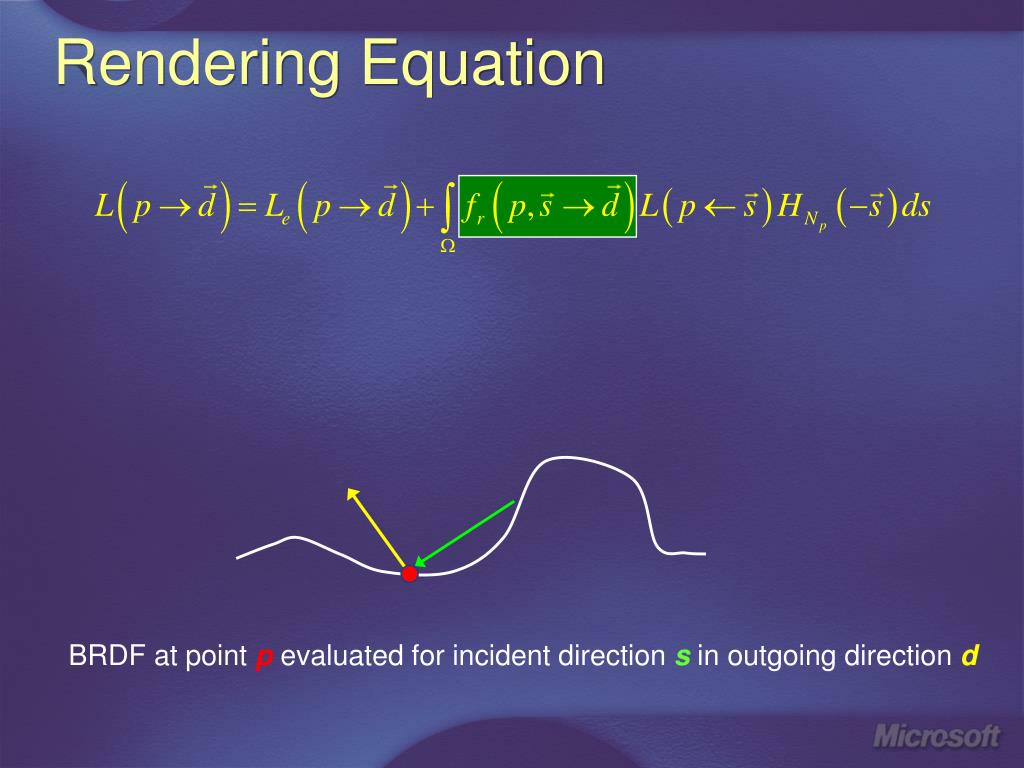

BRDF at pointpevaluated for incident directionsin outgoing directiond


Rendering equation25 l.jpg

Rendering Equation

Radiance arriving at pointpfrom directions (also LHS)


Rendering equation26 l.jpg

Rendering Equation

Lamberts law – cosine between normal and -s=dot(Np, -s)


Neumann expansion l.jpg

Neumann Expansion

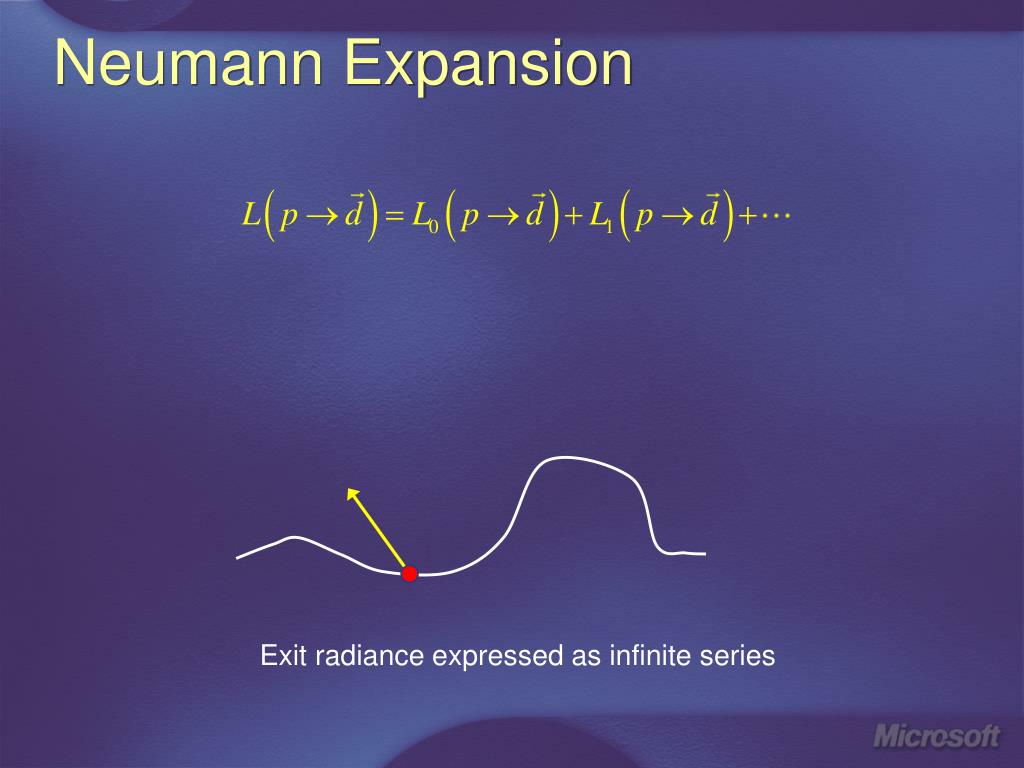

Exit radiance expressed as infinite series


Neumann expansion28 l.jpg

Neumann Expansion

Direct lighting arriving at point p – from distant environment


Neumann expansion29 l.jpg

Neumann Expansion

Direct lighting arriving at point p – from distant environment


Neumann expansion30 l.jpg

Neumann Expansion

Source Radiance – distant lighting environment


Neumann expansion31 l.jpg

Neumann Expansion

Visibility function - binary


Neumann expansion32 l.jpg

Neumann Expansion

All paths from source that take 1 bounce


Neumann expansion33 l.jpg

Neumann Expansion

L0

All paths from source that take 1 bounce


Neumann expansion34 l.jpg

Neumann Expansion

Li-1

All paths from source that take i bounces


Diffuse prt l.jpg

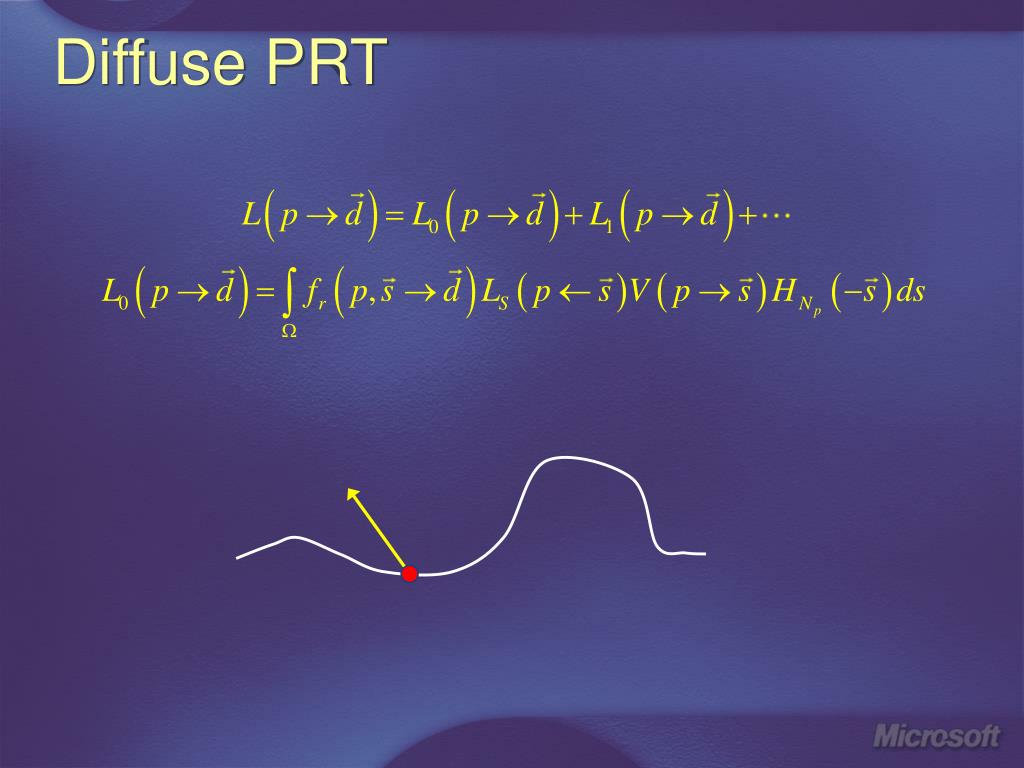

Diffuse PRT


Diffuse prt36 l.jpg

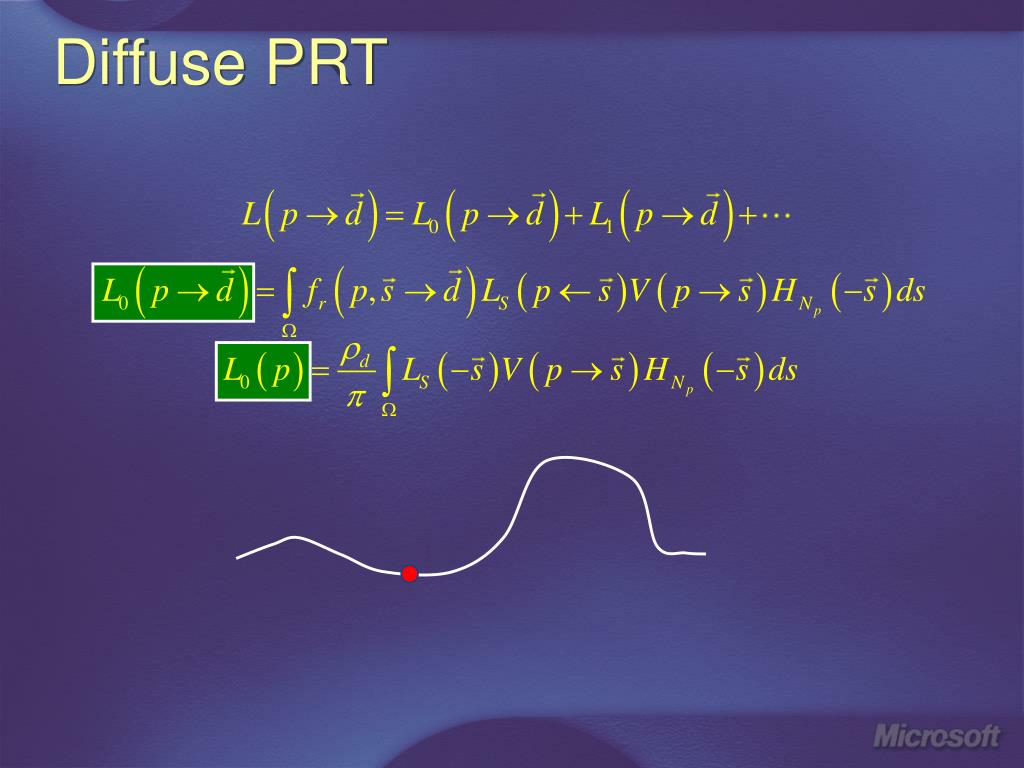

Diffuse PRT


Diffuse prt37 l.jpg

Diffuse PRT


Diffuse prt38 l.jpg

Diffuse PRT


Diffuse prt39 l.jpg

Diffuse PRT


Diffuse prt40 l.jpg

Diffuse PRT


Diffuse prt41 l.jpg

Diffuse PRT


Diffuse prt42 l.jpg

Diffuse PRT


Diffuse self transfer l.jpg

Project Light

light

light

=

=

=

Diffuse Self-Transfer

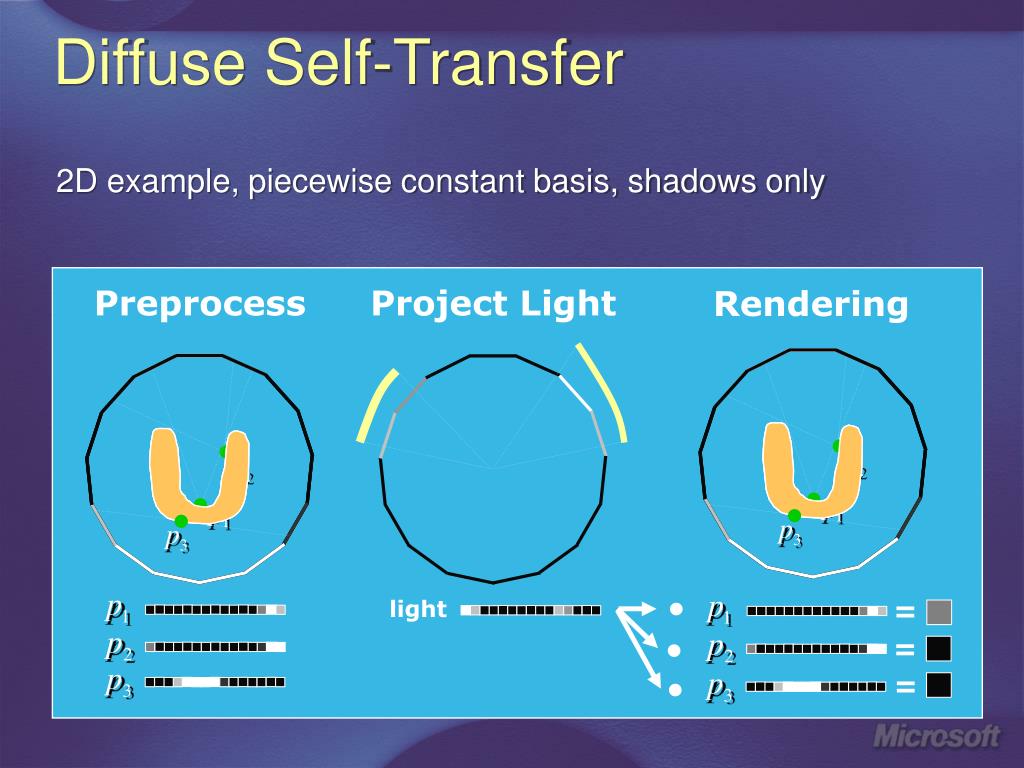

2D example, piecewise constant basis, shadows only

Preprocess

Rendering


Precomputation l.jpg

.

.

.

.

.

.

Precomputation

Basis 16

Basis 17

illuminate

result

Basis 18


Spherical harmonics l.jpg

Spherical Harmonics

  • Spherical analog to Fourier transform

  • Represents complex functions on the sphere, real form used in graphics

  • Polynomials in R3

    • Full basis through O has O2 coeffs

  • Projection/Evaluation/Rotation are fairly straightforward

  • Small number of bands implies “low frequency” lighting


Spherical harmonics46 l.jpg

Spherical Harmonics


Spherical harmonics47 l.jpg

Spherical Harmonics

n=2

n=3

n=5

n=26

original


Spherical harmonics48 l.jpg

Spherical Harmonics

  • Rotation invariance

    • No temporal “wobbling” of projection

  • Low frequency is also strength

    • Reduces necessary surface sampling rate

    • Addresses lighting that is most difficult with traditional techniques

  • Global support is a limitation


Prt demo l.jpg

PRT Demo


Prt limitations extensions l.jpg

PRT Limitations/Extensions

  • Rigid objects

    • “Local, Deformable Precomputed Radiance Transfer”, Siggraph 2005

  • Raw form unwieldy

    • 6th order would require 108 coefficients/vertex

    • Siggraph 2003 paper compresses both data and computation, small number (4-12) coefficiens/vertex, much simpler shaders

    • This is what makes it work in games…


Prt limitations extensions51 l.jpg

PRT Limitations/Extensions

  • Glossy surfaces

    • Still to heavyweight for games, EGSR 2004 papers most applicable (separable BRDF approximations)

  • “All Frequency”, using other light basis functions

    • Ng et al Siggraph 2003, two EGSR 2004 papers

    • Dramatically increases storage location per point, and spatial sampling rates over surfaces


Prt in the sdk l.jpg

PRT in the SDK

  • Precomputation for diffuse objects only

    • Includes inter-reflections and subsurface scattering

    • Glossy isn’t practical for games

  • Compression

    • Siggraph 2003 paper, what made it actually doable in a game

  • Run time code for efficient evaluation of lighting models, projection and rotation


Conclusions l.jpg

Conclusions

  • Precomputed Radiance Transfer enables interactive rendering of complex global illumination effects

  • Appropriate for low frequency lights, can be mixed with traditional techniques to model high frequency lighting


Acknowledgments l.jpg

Acknowledgments

  • Coauthors

    • John Snyder, Jan Kautz, Ben Luna, John Hart, Jesse Hall

  • Samples/Artwork/Slides

    • Jason Sandlin, John Steed, Shanon Drone

  • Light Probes

    • Paul Debevec


Directx community resources l.jpg

DirectX Community Resources

  • http://msdn.com/directx

  • “Windows Game Development” MSDN Forums

    • http://forums.microsoft.com/msdn/default.aspx

    • Forums: General, Graphics, Tools, Performance, and Audio

    • Fully Moderated Discussions

    • Notification Alerts, Messages and RSS Feeds

    • Integrated with Visual Studio 2005

    • Advanced Search

      • FAQs

      • Answered/Unanswered Questions

  • [email protected]
