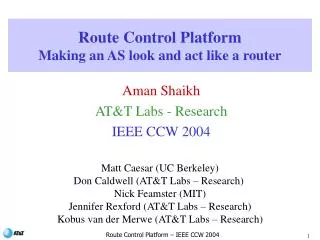

Route Control Platform Making an AS look and act like a router. Aman Shaikh AT&T Labs - Research IEEE CCW 2004. Matt Caesar (UC Berkeley) Don Caldwell (AT&T Labs – Research) Nick Feamster (MIT) Jennifer Rexford (AT&T Labs – Research) Kobus van der Merwe (AT&T Labs – Research).

xavier-potts
Download Presentation

Route Control Platform Making an AS look and act like a router

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Route Control PlatformMaking an AS look and act like a router Aman Shaikh AT&T Labs - Research IEEE CCW 2004 Matt Caesar (UC Berkeley) Don Caldwell (AT&T Labs – Research) Nick Feamster (MIT) Jennifer Rexford (AT&T Labs – Research) Kobus van der Merwe (AT&T Labs – Research) Route Control Platform – IEEE CCW 2004

  2. You have heard the news • BGP is broken • It converges slowly • At times it does not converge at all • It causes routing loops and deflections inside an AS • It’s misconfigured frequently • Traffic engineering is hard with BGP • Fixing BGP is hard • Incremental fixes • Makes BGP even more complicated • New architectures and inter-domain protocols • Deployment is almost impossible Route Control Platform – IEEE CCW 2004

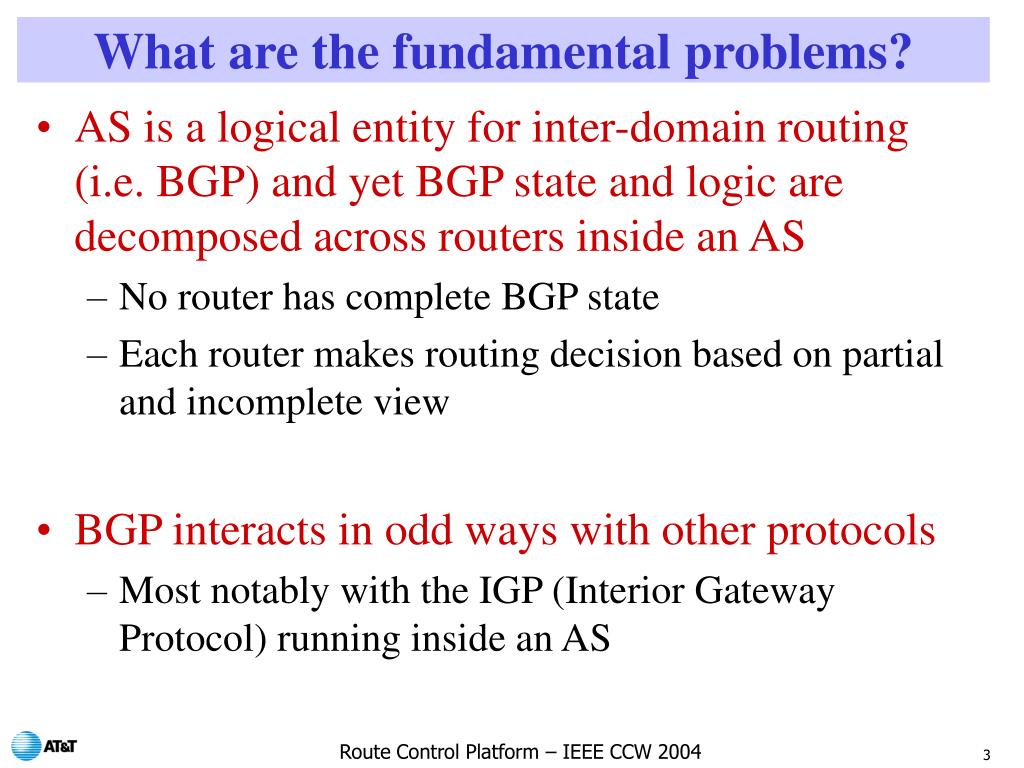

  3. What are the fundamental problems? • AS is a logical entity for inter-domain routing (i.e. BGP) and yet BGP state and logic are decomposed across routers inside an AS • No router has complete BGP state • Each router makes routing decision based on partial and incomplete view • BGP interacts in odd ways with other protocols • Most notably with the IGP (Interior Gateway Protocol) running inside an AS Route Control Platform – IEEE CCW 2004

  4. Fixing the fundamental problems:“Route Control Platform” • Represents an AS as a single logical entity • Complete view of AS’s routes • Computes routes for all routers inside an AS • Routers no longer have to compute routes • Exchanges routing information with RCPs in other ASes Inter-AS Protocol RCP RCP RCP iBGP AS 1 AS 2 AS 3 Physical peering Route Control Platform – IEEE CCW 2004

  5. The rest of this talk: the case for RCP • Principles for inter-domain routing • Treat the AS as a whole and compute routes using AS-wide state • Example: high-level policy expression • Control routing protocol interactions • Example: interaction between BGP and IGP • Potential dealbreakers • Backwards compatibility and incentives • Scalability and reliability • Related work (or…haven’t we seen this before?) • Route reflection and route servers • Overlay networks Route Control Platform – IEEE CCW 2004

  6. Decomposed configuration state 10.0.0.1 192.168.0.1 A C Sprint UUNet Simple policy: “Don’t advertise routes learned from UUNet to Sprint” Configuration is decomposed, so routes must carry state neighbor 192.168.0.1 route-map IMPORT-C in route-map IMPORT-C permit 10 set community 0:1000 Assign routes “From UUNet” tag at router C ip community-list 1 permit 0:1000 neighbor 10.0.0.1 route-map EXPORT-A out route-map EXPORT-A deny 10 match community 1 Don’t send route with “From UUNet” tag to Sprint at router A Route Control Platform – IEEE CCW 2004

  7. RCP RCP: Centralize configuration • RCP implements policies for entire AS • Knows about sessions to all other ASes • Implements policies in terms of relationship with ASes • Benefits • Simpler configuration • Do not have to tag routes with state 10.0.0.1 192.168.0.1 A C Sprint UUNet Route Control Platform – IEEE CCW 2004

  8. RR1 RR2 BGP interacts with underlying protocols d 3 1 1 3 C1 C2 1 C1 learns BGP route to destination from RR1 C2 learns BGP route to destination from RR2 C1 sends packets to RR1 via its IGP shortest path which traverses C2 C2 sends packets to RR2 via its IGP shortest path which traverses C1 Persistent forwarding loop  Route Control Platform – IEEE CCW 2004

  9. RR1 RR2 RCP: Compute routes with complete info d • RCP learns all externally learned routes • Computes consistent router-level paths • Benefits: • Intrinsic loop freedom and convergence • RCP does not have to stick to BGP decision process • Can “pin” paths for traffic engineering and other purposes RCP 1 1 “RR2” “RR2” 3 3 C1 C2 1 Route Control Platform – IEEE CCW 2004

  10. Getting from here to there: three easy steps eBGP • Two key issues • Backward compatibility • Deployment incentives iBGP Inter-AS Protocol RCP RCP RCP iBGP AS 1 AS 2 AS 3 Physical peering Route Control Platform – IEEE CCW 2004

  11. Phase 1: Control over Protocol Interactions Before: conventional iBGP eBGP iBGP After: RCP gets “best” iBGP routes (and IGP topology) eBGP RCP iBGP Only one AS has to change its architecture! Route Control Platform – IEEE CCW 2004

  12. Phase 1 Application: Controlling Path Changes BGP routes take “nearest exist” (shortest IGP path) Failures or maintenance can change IGP (path) weights Exit point can also change Traffic shifts, convergence delay, congestion A B C D Route Control Platform – IEEE CCW 2004

  13. Phase 1 Application: Controlling Path Changes BGP routes take “nearest exist” (shortest IGP path) Failures or maintenance can change IGP (path) weights RCP can “pin” exit points as IGP weights change A B RCP C D Route Control Platform – IEEE CCW 2004

  14. Phase 2: AS-wide Selection and Policy Before: RCP gets “best” iBGP routes (and IGP topology) eBGP RCP iBGP After: RCP gets all eBGP routes from neighbors eBGP RCP iBGP Route Control Platform – IEEE CCW 2004

  15. Phase 2 Application: Efficient Aggregation Aggregation curbs routing table growth Routers can’t know which routers need more specific routes 192.168.0.0/23 192.168.1.0/24 192.168.0.0/23 192.168.0.0/24 192.168.0.0/23 (??) 192.168.0.0/23 (??) iBGP eBGP Route Control Platform – IEEE CCW 2004

  16. Phase 2 Application: Efficient Aggregation Aggregation curbs routing table growth RCP can determine which routers need more specific routes and which routers can do away with less specific routes 192.168.0.0/23 192.168.0.0/24 192.168.0.0/23 192.168.1.0/24 192.168.0.0/23 192.168.0.0/23 RCP 192.168.0.0/23 192.168.0.0/23 192.168.0.0/24 192.168.1.0/24 Route Control Platform – IEEE CCW 2004

  17. Phase 3: All ASes have RCPs Before: RCP gets all eBGP routes from neighbors eBGP RCP iBGP After: ASes exchange routes via RCP Inter-AS Protocol RCP RCP RCP iBGP AS 1 AS 2 AS 3 Physical peering Route Control Platform – IEEE CCW 2004

  18. Phase 3 Application: More Flexible Routing • Better network management • Diagnostics and trouble-shooting • Routing co-located with other information (e.g. traffic) • Ability to reason about an AS as a single entity • Protocol Improvements • Attaching prices to routes • Inter-AS negotiation of exit points • Overlay routing informed by IP-layer information • Your application here… Route Control Platform – IEEE CCW 2004

  19. Scalability and Robustness • Can RCP scale? • We have a prototype implementation • Single-box RCP can handle AS-wide BGP load • OSPF changes can be troublesome • Centralized != unable to scale • Is RCP a single point of failure? • RCP can be implemented using distributed system insights • Consistency (mostly) a non-isssue • Guarantee from OSPF/IS-IS operation: • “Either an RCP replica has a complete view of network (partition) or no view; but never a partial view” Route Control Platform – IEEE CCW 2004

  20. Is RCP basically a Route Reflector? • Yes, but it’s a better route reflector • “Customized” routing decisions for clients • Route reflectors do not compute routes from client’s perspective • Route reflectors do not emulate a “full mesh” • Routing decisions based on complete visibility • Guaranteed correct routes • Replication is dictated by system issues Route Control Platform – IEEE CCW 2004

  21. RCP also looks a lot like… • A “route server” • Route arbiter: looked at applying policy at exchange points • AS agents • RCP can act as an AS agent; can answer queries for the AS • An overlay network • Most previous work is in data overlays • RCP is a control overlay • Hierarchical routing is about control overlays • RCP could give more information and control to data overlays • RCP has AS-wide information and direct control over paths taken through the AS Route Control Platform – IEEE CCW 2004

  22. Conclusions • RCP embodies two principles for inter-domain routing • Treat an AS as a single logical entity • Compute consistent routes using complete AS-wide view • Control routing protocol interactions • Benefits • Simpler, more expressive configuration • Intrinsic robustness: no loops, faster convergence • Enable new applications and innovations • Opportunity for new traffic engineering applications Route Control Platform – IEEE CCW 2004

  23. More information FDNA 04 paper “The Case for Separating Routing from Routers” Nick Feamster, Hari Balakrishnan, Jennifer Rexford, Aman Shaikh, Kobus van der Merwe http://www.research.att.com/~ashaikh/publications.html Route Control Platform – IEEE CCW 2004
