SuperToy : Using Early Childhood Development to Guide AGI

1. SuperToy : Using Early Childhood Development to Guide AGI Scott Settembre University at Buffalo, SNePS Research Group ss424@cse.buffalo.edu June 24, 2008

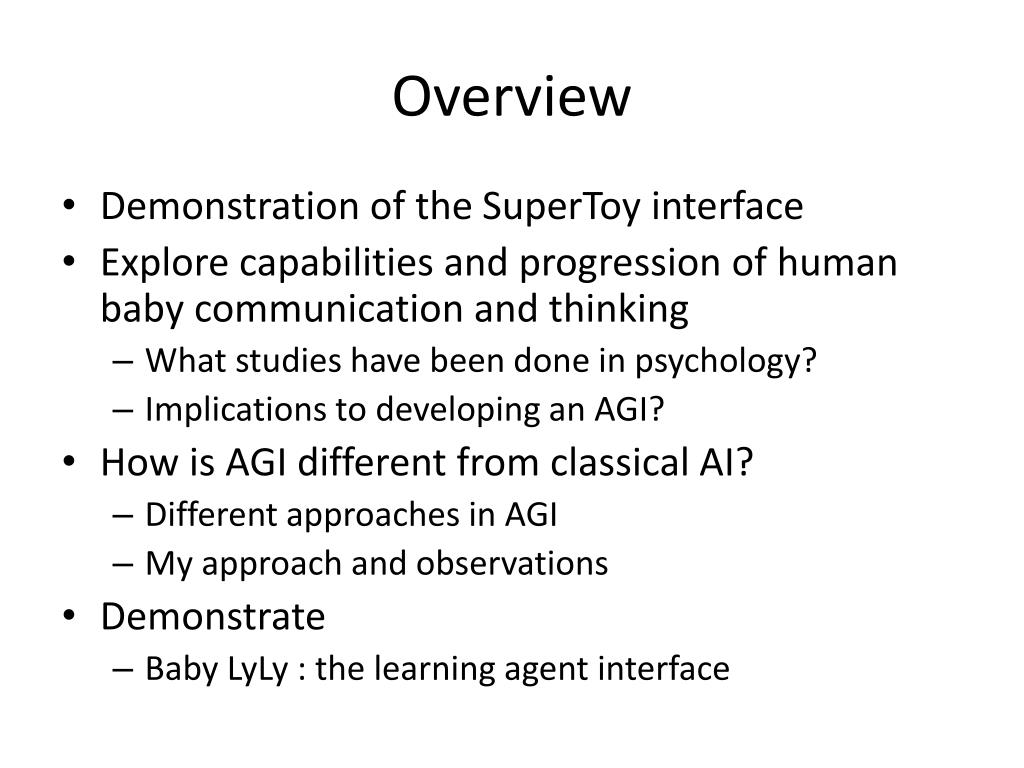

2. Overview • Demonstration of the SuperToy interface • Explore capabilities and progression of human baby communication and thinking • What studies have been done in psychology? • Implications to developing an AGI? • How is AGI different from classical AI? • Different approaches in AGI • My approach and observations • Demonstrate • Baby LyLy : the learning agent interface

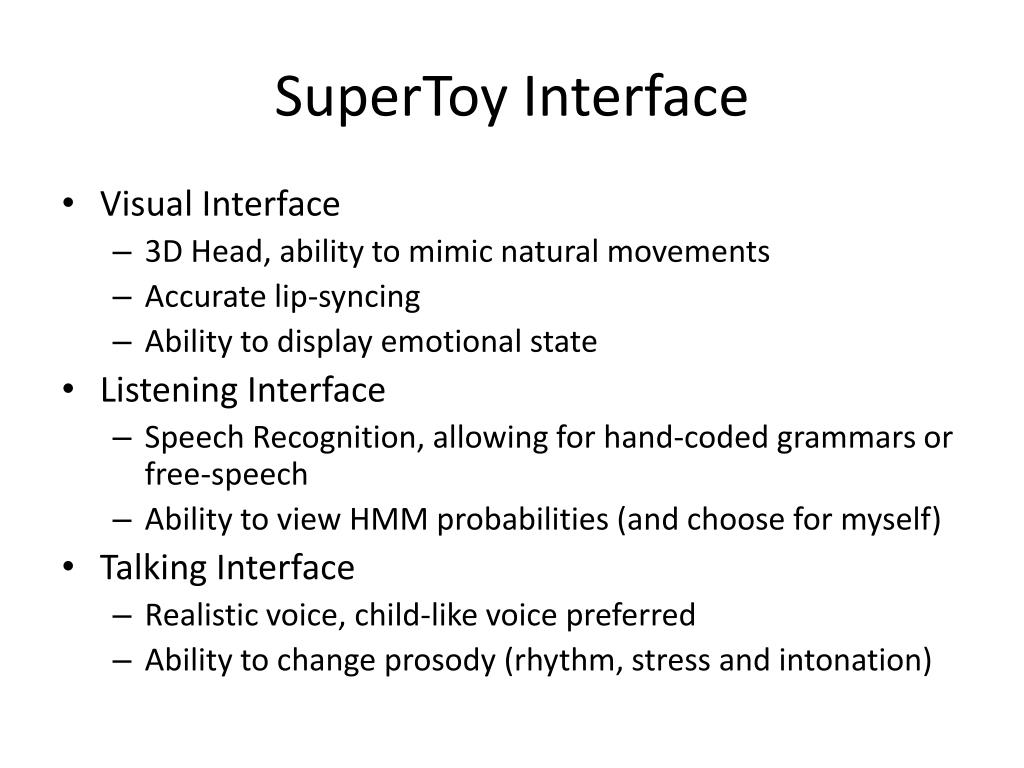

3. SuperToy Interface • Visual Interface • 3D Head, ability to mimic natural movements • Accurate lip-syncing • Ability to display emotional state • Listening Interface • Speech Recognition, allowing for hand-coded grammars or free-speech • Ability to view HMM probabilities (and choose for myself) • Talking Interface • Realistic voice, child-like voice preferred • Ability to change prosody (rhythm, stress and intonation)

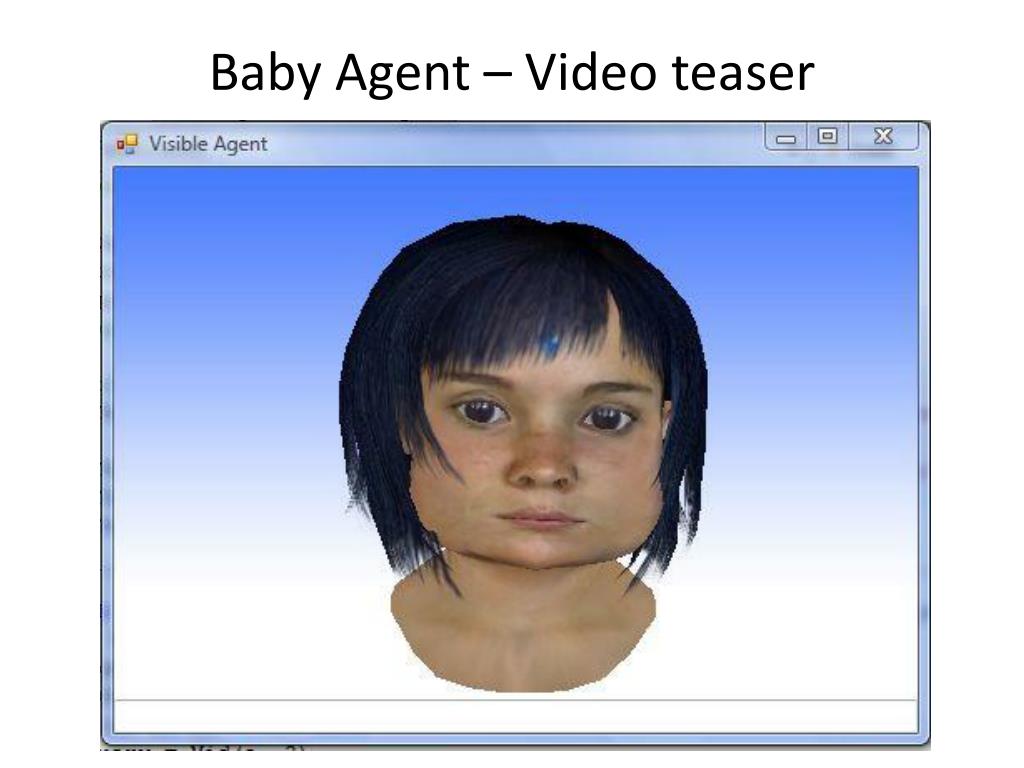

4. Baby Agent – Video teaser

6. Adult Agent – Video Teaser

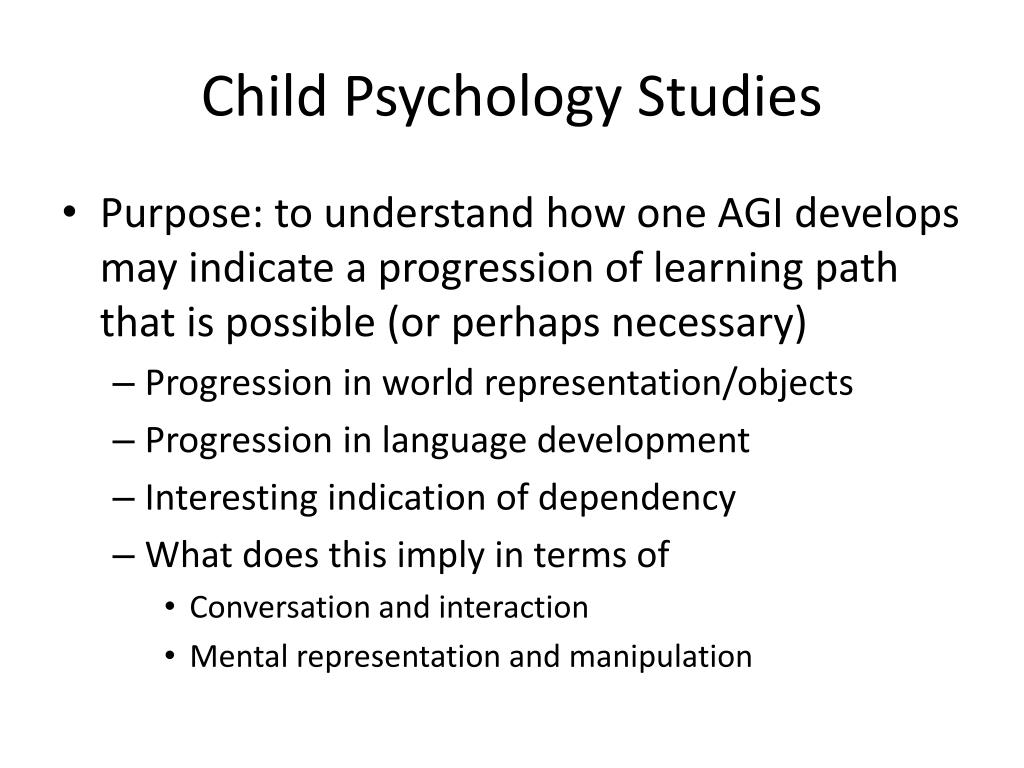

8. Child Psychology Studies • Purpose: to understand how one AGI develops may indicate a progression of learning path that is possible (or perhaps necessary) • Progression in world representation/objects • Progression in language development • Interesting indication of dependency • What does this imply in terms of • Conversation and interaction • Mental representation and manipulation

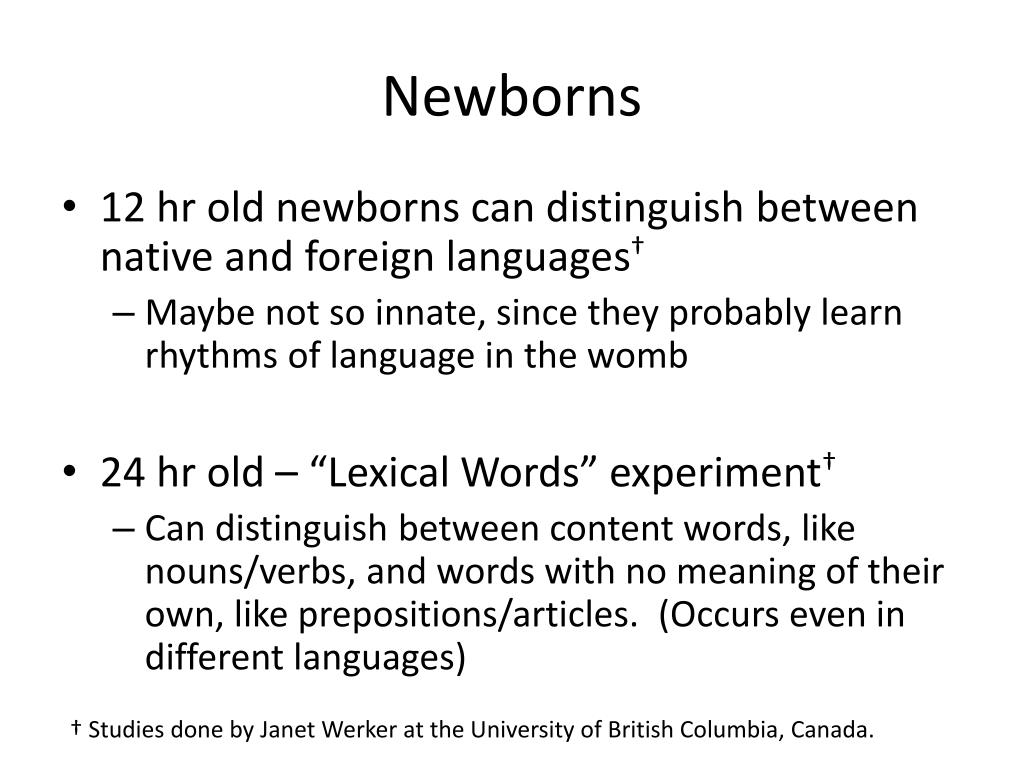

9. Newborns • 12 hr old newborns can distinguish between native and foreign languages† • Maybe not so innate, since they probably learn rhythms of language in the womb • 24 hr old – “Lexical Words” experiment† • Can distinguish between content words, like nouns/verbs, and words with no meaning of their own, like prepositions/articles. (Occurs even in different languages) † Studies done by Janet Werker at the University of British Columbia, Canada.

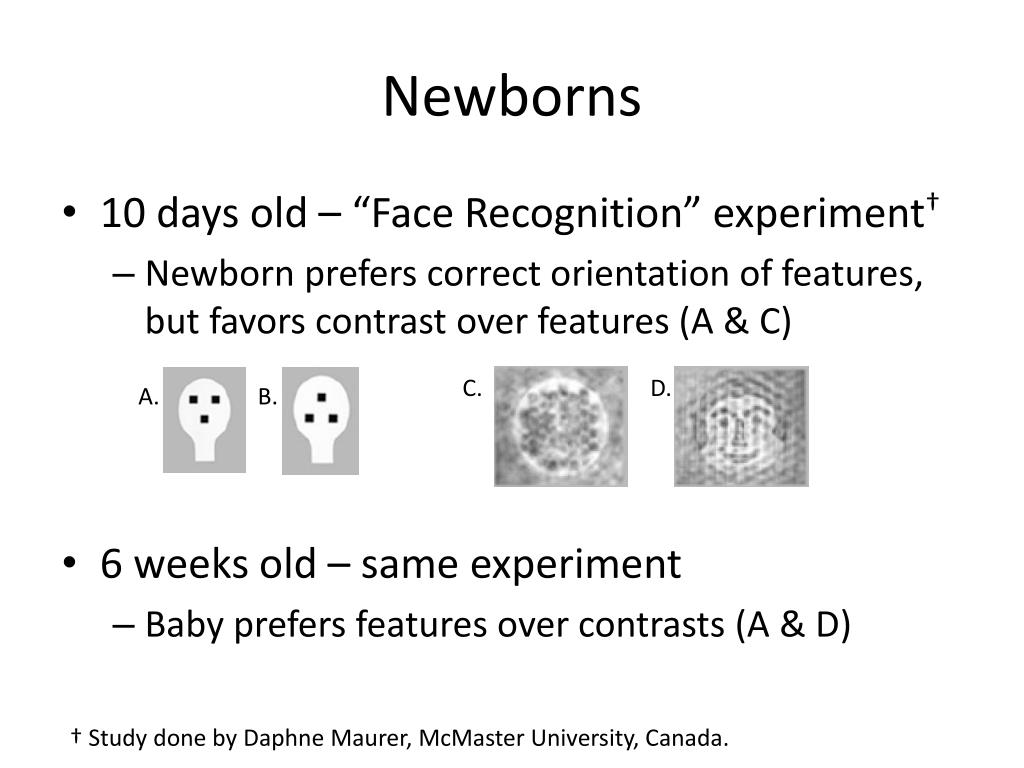

10. Newborns • 10 days old – “Face Recognition” experiment† • Newborn prefers correct orientation of features, but favors contrast over features (A & C) • 6 weeks old – same experiment • Baby prefers features over contrasts (A & D) C. D. A. B. † Study done by Daphne Maurer, McMaster University, Canada.

11. Newborns • What is innate? • Crying – an innate signal of distress • Soothing – mother’s voice will soothe baby, but any human voice will work • Attention – visual attention drawn to contrasts within first two weeks • Language development? We will return to this…

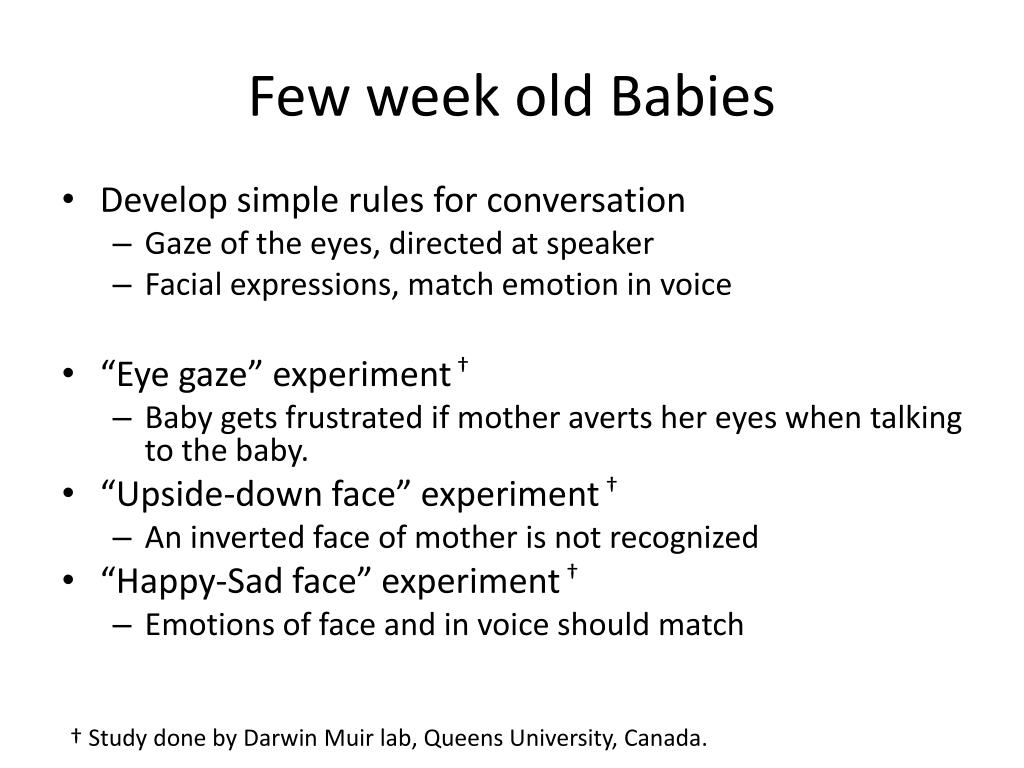

12. Few week old Babies • Develop simple rules for conversation • Gaze of the eyes, directed at speaker • Facial expressions, match emotion in voice • “Eye gaze” experiment † • Baby gets frustrated if mother averts her eyes when talking to the baby. • “Upside-down face” experiment † • An inverted face of mother is not recognized • “Happy-Sad face” experiment † • Emotions of face and in voice should match † Study done by Darwin Muir lab, Queens University, Canada.

13. Few week old Babies • 8 weeks old • Connections are being made between modalities • Correlations between sights and sounds • Beginning to understand what an object is • 10 mo. - “Object Permanence” experiment † • Moving a doll behind an obstruction, baby expects doll not to move magically – “an object must continue to exist in time and space” † Study done by Andrea Aguiar, University of Waterloo, Canada.

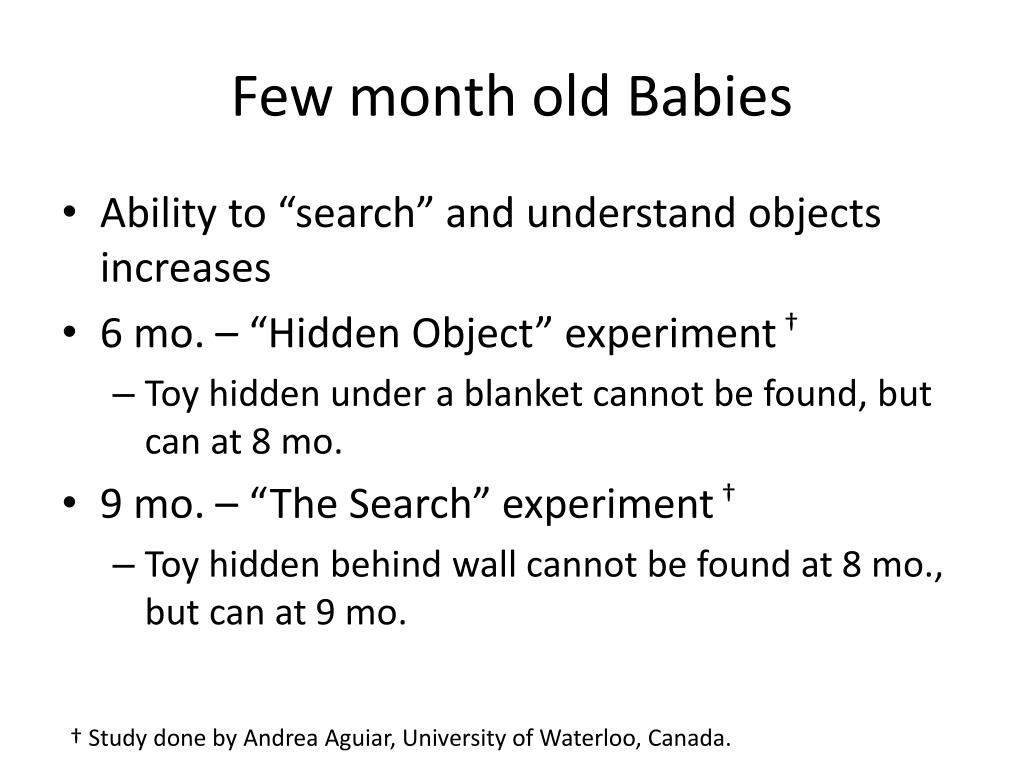

14. Few month old Babies • Ability to “search” and understand objects increases • 6 mo. – “Hidden Object” experiment † • Toy hidden under a blanket cannot be found, but can at 8 mo. • 9 mo. – “The Search” experiment † • Toy hidden behind wall cannot be found at 8 mo., but can at 9 mo. † Study done by Andrea Aguiar, University of Waterloo, Canada.

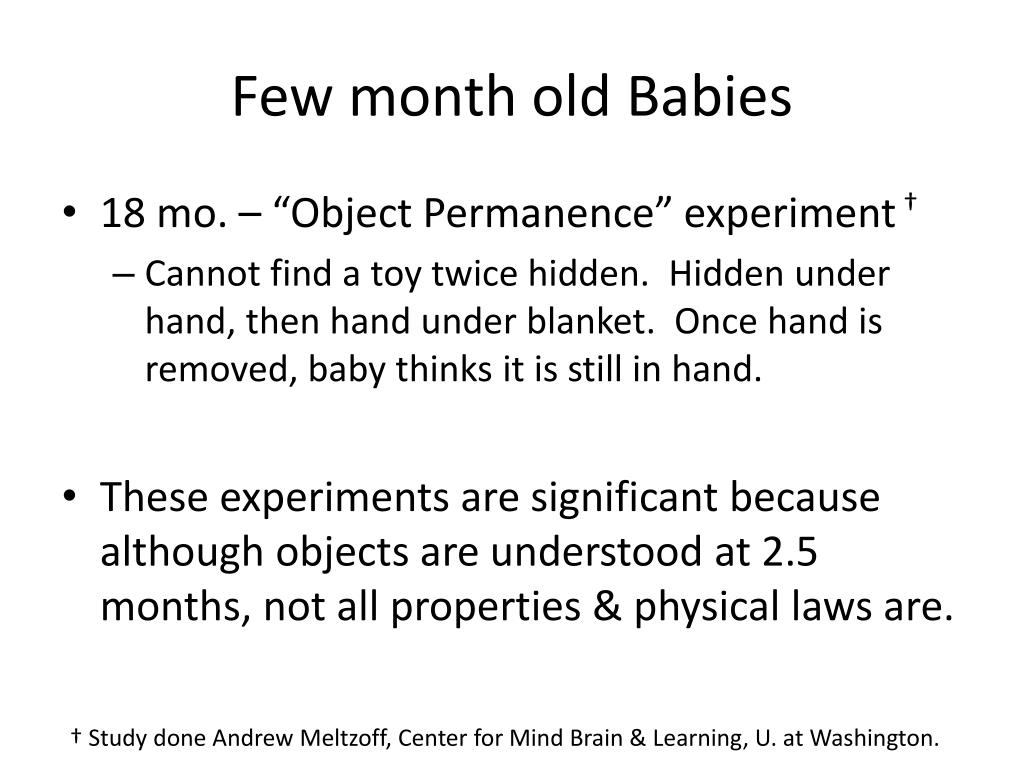

15. Few month old Babies • 18 mo. – “Object Permanence” experiment † • Cannot find a toy twice hidden. Hidden under hand, then hand under blanket. Once hand is removed, baby thinks it is still in hand. • These experiments are significant because although objects are understood at 2.5 months, not all properties & physical laws are. † Study done Andrew Meltzoff, Center for Mind Brain & Learning, U. at Washington.

16. Object Properties Timeline • 2.5 mo. – understand there are objects1 • 5 mo. – width of objects, no big into small1 • 6 mo. – simple addition, 1 toy and 1 toy = 2 toys2 • 7.5 mo. – height of objects, no long into short1 • 9 mo. – occlusion, can find obscured object1 • 9 mo. – motion, can predict path of ball3 • But cannot do occlusion and motion at same time • 11 mo. – tool use4 • 18+ mo. – twice hidden object can be found5

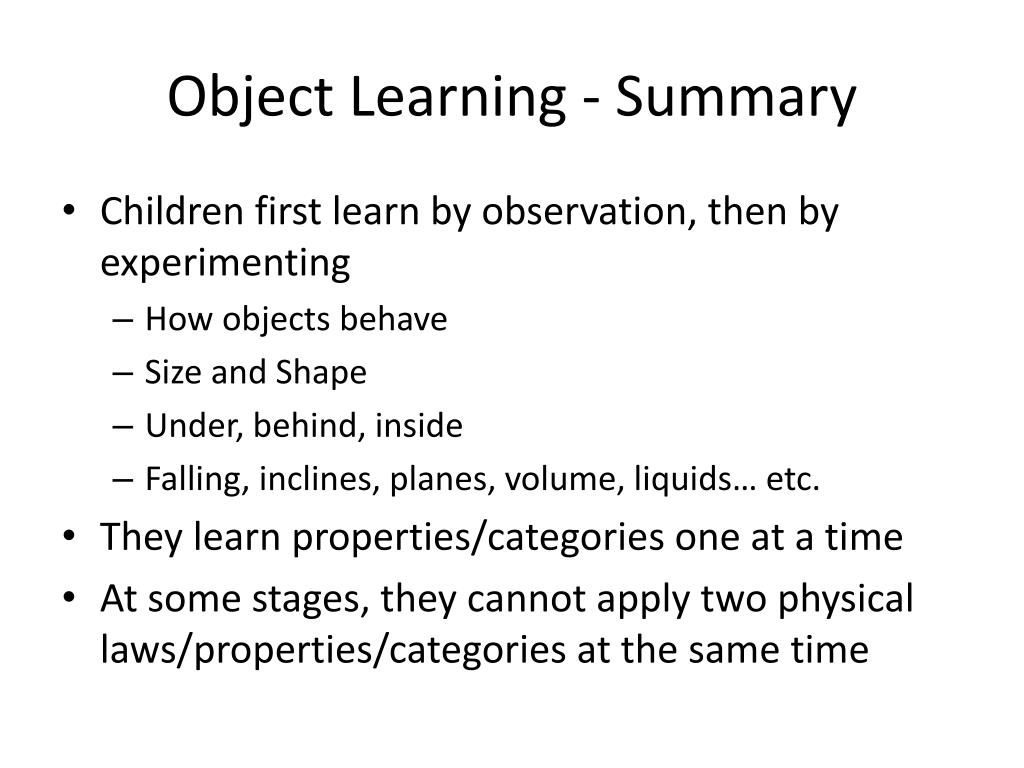

17. Object Learning - Summary • Children first learn by observation, then by experimenting • How objects behave • Size and Shape • Under, behind, inside • Falling, inclines, planes, volume, liquids… etc. • They learn properties/categories one at a time • At some stages, they cannot apply two physical laws/properties/categories at the same time

18. Baby vs Computer - Communication

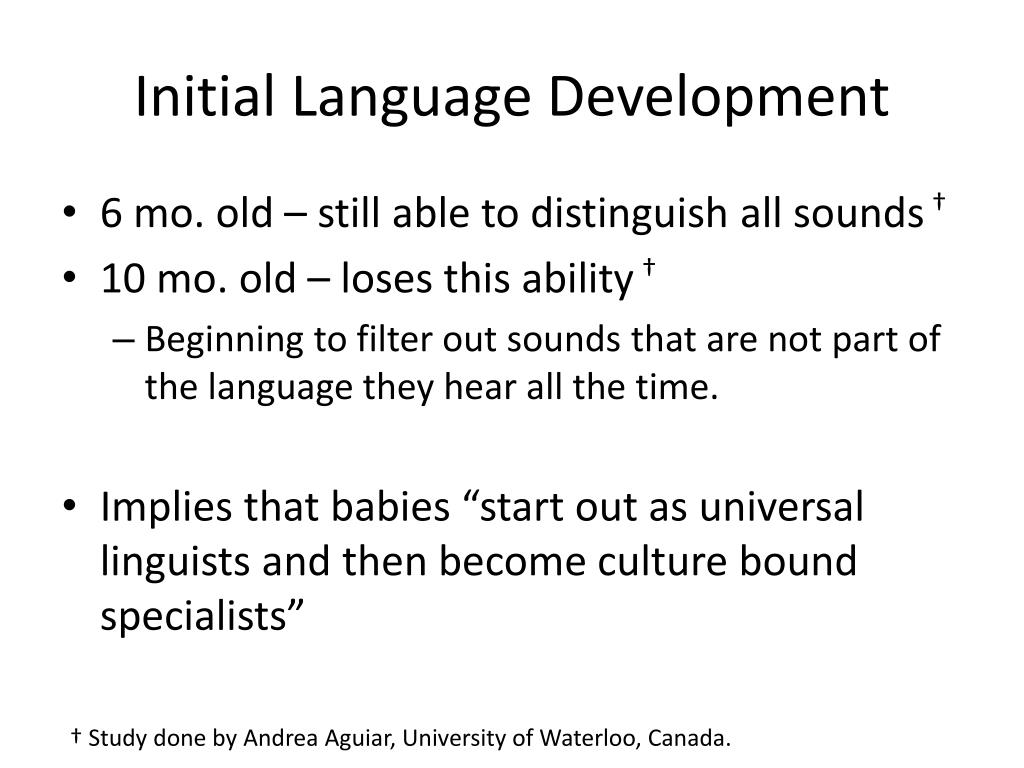

19. Initial Language Development • 6 mo. old – still able to distinguish all sounds † • 10 mo. old – loses this ability † • Beginning to filter out sounds that are not part of the language they hear all the time. • Implies that babies “start out as universal linguists and then become culture bound specialists” † Study done by Andrea Aguiar, University of Waterloo, Canada.

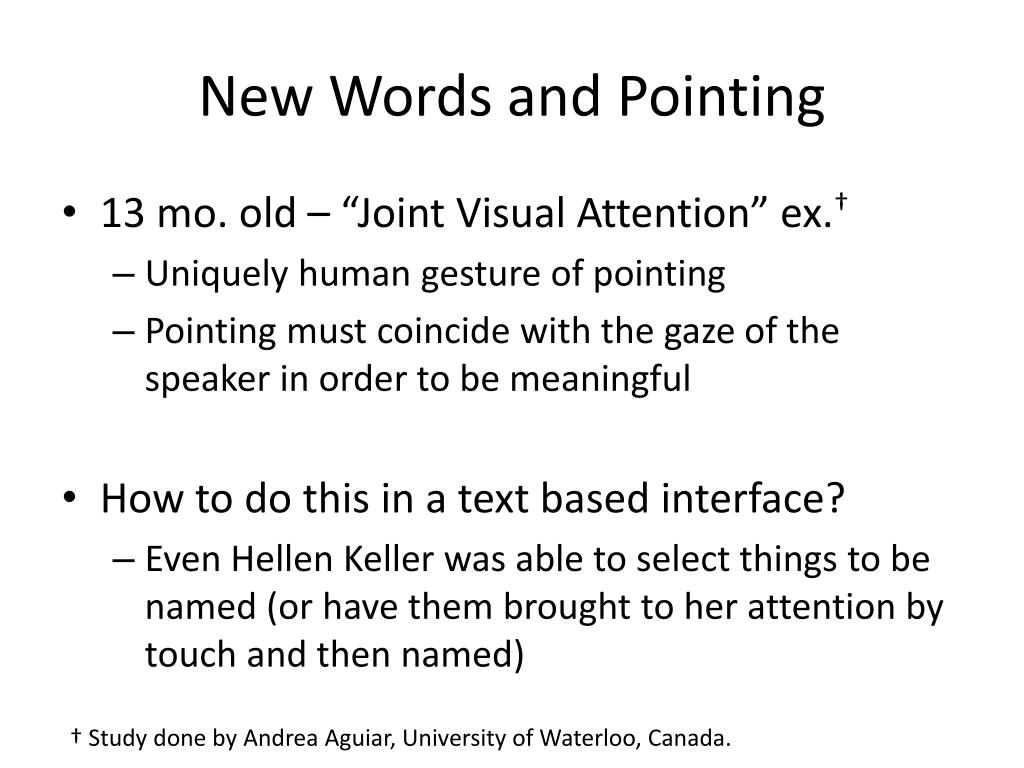

20. New Words and Pointing • 13 mo. old – “Joint Visual Attention” ex.† • Uniquely human gesture of pointing • Pointing must coincide with the gaze of the speaker in order to be meaningful • How to do this in a text based interface? • Even Hellen Keller was able to select things to be named (or have them brought to her attention by touch and then named) † Study done by Andrea Aguiar, University of Waterloo, Canada.

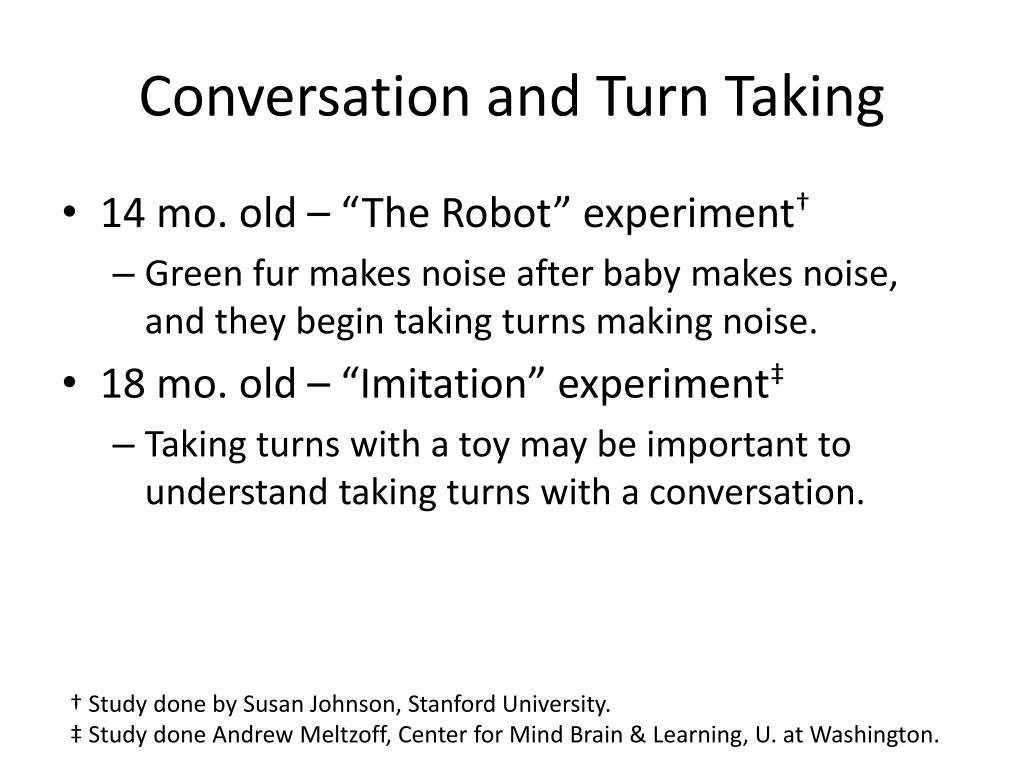

21. Conversation and Turn Taking • 14 mo. old – “The Robot” experiment† • Green fur makes noise after baby makes noise, and they begin taking turns making noise. • 18 mo. old – “Imitation” experiment‡ • Taking turns with a toy may be important to understand taking turns with a conversation. † Study done by Susan Johnson, Stanford University. ‡ Study done Andrew Meltzoff, Center for Mind Brain & Learning, U. at Washington.

22. New Words and Shape • 17-24mo. olds – “Shape Bias” experiment † • Identifies object by shape, not color or texture • Getting a child to pay attention to shape can increase vocabulary 3x faster • Implication? Perhaps language in humans is intertwined with the learning of objects and properties of the world. • Is “Language Explosion” at two years old due to understanding objects and categories better? † Study done by Susan Jones, Indiana University.

23. Language Learning Timeline • 24 week old fetus – can hear voices • Melody and rhythms of speech make heart beat faster • Birth – crying, mother’s voice soothes baby • 12 hrs old – distinguish native language1 • 24 hrs old – distinguish between POS1 • Weeks old – needs eye contact and matching voice & face emotions2 • 6 mo old – can distinguish all language sounds1 • 10 mo old – filters out non-native language sounds1 • 13 mo old – uses gestures and pointing to understand3 • 14 mo old – understands give and take of conversation4 • 18 mo old – imitation useful in learning how to converse5 • 18mo-2years – Everything has a name, shape bias6 • “Language explosion” – micro-sentences, mimic actions

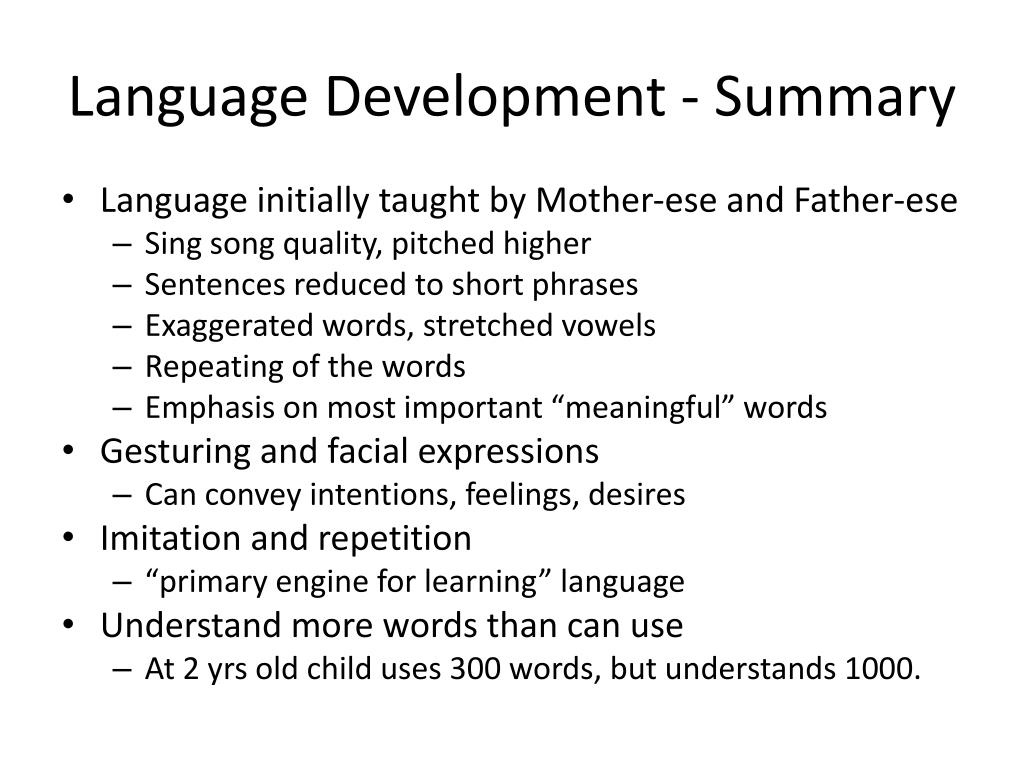

24. Language Development - Summary • Language initially taught by Mother-eseand Father-ese • Sing song quality, pitched higher • Sentences reduced to short phrases • Exaggerated words, stretched vowels • Repeating of the words • Emphasis on most important “meaningful” words • Gesturing and facial expressions • Can convey intentions, feelings, desires • Imitation and repetition • “primary engine for learning” language • Understand more words than can use • At 2 yrs old child uses 300 words, but understands 1000.

25. Anything Applicable to AGI • An underlying representation of objects helps learn a language • Maybe words are “verbal objects” and are subject to the same rules that objects are to categories? • Maybe grammar is equivalent to physical laws? • Maybe articles/prepositions, non-content words, are properties/relations between objects?

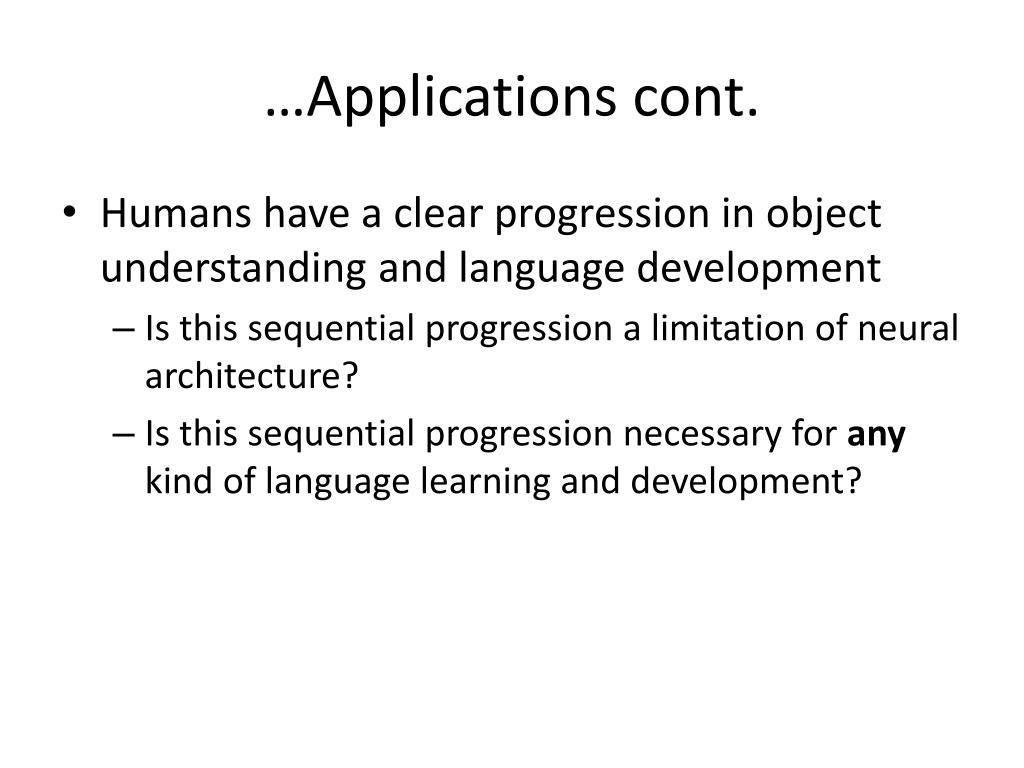

26. …Applications cont. • Humans have a clear progression in object understanding and language development • Is this sequential progression a limitation of neural architecture? • Is this sequential progression necessary for any kind of language learning and development?

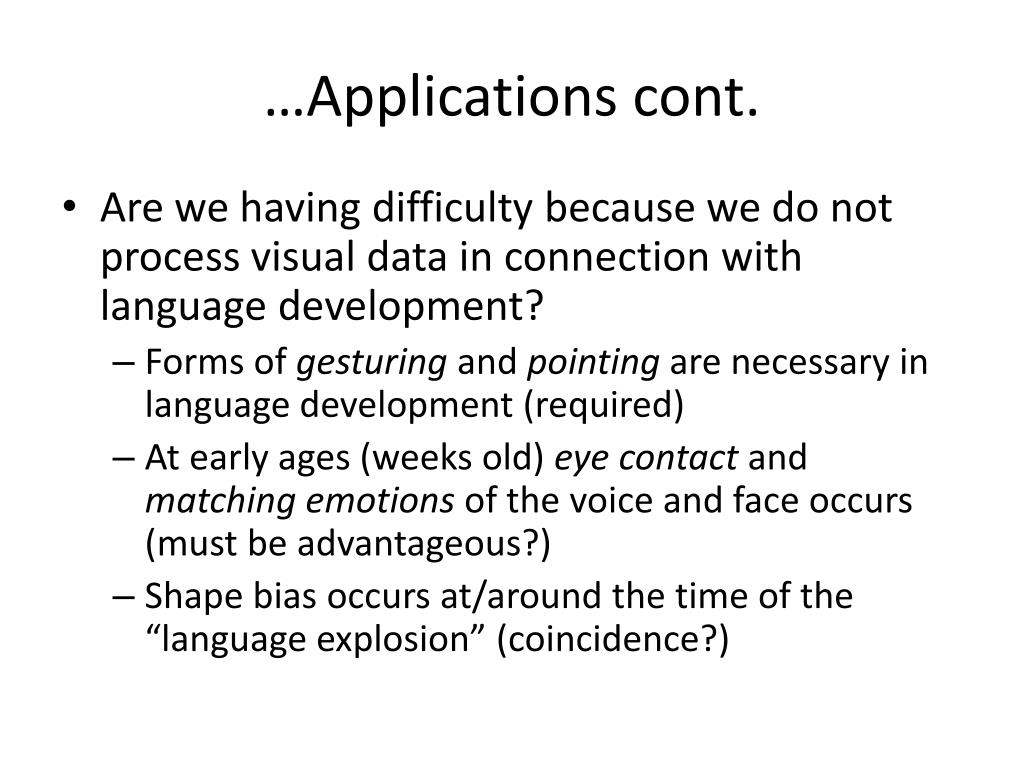

27. …Applications cont. • Are we having difficulty because we do not process visual data in connection with language development? • Forms of gesturing and pointing are necessary in language development (required) • At early ages (weeks old) eye contact and matching emotions of the voice and face occurs (must be advantageous?) • Shape bias occurs at/around the time of the “language explosion” (coincidence?)

28. Baby vs Computer - Story Time

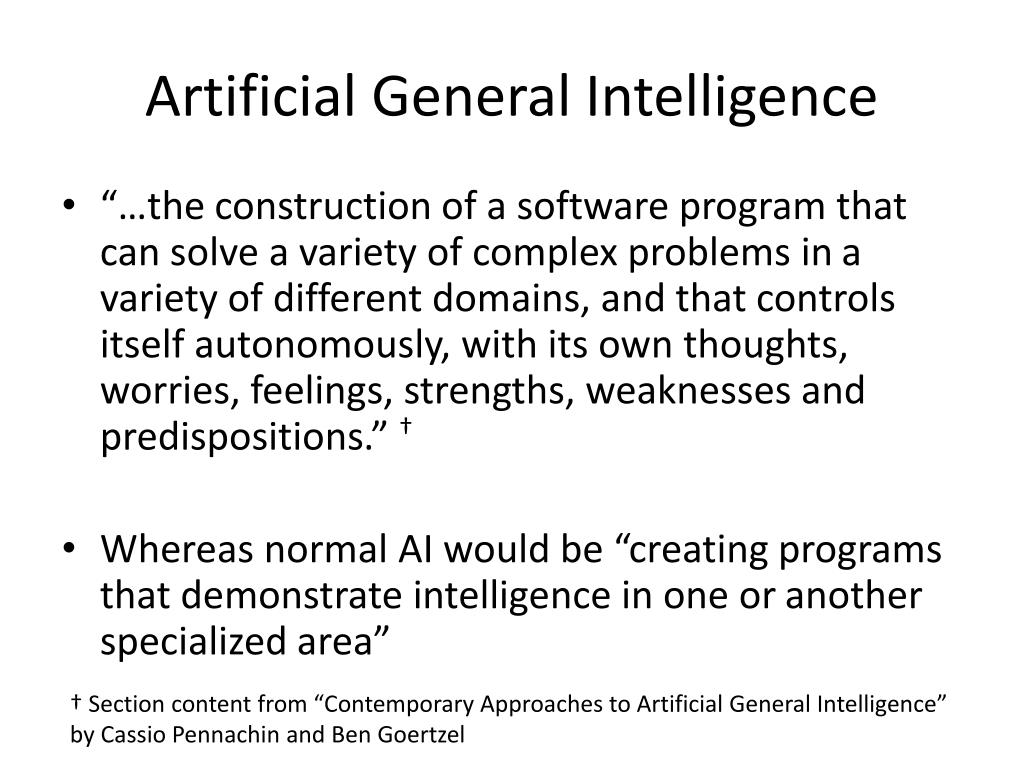

29. Artificial General Intelligence • “…the construction of a software program that can solve a variety of complex problems in a variety of different domains, and that controls itself autonomously, with its own thoughts, worries, feelings, strengths, weaknesses and predispositions.” † • Whereas normal AI would be “creating programs that demonstrate intelligence in one or another specialized area” • † Section content from “Contemporary Approaches to Artificial General Intelligence” by CassioPennachin and Ben Goertzel

30. Taxonomy of AGI Approaches • AGI approaches: • symbolic • symbolic and probability- or uncertainty-focused • neural net-based • evolutionary • artificial life • program search based • embedded • integrative

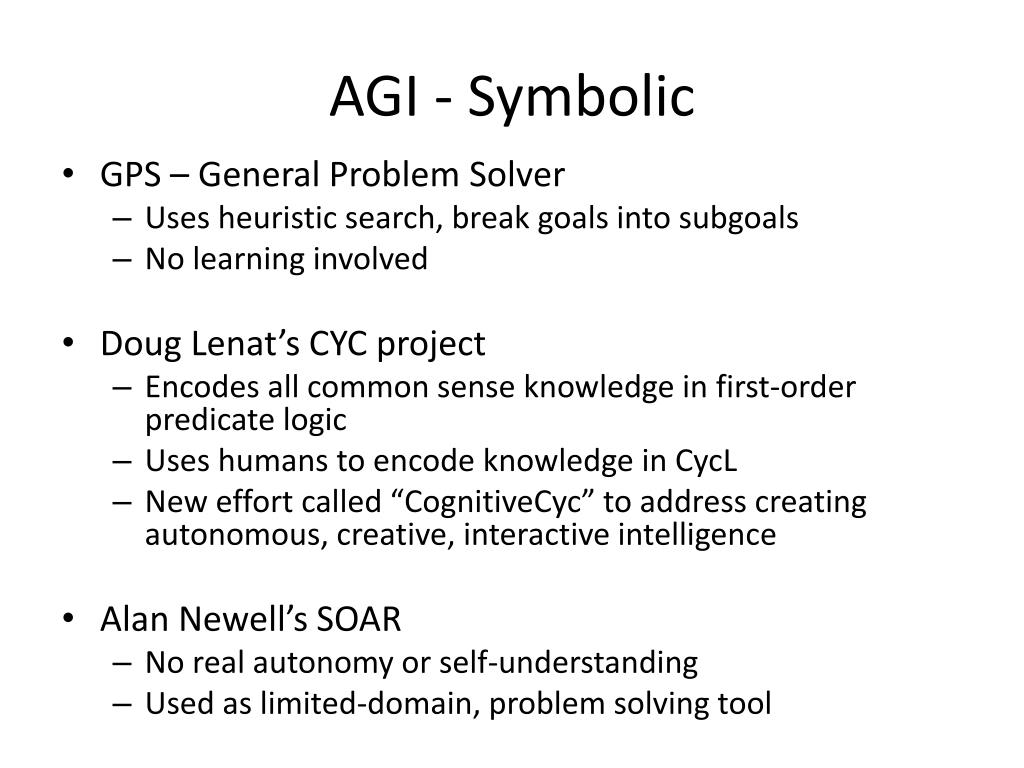

31. AGI - Symbolic • GPS – General Problem Solver • Uses heuristic search, break goals into subgoals • No learning involved • Doug Lenat’s CYC project • Encodes all common sense knowledge in first-order predicate logic • Uses humans to encode knowledge in CycL • New effort called “CognitiveCyc” to address creating autonomous, creative, interactive intelligence • Alan Newell’s SOAR • No real autonomy or self-understanding • Used as limited-domain, problem solving tool

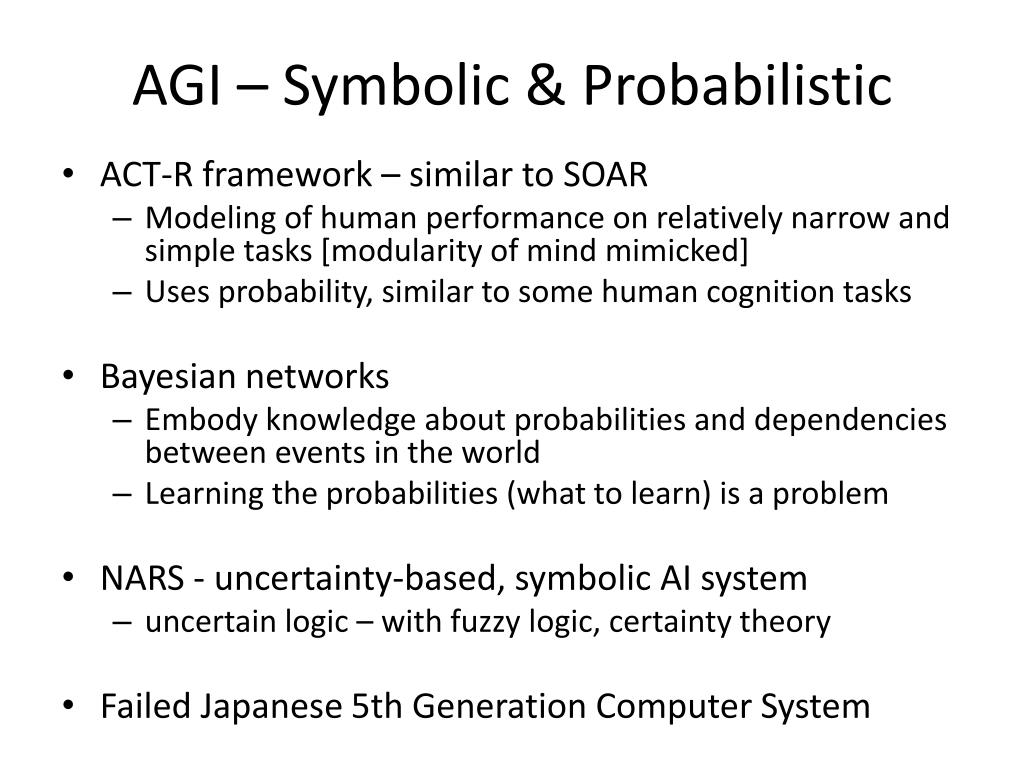

32. AGI – Symbolic & Probabilistic • ACT-R framework – similar to SOAR • Modeling of human performance on relatively narrow and simple tasks [modularity of mind mimicked] • Uses probability, similar to some human cognition tasks • Bayesian networks • Embody knowledge about probabilities and dependencies between events in the world • Learning the probabilities (what to learn) is a problem • NARS - uncertainty-based, symbolic AI system • uncertain logic – with fuzzy logic, certainty theory • Failed Japanese 5th Generation Computer System

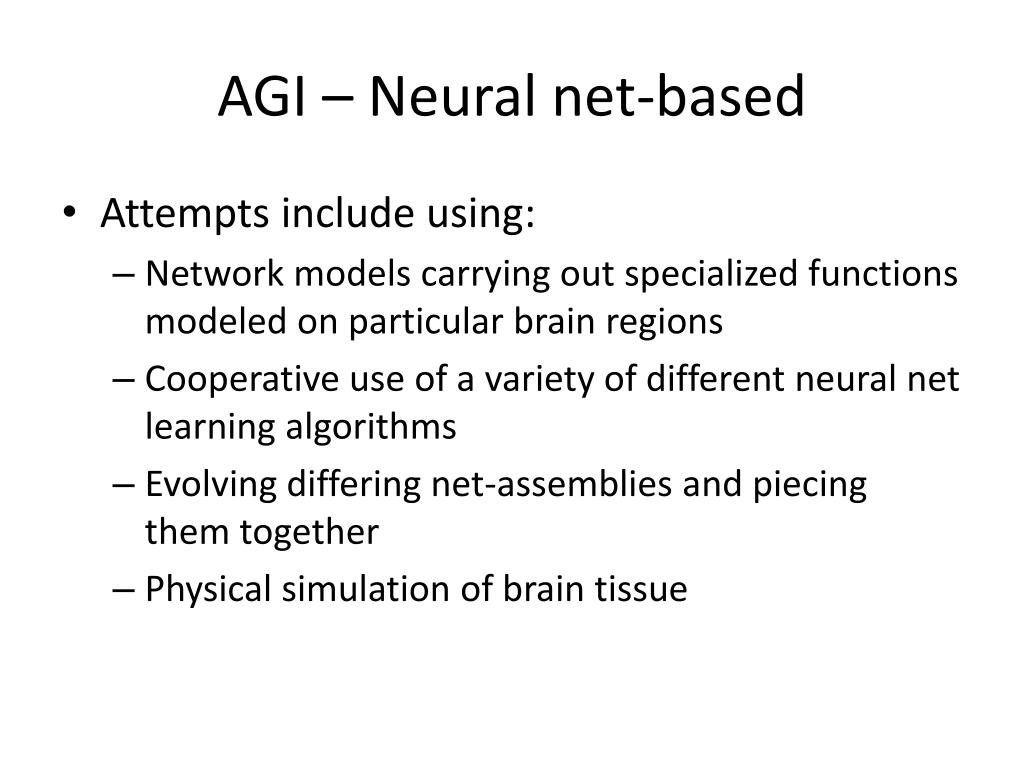

33. AGI – Neural net-based • Attempts include using: • Network models carrying out specialized functions modeled on particular brain regions • Cooperative use of a variety of different neural net learning algorithms • Evolving differing net-assemblies and piecing them together • Physical simulation of brain tissue

34. AGI – Evolutionary • John Holland’s Classifier System • Hybridization of evolutionary algorithms and probabilistic-symbolic AI • Specifically oriented toward integrating memory, perception, and cognition to allow an AI system to act in the world • CAM-Brain machine – Hugo de Garis • Evolving differing net-assemblies and piecing them together

35. AGI – Artificial Life • Approaches are interesting, but not fruitful above a basic level of cognition • “Creatures” games (social) • “Network Tierra” project (multicellular) • “AlChemy” project (lower biological processes) • No Alifeagent with significant general intelligence

36. AGI - Program search • General approach • Begins with a formal theory of general intelligence • Defines impractical algorithms that are provably known to achieve general intelligence • Then approximate these algorithms with related, but less comprehensive, algorithms • There is actually a solution to AGI, but the search for the algorithm takes a long time • AIXI (Marcus Hutter) can work, but requires infinite memory and infinitely fast processor!

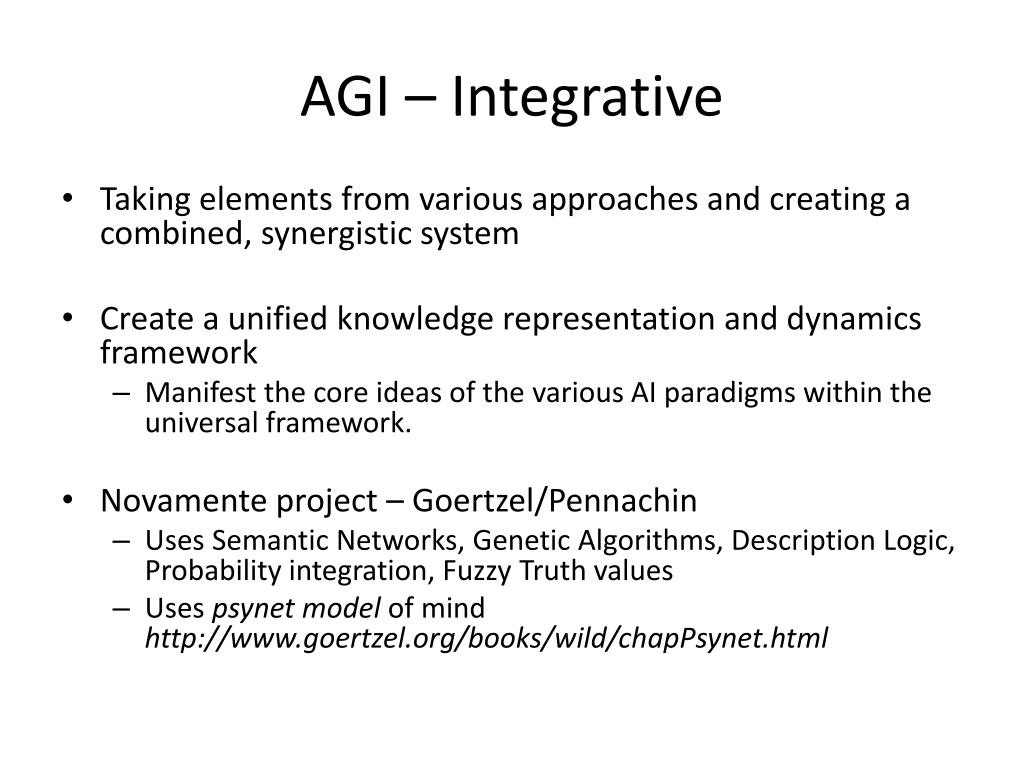

37. AGI – Integrative • Taking elements from various approaches and creating a combined, synergistic system • Create a unified knowledge representation and dynamics framework • Manifest the core ideas of the various AI paradigms within the universal framework. • Novamente project – Goertzel/Pennachin • Uses Semantic Networks, Genetic Algorithms, Description Logic, Probability integration, Fuzzy Truth values • Uses psynet model of mind http://www.goertzel.org/books/wild/chapPsynet.html

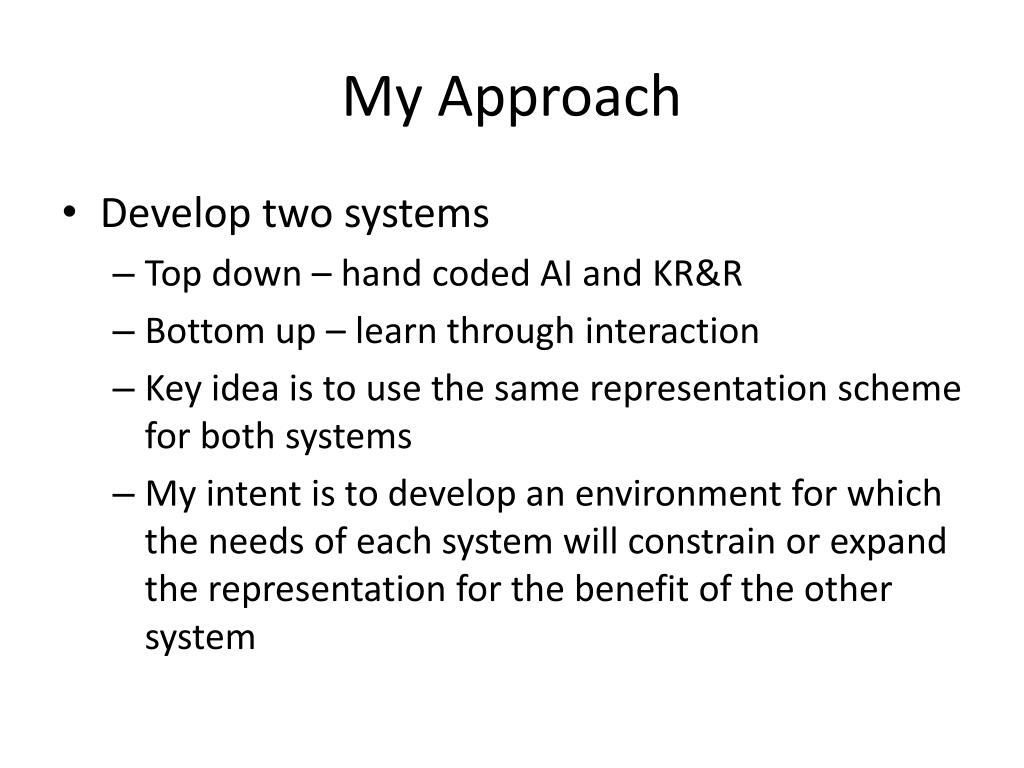

38. My Approach • Develop two systems • Top down – hand coded AI and KR&R • Bottom up – learn through interaction • Key idea is to use the same representation scheme for both systems • My intent is to develop an environment for which the needs of each system will constrain or expand the representation for the benefit of the other system

39. My Approach – cont. • Visual modality as input is out • Too costly in processing and effort • This means there will be: • No eye gaze consideration • No visual emotional content • No processing of gestures/pointing • No shape bias benefits • These are serious drawbacks that will need to be compensated for

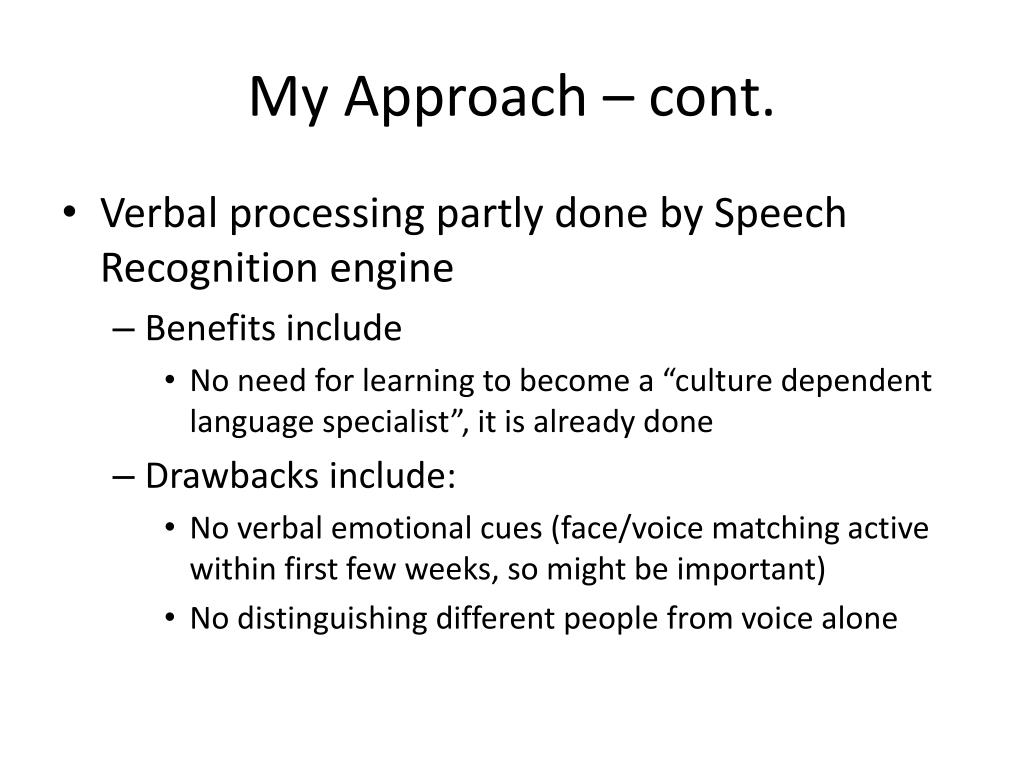

40. My Approach – cont. • Verbal processing partly done by Speech Recognition engine • Benefits include • No need for learning to become a “culture dependent language specialist”, it is already done • Drawbacks include: • No verbal emotional cues (face/voice matching active within first few weeks, so might be important) • No distinguishing different people from voice alone

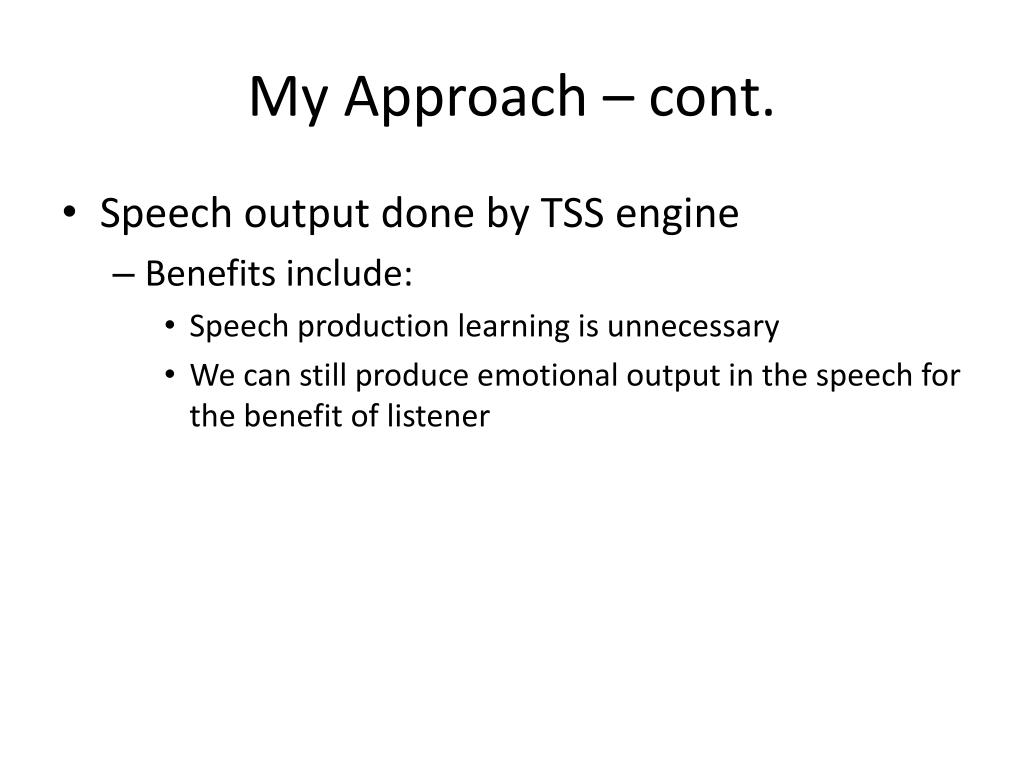

41. My Approach – cont. • Speech output done by TSS engine • Benefits include: • Speech production learning is unnecessary • We can still produce emotional output in the speech for the benefit of listener

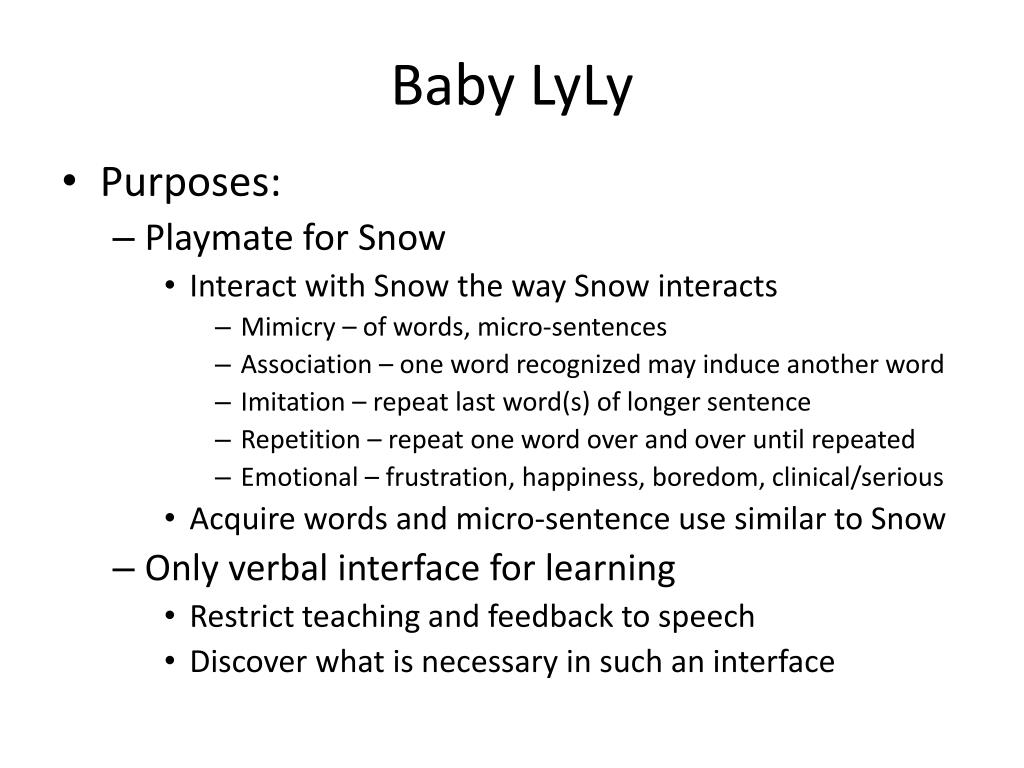

42. Baby LyLy • Purposes: • Playmate for Snow • Interact with Snow the way Snow interacts • Mimicry – of words, micro-sentences • Association – one word recognized may induce another word • Imitation – repeat last word(s) of longer sentence • Repetition – repeat one word over and over until repeated • Emotional – frustration, happiness, boredom, clinical/serious • Acquire words and micro-sentence use similar to Snow • Only verbal interface for learning • Restrict teaching and feedback to speech • Discover what is necessary in such an interface

43. Adult Lyly • Purposes: • Productive interaction with OS/humans • Hand-coded knowledge and conversation protocols • Innate knowledge of environment and use of some web • Integration with various tools (like email and schedule) • Specialized grammar and modules • Kitchen - recipe, calorie, timers • Living room – TV schedules, movie database, lyric lookup • Office – web search, question answering, calculator • Bedroom – read stories, play games • Assist in development of high-level knowledge representation and reasoning framework • Needs dictate KR scheme • Needs dictate specialized AI functions and tools to use

44. Additional Considerations • Forms of communication from computer to human we can exploit (common references) • Visual • Facial emotions and actions • Diagrams, pictures, timelines, representations • Auditory • Speech – with prosody • Recorded sound effects and speech • Other • Sliders/progress bars to indicate intensity of emotion, how well something is understood, certainty

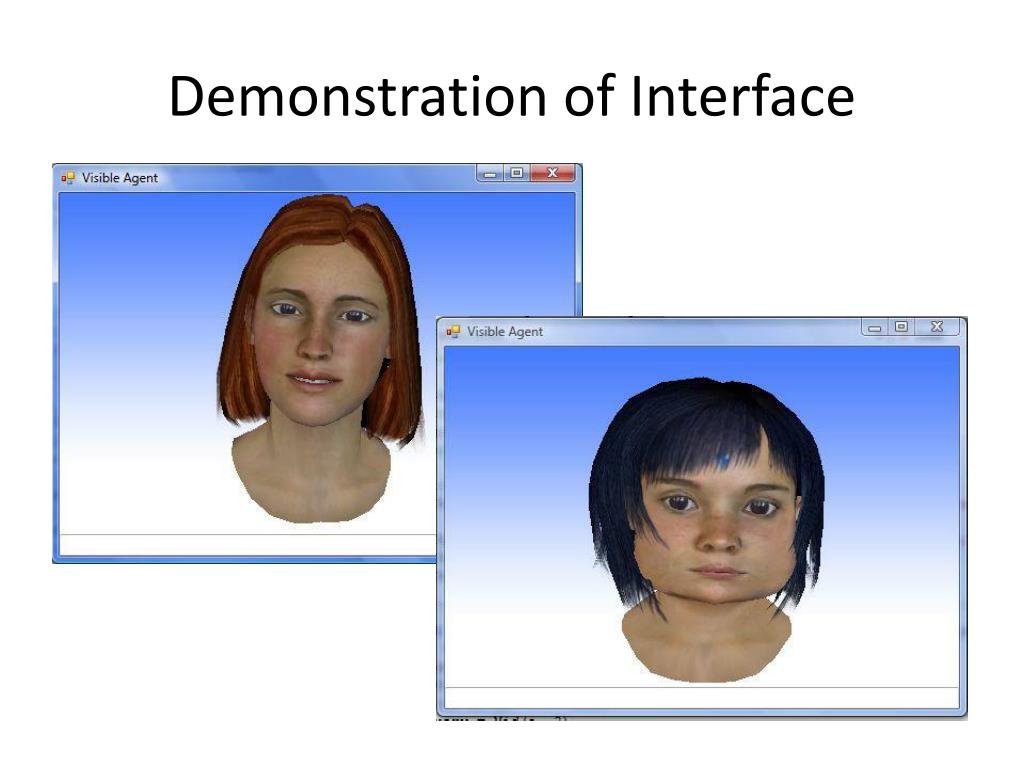

45. Demonstration of Interface
