Computer ArchitectureThe P6 Micro-Architecture An Example of an Out-Of-Order Micro-processor

Lihu Rappoport and Adi Yoaz


The p6 family

The P6 Family

  • Features

    • Out Of Order execution

    • Register renaming

    • Speculative Execution

    • Multiple Branch prediction

    • Super pipeline: 12 pipe stages

*off die


P6 arch

External

Bus

L2

MOB

BIU

DCU

MIU

IFU

AGU

R

IEU

BPU

S

I

FEU

D

MS

ROB

RAT

P6 Arch

  • In-Order Front End

    • BIU: Bus Interface Unit

    • IFU: Instruction Fetch Unit (includes IC)

    • BPU: Branch Prediction Unit

    • ID: Instruction Decoder

    • MS: Micro-Instruction Sequencer

    • RAT: Register Alias Table

  • Out-of-order Core

    • ROB: Reorder Buffer

    • RRF: Real Register File

    • RS: Reservation Stations

    • IEU: Integer Execution Unit

    • FEU: Floating-point Execution Unit

    • AGU: Address Generation Unit

    • MIU: Memory Interface Unit

    • DCU: Data Cache Unit

    • MOB: Memory Order Buffer

    • L2: Level 2 cache

  • In-Order Retire


P6 pipeline

Next

IP

Reg

Ren

RS

Wr

Icache

Decode

I1

I2

I3

I4

I5

I6

I7

I8

P6 Pipeline

RS

disp

In-Order Front End

Ex

1:Next IP

2: ICache lookup

3: ILD (instruction length decode)

4: rotate

5: ID1

6: ID2

7: RAT- rename sources,

ALLOC-assign destinations

8: ROB-read sources

RS-schedule data-ready uops for dispatch

9: RS-dispatch uops

10:EX

11:Retirement

Out-of-order

Core

O1

O3

Retirement

R1

R2

In-order

Retirement


In order front end

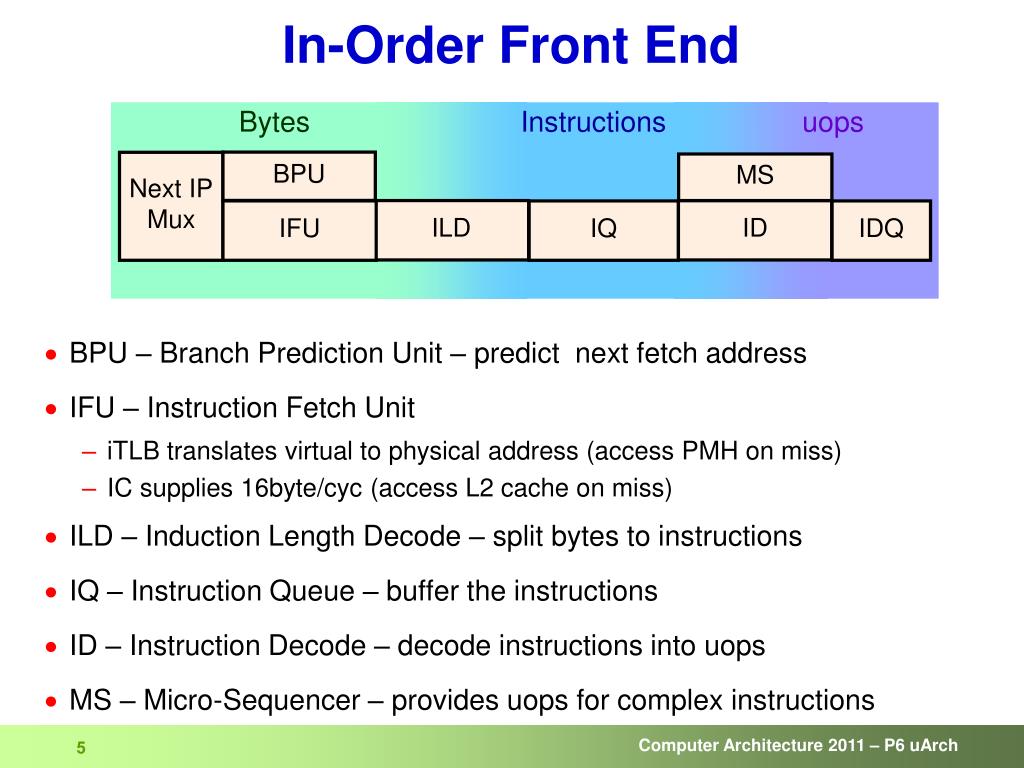

In-Order Front End

Bytes

Instructions

uops

BPU

Next IP

Mux

MS

  • BPU – Branch Prediction Unit – predict next fetch address

  • IFU – Instruction Fetch Unit

    • iTLB translates virtual to physical address (access PMH on miss)

    • IC supplies 16byte/cyc (access L2 cache on miss)

  • ILD – Induction Length Decode – split bytes to instructions

  • IQ – Instruction Queue – buffer the instructions

  • ID – Instruction Decode – decode instructions into uops

  • MS – Micro-Sequencer – provides uops for complex instructions

ILD

ID

IFU

IQ

IDQ


Branch prediction

Branch Prediction

  • Implementation

    • Use local history to predict direction

    • Need to predict multiple branches

    • Need to predict branches before previous branches are resolved

    • Branch history updated first based on prediction, later based on actual execution (speculative history)

    • Target address taken from BTB

  • Prediction rate: ~92%

    • ~60 instructions between mispredictions

    • High prediction rate is very crucial for long pipelines

    • Especially important for OOOE, speculative execution:

      • On misprediction all instructions following the branch in the instruction window are flushed

      • Effective size of the window is determined by prediction accuracy

  • RSB used for Call/Return pairs


Branch prediction clustering

Jump out

of the line

Jump into

the fetch line

jmp

jmp

jmp

jmp

Predict

taken

Predict

not taken

Predict

taken

Predict

taken

Branch Prediction – Clustering

  • Need to provide predictions for the entire fetch line each cycle

    • Predict the first taken branch in the line, following the fetch IP

  • Implemented by

    • Splitting IP into offset within line, set, and tag

    • If the tag of more than one way matches the fetch IP

      • The offsets of the matching ways are ordered

      • Ways with offset smaller than the fetch IP offset are discarded

      • The first branch that is predicted taken is chosen as the predicted branch


The p6 btb

Prediction bit

1001

0

counters

Tag

Target

ofst

Hist

V

T

P

IP

LRR

9

Pred=

msb of

counter

4

1

2

1

4

2

9

32

32

128

sets

15

Branch Type

00- cond

01- ret

10- call

11- uncond

Return

Stack

Buffer

Per-Set

Way 1

Way 3

Way 0

Way 2

The P6 BTB

  • 2-level, local histories, per-set counters

  • 4-way set associative: 512 entries in 128 sets

  • Up to 4 branches can have a tag match


In order front end decoder

D0

D1

D2

D3

4 uops

1 uop

1 uop

1 uop

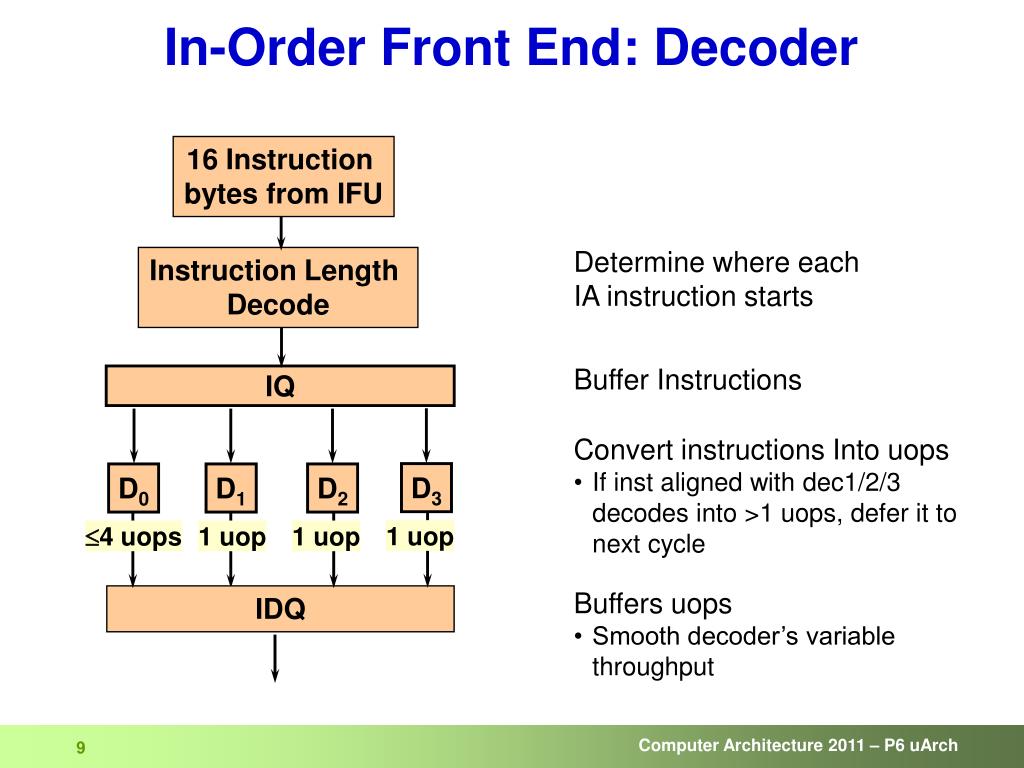

In-Order Front End: Decoder

16 Instruction

bytes from IFU

Determine where each

IA instruction starts

Instruction Length

Decode

Buffer Instructions

IQ

  • Convert instructions Into uops

  • If inst aligned with dec1/2/3 decodes into >1 uops, defer it to next cycle

  • Buffers uops

  • Smooth decoder’s variable throughput

IDQ


Micro operations uops

Micro Operations (Uops)

  • Each CISC inst is broken into one or more RISC uops

    • Simplicity:

      • Each uop is (relatively) simple

      • Canonical representation of src/dest (2 src, 1 dest)

    • Increased ILP

      • e.g., pop eaxbecomes esp1<-esp0+4, eax1<-[esp0]

  • Simple instructions translate to a few uops

    • Typical uop count (it is not necessarily cycle count!)Reg-Reg ALU/Mov inst:1 uopMem-Reg Mov (load)1 uopMem-Reg ALU(load + op)2 uopsReg-Mem Mov (store)2 uops (st addr, st data)Reg-Mem ALU(ld + op + st)4 uops

  • Complex instructions need ucode


Out of order core

External

Bus

L2

MOB

BIU

DCU

MIU

IFU

AGU

R

IEU

BTB

S

I

FEU

MIS

D

ROB

RAT

Out-of-order Core

  • Reorder Buffer (ROB):

    • Holds “not yet retired” instructions

    • 40 entries, in-order

  • Reservation Stations (RS):

    • Holds “not yet executed” instructions

    • 20 entries

  • Execution Units

    • IEU: Integer Execution Unit

    • FEU: Floating-point Execution Unit

  • Memory related units

    • AGU: Address Generation Unit MIU: Memory Interface Unit

    • DCU: Data Cache Unit

    • MOB: Orders Memory operations

    • L2: Level 2 cache


Alloc rat

Alloc & Rat

  • Perform register allocation and renaming for ≤4 uops/cyc

  • The Register Alias Table (RAT)

    • Maps architectural registers into physical registers

      • For each arch reg, holds the number of latest phyreg that updates it

    • When a new uop that writes to a arch regR is allocated

      • Record phyreg allocated to the uop as the latest reg that updates R

  • The Allocator (Alloc)

    • Assigns each uop an entry number in the ROB / RS

    • For each one of the sources (architectural registers) of the uop

      • Lookup the RAT to find out the latest phyreg updating it

      • Write it up in the RS entry

    • Allocate Load & Store buffers in the MOB


Re order buffer rob

Re-order Buffer (ROB)

  • Hold 40 uops which are not yet committed

    • At the same order as in the program

  • Provide a large physical register space for register renaming

    • One physical register per each ROB entry

      • physical register number = entry number

      • Each uop has only one destination

      • Buffer the execution results until retirement

    • Valid data is set after uop executed and result written to physical reg


Rrf real register file

RRF – Real Register File

  • Holds the Architectural Register File

    • Architectural Register are numbered: 0 – EAX, 1 – EBX, …

  • The value of an architectural register

    • is the value written to it by the last instruction committed which writes to this register

RRF:


Uop flow through the rob

Uop flow through the ROB

  • Uops are entered in order

    • Registers renamed by the entry number

  • Once assigned: execution order unimportant

  • After execution:

    • Entries marked “executed” and wait for retirement

    • Executed entry can be “retired” once all prior instruction have retired

    • Commit architectural state only after speculation (branch, exception) has resolved

  • Retirement

    • Detect exceptions and mispredictions

      • Initiate repair to get machine back on right track

    • Update “real registers” with value of renamed registers

    • Update memory

    • Leave the ROB


Reservation station rs

Reservation station (RS)

  • Pool of all “not yet executed” uops

    • Holds the uop attributes and the uop source data until it is dispatched

  • When a uop is allocated in RS, operand values are updated

    • If operand is from an architectural register, value is taken from the RRF

    • If operand is from a phy reg, with data valid set, value taken from ROB

    • If operand is from a phy reg, with data valid not set, wait for value

  • The RS maintains operands status “ready/not-ready”

    • Each cycle, executed uops make more operands “ready”

      • The RS arbitrate the WB busses between the units

      • The RS monitors the WB bus to capture data needed by awaiting uops

      • Data can be bypassed directly from WB bus to execution unit

    • Uops whose all operands are ready can be dispatched for execution

      • Dispatcher chooses which of the ready uops to execute next

      • Dispatches chosen uops to functional units


Register renaming example

Register Renaming example

IDQ

Add EAX, EBX, EAX

RAT / Alloc

Add ROB37, ROB19, RRF0

ROB

RS

RRF:


Register renaming example 2

Register Renaming example (2)

IDQ

sub EAX, ECX, EAX

RAT / Alloc

sub ROB38, ROB23, ROB37

ROB

RS

RRF:


Out of order core execution units

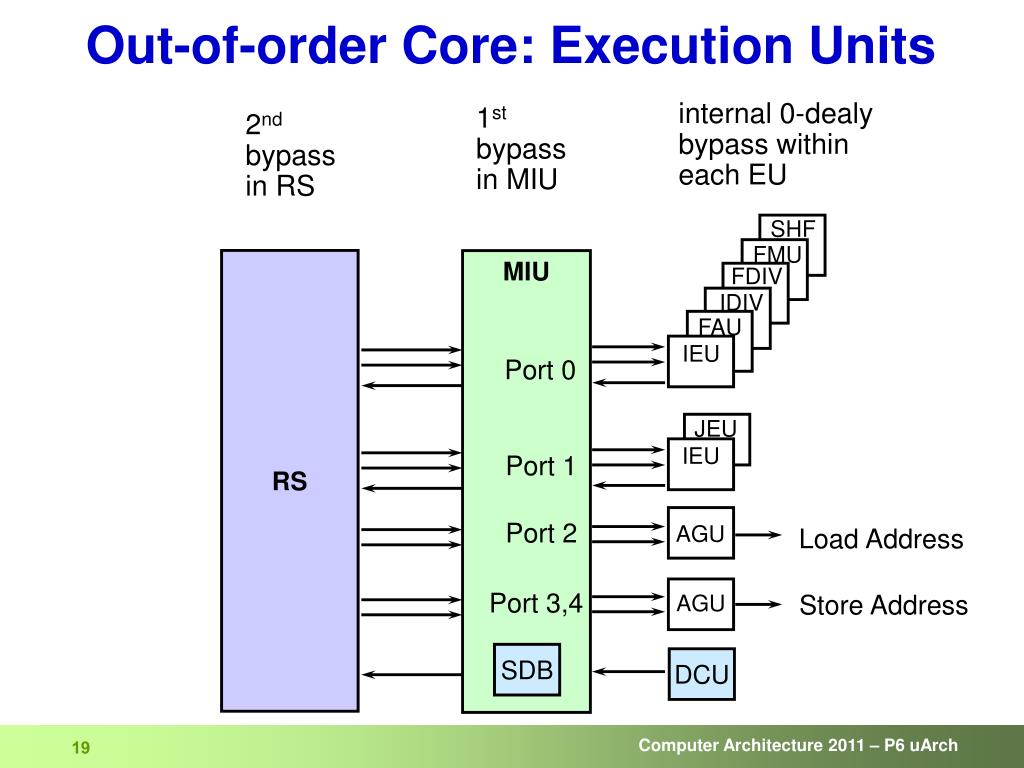

Out-of-order Core: Execution Units

internal 0-dealy bypass within each EU

1st bypass in MIU

2nd bypass in RS

SHF

FMU

RS

MIU

FDIV

IDIV

FAU

IEU

Port 0

JEU

IEU

Port 1

Port 2

AGU

Load Address

Port 3,4

Store Address

AGU

SDB

DCU


In order retire

External

Bus

L2

MOB

BIU

DCU

MIU

IFU

AGU

R

IEU

BTB

S

I

FEU

MIS

D

ROB

RAT

In-Order Retire

  • ROB:

    • Retires up to 3 uops per clock

    • Copies the values to the RRF

    • Retirement is done In-order

    • Performs exception checking


In order retirement

In-order Retirement

  • The process of committing the results to the architectural state of the processor

  • Retires up to 3 uops per clock

  • Copies the values to the RRF

  • Retirement is done In Order

  • Performs exception checking

  • An instruction is retired after the following checks

    • Instruction has executed

    • All previous instructions have retired

    • Instruction isn’t mis-predicted

    • no exceptions


Pipeline fetch

Predict/Fetch

Decode

Alloc

Schedule

EX

Retire

IQ

IDQ

RS

ROB

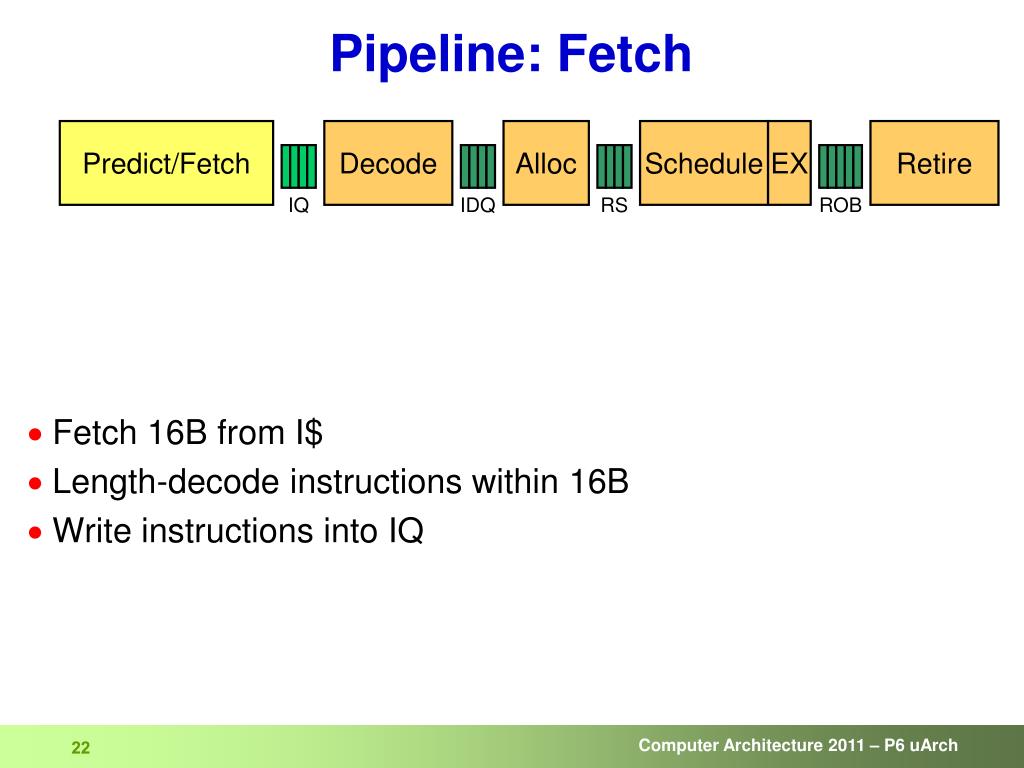

Pipeline: Fetch

  • Fetch 16B from I$

  • Length-decode instructions within 16B

  • Write instructions into IQ


Pipeline decode

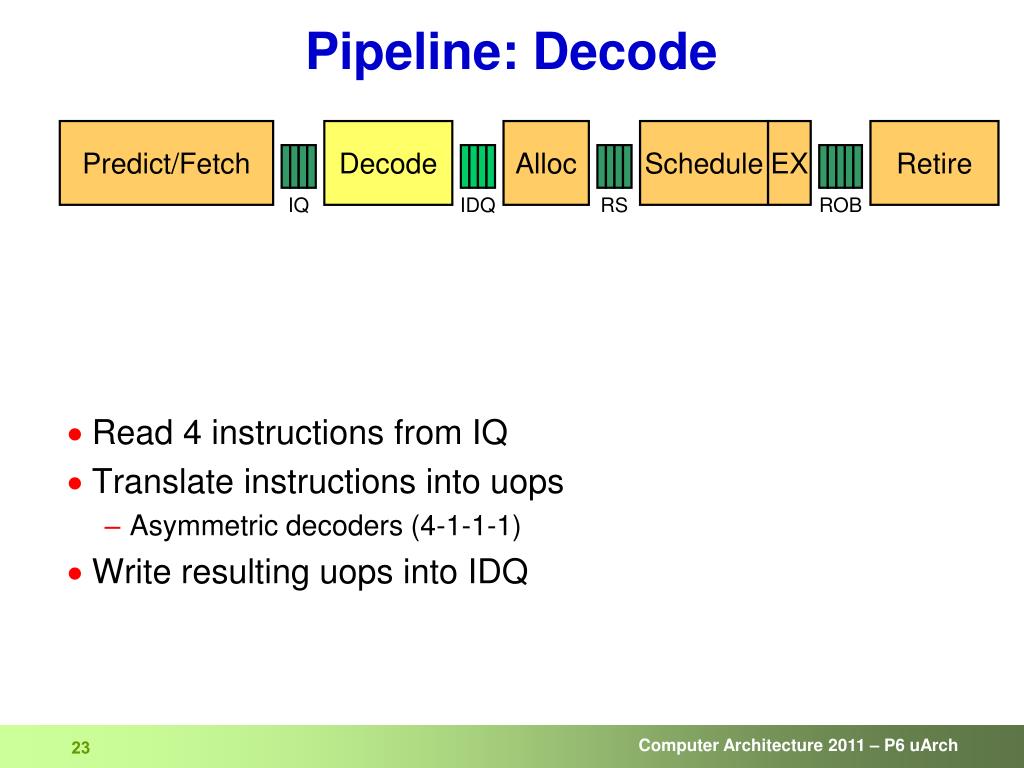

Pipeline: Decode

Predict/Fetch

Decode

Alloc

Schedule

EX

Retire

  • Read 4 instructions from IQ

  • Translate instructions into uops

    • Asymmetric decoders (4-1-1-1)

  • Write resulting uops into IDQ

IQ

IDQ

RS

ROB


Pipeline allocate

Pipeline: Allocate

Predict/Fetch

Decode

Alloc

Schedule

EX

Retire

  • Allocate, port bind and rename 4 uops

  • Allocate ROB/RS entry per uop

    • If source data is available from ROB or RRF, write data to RS

    • Otherwise, mark data not ready in RS

IQ

IDQ

RS

ROB

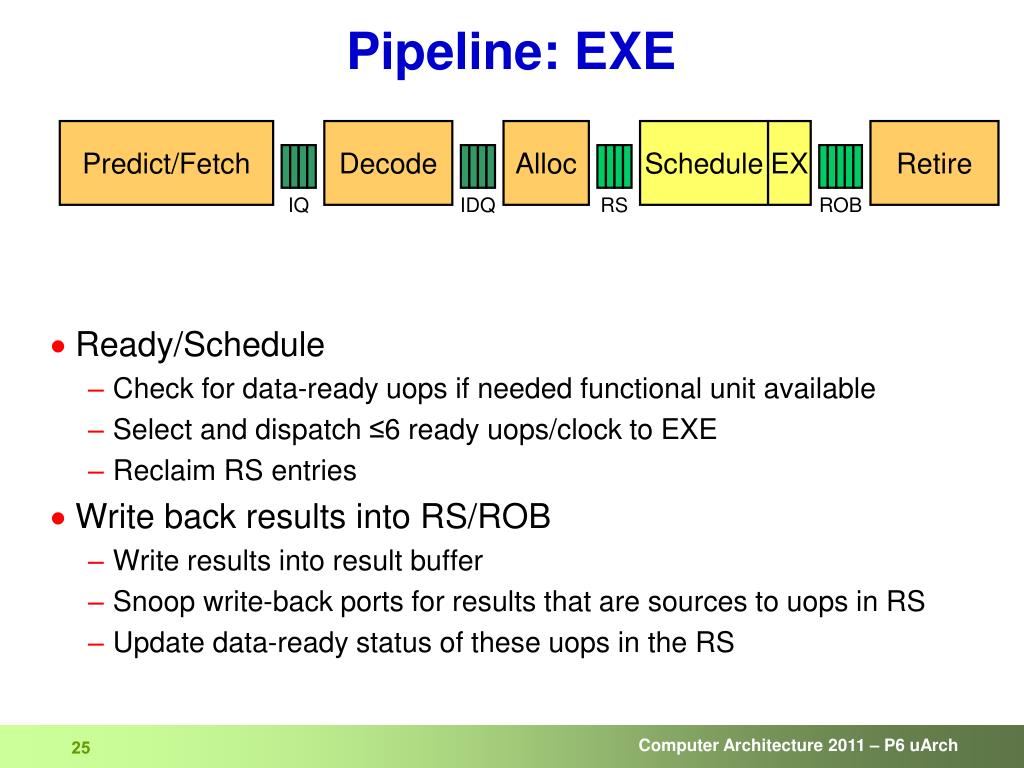

Pipeline exe

Predict/Fetch

Decode

Alloc

Schedule

EX

Retire

IQ

IDQ

RS

ROB

Pipeline: EXE

  • Ready/Schedule

    • Check for data-ready uops if needed functional unit available

    • Select and dispatch ≤6 ready uops/clock to EXE

    • Reclaim RS entries

  • Write back results into RS/ROB

    • Write results into result buffer

    • Snoop write-back ports for results that are sources to uops in RS

    • Update data-ready status of these uops in the RS


Pipeline retire

Pipeline: Retire

Predict/Fetch

Decode

Alloc

Schedule

EX

Retire

  • Retire ≤4 oldest uops in ROB

    • Uop may retire if

      • its ready bit is set

      • it does not cause an exception

      • all preceding candidates are eligible for retirement

    • Commit results from result buffer to RRF

    • Reclaim ROB entry

  • In case of exception

    • Nuke and restart

IQ

IDQ

RS

ROB


Jump misprediction flush at retire

Jump Misprediction – Flush at Retire

  • Flush the pipe when the mispredicted jump retires

    • retirement is in-order

    • all the instructions preceding the jump have already retired

    • all the instructions remaining in the pipe follow the jump

    • flush all the instructions in the pipe

  • Disadvantage

    • Misprediction known after the jump was executed

    • Continue fetching instructions from wrong path until the branch retires


Jump misprediction flush at execute

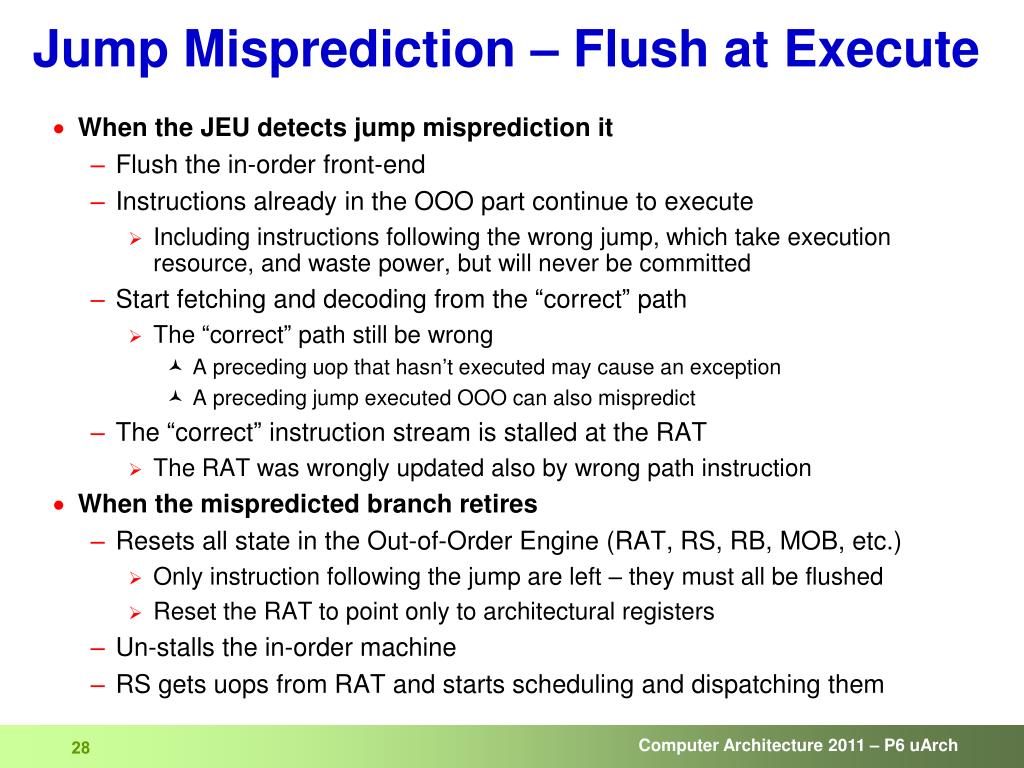

Jump Misprediction – Flush at Execute

  • When the JEU detects jump misprediction it

    • Flush the in-order front-end

    • Instructions already in the OOO part continue to execute

      • Including instructions following the wrong jump, which take execution resource, and waste power, but will never be committed

    • Start fetching and decoding from the “correct” path

      • The “correct” path still be wrong

        • A preceding uop that hasn’t executed may cause an exception

        • A preceding jump executed OOO can also mispredict

    • The “correct” instruction stream is stalled at the RAT

      • The RAT was wrongly updated also by wrong path instruction

  • When the mispredicted branch retires

    • Resets all state in the Out-of-Order Engine (RAT, RS, RB, MOB, etc.)

      • Only instruction following the jump are left – they must all be flushed

      • Reset the RAT to point only to architectural registers

    • Un-stalls the in-order machine

    • RS gets uops from RAT and starts scheduling and dispatching them


Pipeline branch gets to exe

Pipeline: Branch gets to EXE

Alloc

Schedule

JEU

Fetch

Decode

Retire

IQ

IDQ

RS

ROB


Pipeline mispredicted branch exe

Flush

Pipeline: Mispredicted Branch EXE

  • Flush front-end and re-steer it to correct path

  • RAT state already updated by wrong path

    • Block further allocation

  • Block younger branches from clearing

  • Update BPU

Alloc

Schedule

JEU

Fetch

Decode

Retire

IQ

IDQ

RS

ROB


Pipeline mispredicted branch retires

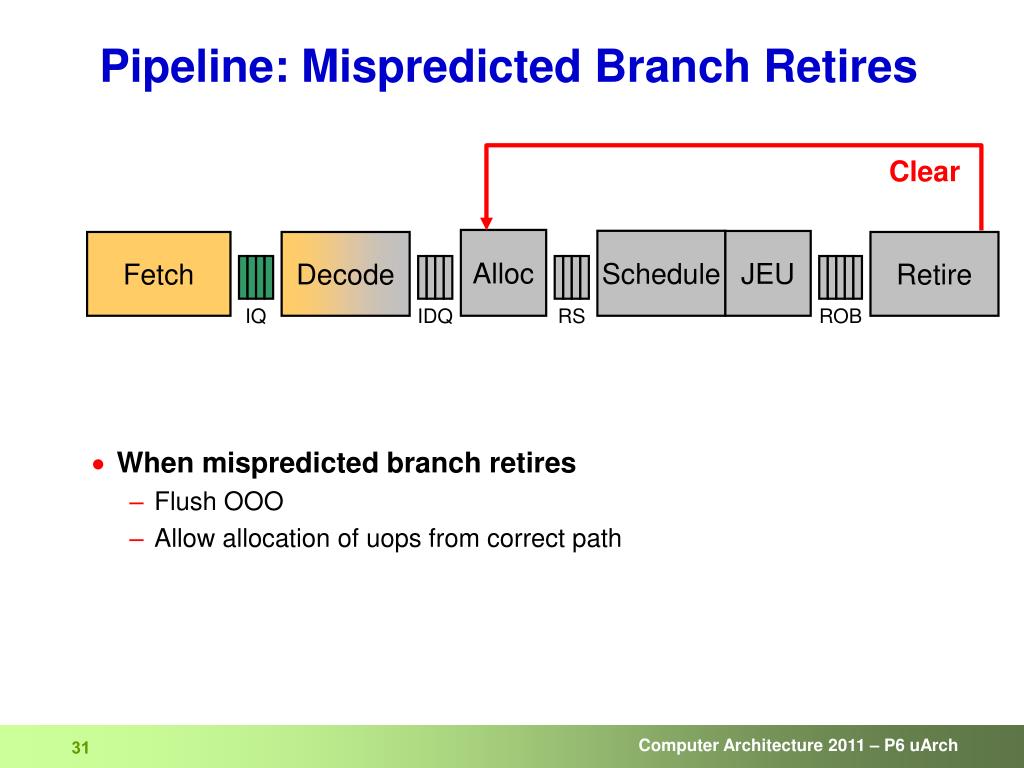

Pipeline: Mispredicted Branch Retires

Clear

  • When mispredicted branch retires

    • Flush OOO

    • Allow allocation of uops from correct path

Alloc

Schedule

JEU

Fetch

Decode

Retire

IQ

IDQ

RS

ROB


Instant reclamation

Instant Reclamation

  • Allow a faster recovery after jump misprediction

    • Allow execution/allocation of uops from correct path before mispredicted jump retires

  • Every few cycles take a checkpoint of the RAT

  • In case of misprediction

    • Flush the frontend and re-steer it to the correct path

    • Recover RAT to latest checkpoint taken prior to misprediction

    • Recover RAT to exact state at misprediction

      • Rename 4 uops/cycle from checkpoint and until branch

    • Flush all uops younger than the branch in the OOO

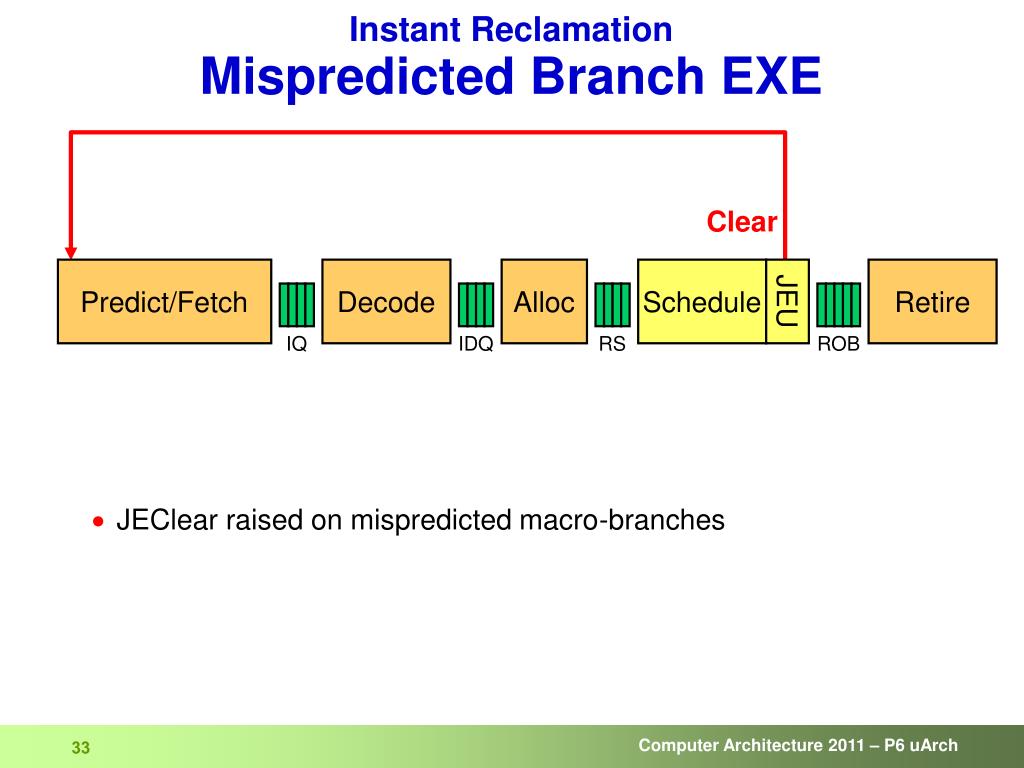

Instant reclamation mispredicted branch exe

Clear

Instant ReclamationMispredicted Branch EXE

  • JEClear raised on mispredicted macro-branches

Predict/Fetch

Decode

Alloc

Schedule

JEU

Retire

IQ

IDQ

RS

ROB


Instant reclamation mispredicted branch exe1

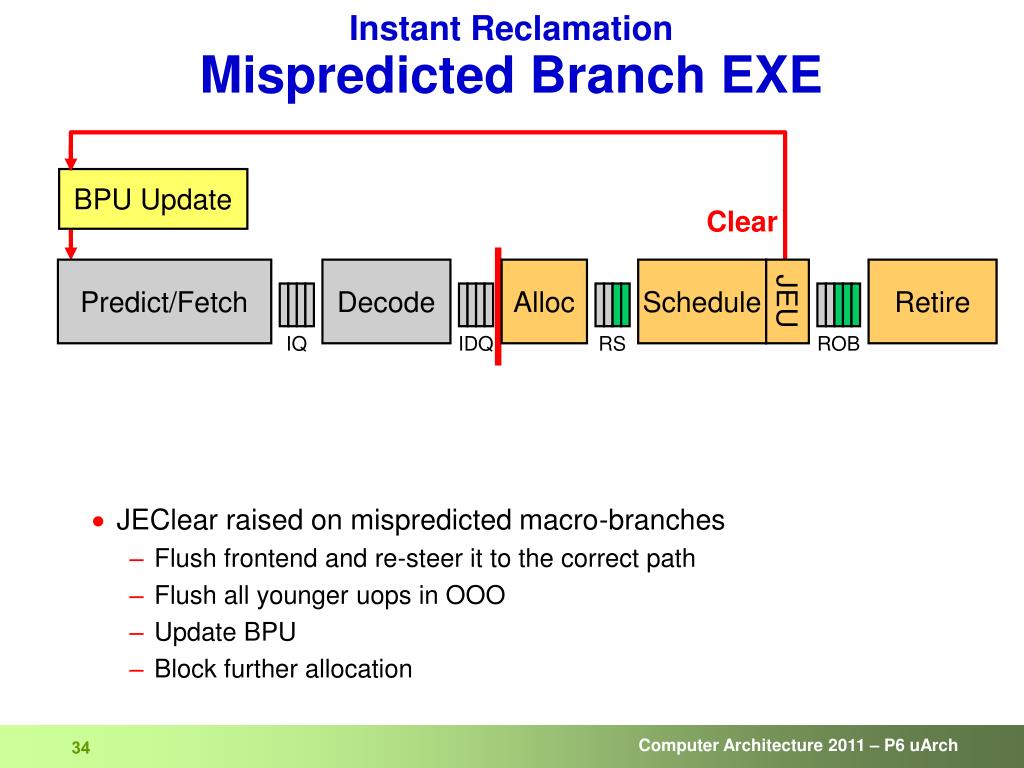

Instant ReclamationMispredicted Branch EXE

  • JEClear raised on mispredicted macro-branches

    • Flush frontend and re-steer it to the correct path

    • Flush all younger uops in OOO

    • Update BPU

    • Block further allocation

BPU Update

Clear

Predict/Fetch

Decode

Alloc

Schedule

JEU

Retire

IQ

IDQ

RS

ROB


Pipeline instant reclamation exe

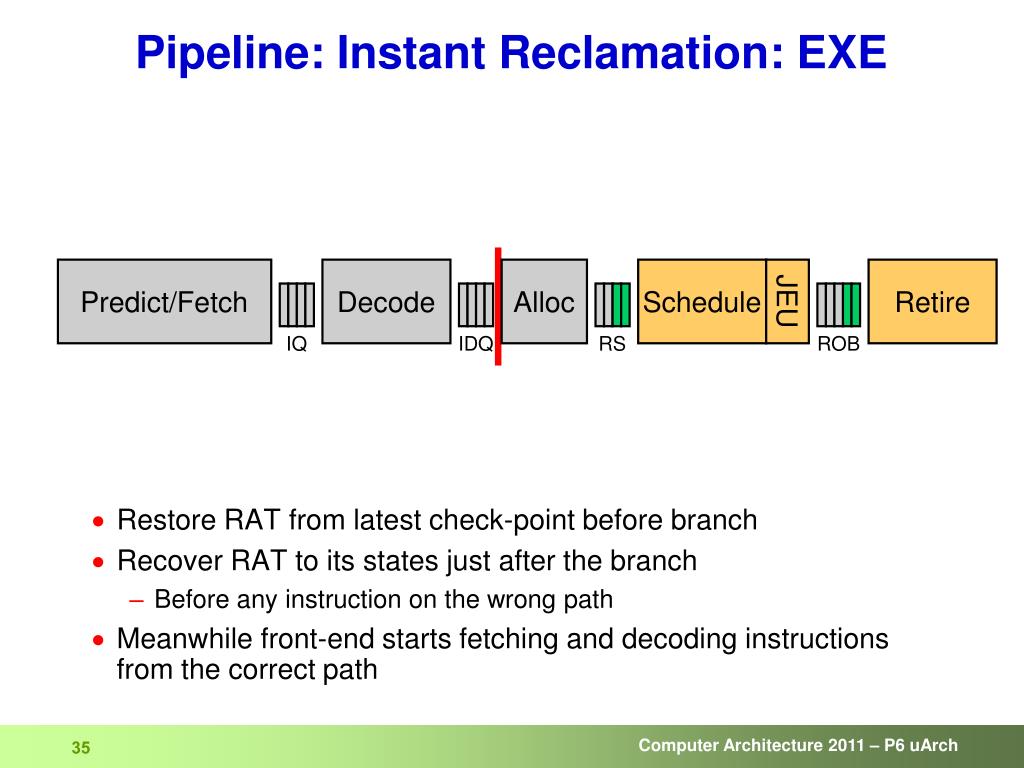

Pipeline: Instant Reclamation: EXE

  • Restore RAT from latest check-point before branch

  • Recover RAT to its states just after the branch

    • Before any instruction on the wrong path

  • Meanwhile front-end starts fetching and decoding instructions from the correct path

Predict/Fetch

Decode

Alloc

Schedule

JEU

Retire

IQ

IDQ

RS

ROB


Pipeline instant reclamation exe1

Pipeline: Instant Reclamation: EXE

  • Once done restoring the RAT

    • allow allocation of uops from correct path

Predict/Fetch

Decode

Alloc

Schedule

JEU

Retire

IQ

IDQ

RS

ROB


Large rob and rs are important

Large ROB and RS are Important

  • Large RS

    • Increases the window in which looking for impendent instructions

      • Exposes more parallelism potential

  • Large ROB

    • The ROB is a superset of the RS  ROB size ≥ RS size

    • Allows for of covering long latency operations (cache miss, divide)

  • Example

    • Assume there is a Load that misses the L1 cache

      • Data takes ~10 cycles to return  ~30 new instrs get into pipeline

    • Instructions following the Load cannot commit  Pile up in the ROB

    • Instructions independent of the load are executed, and leave the RS

      • As long as the ROB is not full, we can keep executing instructions

    • A 40 entry ROB can cover for an L1 cache miss

      • Cannot cover for an L2 cache miss, which is hundreds of cycles

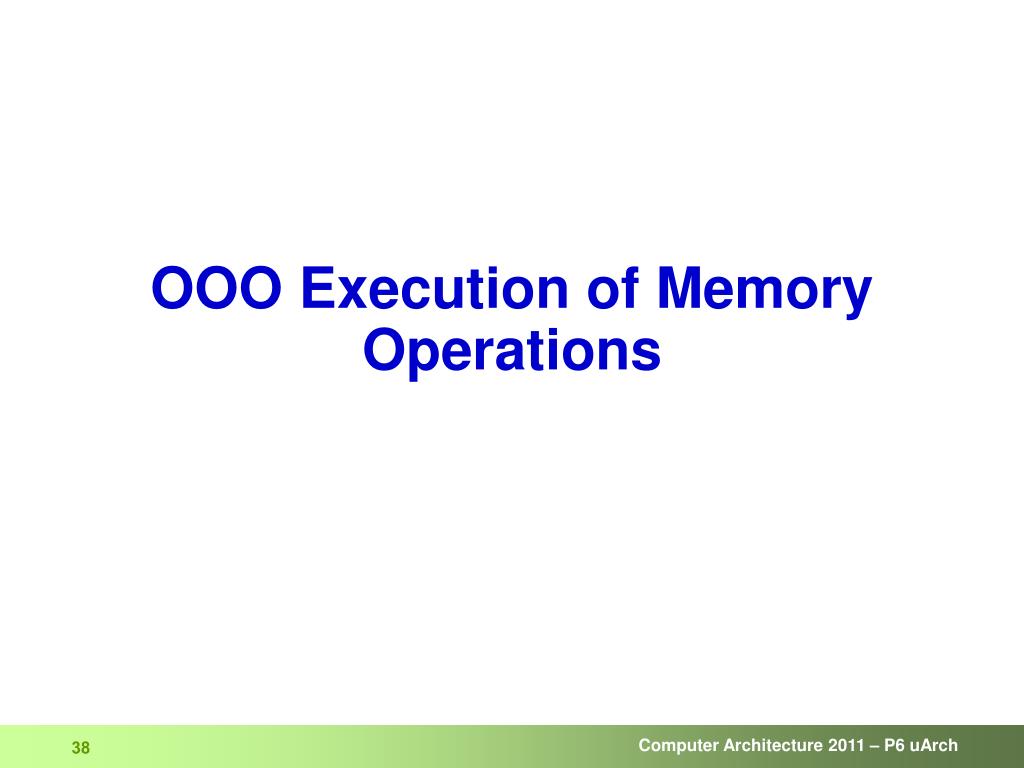

Ooo execution of memory operations

OOO Execution of Memory Operations


P6 caches

P6 Caches

  • Blocking caches severely hurt OOO

    • A cache miss prevents from other cache requests (which could possibly be hits) to be served

    • Hurts one of the main gains from OOO – hiding caches misses

  • Both L1 and L2 cache in the P6 are non-blocking

    • Initiate the actions necessary to return data to cache miss while they respond to subsequent cached data requests

    • Support up to 4 outstanding misses

      • Misses translate into outstanding requests on the P6 bus

      • The bus can support up to 8 outstanding requests

  • Squash subsequent requests for the same missed cache line

    • Squashed requests not counted in number of outstanding requests

    • Once the engine has executed beyond the 4 outstanding requests

      • subsequent load requests are placed in the load buffer


Memory operations

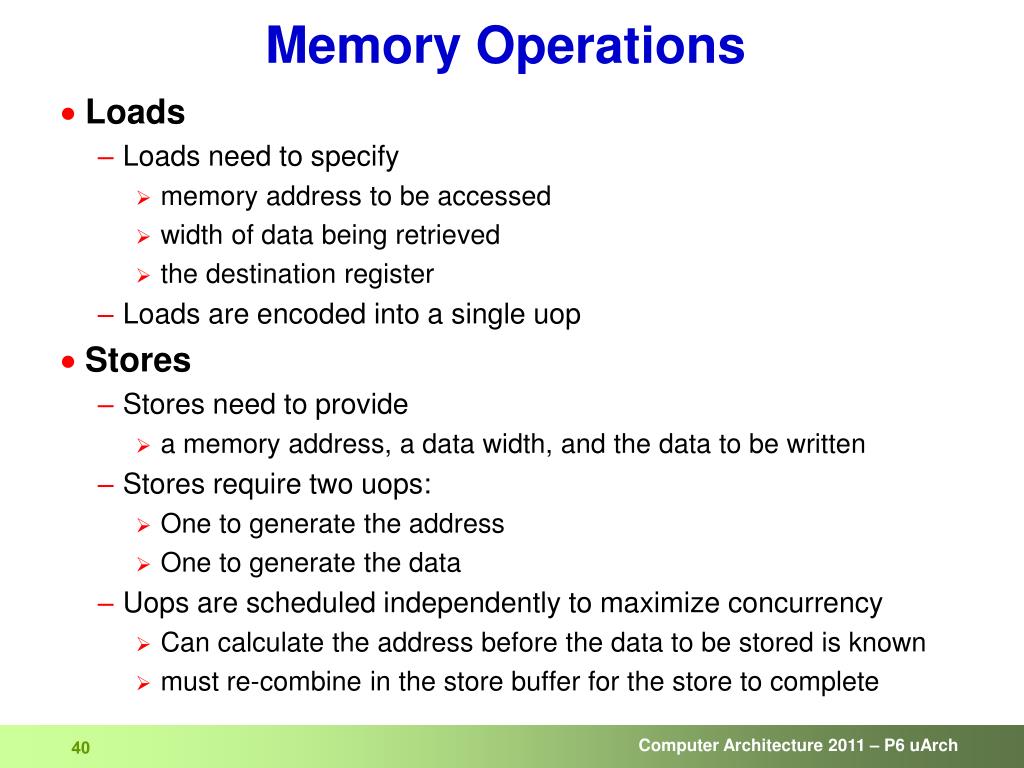

Memory Operations

  • Loads

    • Loads need to specify

      • memory address to be accessed

      • width of data being retrieved

      • the destination register

    • Loads are encoded into a single uop

  • Stores

    • Stores need to provide

      • a memory address, a data width, and the data to be written

    • Stores require two uops:

      • One to generate the address

      • One to generate the data

    • Uops are scheduled independently to maximize concurrency

      • Can calculate the address before the data to be stored is known

      • must re-combine in the store buffer for the store to complete


The memory execution unit

The Memory Execution Unit

  • As a black box, the MEU is just another execution unit

    • Receives memory reads and writes from the RS

    • Returns data back to the RS and to the ROB

  • Unlike many execution units, the MEU has side effects

    • May cause a bus request to external memory

  • The RS dispatches memory uops

    • When all the data used for address calculation is ready

    • Both to the MOB and to the Address Generation Unit (AGU) are free

    • The AGU computes the linear address:

      Segment-Base + Base-Address + (Scale*Index) + Displacement

      • Sends linear address to MOB, where it is stored with the uop in the appropriate Load Buffer or Store Buffer entry


The memory execution unit cont

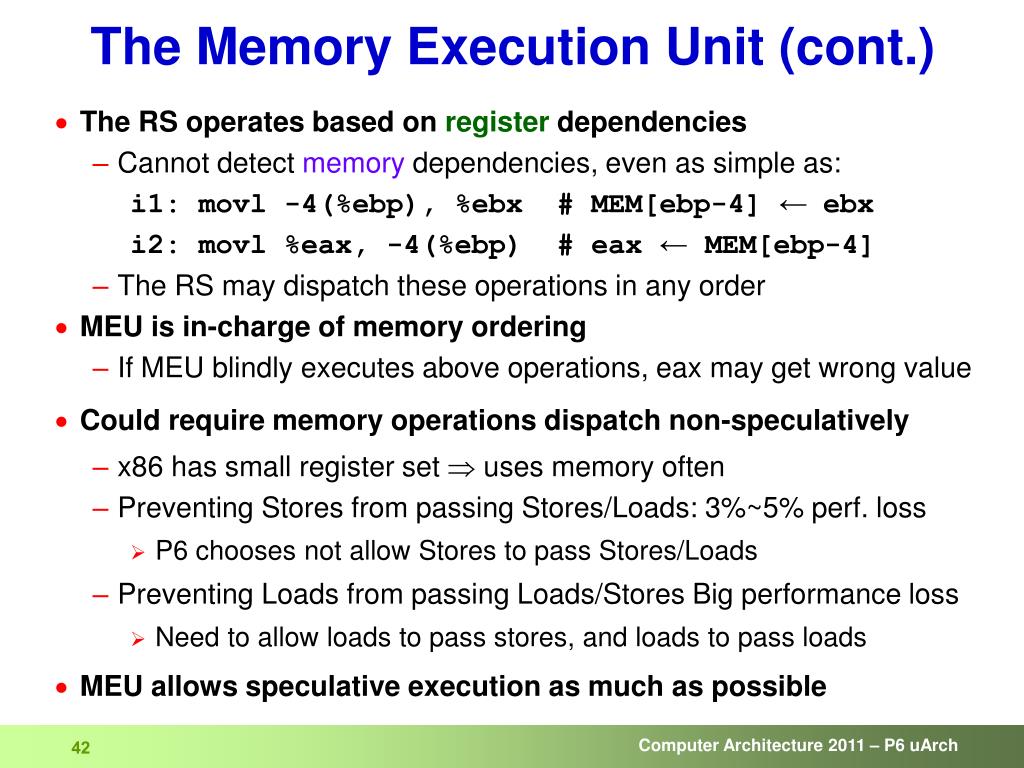

The Memory Execution Unit (cont.)

  • The RS operates based on register dependencies

    • Cannot detect memory dependencies, even as simple as:

      i1: movl -4(%ebp), %ebx # MEM[ebp-4] ← ebx

      i2: movl %eax, -4(%ebp) # eax ← MEM[ebp-4]

    • The RS may dispatch these operations in any order

  • MEU is in-charge of memory ordering

    • If MEU blindly executes above operations, eax may get wrong value

  • Could require memory operations dispatch non-speculatively

    • x86 has small register set  uses memory often

    • Preventing Stores from passing Stores/Loads: 3%~5% perf. loss

      • P6 chooses not allow Stores to pass Stores/Loads

    • Preventing Loads from passing Loads/Stores Big performance loss

      • Need to allow loads to pass stores, and loads to pass loads

  • MEU allows speculative execution as much as possible


Ooo execution of memory operations1

OOO Execution of Memory Operations

  • Stores are not executed OOO

    • Stores are never performed speculatively

      • there is no transparent way to undo them

    • Stores are also never re-ordered among themselves

      • The Store Buffer dispatches a store only when

        • the store has both its address and its data, and

        • there are no older stores awaiting dispatch

  • Resolving memory dependencies

    • Some memory dependencies can be resolved statically

      • store r1,a

      • load r2,b

    • Problem: some cannot

      • store r1,[r3];

      • load r2,b

 can advance load before store

  •  load must wait till r3 is known


Memory order buffer mob

Memory Order Buffer (MOB)

  • Every memory uop is allocated an entry in order

    • De-allocated when retires

  • Address & data (for stores), are updated when known

  • Load is checked against all previous stores

    • Waits if store to same address exist, but data not ready

      • If store data exists, just use it: Store → Load forwarding

    • Waits till all previous store addresses are resolved

      • In case of no address collision – go to memory

  • Memory Disambiguation

    • MOB predicts if a load can proceed despite unknown STAs

      • Predict colliding  block Load if there is unknown STA (as usual)

      • Predict non colliding  execute even if there are unknown STAs

    • In case of wrong prediction

      • The entire pipeline is flushed when the load retires


Pipeline load allocate

Pipeline: Load: Allocate

Alloc

Schedule

Retire

  • Allocate ROB/RS, MOB entries

  • Assign Store ID to enable ordering

IDQ

RS

ROB

LB

AGU

LB Write

MOB

DTLB

DCU

WB


Pipeline bypassed load exe

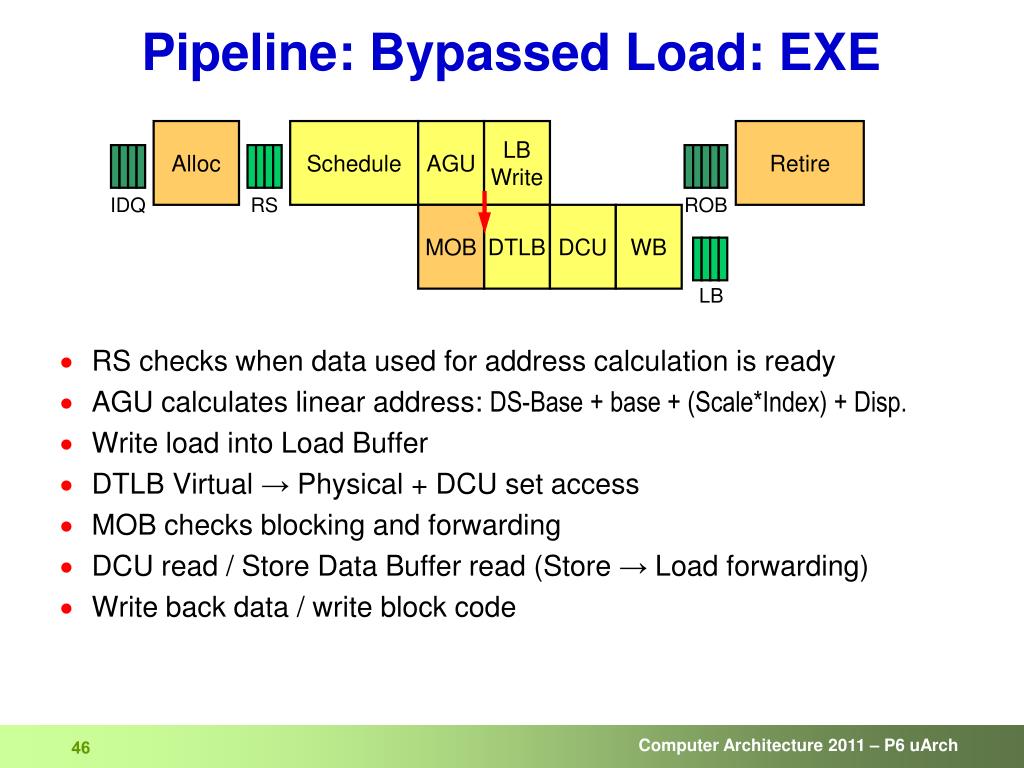

Pipeline: Bypassed Load: EXE

Alloc

Schedule

AGU

LB Write

Retire

  • RS checks when data used for address calculation is ready

  • AGU calculates linear address: DS-Base + base + (Scale*Index) + Disp.

  • Write load into Load Buffer

  • DTLB Virtual → Physical + DCU set access

  • MOB checks blocking and forwarding

  • DCU read / Store Data Buffer read (Store → Load forwarding)

  • Write back data / write block code

IDQ

RS

ROB

MOB

DTLB

DCU

WB

LB


Pipeline blocked load re dispatch

Pipeline: Blocked Load Re-dispatch

Alloc

Schedule

AGU

LB Write

Retire

  • MOB determines which loads are ready, and schedules one

  • Load arbitrates for MEU

  • DTLB Virtual → Physical + DCU set access

  • MOB checks blocking/forwarding

  • DCU way select / Store Data Buffer read

  • write back data / write block code

IDQ

RS

ROB

MOB

DTLB

DCU

WB

LB


Pipeline load retire

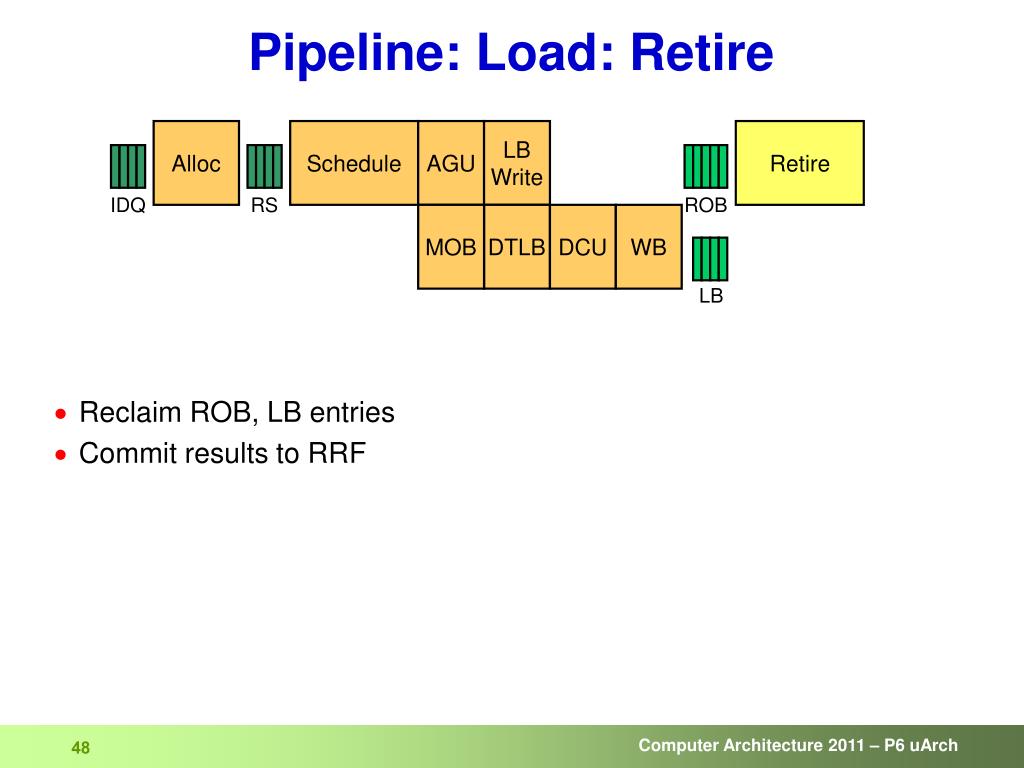

Pipeline: Load: Retire

Alloc

Schedule

AGU

LB Write

Retire

  • Reclaim ROB, LB entries

  • Commit results to RRF

IDQ

RS

ROB

MOB

DTLB

DCU

WB

LB


Dcu miss

DCU Miss

  • If load misses in the DCU, the DCU

    • Marks the write-back data as invalid

    • Assigns a fill buffer to the load

    • Starts MLC access

    • When critical chunk is returned

      • DCU writes it back on WB bus


Pipeline store allocate

SB

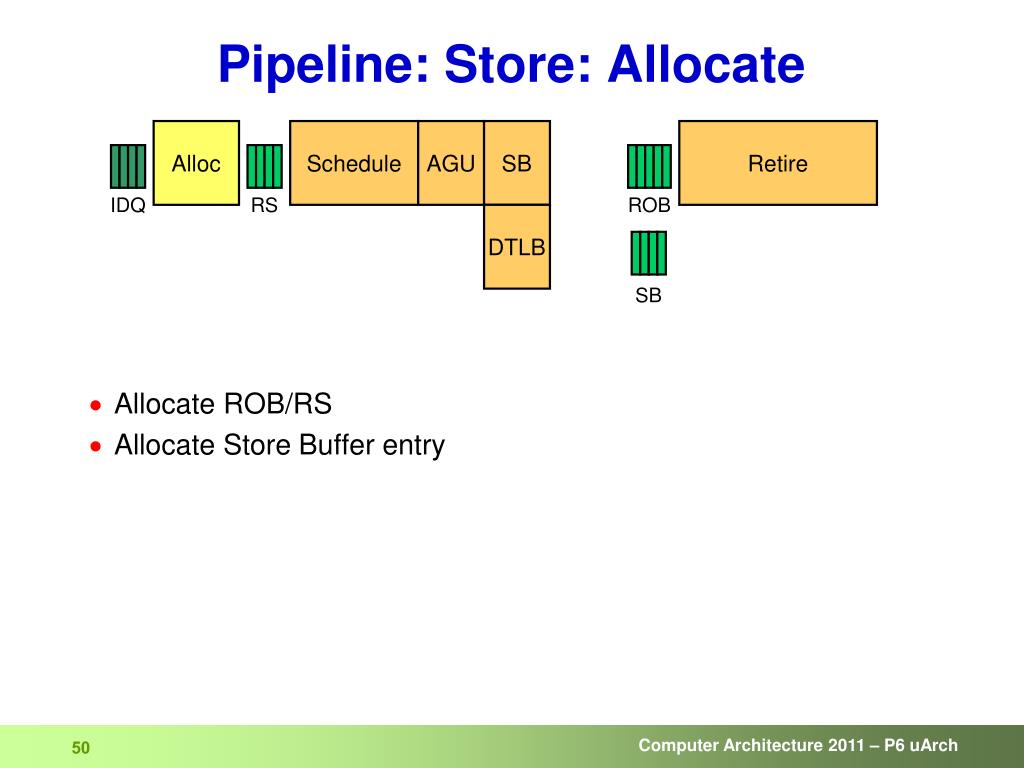

Pipeline: Store: Allocate

Alloc

Schedule

AGU

SB

Retire

  • Allocate ROB/RS

  • Allocate Store Buffer entry

IDQ

RS

ROB

DTLB


Pipeline store sta exe

SB

Pipeline: Store: STA EXE

Alloc

Schedule

AGU

SB

V.A.

Retire

  • RS checks when data used for address calculation is ready

    • dispatches STA to AGU

  • AGU calculates linear address

  • Write linear address to Store Buffer

  • DTLB Virtual → Physical

  • Load Buffer Memory Disambiguation verification

  • Write physical address to Store Buffer

IDQ

RS

ROB

DTLB

SB

P.A.


Pipeline store std exe

SB

Pipeline: Store: STD EXE

Alloc

Schedule

SB data

Retire

  • RS checks when data for STD is ready

    • dispatches STD

  • Write data to Store Buffer

IDQ

RS

ROB


Pipeline senior store retirement

SB

Pipeline: Senior Store Retirement

Alloc

Schedule

MOB

SB

DCU

Retire

  • When STA (and thus STD) retires

    • Store Buffer entry marked as senior

  • When DCU idle  MOB dispatches senior store

  • Read senior entry

    • Store Buffer sends data and physical address

  • DCU writes data

  • Reclaim SB entry

IDQ

RS

ROB


  • Login
