Troubleshooting Your Network. Networking for Home and Small Businesses – Chapter 9. Objectives. Describe the troubleshooting process. Describe the utilities used to verify TCP/IP connectivity. Identify and describe common hardware and connection issues in wired and wireless networks.

Download Presentation

Troubleshooting Your Network

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Troubleshooting your network

Troubleshooting Your Network

Networking for Home and Small Businesses – Chapter 9


Objectives

Objectives

  • Describe the troubleshooting process.

  • Describe the utilities used to verify TCP/IP connectivity.

  • Identify and describe common hardware and connection issues in wired and wireless networks.

  • Utilize the troubleshooting process to document problems and interact with a help desk.


The troubleshooting process

The Troubleshooting Process

  • Identify and describe troubleshooting process


The troubleshooting process1

The Troubleshooting Process

  • Gathering Information


Approaches

Approaches

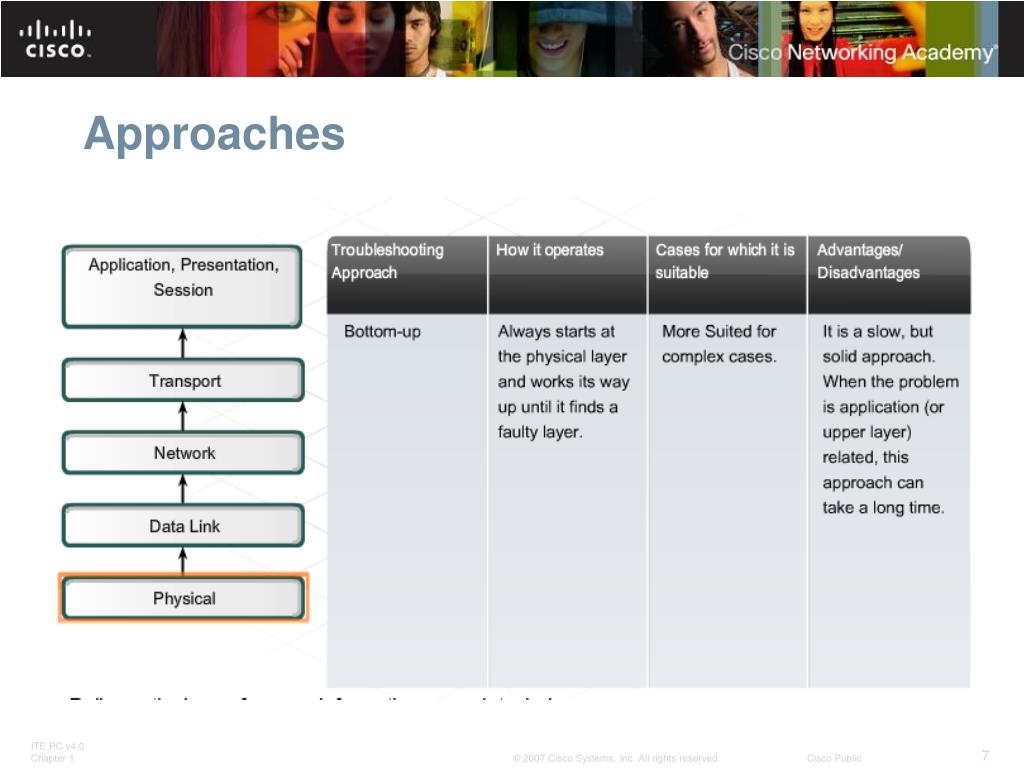

  • There are several different structured troubleshooting techniques available, including:

    • Top-down

    • Bottom-up

    • Divide-and-conquer


Approaches1

Approaches


Approaches2

Approaches


Approaches3

Approaches


The troubleshooting process2

The Troubleshooting Process

Describe approaches to troubleshooting

  • Trial and Error

  • Substitution


Utilities used to verify tcp ip connectivity

Utilities Used to Verify TCP/IP Connectivity

Detecting Physical problems

  • A large proportion of networking problems are related to physical components or problems with the physical layer.


Utilities used to verify tcp ip connectivity1

Utilities Used to Verify TCP/IP Connectivity

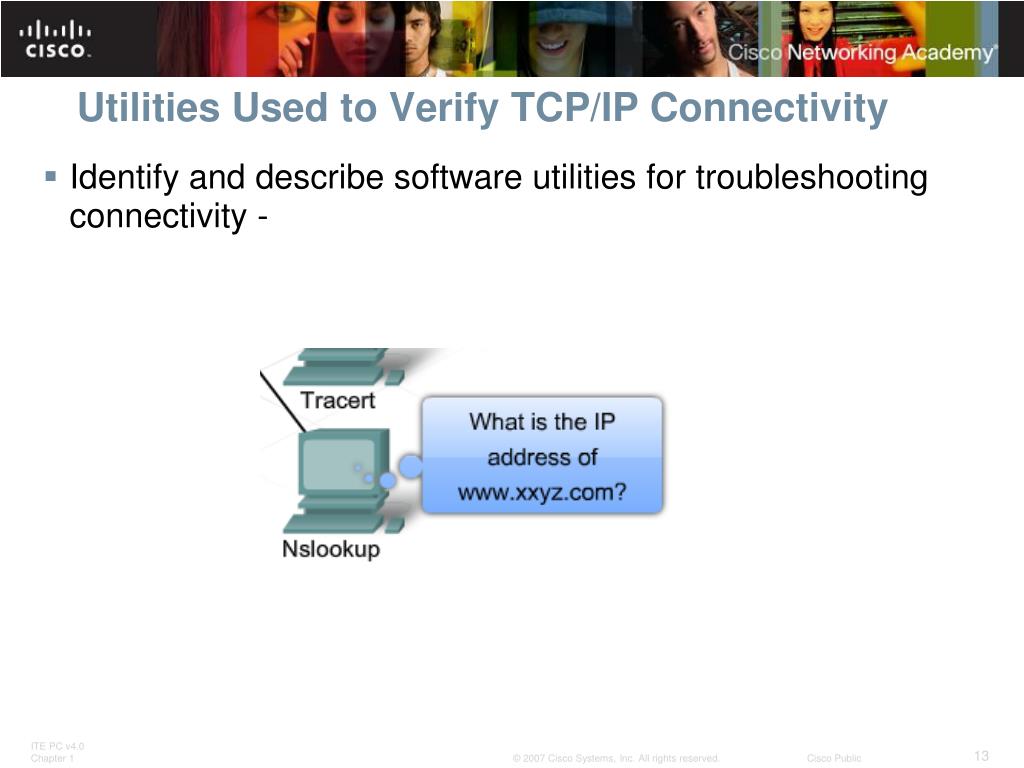

  • Identify and describe software utilities for troubleshooting connectivity -


Utilities used to verify tcp ip connectivity2

Utilities Used to Verify TCP/IP Connectivity

  • Identify and describe software utilities for troubleshooting connectivity -


Utilities used to verify tcp ip connectivity3

Utilities Used to Verify TCP/IP Connectivity

  • Identify and describe software utilities for troubleshooting connectivity -


Utilities used to verify tcp ip connectivity4

Utilities Used to Verify TCP/IP Connectivity


Utilities used to verify tcp ip connectivity5

Utilities Used to Verify TCP/IP Connectivity


Utilities used to verify tcp ip connectivity6

Utilities Used to Verify TCP/IP Connectivity

  • Describe and use tracert


Utilities used to verify tcp ip connectivity7

Utilities Used to Verify TCP/IP Connectivity

  • Describe and use netstat


Utilities used to verify tcp ip connectivity8

Utilities Used to Verify TCP/IP Connectivity

  • Describe and use nslookup


Hardware and connection issues in wired wireless networks

Hardware and Connection Issues in Wired & Wireless Networks

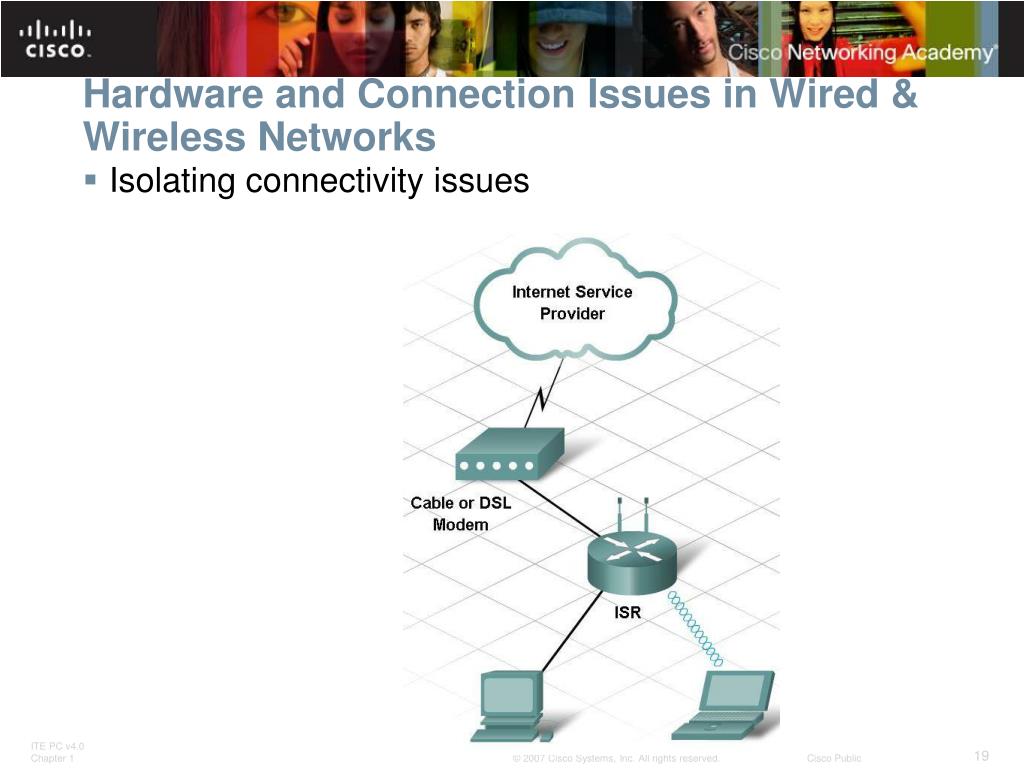

  • Isolating connectivity issues


Hardware and connection issues in wired wireless networks1

Hardware and Connection Issues in Wired & Wireless Networks

  • Describe the purpose of LED indicators and their meaning.


Hardware and connection issues in wired wireless networks2

Hardware and Connection Issues in Wired & Wireless Networks

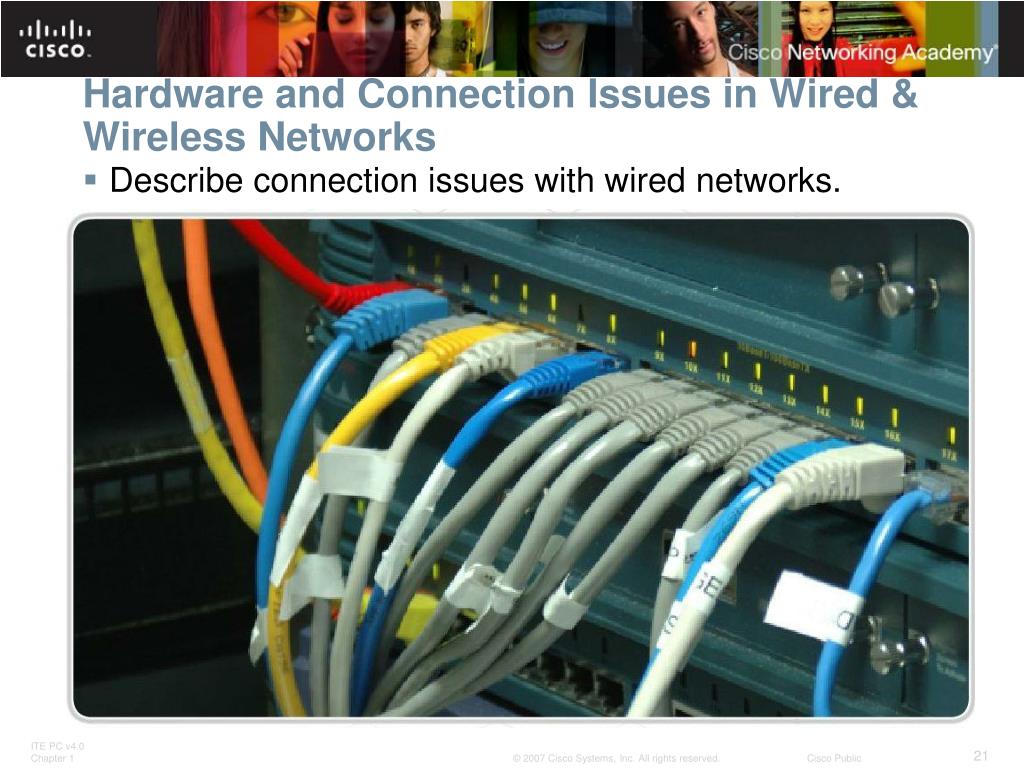

  • Describe connection issues with wired networks.


Hardware and connection issues in wired wireless networks3

Hardware and Connection Issues in Wired & Wireless Networks

  • Identify and describe radio issues with a wireless network.


Hardware and connection issues in wired wireless networks4

Hardware and Connection Issues in Wired & Wireless Networks

  • Identify and describe association and authentication issues within a wireless network.

Encryption is the process of altering the data so that it is not usable by anyone without the proper encryption key. If encryption is enabled, the same encryption key must be configured on both the AP and the client. If the client associates with the AP but can not send or receive data, the encryption key may be the issue.


Hardware and connection issues in wired wireless networks5

Hardware and Connection Issues in Wired & Wireless Networks

  • DHCP Issues.


Hardware and connection issues in wired wireless networks6

Hardware and Connection Issues in Wired & Wireless Networks

  • Troubleshooting Integrated Router to ISP connections.


Utilizing the troubleshooting process for documentation and help desk interactions

Utilizing the Troubleshooting Process for Documentation and Help Desk Interactions

  • Describe the importance of documentation


Utilizing the troubleshooting process for documentation and help desk interactions1

Utilizing the Troubleshooting Process for Documentation and Help Desk Interactions

  • Using outside sources of help


Utilizing the troubleshooting process for documentation and help desk interactions2

Utilizing the Troubleshooting Process for Documentation and Help Desk Interactions

  • Using the Helpdesk


Summary

Summary

  • Effective troubleshooting combines instinct, experience, and structured techniques to identify, locate, and correct network or computer problems.

  • Documentation is essential in effective troubleshooting, and should contain baseline information about the network.

  • A large proportion of networking problems relate to physical components.

  • Many networking problems can be identified with software utilities such as ping, tracert, and netstat.

  • In a network containing both wired and wireless connections, it is important to isolate the problem to either the wired or wireless network.
