Status of some national and sub national sdi s

STATUS OF SOME NATIONAL AND SUB-NATIONAL SDI’s

Prof.Dr.sc. Bashkim IDRIZI

February 2009, Thessaloniki


Contents

Contents:

Digital Cadastral data

Macedonian 25000SDI

Environmental GIS Database for Management and Conservation of the Ohrid Lake watershed area

Macedonian Global Map data

Macedonia soil management GIS database for the study on capacity development for mining related soil pollution in the Zletovo mine area

Mineral deposit exploitation and geological information systems

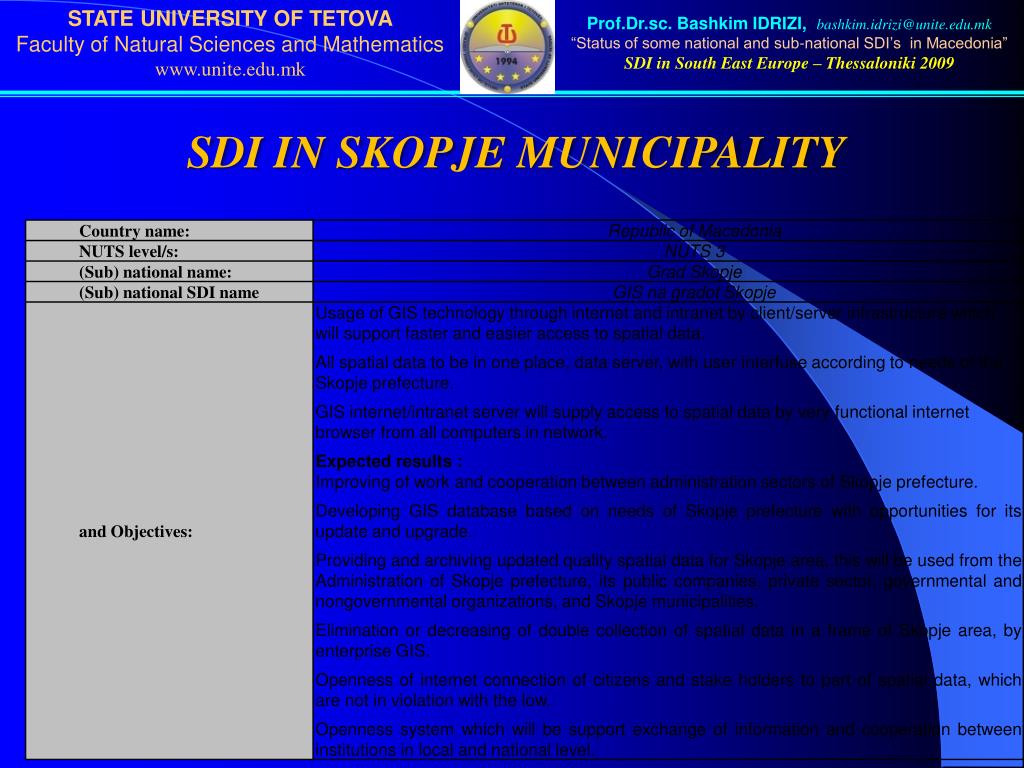

GIS of Skopje municipality

GIS in T-Home


Status of some national and sub national sdi s

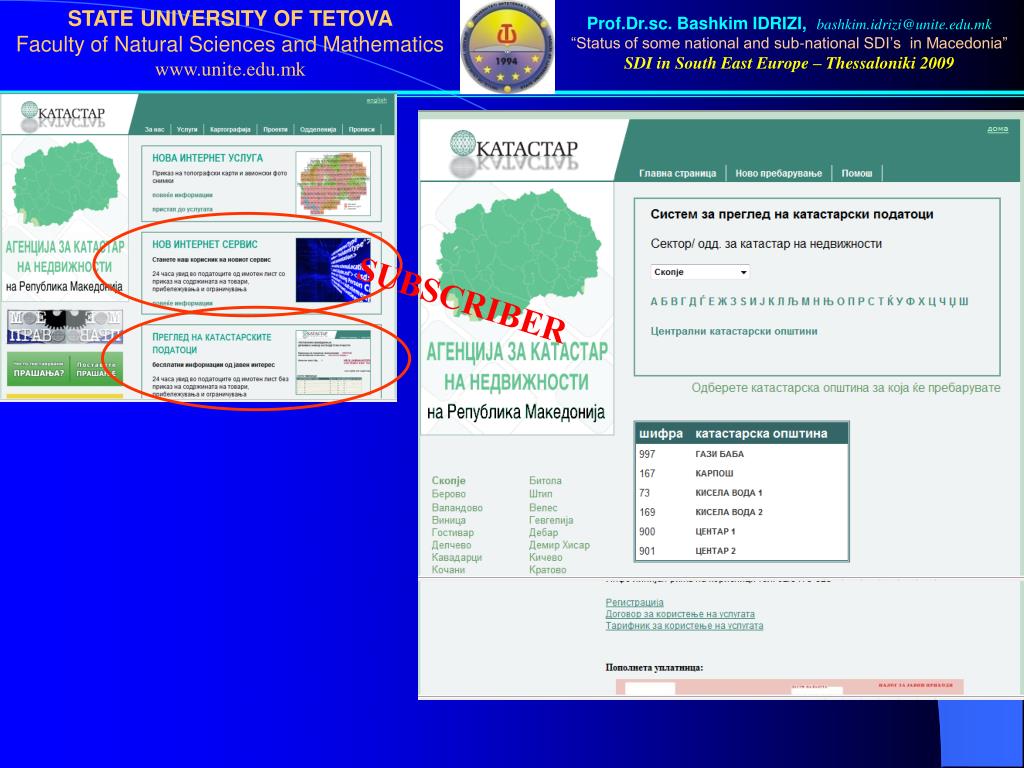

Digital Cadastral data


Status of some national and sub national sdi s

www.katastar.gov.mk


Status of some national and sub national sdi s

SUBSCRIBER


Status of some national and sub national sdi s

Production

of

National

Base Maps

Dissemination

of

Geographic

Information

Technology

Transfer

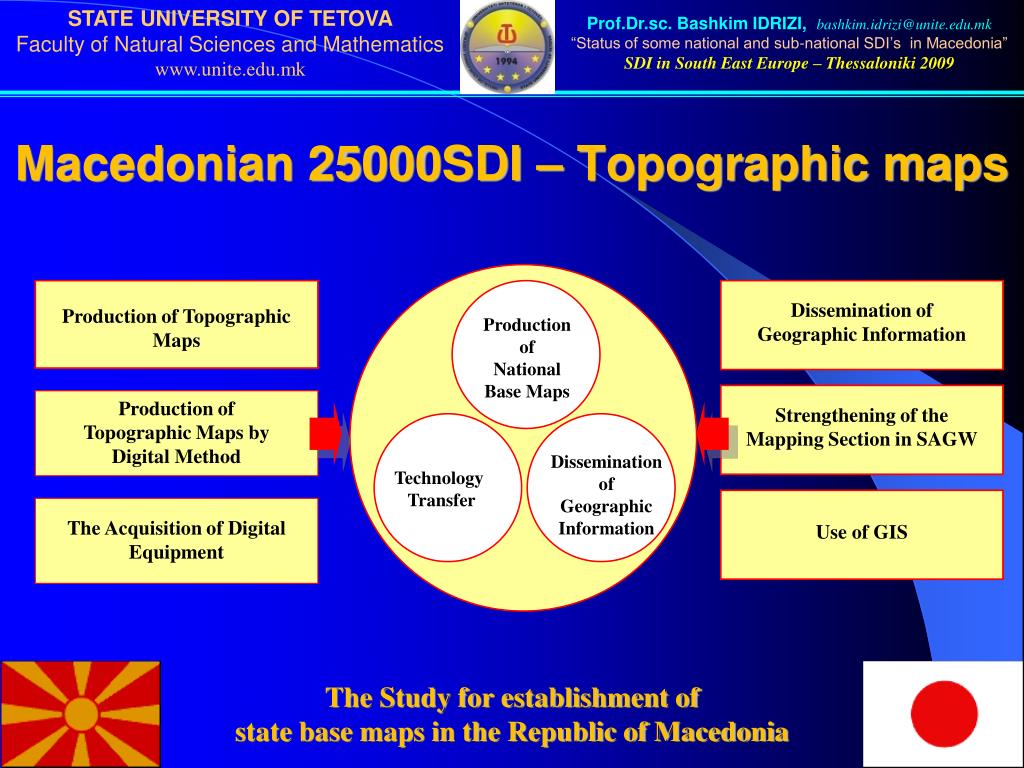

Macedonian 25000SDI – Topographic maps

Production of Topographic Maps

Dissemination of

Geographic Information

Strengthening of the Mapping Section in SAGW

Production of

Topographic Maps by

Digital Method

Use of GIS

The Acquisition of Digital

Equipment

The Study for establishment of

state base maps in the Republic of Macedonia


Status of some national and sub national sdi s

Basic Policies for the production of National Base Maps (Spatial Data Infrastructure)

Basic Policies for Technology Transfer

Topographic

Data

Spatial Data

Infrastructure

Topographic

Database

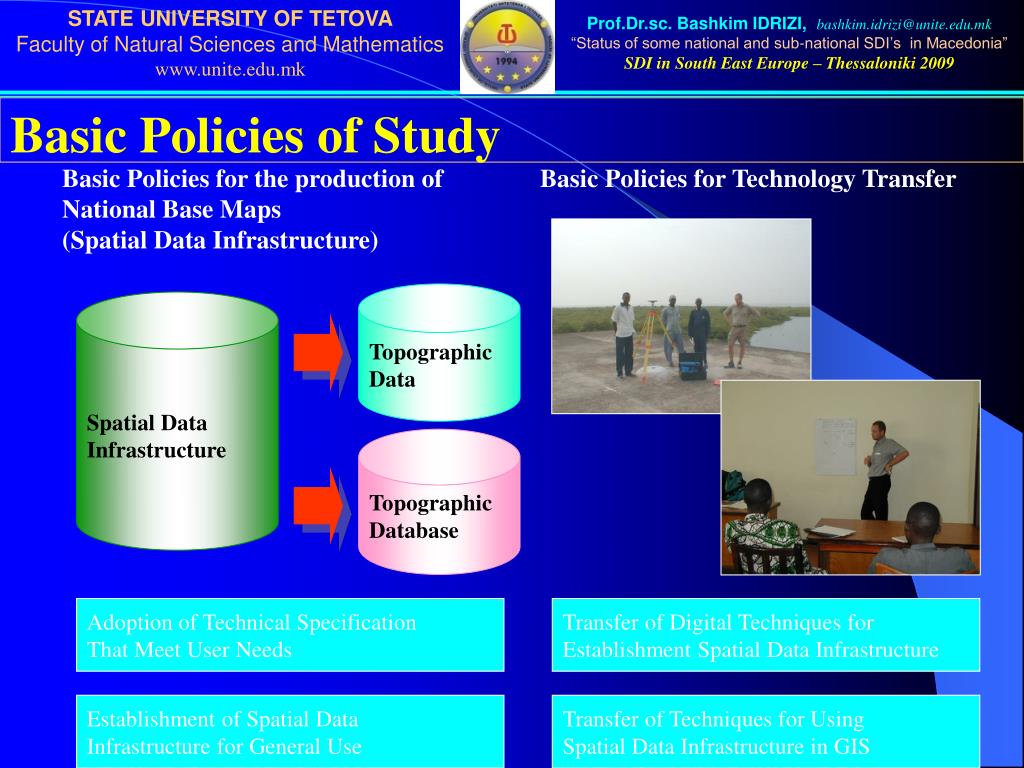

Basic Policies of Study

Adoption of Technical Specification

That Meet User Needs

Transfer of Digital Techniques for

Establishment Spatial Data Infrastructure

Establishment of Spatial Data

Infrastructure for General Use

Transfer of Techniques for Using

Spatial Data Infrastructure in GIS


Status of some national and sub national sdi s

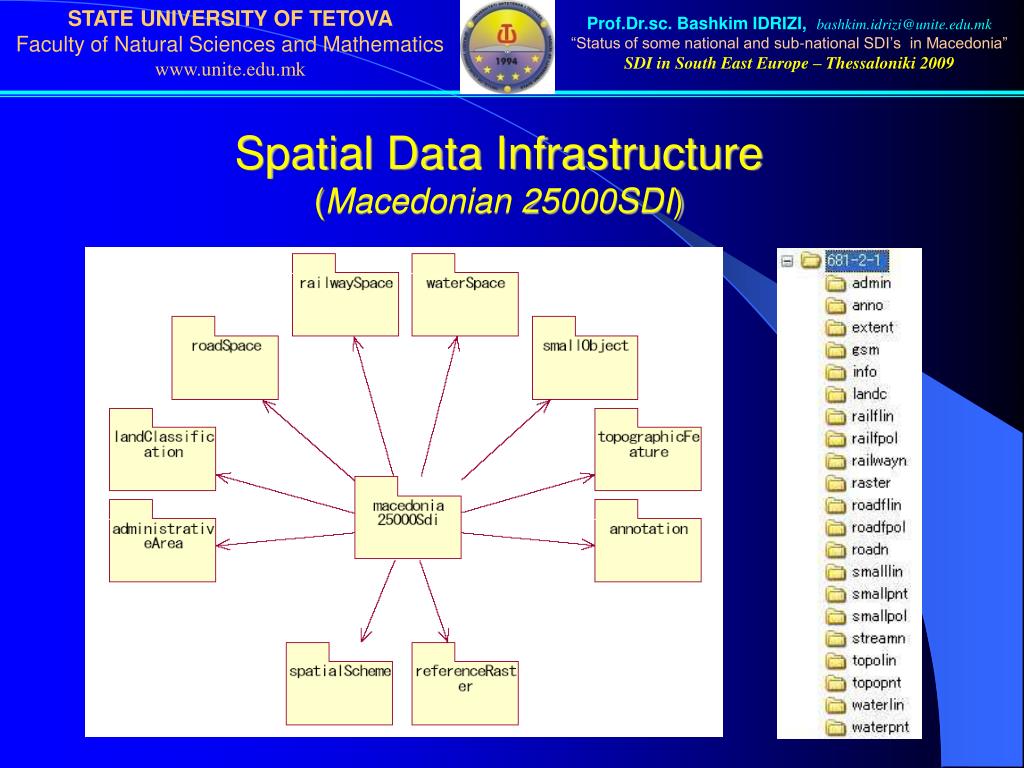

Spatial Data Infrastructure

(Macedonian 25000SDI)


Status of some national and sub national sdi s

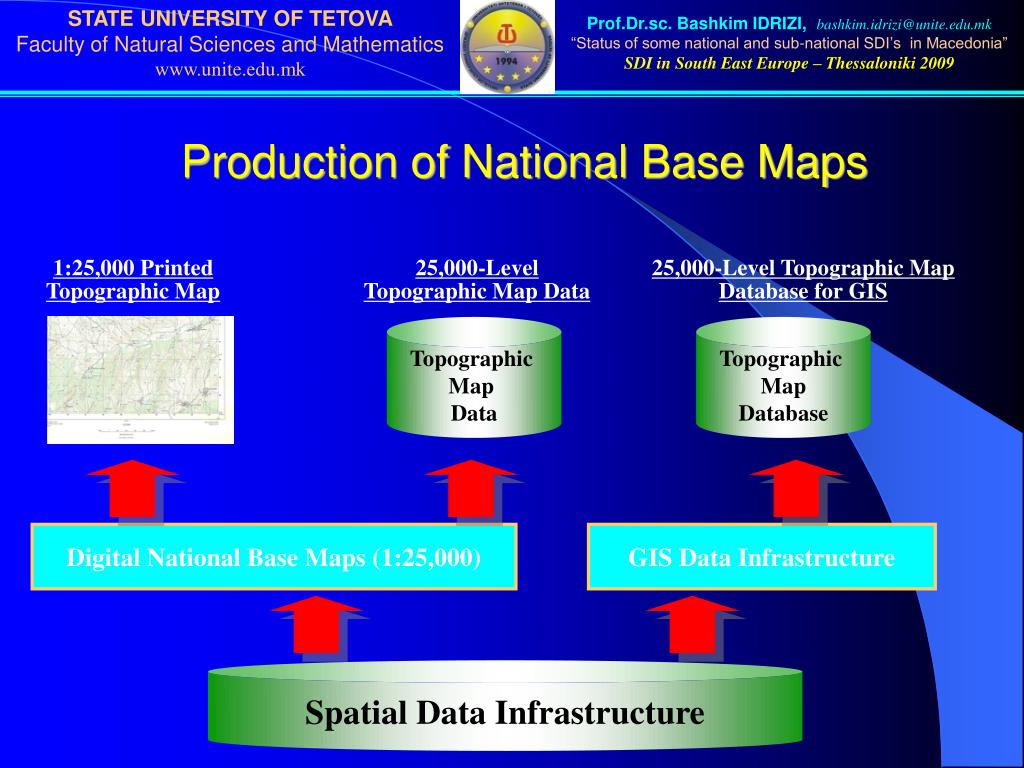

Production of National Base Maps

1:25,000 Printed Topographic Map

25,000-Level Topographic Map Data

25,000-Level Topographic Map Database for GIS

Topographic

Map

Data

Topographic

Map

Database

Digital National Base Maps (1:25,000)

GIS Data Infrastructure

Spatial Data Infrastructure


Status of some national and sub national sdi s

English version

Macedonian version


Status of some national and sub national sdi s

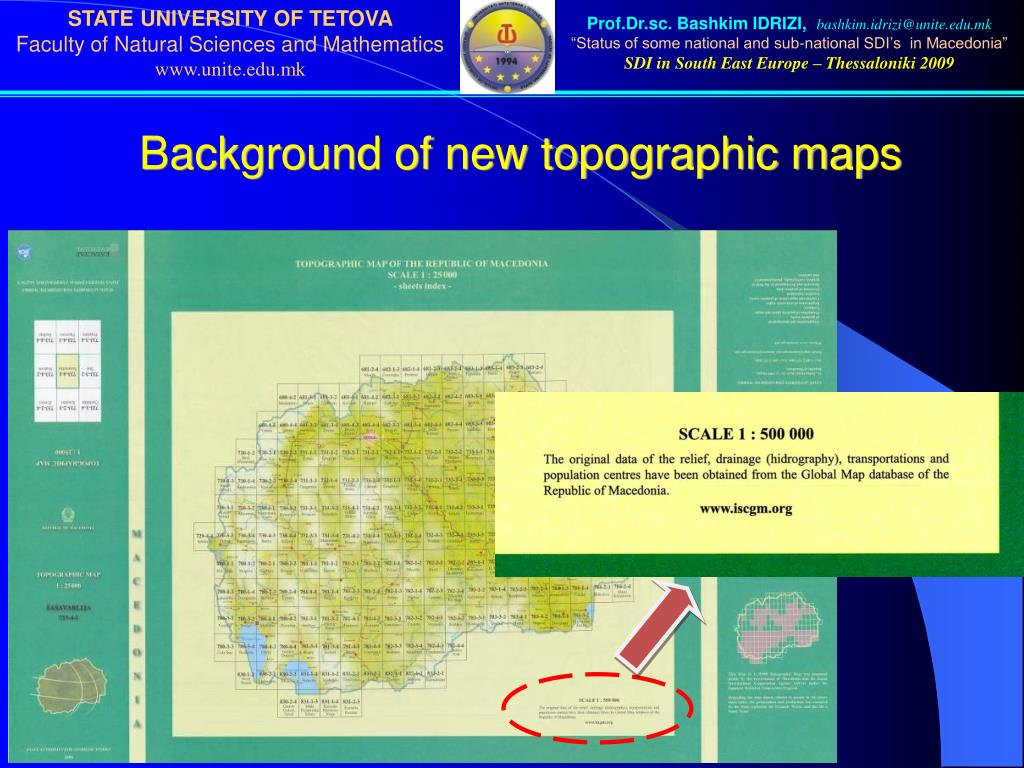

Background of new topographic maps


Status of some national and sub national sdi s

Macedonian Global Map data

Global Map data sets

Be consistent with ISO TC211

recommendations for geographic data standard!!!


Status of some national and sub national sdi s

shape

tiff


Status of some national and sub national sdi s

Metadata

Metadata : data about the contents, quality, condition, lineage, process, and accuracy of the data is organized in ASCII file with “.met” extension based on ISO 15046.

Supplied separately for each layer in the data set.

At the March 08th 2006, on ISCGMs web site has been published the Macedonian Global Map data.

It is free for download through this web site (www.iscgm.org) and can be used for non-commercial purposes by governmental institutions, private sector and other non-commercial users.


Status of some national and sub national sdi s

Raster data layers

Vector data sets


Status of some national and sub national sdi s

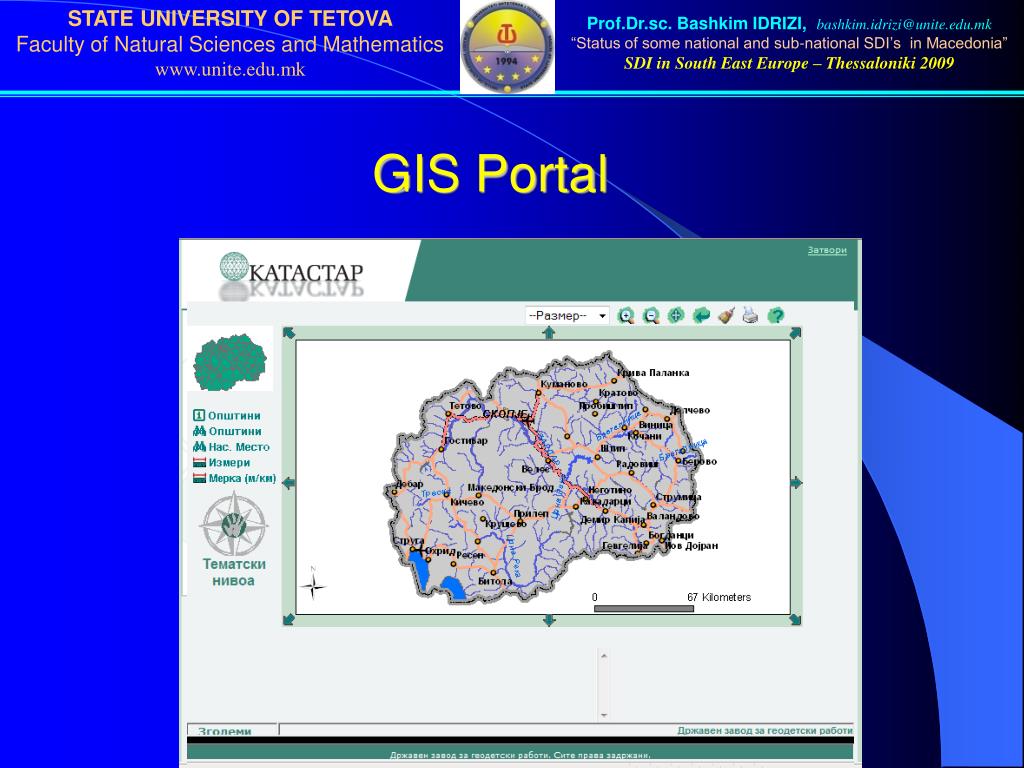

GIS Portal


Status of some national and sub national sdi s

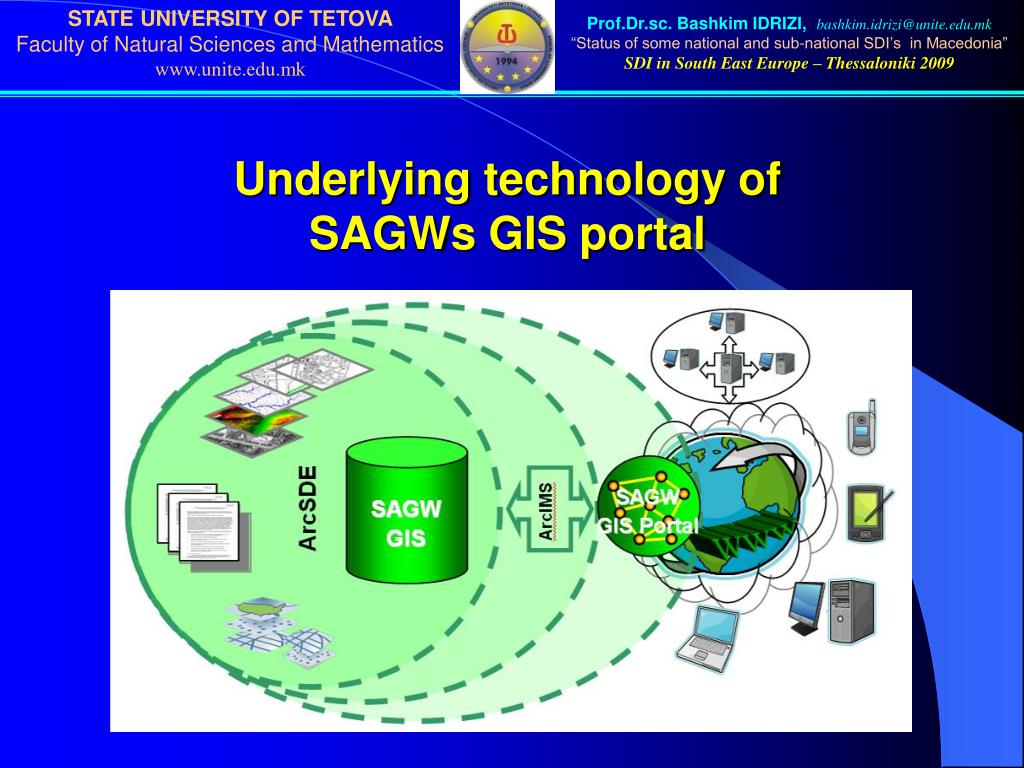

Underlying technology of SAGWs GIS portal


Status of some national and sub national sdi s

GIS Portal data and functionalities

  • Identify

    • Municipalities

  • Search

    • By municipality

    • By river

    • By population center

    • By index map number

    • By coordinates

  • Standard graphic functions

  • Language

    • English

    • Macedonian

  • Automatic change of scale

    • By zoom

    • By selection

  • Global Map data

    • National boundary

    • Municipalities boundaries

    • Rivers

    • Lakes

    • Transportation

    • Population centers

  • Raster maps

    • 1: 200 000 scale

    • 1: 100 000 scale

    • 1: 50 000 scale

    • 1: 25 000 scale

  • Orthophoto images

  • Index maps


Status of some national and sub national sdi s

Environmental GIS (EGIS)


Status of some national and sub national sdi s

LAKE OHRID

WATERSHED AREA

- Area 3,556km2

- 30 map sheets 1:25.000


Status of some national and sub national sdi s

EGIS objectives

  • Analysis of the needs for the creation of EGIS in cooperation with LOCP

  • Designing the EGIS database for conservation and management of the Ohrid watershed area

  • Acquiring the data for the EGIS database

  • Creation of the digital topographic map of the watershed area

  • Creation of the land use map of the watershed area


Status of some national and sub national sdi s

EGIS data set

Basemap Data Set

• Administrative Area

• Road Network

• Municipality Office

• Digital Elevation Model (DEM)

• Ortho Photo

• Index Map

Drainage Data Set

• Catchment

• Watershed

Basin

• Drainage Line

Environmental Background Data Set

• Land Use

• Depth Contour

• Depth Point

• Depth Surface

• Littoral Zone

• Climate Zone

• Fitocenology Zone

• Dendraflora Zone

• Nationa Park Boundary

• Protected Area

• CORINE Land Cover Data (100m

resolution)

• CORINE Land Cover Data (250m

resolution)

• Forest Type (Area)

• Forest Type (Point)

Hydrography Data Set

• Stream Line

• Water-related Facilities (line)

• Water Area

• Water-related Facilities (point)

Environmental Monitoring Data Set

• Microbiology

• Water Quality

• Red List

Thematic Data Set

• Geology

• Population Census

• Tourist Accommodations

• Tourist Census

• Recreation Facility

• Recreation Facility (Point)

• Cultural Heritage

• Geomorphology


Status of some national and sub national sdi s

Land Use mapsfor the Ohrid watershed area Scale 1:25.000

Area 3,556km2

30 map sheets


Status of some national and sub national sdi s

Zletovo

Mine

MACEDONIA SOIL MANAGEMENT GIS DATABASE FOR THE STUDY ON CAPACITY DEVELOPMENT FOR MINING RELATED SOIL POLLUTION IN THE ZLETOVO MINE AREA

The objective of this study is to conduct technical assistance for capacity development (CD), concerning legislation, administration system and organizational structure, for soil contamination management related to mining in the Republic of Macedonia through a pilot project (P/P) that includes soil contamination survey, analysis, interpretation, planning for countermeasures and risk assessment for land use.

The objective of this implementation is to:

1) to produce GIS database of all the collected information for this project

2) to introduce GIS to C/P as a tool to manage, integrate, visualize, and present data related to soil contamination

3) to utilize GIS database for further soil contamination management


Status of some national and sub national sdi s

Shape files:

30_infrastructure

10_topography

infra_facility_pnt.shp

infra_facility_poly.shp

power_line.shp

road.shp

tailing_dam.shp

water_facility.shp

dtm.shp

landform.shp

river.shp

waterarea.shp

20_thematic

geology.shp

landuse.shp

hydro.shp

admin.shp

populated_area.shp

annotation.shp

irrigation.shp

catchment.shp

water_source.shp


Status of some national and sub national sdi s

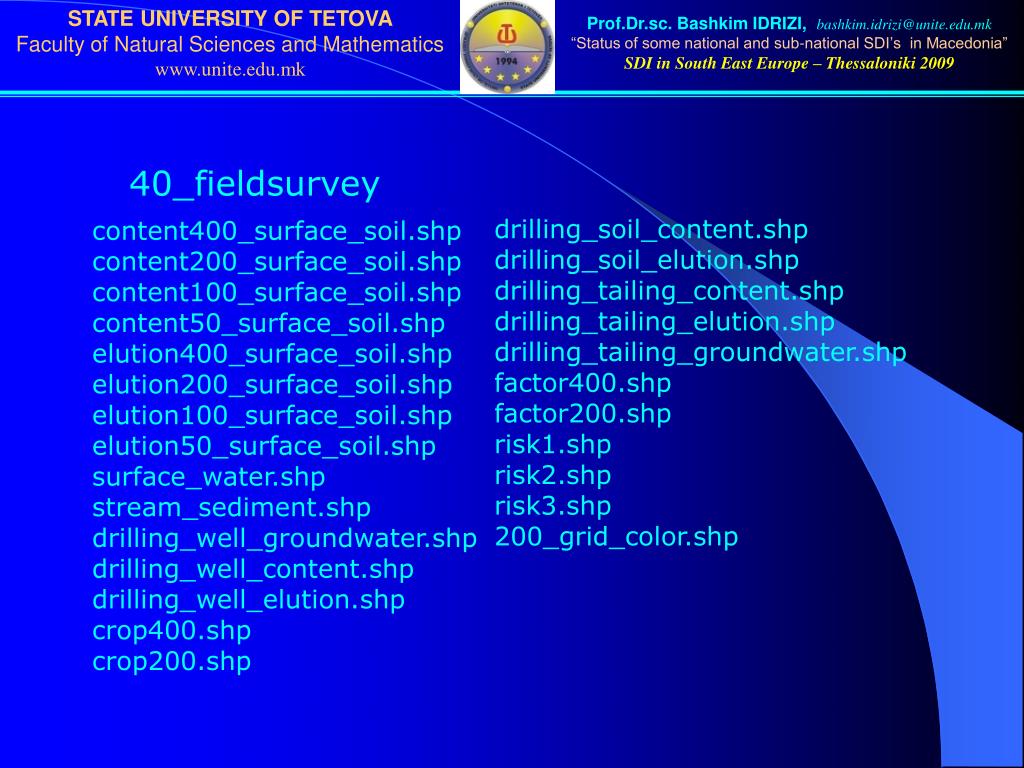

40_fieldsurvey

drilling_soil_content.shp

drilling_soil_elution.shp

drilling_tailing_content.shp

drilling_tailing_elution.shp

drilling_tailing_groundwater.shp

factor400.shp

factor200.shp

risk1.shp

risk2.shp

risk3.shp

200_grid_color.shp

content400_surface_soil.shp

content200_surface_soil.shp

content100_surface_soil.shp

content50_surface_soil.shp

elution400_surface_soil.shp

elution200_surface_soil.shp

elution100_surface_soil.shp

elution50_surface_soil.shp

surface_water.shp

stream_sediment.shp

drilling_well_groundwater.shp

drilling_well_content.shp

drilling_well_elution.shp

crop400.shp

crop200.shp


Status of some national and sub national sdi s

Figure 18 Heavy Metals Concentration of Surface Water

Figure 19 Locations of Monitoring Boreholes

Figure 20 Heavy Metals Concentration Map of Groundwater

Figure 21 Locations of Tailings Boreholes

Figure 22 Locations of Crop Samples

Figure 23 Heavy Metals Concentration of Crops in

the Pilot Project Area

Figure 24 Heavy Metals Concentration of Crops

in the Pilot Project Area

Figure 25 Location Map of 100m Grid Soil Surveys (need revise)

Figure 26 Heavy Metals Concentration Map of 100m

Grid Soil Survey

Figure 27 Location Map of 50m Grid Soil Surveys (need revise)

Figure 28 Heavy Metals Concentration Map of 50m Grid Soil survey

Figure 29 location of 5m Deep Drilling survey

Figure 30 Heavy Metals Concentration Map of 50m Grid Soil survey

Figure 31 Location of Water Wells in the Pilot project Area

Figure 32 Water Quality of Groundwater in the Pilot Project Area

Figure 33 Contamination Source Map in the Pilot Project Area

Figure 34 Integrated Contamination Map in the Pilot Project Area

Figure 35 Risk Assessment Map in the Pilot Project Area

Extracts from database:

Figure 1 Physiographic Map of the Pilot Project Area

Figure 2 Geological Map of the Pilot Project Area

Figure 3 Water Syatem Map of the Pilot Project Area

Figure 4 Land Use Map of the Pilot Project

Figure 5 Locations of Towns and Villages in Probistip Municipality

Figure 6 Water Supply by Probistip Municipal Water Supply Company (Hydrological Map: Under compiling)

Figure 7 Sample Location of the 400m grid Soil Survey

Figure 8 Distribution of High Concentration Grids

Figure 9 Distribution of High Factor Scores

Figure 10 Grid System of 200m Grid Sampling

Figure 11 Distribution of Heavy Metal Concentration

Figure 12 Distribution of High Factor Score (200m Grid)

Figure 13 Sample Location and Analytical Result of the

Elution Test (400m Grid)

Figure 14 Heavy Metals Concentration of Elution (1) ~ (2)

Figure 15Sample Location of River Sediments

Figure 16 Heavy Metals Concentration of River Sediments

Figure 17 Sampling Point of Surface Water


Status of some national and sub national sdi s

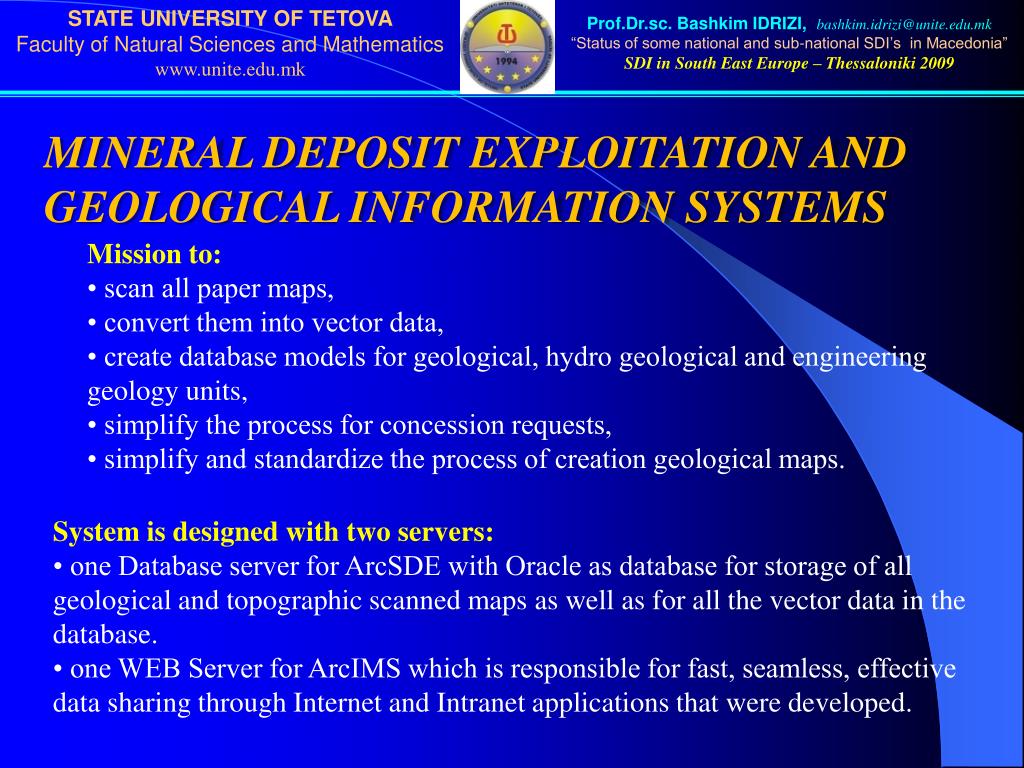

MINERAL DEPOSIT EXPLOITATION AND GEOLOGICAL INFORMATION SYSTEMS

Mission to:

• scan all paper maps,

• convert them into vector data,

• create database models for geological, hydro geological and engineering

geology units,

• simplify the process for concession requests,

• simplify and standardize the process of creation geological maps.

System is designed with two servers:

• one Database server for ArcSDE with Oracle as database for storage of all geological and topographic scanned maps as well as for all the vector data in the database.

• one WEB Server for ArcIMS which is responsible for fast, seamless, effective data sharing through Internet and Intranet applications that were developed.


Status of some national and sub national sdi s

Created applications:

1. Internet/Intranet application- Application used for applying for

concession over the internet, or just viewing the geological

resources as well as intranet approval of the application

2. ArcMap desktop application – Application for entering newly

accepted concessions into a feature class

3. Application for document management for concessions

4. ArcPAD extension- An add-on to the ArcPAD interface used for

controlling the clients progress


Status of some national and sub national sdi s

Document management:

Internet/intranet applications:


Status of some national and sub national sdi s

ArcMap applications:

ArcPad applications:


Status of some national and sub national sdi s

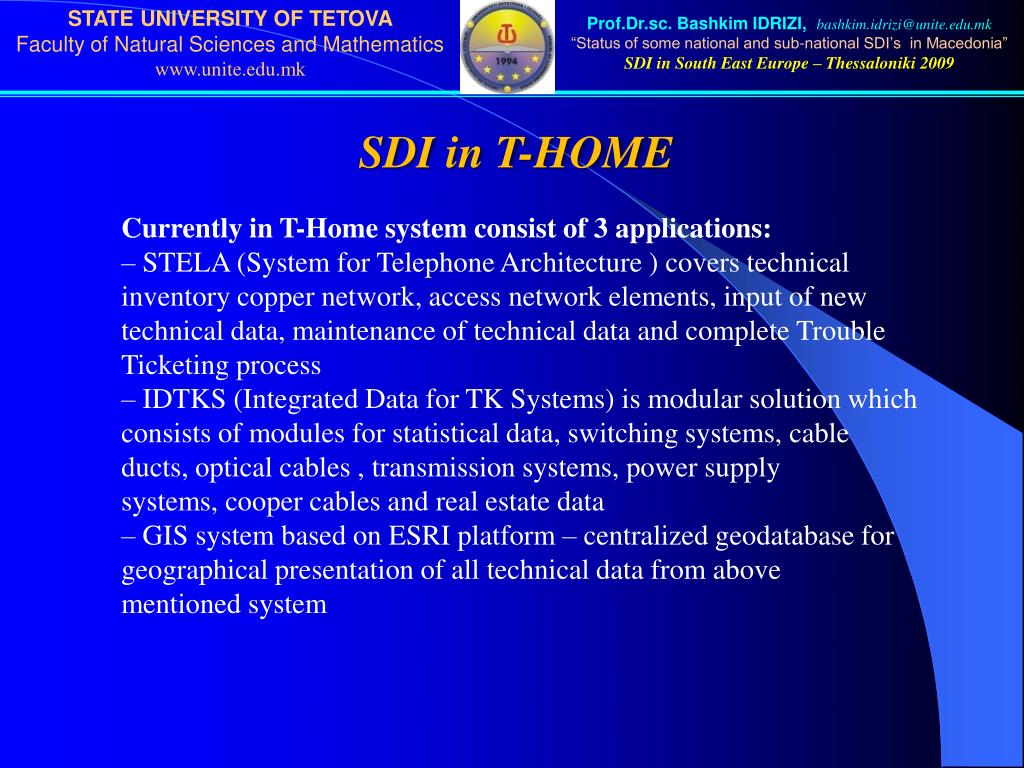

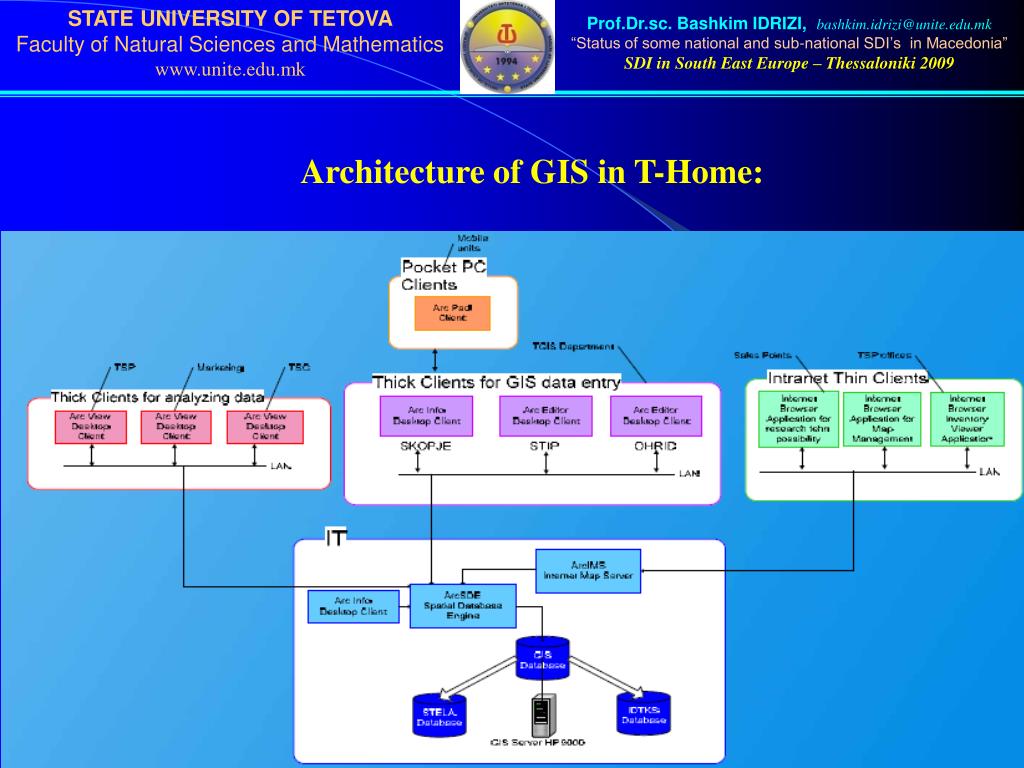

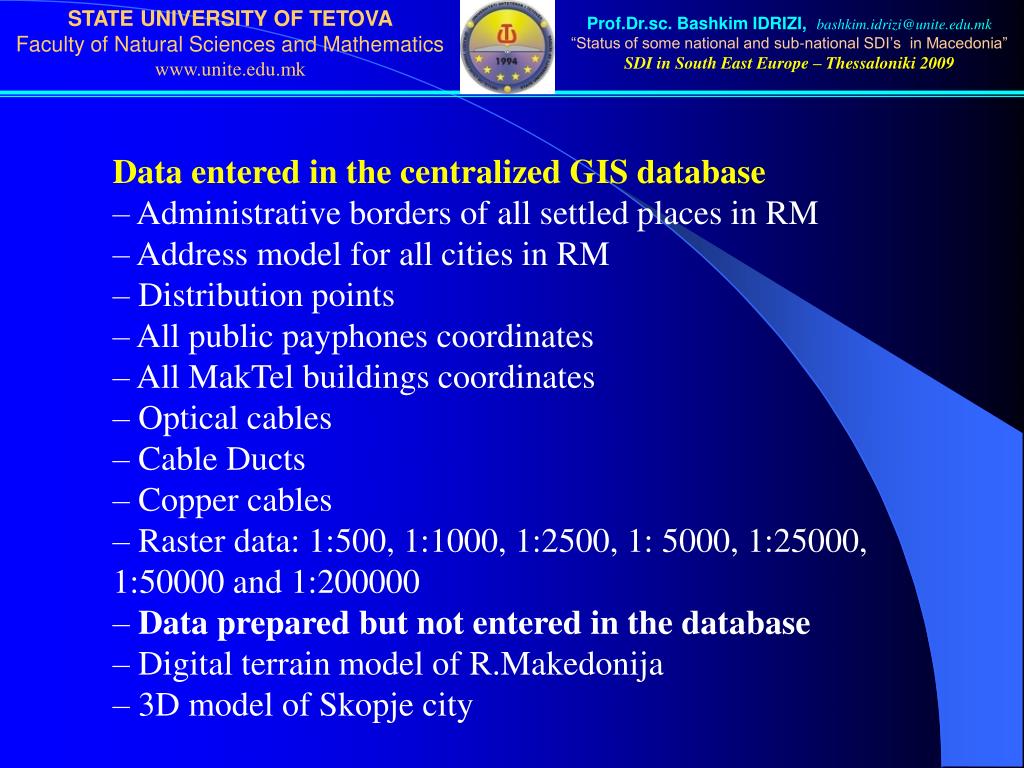

SDI in T-HOME

Currently in T-Home system consist of 3 applications:

– STELA (System for Telephone Architecture ) covers technical

inventory copper network, access network elements, input of new

technical data, maintenance of technical data and complete Trouble

Ticketing process

– IDTKS (Integrated Data for TK Systems) is modular solution which

consists of modules for statistical data, switching systems, cable

ducts, optical cables , transmission systems, power supply

systems, cooper cables and real estate data

– GIS system based on ESRI platform – centralized geodatabase for

geographical presentation of all technical data from above

mentioned system


Status of some national and sub national sdi s

Architecture of GIS in T-Home:


Status of some national and sub national sdi s

Geodatabase:


Status of some national and sub national sdi s

Data entered in the centralized GIS database

– Administrative borders of all settled places in RM

– Address model for all cities in RM

– Distribution points

– All public payphones coordinates

– All MakTel buildings coordinates

– Optical cables

– Cable Ducts

– Copper cables

– Raster data: 1:500, 1:1000, 1:2500, 1: 5000, 1:25000,

1:50000 and 1:200000

– Data prepared but not entered in the database

– Digital terrain model of R.Makedonija

– 3D model of Skopje city


Status of some national and sub national sdi s

Application for checking technical possibility:


Status of some national and sub national sdi s

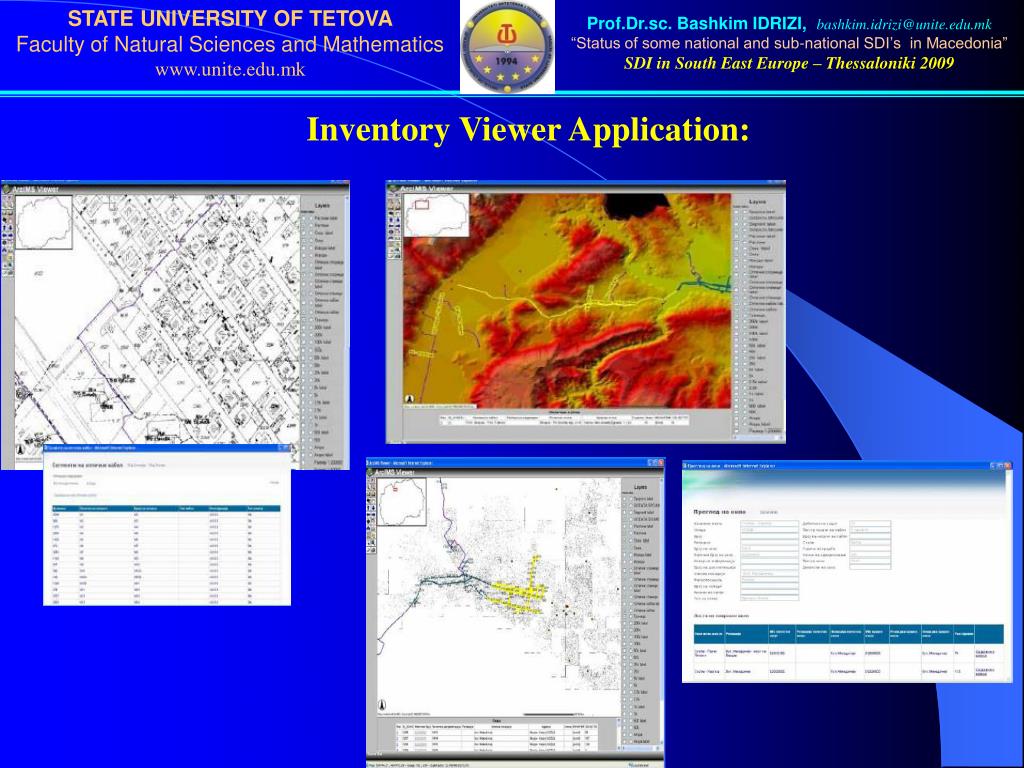

Inventory Viewer Application:


Status of some national and sub national sdi s

SDI IN SKOPJE MUNICIPALITY


Status of some national and sub national sdi s

STATUS OF MACEDONIAN NSDI

  • Did not start yet;

  • Special chapter in new law for Real Estate Cadastre,;

  • Agency for Real Estate Cadastre is responsible institution;

  • In Strategic Business Plan of the AREC 2007-2010, it is mentioned creating of NSDI based on INSPIRE directions;

  • On 27th March 2009, in FON University Skopje, will be organized:


Status of some national and sub national sdi s

THANK YOU FOR YOUR ATTENTION!!!


Status of some national and sub national sdi s

Prof.Dr.sc. Bashkim IDRIZI

STATUS OF SOME NATIONAL AND SUB-NATIONAL SDI’s

February 2009, Thessaloniki


  • Login
