Kidney Structure

Kidney Structure. [ Outer cortex, inner medulla, and renal pelvis ] Cortex contains NEPHRON filtering units. Nephron = Bowman's capsule containing Glomerulus (capillary bed) ---> tubules of nephron. Kidney Structure.

xandy
Download Presentation

Kidney Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Kidney Structure • [Outer cortex, inner medulla, and renal pelvis] • Cortex contains NEPHRON filtering units. • Nephron = Bowman's capsule containing Glomerulus (capillary bed) ---> tubules of nephron.

  2. Kidney Structure Bowman's capsule --> proximal convoluted tubule --> Loop of Henle --> distal convoluted tubule --> collecting duct --> The urine then drains down the ureter --> urinary bladder (storage area). Passes out of the body through the urethra. Note: There are thousands of nephrons in each kidney.

  3. Make note of location of Cortex & Medulla- now locate the Nephron in relation to these 2 structures

  4. Nephron Function • Bowman's capsule: • blood enters under very high pressure • arrives directly from the aorta • blood forced into glomerulus & Water, salts, glucose, urea, & amino acids forced out into the nephron - forms crude filtrate. • Up to 95% water & salts resorbed.

  5. Nephron Function • B)filtrate travels to the proximal convoluted tubule • majority water & salt resorption occurs • water moves from tubule to blood via steep • osmotic gradient • sodium/potassium exchange pump brings sodium back in • glucose & chlorine ions resorbed.

  6. Nephron Function • C)filtrate moves to the Loop of Henle • Descending part of the loop --> water flows out of the • filtrate [thus concentrating filtrate, by absorbing water back • into circulatory system] --> medulla tissue becomes more • salty • salty medulla --> causes a lot of water absorbed by adjacent • capillaries. • Ascending loop --> sodium pumped out (keeps medulla • salty) --> water leaves descending loop. • Note: much of the sodium is absorbed by the descending part, through a countercurrent exchange of salt.

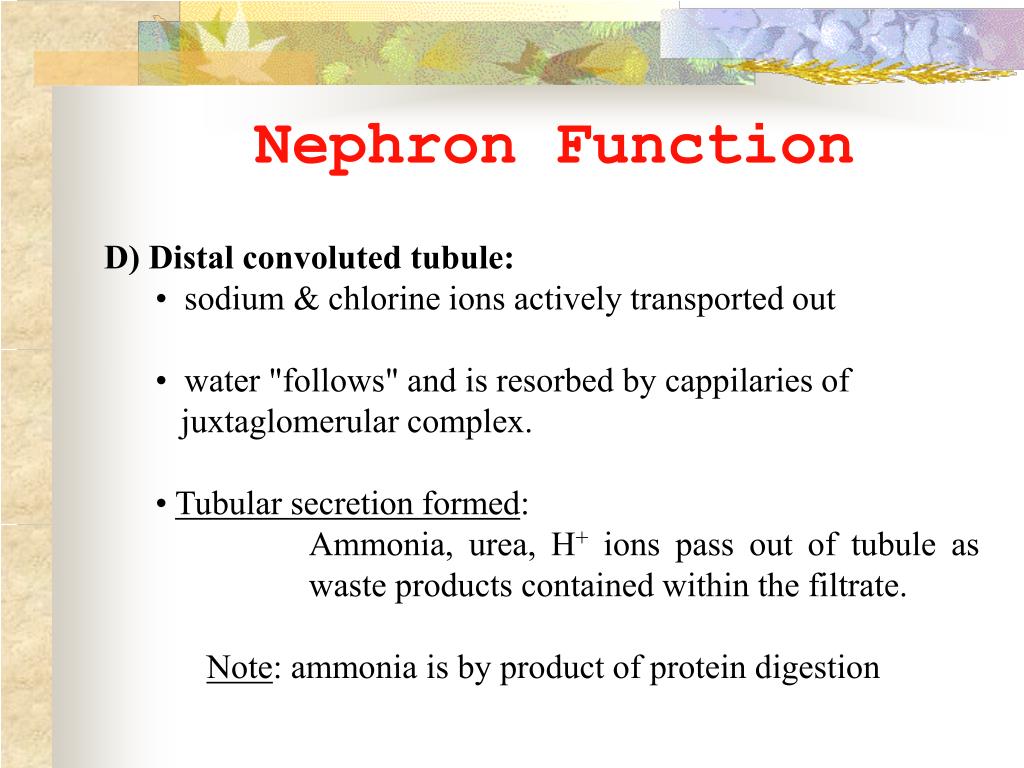

  7. Nephron Function • D)Distal convoluted tubule: • sodium & chlorine ions actively transported out • water "follows" and is resorbed by cappilaries of • juxtaglomerular complex. • Tubular secretion formed: • Ammonia, urea, H+ ions pass out of tubule as waste products contained within the filtrate. • Note: ammonia is by product of protein digestion

  8. Nephron Function • E)Collecting tubule: • sodium ions & water move out of filtrate • other wastes move in • countercurrent exchange of urea • final filtrate forms in duct = URINE

  9. 4 5 2 1 Use numbers To trace flow of Filtrate through nephron. 3 Detail of Nephron structure

  10. Read: Step by step process of filtration of blood brought to nephron

  11. Control of Nephron Function • Antidiuretic Hormone (ADH): controls water absorbtion • Recall, main function of nephron is to help maintain osmotic • balance of your body • Hypothalamus --> signals posterior pituitary to release • ADH when dehydration detected [e.g if • you eat too much salt] • . • ADH --> targets cells within collecting ducts • Function: increases cellular permeability to water. • As more water is resorbed, the osmolarity of the blood returns to "normal" and the hypothalamus switches off the production of ADH (Negative Feedback Loop).
