  1. PQLX - A Station Assessment & Data Quality Control System Applications and Uses

  2. Overview • PQLX System Technical Aspects • Software: Components, Installation and Setup • System Architecture: Server-Side Database & Client-Side GUI • Functional Aspects • Data Formats and Requirements • Analysis Statistics Computed by Server • GUI Functionality Provided by Client • Data Quality Control Possibilities • PDF Plots and Noise Feature Analysis • Future Developments

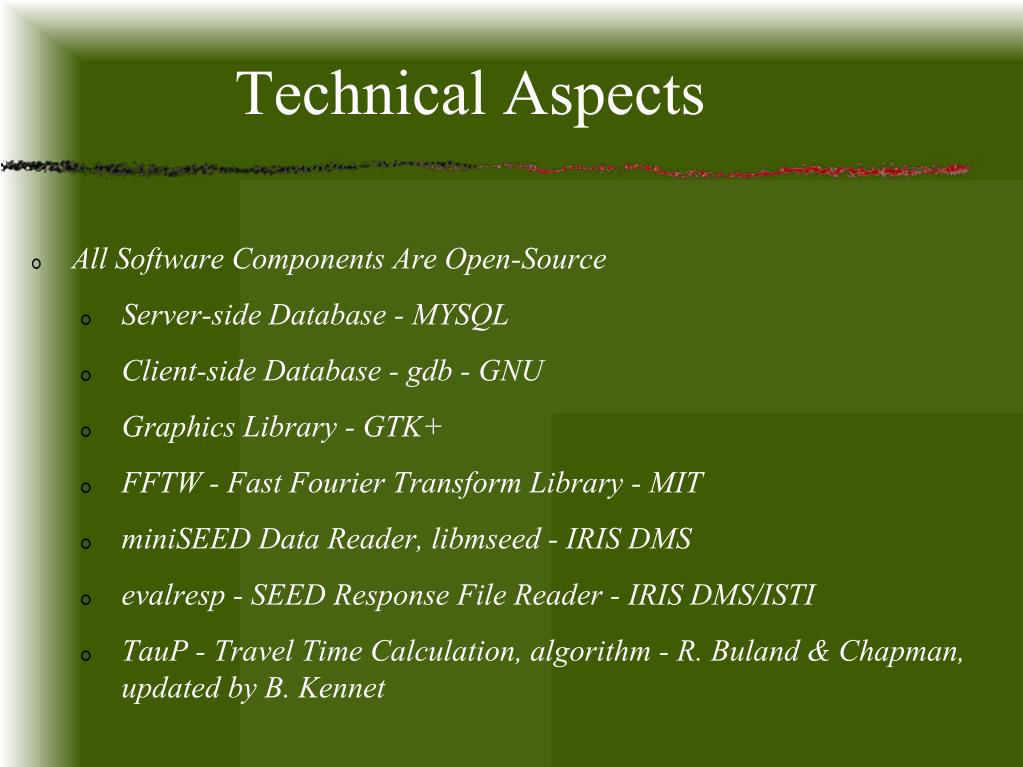

  3. Technical Aspects • All Software Components Are Open-Source • Server-side Database - MYSQL • Client-side Database - gdb - GNU • Graphics Library - GTK+ • FFTW - Fast Fourier Transform Library - MIT • miniSEED Data Reader, libmseed - IRIS DMS • evalresp - SEED Response File Reader - IRIS DMS/ISTI • TauP - Travel Time Calculation, algorithm - R. Buland & Chapman, updated by B. Kennet

  4. Multi-Platform: Linux, MAC OS, Solaris • Source code for PQLX is freely available for download via WWW from: • http://www.iris.edu/software/pqlx/ • Publicly Available, and Fully Searchable, Website for Bug Reporting and Enhancement Requests: • http://wush.net/bugzilla/PQLX/describecomponents.cgi?product=PQLX

  5. Installation and Setup • External Software Dependencies • MYSQL - from http://mysql.org • PQL II (to resolve GTK+ dependency) - fromhttp://passcal.nmt.edu • Entire System Written in C (if travel time tables are used in new version, you will need a fortran compiler) • Compilation and Installation via a single command- (scripted) • Provides Clear Indication of Success or Failure • PQLX Database created via: • Database Definition File • Script to read definition file and create database

  6. System Architecture • Server-Side: • MySQL Instance Holds One or More PQLX Databases • pqlxSrvr - Server Process (one per database) Analyzes all waveform data, uploading all Analysis Results to Database: • Can be set up via cron for regularly scheduled execution • Scalable - Number of CPUs to use Specified at Execution Time- up to 4 currently • Re-runnable on Renewed Data - All statistics are Replaced when Data is Updated with Newer Version • Scripts - Several Scripts are provided to manage the database - ideally, there is no need to be directly involved with MySQL itself

  7. Client-Side: • GUI Access to a PQLX Database: • As a Local Database: • Client and Database Reside on the Same Machine • Client and Database Reside on Same Local Network • As a Remote Database: • Client has Access to the Internet • Database Server is Visible on the Internet • Client Application is Fully Multi-Threaded for Efficiency Purposes

  8. Functional Aspects • Data Requirements • Data can be Provided in ANY of the Following Formats (these also may be mixed within a single database instance): • miniSEED • SAC • SEGY • AH • nano • DR-100 -Spregnether

  9. File Format is Auto-Detected, no Need to Explicitly Specify • File Definition is Read from Header, not File Name.  Thus, no Requirements for a Specific File Name Structure • Data can be Provided in Any Directory Tree Structure, Under One or More Base Directories • Response File in rdseed Output Format, One Channel per File, All Time Ranges • Server Constructs Database Contents Based on the Existence of Data - New Station/Channel Data Can be Added At Any Time...

  10. Analysis Statistics • The PQLX Server is Responsible for Reading All Data/Trace Files, Writing All Statistics to Database • Data File Statistics (Meta- and Computed): • Start and Stop Times • Length • Maximum / Minimum / Mean • Total Gaps: Their Locations and Length • Total Overlaps: Their Locations and Length

  11. Channel Statistics: • First and Last Date of Existence of Data • Total Number of Traces • Trace Data Maximum - max / min / mean • Trace Data Minimum - max / min / mean • Trace File Gaps - max / min / mean • Trace File Overlaps - max / min / mean

  12. PSD’s: • Following algorithm of D. McNamara • Automatically Computed for Channels Named: • BH*, LH*, HH*, EP* At the DMC, only BH and LH • Additional Channels to Analyze Easily Added to Database

  13. Server-Side PDFs: • Server Computes System PDFs for Each Channel at Each Execution and Stores the Probabilities Themselves in the Database, i.e., including these Plots: • Total PDF of all PSDs • Last Month of Available PSDs • Last Last and Last Last Last Month of Available PSDs • Last Week of PSDs • Current Year of PSDs • Last Year of PSDs • Future Development will Create .png Plots for easy WWW Publication

  14. GUI Functionality • A single GUI Application Provides for all Client-side Access to the Database and Trace Data.  This GUI is Comprised of Several Systems Relating to Various Ways of Looking at the Data: • PQL II - Trace File View Functionality (But does not • Display Contents of Entire Trace File • Magnification of Trace Data Selection - Zooming, Overlay, Filtering, etc. • Fourier Transform of Selection • Multiple Simultaneous Data Views • Header Data View

  15. Trace File View

  16. Magnify View

  17. Fourier Transform View

  18. Simultaneous Data View

  19. Header View

  20. PDF/ PSD Viewer • Connection to Specific PQLX Database • Plot System PDFs Stored on Server-Side Database • Plot User-Defined PDF Based on Date and Time Parameters • Sub-Select of PDFs Returning: • PDF of PSDs Intersecting User-Defined Sub-Selection • PSD Start Times and Durations • Trace Data Corresponding to PSD of Sub-Select, i.e., User is Able to go from Frequency Domain to Time Domain

  21. System PDF View

  22. PDF Request View

  23. PDF Detail View

  24. STN (station) Viewer • Connection to specific PQLX Database • Bird’s-Eye View of Station/Channel Statistics & Data • Existence of Data • Gaps and Overlaps • Pop-Up Statistics and PDF Corresponding to Time Period on Display • Configurable Display • Coverage Mode - Display vs. Database Info, i.e., no Waveform Data. Thus, not Necessary to have Access to Trace Files/Waveform Data Itself. • Data Mode - Waveform Data Display

  25. (Configurable Display continued) • Display 1 - 60 days of data/statistics per screen • Display 1 - 18 channels per screen • Display only Specific Stations & Channels • Traversal in Time & Station/Channel List

  26. STN Viewer - Coverage Mode

  27. STN Viewer - Data Mode

  28. In Development: • Event Record Sections • Align Waveform Data on Predicted Arrivals • Align Waveform Data on User Picks • Sort on Epicentral Distance • Simple Data Analysis • Integrate/Differentiate • Deconvolve Data - Remove Instrument Response • Cross-Correlation of Traces

  29. As well as the GUI Client, Additional Client-Side Functionality Includes: • Scripts to Extract PSD and PDF Data from the Database.This allows the user to extract actual analysis data, either PSD or PDF format, done by specifying date and time bounding parameters for their own specific use.

  30. Data Quality Control & Station Assessment • The following aspects of Data Quality Control are Possible to Manage and Identify with PQLX, i.e., WHAT: • Overall Station Performance • Channel Data Existence Displayed in STN viewer • Identify Instrument Problems • Gaps and Overlaps • Displayed in STN viewer: Identify Data Transmission Problems, e.g., Data Dropouts, Telemetry Issues, etc. • Displayed in PDF Plot:

  31. Station Performance

  32. Meta-Data Accuracy • Bad Response File Information Visible in PDF Plots

  33. Bad Units Acceleration Instead of Velocity Input Units Extra Zero in Response File Results in Tilted PSD: Low Amps at Low Period High Amps at High Period Corrected Response

  34. Bad Units Displacement Instead of Velocity Input Units Missing zero in Response File Results in Tilted PSD: High Amps at Low Period Low Amps at High Period Corrected Response

  35. Bad STS2 Gain Used 20,000 counts/volt Instead of 1500 counts/volt Resulting in low corrected Amplitude across spectrum. Corrected Response

  36. Noise Feature Analysis • Selection of Noise Feature in PDF Viewer Detail Screen • Precise Date and Times of Occurrence • Waveform (Time Domain) Display of PSD

  37. Diurnal Variations

  38. Earthquakes

  39. Rogue Waves

  40. Nuclear Tests

  41. Quality can be Controlled in the Following Ways: • Daily Inspection and Perusal of Database Contents via GUI Application • Automatic Publication of Server-Side PDF Plots to the WWW as Part of the PQLX Server’s Execution • Future: User-Defined Triggers/Alerts Automatically Generated when PQLX Server Uploads Statistics, e.g.: • Maximum Gap Threshold • PSD Value Out-Of-Range (vs. HNM/LNM) • PSD Value Within a Specific Range (vs. user-defined attribute)

  42. Missing Data

  43. Data Gaps

  44. Mass Re-Centering

  45. Future Developments • The following functionality is being Considered for Future Development: • PDF Animations • More Advanced Data Analysis • Server and Database Management via Client-Based GUI Interface • Normal Operating Bounds definition specific to Channel, i.e., a station/channel-specific HNM and LNM • User-defined Noise Feature, e.g., PSD is above HNM • Automatic Noise Feature Detection against User Definitions and Reporting, e.g., alert when PSD produces data in a specific noise and frequency range

  46. Credits • The following Organizations (listed alphabetically), Through Direct and Indirect Funding, have made this Software possible: • IRIS - Data Management Center, Seattle, WA • IRIS - PASSCAL Instrument Center, Socorro, NM • National Science Foundation, Washington, D.C. • United States Geological Survey - Golden, CO
