  1. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab • New kappa not yet in operation

  2. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab

  3. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-1 Diffraction station Under reconstruction

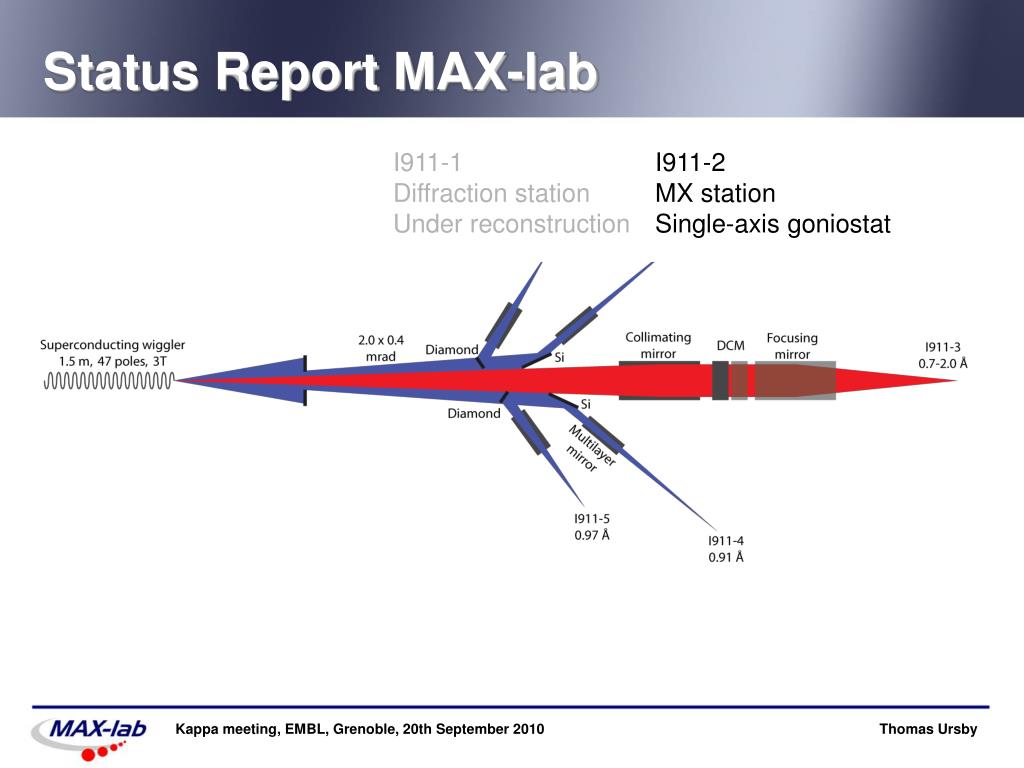

  4. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-1 Diffraction station Under reconstruction I911-2 MX station Single-axis goniostat

  5. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-1 Diffraction station Under reconstruction I911-2 MX station Single-axis goniostat I911-4 SAXS station Under commissioning

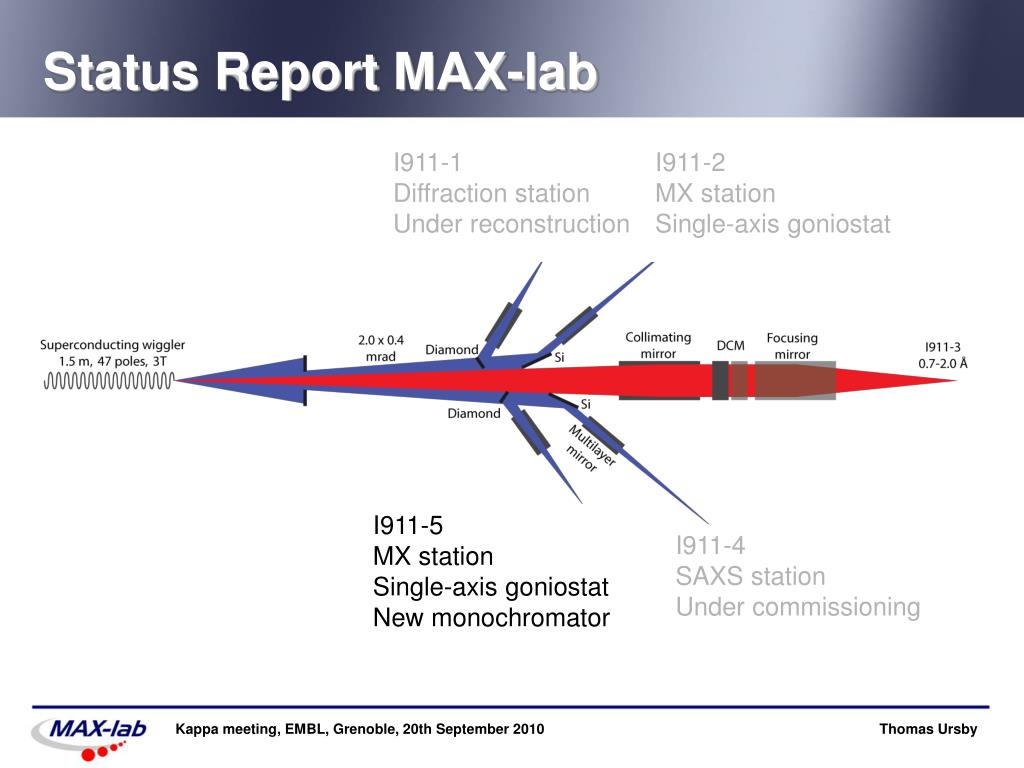

  6. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-1 Diffraction station Under reconstruction I911-2 MX station Single-axis goniostat I911-5 MX station Single-axis goniostat New monochromator I911-4 SAXS station Under commissioning

  7. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-1 Diffraction station Under reconstruction I911-2 MX station Single-axis goniostat I911-3 Tunable MX station Mini-kappa MK3 I911-5 MX station Single-axis goniostat New monochromator I911-4 SAXS station Under commissioning

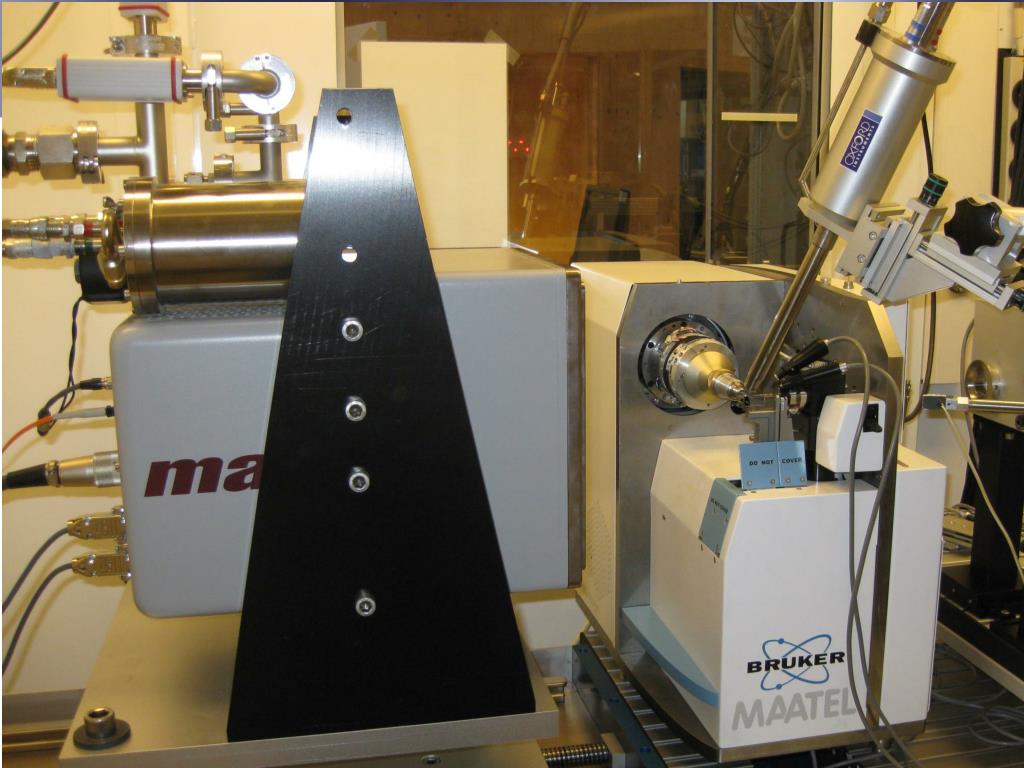

  8. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-3: Experiment station completely rebuilt March-May 2010 (new hutch, new experiment tables, new goniostat,...) Users during June 2010 Sample changer installation October 2010

  9. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab

  10. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab

  11. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab

  12. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab I911-3: Control software: spec and mxCuBE mini-kappa MK3: not yet used

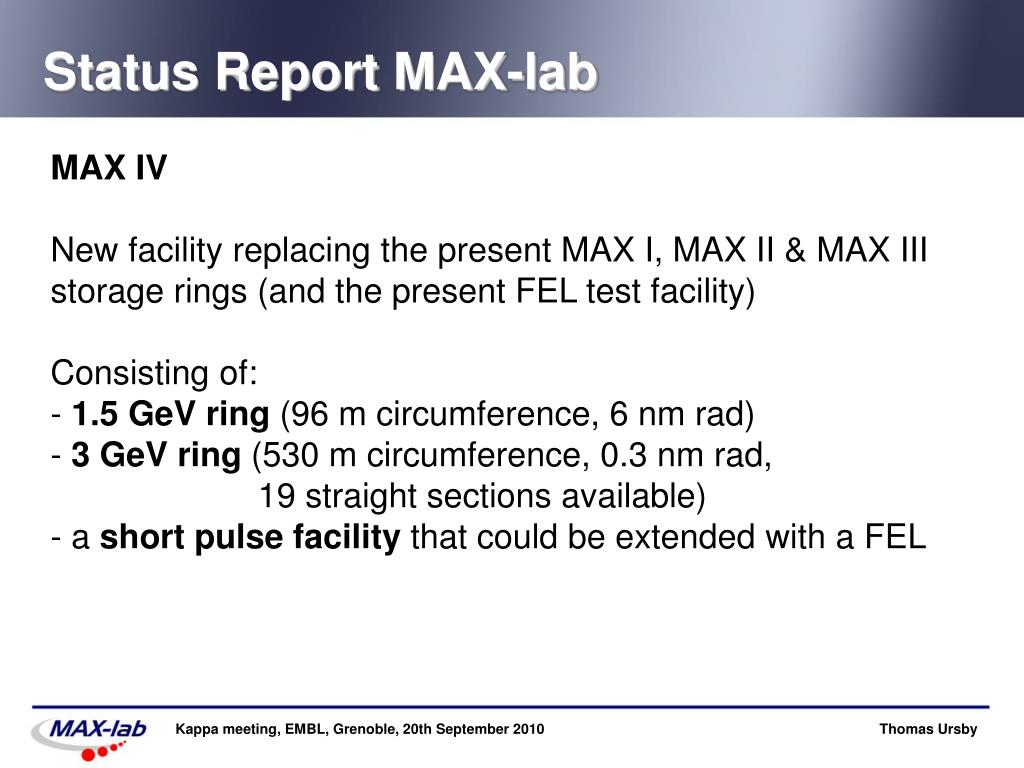

  13. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab MAX IV New facility replacing the present MAX I, MAX II & MAX III storage rings (and the present FEL test facility) Consisting of: - 1.5 GeV ring (96 m circumference, 6 nm rad) - 3 GeV ring (530 m circumference, 0.3 nm rad, 19 straight sections available) - a short pulse facility that could be extended with a FEL

  14. Kappa meeting, EMBL, Grenoble, 20th September 2010 Status Report MAX-lab MAX IV Funding available for buildings and accelerator ... but not for the beamlines We hope to have funding for 7 beamlines this autumn including a microfocus MX beamline and possibly ahigh-throughput MX beamline.
