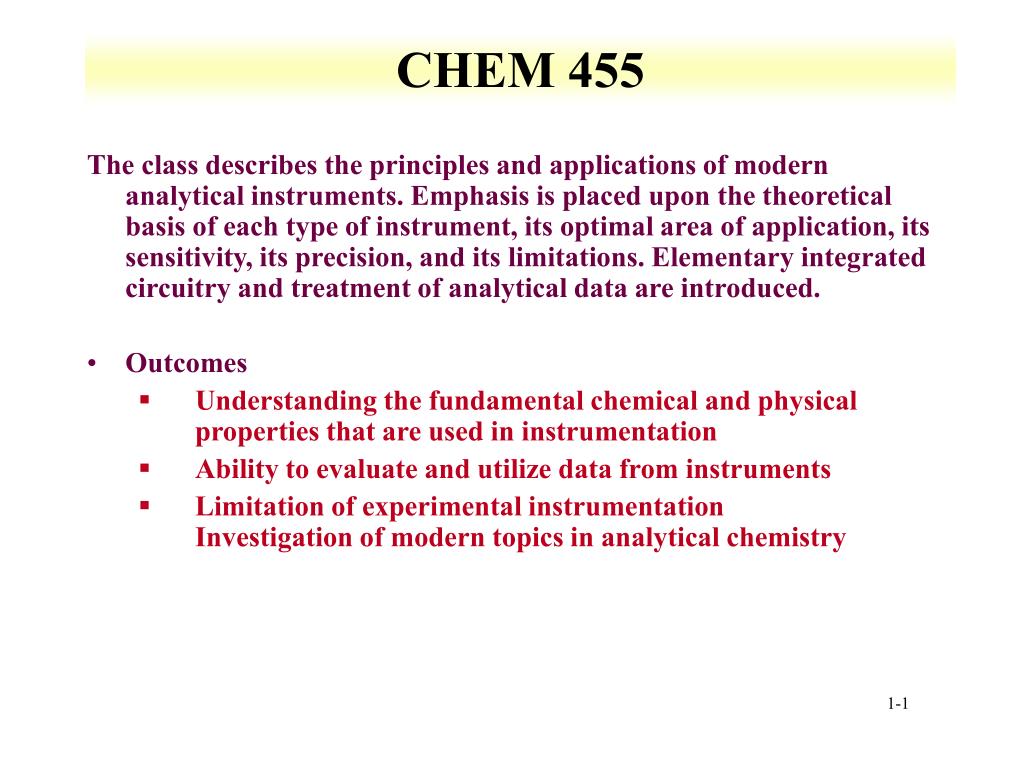

  1. CHEM 455 The class describes the principles and applications of modern analytical instruments. Emphasis is placed upon the theoretical basis of each type of instrument, its optimal area of application, its sensitivity, its precision, and its limitations. Elementary integrated circuitry and treatment of analytical data are introduced. • Outcomes • Understanding the fundamental chemical and physical properties that are used in instrumentation • Ability to evaluate and utilize data from instruments • Limitation of experimental instrumentationInvestigation of modern topics in analytical chemistry

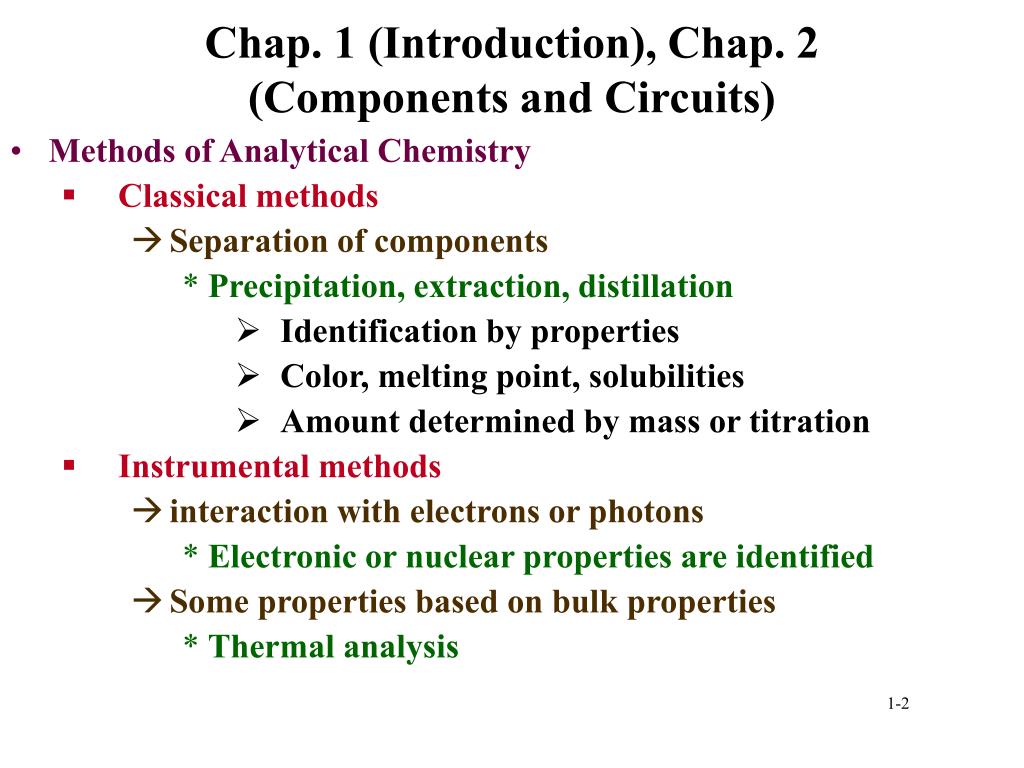

  2. Chap. 1 (Introduction), Chap. 2 (Components and Circuits) • Methods of Analytical Chemistry • Classical methods • Separation of components • Precipitation, extraction, distillation • Identification by properties • Color, melting point, solubilities • Amount determined by mass or titration • Instrumental methods • interaction with electrons or photons • Electronic or nuclear properties are identified • Some properties based on bulk properties • Thermal analysis

  3. Methods

  4. Instruments • Converts information in the sample to information expressed in an instrument • Results are given in differing data domains • Electrical and non-electrical

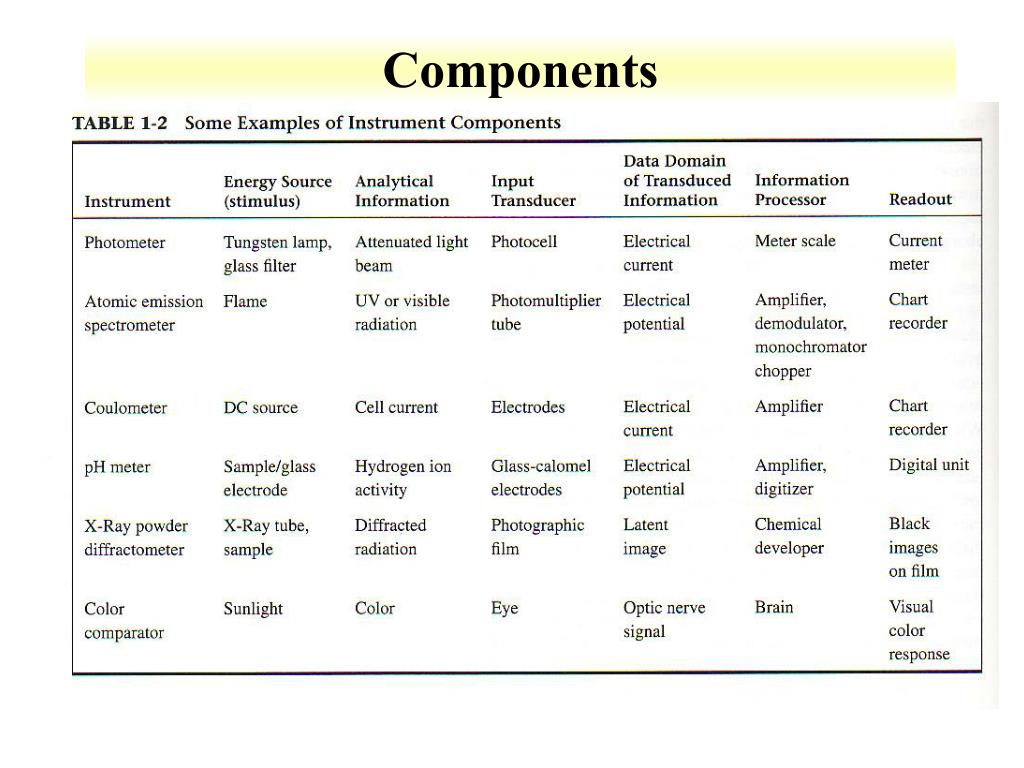

  5. Components

  6. Interdomain Conversions

  7. Electrical Domains • Analog domains • Magnitude of electrical quantity • Voltage, currant, power, charge • Correlation of two signals • NMR, IR, DTA • Susceptible to noise

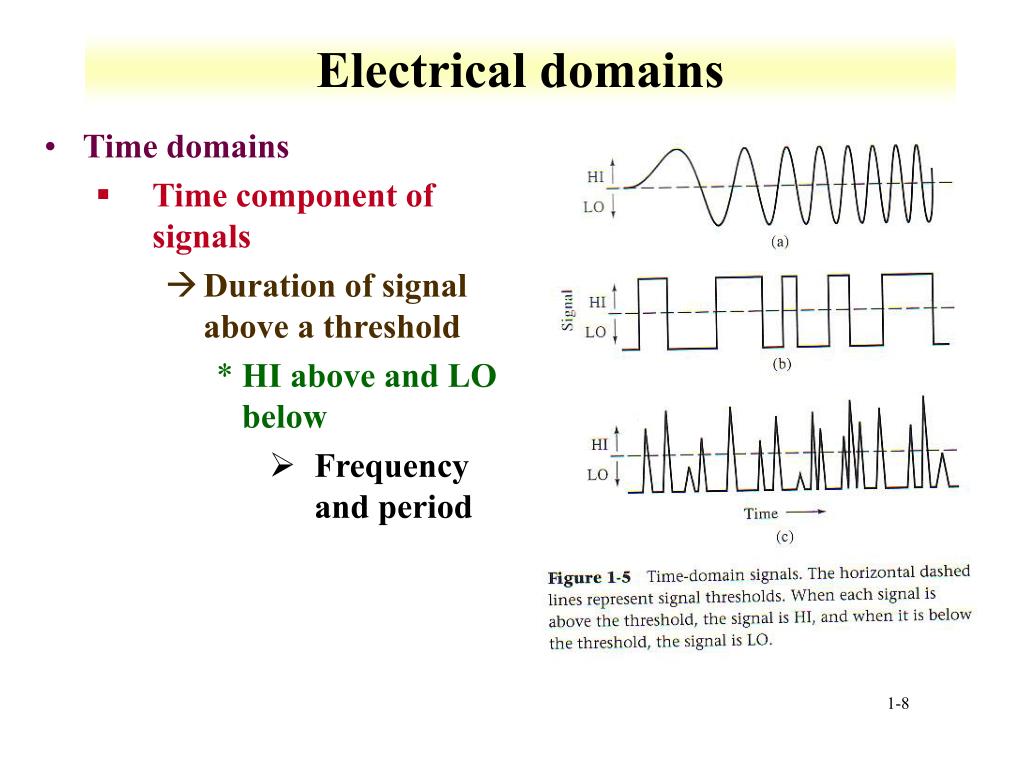

  8. Electrical domains • Time domains • Time component of signals • Duration of signal above a threshold • HI above and LO below • Frequency and period

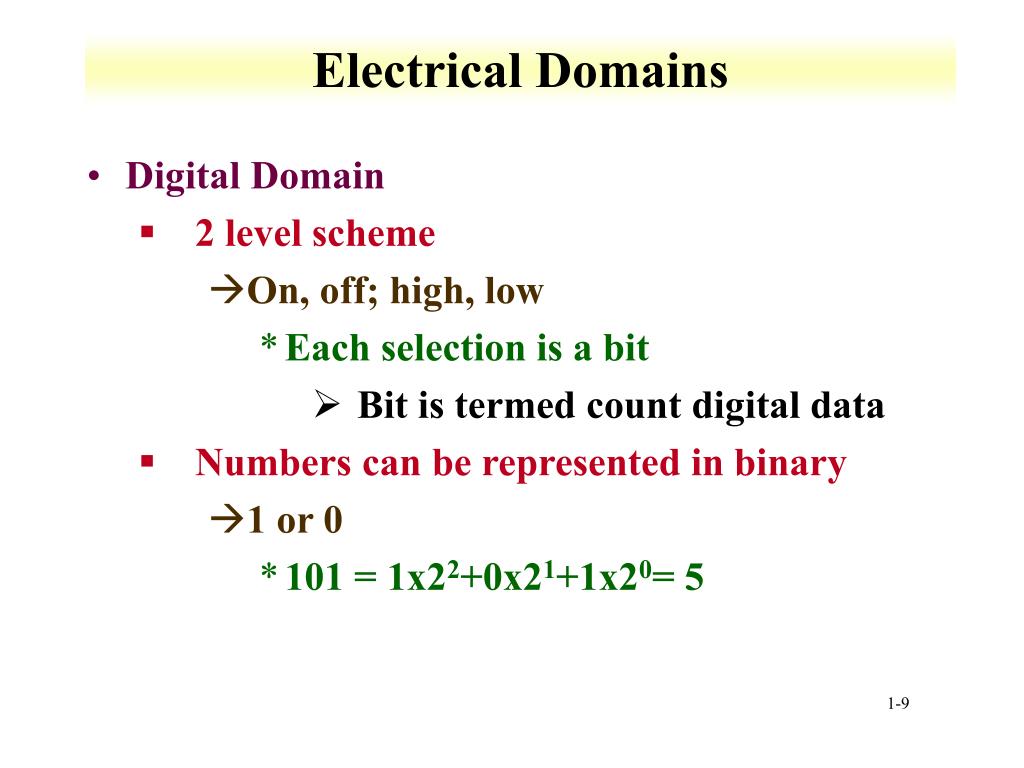

  9. Electrical Domains • Digital Domain • 2 level scheme • On, off; high, low • Each selection is a bit • Bit is termed count digital data • Numbers can be represented in binary • 1 or 0 • 101 = 1x22+0x21+1x20= 5

  10. Detectors, Transducers, and Sensors • Terms often interchanged • Detector • Device that identifies, records, or indicates change in variable • Pressure, temperature, concentration, charge, radiation • Chemical, mechanical, or electrical device • Transducer • Converts information from non-electrical to electrical domain • Photomultipliers, photodiodes

  11. Sensor • Sensors monitor a specific chemical species • Ion sensitive electrode • Piezoelectric crystal • Functionalization of surface • Crystal oscillates at constant frequency in an electric circuit • Change in mass can be detected • C is a constant, F is frequency, M is mass, and A is surface area • Also works in spectroscopy (photoacoustic)

  12. Selection of Method • Accuracy • Sample size • Concentration range • Interference • Matrix • Number of samples

  13. Criteria • Precision • Degree of mutual agreement • Can be quantified • Bias • Difference in true sample measurement • Bias=m-xt • m is mean, xtis true measurement

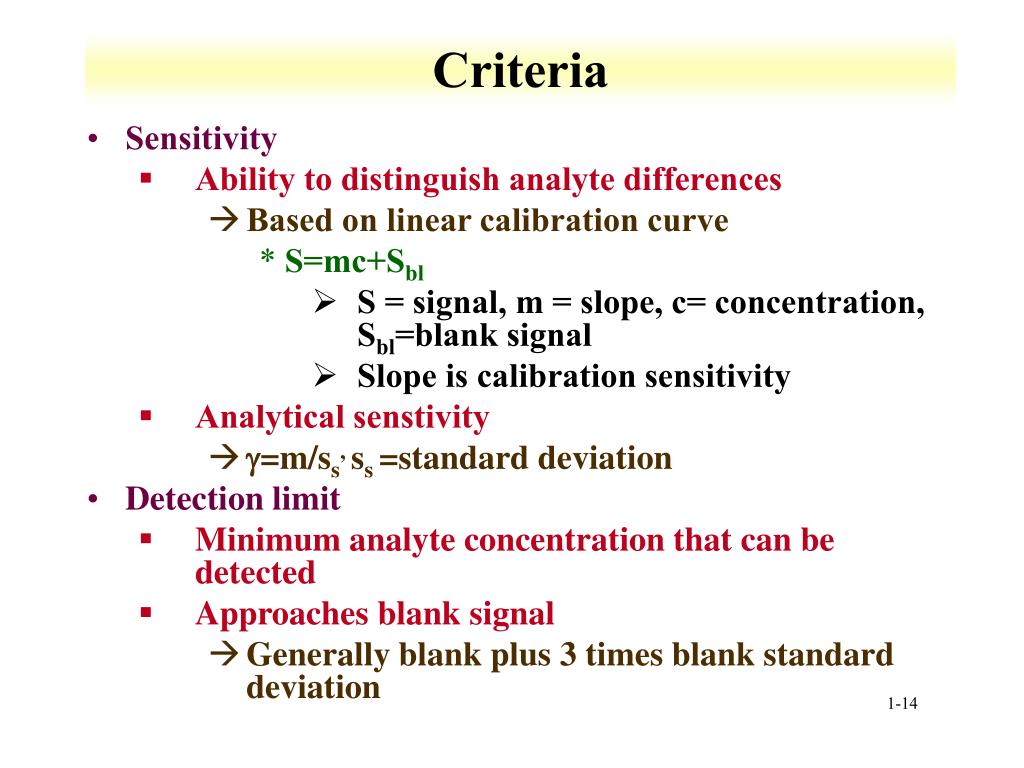

  14. Criteria • Sensitivity • Ability to distinguish analyte differences • Based on linear calibration curve • S=mc+Sbl • S = signal, m = slope, c= concentration, Sbl=blank signal • Slope is calibration sensitivity • Analytical senstivity • g=m/ss, ss =standard deviation • Detection limit • Minimum analyte concentration that can be detected • Approaches blank signal • Generally blank plus 3 times blank standard deviation

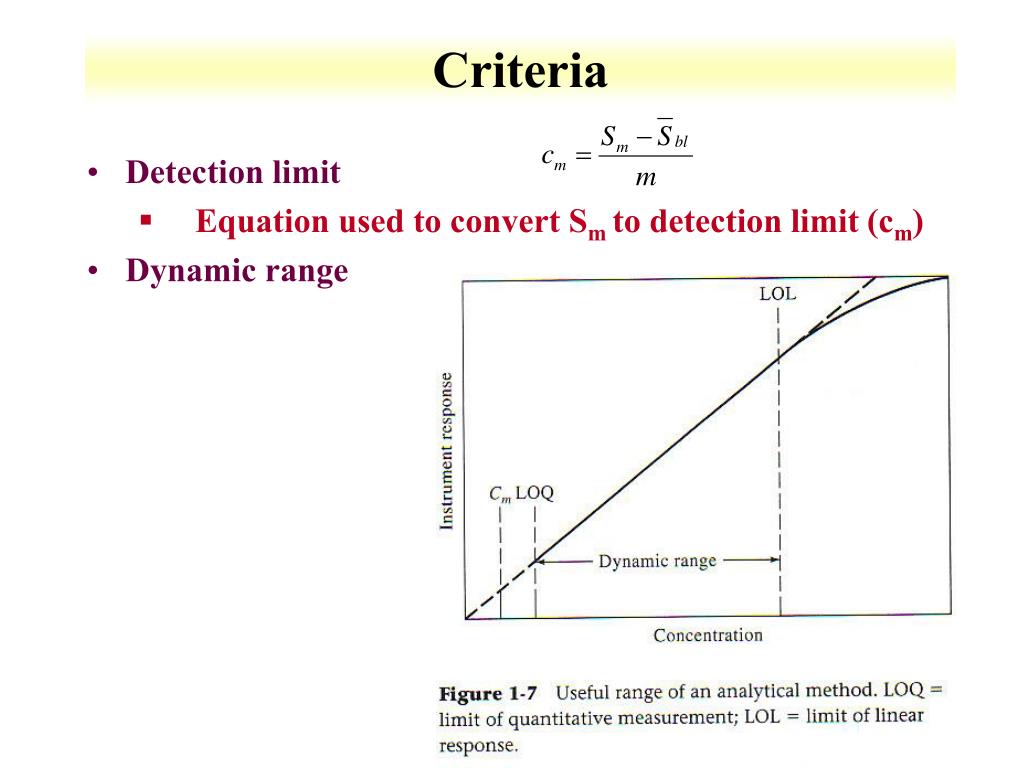

  15. Criteria • Detection limit • Equation used to convert Smto detection limit (cm) • Dynamic range

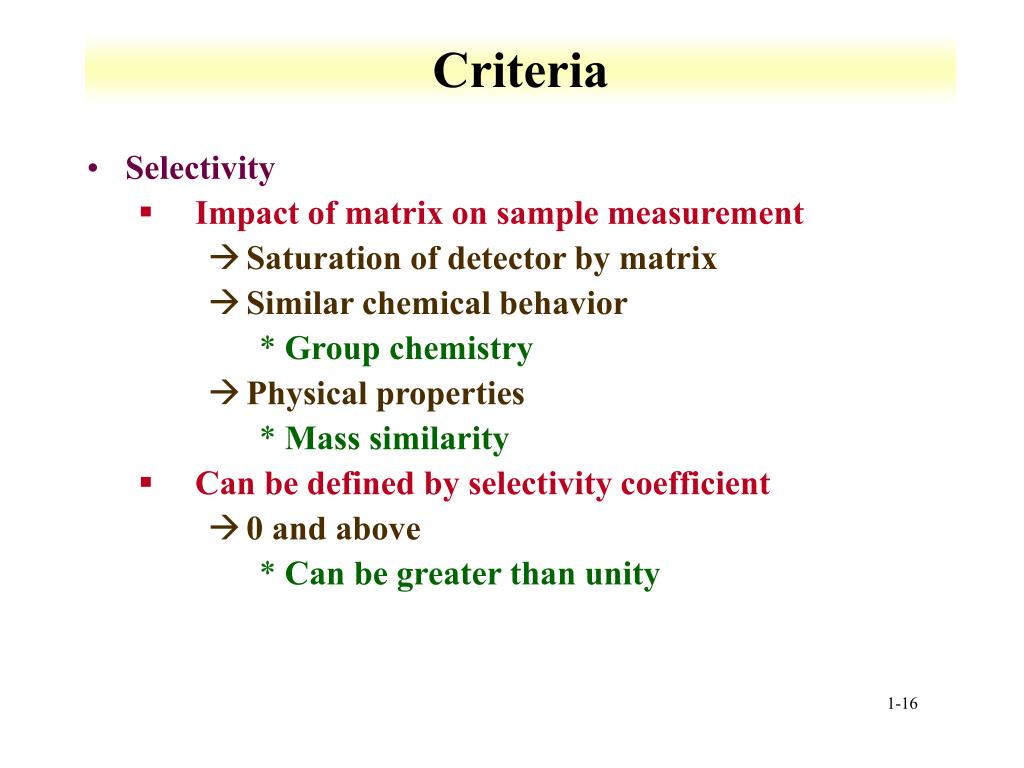

  16. Criteria • Selectivity • Impact of matrix on sample measurement • Saturation of detector by matrix • Similar chemical behavior • Group chemistry • Physical properties • Mass similarity • Can be defined by selectivity coefficient • 0 and above • Can be greater than unity

  17. Calibration • Calibration curve • Standard are measured and response recorded • Need to consider matrix • Can be non-linear

  18. Calibration • Standard Addition • Addition of standard directly to sample • Multiple samples used to determine unknown concentration • cx=unknown concentration, S is response for sample (1) and sample plus standard (2), cs is concentration of added standard, Vx is volume of unknown, Vs is volume of added sample • Internal Standard • Standard added to all samples, blanks, and calibration

  19. Chap 2 Electric components and circuits • Instruments rely upon measurements in a circuit • Based on electricity laws • Ohms law • V=IR (V= potential difference in volts, R is resistance in ohms, and I is current in amperes • Kirchhoff’s law • Sum of current around a point is 0 • Power Law • P=IV (P in watts)

  20. Current Circuits • Series Circuit • R and V related based on fundamental laws • Vx=V(Rx/R) • Apply Kirchhoff’s law and Ohm’s law to find voltage at any point

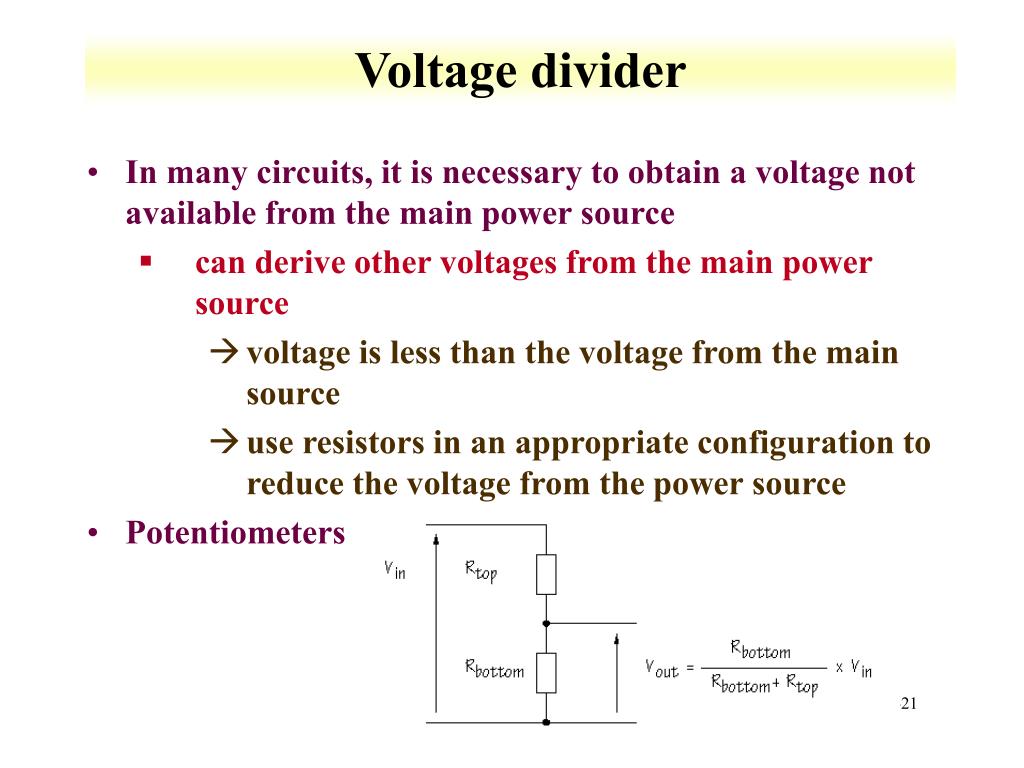

  21. Voltage divider • In many circuits, it is necessary to obtain a voltage not available from the main power source • can derive other voltages from the main power source • voltage is less than the voltage from the main source • use resistors in an appropriate configuration to reduce the voltage from the power source • Potentiometers

  22. Parallel Circuit • A collection of series circuits • Kirchhoff’s and Ohm’s law still apply • More electrons flow through resistor with lower resistance • Voltage for each section • V=IxRx • It=V/Rt

  23. Measurements • Voltmeter • Integrated circuit • Power supply • Display • Uses analog to digital converter

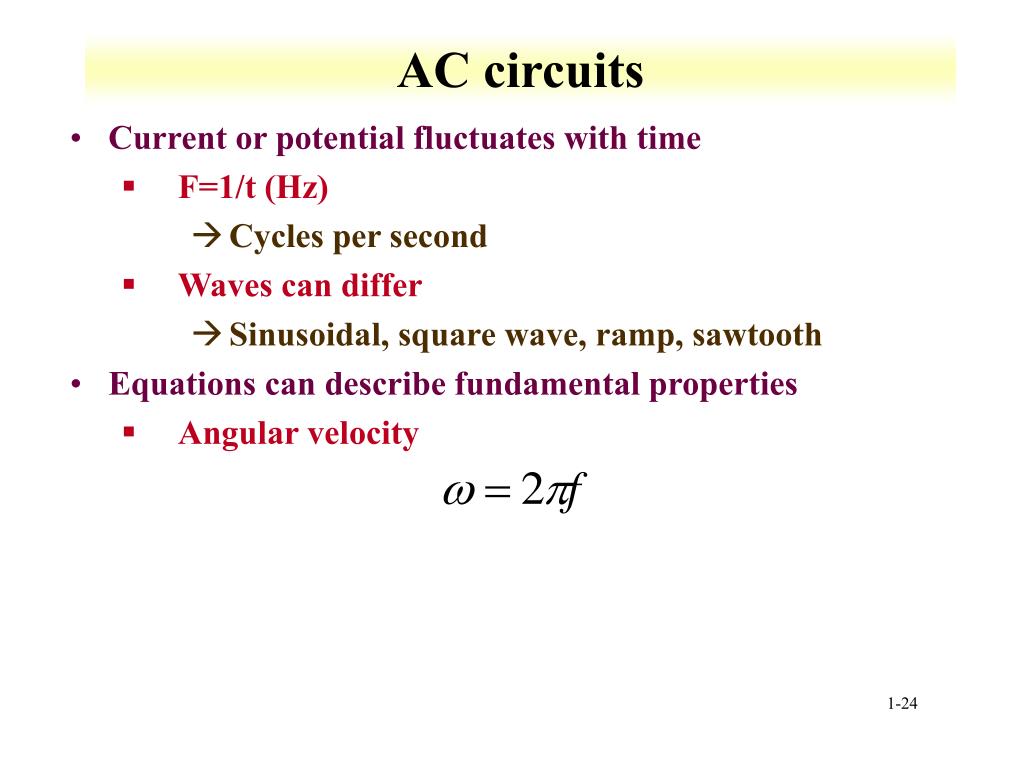

  24. AC circuits • Current or potential fluctuates with time • F=1/t (Hz) • Cycles per second • Waves can differ • Sinusoidal, square wave, ramp, sawtooth • Equations can describe fundamental properties • Angular velocity

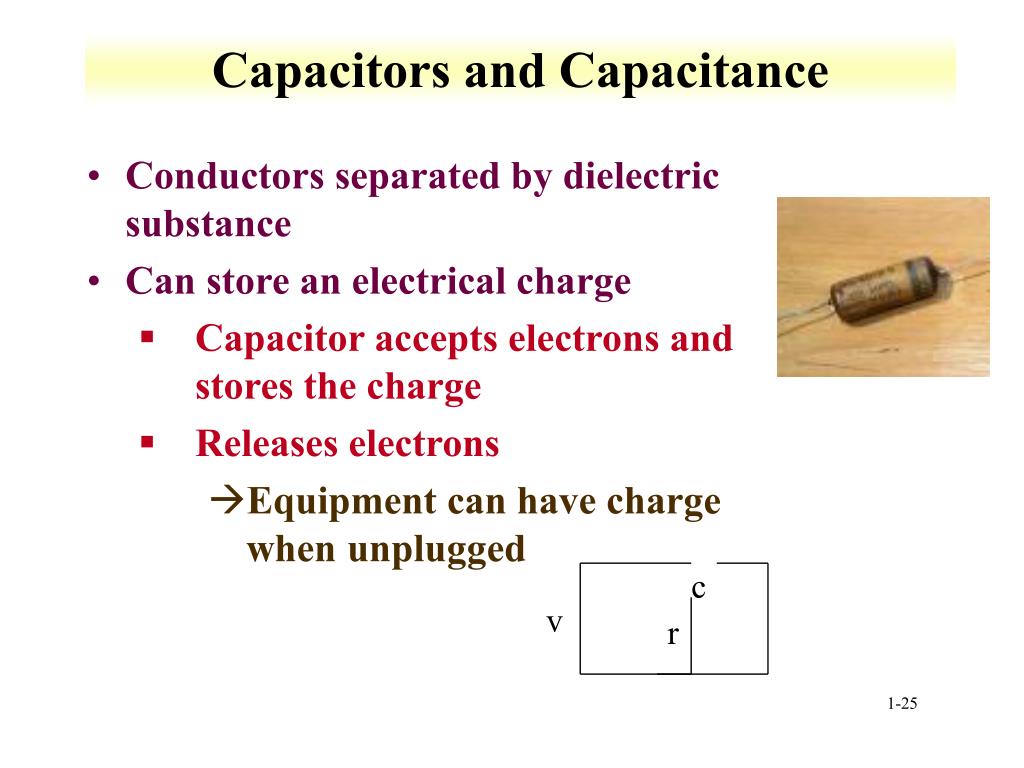

  25. Capacitors and Capacitance • Conductors separated by dielectric substance • Can store an electrical charge • Capacitor accepts electrons and stores the charge • Releases electrons • Equipment can have charge when unplugged c v r

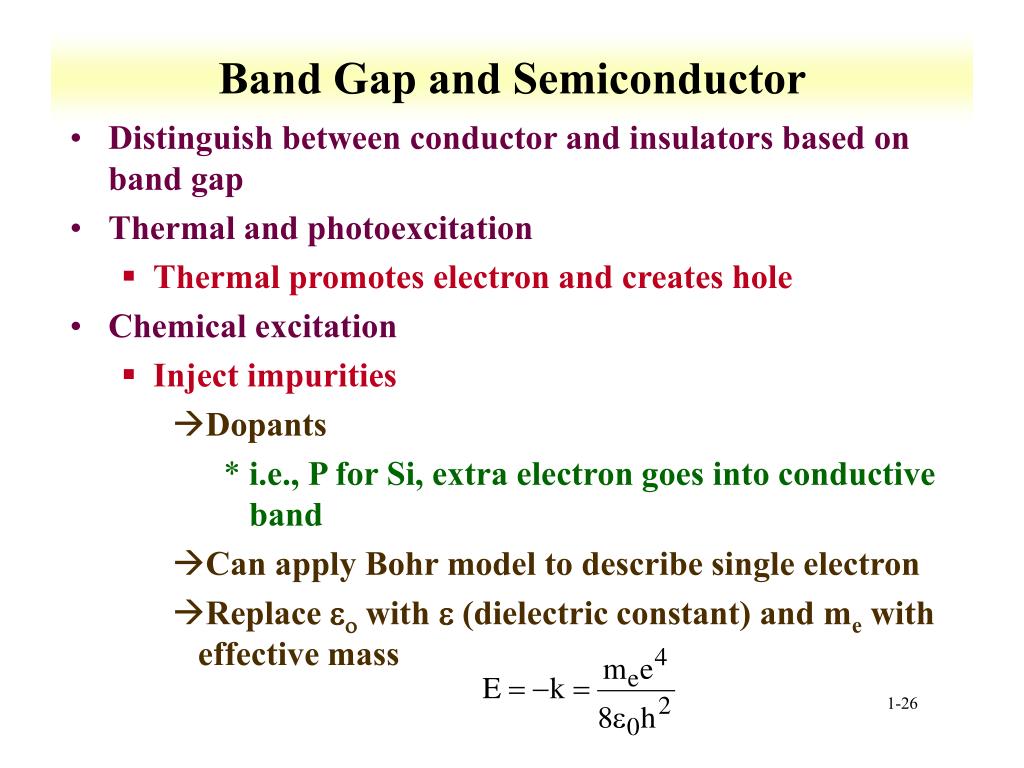

  26. Band Gap and Semiconductor • Distinguish between conductor and insulators based on band gap • Thermal and photoexcitation • Thermal promotes electron and creates hole • Chemical excitation • Inject impurities • Dopants • i.e., P for Si, extra electron goes into conductive band • Can apply Bohr model to describe single electron • Replace eowith e (dielectric constant) and me with effective mass

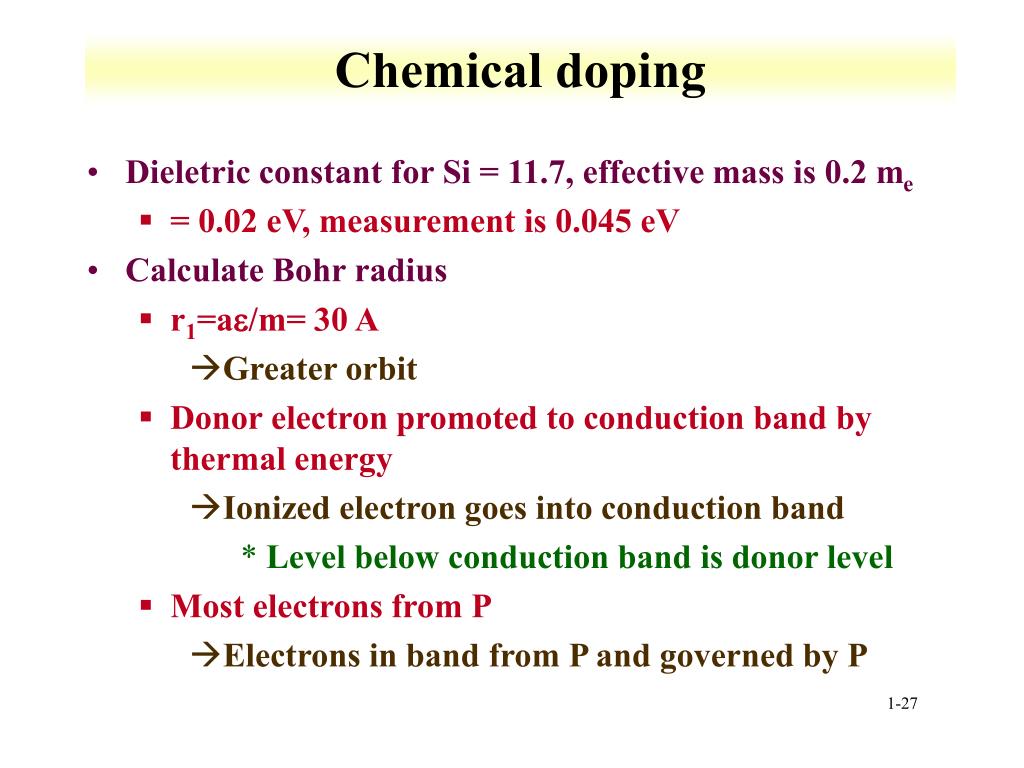

  27. Chemical doping • Dieletric constant for Si = 11.7, effective mass is 0.2 me • = 0.02 eV, measurement is 0.045 eV • Calculate Bohr radius • r1=ae/m= 30 A • Greater orbit • Donor electron promoted to conduction band by thermal energy • Ionized electron goes into conduction band • Level below conduction band is donor level • Most electrons from P • Electrons in band from P and governed by P

  28. Dopants The value of semiconductors for solid state device fabrication lies in the fact that the number and type of conducting electric charge carriers [electrons are n-type (negative), holes are p-type (positive)] can be controlled through incorporation of appropriate dopant elements. Thus the substitutional incorporation of Group V elements (Sb, As, P) provides for shallow donor levels in the band gap at about 0.01 eV from the conduction band. The substitutional incorporation of Group III elements (B, Al) generates acceptor levels in the band gap at about 0.01 eV from the valence band. The two types of impurities are almost completely ionized at room temperature and give rise to extrinsic n-type and p-type conductivity – the basis for the formation of junction devices such as diodes and transistors (fig. 8). Of increasing importance are compound III–V ( adamantine) semiconductors, such as GaAs, InSb, InP and GaP (compounds of Group III and Group V elements). Together these compounds provide eight valence electrons and, by sp 3 hybridization, are able to form a diamond-like, covalent crystal structure with semiconductor properties. These compounds (GaAs, for example) exhibit electron mobilities which are higher than those of silicon and, therefore, are of considerable interest for advanced device technology.

  29. Doping • N-type (negative) • Electron extrinsic semiconductor (extra e-) • Dope with subvalent impurity • B in Si • Removes electron from valance band • Creates hole that is mobile • Apply Bohr model is hole • Energy level are slightly about valence band • Acceptor level (0.01 eV about valence band) • P- type

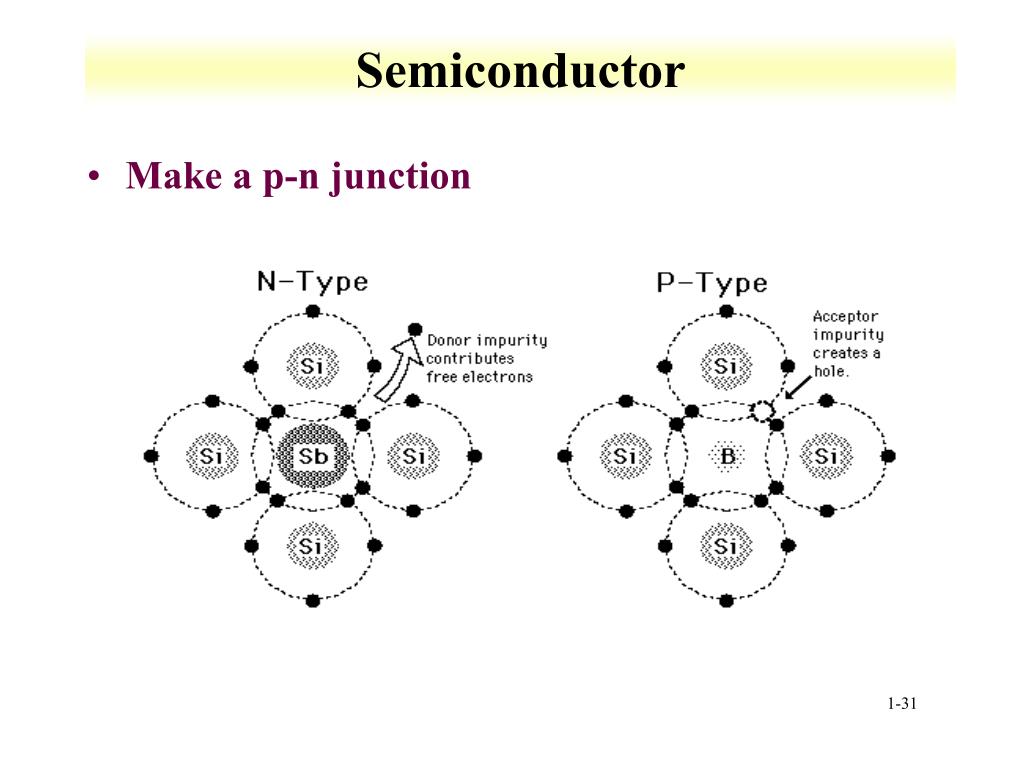

  30. Semiconductor • Make a p-n junction

  31. Solids • Ordered solids • crystalline • Irregular solids • No long range order • Amorphous (glass) • Band gaps > 3 eV are transparent • Shapes are based on packing

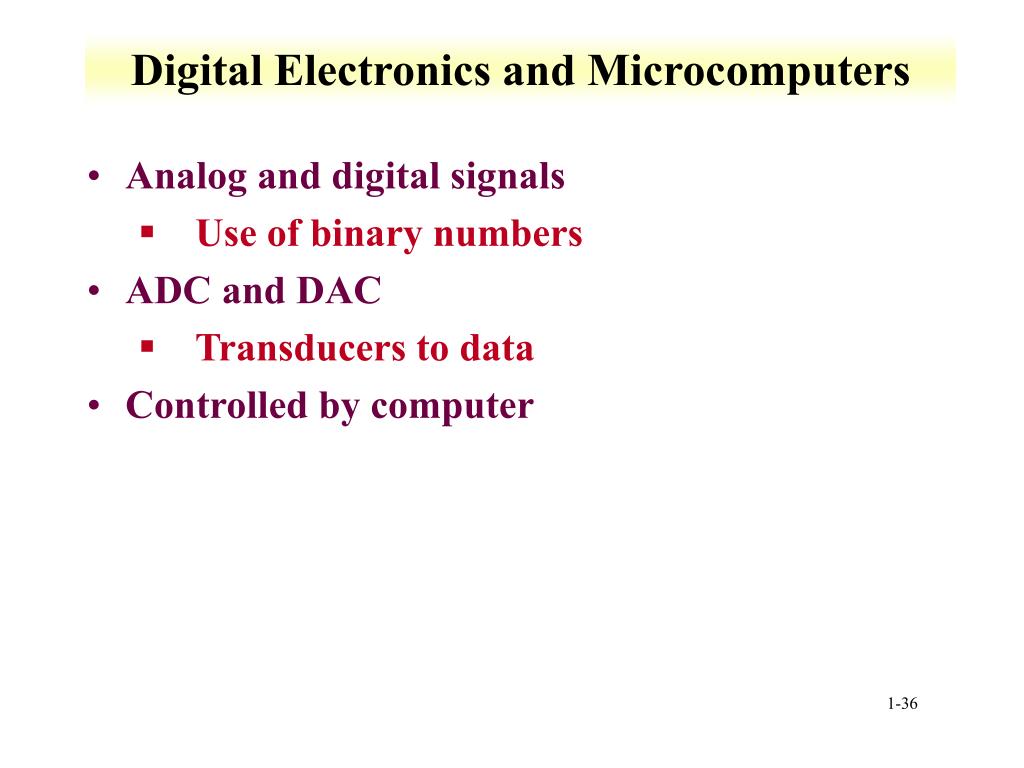

  32. Digital Electronics and Microcomputers • Analog and digital signals • Use of binary numbers • ADC and DAC • Transducers to data • Controlled by computer

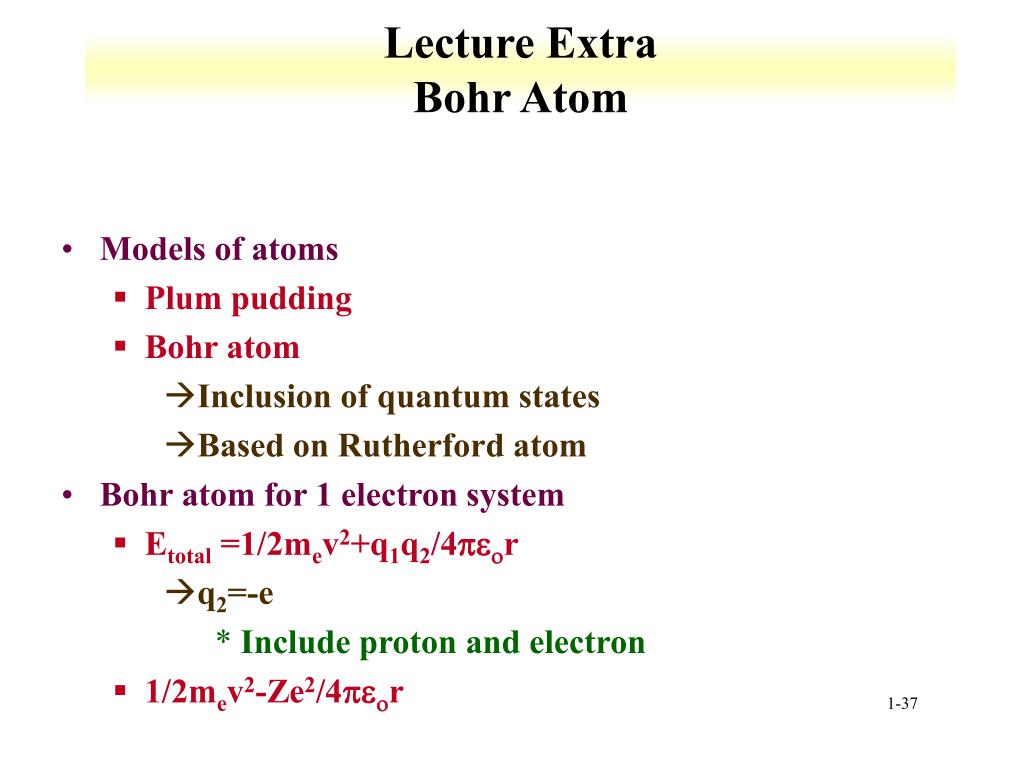

  33. Lecture ExtraBohr Atom • Models of atoms • Plum pudding • Bohr atom • Inclusion of quantum states • Based on Rutherford atom • Bohr atom for 1 electron system • Etotal =1/2mev2+q1q2/4peor • q2=-e • Include proton and electron • 1/2mev2-Ze2/4peor

  34. Bohr Atom • Net force on the electron is zero • 0=Fdynamic+Fcoulombic • 1/2mev2/r+q1q2/4peor2 • Force is 1/r2 • Energy 1/r • 1/2mev2/r-Ze2/4peor2 • Z is charge on nucleus • Quantize energy through angular momentum • mvr=nh/2p, n=1,2,3…. • Can solve for r, E, v

  35. Bohr radius • R=(eoh2/pmee2)(n2/Z) • Radius is quantized and goes at n2 • R=0.529 Å for Z=1, n=1 • Ao (Bohr radius)

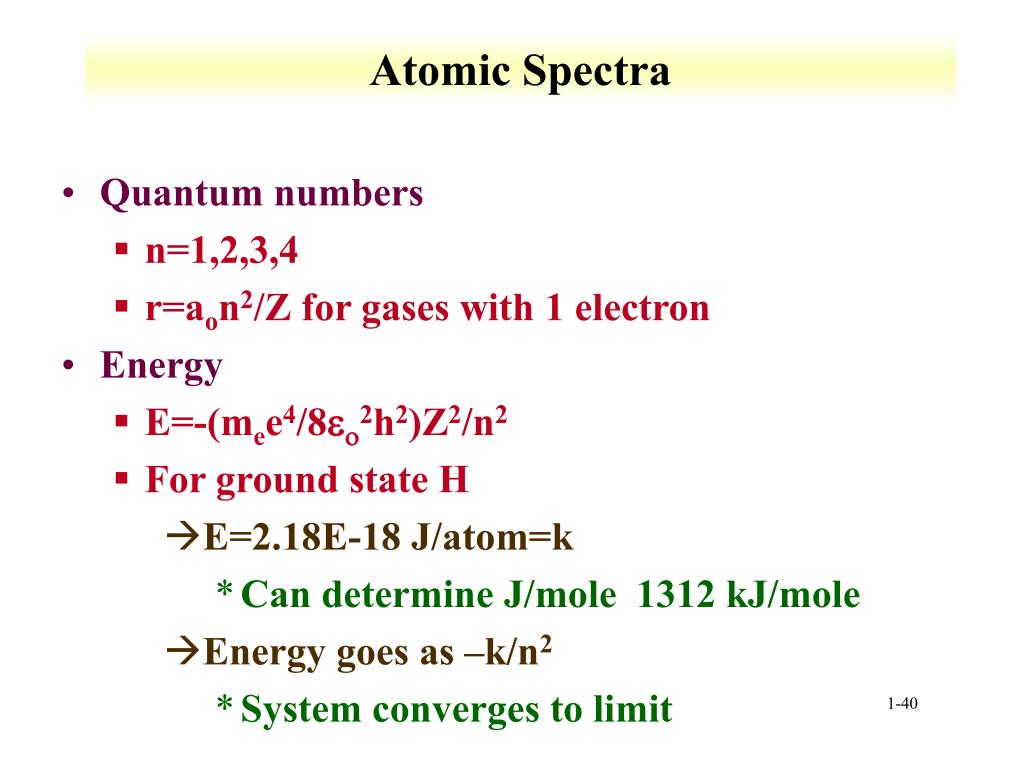

  36. Atomic Spectra • Quantum numbers • n=1,2,3,4 • r=aon2/Z for gases with 1 electron • Energy • E=-(mee4/8eo2h2)Z2/n2 • For ground state H • E=2.18E-18 J/atom=k • Can determine J/mole 1312 kJ/mole • Energy goes as –k/n2 • System converges to limit

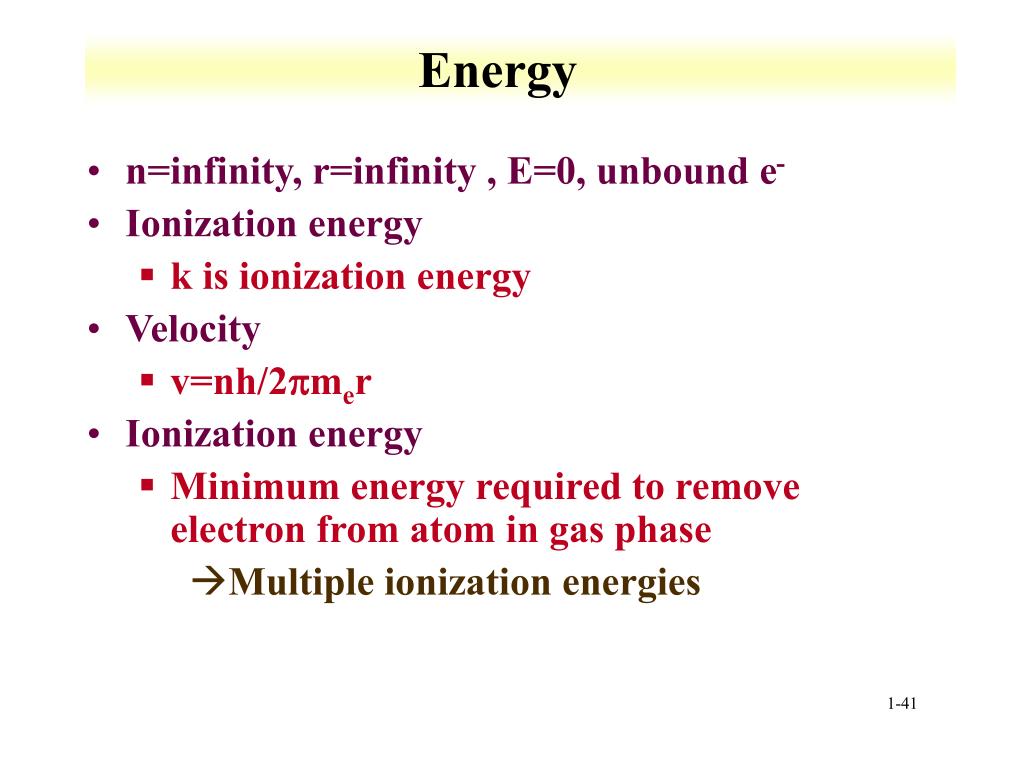

  37. Energy • n=infinity, r=infinity , E=0, unbound e- • Ionization energy • k is ionization energy • Velocity • v=nh/2pmer • Ionization energy • Minimum energy required to remove electron from atom in gas phase • Multiple ionization energies

  38. Balmer states • Gas H in tube • Four lines in visible region • Fit lines • 1/l=(1/22-1/n2)R, R=1.1E-7 m-1 • 1/l=n (wavenumber) • E=1/2mev2=eV (V=Volts) • At 1 V = 1.6E-19 J =eV • K=13.6 eV

  39. Matter energy interaction • Eincident=1/2mv2=qV • Escattered • DE =Eincident-Escattered • DE=kZ2(1/n2final-1/n2in)=hn=hc/l • De-excitation of electron results in photon emission • Corresponds to line emission
