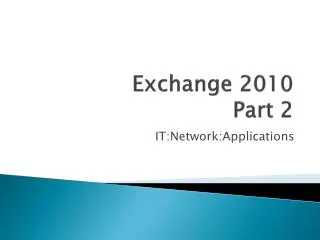

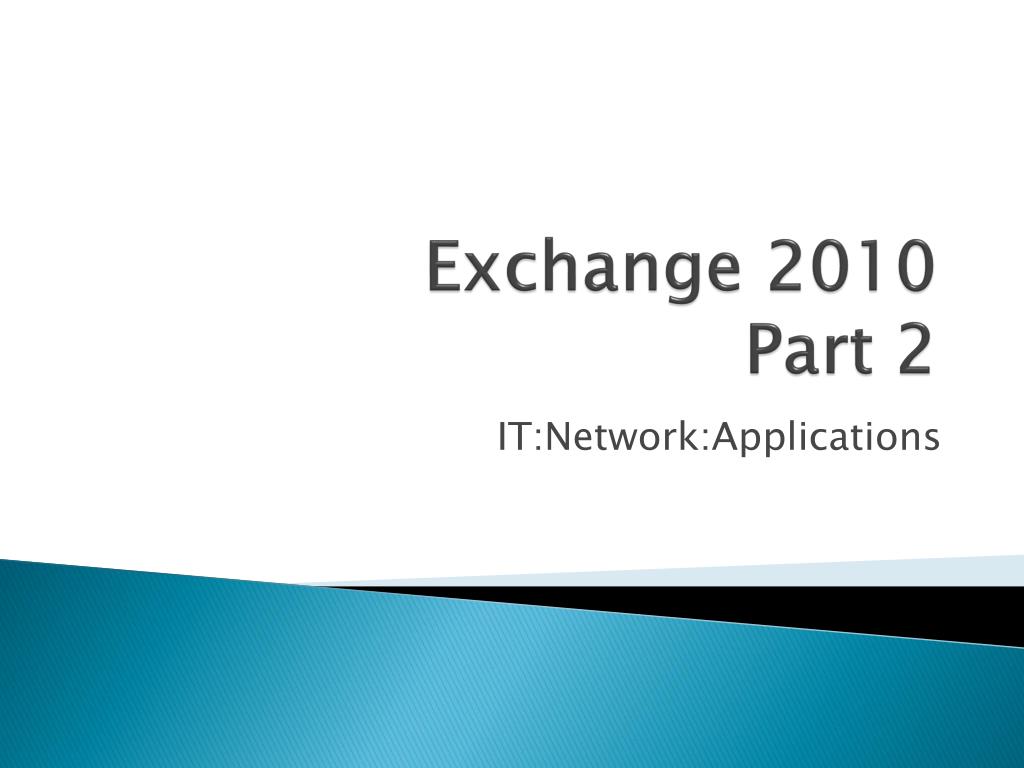

  1. Exchange 2010Part 2 IT:Network:Applications

  2. Exchange 2010 • Pre-installation requirements • Install Windows Components • PowerShell command • Installation • Update

  3. Pre-Installation Requirements • AD forest functional level is Windows Server 2003 (or higher) • AD Schema Master is running Windows Server 2003 w/SP1 or later • Full installation of Windows Server 2008 w/SP2 or later OR Windows Server 2008 R2 for the Exchange server itself • Target Exchange server is joined to the domain

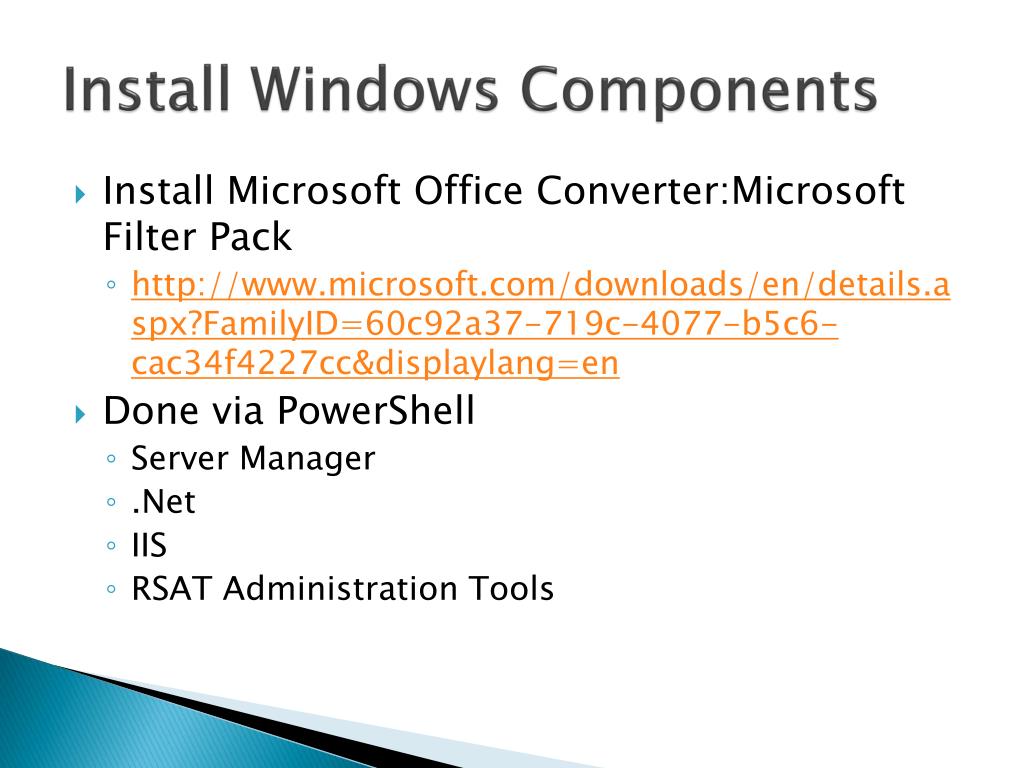

  4. Install Windows Components • Install Microsoft Office Converter:Microsoft Filter Pack • http://www.microsoft.com/downloads/en/details.aspx?FamilyID=60c92a37-719c-4077-b5c6-cac34f4227cc&displaylang=en • Done via PowerShell • Server Manager • .Net • IIS • RSAT Administration Tools

  5. PowerShell • These components are for a typicall installation of: • Client Access • Hub Transport • Mailbox Roles • Minimum required for a single Exchange server installation

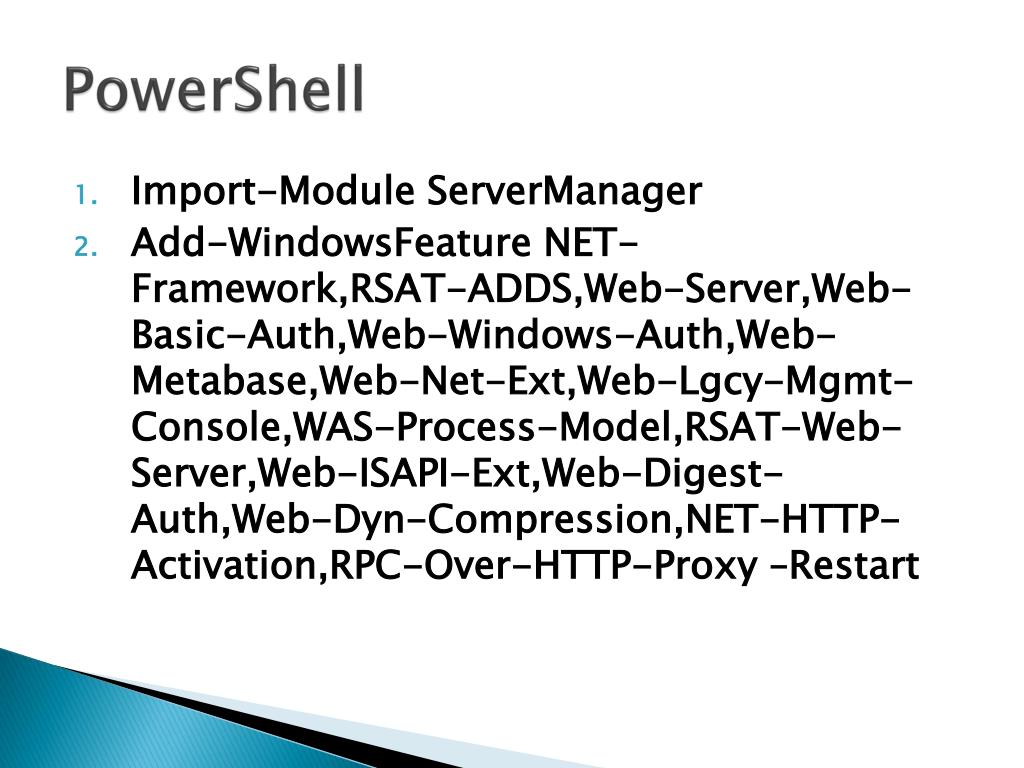

  6. PowerShell • Import-Module ServerManager • Add-WindowsFeature NET-Framework,RSAT-ADDS,Web-Server,Web-Basic-Auth,Web-Windows-Auth,Web-Metabase,Web-Net-Ext,Web-Lgcy-Mgmt-Console,WAS-Process-Model,RSAT-Web-Server,Web-ISAPI-Ext,Web-Digest-Auth,Web-Dyn-Compression,NET-HTTP-Activation,RPC-Over-HTTP-Proxy –Restart

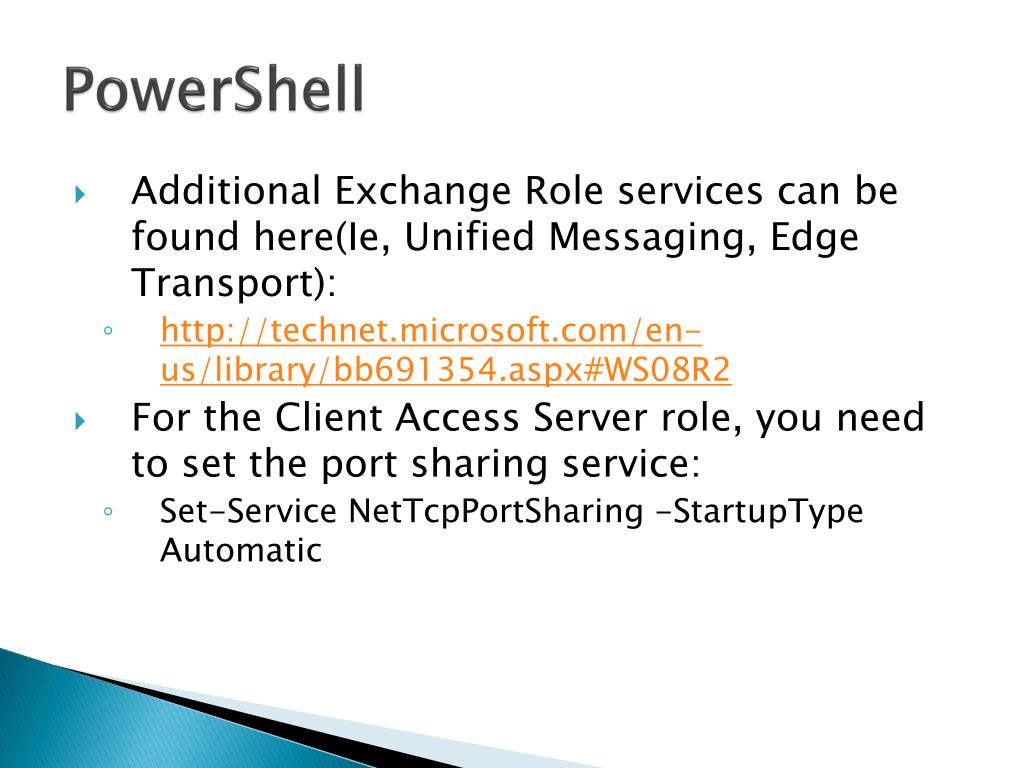

  7. PowerShell • Additional Exchange Role services can be found here(Ie, Unified Messaging, Edge Transport): • http://technet.microsoft.com/en-us/library/bb691354.aspx#WS08R2 • For the Client Access Server role, you need to set the port sharing service: • Set-Service NetTcpPortSharing -StartupType Automatic

  8. Installation • Prep work is finished for a “typical” typical installation • Log onto your target Exchange server as the Domain Administrator • Run setup from the installation media

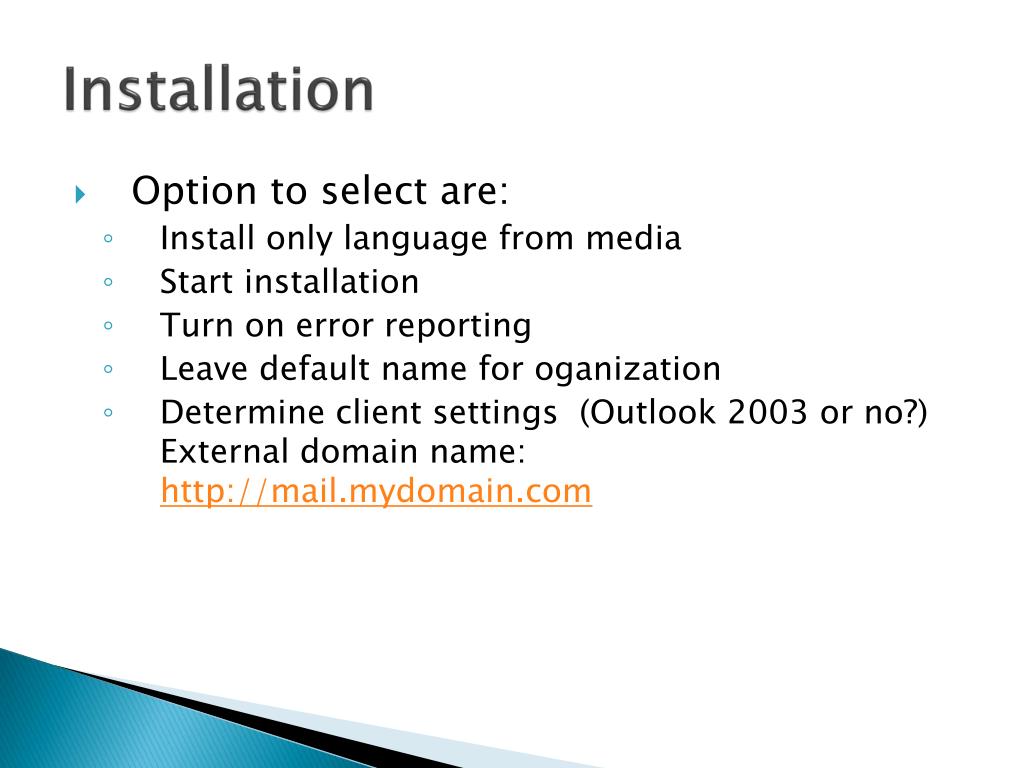

  9. Installation • Option to select are: • Install only language from media • Start installation • Turn on error reporting • Leave default name for oganization • Determine client settings (Outlook 2003 or no?)External domain name: http://mail.mydomain.com

  10. Installation

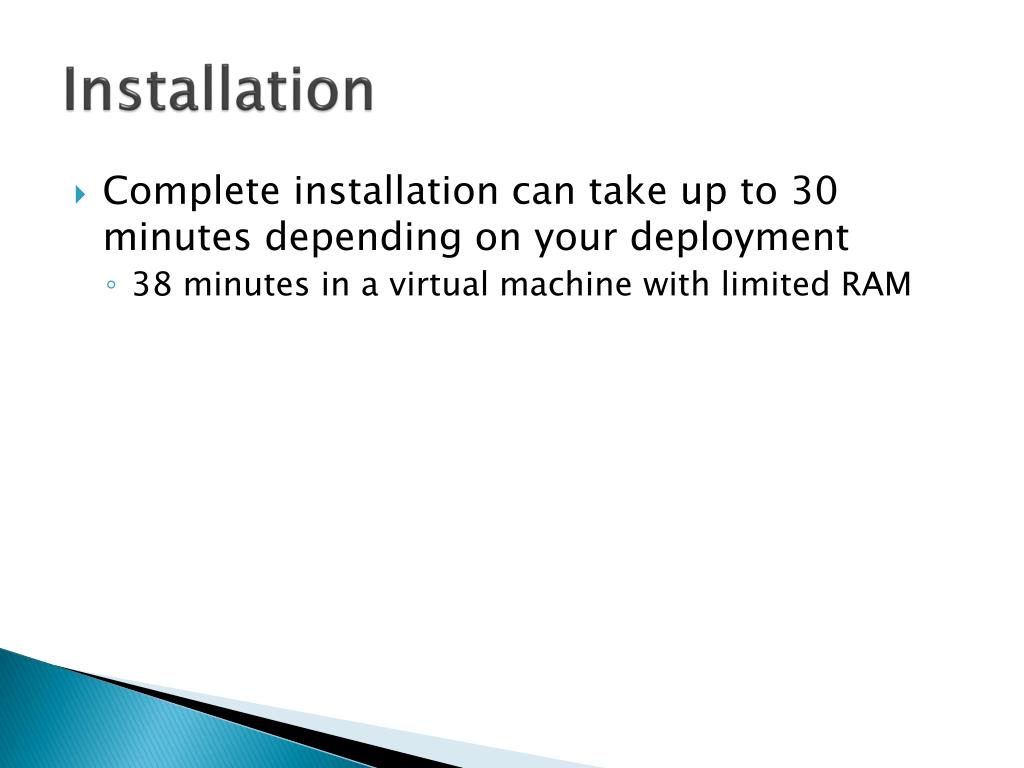

  11. Installation • Complete installation can take up to 30 minutes depending on your deployment • 38 minutes in a virtual machine with limited RAM

  12. Update • After installation completes, return to the setup screen and update the system • Microsoft update will be installed • Will automatically install updates for Exchange 2010

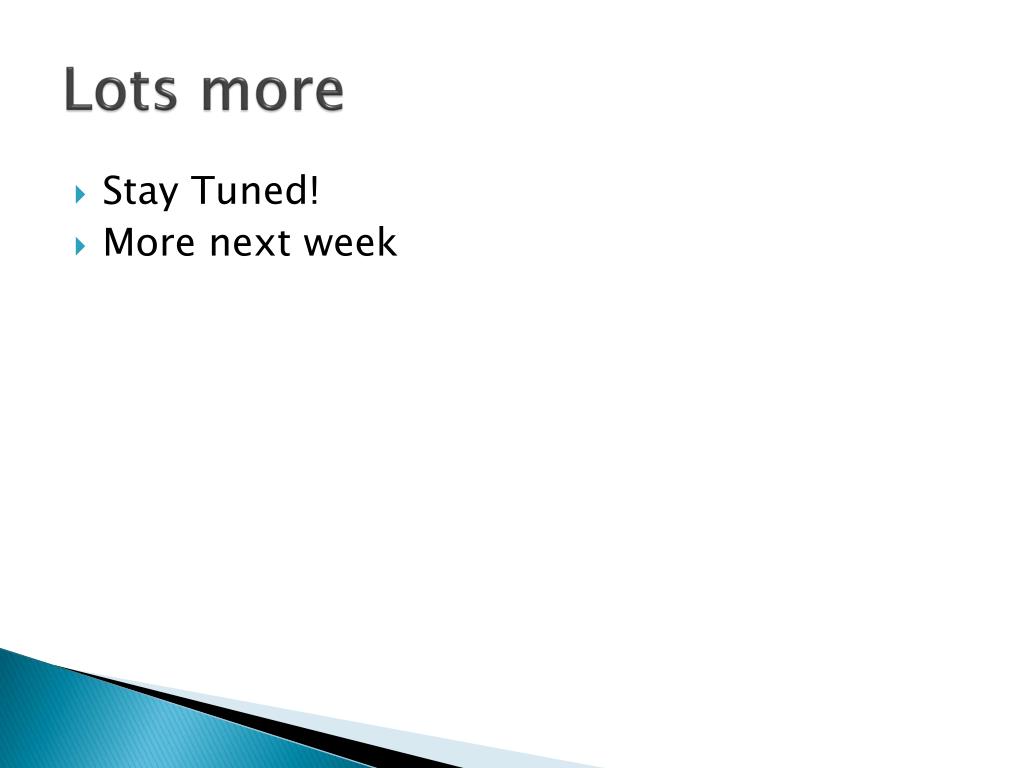

  13. Lots more • Stay Tuned! • More next week
