  1. IT Pro Connections 2009 The cutting edge event for IT pros Active Directory in Depth Χρήστος ΣπανουγάκηςMCT, MVP

  2. Agenda • AD module for Windows PowerShell • AD Administrative Center • AD Best Practice Analyser • Managed Service Accounts • Offline domain join • Authentication mechanism assurance • AD Recycle Bin • AD Troubleshooting - Discussion

  3. Windows Evolution

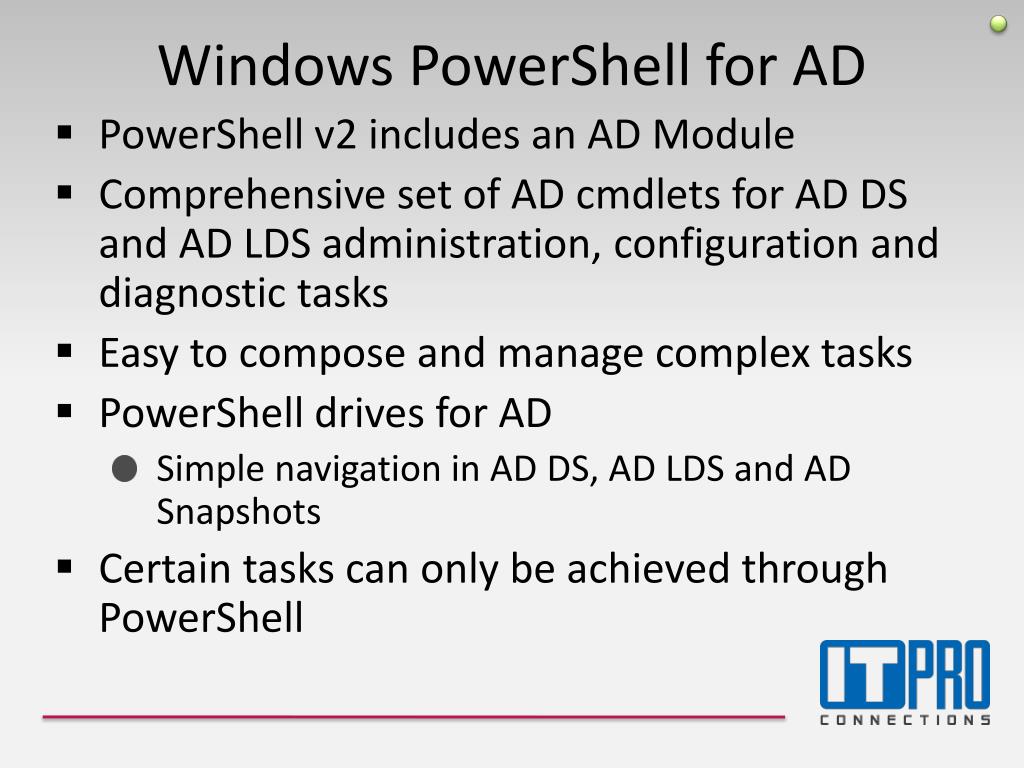

  4. Windows PowerShell for AD • PowerShell v2 includes an AD Module • Comprehensive set of AD cmdlets for AD DS and AD LDS administration, configuration and diagnostic tasks • Easy to compose and manage complex tasks • PowerShell drives for AD • Simple navigation in AD DS, AD LDS and AD Snapshots • Certain tasks can only be achieved through PowerShell

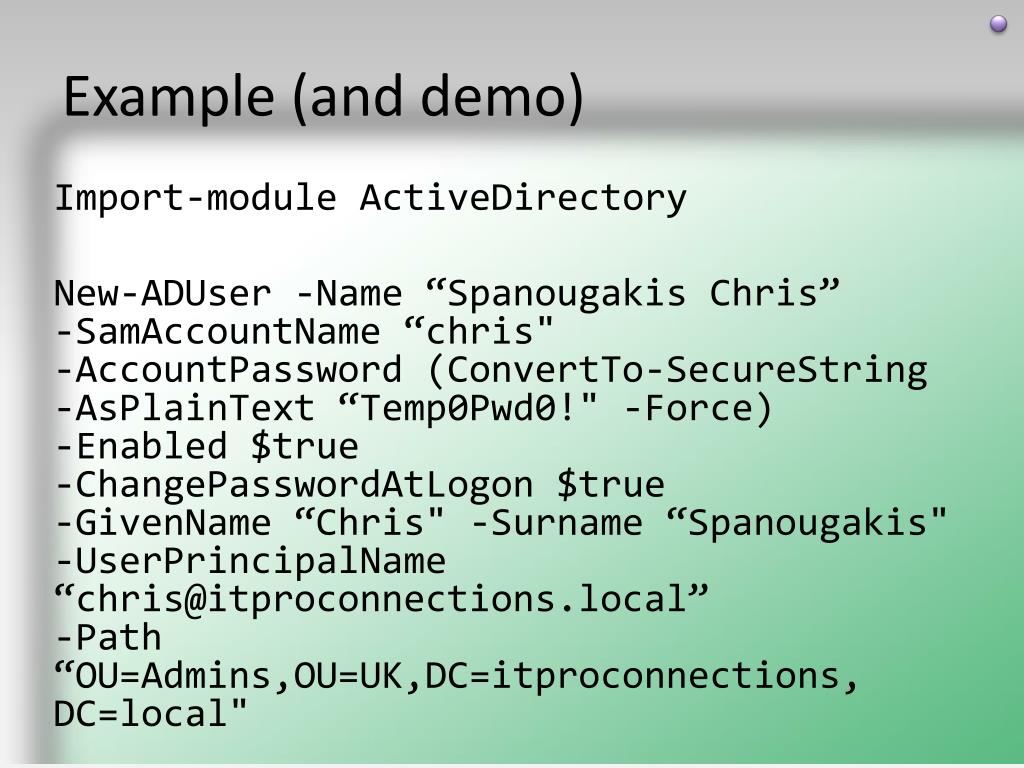

  5. Example (and demo) Import-module ActiveDirectory New-ADUser -Name “Spanougakis Chris” -SamAccountName “chris" -AccountPassword (ConvertTo-SecureString-AsPlainText “Temp0Pwd0!" -Force) -Enabled $true -ChangePasswordAtLogon $true -GivenName “Chris" -Surname “Spanougakis" -UserPrincipalName “chris@itproconnections.local”-Path “OU=Admins,OU=UK,DC=itproconnections,DC=local"

  6. AD Web Services (ADWS) Demo • ADWS is automatically installed with AD DS and AD LDS • Port 9389 must be open for remote administration • Active Directory Management Gateway (ADMG) service available for Windows Server 2003 and 2008 • Does not support instances of AD Mounting Tool PowerShell Cmdlets WS-* 9389 ADWS LDAP LDAP LDAP 3268 389 MountedAD instance AD LDSinstance AD / GC

  7. AD Administrative Center • Built on PowerShell Cmdlets • Task-oriented model • Simultaneously connectto other domains • Progressive disclosure of data • Powerful Searching

  8. Best Practice Analyser • Compares current configuration on DC to best practice recommendations • Scan started via Server Manager or PowerShell • Results through UI and PowerShell output • Provides guidance, does not fix problems • Red Eye • Warning • Information • Quarterly updates

  9. Service Accounts Username: SRV1 Password: ***** Password changesmust be updatedon the service account • Using built in accounts for services does not provide service isolation • What’s the alternative? • Run the services using standard user accounts • How many of you change services account passwords on a regular basis? • Any problems? Domain accountUsername: SRV1 Password: *****

  10. Managed Service Accounts (demo) Configure service: Append $ to accountname example\svc1$ Username: Password: Domain: example.com Domain accountname: SVC1 3 1 Created in domain: New-ADServiceAccount svc1 2 Install-ADServiceAccount svc1 4 Server automatically resets based on “Max machine account password age” Can reset password withReset-ADServiceAccountPassword svc1 Accounts must be created and managedthrough Windows PowerShell SERVER1

  11. Requirements & Caveats • Service / application requiring managed account must be running on Windows 7 or 2008 R2 • Requires AD Module for Windows PowerShell to be installed • Forest and domain must be prepared for 2008 R2 • adprep /forestprep & adprep /domainprep • Managed accounts cannot be shared across multiple servers • In other words.. Use them LOCALLY...

  12. Offline Domain Joins • Allows a Windows 7 or Windows 2008 R2 machines to be joined to a domain while offline • On start up, the machine is already domain joined and there is no reboot requirement • Speeds up deployment of VMs and scripted installs • New section in unattended.xml supports offline domain joins • Simplifies domain joins to RODCs

  13. Djoin.exe (demo) Djoin /provision /domain example.com / machine ms1 /savefile ms1.txt • Windows 7 or 2008 R2 required for • Computers running djoin • Computers being joined to domain Computer account metadata. Base-64 encoded, treat as security sensitive Computeraccount object djoin /requestODJ /loadfile <ms1.txt> /windowspath <Windows directory> Requires /localos Add accountmetadata Offline VHD or Physical system Online VHD or Physical system Requires reboot Unattended.xml

  14. Authentication Mechanism Assurance Restricted access Fullaccess • Allows applications to control access to resources based on authentication strength • For example only allow access to a resource if the user has been authenticated using a SmartCard • Require Windows 2008 R2 domain functionality Normal authentication Strong authentication

  15. Resource Access Control • When a certificate based logon method is used an administrator-designated universal group is added to the user’s Kerberos token • This group is then used to control access to resources • It is possible to add different groups based on the type of certificate used to logon • Access to resources can consequently be based on the certificate type

  16. Recycle Bin for AD • Requires 2008 R2 Forest functionality • PowerShell driven • Enable-ADOptionalFeature ‘Recycle Bin Feature’ –Scope ForestOrConfigurationSet –Target ‘forest’ • Once enabled cannot be disabled • Get-ADObject –LDAPFilter {} –IncludeDeletedObjects • Restore-ADObject –Identity <id> • Parent object must be restored in advance of child object • Restores all attributes including linked Attributes

  17. No Recycle Bin Majority of attributes deleted • Re-animate API restores objects while on-line • Many attributes missing • Re-animation does not restore multi-valued linked attributes such as group membership Garbagecollection X Live object Tombstoneobject Delete Purged fromdirectory Offline authoritative restore Tombstone lifetime (180 days)

  18. Recycle Bin Enabled (demo) All attributes retained • All attributes restored Live object Deletedobject Delete Deleted object lifetime (180 days) Online undelete Recycledobject Garbagecollection X Purged fromdirectory Tombstone lifetime (180 days)

  19. The Path to Windows Server 2008 R2 • Prep forest and domain for Windows 2008 R2 • Windows 7 clients can be provision with offline domain joins against existing 2003/2008 infrastructure • Install Active Directory Management Gateway (ADMG) service on Windows 2003/2008 servers • Use AD PowerShell and ADAC running on Windows 7 • Upgraded servers can use Managed Service Accounts

  20. Functional Levels • Switches to R2 domain and forest functionality are reversible • Use PowerShell to reverse • Set-ADForestMode -Identity itproconnections.local -ForestMode Windows2008Forest • Cannot be reversed once Recycle Bin is enabled • 2008 R2 domain functionality for: • Authentication Mechanism Assurance • SPN management for Manage Service Accounts • 2008 R2 forest functionality allows Recycle Bin to be enabled
