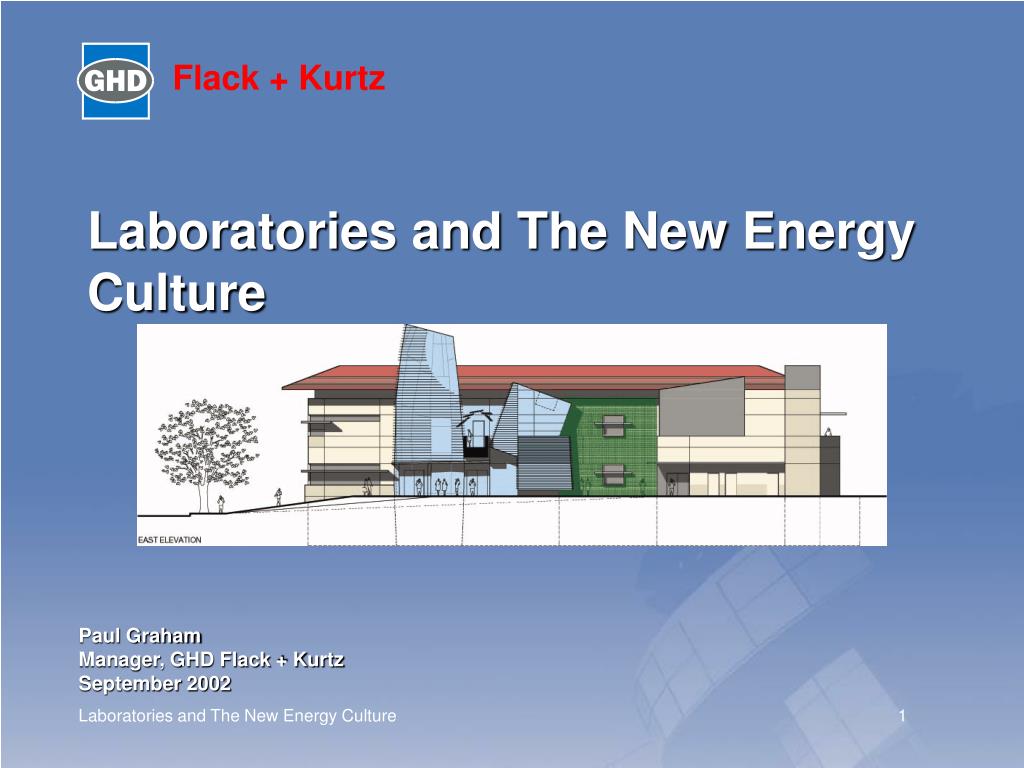

Laboratories and the new energy culture

Laboratories and The New Energy Culture

Paul Graham

Manager, GHD Flack + Kurtz

September 2002

Laboratories and The New Energy Culture1


Overview

Overview

Initiatives

Case Studies

  • CSIRO Energy Centre Newcastle

  • University of California Santa Barbara

  • Pomona College LA

    Outcomes

  • Greenhouse Gas Emission Impacts

  • Financial Impacts

Laboratories and The New Energy Culture2

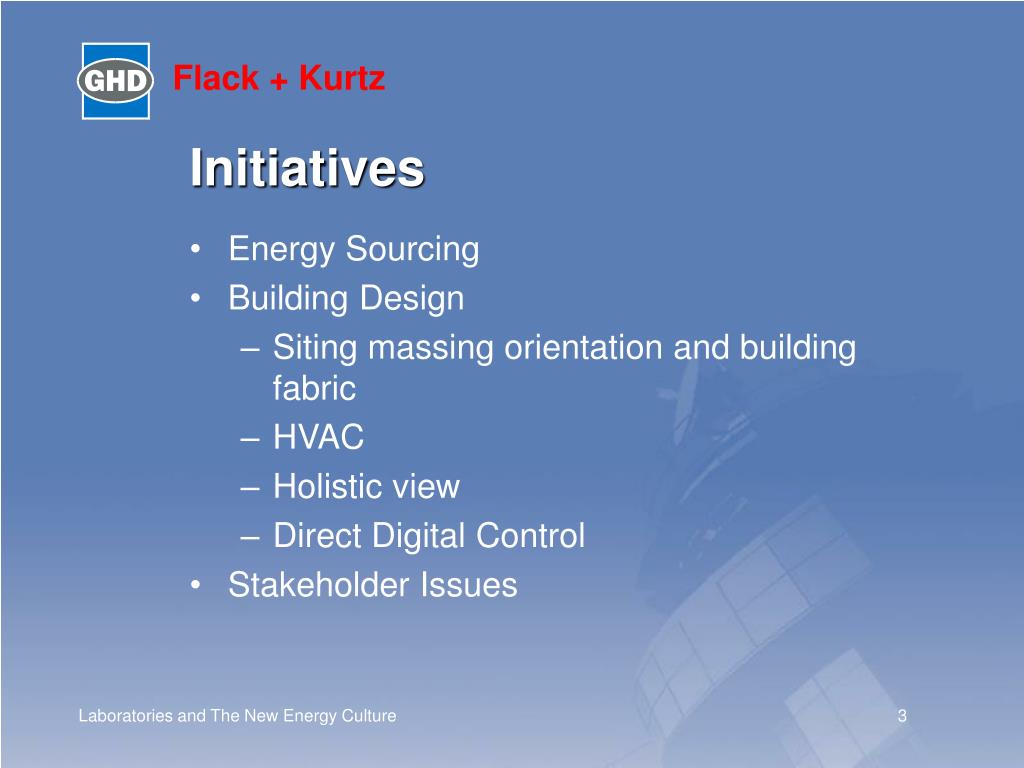

Initiatives

Initiatives

  • Energy Sourcing

  • Building Design

    • Siting massing orientation and building fabric

    • HVAC

    • Holistic view

    • Direct Digital Control

  • Stakeholder Issues

Laboratories and The New Energy Culture3


Csiro energy centre newcastle nsw

CSIRO Energy Centre, Newcastle, NSW

Project Team

Client- CSIRO Corporate Property for CSIRO Energy Technology Division

Architect- Cox Richardson

Consulting Engineers–

Building Services, Advanced Technology, Sustainable Design

GHD Flack + Kurtz and Flack + Kurtz San Francisco

Laboratories and The New Energy Culture4


Csiro energy centre newcastle nsw1

CSIRO Energy Centre, Newcastle, NSW

Energy Sourcing

Embedded Generation System

  • 3 small wind turbines of 20 kW

  • 1 medium wind turbine of 100 kW

  • 140 kWp of building-integrated photo-voltaic cell arrays

  • 2 microturbines of 60 kW

  • 1000 kW battery

  • 4 small fuel cells of around 25 kW (future)

  • Total capacity 520 kW

  • Also, heat recovery and absorption chiller (future)

Laboratories and The New Energy Culture5

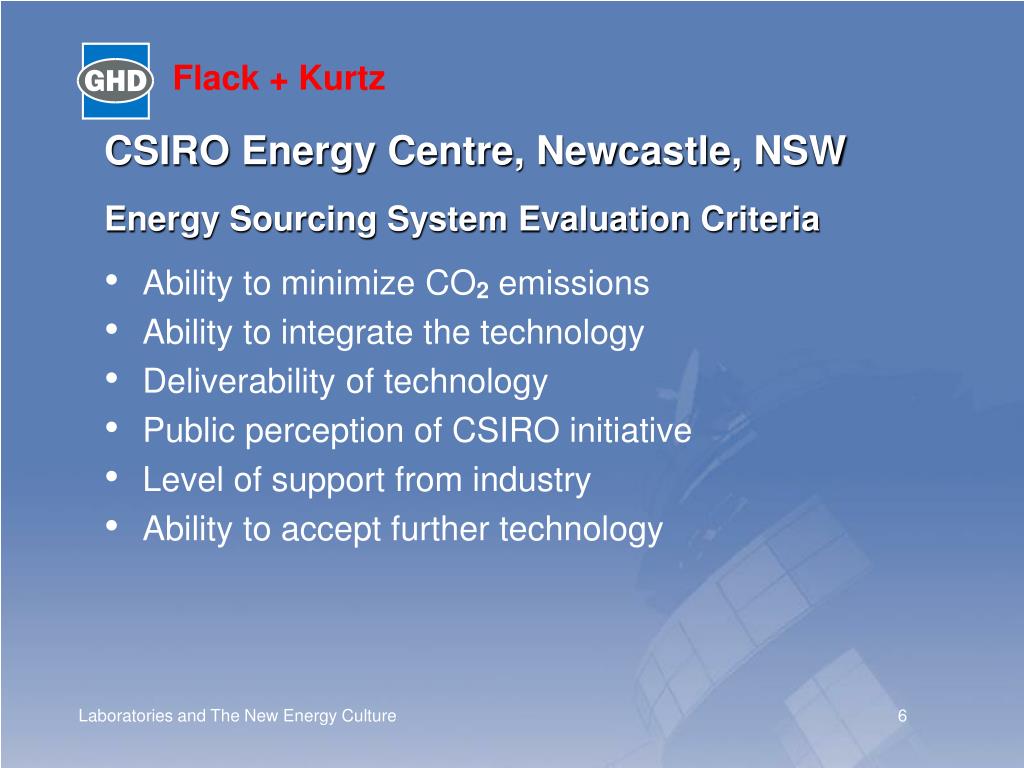

Csiro energy centre newcastle nsw2

CSIRO Energy Centre, Newcastle, NSW

Energy Sourcing System Evaluation Criteria

  • Ability to minimize CO2 emissions

  • Ability to integrate the technology

  • Deliverability of technology

  • Public perception of CSIRO initiative

  • Level of support from industry

  • Ability to accept further technology

Laboratories and The New Energy Culture6


Csiro energy centre newcastle nsw3

CSIRO Energy Centre, Newcastle, NSW

Energy Conservation - Building Energy Optimization

  • Establish baseline energy model

  • Reduce envelope impacts

  • Integrate climate opportunities

  • Reduce internal equipment loads

  • Define user environment

  • Create a modular and flexible facility

  • Optimize building services design

Laboratories and The New Energy Culture7


Csiro energy centre newcastle nsw4

CSIRO Energy Centre, Newcastle, NSW

Energy Conservation - Integrate Natural Climate Opportunities

  • Understand annual climate data, temperature, wind, etc

  • Use natural ventilation wherever possible

  • Utilize daily temperature cycles through thermal mass

  • Utilize passive solar options and shading

  • Optimum orientation of buildings – N or NNW facing

  • Natural light to all functional spaces, optimize glazing

  • Light shelves on north walls of offices and laboratories

  • Sun-shading of north walls of offices and laboratories

Laboratories and The New Energy Culture8

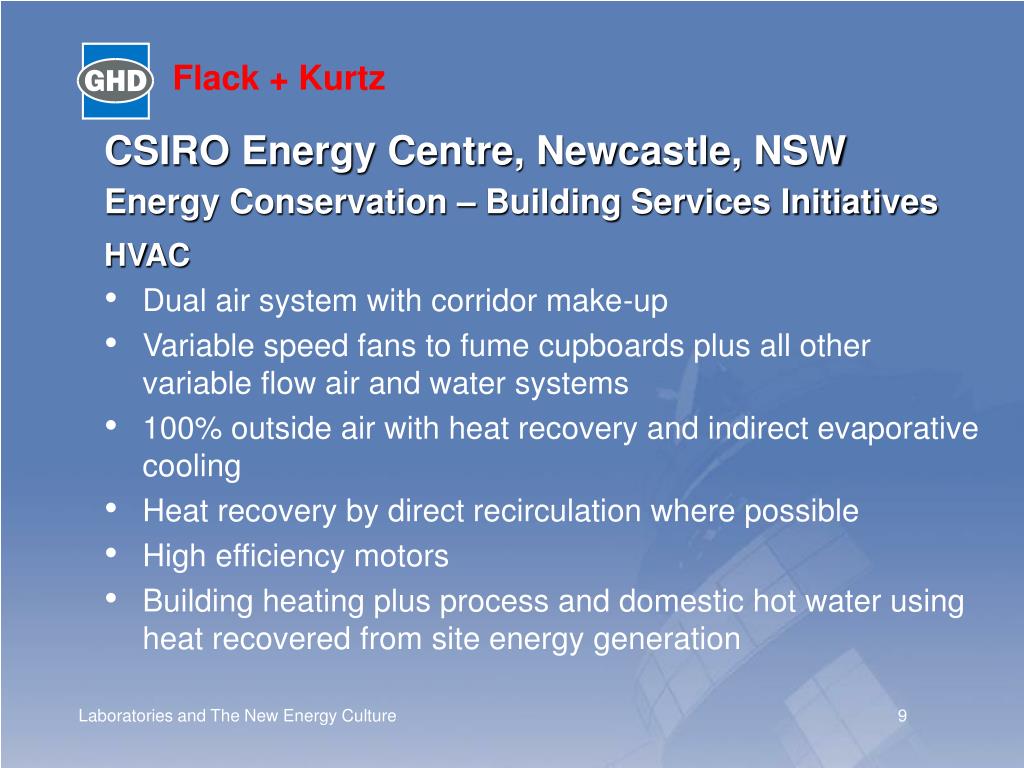

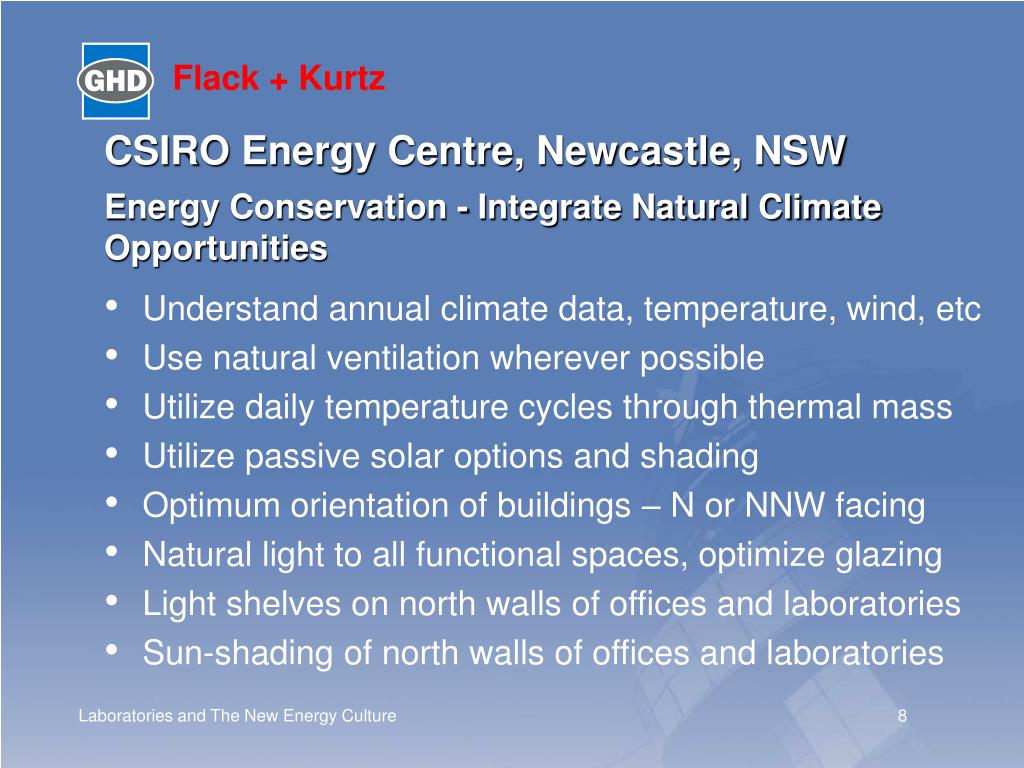

Csiro energy centre newcastle nsw5

CSIRO Energy Centre, Newcastle, NSW

Energy Conservation – Building Services Initiatives

  • HVAC

  • Dual air system with corridor make-up

  • Variable speed fans to fume cupboards plus all other variable flow air and water systems

  • 100% outside air with heat recovery and indirect evaporative cooling

  • Heat recovery by direct recirculation where possible

  • High efficiency motors

  • Building heating plus process and domestic hot water using heat recovered from site energy generation

Laboratories and The New Energy Culture9


Csiro energy centre newcastle nsw6

CSIRO Energy Centre, Newcastle, NSW

Energy Conservation – Building Services Initiatives

  • HVAC Cont…

  • Modularity and on/off control to each laboratory

  • Under-floor office air conditioning system with mixed-mode controls

  • Operable windows for offices and thermal chimneys to create natural ventilation

  • Electrical

  • Lighting control – daylight and occupancy sensing with automatic on/off control wherever possible

  • Energy Star office equipment

Laboratories and The New Energy Culture10


Csiro energy centre newcastle nsw7

CSIRO Energy Centre, Newcastle, NSW

Energy Management – BMS/EMS

  • Supervisory control & data acquisition for site generation

  • Sophisticated Building Management System to match physical systems

  • Central computer control for integration of all components

  • Effective integration of systems

  • Energy auditing of actual and planned performance

  • Public display of generation performance for all components

Laboratories and The New Energy Culture11


Csiro energy centre energy management system ems

CSIRO Energy Centre Energy Management System EMS

Wind

Inverter

Systems

PV

Main

Switchboard

Buildings

BMS

Grid

Laboratories and The New Energy Culture12


Csiro energy centre energy management system ems1

CSIRO Energy Centre Energy Management System EMS

Wind

Inverter

Systems

PV

Main

Switchboard

Buildings

BMS

Grid

Laboratories and The New Energy Culture13

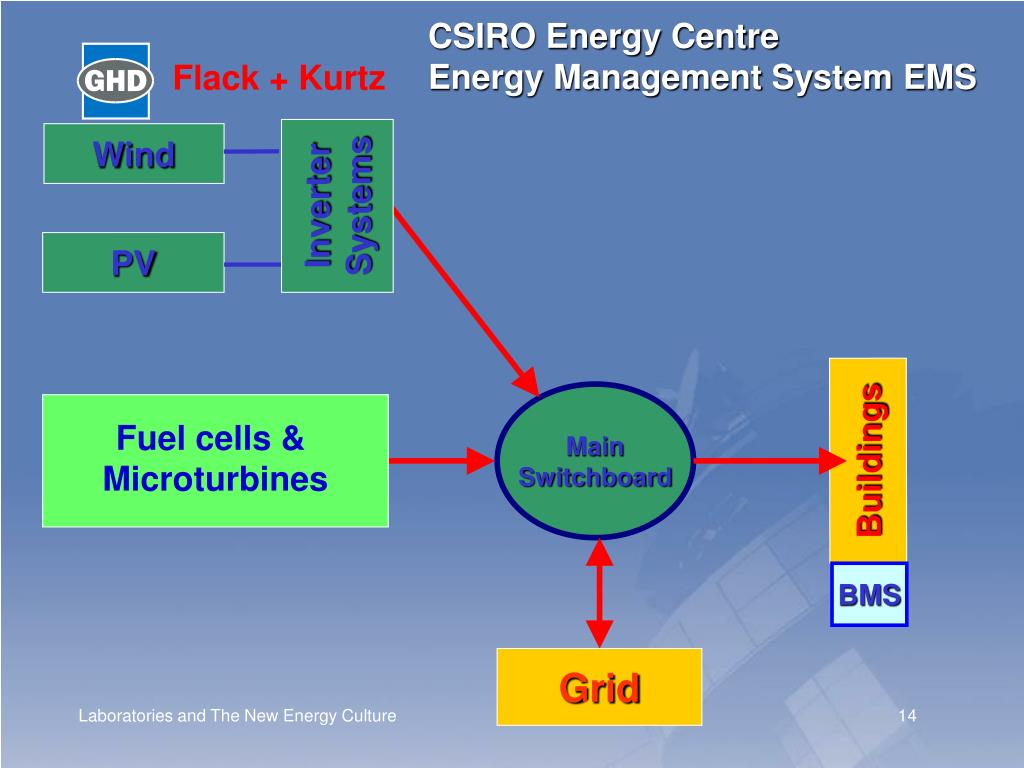

Csiro energy centre energy management system ems2

CSIRO Energy Centre Energy Management System EMS

Wind

Inverter

Systems

PV

Main

Switchboard

Fuel cells &

Microturbines

Buildings

BMS

Grid

Laboratories and The New Energy Culture14


Csiro energy centre energy management system ems3

CSIRO Energy Centre Energy Management System EMS

Battery Storage

Wind

Inverter

Systems

Inverter

PV

Main

Switchboard

Fuel cells &

Microturbines

Buildings

BMS

Grid

Laboratories and The New Energy Culture15


Csiro energy centre energy management system ems4

CSIRO Energy Centre Energy Management System EMS

Battery Storage

Wind

Inverter

Systems

Inverter

PV

Main

Switchboard

Fuel cells &

Microturbines

Buildings

Energy Management System EMS

Electrical Safety, Power Flow, Display, Auditing

BMS

Grid

Laboratories and The New Energy Culture16


Csiro energy centre energy management system ems5

CSIRO Energy Centre Energy Management System EMS

Battery Storage

Wind

Inverter

Systems

Inverter

PV

Main

Switchboard

Fuel cells &

Microturbines

Heat Recovery

Buildings

Energy Management System EMS

Electrical Safety, Power Flow, Display, Auditing

BMS

Grid

Laboratories and The New Energy Culture17


University of california santa barbara

University of California, Santa Barbara

Project Team

Client– UCSB Donald Bren School

Architect- Zimmer Gunsul Frasca Partnership/Brasker LA

Consulting Engineers- Building energy analysis and Building Services Flack + Kurtz San Francisco

Laboratories and The New Energy Culture18


University of california santa barbara1

University of California, Santa Barbara

Features

  • Platinum LEED Rating

  • 200kW fuel cell

  • Energy use 30% below California Title 24req’ts

  • Laboratory Exhausts

  • Office Natural Ventilation

  • High efficiency equipment

  • Efficient lighting strategies

Laboratories and The New Energy Culture19

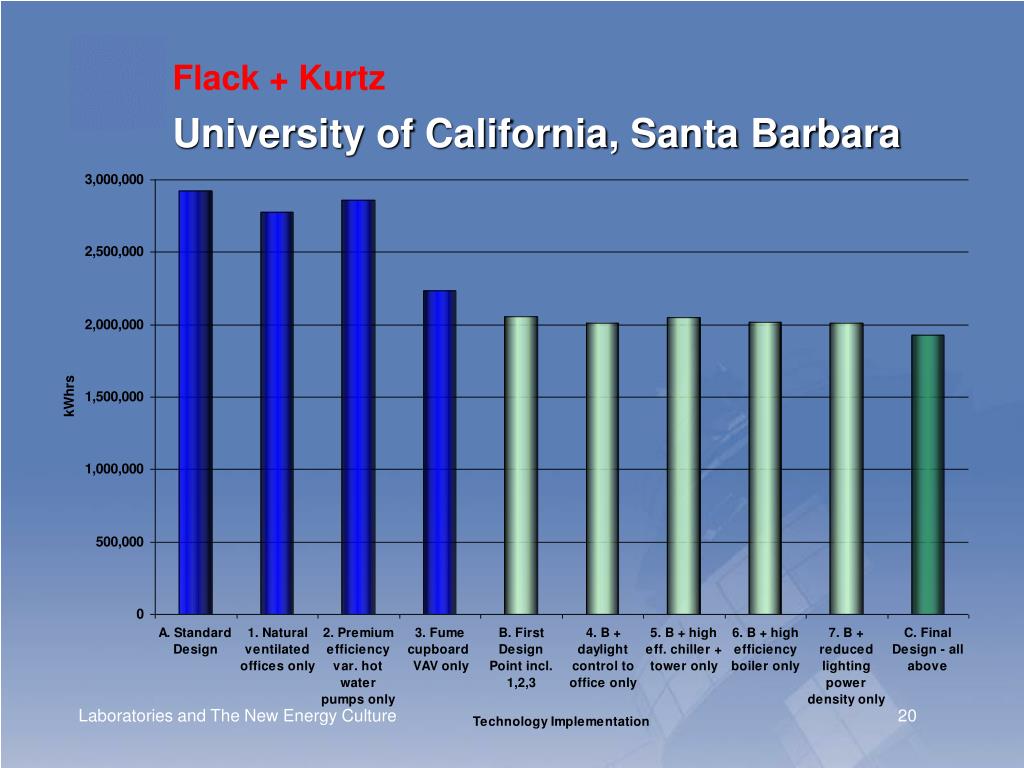

University of california santa barbara2

University of California, Santa Barbara

Laboratories and The New Energy Culture20


Pomona college la

Pomona College, LA

Project Team

Client- Pomona College

Architect- Bauer and Wiley

  • Consulting Engineers– Building energy analysis and Building Services

  • Flack + Kurtz San Francisco

Laboratories and The New Energy Culture21

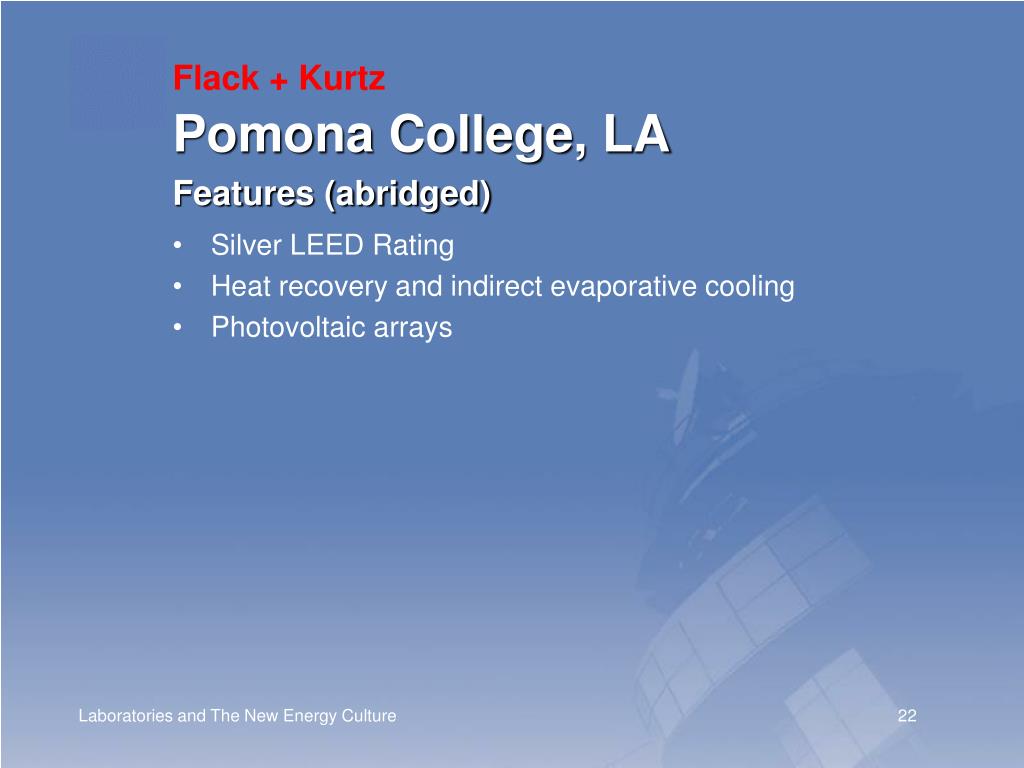

Pomona college la1

Pomona College, LA

Features (abridged)

  • Silver LEED Rating

  • Heat recovery and indirect evaporative cooling

  • Photovoltaic arrays

Laboratories and The New Energy Culture22


Pomona college la2

Pomona College, LA

Heat Recovery and Indirect Evaporative Cooling

Flack + Kurtz Inc.

Laboratories and The New Energy Culture23


Pomona college la3

Pomona College, LA

Heat recovery and IEC effect

Flack + Kurtz Inc.

Laboratories and The New Energy Culture24

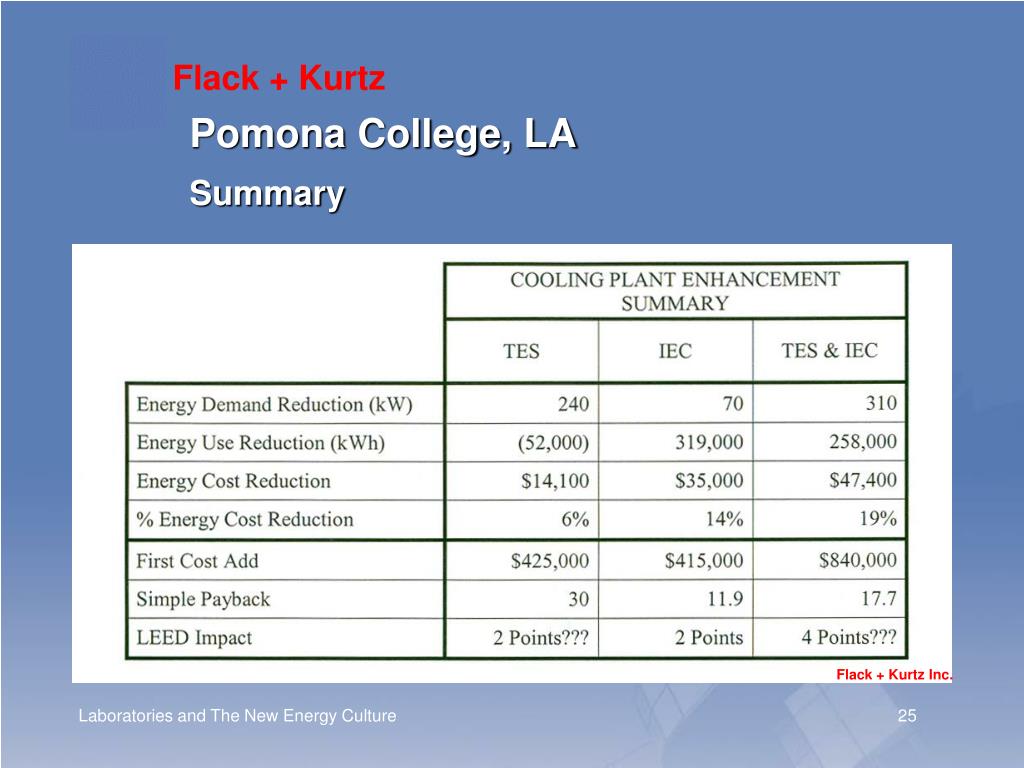

Pomona college la4

Pomona College, LA

Summary

Flack + Kurtz Inc.

Laboratories and The New Energy Culture25


Outcomes

Outcomes

  • Greenhouse gas emission reductions up to 60%

  • Financial Impacts:

    • Building design initiatives are effective on a Life Cycle Cost per kWhr basis

    • Embedded generation additional cents/kWhr relatively low

    • Capital costs from 1% of developed cost to make an appreciable difference up to 10% of developed cost for implementation of all technologies

    • Financials are improving rapidly

Laboratories and The New Energy Culture26


Laboratories and the new energy culture

Laboratories and The New Energy Culture27


Laboratories and the new energy culture

Laboratories and The New Energy Culture28


Laboratories and the new energy culture

Laboratories and The New Energy Culture29


Laboratories and the new energy culture

Laboratories and The New Energy Culture30


Laboratories and the new energy culture

Laboratories and The New Energy Culture31
