Aliases in a bug finding tool

1. Aliases in a bug finding tool Benjamin Chelf Seth Hallem June 5th, 2002

2. Overview • Observation • Bug-finding tools can be sound or unsound • What distinguishes the results between them? • Goal • Evaluate varying levels of precision and soundness of how they handle aliases. • Hypothesis • Sound analysis is not necessary to detect of the types of bugs currently found by state of the art tools.

3. Alias analysis in Metal • No alias analysis in Metal • What must be done to add it? • When transitioning a variable to a new state, must transition anything that may alias it. • Alias analysis must provide the potential aliases given a program point and context. • Caveat: When transitioning aliases, Metal must also insert identity transition edges.

4. Target Alias Analyses • Sound analyses • from the literature: Steensgard, CLA, Wilson/Lam, Instantiation Constraints, One-Level Flow (Das) • Unsound Analyses • no analysis (Metal as is) • non-conservative single-level/double-level

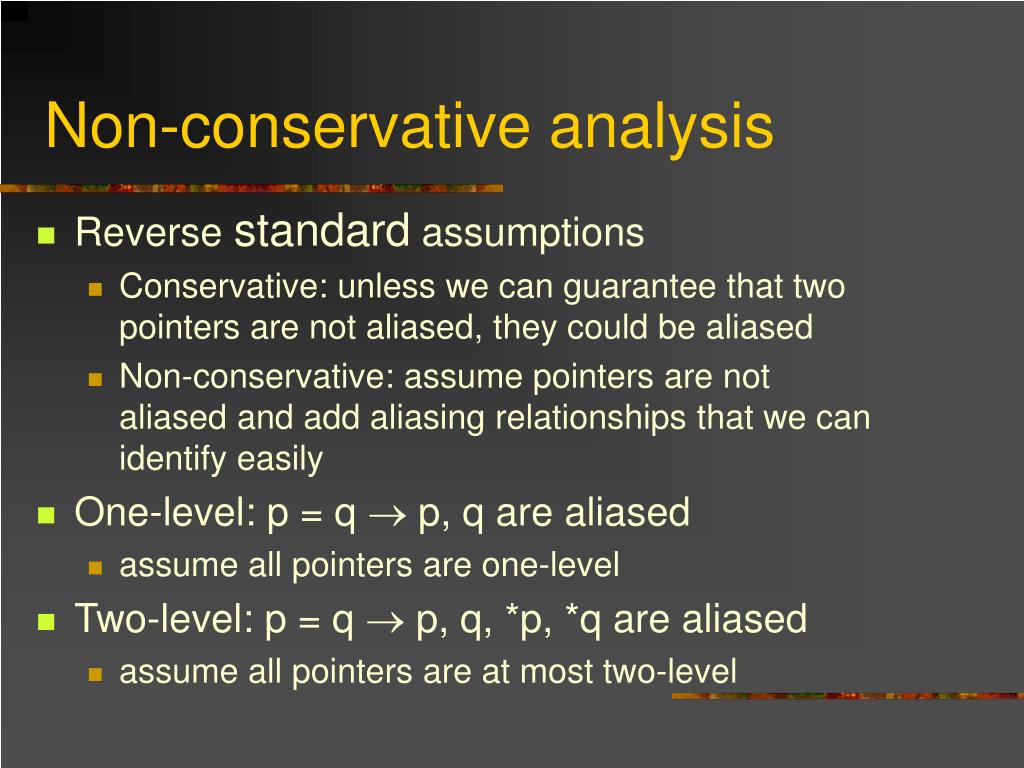

5. Non-conservative analysis • Reverse standard assumptions • Conservative: unless we can guarantee that two pointers are not aliased, they could be aliased • Non-conservative: assume pointers are not aliased and add aliasing relationships that we can identify easily • One-level: p = q  p, q are aliased • assume all pointers are one-level • Two-level: p = q  p, q, *p, *q are aliased • assume all pointers are at most two-level

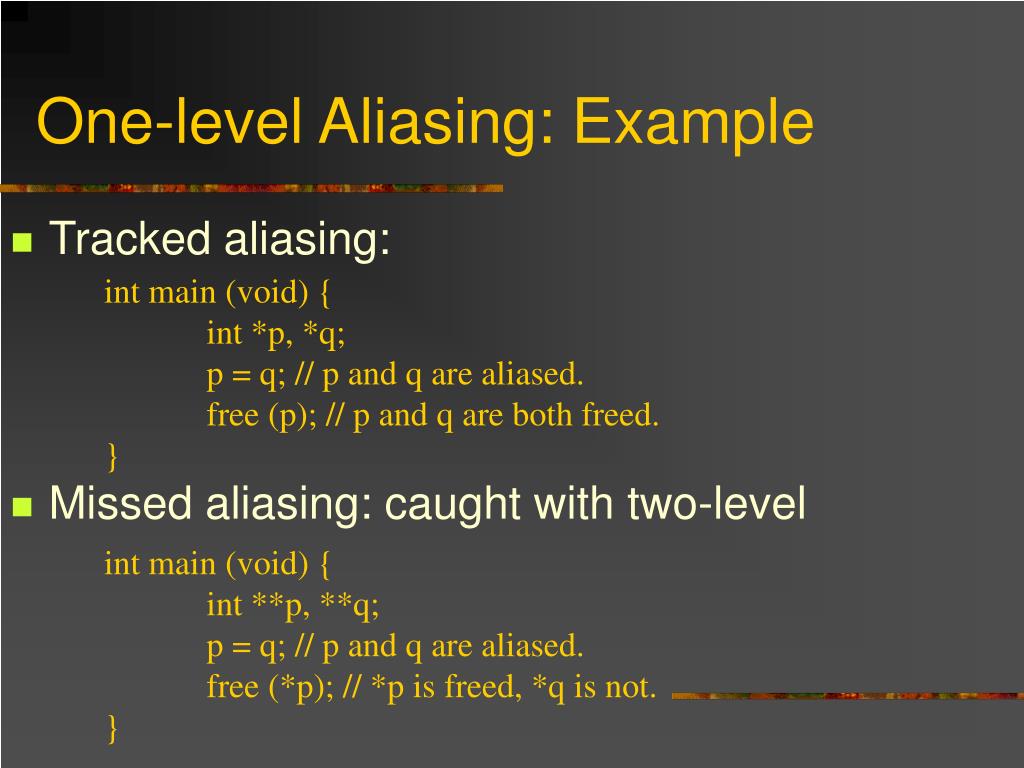

6. One-level Aliasing: Example • Tracked aliasing: int main (void) { int *p, *q; p = q; // p and q are aliased. free (p); // p and q are both freed. } • Missed aliasing: caught with two-level int main (void) { int **p, **q; p = q; // p and q are aliased. free (*p); // *p is freed, *q is not. }

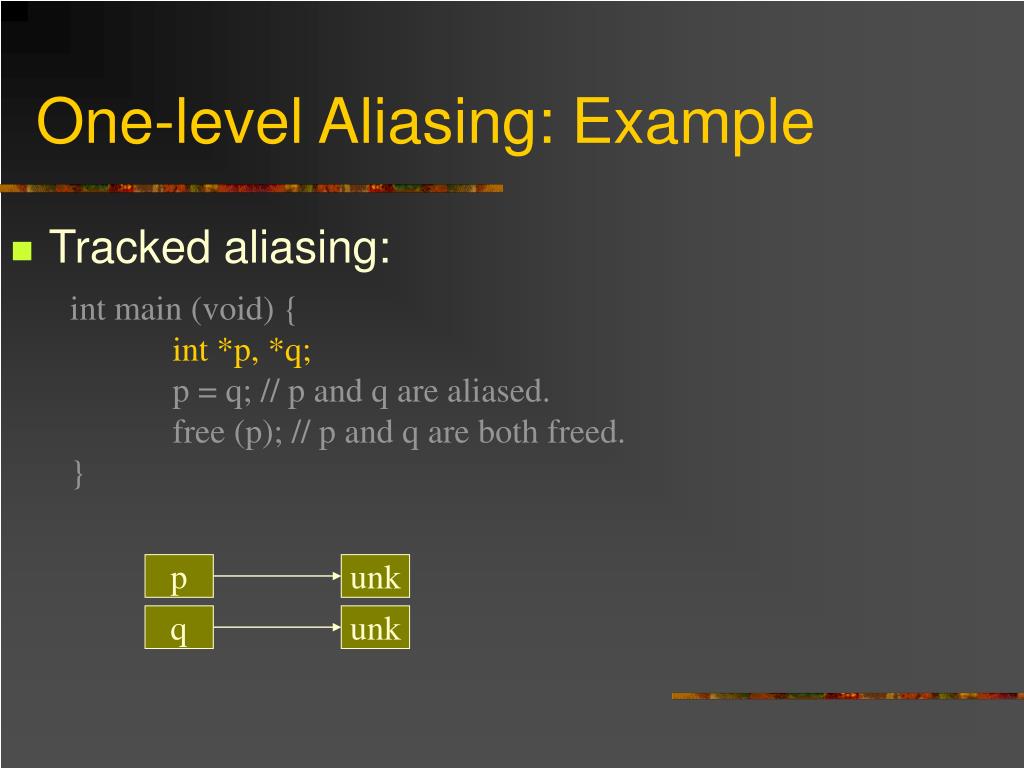

7. One-level Aliasing: Example • Tracked aliasing: int main (void) { int *p, *q; p = q; // p and q are aliased. free (p); // p and q are both freed. } p unk q unk

8. One-level Aliasing: Example • Tracked aliasing: int main (void) { int *p, *q; p = q; // p and q are aliased. free (p); // p and q are both freed. } p unk q unk

9. One-level Aliasing: Example • Tracked aliasing: int main (void) { int *p, *q; p = q; // p and q are aliased. free (p); // p and q are both freed. } p freed q

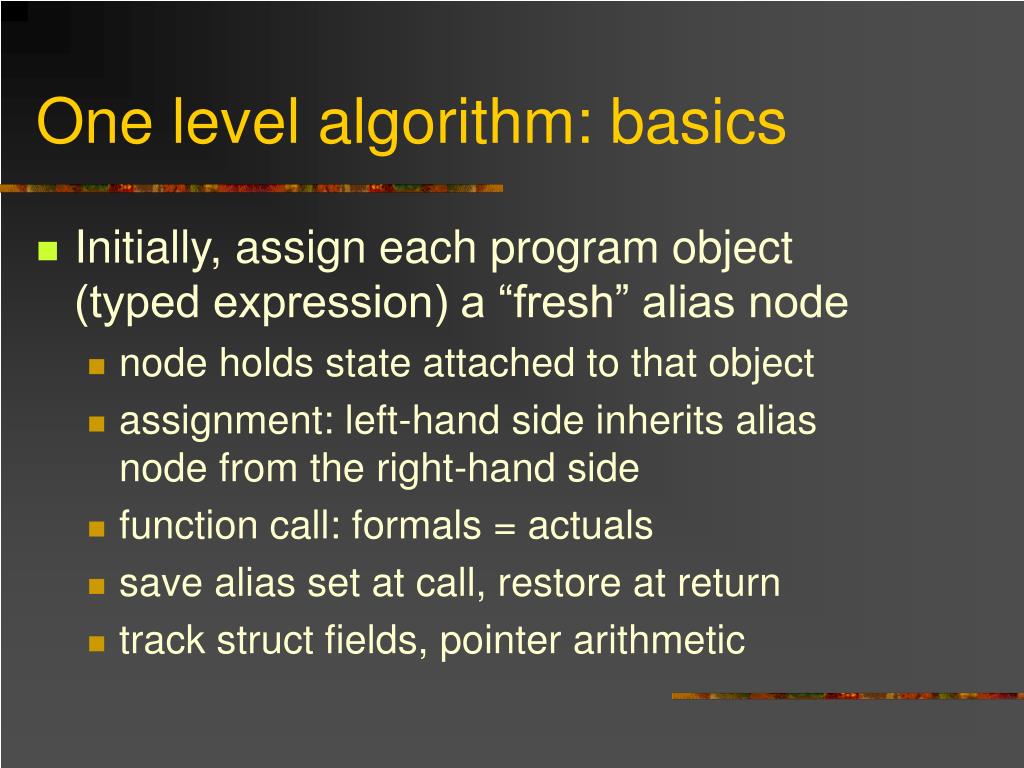

10. One level algorithm: basics • Initially, assign each program object (typed expression) a “fresh” alias node • node holds state attached to that object • assignment: left-hand side inherits alias node from the right-hand side • function call: formals = actuals • save alias set at call, restore at return • track struct fields, pointer arithmetic

11. Optimizations • Kill sets • Flow insensitively track second-level assignments. • Track another level • Alias relationships can pass up. • Where is the 90% boundary?

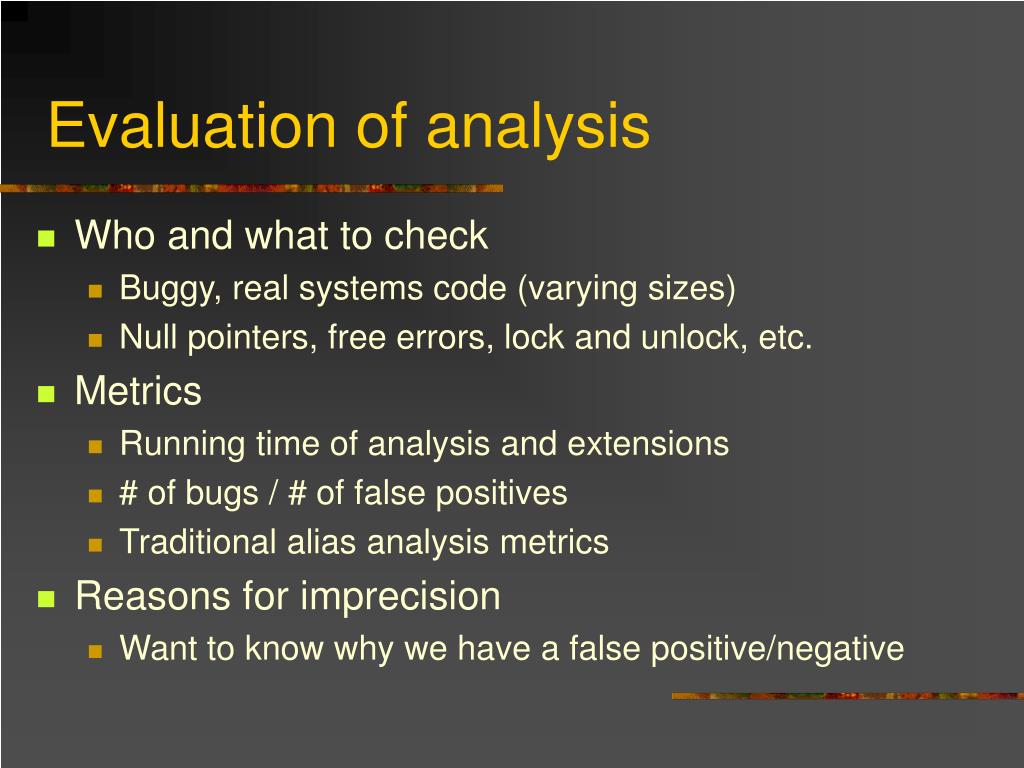

12. Evaluation of analysis • Who and what to check • Buggy, real systems code (varying sizes) • Null pointers, free errors, lock and unlock, etc. • Metrics • Running time of analysis and extensions • # of bugs / # of false positives • Traditional alias analysis metrics • Reasons for imprecision • Want to know why we have a false positive/negative

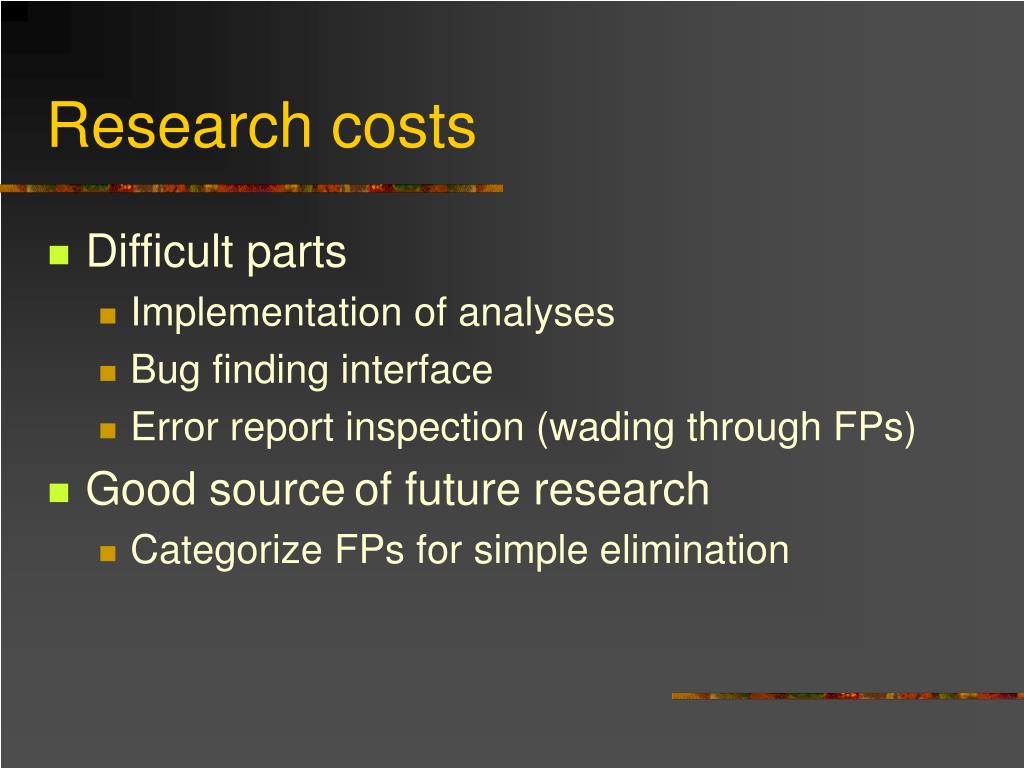

13. Research costs • Difficult parts • Implementation of analyses • Bug finding interface • Error report inspection (wading through FPs) • Good source of future research • Categorize FPs for simple elimination

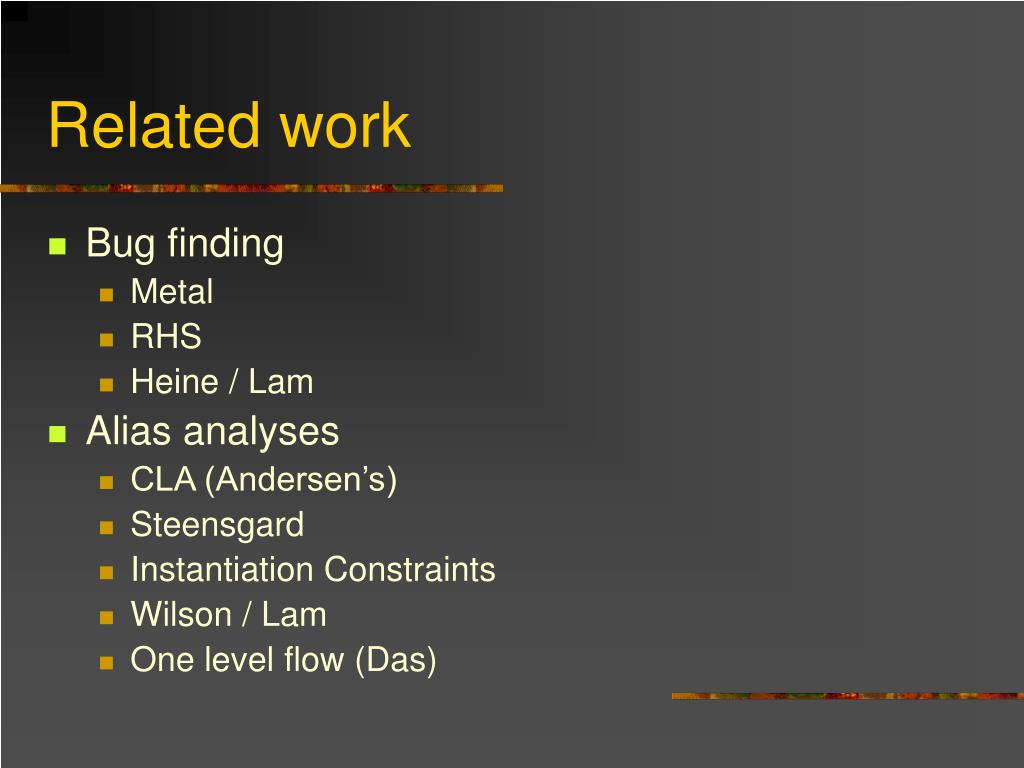

14. Related work • Bug finding • Metal • RHS • Heine / Lam • Alias analyses • CLA (Andersen’s) • Steensgard • Instantiation Constraints • Wilson / Lam • One level flow (Das)
