Presentation Transcript


Challenges in exploiting exponential storage gains l.jpg

Challenges in Exploiting Exponential Storage Gains

Seagate Research Lab Grand Opening

Pittsburgh, PA

21 August 2002

Gordon Bell

Microsoft Bay Area Research Center

http://www.research.microsoft.com/~gbell


Bottom lines aka killer apps for storage everywhere we look l.jpg

Bottom Lines aka “Killer apps” for storage everywhere we look

  • “MyLifeBits” recording almost everything

  • The most cost-effective, highest volume stores: consumer & home PCs – for video.

  • Small form factor drives: pocket form factor cameras, phones, tablets, … e-books

  • Largest stores include Operating System, database, and interconnection via LANs/WANs and in the “cloud”


Slide4 l.jpg

MyLifeBits, The Challenge of a One…1K Tbyte, lifetime PCs: Cyberizing everything…I’ve written, said, presented (incl. video), photos of physical objects & a few things I’ve read, heard, seenand might “want to see” on TV


Slide5 l.jpg

"The PC is going to be the place where you store the information … really the center of control“ Billg 1/7/2001

MyLifeBits is an “on-going” project following CyberAll to “cyberize” all of personal bits!

  • Memory recall of books, CDs, communication, papers, photos, video

  • Photos of physical object collections

  • Elimination of all physical stores & objects

  • Content source for home media: ambiance, entertainment, communication, interaction Freestyle for CDs, photos, TV content, videos

    Goal: to understand the 1 TByte PC: need, utility, cost, feasibility, challenge & tools.


Mylifebits charter memex as we may think vannevar bush l.jpg

MyLifeBits charter: MemexAs We May Think - Vannevar Bush

“A memex is a device in which an individual stores all his books, records, and communications, and which is mechanized so that it may be consulted with exceeding speed and flexibility”

“Selection by association, rather than indexing, may yet be mechanized “


Storing all we ve read heard seen l.jpg

Storing all we’ve read, heard, & seen

Human data-types /hr/day (/4yr)/lifetime

read text, few pictures200 K 2 -10 M/G60-300 G

speech text @120wpm 43 K 0.5 M/G 15 G

speech @1KBps 3.6 M 40 M/G1.2 T

stills w/voice @100KB 200 K2 M/G60 G

video-like 50Kb/s POTS 22 M.25 G/T 25 T

video 200Kb/s VHS-lite 90 M1 G/T100 T

video 4.3Mb/s HDTV/DVD 1.8 G20 G/T 1 P


Character of cyber all use l.jpg

User Context / Timelines

Personal

(including financial)

Professional (work related)

Archival

Working

Character of Cyber All Use


Mylifebits use scenarios l.jpg

MyLifeBits use scenarios

  • Acquire from every potentially useful source including the web, voice and instant messages

  • Personal use of MLB for work to recall everything

  • Provide ambiance & entertainment: Personal/home broadcast, CD, Internet radio, TV screen saving

  • Creation of photo and video albums

    Events, places, trips, people, time intervals-------------- Database land --------------------------------------

  • Personal/web hosted collections & catalogs

  • A Person (auto- or -biography web hosted time line

    Historical events by type; Personal time line

    Compile a life’s story about (event types, range, etc.)

  • Individual…How I spent my year. A personal diary.

  • ISBQ: Interactive Story By Query


Isbq editor interface l.jpg

ISBQ Editor Interface

Query for media

Query results can be dragged and dropped into timeline below

Video and images can be added to HTML page

Audio track for story


Why annotate the future l.jpg

Why annotate…the future?

  • Future cameras have:

    • Creation time, content info e.g. people, scene type

    • GPS: place

    • Voice annotation about the shot and scene

    • Speech recognition of voice

  • Is annotation = meta-data about an object?


Imagine the killer app for the one tbyte lifetime pc l.jpg

Imagine the “killer app” for: The One Tbyte, Lifetime, PC

  • MyLifeBits demonstrates need for lifetime memory!

  • MODI (Microsoft Office Document Imaging)! The most significant Office™ addition since HTML.

  • Technology to support the vision:

    • Guarantee that data will live forever!

    • A single index that includes mail, conversations, web accesses, and books!

    • E-book…e-magazines reach critical mass!

    • Telephony and audio capture are needed

    • Photo & video “index serving”

    • More meta-information … Office, photos

    • Lots of GUIs to improve ease-of-use


Mymainbrain storage l.jpg

MyMainBrain storage

  • Everything stored in a database to facilitate searching, backup, complex attributes e.g. photo characteristics

  • Audio, video, images(?) may also be stored in file system (for access).

  • Ability to easily “annotate” and form “collections” of all the globs


The home digital multimedia network l.jpg

The Home Digital Multimedia Network

Vision: All digital content. IP on everything.

Content source for home media: ambiance, entertainment, communication, and interaction

Freestyle for CDs, photos, TV content, videos

All listening/viewing stations will be digital.

In the 10+year, short-term, Digital Transformers convert IP to legacy analog devices.

Today Digital Transformers = computers!


The connected home l.jpg

SATELLITE

TERRESTRIAL

DIGITAL CABLE

DSL-TELCO

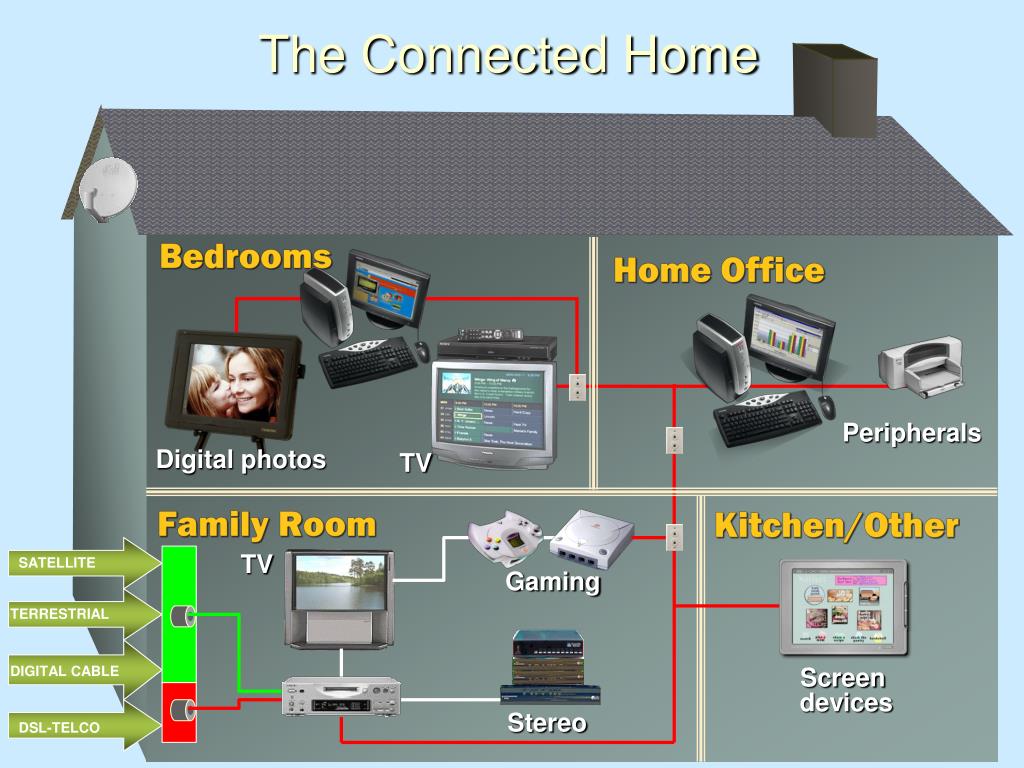

The Connected Home

Peripherals

Digital photos

TV

TV

Gaming

Screen devices

Stereo


Home networks pc based service l.jpg

X*

Spkr

Home Networks: PC-based service

DSL, etc. input

  • Servers:

  • Hold & deliver audio, photos, video

  • Encode TV content

  • Computers:

  • Control, get content from web, servers

  • Monitors: HDTV

  • TV-sets: receive encoded & CATV content

  • C* = computer. X = digital transformer.

Home IP network

C.srv

X*

X*

X*

Monitor

Rec/AMP

broadcast

TVset

HDTVTuner

CATV

Dist

CATV Network


Home media network with digital transformers l.jpg

Home media network with Digital Transformers…


A digital transformer for audio gateway s connected home audio player l.jpg

A Digital Transformer for Audio: Gateway’s Connected Home Audio Player


Existing home entertainment centers l.jpg

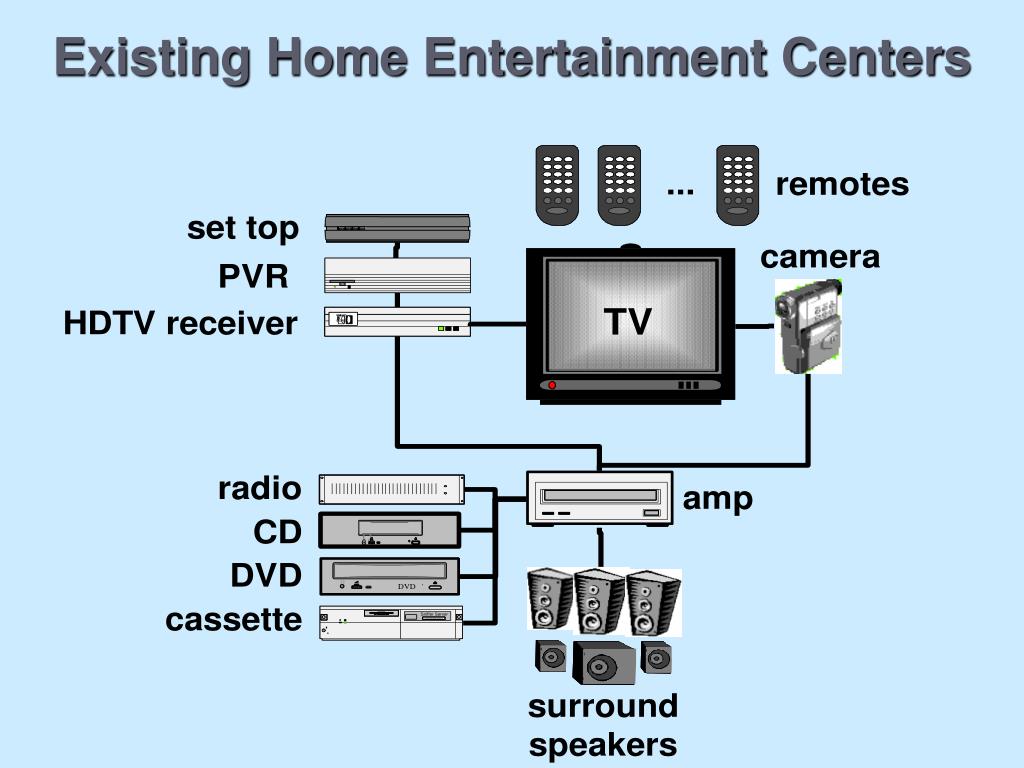

Existing Home Entertainment Centers


The black pc aka dhec digital home entertainment center l.jpg

The “Black PC” aka DHEC: Digital Home Entertainment Center


Activy media center one h w for multiple functions l.jpg

ACTIVY Media CenterOne H/W for multiple functions

Reduces the number of devices, remotes and wires around the TV


Pioneer plasma panel with 1280 x 768 pixels tv computer web surfing at 12 l.jpg

Pioneer Plasma Panel with 1280 x 768 pixelsTV & Computer: Web Surfing at 12’


Slide23 l.jpg

Art


Caneel bay vacation jan 1998 l.jpg

Caneel Bay Vacation Jan. 1998


Disks are becoming computers l.jpg

Disks are becoming computers

  • Smart drives

  • Camera with micro-drive

  • Replay / Tivo / Ultimate TV

  • Phone with micro-drive

  • MP3 players

  • Tablet

  • Xbox

  • Many more…

ApplicationsWeb, DBMS, Files

OS

Disk Ctlr + 1Ghz cpu+

1GB RAM

Comm:

Infiniband, Ethernet, radio…

Courtesy of Jim Gray, Microsoft Bay Area Research


Chameleon l.jpg

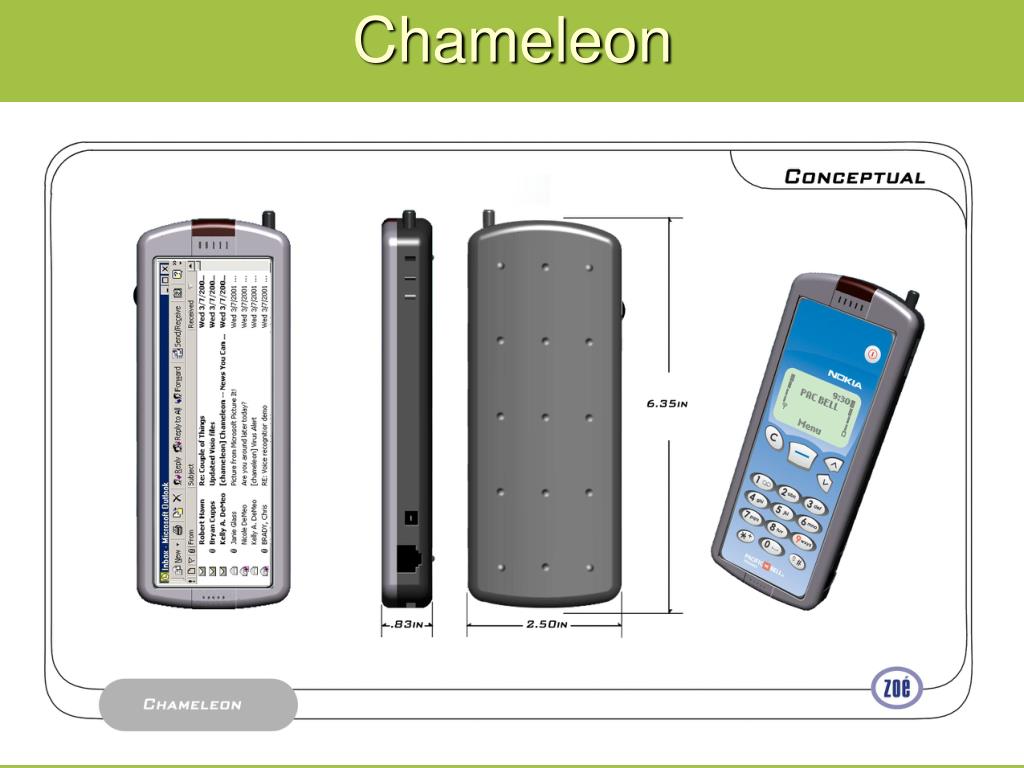

Chameleon


Chameleon an xp ce cellphone 800x300 pixels 5 gb 256 mb computer l.jpg

Chameleon: an XP/CE/Cellphone(800x300 pixels, 5 GB; 256 MB computer)


Disk as tape what format l.jpg

Disk As Tape: What format?

  • Today we ship NTFS/SQL disks.

  • But that is not a good format for Linux.

  • Solution: Ship NFS/CIFS/ODBC servers (not disks)

  • Plug “disk” into LAN.

    • DHCP then file or DB server via standard interface.

    • Web Service in long term

Courtesy of Jim Gray


Gray s 2 4 k 1 tbyte sneakernet aka disk brick l.jpg

Gray’s $2.4 K, 1 TByte Sneakernet aka Disk Brick

Cost to move a Terabyte

Cost, time, and speed to move a Terabyte

Cost of a “Sneaker-Net” Terabyte

Courtesy of Jim Gray, Microsoft Bay Area Research


Cost to move a terabyte l.jpg

Cost to move a Terabyte


Cost time of sneaker net vs alts l.jpg

Cost, time of Sneaker-net vs Alts

Courtesy of Jim Gray, Microsoft Bay Area Research


Gray s 2 400 1 tbyte sneaker net l.jpg

Gray’s $2,400 1 TByte Sneaker-net


Google 1 5pb as of last spring l.jpg

Google1.5PB as of last spring

  • 8,000 no-name PCs

    • Each 1/3U, 2 x 80 GB disk, 2 cpu 256MB ram

  • 1.4 PB online.

  • 2 TB ram online

  • 8 TeraOps

  • Slice-price is 1K$ so 8M$.

  • 15 admins (!) (== 1/100TB).


Bottom line l.jpg

Bottom Line

  • The focus of computation has shifted from processing to storage.

  • Every app and price level is storage oriented from in/on body, personal, home servers, to large scale commercial and scientific apps

  • With databases, pre-computed indices beat exhaustive searches every time.


The end l.jpg

The End
