Chapter 5

Chapter 5

The Integumentary System

Lecture Outline


Introduction

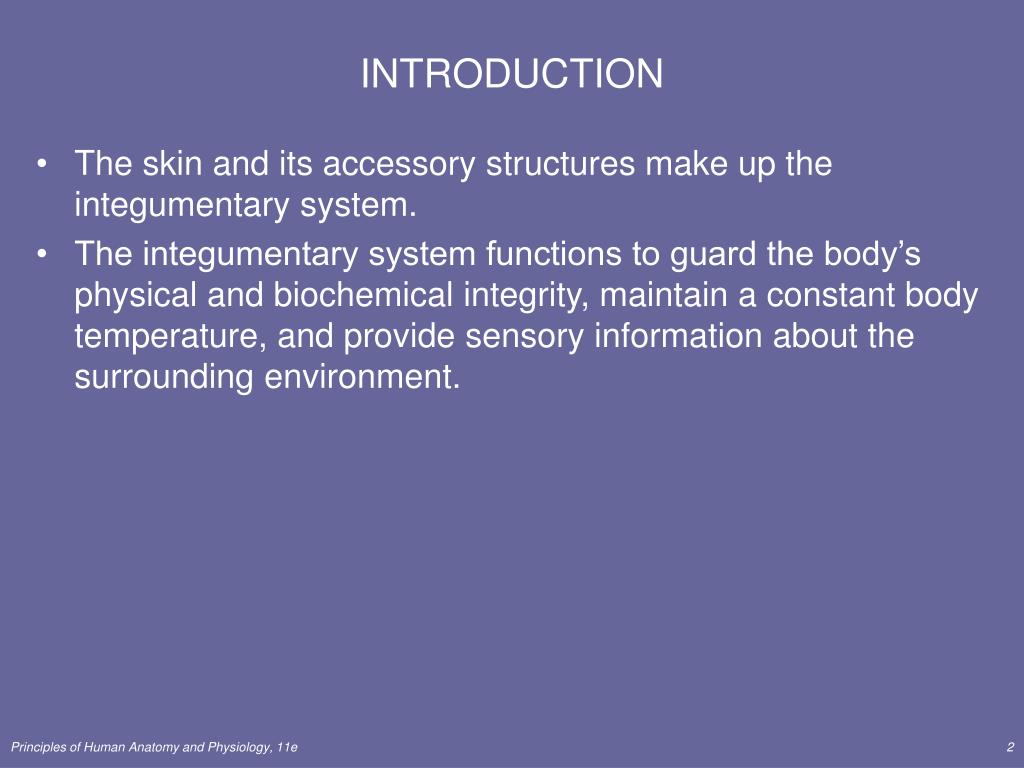

INTRODUCTION

  • The skin and its accessory structures make up the integumentary system.

  • The integumentary system functions to guard the body’s physical and biochemical integrity, maintain a constant body temperature, and provide sensory information about the surrounding environment.

Principles of Human Anatomy and Physiology, 11e


Chapter 5 the integumentary system

Chapter 5The Integumentary System

  • Skin and its accessory structures

    • structure

    • function

    • growth and repair

    • development

    • aging

    • disorders

Principles of Human Anatomy and Physiology, 11e


General anatomy

General Anatomy

  • A large organ composed of all 4 tissue types

  • 22 square feet

  • 1-2 mm thick

  • Weight 10 lbs.

Principles of Human Anatomy and Physiology, 11e


Structure of the skin figure 5 1

STRUCTURE OF THE SKIN (Figure 5.1)

  • The superficial portion of the skin is the epidermis and is composed of epithelial tissue.

  • The deeper layer of the skin is the dermis and is primarily composed of connective tissue.

  • Deep to the dermis is the subcutaneous layer or hypodermis. (not a part of the skin)

    • It consists of areolar and adipose tissue.

    • fat storage, an area for blood vessel passage, and an area of pressure-sensing nerve endings.

Principles of Human Anatomy and Physiology, 11e


Overview of epidermis

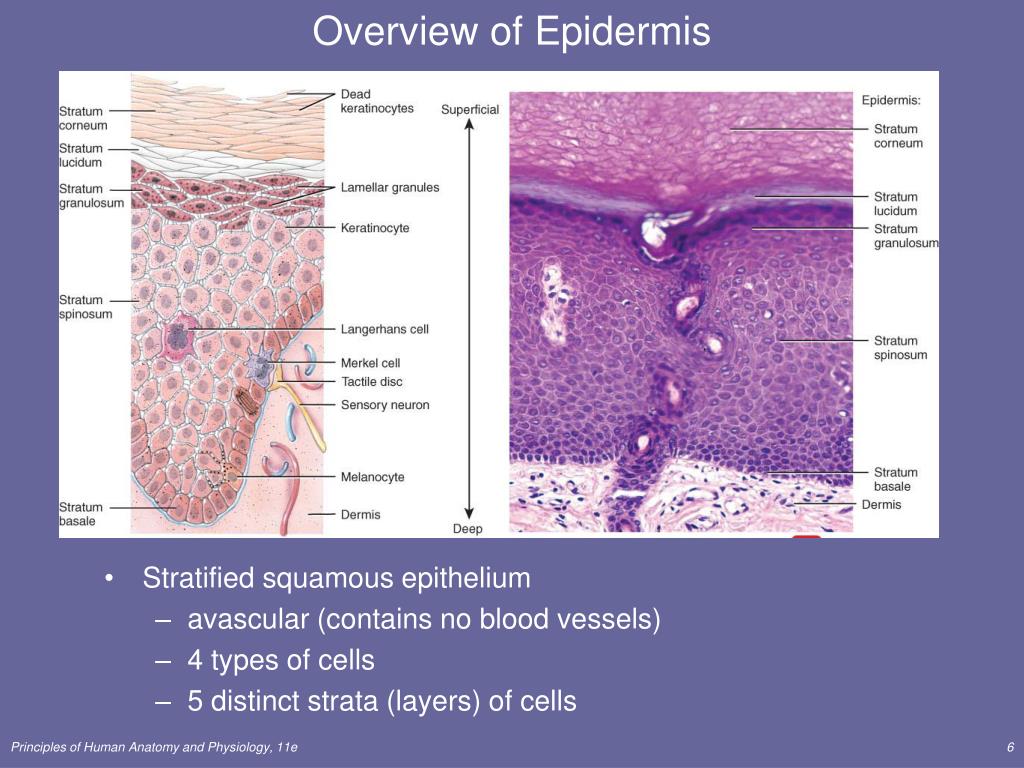

Overview of Epidermis

  • Stratified squamous epithelium

    • avascular (contains no blood vessels)

    • 4 types of cells

    • 5 distinct strata (layers) of cells

Principles of Human Anatomy and Physiology, 11e


Four principle cells of the epidermis figure 5 2

Four Principle Cells of the Epidermis – Figure 5.2

  • keratinocytes (Figure 5.2a)

    • produce the protein keratin, which helps protect the skin and underlying tissue from heat, microbes, and chemicals, and lamellar granules, which release a waterproof sealant

  • melanocytes (Figure 5.2b)

    • produce the pigment melanin which contributes to skin color and absorbs damaging ultraviolet (UV) light

  • Langerhans cells (Figure 5.2c)

    • derived from bone marrow

    • participate in immune response

  • Merkel cells (Figure 5.2d)

    • contact a sensory structure called a tactile (Merkel) disc and function in the sensation of touch

Principles of Human Anatomy and Physiology, 11e


Layers of the epidermis

Layers of the Epidermis

  • There are four or five layers of the epidermis, depending upon the degree of friction and mechanical pressure applied to the skin.

  • From deepest to most superficial the layers of the epidermis are (Figures 5.3 a and b).

    • stratum basale (stratum germinativum)

    • stratum spinosum

    • stratum granulosum

    • stratum lucidum (only in palms and soles)

    • stratum corneum

Principles of Human Anatomy and Physiology, 11e


Layers strata of the epidermis

Layers (Strata) of the Epidermis

  • Stratum corneum

  • Stratum lucidum

  • Stratum granulosum

  • Stratum spinosum

  • Stratum basale

Principles of Human Anatomy and Physiology, 11e


The integumentary system lecture outline

Principles of Human Anatomy and Physiology, 11e


Keratinization and growth of the epidermis

Keratinization and Growth of the Epidermis

  • Stem cells divide to produce keratinocytes

  • As keratinocytes are pushed up towards the surface, they fill with keratin

    • Keratinization is replacement of cell contents with the protein keratin; occurs as cells move to the skin surface over 2-4 weeks.

  • Epidermal growth factor (EGF) and other hormone-like proteins play a role in epidermal growth.

Principles of Human Anatomy and Physiology, 11e


Dermis figure 5 1

Dermis (Figure 5.1)

  • Connective tissue layer composed of collagen & elastic fibers, fibroblasts, macrophages & fat cells

  • Contains hair follicles, glands, nerves & blood vessels

  • Two major regions of dermis

    • papillary region

    • reticular region

Principles of Human Anatomy and Physiology, 11e


Dermis papillary region

Dermis - Papillary Region

  • Top 20% of dermis

  • areolar connective tissue containing fine elastic fibers, corpuscles of touch (Meissner’s corpuscles), adipose cells, hair follicles, sebaceous glands, sudoriferous glands

    • The collagen and elastic fibers provide strength, extensibility (ability to stretch), and elasticity (ability to return to original shape after stretching) to skin.

  • Finger like projections are called dermal papillae

    • anchors epidermis to dermis

    • contains capillaries that feed epidermis

    • contains Meissner’s corpuscles (touch) & free nerve endings for sensations of heat, cold, pain, tickle, and itch

Principles of Human Anatomy and Physiology, 11e


Dermis reticular region

Dermis - Reticular Region

  • Dense irregular connective tissue

  • Contains interlacing collagen and elastic fibers

  • Packed with oil glands, sweat gland ducts, fat & hair follicles

  • Provides strength, extensibility & elasticity to skin

    • stretch marks are dermal tears from extreme stretching

  • Epidermal ridges form in fetus as epidermis conforms to dermal papillae

    • fingerprints are left by sweat glands open on ridges

    • increase grip of hand

Principles of Human Anatomy and Physiology, 11e


Dermis structure

Dermis -- Structure

  • Epidermal ridges increase friction for better grasping ability and provide the basis for fingerprints and footprints. The ridges typically reflect contours of the underlying dermis.

Principles of Human Anatomy and Physiology, 11e


Accessory structures of skin

Accessory Structures of Skin

  • hair

  • oil glands

  • sweat glands

  • nails

Principles of Human Anatomy and Physiology, 11e


The integumentary system lecture outline

HAIR

  • Hairs, or pili, are present on most skin surfaces except the palms, palmar surfaces of the digits, soles, and plantar surfaces of the digits.

  • Hair consists of

    • a shaft above the surface (Figure 5.4a)

    • a root that penetrates the dermis and subcutaneous layer (Figure 5.4c,d)

    • the cuticle (Figure 5.4b), and

    • a hair follicle (Figure 5.4c,d).

  • New hairs develop from cell division of the matrix in the bulb.

Principles of Human Anatomy and Physiology, 11e


Structure of hair

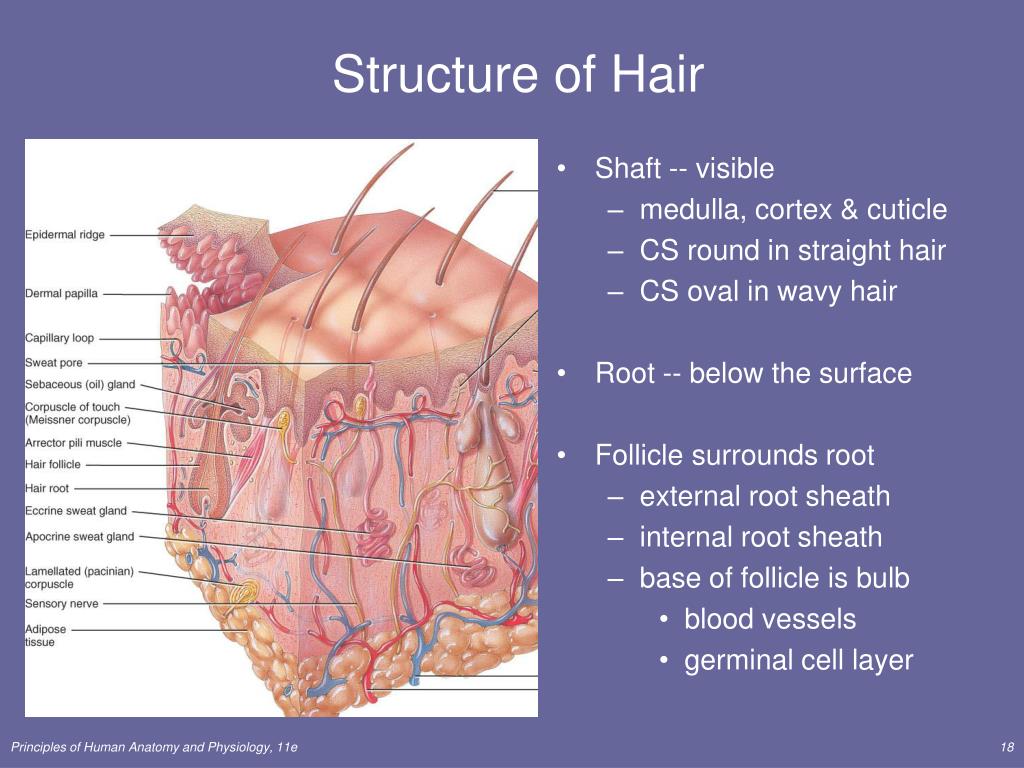

Structure of Hair

  • Shaft -- visible

    • medulla, cortex & cuticle

    • CS round in straight hair

    • CS oval in wavy hair

  • Root -- below the surface

  • Follicle surrounds root

    • external root sheath

    • internal root sheath

    • base of follicle is bulb

      • blood vessels

      • germinal cell layer

Principles of Human Anatomy and Physiology, 11e


Structure of hair1

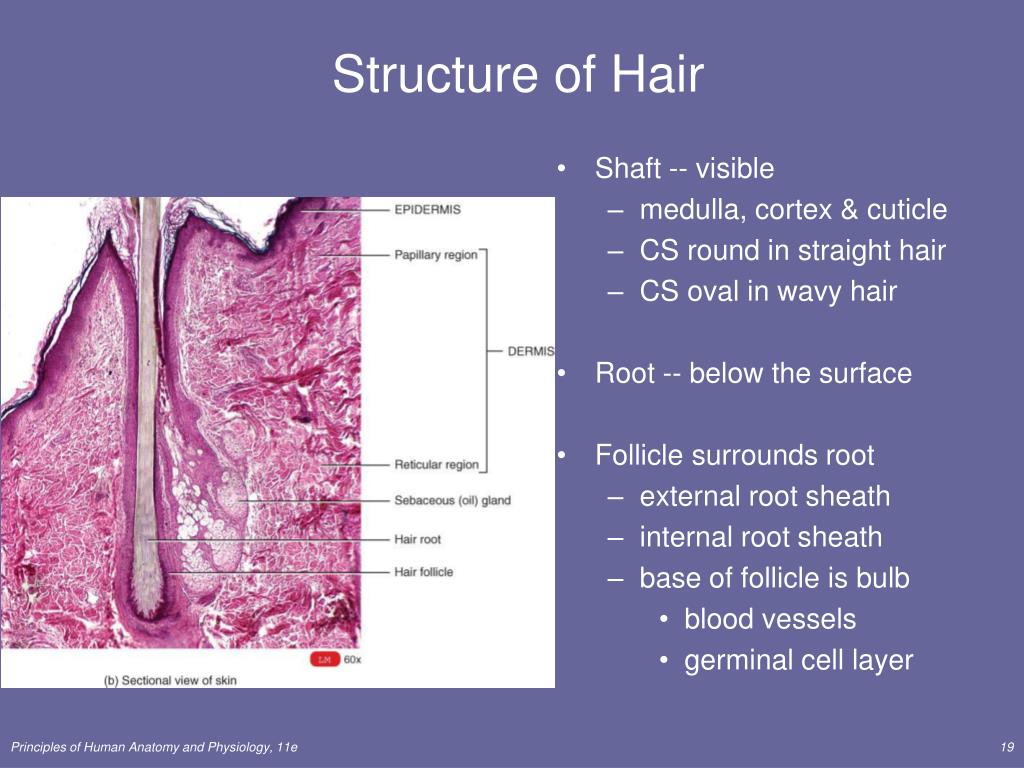

Structure of Hair

  • Shaft -- visible

    • medulla, cortex & cuticle

    • CS round in straight hair

    • CS oval in wavy hair

  • Root -- below the surface

  • Follicle surrounds root

    • external root sheath

    • internal root sheath

    • base of follicle is bulb

      • blood vessels

      • germinal cell layer

Principles of Human Anatomy and Physiology, 11e


Structure of hair2

Structure of Hair

  • Shaft -- visible

    • medulla, cortex & cuticle

    • CS round in straight hair

    • CS oval in wavy hair

  • Root -- below the surface

  • Follicle surrounds root

    • external root sheath

    • internal root sheath

    • base of follicle is bulb

      • blood vessels

      • germinal cell layer

Principles of Human Anatomy and Physiology, 11e


Hair related structures

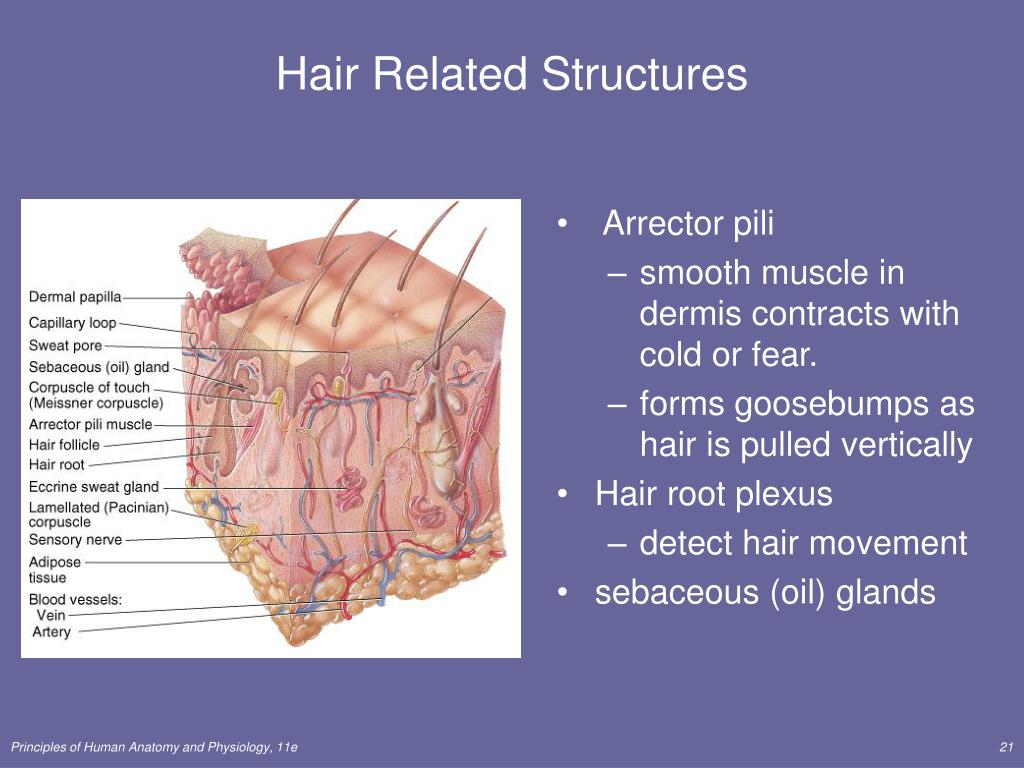

Hair Related Structures

  • Arrector pili

    • smooth muscle in dermis contracts with cold or fear.

    • forms goosebumps as hair is pulled vertically

  • Hair root plexus

    • detect hair movement

  • sebaceous (oil) glands

Principles of Human Anatomy and Physiology, 11e


Types of hair

Types of hair

  • Lanugo is a fine, nonpigmented hair that covers the fetus.

  • Vellus hair is a short, fine hair that replaces lanugo

  • Course pigmented hair appears in response to androgens

  • Hair that appears in response to androgens and hair of the head, eyelashes and eyebrows is known as terminal hair.

Principles of Human Anatomy and Physiology, 11e


Functions of hair

Functions ofHair

  • Prevents heat loss

  • Decreases sunburn

  • Eyelashes help protect eyes

  • Touch receptors (hair root plexus) senses light touch

Principles of Human Anatomy and Physiology, 11e


Glands of the skin

Glands of the Skin

  • Specialized exocrine glands found in dermis

  • Sebaceous (oil) glands

  • Sudiferous (sweat) glands

  • Ceruminous (wax) glands

  • Mammary (milk) glands

Principles of Human Anatomy and Physiology, 11e


Sebaceous oil glands

Sebaceous (oil) glands

  • Sebaceous (oil) glands are usually connected to hair follicles; they are absent in the palms and soles (Figure 5.1 ).

  • Secretory portion of gland is located in the dermis

    • produce sebum

      • contains cholesterol, proteins, fats & salts

      • moistens hairs

      • waterproofs and softens the skin

      • inhibits growth of bacteria & fungi (ringworm)

Principles of Human Anatomy and Physiology, 11e


Sudoriferous sweat glands

Sudoriferous (sweat) glands

Eccrine sweat glands have an extensive distribution most areas of skin

  • secretory portion is in dermis with duct to surface

  • ducts terminate at pores at the surface of the epidermis.

  • regulate body temperature through evaporation (perspiration)

  • help eliminate wastes such as urea.

    Apocrine sweat glands are limited in distribution to the skin of the axilla, pubis, and areolae; their duct open into hair follicles.

  • secretory portion in dermis

  • duct that opens onto hair follicle

  • secretions are more viscous

  • Table 5.3 compares eccrine and apocrine sweat glands.

  • Principles of Human Anatomy and Physiology, 11e

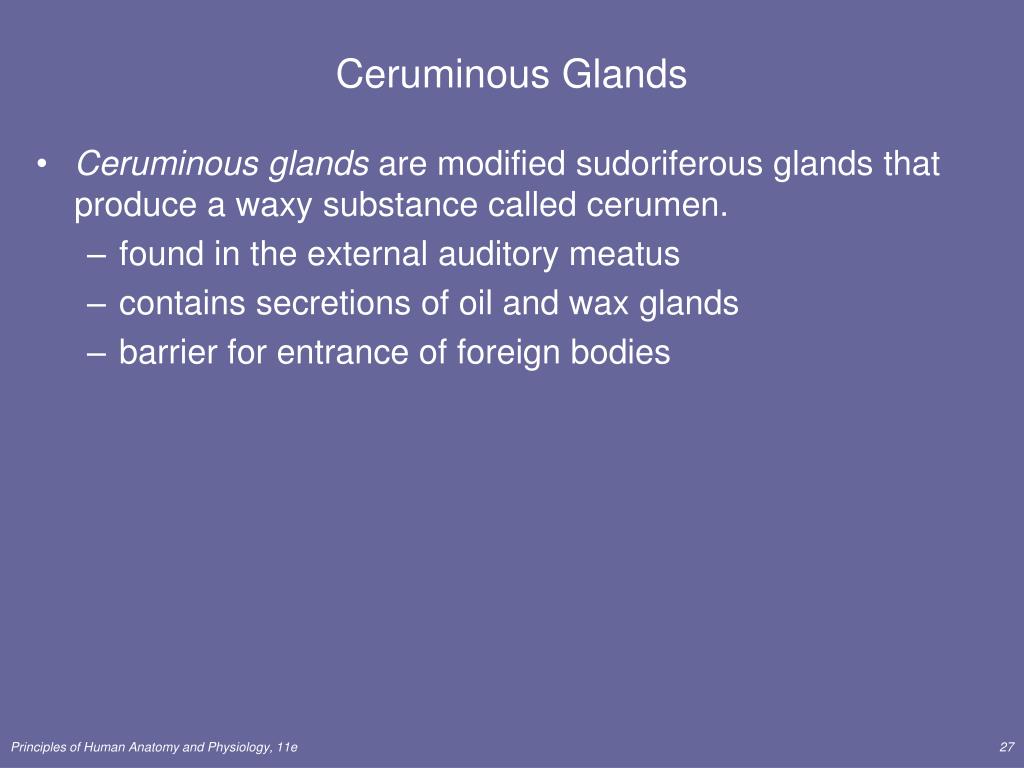

    Ceruminous glands

    Ceruminous Glands

    • Ceruminous glands are modified sudoriferous glands that produce a waxy substance called cerumen.

      • found in the external auditory meatus

      • contains secretions of oil and wax glands

      • barrier for entrance of foreign bodies

    Principles of Human Anatomy and Physiology, 11e


    Structure of nails figure 5 5

    Structure of Nails (Figure 5.5)

    • Tightly packed keratinized cells

    • Nail body

      • visible portion pink due to underlying capillaries

      • free edge appears white

    • Nail root

      • buried under skin layers

      • lunula is white due to thickened stratum basale

    • Eponychium (cuticle)

      • stratum corneum layer

    Principles of Human Anatomy and Physiology, 11e


    Nail growth

    Nail Growth

    • Nail matrix is below nail root -- produces growth

    • Cells transformed into tightly packed keratinized cells

    • 1 mm per week

    Principles of Human Anatomy and Physiology, 11e


    Types of skin

    TYPES OF SKIN

    • Thin skin

      • covers all parts of the body except for the palms and palmar surfaces of the digits and toes.

      • lacks epidermal ridges

      • has a sparser distribution of sensory receptors than thick skin.

    • Thick skin (0.6 to 4.5 mm)

      • covers the palms, palmar surfaces of the digits, and soles

      • features a stratum lucidum and thick epidermal ridges

      • lacks hair follicles, arrector pili muscles, and sebaceous glands, and has more sweat glands than thin skin.

    • Table 5.4 summarizes the fractures of thin and thick skin.

    Principles of Human Anatomy and Physiology, 11e


    Functions of skin thermoregulation

    FUNCTIONS OF SKIN -- thermoregulation

    • Perspiration & its evaporation

      • lowers body temperature

      • flow of blood in the dermis is adjusted

    • Shivering and constriction of surface vessels

      • raise internal body temperature as needed

    Principles of Human Anatomy and Physiology, 11e


    Functions of skin

    FUNCTIONS OF SKIN

    • blood reservoir

      • extensive network of blood vessels

    • protection - physical, chemical and biological barriers

      • tight cell junctions prevent bacterial invasion

      • lipids released retard evaporation

      • pigment protects somewhat against UV light

      • Langerhans cells alert immune system

    • cutaneous sensations

      • touch, pressure, vibration, tickle, heat, cold, and pain arise in the skin

    Principles of Human Anatomy and Physiology, 11e


    Functions of skin1

    FUNCTIONS OF SKIN

    • Synthesis of Vitamin D

      • activation of a precursor molecule in the skin by UV light

      • enzymes in the liver and kidneys modify the activated molecule to produce calcitriol, the most active form of vitamin D.

      • necessary vitamin for absorption of calcium from food in the gastrointestinal tract

    • excretion

      • 400 mL of water/day, small amounts salt, CO2, ammonia and urea

    Principles of Human Anatomy and Physiology, 11e


    Transdermal drug administration

    Transdermal Drug Administration

    • method of drug passage across the epidermis and into the blood vessels of the dermis

      • drug absorption is most rapid in areas where skin is thin (scrotum, face and scalp)

    • Examples:

      • nitroglycerin (prevention of chest pain from coronary artery disease)

      • scopolamine ( motion sickness)

      • estradiol (estrogen replacement therapy)

      • nicotine (stop smoking alternative)

    Principles of Human Anatomy and Physiology, 11e


    Epidermal wound healing

    Epidermal Wound Healing

    • Abrasion or minor burn

    • Basal cells migrate across the wound (Figure 5.6a)

    • Contact inhibition with other cells stops migration

    • Epidermal growth factor stimulates basal cells to divide and replace the ones that have moved into the wound (Figure 5.6b).

    • Full thickness of epidermis results from further cell division

    Principles of Human Anatomy and Physiology, 11e

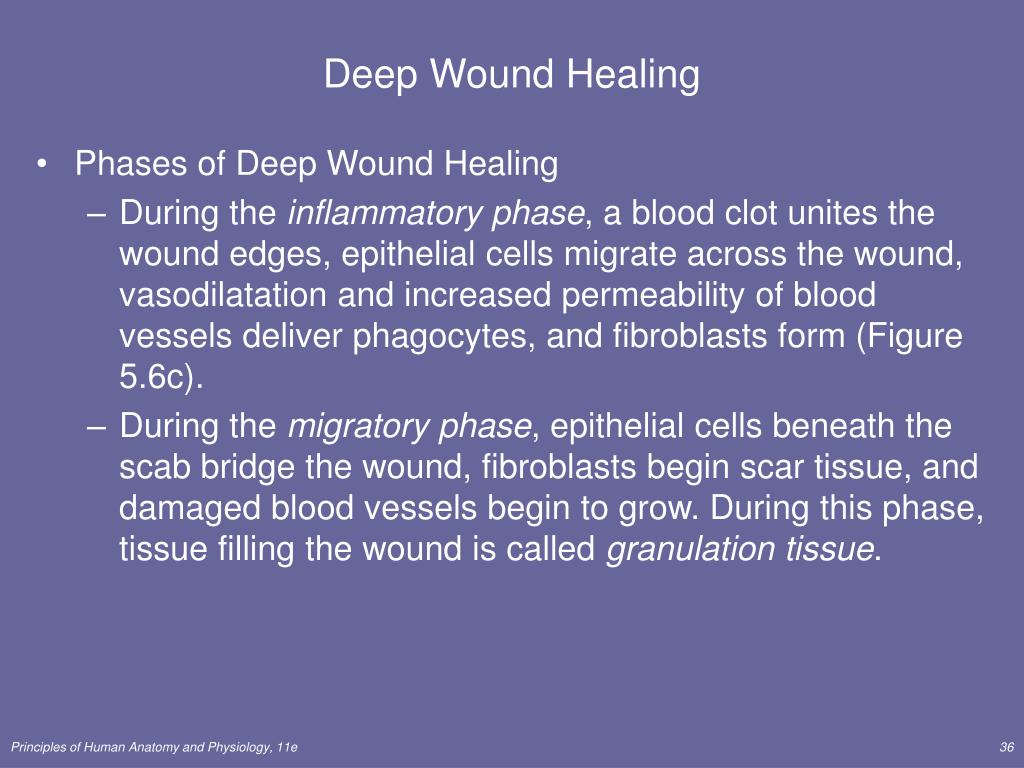

    Deep wound healing

    Deep Wound Healing

    • Phases of Deep Wound Healing

      • During the inflammatory phase, a blood clot unites the wound edges, epithelial cells migrate across the wound, vasodilatation and increased permeability of blood vessels deliver phagocytes, and fibroblasts form (Figure 5.6c).

      • During the migratory phase, epithelial cells beneath the scab bridge the wound, fibroblasts begin scar tissue, and damaged blood vessels begin to grow. During this phase, tissue filling the wound is called granulation tissue.

    Principles of Human Anatomy and Physiology, 11e


    Phases of deep wound healing

    Phases of Deep Wound Healing

    Principles of Human Anatomy and Physiology, 11e


    Deep wound healing1

    Deep Wound Healing

    • Phases of Deep Wound Healing

      • During the proliferative phase, the events of the migratory phase intensify.

      • During the maturation phase, the scab sloughs off, the epidermis is restored to normal thickness, collagen fibers become more organized, fibroblasts begin to disappear, and blood vessels are restored to normal (Figure 5.6d).

      • Scar tissueformation (fibrosis) can occur in deep wound healing.

    Principles of Human Anatomy and Physiology, 11e

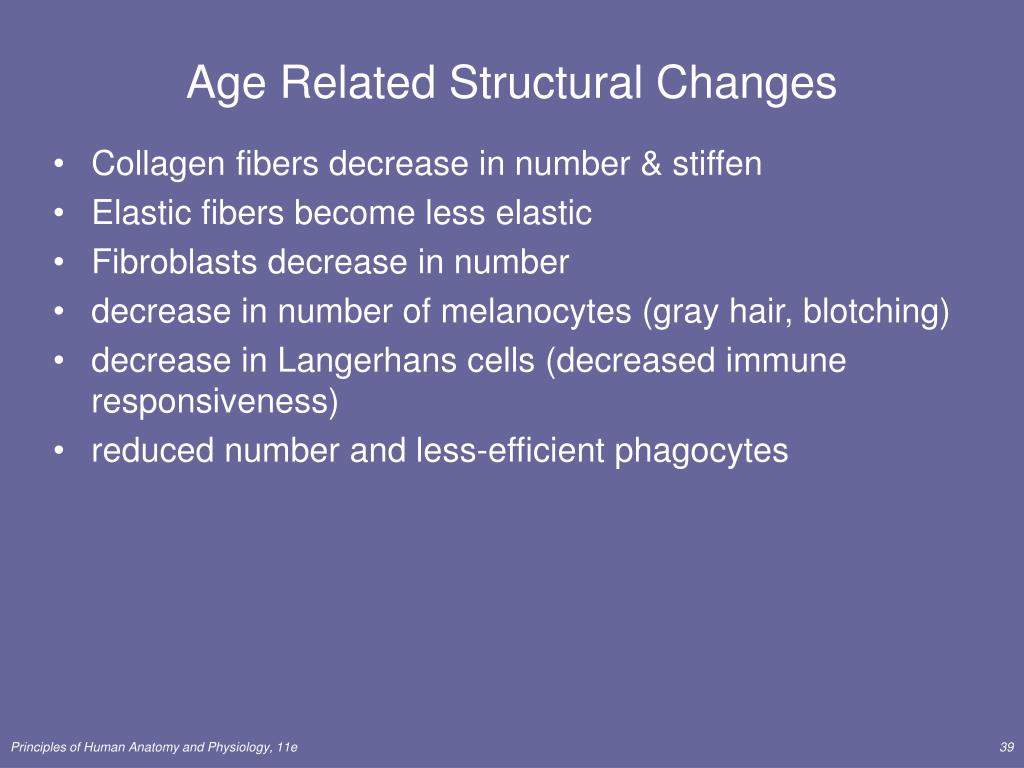

    Age related structural changes

    Age Related Structural Changes

    • Collagen fibers decrease in number & stiffen

    • Elastic fibers become less elastic

    • Fibroblasts decrease in number

    • decrease in number of melanocytes (gray hair, blotching)

    • decrease in Langerhans cells (decreased immune responsiveness)

    • reduced number and less-efficient phagocytes

    Principles of Human Anatomy and Physiology, 11e


    Burns

    Burns

    • Destruction of proteins of the skin

      • chemicals, electricity, heat

    • Problems that result

      • shock due to water, plasma and plasma protein loss

      • circulatory & kidney problems from loss of plasma

      • bacterial infection

    • Two methods for determining the extent of a burn are the rule of nines and the Lund-Bowder method (Figure 5.10).

    Principles of Human Anatomy and Physiology, 11e


    Burns1

    Burns

    Principles of Human Anatomy and Physiology, 11e


    Burns2

    Burns

    Principles of Human Anatomy and Physiology, 11e


    Pressure sores

    Pressure Sores

    • Pressure ulcers, also known as decubitus ulcers

      • caused by a constant deficiency of blood to tissues overlying a bony projection that has been subjected to prolonged pressure

      • typically occur between bony projection and hard object such as a bed, cast, or splint

      • the deficiency of blood flow results in tissue ulceration.

    • Preventable with proper care

    Principles of Human Anatomy and Physiology, 11e


  • Login
