Wohr is the global leader in automated car parking systems, and a leading parking system manufactureru200e in India.
E N D

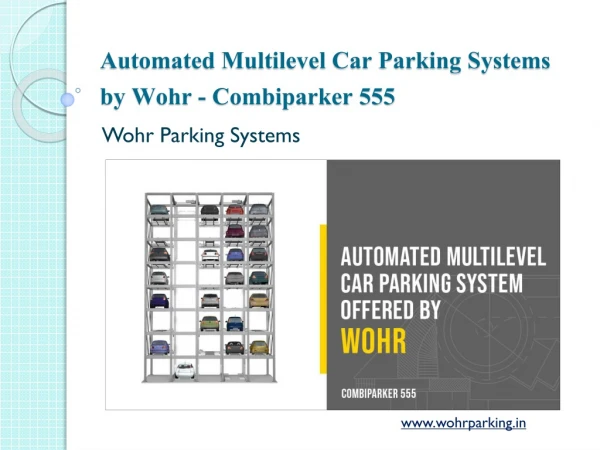

Automated Multilevel Car Parking Systems by Wohr - Combiparker 555 Wohr Parking Systems www.wohrparking.in
Wohr Parking Systems (WPS) is the leading manufacturer of Automated Multilevel Car Parking Systems. www.wohrparking.in
Automated Multilevel Car Parking Systems - Combiparker 555 With the tried and tested principle of stacking and moving closer together, Combiparker 555 creates even more space. www.wohrparking.in
Our Products As Combiparker 555 www.wohrparking.in
Combiparker 555 www.wohrparking.in
Other Combiparker Products Combiparker 556 www.wohrparking.in
General Description of the System: The Combiparker CP555 is Automatic Car Parking System with very high level of space saving concept. The system comprises of vertical parking system with maximum eight levels. The cars are parked in parking levels with a specially designed adjustable sliding carrier units. The transport lift which take the car up and down is located in every second grid of the system. The system can have minimum three grid with eight levels up to maximum seven grids with five levels. The appropriate solution can be worked out considering the car parking requirements and the available foot print area. The transport lift grid also serve as the entrance and exit for car parking. www.wohrparking.in
Typical Park In Operation: Driver has to flash the given RFID card or Chip to the sensor to activate the parking process. The lift door is opened for park in operation. After parking the car in the lift, driver has to flash the card again as per the instructions. The lift car door gets closed and car is transported vertically to the required level. The car is transferred from lift platform to parking platform in the lift grid. Parking platform moves to it’s original position with the car. The lift is moved to it’s home position and be ready for next operation. www.wohrparking.in
Typical Park Out Operation: Driver has to flash the given RFID card or Chip to the sensor to activate the parking process. The platform with the car is moved laterally to the lift grid. The car is shifted from parking platform to lift. The car is lowered down to entry level by transport lift. The door is open for driver to drive out the car. Once the car is taken out, the sensor system is activated for door closure and system is ready for next operation. www.wohrparking.in
Highlights • Variable arrangement of 3-7 grids beside one another • Different car heights are possible at different level • Carrying capacity per platform / per car available with 2600kg • Independent parking systems • Cost-effective technology using state-of-the-art servo drives and laser based guidance systems www.wohrparking.in
High level of operating and functional safety according to EN norms • Easy operation • Quick parking and retrieval cycle time • Modular design to suit the space availability at site • Suitable for residential commercial, Car dealers and malls www.wohrparking.in
Contact Us • Regd. Office • Vyas Vertex', 1206/41A, J.M. Road, Shivaji Nagar, Pune - 411 004. Maharashtra, India • Tel : +91-20-2553 61 81 / 82 / 66012470Fax : +91-20-2553 6184E-mail : info@wohrparking.in
www.wohrparking.in • For more information visit at our Website
