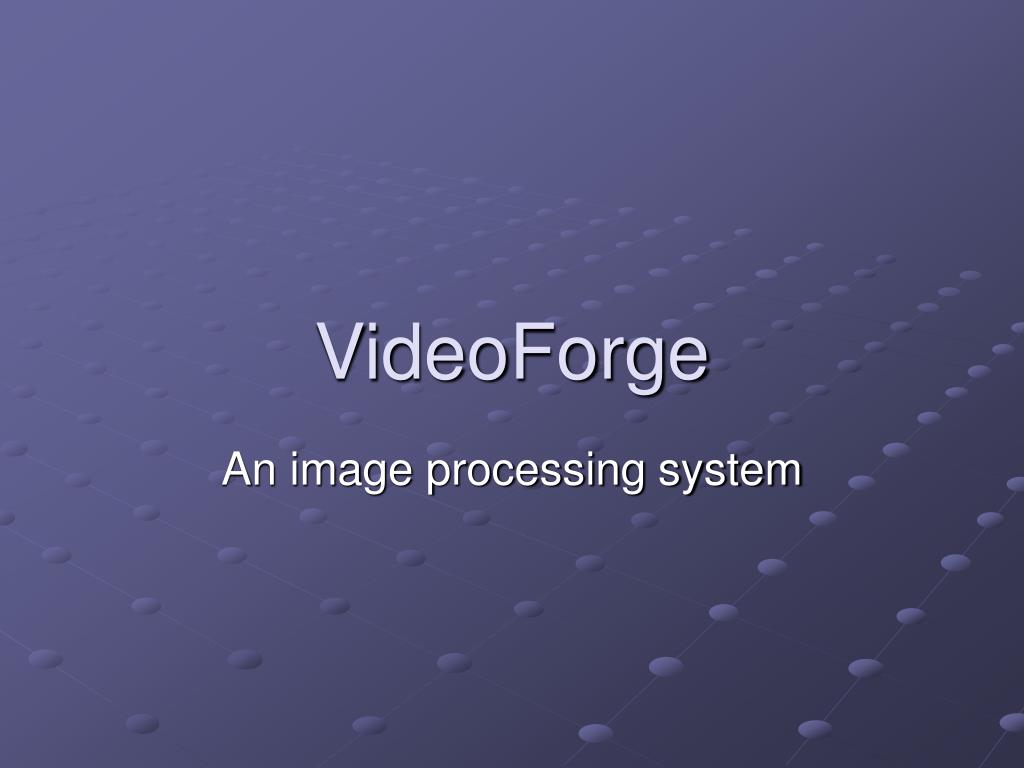

  1. VideoForge An image processing system

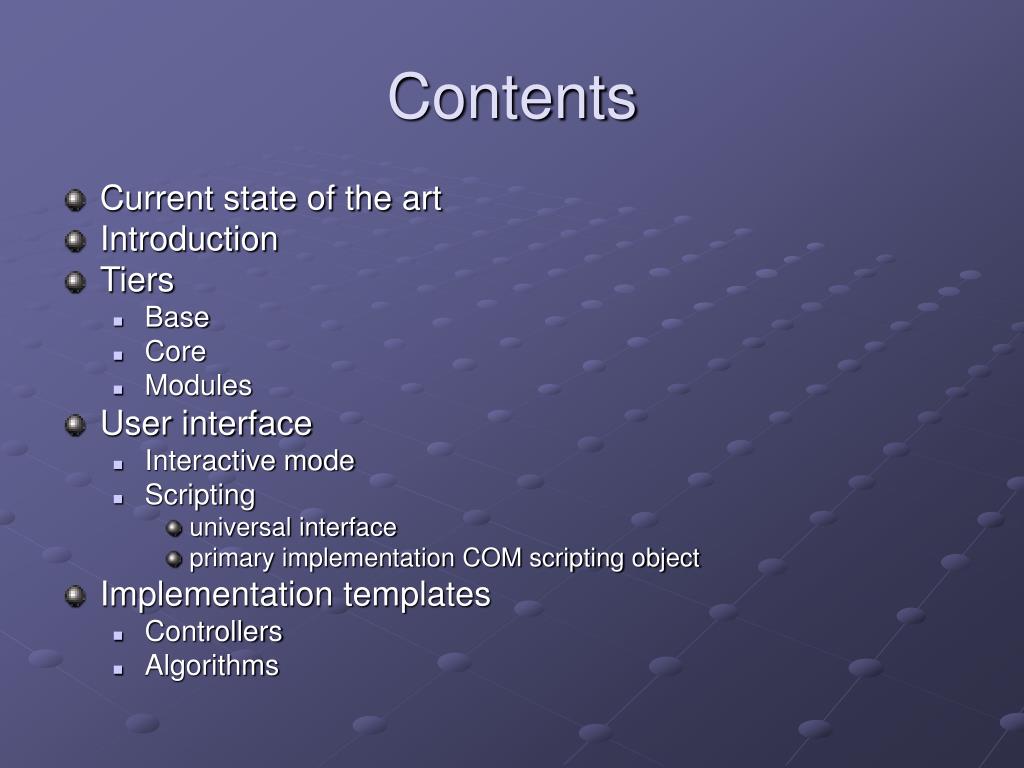

  2. Contents • Current state of the art • Introduction • Tiers • Base • Core • Modules • User interface • Interactive mode • Scripting • universal interface • primary implementation COM scripting object • Implementation templates • Controllers • Algorithms

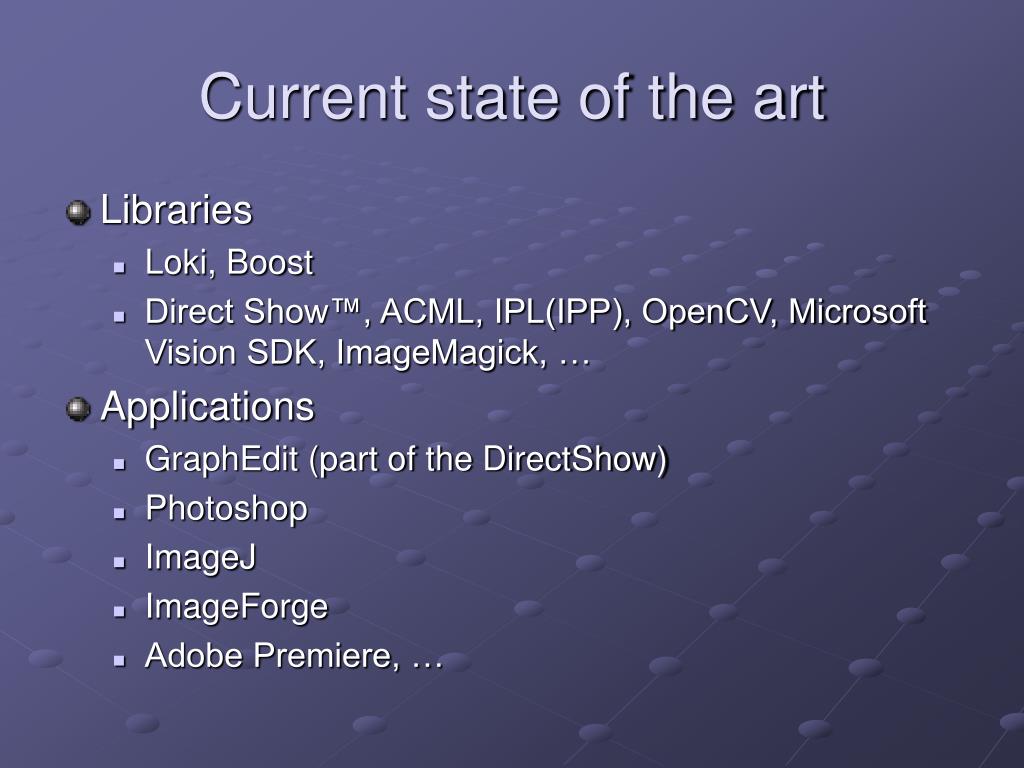

  3. Current state of the art • Libraries • Loki, Boost • Direct Show™, ACML, IPL(IPP), OpenCV, Microsoft Vision SDK, ImageMagick, … • Applications • GraphEdit (part of the DirectShow) • Photoshop • ImageJ • ImageForge • Adobe Premiere, …

  4. Introduction • System for video and live-stream image processing • Platform independent • ANSI C++ • Easy-to-do computer vision • Three tier application • Base (Serialization, Communication, Logging) • Core (Module management, Memory management) • Modules (Devices, Algorithms,)

  5. Base • Serialization • Binary vs. textual storage • Automatic vs. manual storage • Type lists, storing of arrays, classes … • Variable reflection • offers the possibility of calling the variable “by name” • m_plugin.FindVar<int>(“varName”); • m_plugin.GetVarNames(…);

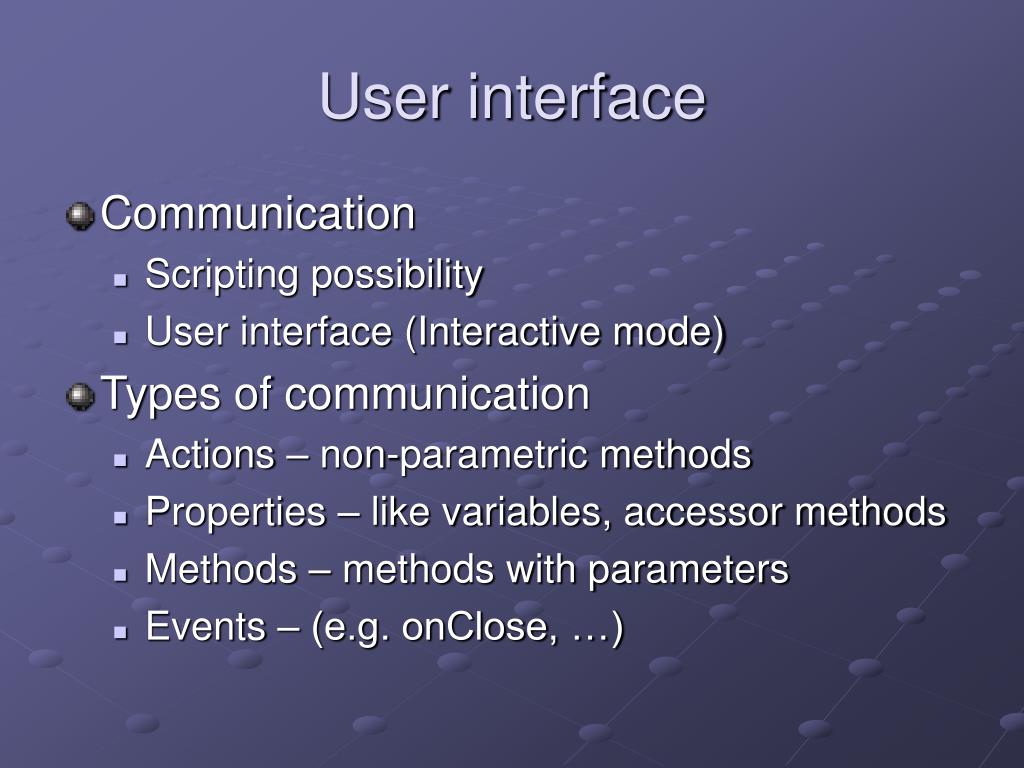

  6. User interface • Communication • Scripting possibility • User interface (Interactive mode) • Types of communication • Actions – non-parametric methods • Properties – like variables, accessor methods • Methods – methods with parameters • Events – (e.g. onClose, …)

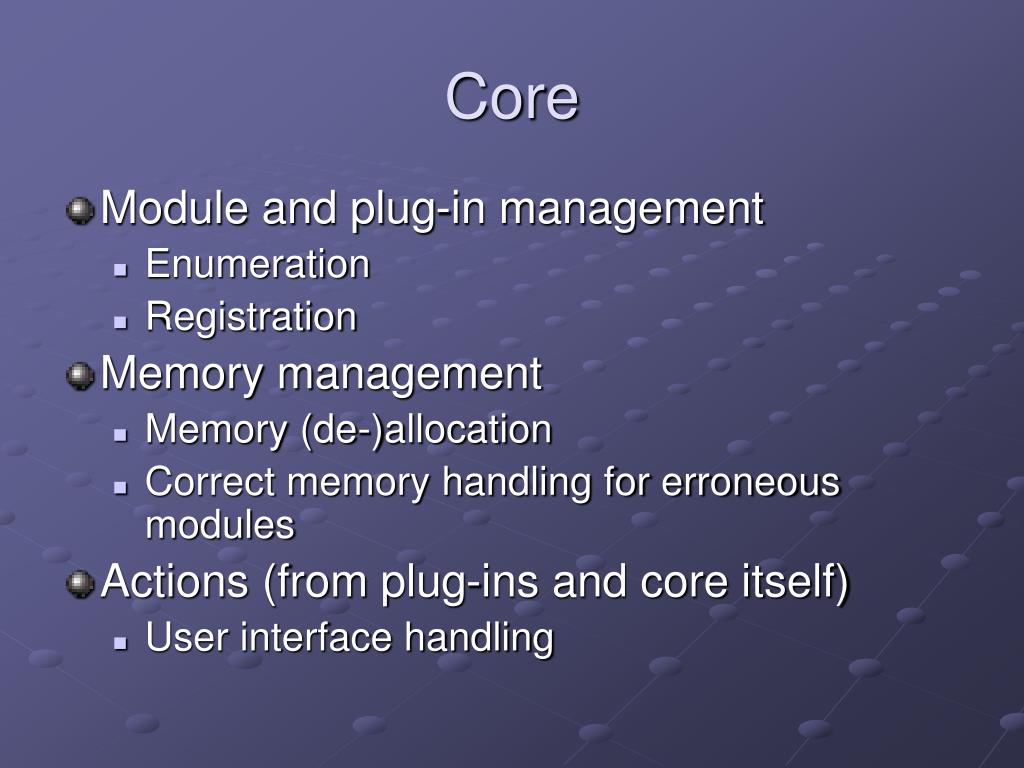

  7. Core • Module and plug-in management • Enumeration • Registration • Memory management • Memory (de-)allocation • Correct memory handling for erroneous modules • Actions (from plug-ins and core itself) • User interface handling

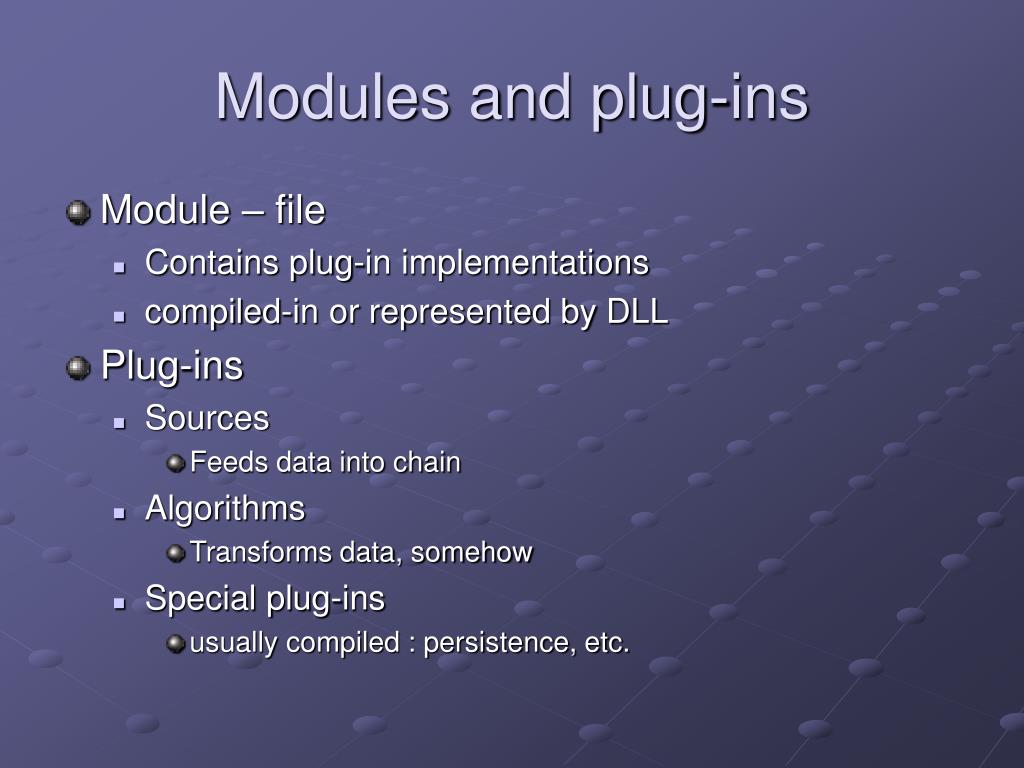

  8. Modules and plug-ins • Module – file • Contains plug-in implementations • compiled-in or represented by DLL • Plug-ins • Sources • Feeds data into chain • Algorithms • Transforms data, somehow • Special plug-ins • usually compiled : persistence, etc.

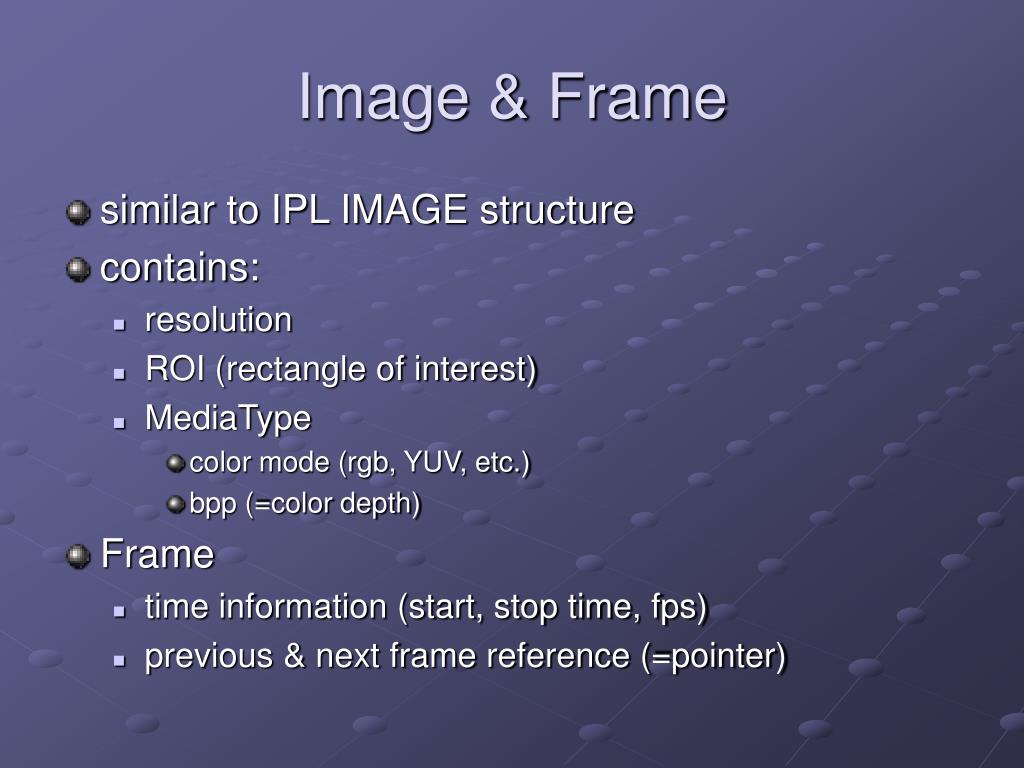

  9. Image & Frame • similar to IPL IMAGE structure • contains: • resolution • ROI (rectangle of interest) • MediaType • color mode (rgb, YUV, etc.) • bpp (=color depth) • Frame • time information (start, stop time, fps) • previous & next frame reference (=pointer)

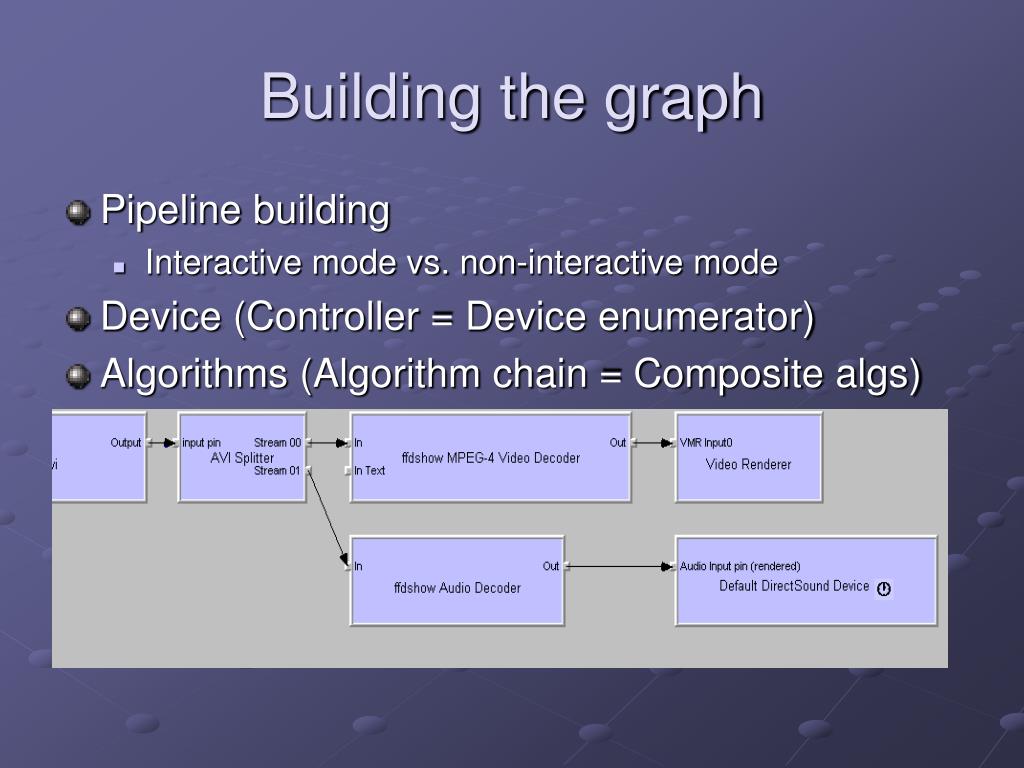

  10. Building the graph • Pipeline building • Interactive mode vs. non-interactive mode • Device (Controller = Device enumerator) • Algorithms (Algorithm chain = Composite algs)

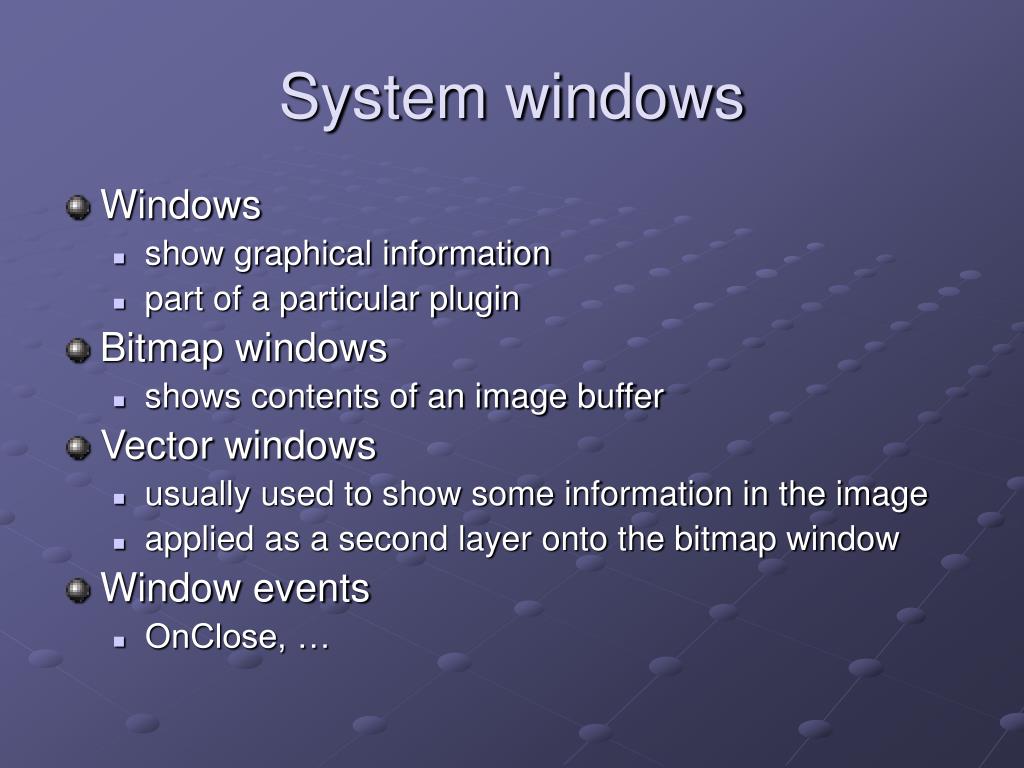

  11. System windows • Windows • show graphical information • part of a particular plugin • Bitmap windows • shows contents of an image buffer • Vector windows • usually used to show some information in the image • applied as a second layer onto the bitmap window • Window events • OnClose, …

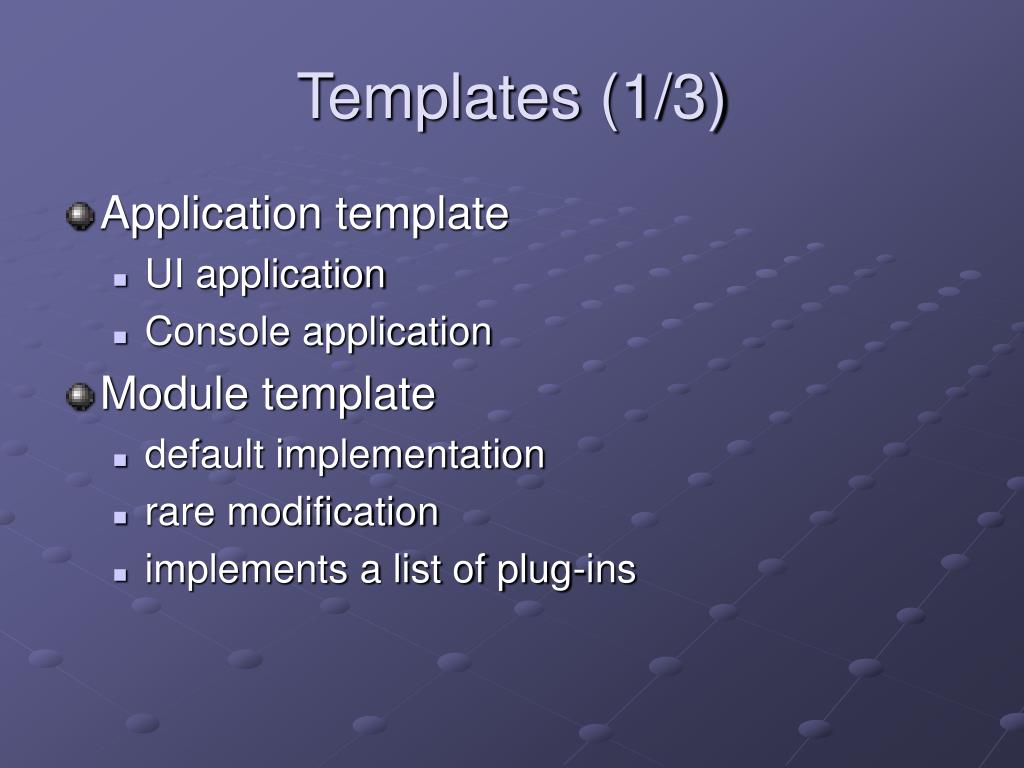

  12. Templates (1/3) • Application template • UI application • Console application • Module template • default implementation • rare modification • implements a list of plug-ins

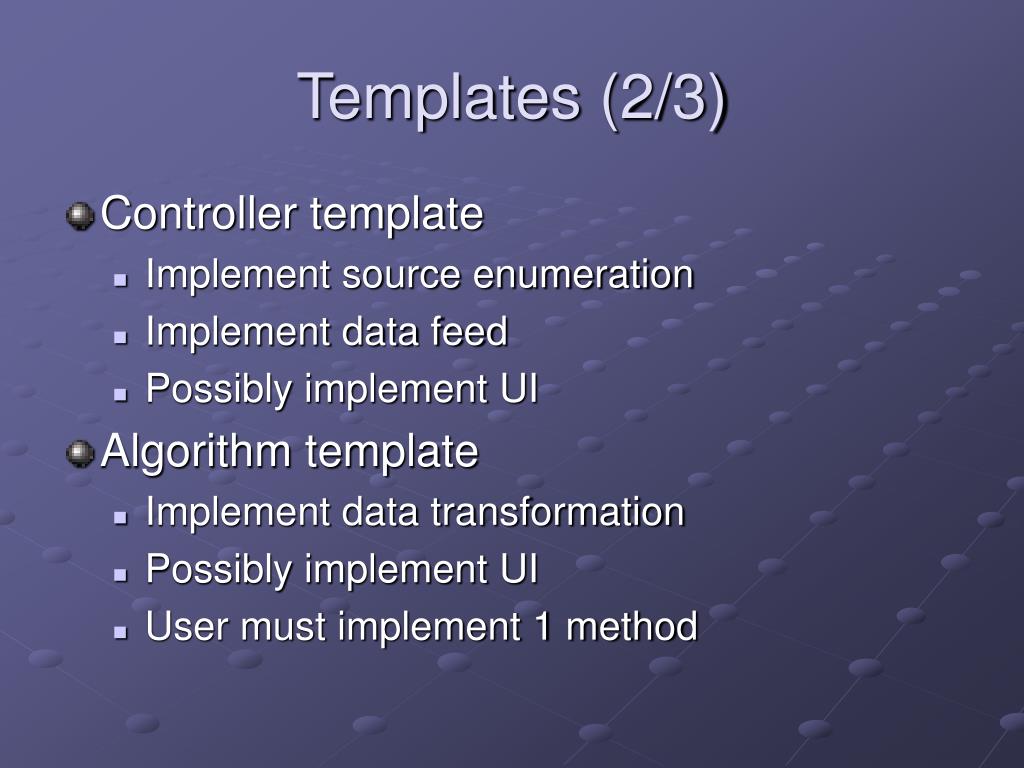

  13. Templates (2/3) • Controller template • Implement source enumeration • Implement data feed • Possibly implement UI • Algorithm template • Implement data transformation • Possibly implement UI • User must implement 1 method

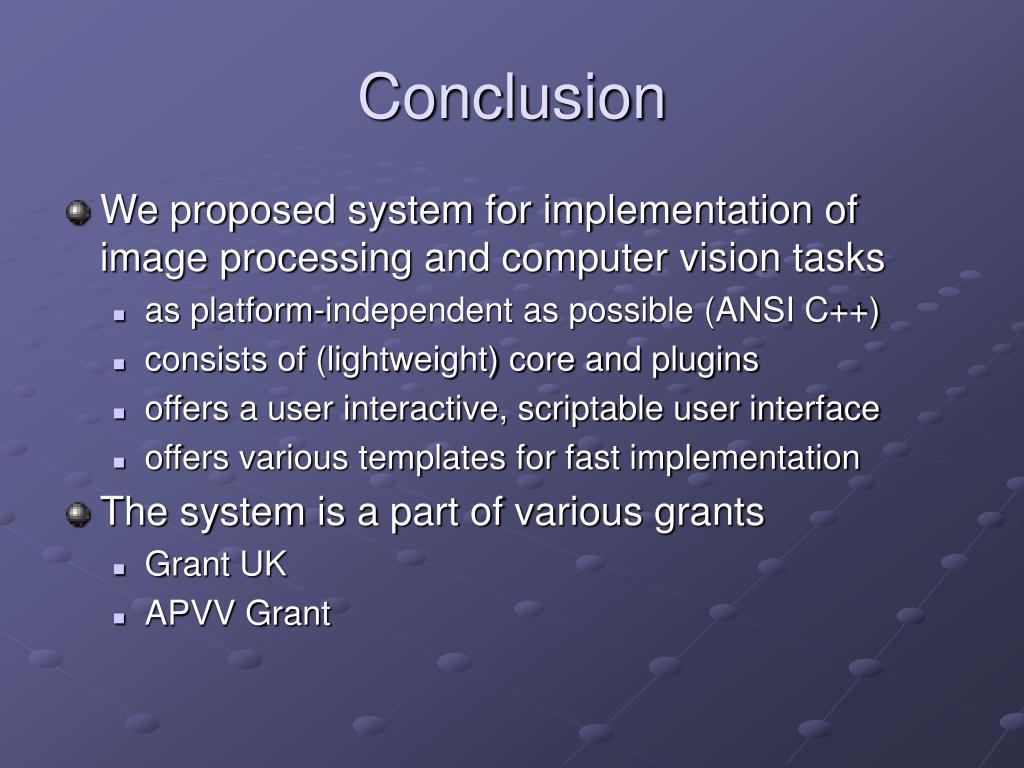

  14. Conclusion • We proposed system for implementation of image processing and computer vision tasks • as platform-independent as possible (ANSI C++) • consists of (lightweight) core and plugins • offers a user interactive, scriptable user interface • offers various templates for fast implementation • The system is a part of various grants • Grant UK • APVV Grant

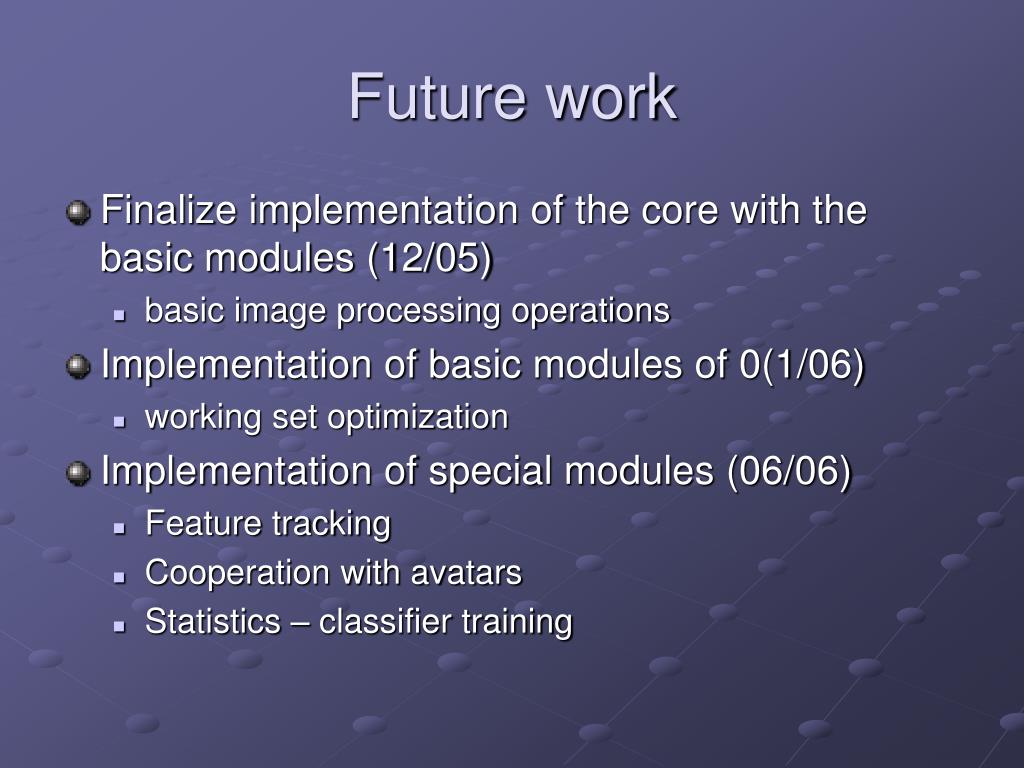

  15. Future work • Finalize implementation of the core with the basic modules (12/05) • basic image processing operations • Implementation of basic modules of 0(1/06) • working set optimization • Implementation of special modules (06/06) • Feature tracking • Cooperation with avatars • Statistics – classifier training
