Radio Tower Foundation

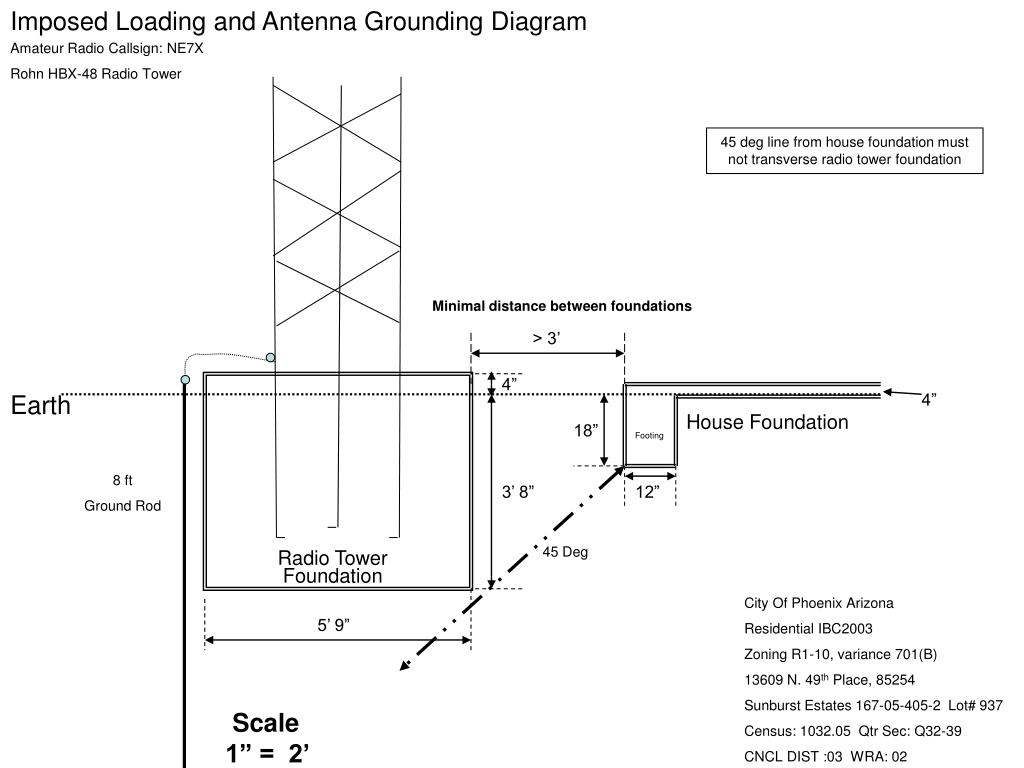

Imposed Loading and Antenna Grounding Diagram. Amateur Radio Callsign: NE7X Rohn HBX-48 Radio Tower. 45 deg line from house foundation must not transverse radio tower foundation. Minimal distance between foundations. > 3’. 4”. Earth. 4”. House Foundation. 18”. Footing. 8 ft Ground Rod.

winka
Download Presentation

Radio Tower Foundation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Imposed Loading and Antenna Grounding Diagram Amateur Radio Callsign: NE7X Rohn HBX-48 Radio Tower 45 deg line from house foundation must not transverse radio tower foundation Minimal distance between foundations > 3’ 4” Earth 4” House Foundation 18” Footing 8 ft Ground Rod 3’ 8” 12” 45 Deg Radio Tower Foundation City Of Phoenix Arizona Residential IBC2003 Zoning R1-10, variance 701(B) 13609 N. 49th Place, 85254 Sunburst Estates 167-05-405-2 Lot# 937 Census: 1032.05 Qtr Sec: Q32-39 CNCL DIST :03 WRA: 02 5’ 9” Scale 1” = 2’
