  1. Product: Lambda Light

  2. Mounting systems On-roof In-roof Fatroof Open terrain Omega Lambda Kappa Alpha Sigma I Lambda Light Theta Tau Zeta Sigma II Gamma Product portfolio of mounting systems Mounting Systems GmbH Product portfolio

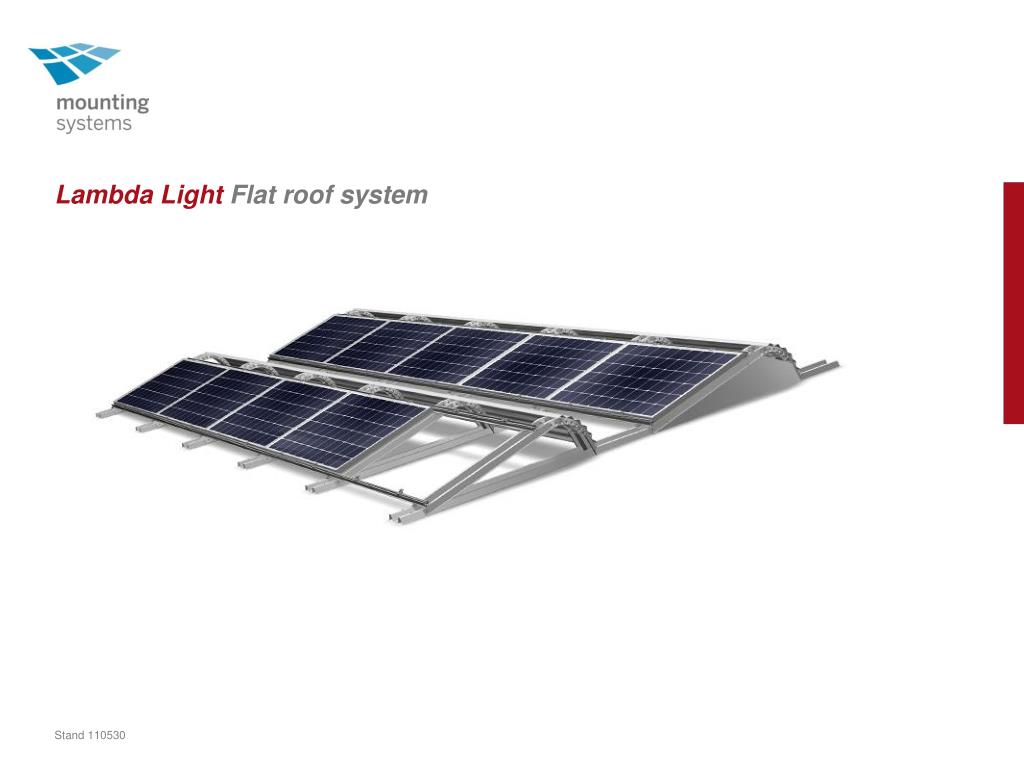

  3. Lambda Light Flat roofsystem • Designedfor flat roofswith limited permissible additional loadcapacitiy • Aerodynamic, optimizedsystem, requireringsubstantiallylessballastthanconventional flat roofsystems • Intelligent, interlockingsystem • Fewsinglecomponents • Simple installation • Comprehensiveprojectsupport • Forefficientquotationandplanning • Forstaticalsecurity Stand 110530

  4. LambdaLight – Flexible, efficient, safe • Suitableforconfigurationsof min. 2 rows • Min. 10m² • LowestballastcategoriesredatconfigurationachesErreichungder niof min.5x5 modules • The biggertheinstallation, thelowertheaverage additional load • Forlandscapeinstallationofframedmodules • Standard pitch: 15° (others on request) Stand 110530

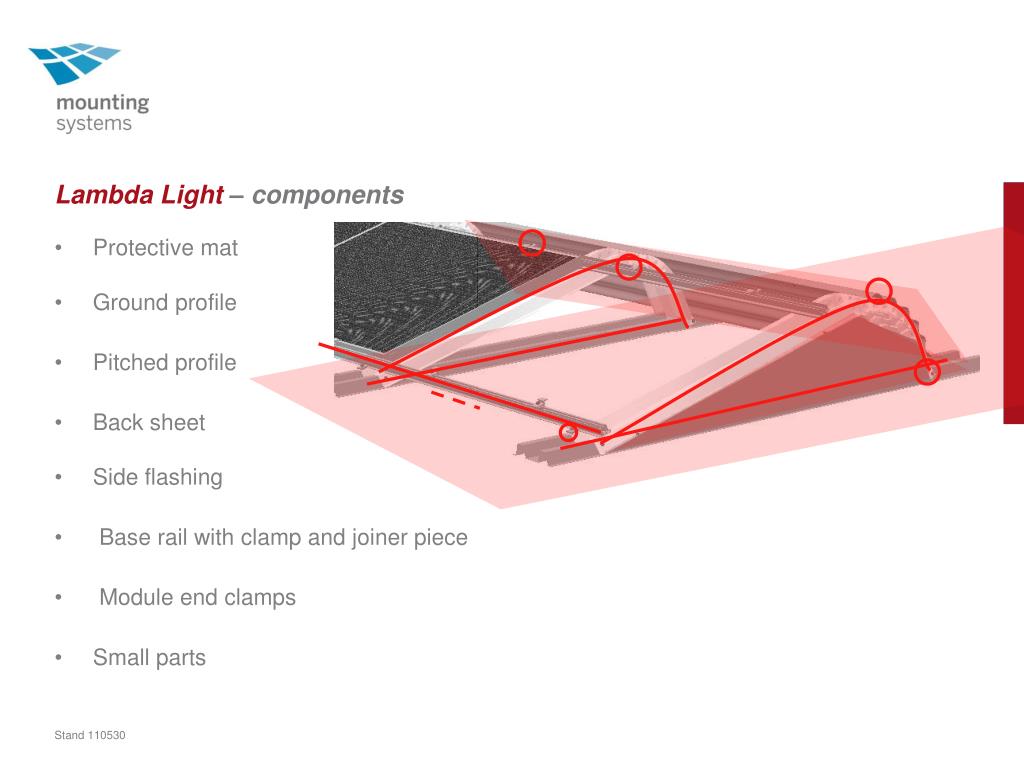

  5. Lambda Light – components • Protectivemat • Groundprofile • Pitchedprofile • Back sheet • Side flashing • Base railwithclampandjoinerpiece • Module end clamps • Small parts Stand 110530

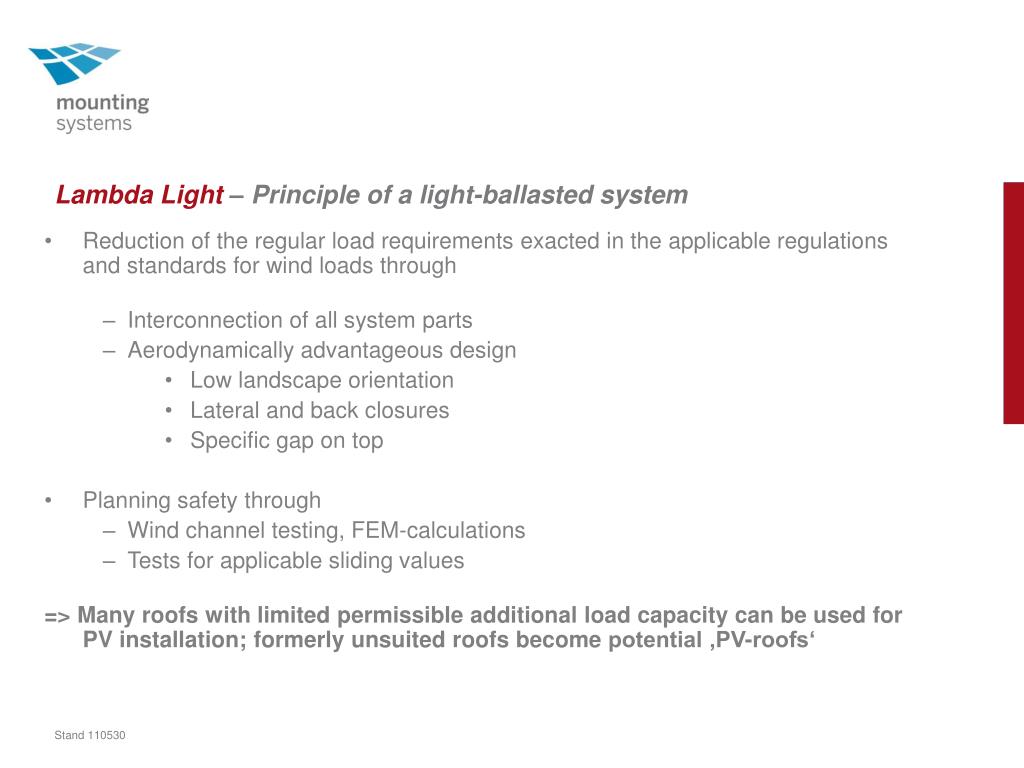

  6. Lambda Light – Principleof a light-ballastedsystem • Reductionoftheregularloadrequirementsexacted in theapplicableregulationsandstandardsfor wind loadsthrough • Interconnection of all systemparts • Aerodynamicallyadvantageous design • Low landscapeorientation • Lateral and back closures • Specificgap on top • Planningsafetythrough • Wind channeltesting, FEM-calculations • Tests forapplicableslidingvalues • => Manyroofswith limited permissible additional loadcapacitycanbeusedfor PV installation; formerlyunsuitedroofsbecome potential ‚PV-roofs‘ Stand 110530

  7. Lambda Light – Support • Planningprocessmorecomplexthantraditionally, due tohighersecurityrisks in caseofmisinterpretation • High Mounting Systems supportlevel: • Support fortheconfigurationoftheinstallation, includingroof-specifictestingofsliding • Detailedcalculationofnecessaryballast • Exactlayout plan for all components Stand 110530

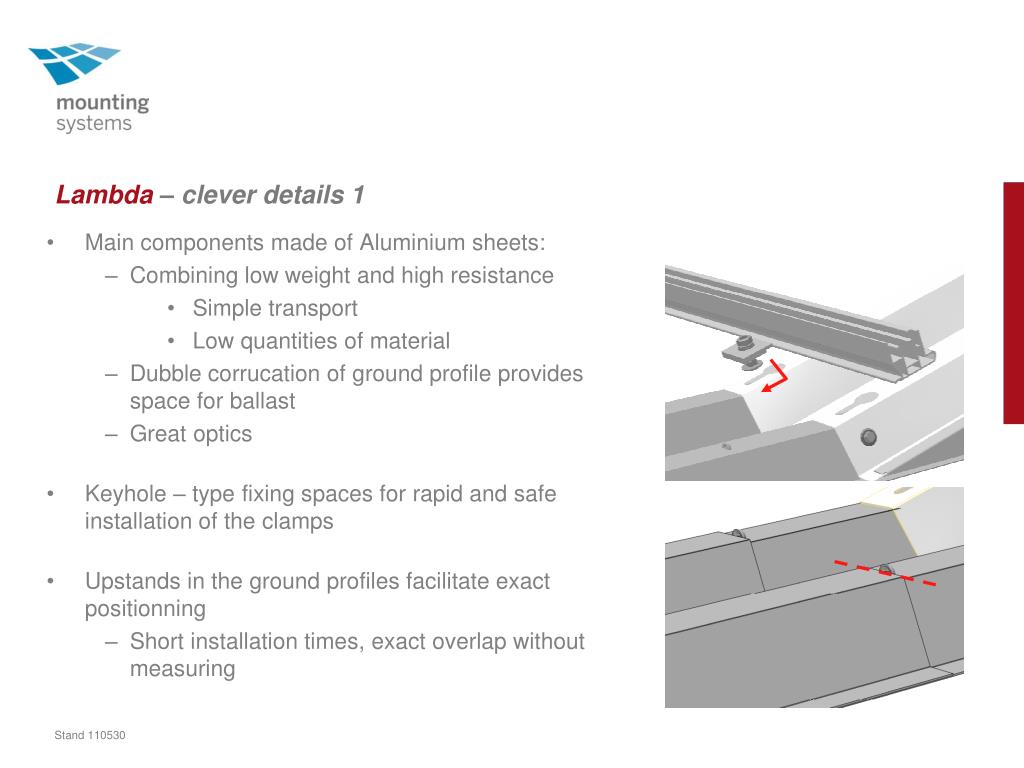

  8. Lambda– clever details1 • Main componentsmadeof Aluminium sheets: • Combininglowweightandhigh resistance • Simple transport • Low quantitiesof material • Dubblecorrucationofgroundprofileprovidesspaceforballast • Great optics • Keyhole – type fixingspacesfor rapid andsafeinstallationoftheclamps • Upstands in thegroundprofilesfacilitateexactpositionning • Short installationtimes, exactoverlapwithoutmeasuring Stand 110530

  9. Lambda– clever details2 • Selfdrillingscrews; nometalslivers • Protectionoftheroof • Universal module end clamp • ProvenQuickstonetechnology • Onecomponentfor all frameheights • Version withoutmodulesupportrail • Formodulesthatcanbeclampedatthecorners • Costreductionbyapprox. 15% Stand 110530

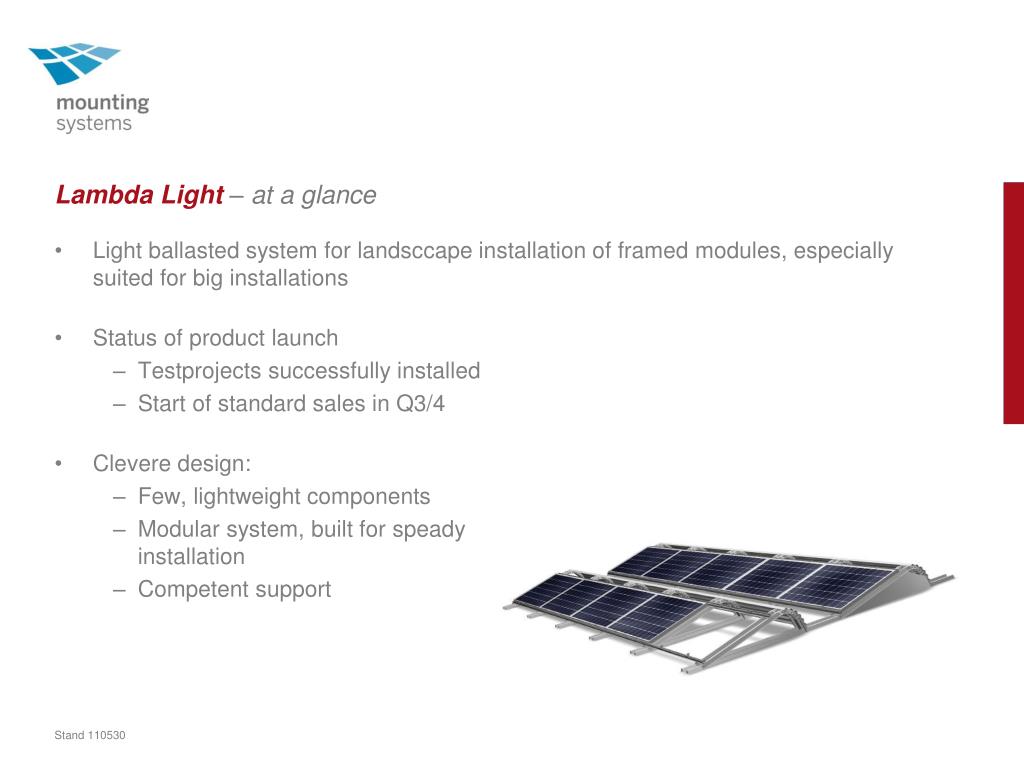

  10. LambdaLight – at a glance • Light ballastedsystemforlandsccapeinstallationofframedmodules, especiallysuitedforbiginstallations • Status ofproductlaunch • Testprojects successfullyinstalled • Start ofstandardsales in Q3/4 • Clevere design: • Few, lightweightcomponents • Modular system, builtforspeadyinstallation • Competentsupport Stand 110530
