1. A Review of Recursion Dr. Jicheng Fu Department of Computer Science University of Central Oklahoma

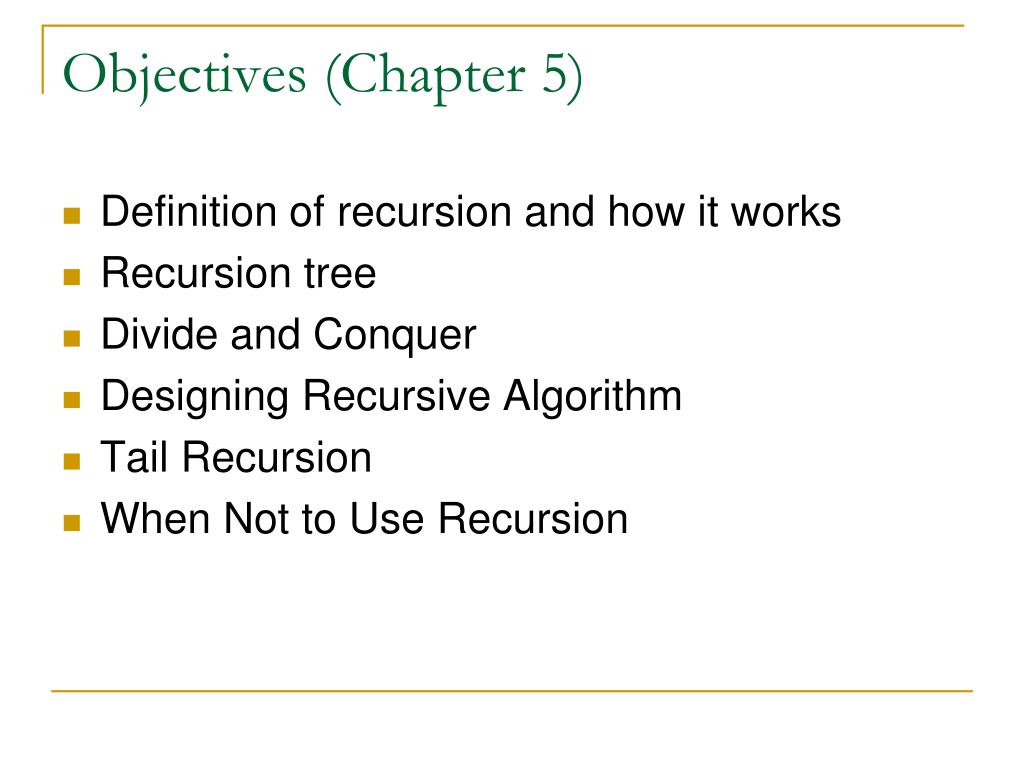

2. Objectives (Chapter 5) • Definition of recursion and how it works • Recursion tree • Divide and Conquer • Designing Recursive Algorithm • Tail Recursion • When Not to Use Recursion

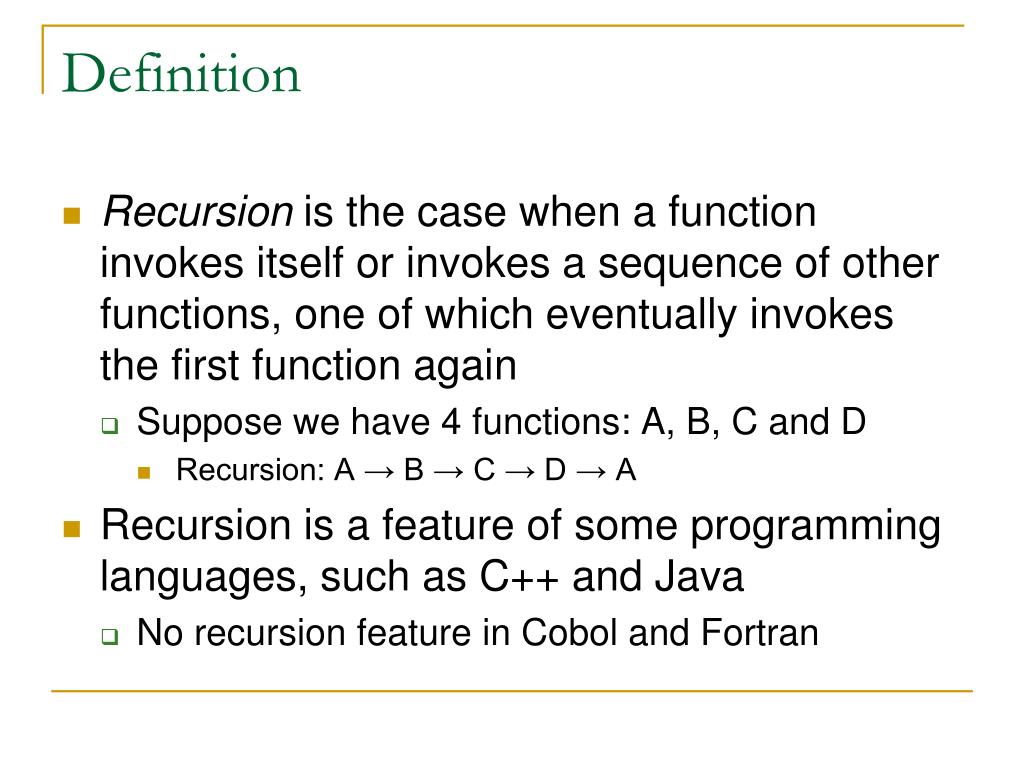

3. Definition • Recursion is the case when a function invokes itself or invokes a sequence of other functions, one of which eventually invokes the first function again • Suppose we have 4 functions: A, B, C and D • Recursion: A → B → C → D → A • Recursion is a feature of some programming languages, such as C++ and Java • No recursion feature in Cobol and Fortran

4. Tree of Subprogram Calls M() { A(); D(2); } A() { B(); C(); } B() {} C() { D(0); } D(int n) { if (n>0) D(n-1); }

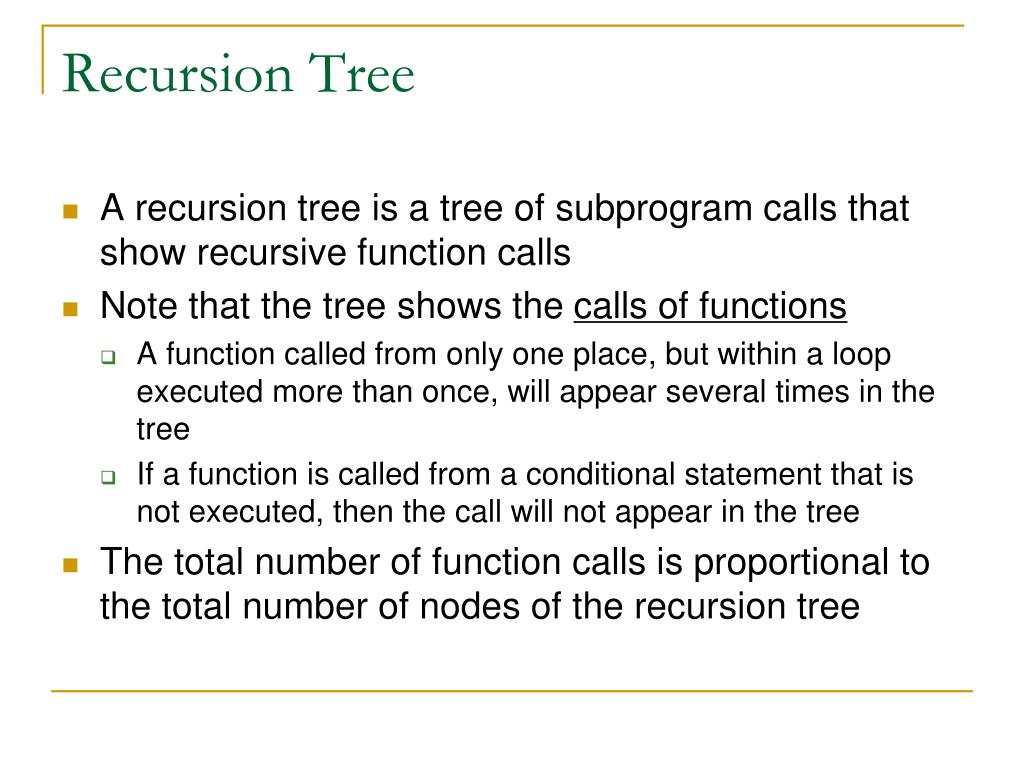

5. Recursion Tree • A recursion tree is a tree of subprogram calls that show recursive function calls • Note that the tree shows the calls of functions • A function called from only one place, but within a loop executed more than once, will appear several times in the tree • If a function is called from a conditional statement that is not executed, then the call will not appear in the tree • The total number of function calls is proportional to the total number of nodes of the recursion tree

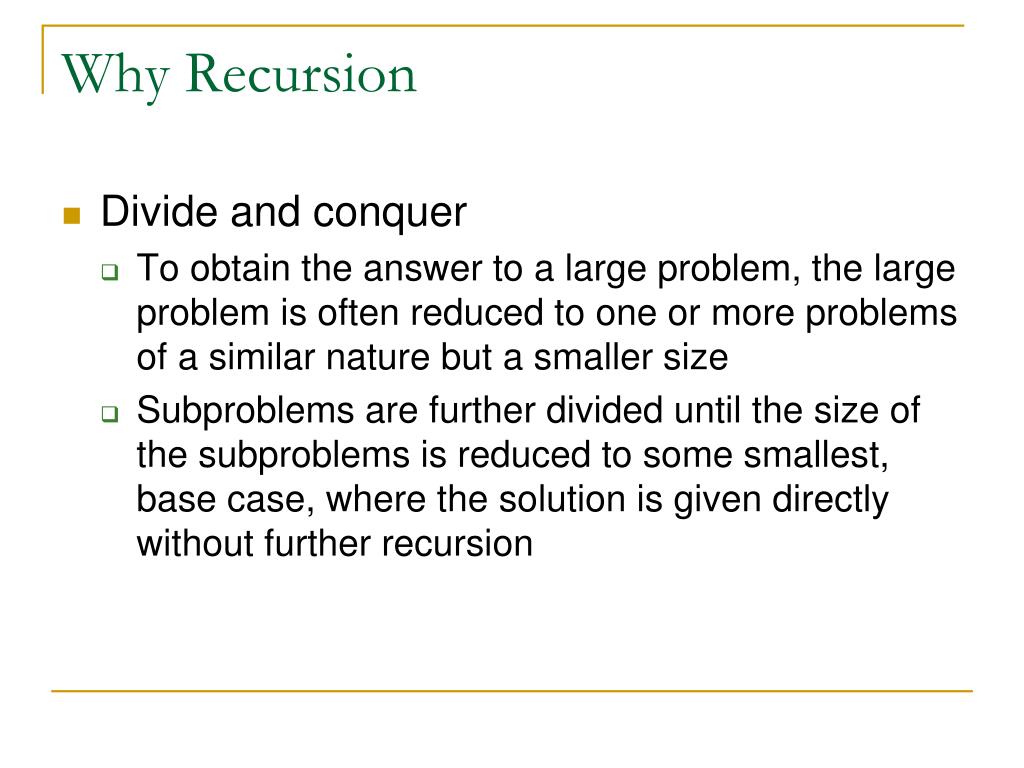

6. Why Recursion • Divide and conquer • To obtain the answer to a large problem, the large problem is often reduced to one or more problems of a similar nature but a smaller size • Subproblems are further divided until the size of the subproblems is reduced to some smallest, base case, where the solution is given directly without further recursion

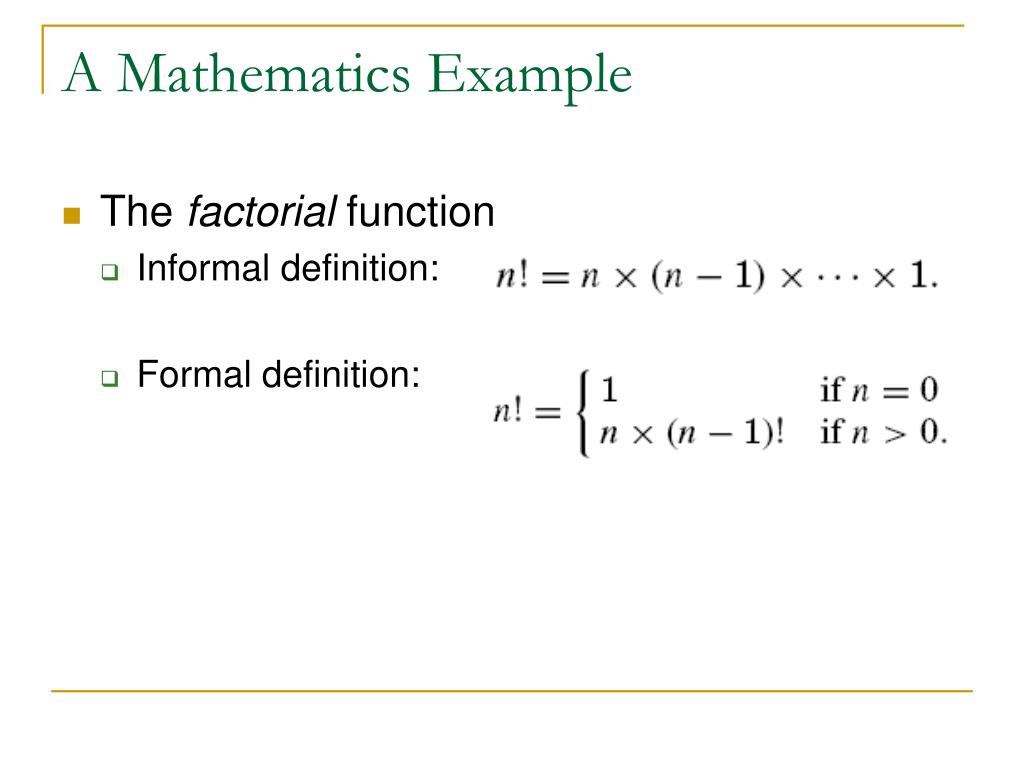

7. A Mathematics Example • The factorial function • Informal definition: • Formal definition:

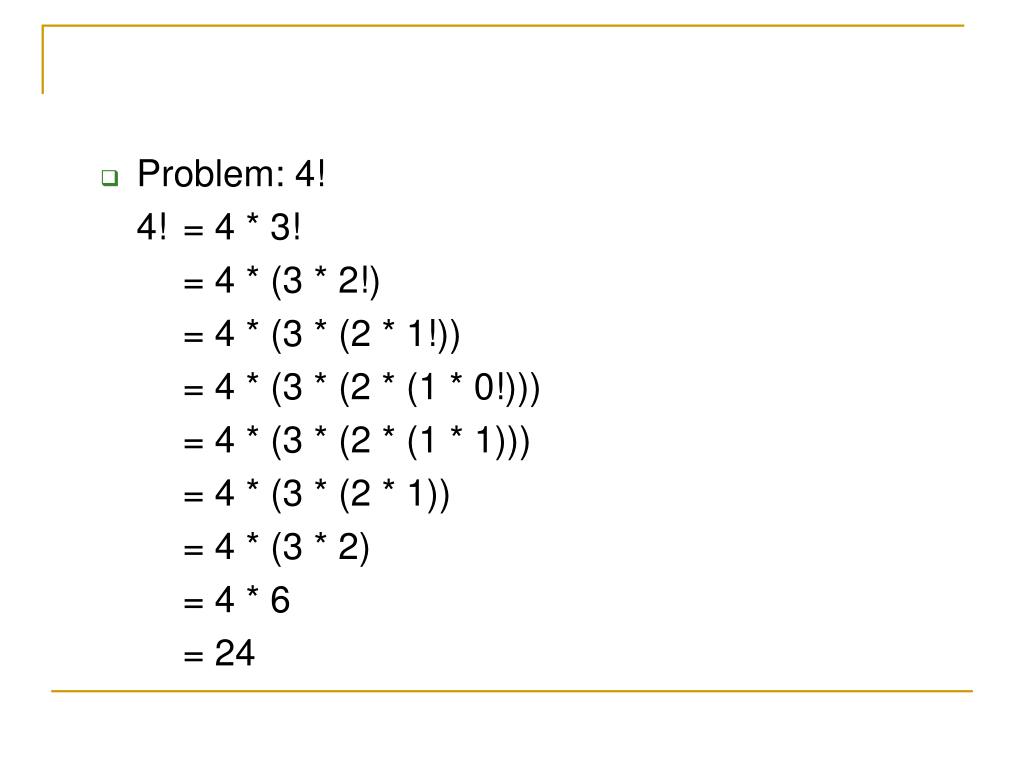

8. Problem: 4! 4! = 4 * 3! = 4 * (3 * 2!) = 4 * (3 * (2 * 1!)) = 4 * (3 * (2 * (1 * 0!))) = 4 * (3 * (2 * (1 * 1))) = 4 * (3 * (2 * 1)) = 4 * (3 * 2) = 4 * 6 = 24

9. Every recursive process consists of two parts: • A smallest, base case that is processed without recursion; • A general method that reduces a particular case to one or more of the smaller cases, thereby eventually reducing the problem all the way to the base case. • Do not try to understand a recursive algorithm by working the general case all the way down to the stopping rule • It may be helpful to work a small example • Instead, only think about the correctness of the base bases and the recursive cases • If they are correct, then the recursive algorithm should be correct

10. Example: Factorial int factorial (int n) /* Pre: n is an integer no less than 0 Post: The factorial of n (n!) is returned Uses: The function factorial recursively */ { if (n == 0) return 1; else return n * factorial (n - 1); } }

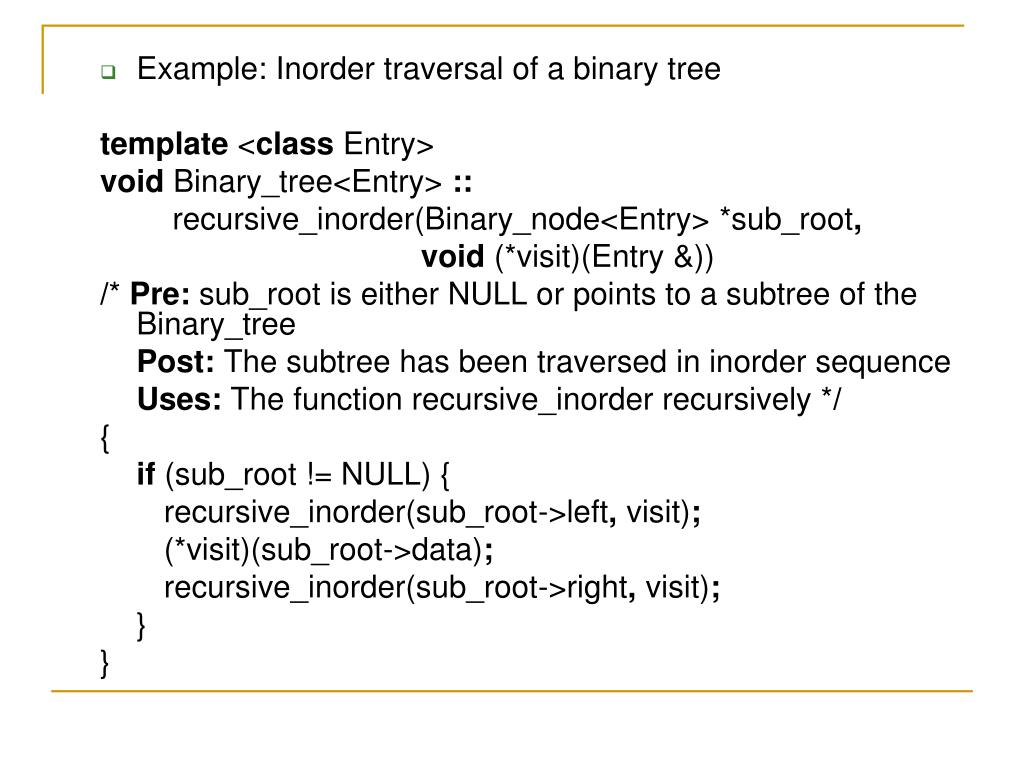

11. Example: Inorder traversal of a binary tree template <class Entry> void Binary_tree<Entry> :: recursive_inorder(Binary_node<Entry> *sub_root, void (*visit)(Entry &)) /* Pre: sub_root is either NULL or points to a subtree of the Binary_tree Post: The subtree has been traversed in inorder sequence Uses: The function recursive_inorder recursively */ { if (sub_root != NULL) { recursive_inorder(sub_root->left, visit); (*visit)(sub_root->data); recursive_inorder(sub_root->right, visit); } }

12. The Hanoi Tower • A good example of solving a big problem using the divide and conquer and recursion technology • Pp. 163-168

13. Designing Recursive Algorithm • Find the key step • Begin by asking yourself, “How can this problem be divided into parts?” • Once you have a simple, small step toward the solution, ask whether the remainder of the problem can be solved in the same or a similar way • Find a stopping rule (base case) • The stopping rule is usually the small, special case that is trivial or easy to handle without recursion

14. Outline your algorithm • Combine the stopping rule and the key step, using an if statement to select between them • Check termination • Verify that the recursion will always terminate • All possible base cases are considered • Be sure that your algorithm correctly handles all possible base cases

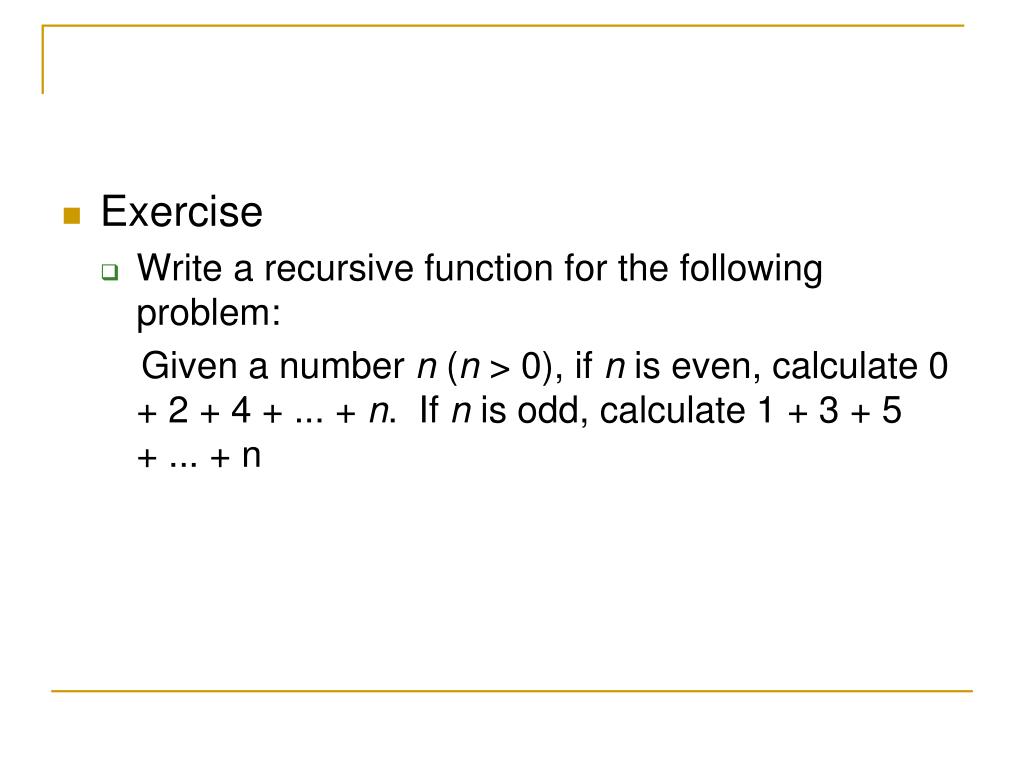

15. Exercise • Write a recursive function for the following problem: Given a number n (n > 0), if n is even, calculate 0 + 2 + 4 + ... + n. If n is odd, calculate 1 + 3 + 5 + ... + n

16. About a recursion tree • The height of the tree is closely related to the amount of memory that the program will require • The total size of the tree reflects the number of times the key step will be done

17. Tail Recursion • Definition • Tail recursion occurs when the last-executed statement of a function is a recursive call to itself • Problem • Since the recursive call is the last action of the function, there is no need for recursion • No difference in execution time for most compilers • Compiler will transform it into a loop • Functional programming often requires the transformation of a non-tail recursion into a tail recursion so that optimizations can be done

18. int sumto(int n){ if (n <= 0) return 0; else return sumto(n-1) + n; } int sumto1(int n, int sum){ if (n <= 0) return sum; else return sumto1(n-1,sum+n); }

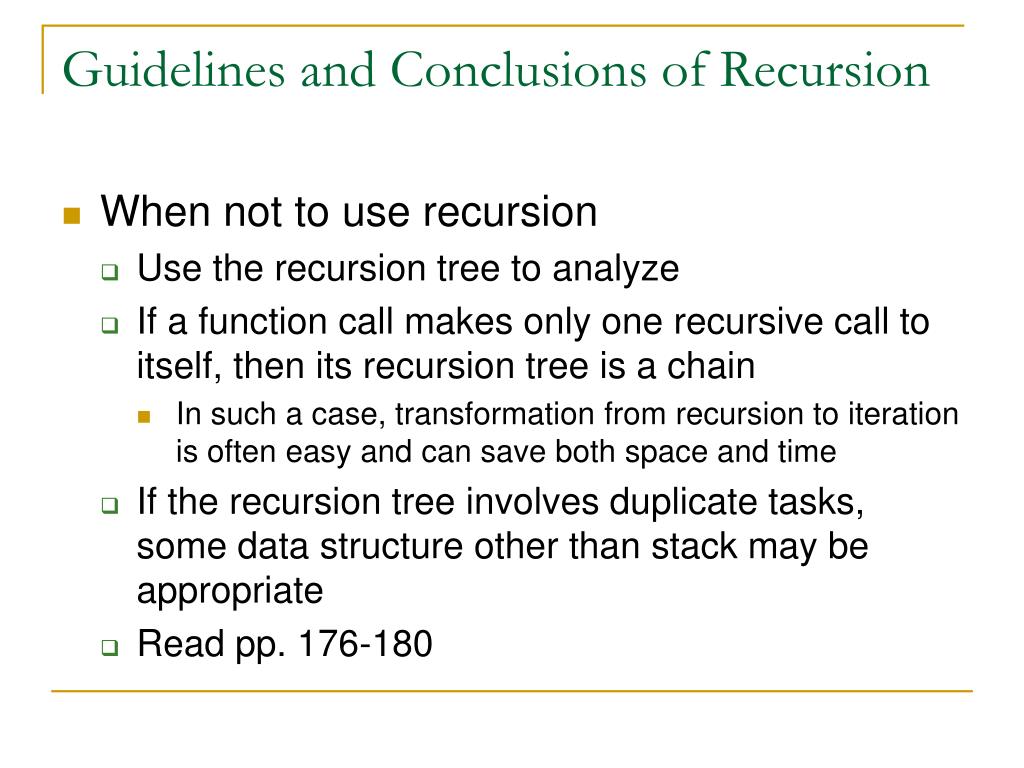

19. Guidelines and Conclusions of Recursion • When not to use recursion • Use the recursion tree to analyze • If a function call makes only one recursive call to itself, then its recursion tree is a chain • In such a case, transformation from recursion to iteration is often easy and can save both space and time • If the recursion tree involves duplicate tasks, some data structure other than stack may be appropriate • Read pp. 176-180

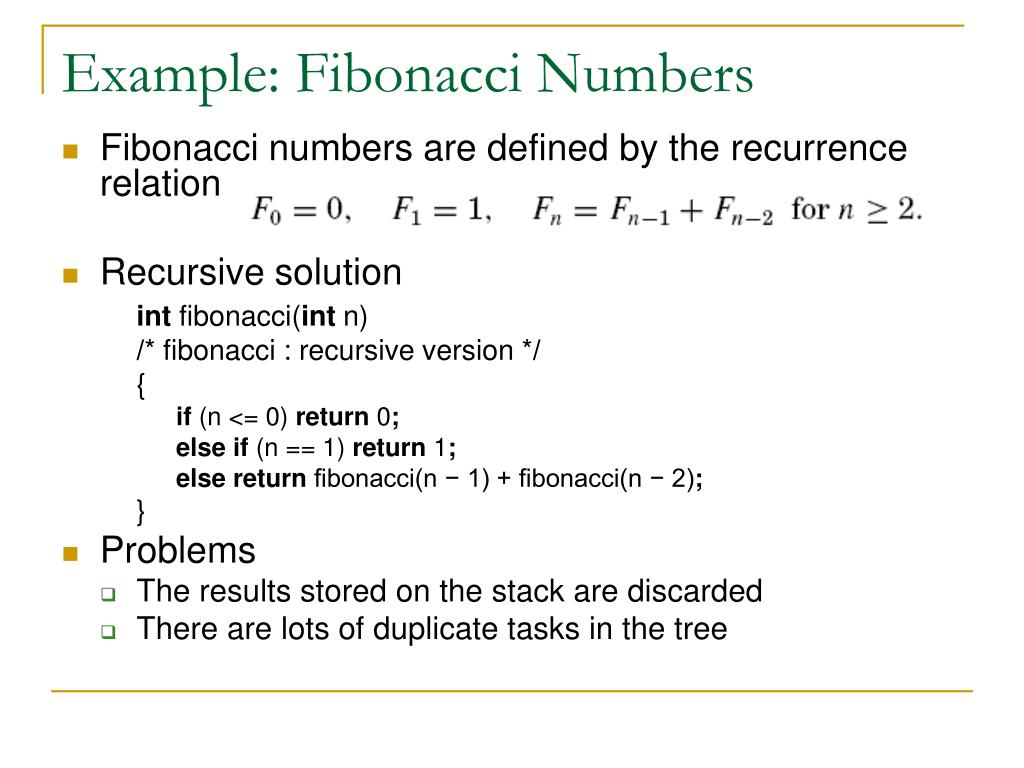

20. Example: Fibonacci Numbers • Fibonacci numbers are defined by the recurrence relation • Recursive solution int fibonacci(int n) /* fibonacci : recursive version */ { if (n <= 0) return 0; else if (n == 1) return 1; else return fibonacci(n − 1) + fibonacci(n − 2); } • Problems • The results stored on the stack are discarded • There are lots of duplicate tasks in the tree

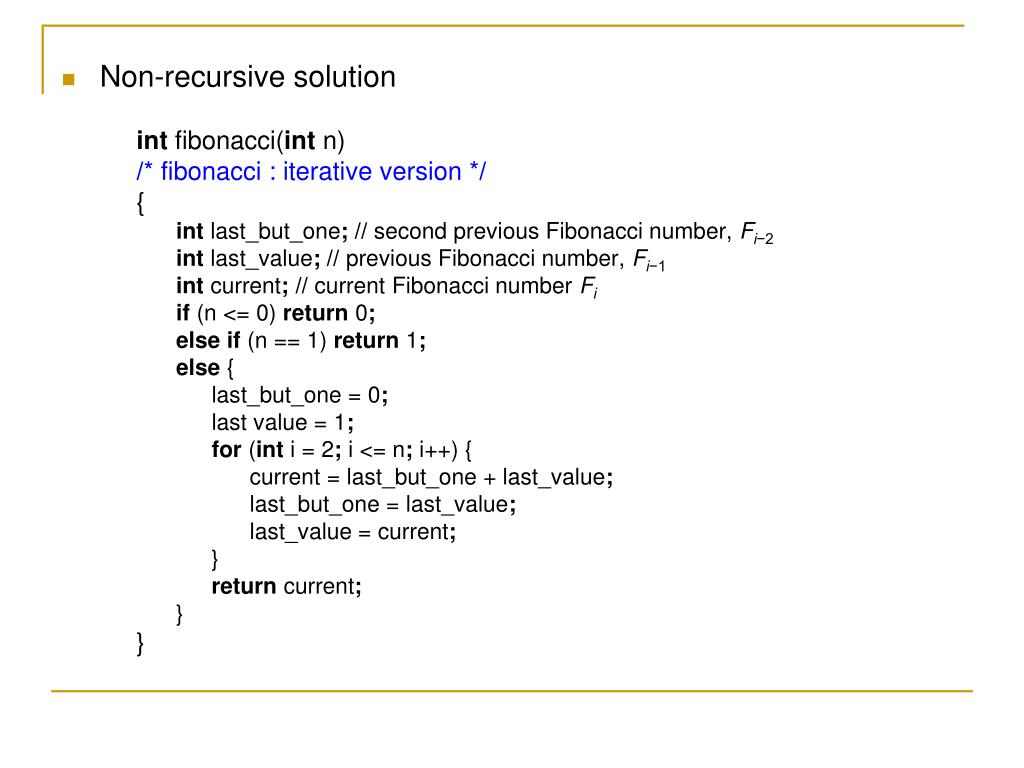

22. Non-recursive solution int fibonacci(int n) /* fibonacci : iterative version */ { int last_but_one; // second previous Fibonacci number, Fi−2 int last_value; // previous Fibonacci number, Fi−1 int current; // current Fibonacci number Fi if (n <= 0) return 0; else if (n == 1) return 1; else { last_but_one = 0; last value = 1; for (int i = 2; i <= n; i++) { current = last_but_one + last_value; last_but_one = last_value; last_value = current; } return current; } }

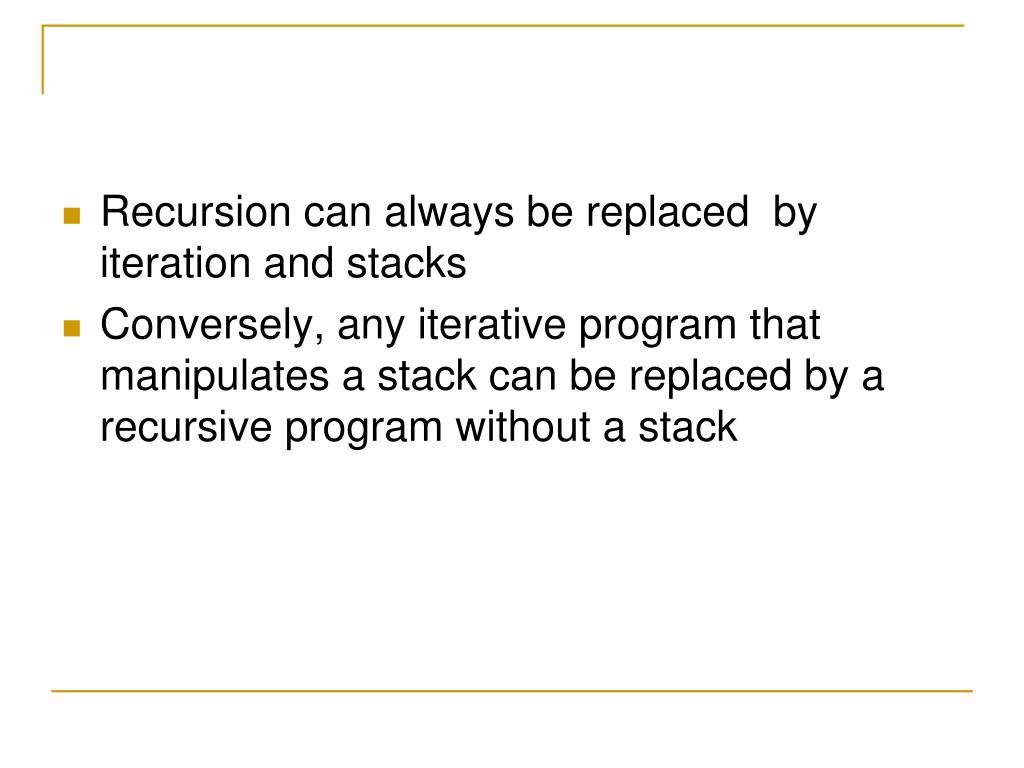

23. Recursion can always be replaced by iteration and stacks • Conversely, any iterative program that manipulates a stack can be replaced by a recursive program without a stack

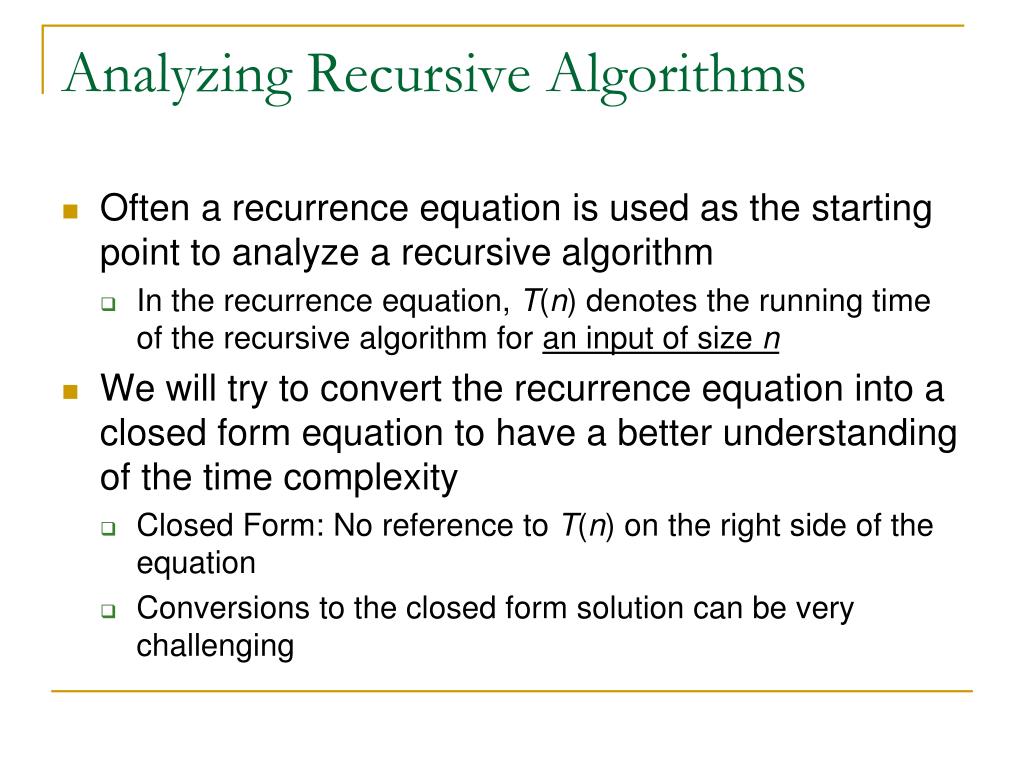

24. Analyzing Recursive Algorithms • Often a recurrence equation is used as the starting point to analyze a recursive algorithm • In the recurrence equation, T(n) denotes the running time of the recursive algorithm for an input of size n • We will try to convert the recurrence equation into a closed form equation to have a better understanding of the time complexity • Closed Form: No reference to T(n) on the right side of the equation • Conversions to the closed form solution can be very challenging

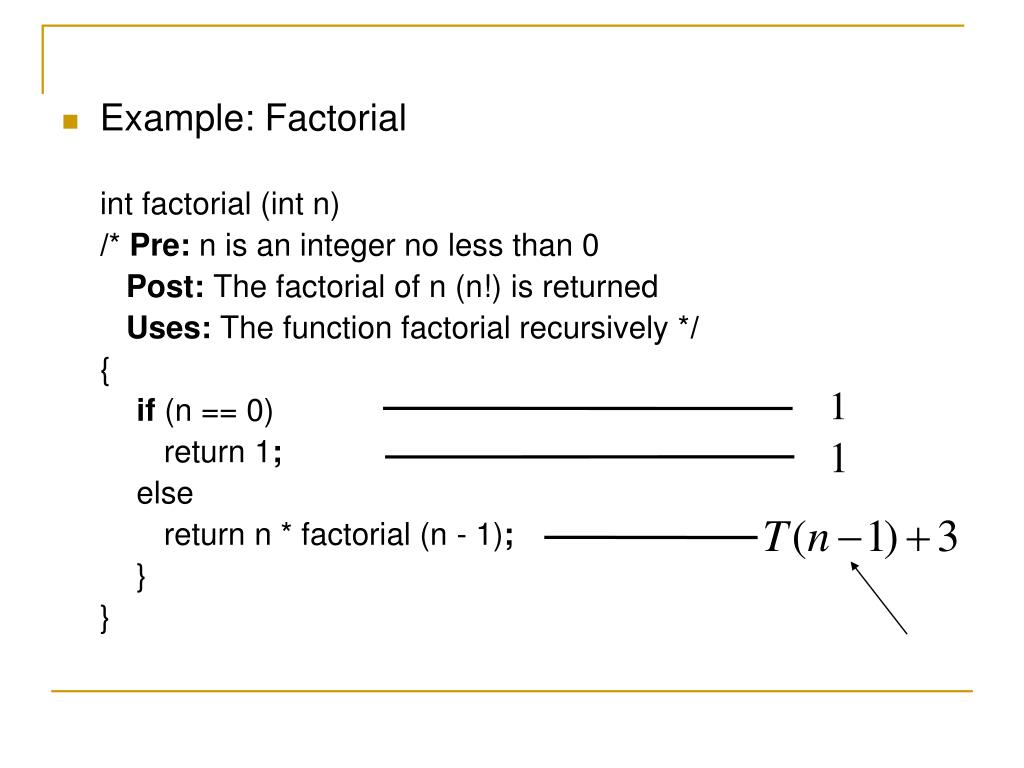

25. Example: Factorial int factorial (int n) /* Pre: n is an integer no less than 0 Post: The factorial of n (n!) is returned Uses: The function factorial recursively */ { if (n == 0) return 1; else return n * factorial (n - 1); } } 1

26. The time complexity of factorial(n) is: • T(n) is an arithmetic sequence with the common difference 4 of successive members and T(0) equals 2 • The time complexity of factorial is O(n) 3+1: The comparison is included

27. Fibonacci numbers int fibonacci(int n) /* fibonacci : recursive version */ { if (n <= 0) return 0; else if (n == 1) return 1; else return fibonacci(n − 1) + fibonacci(n − 2); }

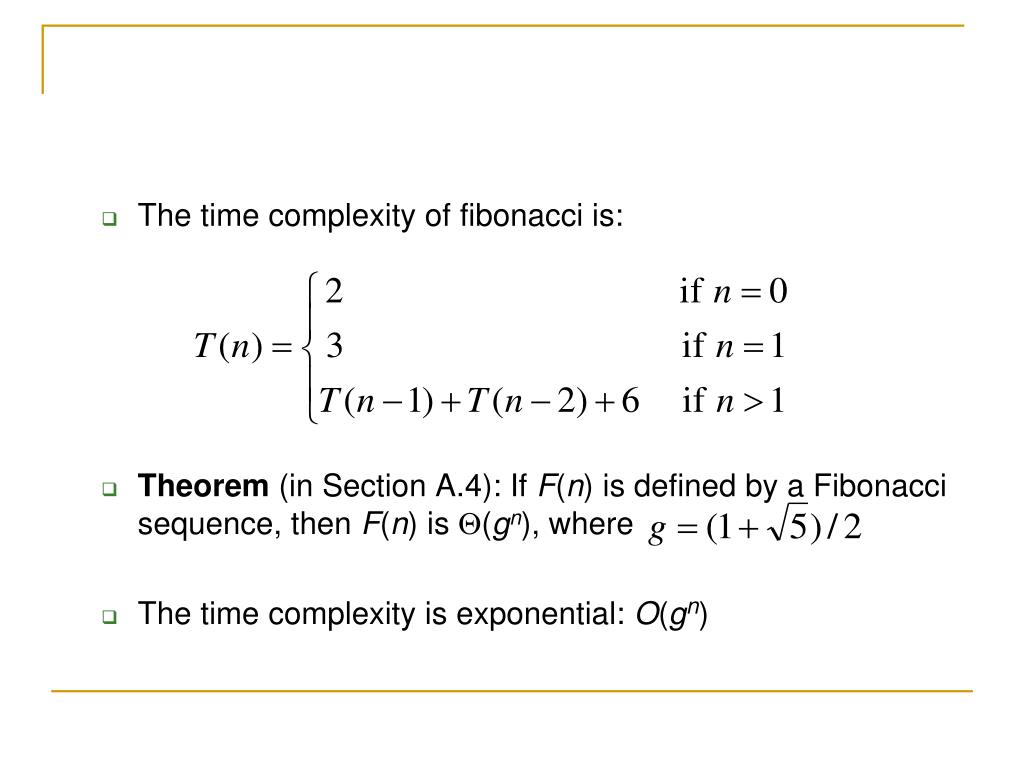

28. The time complexity of fibonacci is: • Theorem (in Section A.4): If F(n) is defined by a Fibonacci sequence, then F(n) is (gn), where • The time complexity is exponential: O(gn)
