Presentation Transcript


Pointers

Pointers

황 강 욱

Next Generation Communication Networks Lab.

Division of Applied Mathematics

KAIST


Pointer

Pointer

  • Pointer : Memory 주소 값을 저장하고 있는 변수

  • Pointer의 자료형 : int, float, char

    • 포인터가 저정하고 있는 메모리에 저장된 data type

  • Pointer의 선언

    • int *int_ptr;

    • float *float_ptr;

    • char *char_ptr;

Next Generation Communication Networks Lab.


Pointers

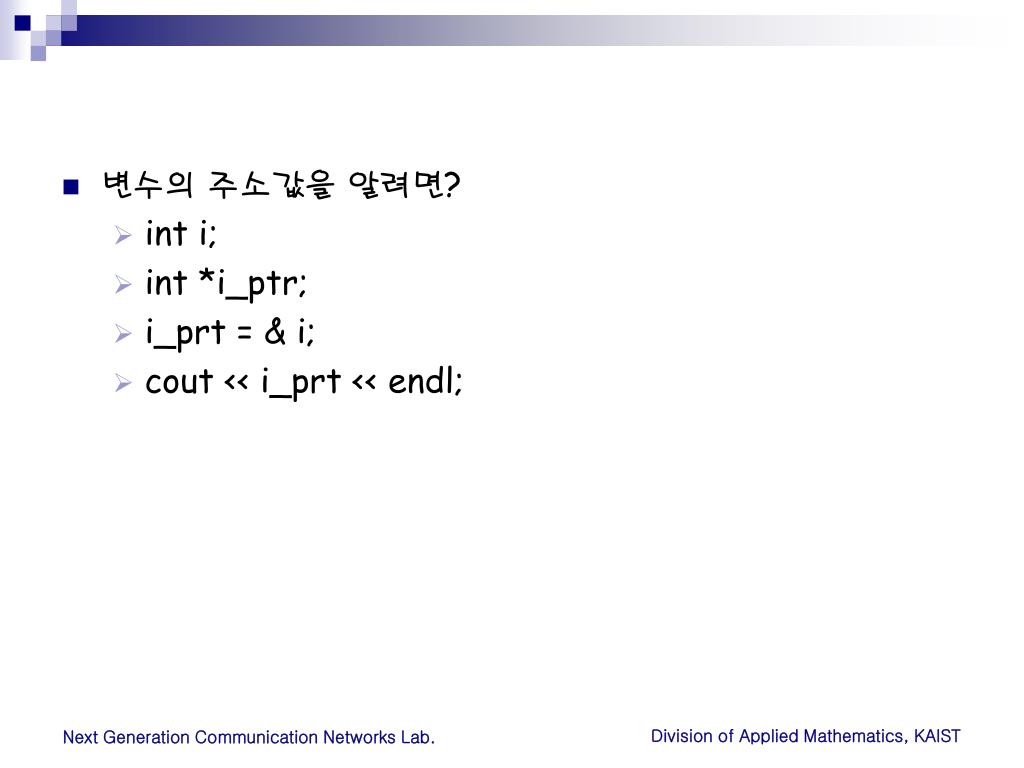

  • 변수의 주소값을 알려면?

    • int i;

    • int *i_ptr;

    • i_prt = & i;

    • cout << i_prt << endl;

Next Generation Communication Networks Lab.


1 pointer

a[0]

a[1]

a[2]

a[3]

a[4]

a[5]

1차원 배열과 pointer

  • int a[6];

  • 배열의 시작주소 : a 또는 &a[0]

    c.f. 배열의 이름이 그 배열의 시작주소를 나타냄.

  • pointer 연산

    • a == &a[0]

    • a + i == &a[i]

    • *(a+i) == a[i]

Next Generation Communication Networks Lab.


2 pointer

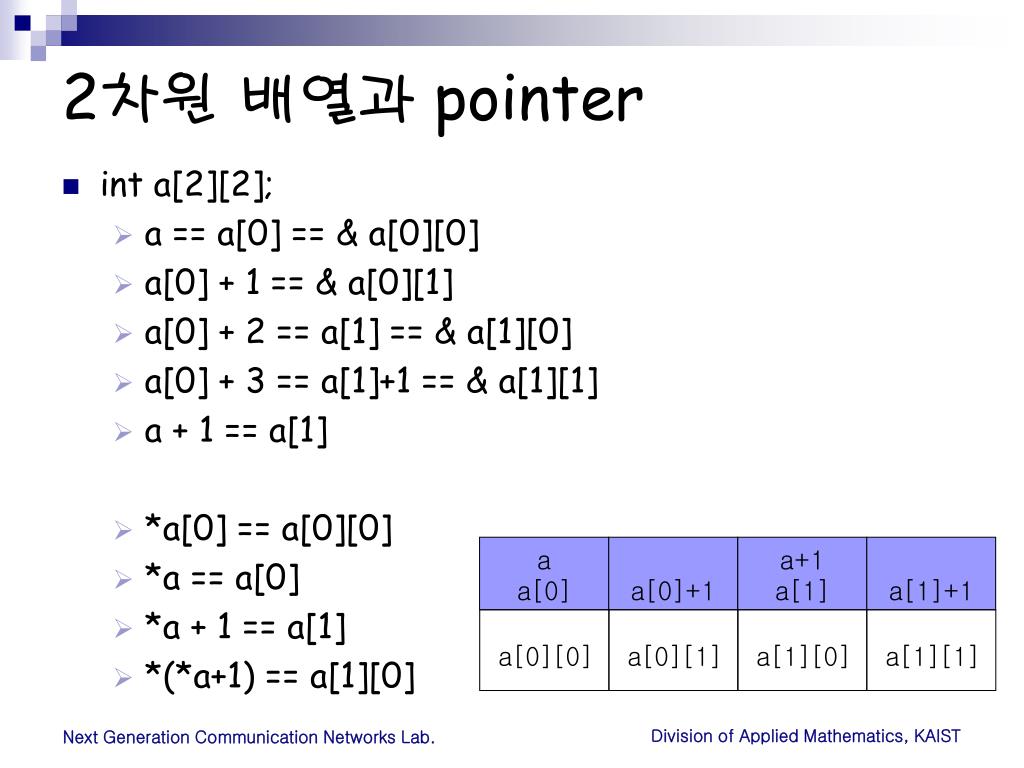

2차원 배열과 pointer

  • int a[2][2];

    • a == a[0] == & a[0][0]

    • a[0] + 1 == & a[0][1]

    • a[0] + 2 == a[1] == & a[1][0]

    • a[0] + 3 == a[1]+1 == & a[1][1]

    • a + 1 == a[1]

    • *a[0] == a[0][0]

    • *a == a[0]

    • *a + 1 == a[1]

    • *(*a+1) == a[1][0]

a

a[0]

a[0]+1

a+1

a[1]

a[1]+1

a[0][0]

a[0][1]

a[1][0]

a[1][1]

Next Generation Communication Networks Lab.


Pointers

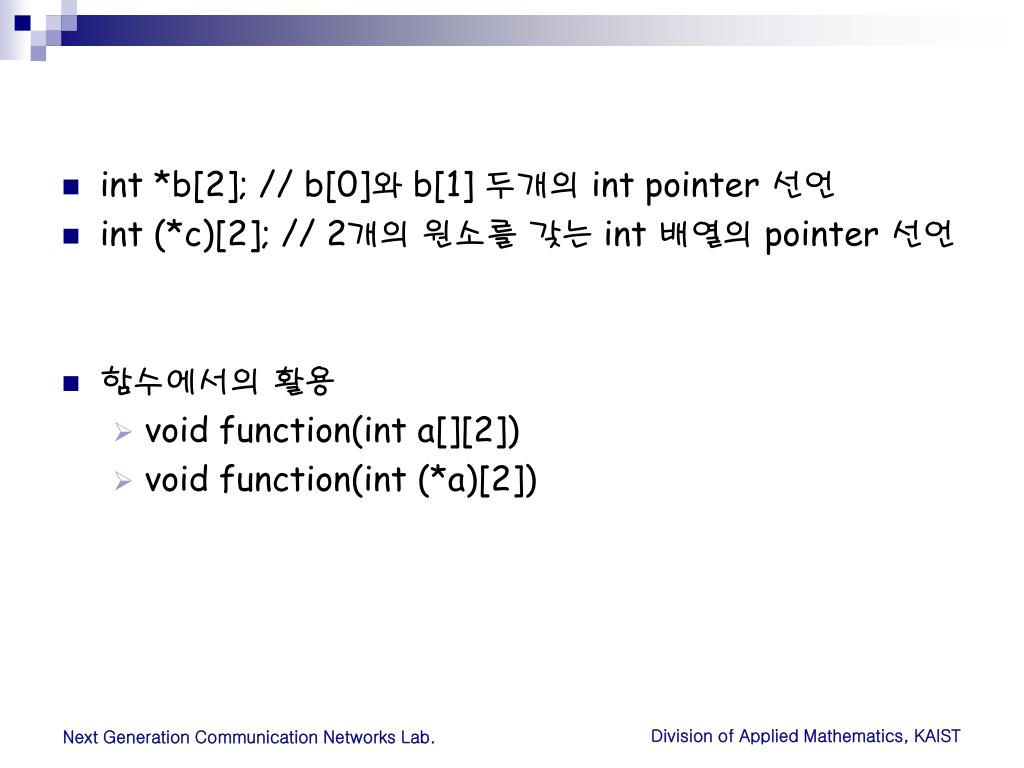

  • int *b[2]; // b[0]와 b[1] 두개의 int pointer 선언

  • int (*c)[2]; // 2개의 원소를 갖는 int 배열의 pointer 선언

  • 함수에서의 활용

    • void function(int a[][2])

    • void function(int (*a)[2])

Next Generation Communication Networks Lab.


Pointers to pointers

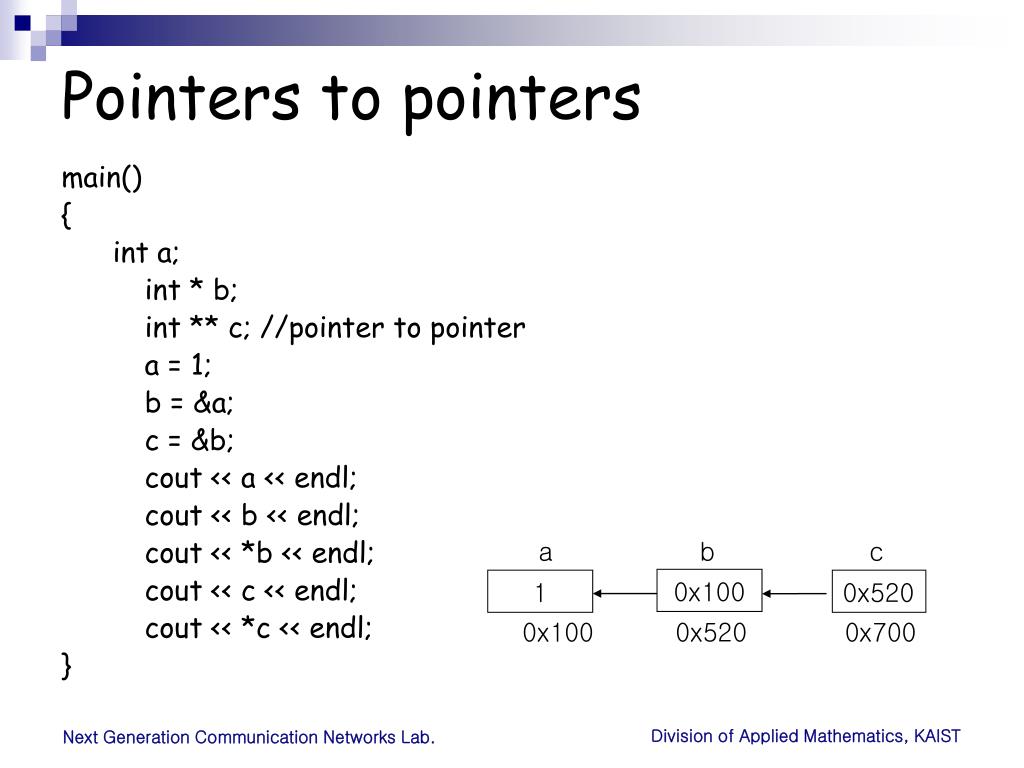

Pointers to pointers

main()

{

int a;

int * b;

int ** c; //pointer to pointer

a = 1;

b = &a;

c = &b;

cout << a << endl;

cout << b << endl;

cout << *b << endl;

cout << c << endl;

cout << *c << endl;

}

a

b

c

0x100

1

0x520

0x100

0x520

0x700

Next Generation Communication Networks Lab.


Pointers

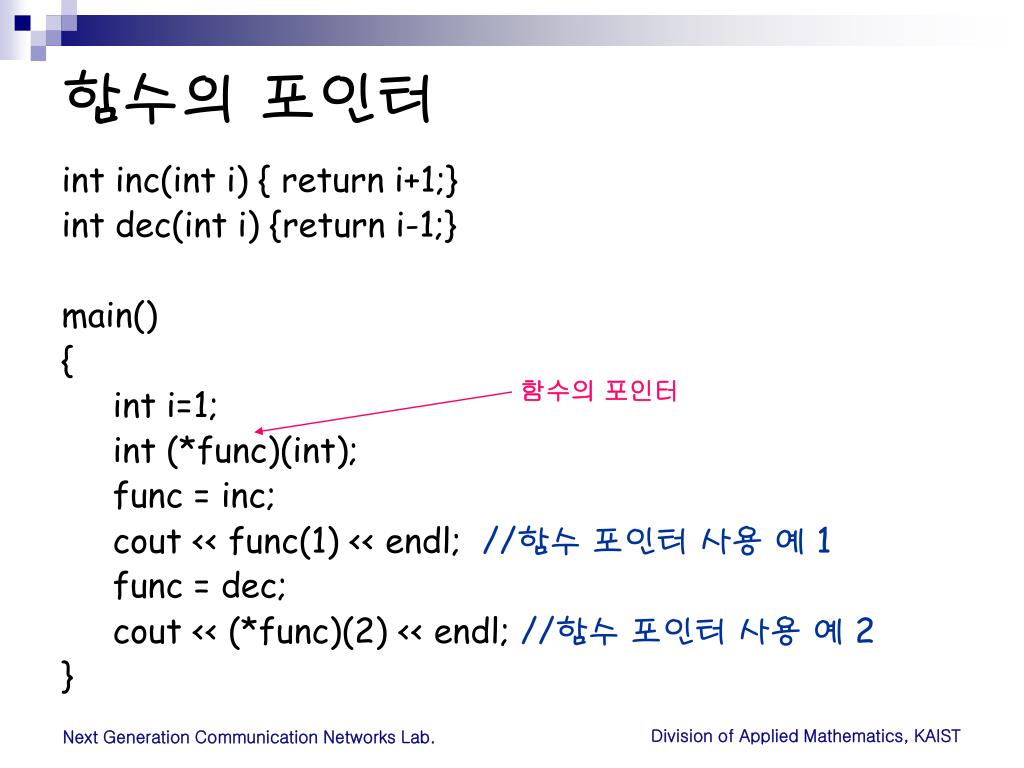

함수의 포인터

int inc(int i) { return i+1;}

int dec(int i) {return i-1;}

main()

{

int i=1;

int (*func)(int);

func = inc;

cout << func(1) << endl; //함수 포인터 사용 예 1

func = dec;

cout << (*func)(2) << endl; //함수 포인터 사용 예 2

}

함수의 포인터

Next Generation Communication Networks Lab.


Pointers

함수의 포인터 배열

enum {add, sub, multi, div};

int add(int a, int d) {return a+d;}

int sub(int a, int d) {return a-d;}

int multi(int a, int d) {return a*d;}

int div(int a, int d) {return (a/d);}

int (*func[4])(int, int) = {add, sub, multi, div};

main()

{

cout << (*func[add])(2,1) << “, “ << (*func[sub])(2,1);

cout << (*func[multi])(2,1) << “, “ << (*func[div])(2,1);

}

Next Generation Communication Networks Lab.


Void pointer

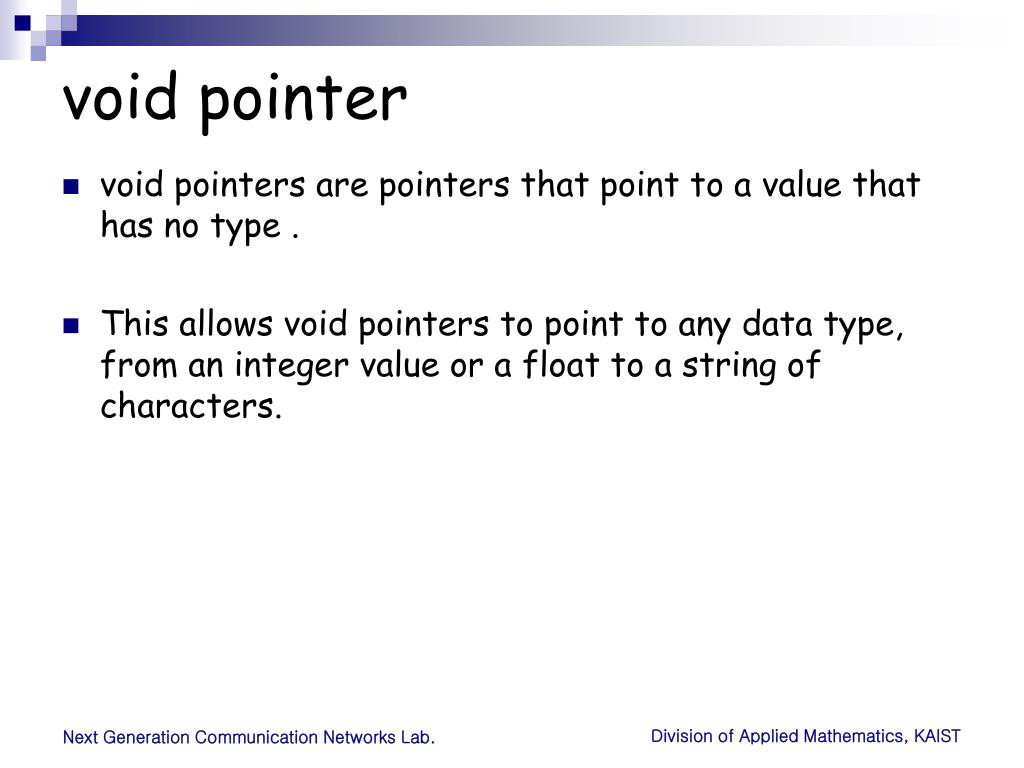

void pointer

  • void pointers are pointers that point to a value that has no type .

  • This allows void pointers to point to any data type, from an integer value or a float to a string of characters.

Next Generation Communication Networks Lab.


Pointers

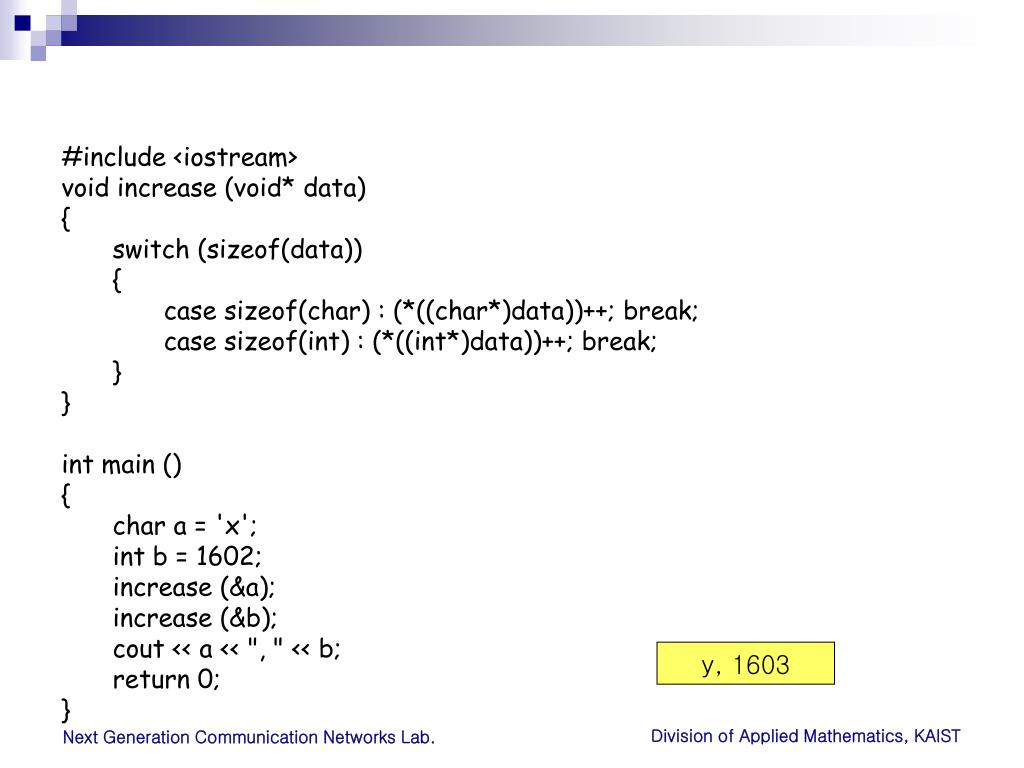

#include <iostream>

void increase (void* data)

{

switch (sizeof(data))

{

case sizeof(char) : (*((char*)data))++; break;

case sizeof(int) : (*((int*)data))++; break;

}

}

int main ()

{

char a = 'x';

int b = 1602;

increase (&a);

increase (&b);

cout << a << ", " << b;

return 0;

}

y, 1603

Next Generation Communication Networks Lab.


Null pointer

NULL Pointer

  • A null pointer is a regular pointer of any pointer type which has a special value that indicates that it is not pointing to any valid reference or memory address

  • int * p;

    p = NULL; // p has a null pointer value

Next Generation Communication Networks Lab.


Pointers to classes

pointers to classes

main()

class person {

public:

name[30];

phone[20];

};

person p_list[100];

person *list_ptr;

list_ptr = p_list;

strcpy(list_ptr->name,"aaa");

cout << list_ptr->name << endl;

}

Next Generation Communication Networks Lab.


Due nov 16

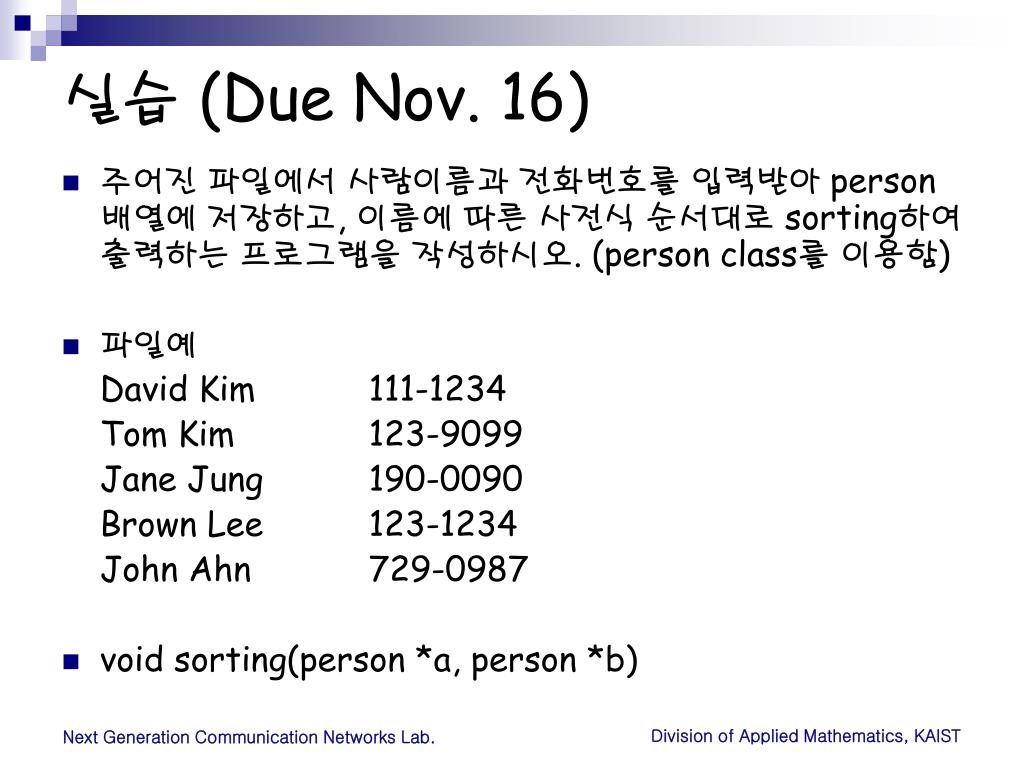

실습 (Due Nov. 16)

  • 주어진 파일에서 사람이름과 전화번호를 입력받아 person 배열에 저장하고, 이름에 따른 사전식 순서대로 sorting하여 출력하는 프로그램을 작성하시오. (person class를 이용함)

  • 파일예

    David Kim111-1234

    Tom Kim123-9099

    Jane Jung190-0090

    Brown Lee123-1234

    John Ahn729-0987

  • void sorting(person *a, person *b)

Next Generation Communication Networks Lab.
