Chapter 21

Chapter 21

Supporting Printers


How printers work
How Printers Work

  • Connect to a PC by parallel, serial, USB, IEEE 1394, or SCSI port, or by infrared, wireless, PC Card, or network connection

  • Can be combined with fax machines, copiers and scanners in the same machine

  • Most often use AC power

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Major categories of printers

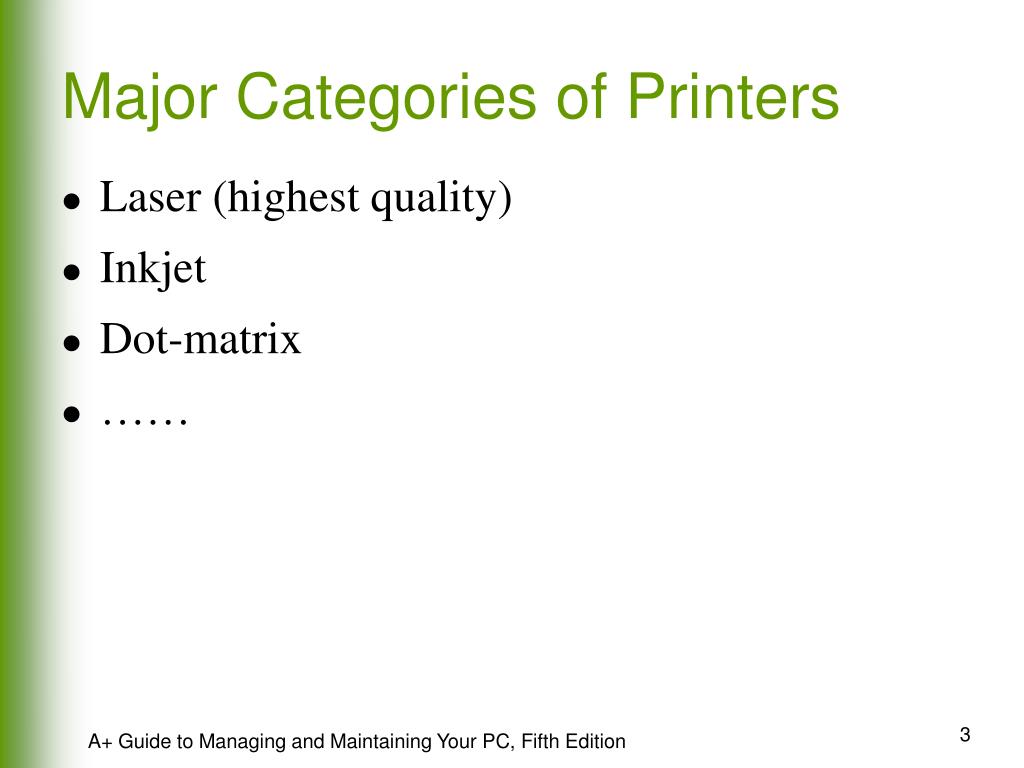

Major Categories of Printers

  • Laser (highest quality)

  • Inkjet

  • Dot-matrix

  • ……

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Laser printers
Laser Printers

  • The highest quality

  • The most expensive

  • The fastest

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Inkjet printers

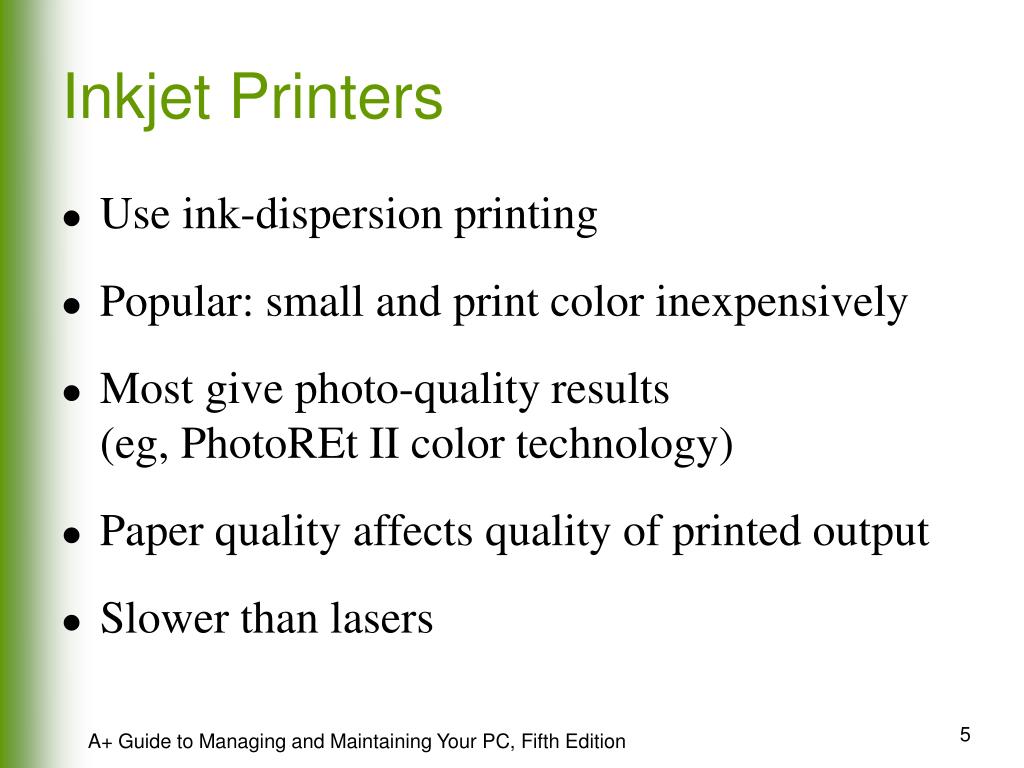

Inkjet Printers

  • Use ink-dispersion printing

  • Popular: small and print color inexpensively

  • Most give photo-quality results(eg, PhotoREt II color technology)

  • Paper quality affects quality of printed output

  • Slower than lasers

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Inkjet printer ink cartridges

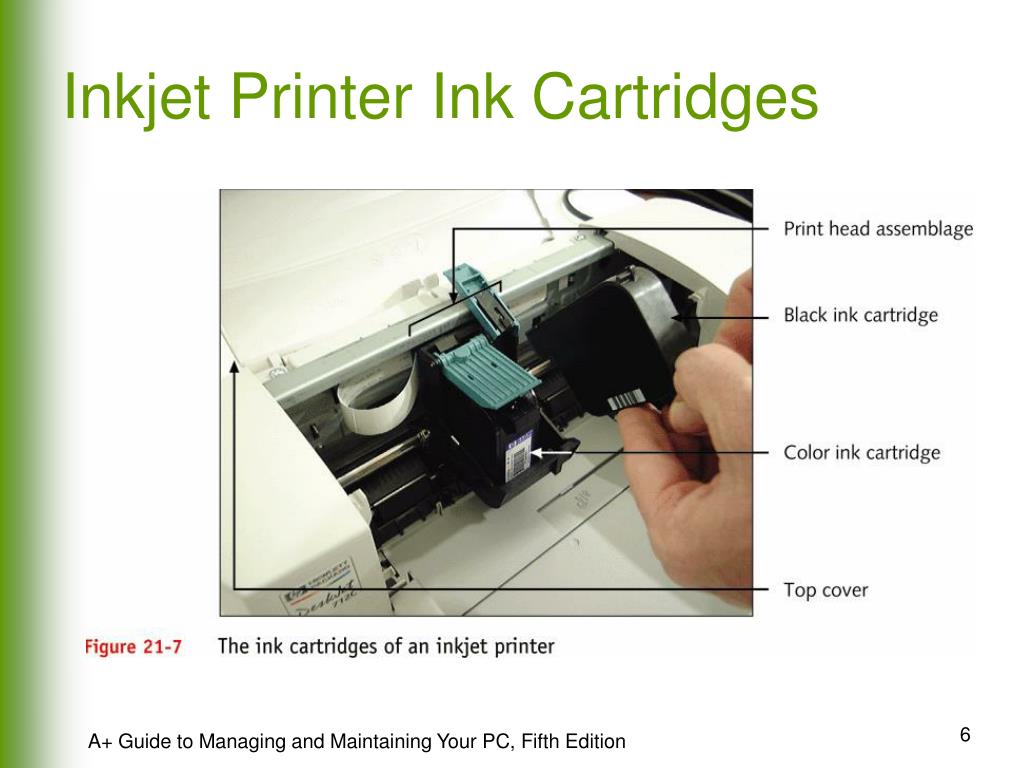

Inkjet Printer Ink Cartridges

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Dot matrix printers

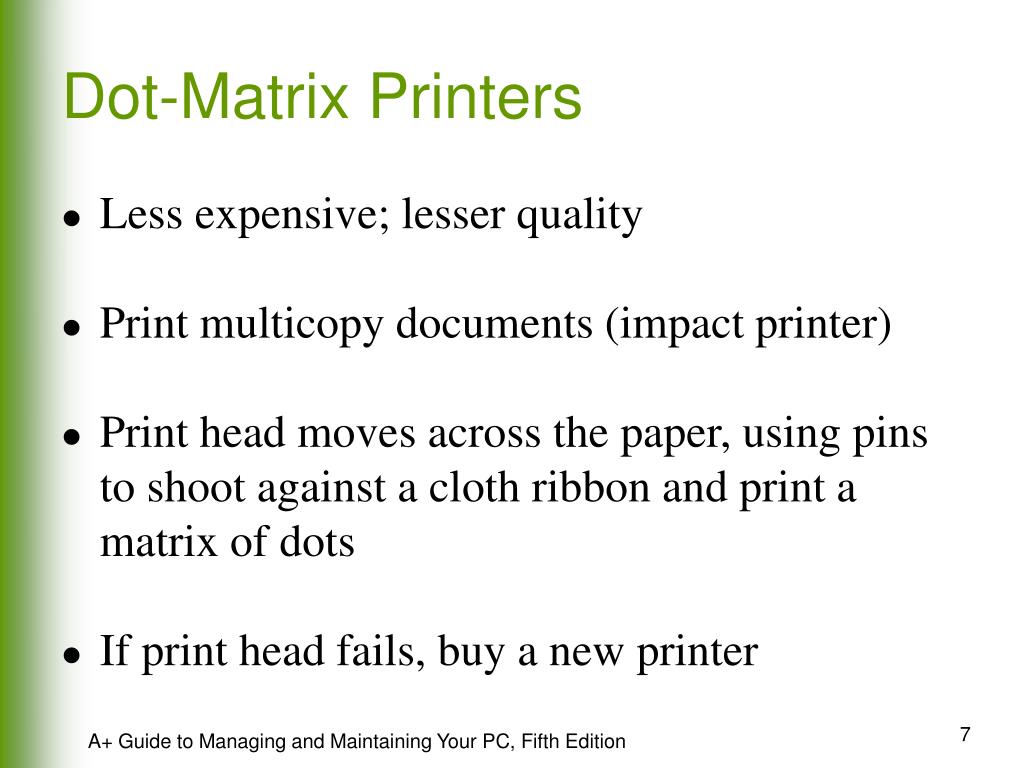

Dot-Matrix Printers

  • Less expensive; lesser quality

  • Print multicopy documents (impact printer)

  • Print head moves across the paper, using pins to shoot against a cloth ribbon and print a matrix of dots

  • If print head fails, buy a new printer

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Dot matrix printers1
Dot-Matrix Printers

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Installing and sharing a printer
Installing and Sharing a Printer

  • Local printers

  • Network printers

  • Default printer

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Hands on project installing a local printer

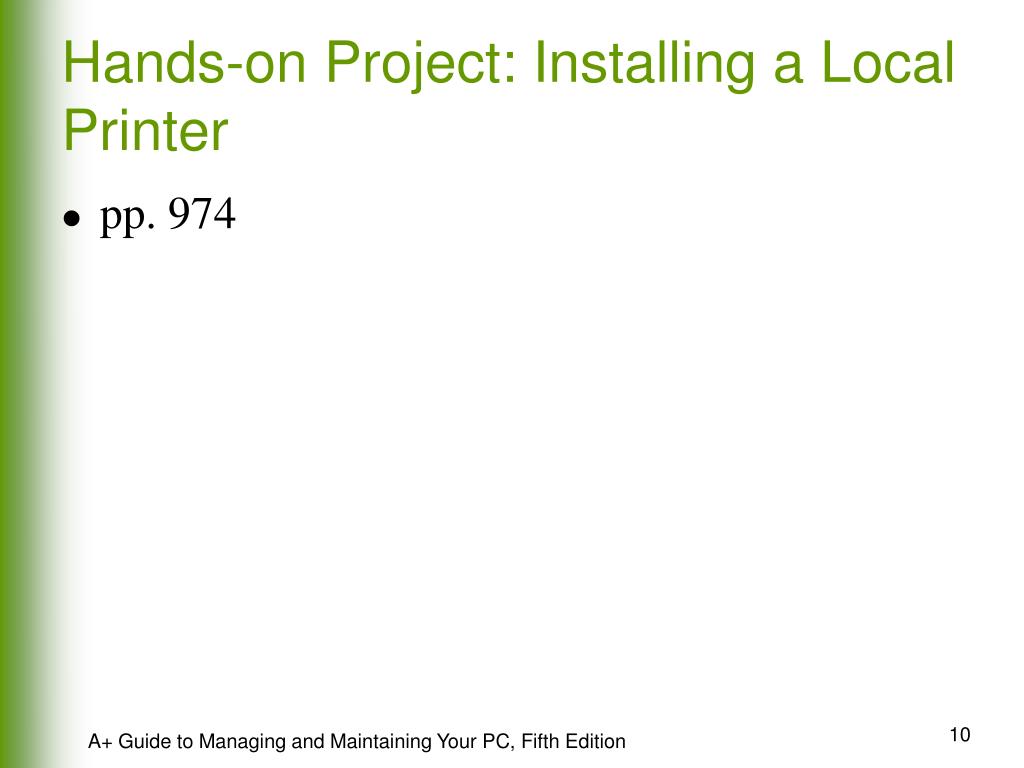

Hands-on Project: Installing a Local Printer

  • pp. 974

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Hands on project sharing a printer
Hands-on Project: Sharing a Printer

  • pp. 975

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Hands on project using a shared printer

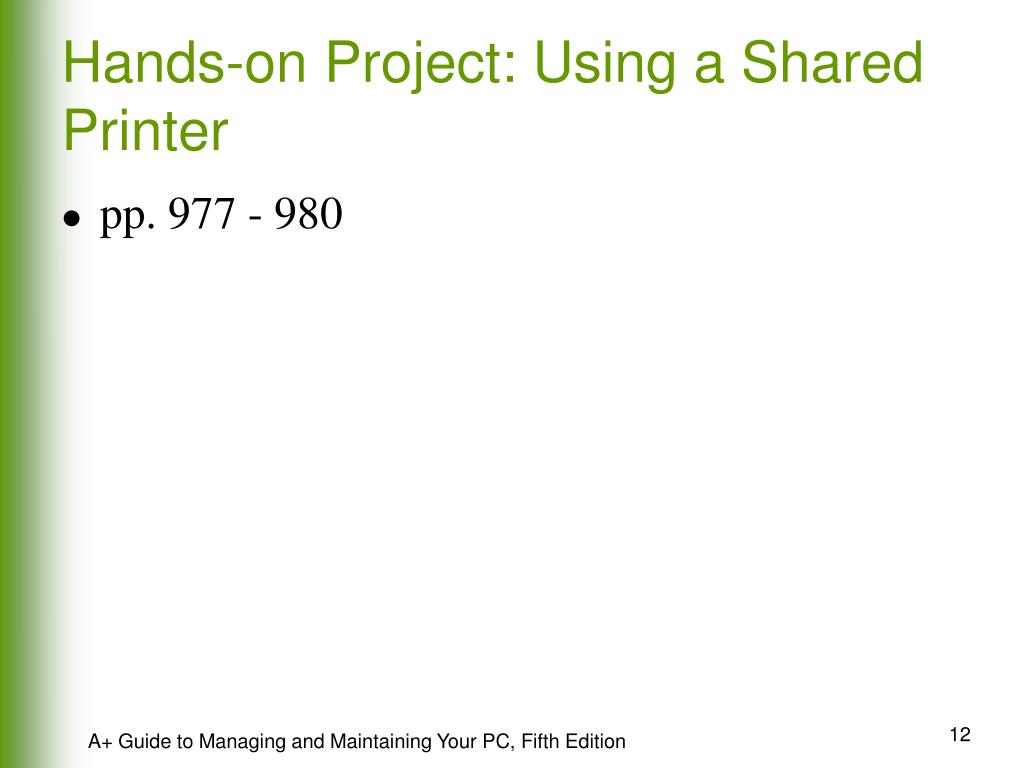

Hands-on Project: Using a Shared Printer

  • pp. 977 - 980

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


Ways to make a printer available on a network
Ways to Make a Printer Available on a Network

  • Attach regular printer to a PC using a port on the PC

    • PC can share printer with network

  • Connect network printer with embedded logic to manage network communication directly to network with its own NIC

  • Use a print server to control several printers

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


How windows handles print jobs
How Windows Handles Print Jobs

  • Windows NT/2000/XP or Windows 9x using a PostScript printer

    • Converts print job data to PostScript language

    • Windows 2000/XP can also use Printer Control Language (PCL)

  • Windows 9x using a non-PostScript printer

    • Converts print job data to Enhanced Metafile Format (EMF)

A+ Guide to Managing and Maintaining Your PC, Fifth Edition


How windows handles print jobs continued

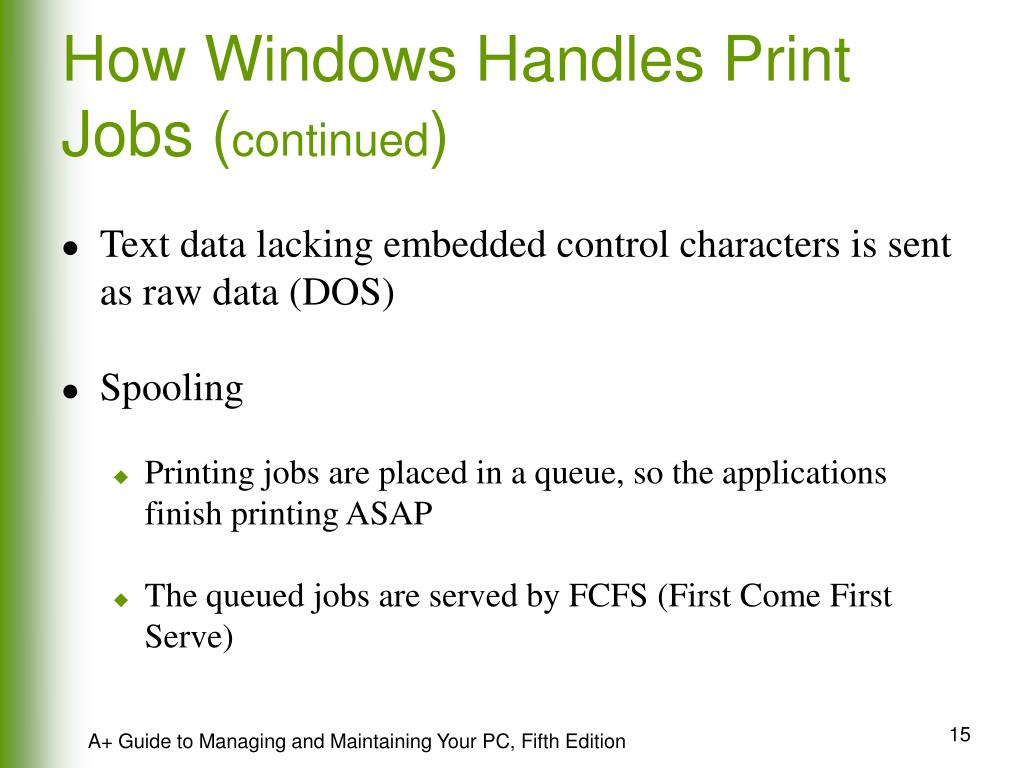

How Windows Handles Print Jobs (continued)

  • Text data lacking embedded control characters is sent as raw data (DOS)

  • Spooling

    • Printing jobs are placed in a queue, so the applications finish printing ASAP

    • The queued jobs are served by FCFS (First Come First Serve)

A+ Guide to Managing and Maintaining Your PC, Fifth Edition
