ABCN&HCC Status

AUW 2011 CERN

ABCN&HCC 130 nm Development

  • Joel de Witt, University of Santa Cruz, California.

  • M. Newcomer, N. Dressnandt, University of Pennsylvania.

  • Matt Warren, SamerKilani, UCL.

  • Michelle Key-Charriere, RAL.

  • D. La Marra, University of Geneva.

  • F. Anghinolfi, J. Kaplon, CERN.

  • W. Dabrowski, K. Swientek, AkademiaGórniczno-Hutnicza, Krakow.

CERN AUW Week


Itk sc stave or module

iTK-SC Stave or Module

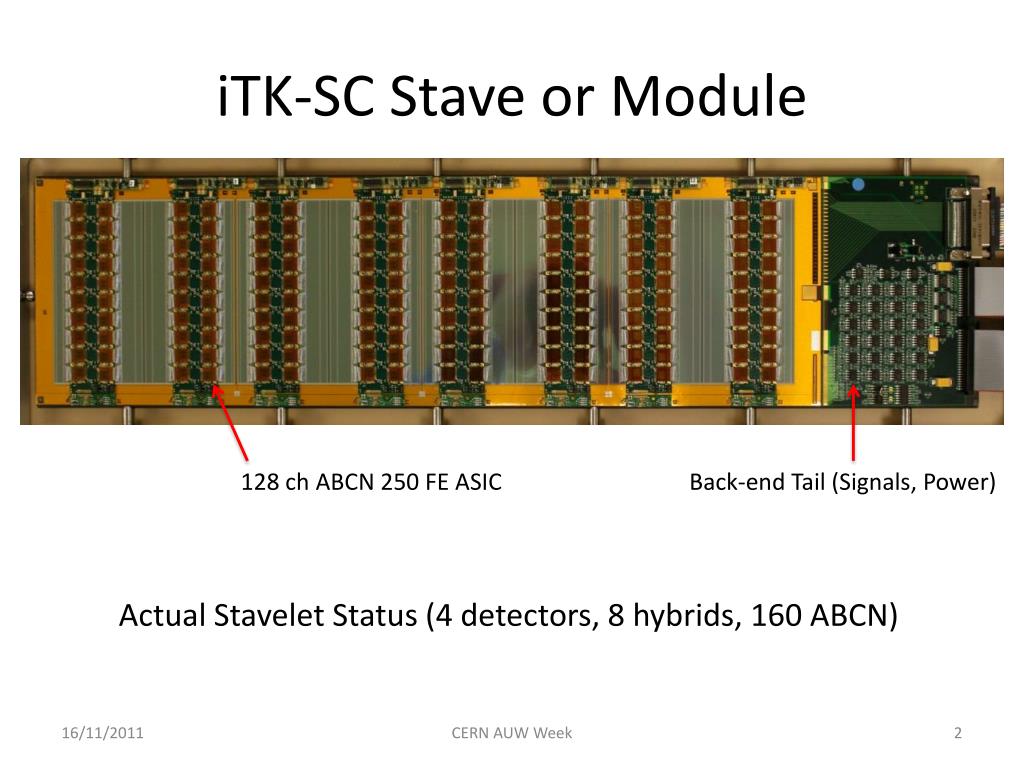

128 ch ABCN 250 FE ASIC

Back-end Tail (Signals, Power)

Actual Stavelet Status (4 detectors, 8 hybrids, 160 ABCN)

CERN AUW Week


Itk sc stave or module1

iTK-SC Stave or Module

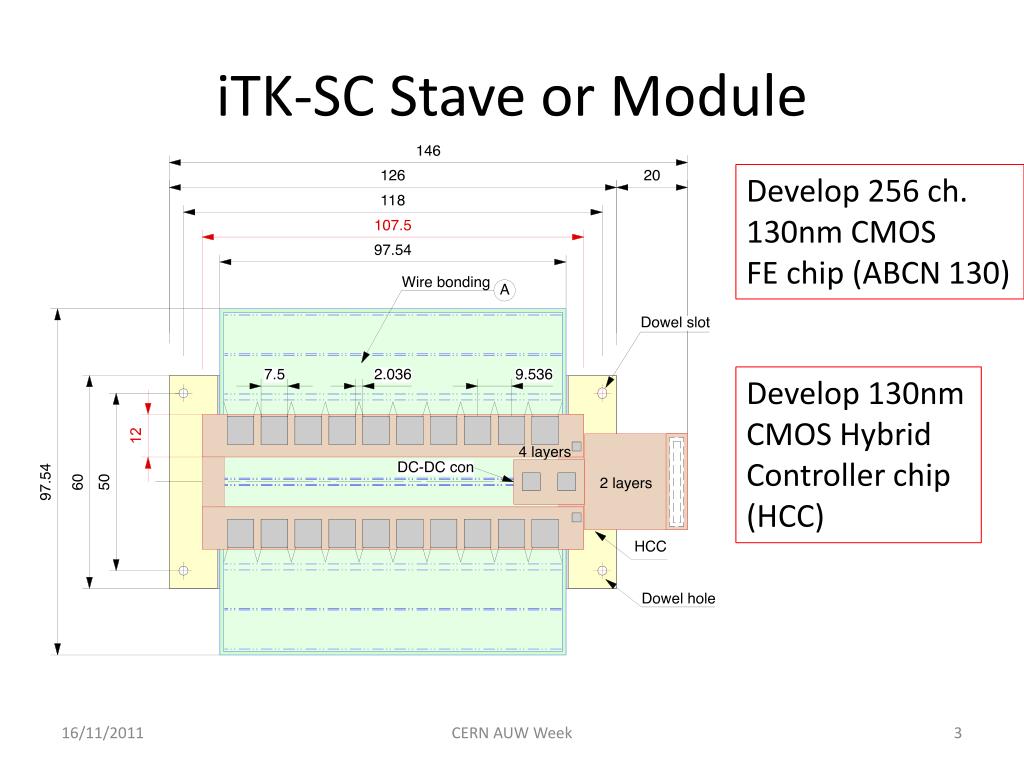

Develop 256 ch.

130nm CMOS

FE chip (ABCN 130)

Develop 130nm CMOS Hybrid Controller chip (HCC)

CERN AUW Week

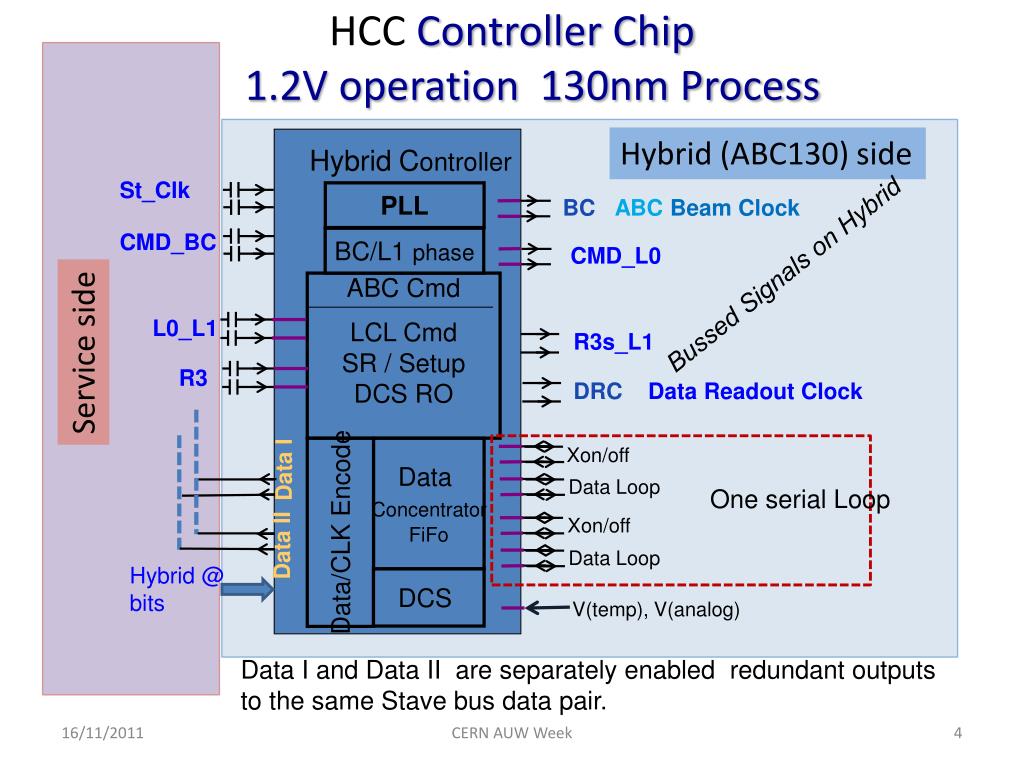

Hcc controller chip 1 2v operation 130nm process

HCC Controller Chip 1.2V operation 130nm Process

Hybrid (ABC130) side

HybridController

St_Clk

CMD_BC

PLL

BCABC Beam Clock

BC/L1 phase

CMD_L0

Bussed Signals on Hybrid

ABC Cmd

LCL Cmd

SR / Setup

DCS RO

Service side

L0_L1

R3s_L1

R3

DRC Data Readout Clock

DataI

One serial Loop

Xon/off

Data

Concentrator

FiFo

Data Loop

Data/CLK Encode

Xon/off

DataII

Data Loop

Hybrid @ bits

DCS

Data I and Data II are separately enabled redundant outputs

to the same Stave bus data pair.

V(temp), V(analog)

CERN AUW Week


Abcn hcc status

HCC – ABC130 chip LVS communication 10 ABCN IN A ROW

Hybrid Controller Chip

ABC130 Chip

ABC130 Chip

Programmable current drive (4-bits)

BC

(Beam Clock

40MHz)

Hybrid Controller

BC

320 MHz

St_Clk

DLL

CMD_L0

CMD_L0

CMD_BC

BC/L1phase

R3s_L1

R3s_L1

ABCCmd

LCLCmd

SR/Setup

DCSRO

CORE

L0_L1

DRC

(Data Readout

Clock 160MHz)

Drivers

Delay ~1ns

Receivers

Delay~2.5ns

DRC

Receivers

R3

Data: 160Mbits/s)

DataI

Xon/off

Programmable delay adjust

FIFO / Data Concentrator

Data Loop

Xon/off

Data/CLKEncode

DataII

One serial Loop

Direction (1-bit)

Data Loop

Xon / Xoff

Hybridbits

Programmable current drive (4-bits)

Direction (1-bit)

DCS

Programmable current drive (4-bits)

Bidirectional

Transceivers

160MHz

Enable (1-bit)

in

in

in

in

in

in

in

in

in

in

in

in

CERN AUW Week

Enable (1-bit)

out

out

out

out

out

out

out

out

out

out

out

out

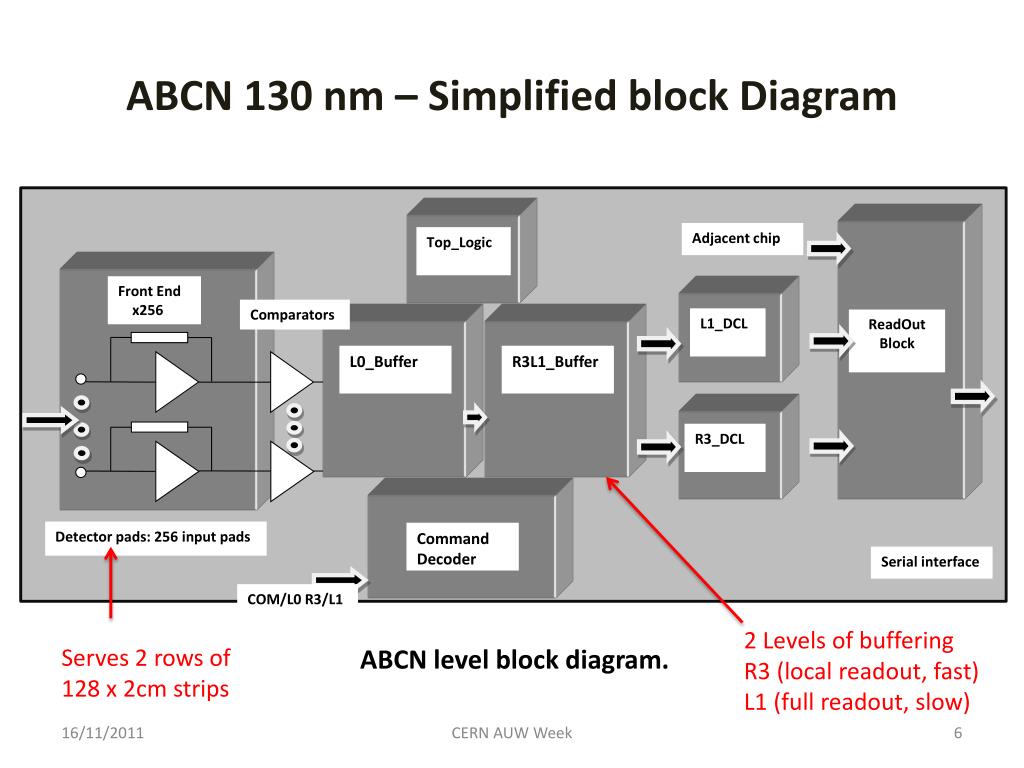

Abcn 130 nm simplified block diagram

ABCN 130 nm – Simplified block Diagram

Adjacent chip

Top_Logic

Front End

x256

Comparators

L1_DCL

ReadOut

Block

L0_Buffer

R3L1_Buffer

R3_DCL

Detector pads: 256 input pads

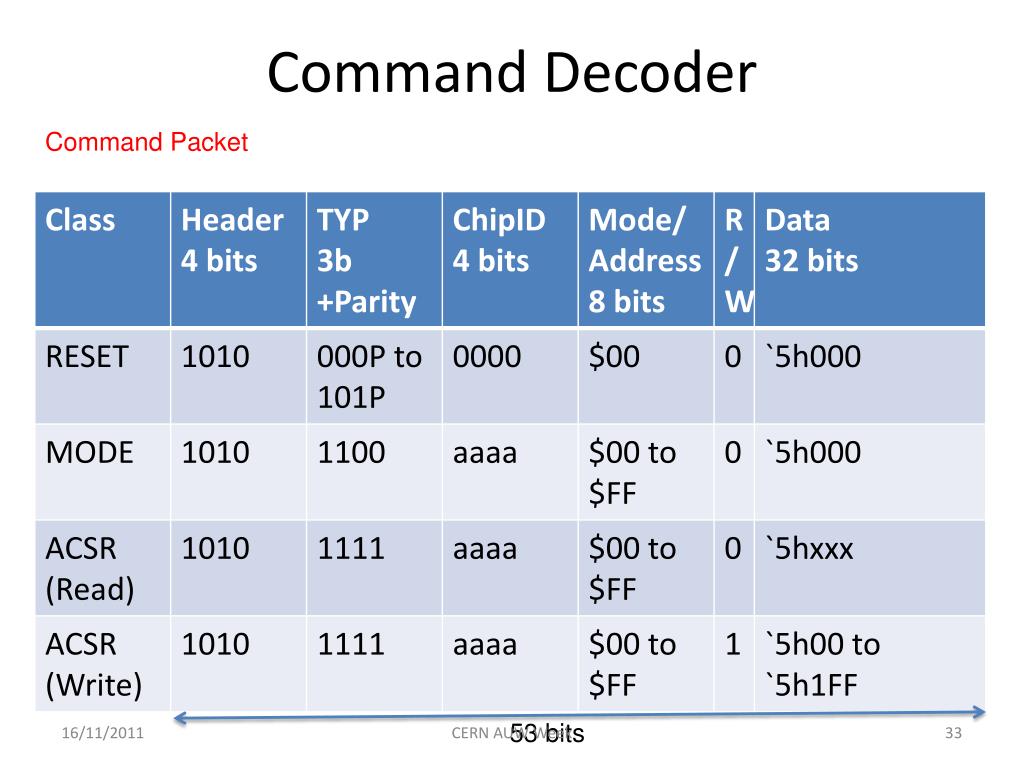

Command Decoder

Serial interface

COM/L0 R3/L1

2 Levels of buffering

R3 (local readout, fast)

L1 (full readout, slow)

Serves 2 rows of

128 x 2cm strips

ABCN level block diagram.

CERN AUW Week

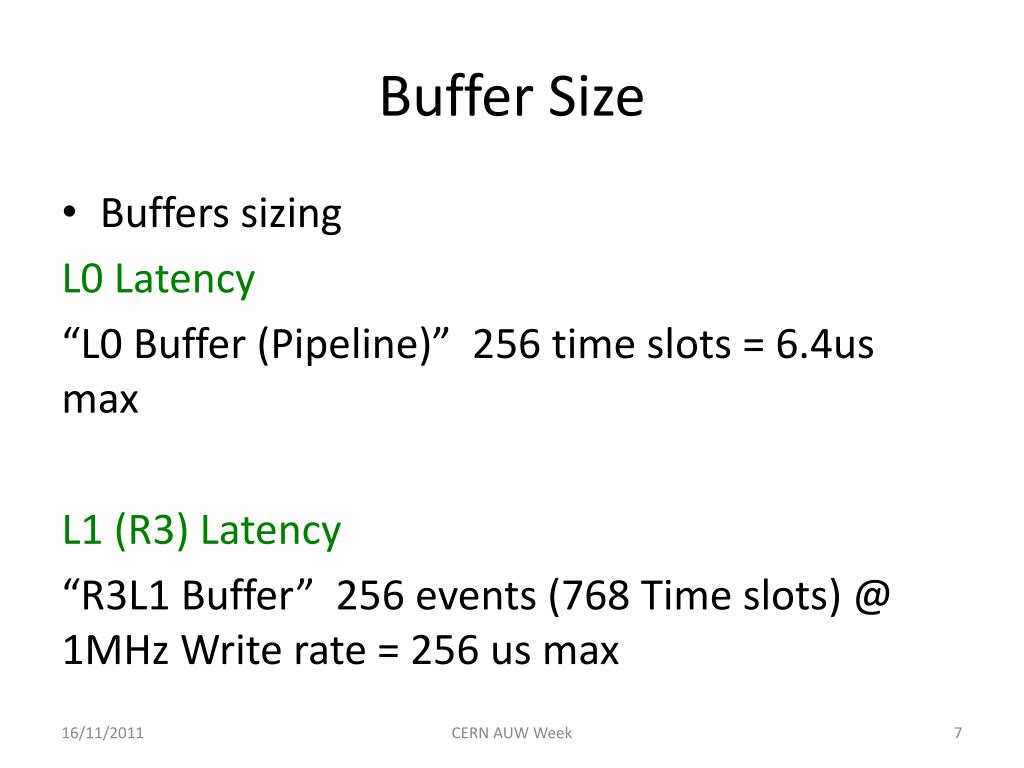

Buffer size

Buffer Size

  • Buffers sizing

    L0 Latency

    “L0 Buffer (Pipeline)” 256 time slots = 6.4us max

    L1 (R3) Latency

    “R3L1 Buffer” 256 events (768 Time slots) @ 1MHz Write rate = 256 us max

CERN AUW Week

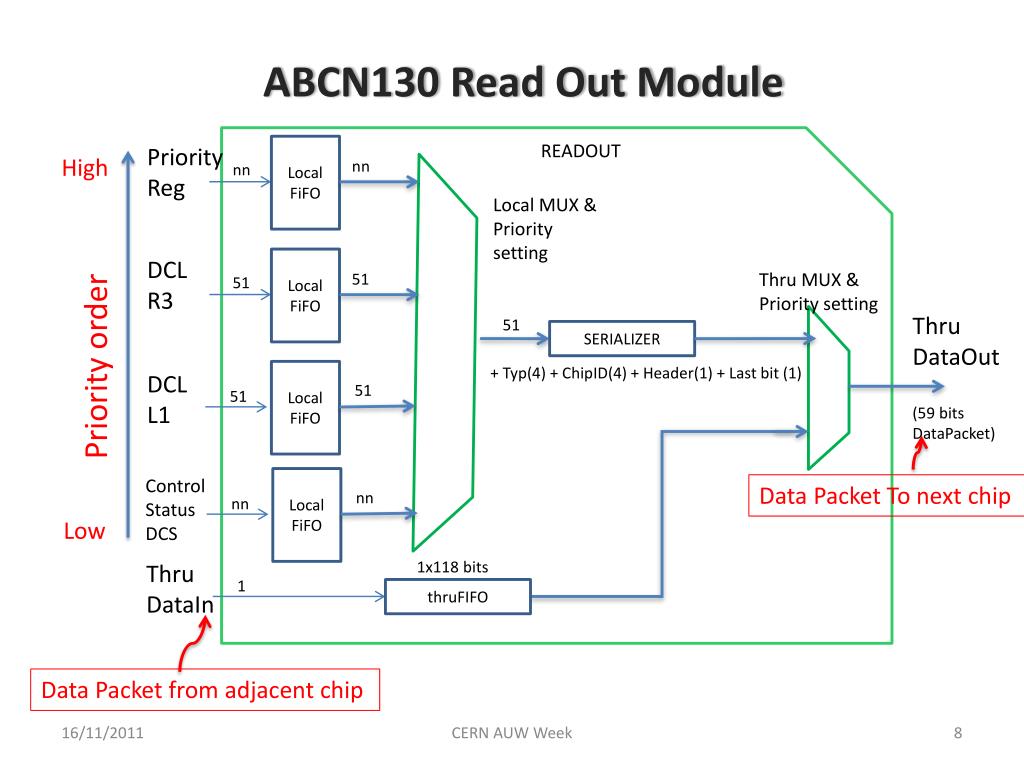

Abcn130 read out module

ABCN130 Read Out Module

READOUT

Priority Reg

Local FiFO

High

nn

nn

Local MUX & Priority setting

DCL

R3

Local FiFO

Thru MUX & Priority setting

51

51

Thru

DataOut

(59 bits DataPacket)

51

SERIALIZER

Priorityorder

+ Typ(4) + ChipID(4) + Header(1) + Last bit (1)

Local FiFO

DCL

L1

51

51

Control

Status

DCS

Local FiFO

Data Packet To next chip

nn

nn

Low

1x118 bits

Thru

DataIn

1

thruFIFO

Data Packet from adjacent chip

CERN AUW Week


Abcn hcc status

ABCN 130nm : 59-bit data packet per chip

4 clusters central hit position

Event ID

3 clusters geom. patterns

CERN AUW Week

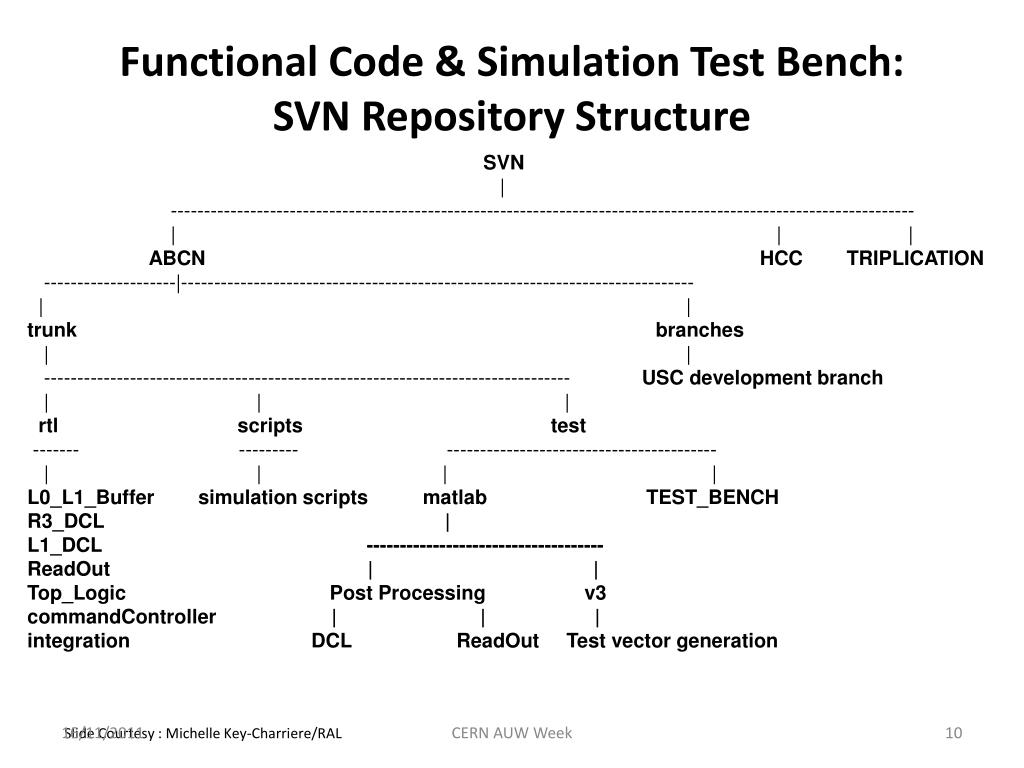

Functional c ode simulation test bench svn repository structure

Functional Code & Simulation Test Bench:SVN Repository Structure

SVN

|

-----------------------------------------------------------------------------------------------------------------

| | |

ABCNHCCTRIPLICATION

--------------------|------------------------------------------------------------------------------

| |

trunkbranches

| |

-------------------------------------------------------------------------------- USC development branch

| | |

rtlscriptstest

------- --------- -----------------------------------------

| | | |

L0_L1_Buffer simulation scripts matlab TEST_BENCH

R3_DCL |

L1_DCL ------------------------------------

ReadOut | |

Top_Logic Post Processing v3

commandController | | |

integration DCL ReadOut Test vector generation

CERN AUW Week

Slide Courtesy : Michelle Key-Charriere/RAL

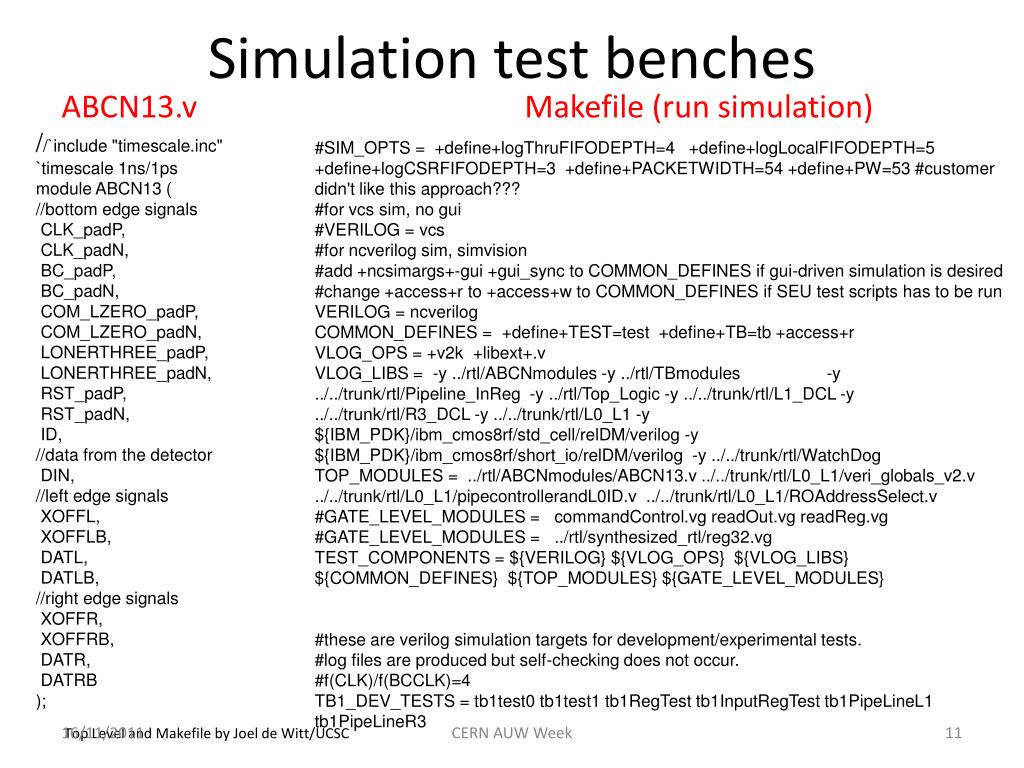

Simulation test benches

Simulation test benches

ABCN13.v

Makefile (run simulation)

//`include "timescale.inc"

`timescale 1ns/1ps

module ABCN13 (

//bottom edge signals

CLK_padP,

CLK_padN,

BC_padP,

BC_padN,

COM_LZERO_padP,

COM_LZERO_padN,

LONERTHREE_padP,

LONERTHREE_padN,

RST_padP,

RST_padN,

ID,

//data from the detector

DIN,

//left edge signals

XOFFL,

XOFFLB,

DATL,

DATLB,

//right edge signals

XOFFR,

XOFFRB,

DATR,

DATRB

);

#SIM_OPTS = +define+logThruFIFODEPTH=4 +define+logLocalFIFODEPTH=5 +define+logCSRFIFODEPTH=3 +define+PACKETWIDTH=54 +define+PW=53 #customer didn't like this approach???

#for vcs sim, no gui

#VERILOG = vcs

#for ncverilog sim, simvision

#add +ncsimargs+-gui +gui_sync to COMMON_DEFINES if gui-driven simulation is desired

#change +access+r to +access+w to COMMON_DEFINES if SEU test scripts has to be run

VERILOG = ncverilog

COMMON_DEFINES = +define+TEST=test +define+TB=tb +access+r

VLOG_OPS = +v2k +libext+.v

VLOG_LIBS = -y ../rtl/ABCNmodules -y ../rtl/TBmodules-y ../../trunk/rtl/Pipeline_InReg -y ../rtl/Top_Logic -y ../../trunk/rtl/L1_DCL -y ../../trunk/rtl/R3_DCL -y ../../trunk/rtl/L0_L1 -y ${IBM_PDK}/ibm_cmos8rf/std_cell/relDM/verilog -y ${IBM_PDK}/ibm_cmos8rf/short_io/relDM/verilog -y ../../trunk/rtl/WatchDog

TOP_MODULES = ../rtl/ABCNmodules/ABCN13.v ../../trunk/rtl/L0_L1/veri_globals_v2.v ../../trunk/rtl/L0_L1/pipecontrollerandL0ID.v ../../trunk/rtl/L0_L1/ROAddressSelect.v

#GATE_LEVEL_MODULES = commandControl.vg readOut.vg readReg.vg

#GATE_LEVEL_MODULES = ../rtl/synthesized_rtl/reg32.vg

TEST_COMPONENTS = ${VERILOG} ${VLOG_OPS} ${VLOG_LIBS} ${COMMON_DEFINES} ${TOP_MODULES} ${GATE_LEVEL_MODULES}

#these are verilog simulation targets for development/experimental tests.

#log files are produced but self-checking does not occur.

#f(CLK)/f(BCCLK)=4

TB1_DEV_TESTS = tb1test0 tb1test1 tb1RegTest tb1InputRegTest tb1PipeLineL1 tb1PipeLineR3

CERN AUW Week

Top Level and Makefile by Joel de Witt/UCSC


Cadence ic6 simulation environment

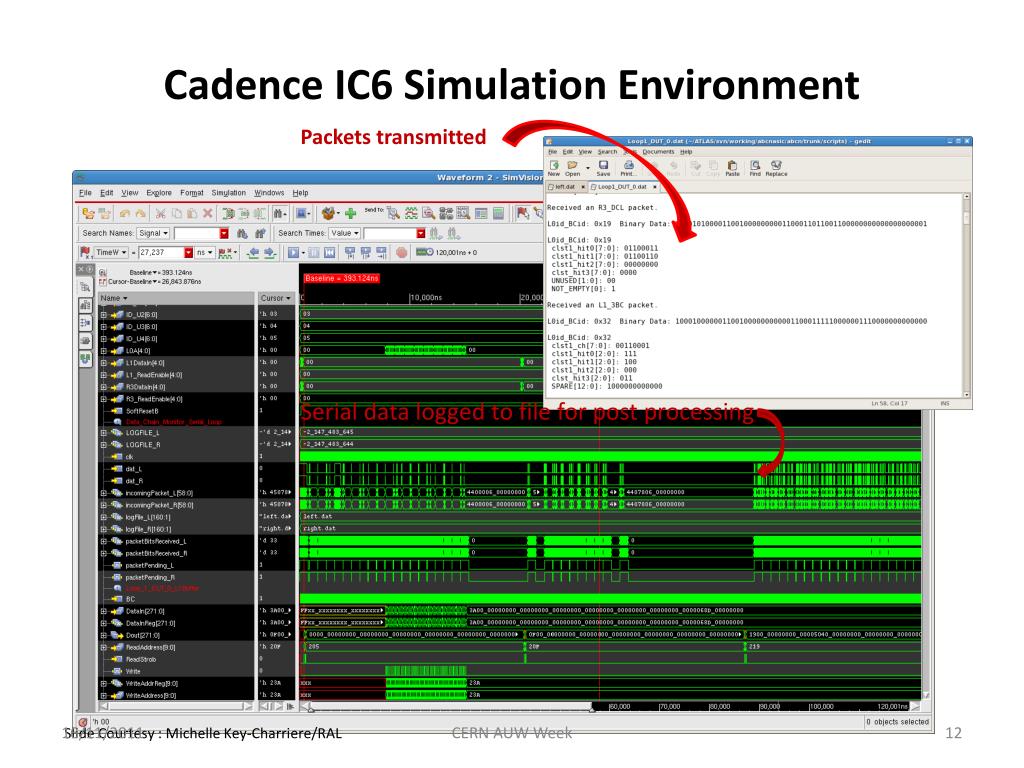

Cadence IC6 Simulation Environment

Packets transmitted

Serial data logged to file for post processing

CERN AUW Week

Slide Courtesy : Michelle Key-Charriere/RAL

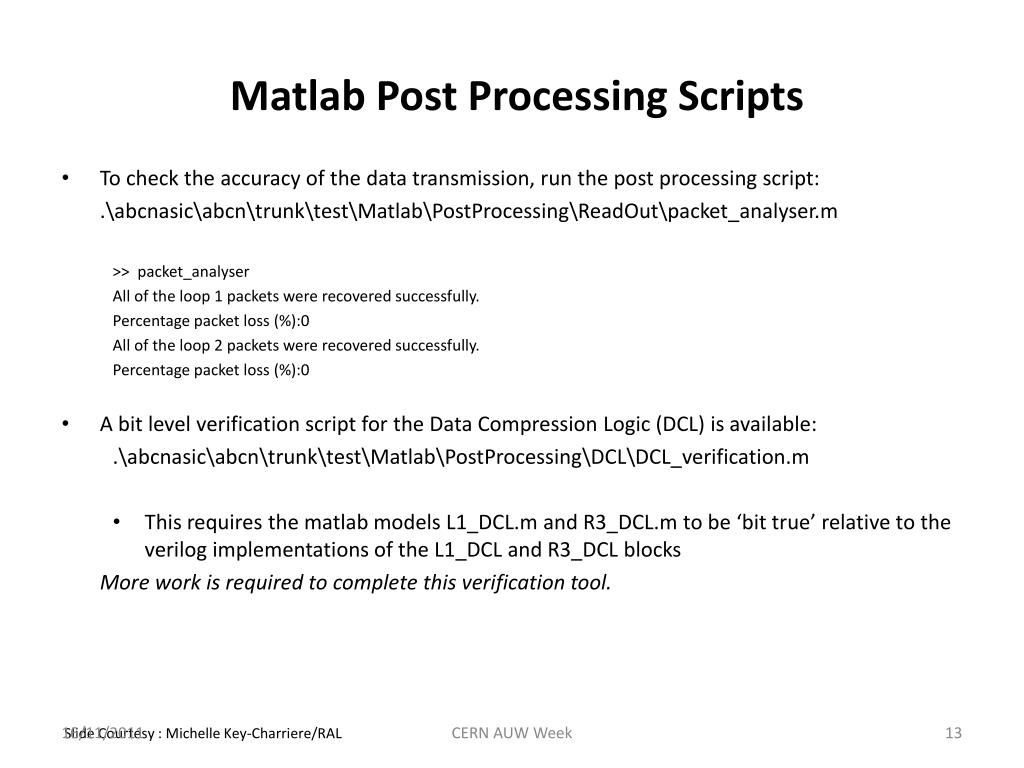

Matlab post processing scripts

Matlab Post Processing Scripts

  • To check the accuracy of the data transmission, run the post processing script:

    .\abcnasic\abcn\trunk\test\Matlab\PostProcessing\ReadOut\packet_analyser.m

    >> packet_analyser

    All of the loop 1 packets were recovered successfully.

    Percentage packet loss (%):0

    All of the loop 2 packets were recovered successfully.

    Percentage packet loss (%):0

  • A bit level verification script for the Data Compression Logic (DCL) is available:

    .\abcnasic\abcn\trunk\test\Matlab\PostProcessing\DCL\DCL_verification.m

    • This requires the matlab models L1_DCL.m and R3_DCL.m to be ‘bit true’ relative to the verilog implementations of the L1_DCL and R3_DCL blocks

      More work is required to complete this verification tool.

CERN AUW Week

Slide Courtesy : Michelle Key-Charriere/RAL

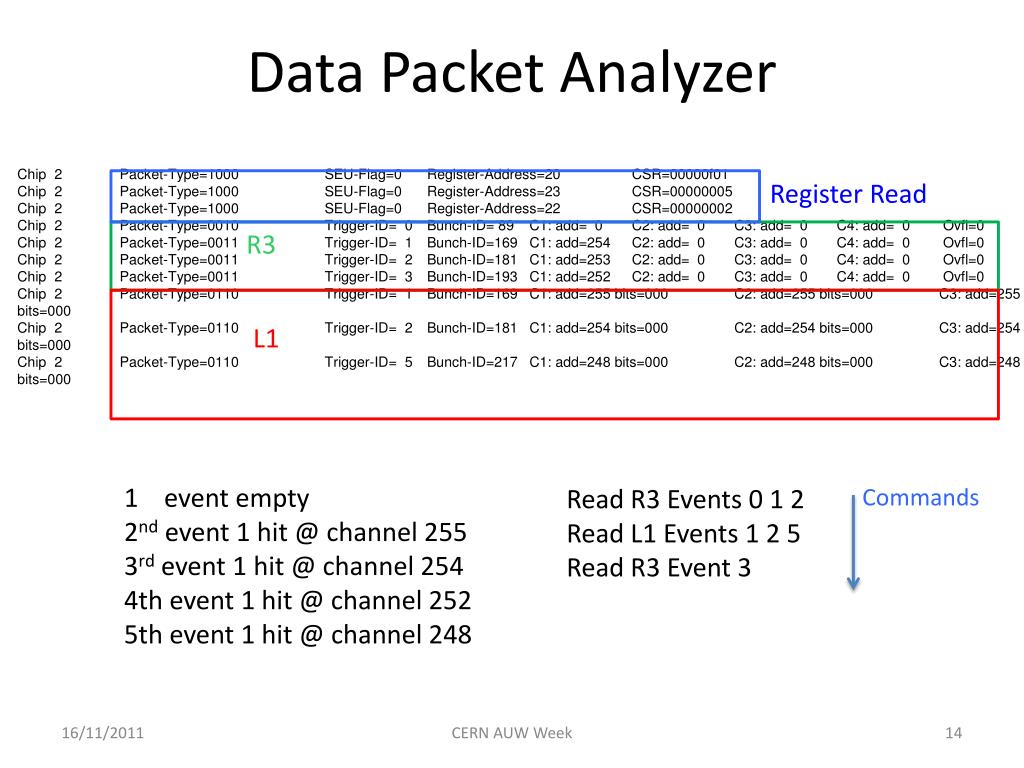

Data packet analyzer

Data Packet Analyzer

Chip 2Packet-Type=1000SEU-Flag=0Register-Address=20CSR=00000f01

Chip 2Packet-Type=1000SEU-Flag=0Register-Address=23CSR=00000005

Chip 2Packet-Type=1000SEU-Flag=0Register-Address=22CSR=00000002

Chip 2Packet-Type=0010Trigger-ID= 0Bunch-ID= 89C1: add= 0C2: add= 0C3: add= 0C4: add= 0 Ovfl=0

Chip 2Packet-Type=0011Trigger-ID= 1Bunch-ID=169C1: add=254C2: add= 0C3: add= 0C4: add= 0 Ovfl=0

Chip 2Packet-Type=0011Trigger-ID= 2Bunch-ID=181C1: add=253C2: add= 0C3: add= 0C4: add= 0 Ovfl=0

Chip 2Packet-Type=0011Trigger-ID= 3Bunch-ID=193C1: add=252C2: add= 0C3: add= 0C4: add= 0 Ovfl=0

Chip 2Packet-Type=0110Trigger-ID= 1Bunch-ID=169C1: add=255 bits=000C2: add=255 bits=000C3: add=255 bits=000

Chip 2Packet-Type=0110Trigger-ID= 2Bunch-ID=181C1: add=254 bits=000C2: add=254 bits=000C3: add=254 bits=000

Chip 2Packet-Type=0110Trigger-ID= 5Bunch-ID=217C1: add=248 bits=000C2: add=248 bits=000C3: add=248 bits=000

Register Read

R3

L1

1 event empty

2nd event 1 hit @ channel 255

3rd event 1 hit @ channel 254

4th event 1 hit @ channel 252

5th event 1 hit @ channel 248

Read R3 Events 0 1 2

Read L1 Events 1 2 5

Read R3 Event 3

Commands

CERN AUW Week


Overall layout

Overall layout

7.5 mm

  • Max width 7.5 mm

  • FE pads

    • Only and no GND pads alongside

    • Span as wide as chip

  • Data/Token

    • Chip-to-chip on air

    • Return pair underneath

    • 4 pairs of traces to MCC

  • Clock, command, etc. on side

    • Bus traces underneath

    • Maximizing spacing between pairs, no redunancy

  • Ground, power and chip ID on bottom

  • In the next pages, discuss the FE pads and pads to hybrid…

FE bonds only (4 rows of 64)

Token and Data (2 pairs)

Token and Data (2 pairs)

BCO, L1, Com, Clk, Reset (5 pairs)

Ground, Power, Chip ID

CERN AUW Week

Slide Courtesy : Y. UNNO/KEK


Front end

Front End

  • Would like FE bond pads to take full width of ASIC

    • Ground pads if needed below FE connections

      • Ground pads would have to bond to the side, use same pad shape as for BE

  • Would like ~50x200 mm pads with 100 mm spacing between rows

200 mm

100 mm

1100 mm

Ground (if needed)

CERN AUW Week

Slide Courtesy : A. Greenhall/Liverpool


Abcn 130 seu strategies

  • Simple ideas and proposals

  • Assumptions based on :

    • Tentative to limit the triplications where strictly needed

    • In criticality order

“ABCN 130”SEU strategies

CERN AUW Week

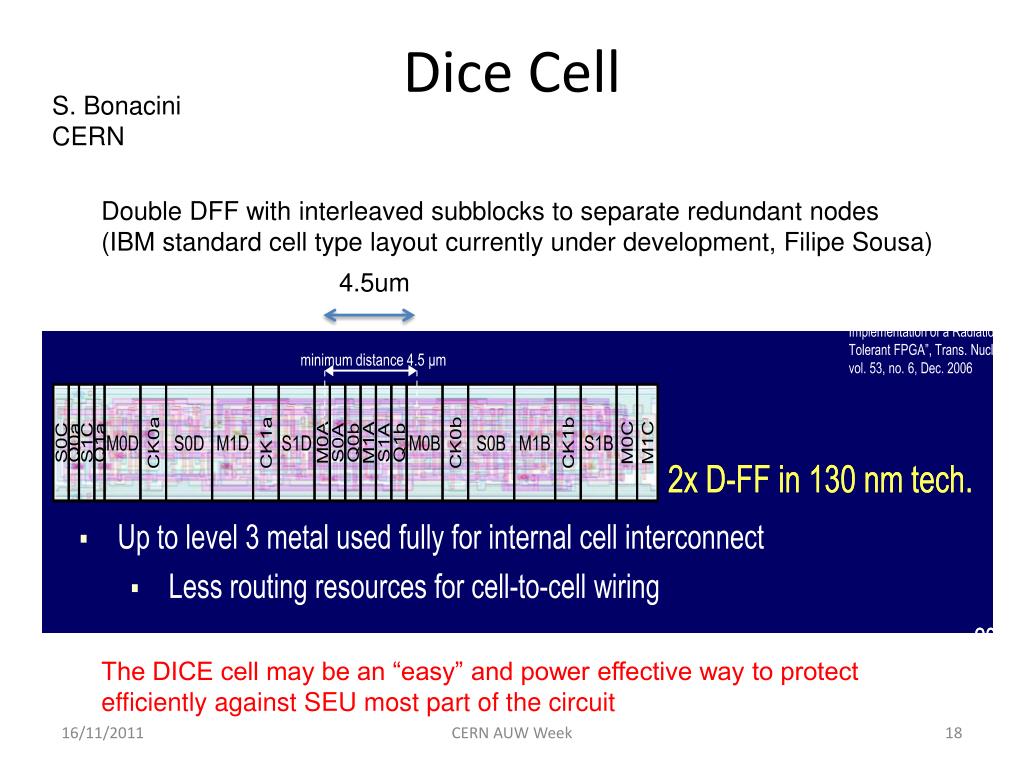

Dice cell

S. Bonacini

CERN

Double DFF with interleaved subblocks to separate redundant nodes

(IBM standard cell type layout currently under development, Filipe Sousa)

Dice Cell

4.5um

The DICE cell may be an “easy” and power effective way to protect efficiently against SEU most part of the circuit

CERN AUW Week


Irradiations plans

IRRADIATIONS PLANS

  • Front-End Prototype

    • Xray at low temperature

    • Low dose rate irradiation

    • “Beam” hit test vs. special ESD protection (P)

  • RAM block SEU cross section (P)

  • SEU standard Logic cross section (with

    and w/o TRM) (Going on)

CERN AUW Week

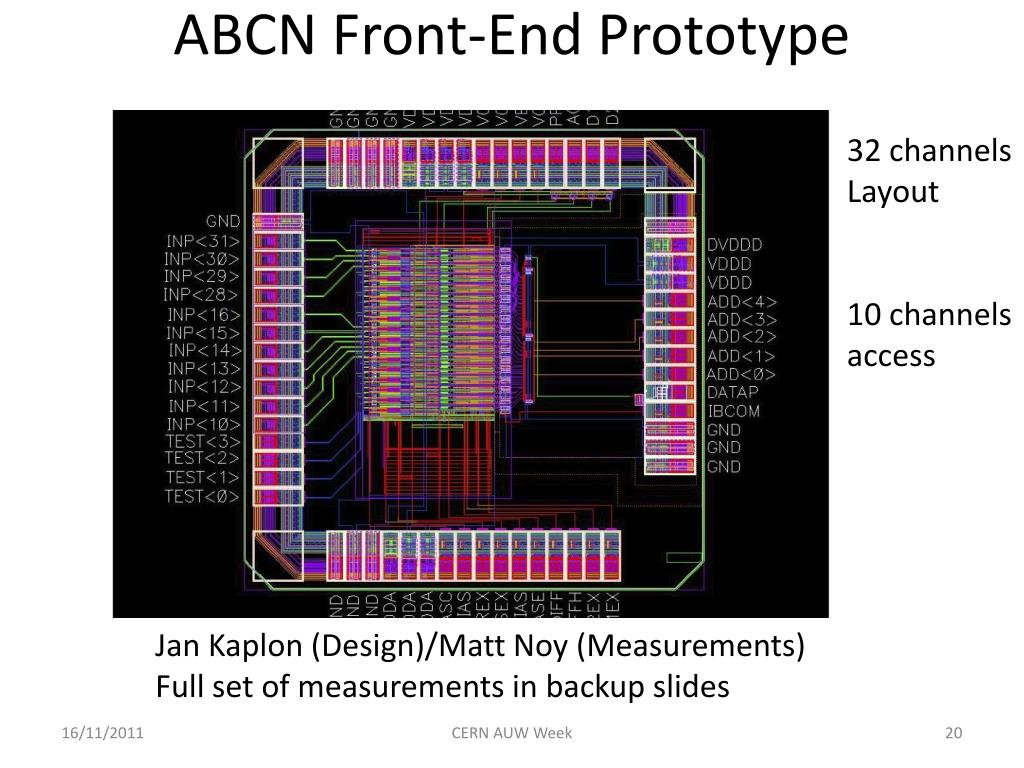

Abcn front end prototype

ABCN Front-End Prototype

32 channels

Layout

10 channels

access

Jan Kaplon (Design)/Matt Noy (Measurements)

Full set of measurements in backup slides

CERN AUW Week

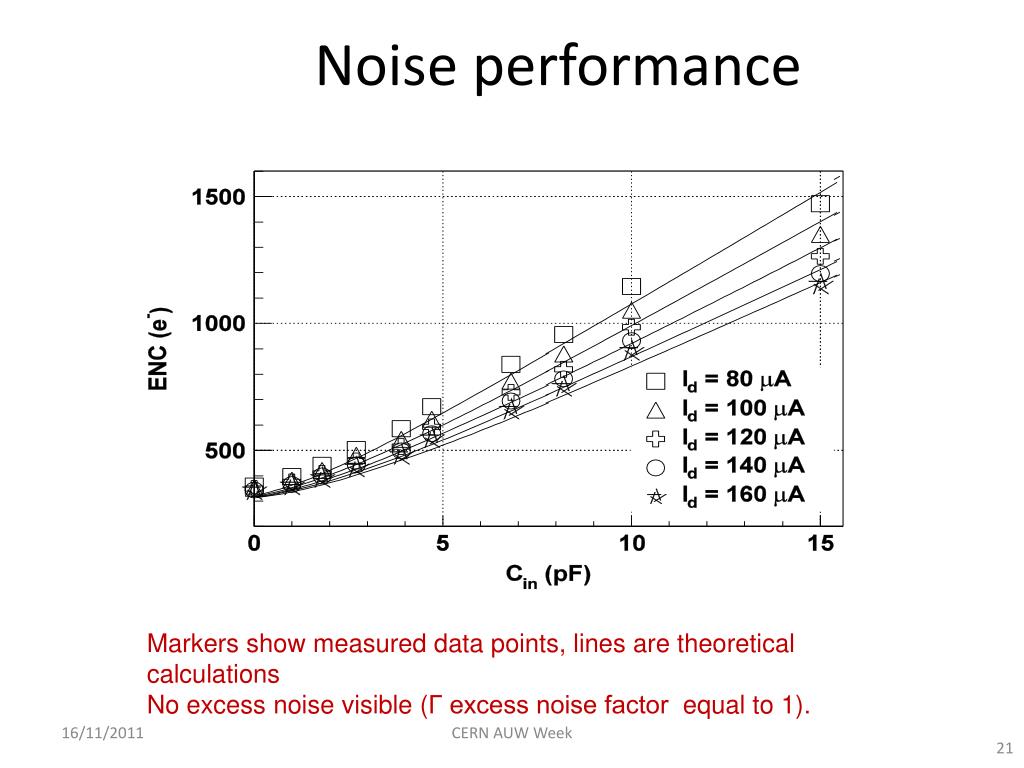

Noise performance

Noise performance

Markers show measured data points, lines are theoretical calculations

No excess noise visible (Γ excess noise factor equal to 1).

CERN AUW Week


Fast track trigger option in abcn

Fast Track Trigger Optionin ABCN

Slides by Mitch Newcomer

CERN AUW Week

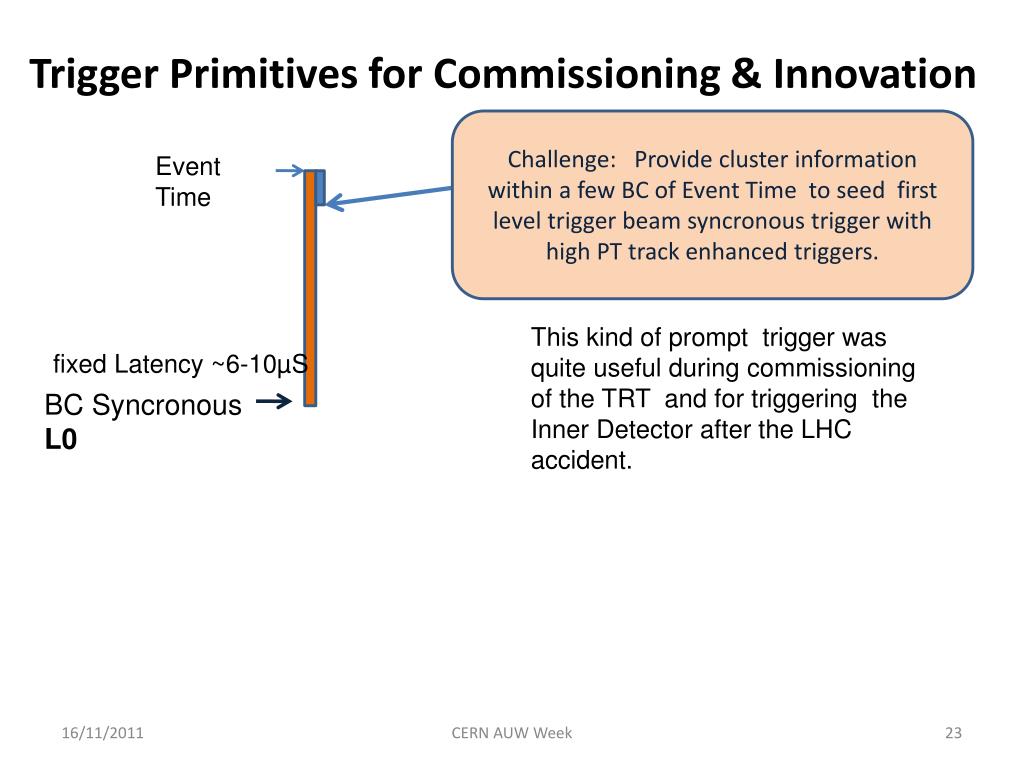

Trigger primitives for commissioning innovation

Trigger Primitives for Commissioning & Innovation

Challenge: Provide cluster information within a few BC of Event Time to seed first level trigger beam syncronous trigger with high PT track enhanced triggers.

Event Time

This kind of prompt trigger was

quite useful during commissioning

of the TRT and for triggering the Inner Detector after the LHC accident.

fixed Latency ~6-10µS

BC Syncronous L0

CERN AUW Week

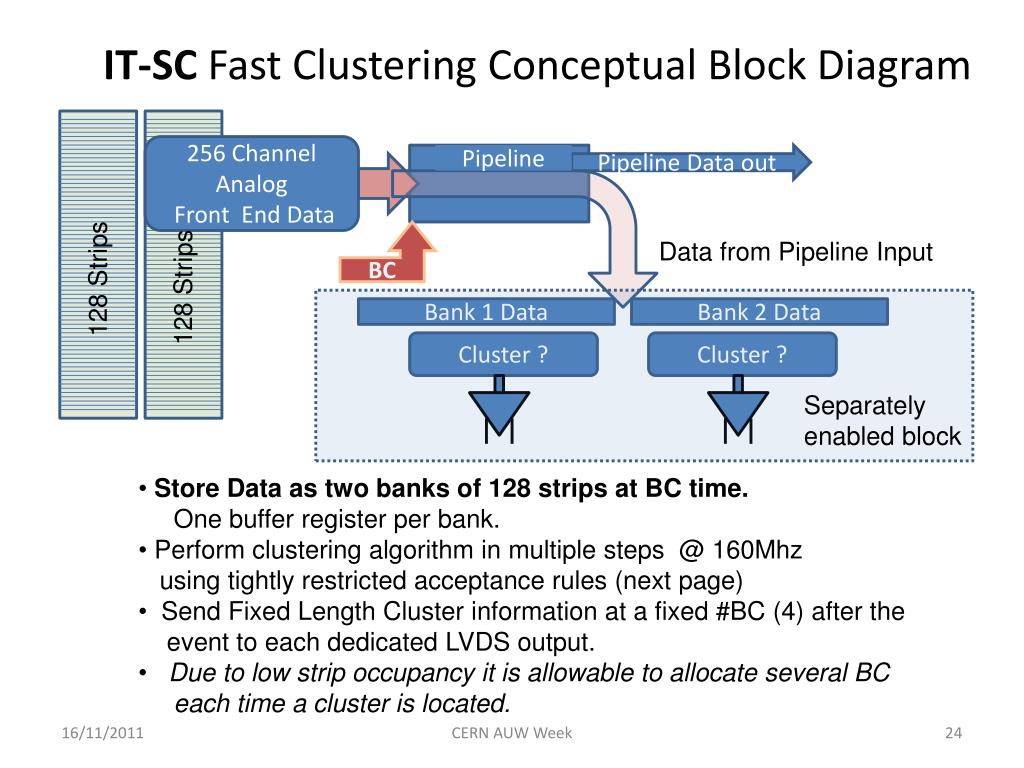

It sc fast clustering conceptual block diagram

IT-SCFast Clustering Conceptual Block Diagram

256 Channel Analog

Front End Data

Pipeline

Pipeline Data out

BC

Data from Pipeline Input

128 Strips

128 Strips

Bank 1 Data

Bank 2 Data

Cluster ?

Cluster ?

Separately

enabled block

  • Store Data as two banks of 128 strips at BC time.

  • One buffer register per bank.

  • Perform clustering algorithm in multiple steps @ 160Mhz

  • using tightly restricted acceptance rules (next page)

  • Send Fixed Length Cluster information at a fixed #BC (4) after the

  • event to each dedicated LVDS output.

  • Due to low strip occupancy it is allowable to allocate several BC

  • each time a cluster is located.

CERN AUW Week


Proposed abc130 powering options

Proposed ABC130 Powering Options

  • 1 single power domain for hybrid

  • No DC/DC on chip

Analog Front End

(1)

RC filter

Digital Core

ABC130

Analog

1.2V LDO

Digital

Variable LDO

(1)

Dig LDO In

An LDO In

Vref Dig

RC filter

(2)

(2)

CERN AUW Week


Abcn 130 status

ABCN 130 Status

  • Progress on specs

  • Functional model and simulation test bench on going

  • Digital Synthesis has started

  • FloorPlan will start soon, incl RAM block developed by CERN/PH/ME

  • SEU protections to be finalized

  • Issues on STD CELLS (Dice?)

CERN AUW Week


Hcc status

HCC Status

  • Specifications on going

  • Resources for code development are well defined for the coming year

  • Resources for Floorplan/Final Layout have still to be defined

  • Co-submission with ABCN 130 planned for End Q3-2012

CERN AUW Week


Abcn hcc status

Backup Slides

CERN AUW Week

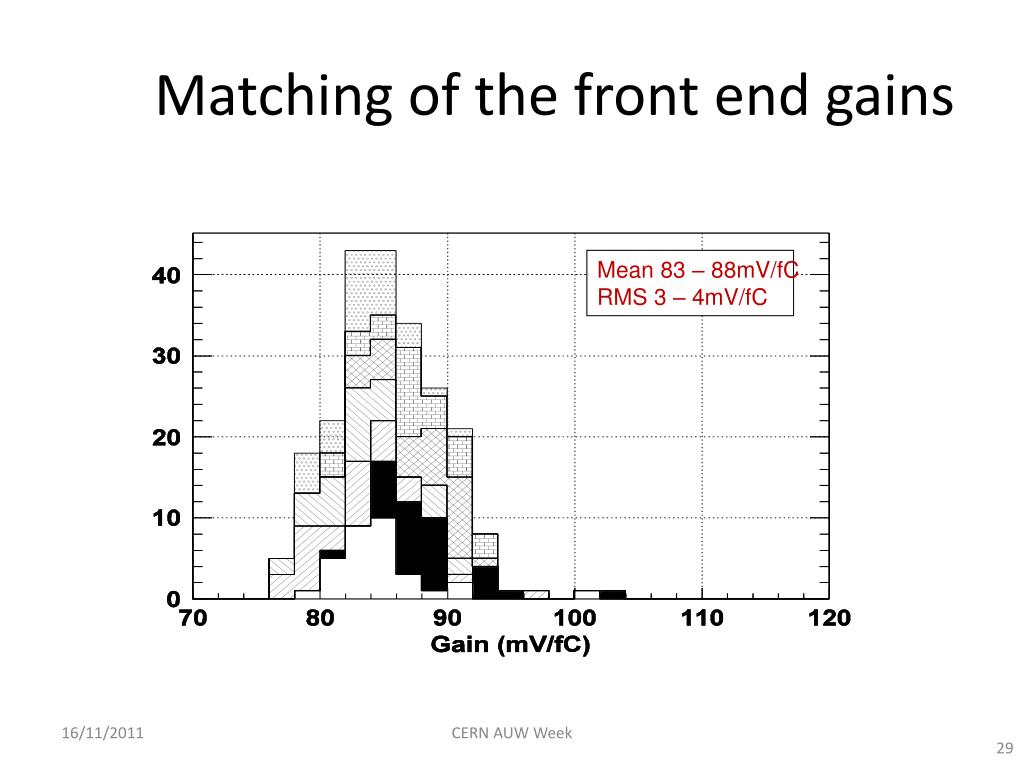

Matching of the front end gains

Matching of the front end gains

Mean 83 – 88mV/fC

RMS 3 – 4mV/fC

CERN AUW Week


Matching of discriminator offsets

Matching of discriminator offsets

Mean ~ 0mV

RMS 8 – 13mV

Pk-Pk value < 80mV

With 5 bit DAC the step will be 1.5 – 2 mV (gain 85 mV/fC)

CERN AUW Week

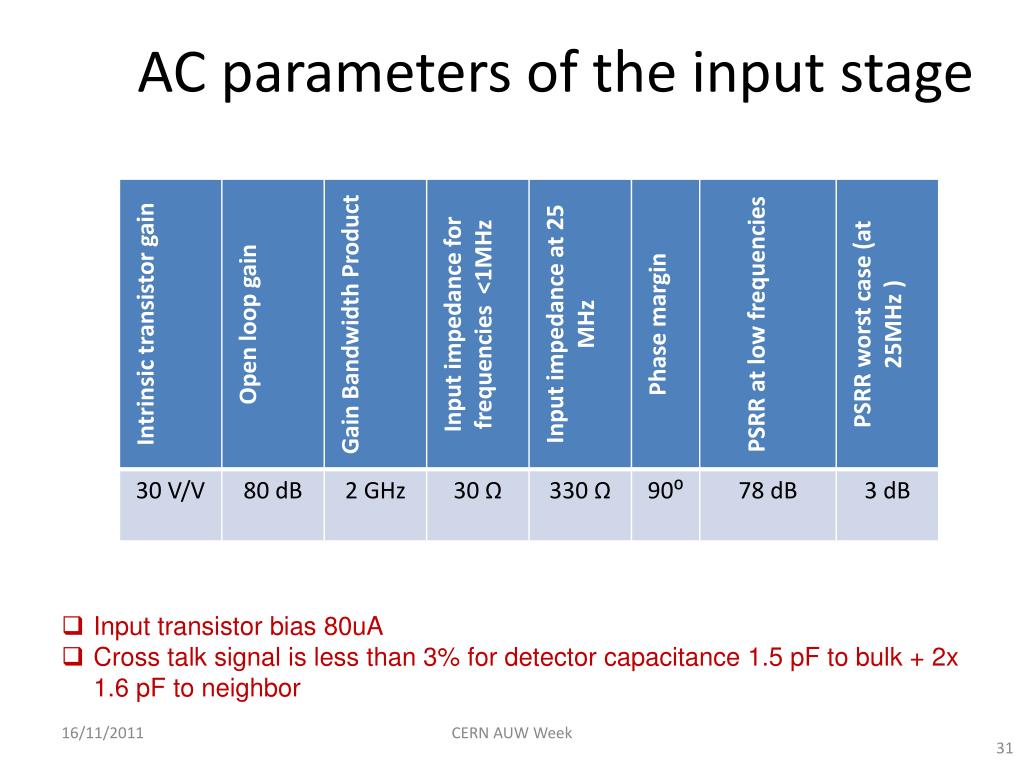

Ac parameters of the input stage

AC parameters of the input stage

  • Input transistor bias 80uA

  • Cross talk signal is less than 3% for detector capacitance 1.5 pF to bulk + 2x 1.6 pF to neighbor

CERN AUW Week


Parameters of the full chain

Parameters of the full chain

Time walk defined for signals 1.2 and 10fC with discriminator threshold set to 1fC.

CERN AUW Week


Command decoder

Command Packet

Command Decoder

CERN AUW Week

53 bits


Abcn 130 nm b lock diagram

ABCN 130 nm – Block Diagram

Readout

L1 latency (up to 500us ?)

L0 latency (6.4us)

DCL

L1

Local FiFO

20

256

Pipeline

(SRAM)

256

256

L1 buffer (SRAM)

WA

RA

WA

RA

Local FiFO

DCL

R3

256

L0ID

20

BC

WAgen

RAgen

At BC : WA=WA+1

At L0: RA=WA-L0Lat

R

Event

Address

R

Event

Address

R3

L1

CLK

RR

RR

Data Flow Control

Command Decoder

W

W

L0-COM

R3L0ID

L1L0ID

R3-L1

BC

CERN AUW Week


Abcn design picture

(L0Buffer, pipeline)

Expected 264 bw x 256 al will translate into 5 times 64 bw (320 bits) and 2 times al (256 depth)

Size : 5 x 150um in Y and 900um in X : 0.9mm x 0.75mm

ABCN Design Picture

0.9 mm

Unit size : 450x 150 um 128 addresses in X and 64 word bits in Y

0.75mm

L0 pipeline :

320 bits word by 256 addresses

82Kbits memory

CERN AUW Week


Abcn design picture1

(L0ID Buffer)

Expected 272 bw x 728 al will translate into 5 times 64 bw (320 bits) and 6 times al (728 depth)

Size : 5 x 150um in Y and 2700um in X : 2.7mm x 0.75mm

ABCN Design Picture

2.7 mm

0.75mm

L0ID Buffer :

320 bits word by 728 addresses 233Kb memory

CERN AUW Week


Hybrid readout through the gbt system

GBTX

Hybrid readout through the GBT system

HCC 12

HCC 6

HCC 1

E-link 1 – 80-160MHz-clk

E-link 2 – RXDATA : COM

E-link 3 – RXDATA : L0/L1

E-link 4 – RXDATA : R3

E-link 1 – TXDATA (80MHz)

E-link 6 – TXDATA (80MHz)

E-link 12 –TXDATA (80MHz)

HCC 24

HCC 18

HCC 13

E-link 1 – 80-160MHz-clk

E-link 2 – RXDATA : COM

E-link 3 – RXDATA : L0/L1

E-link 4 – RXDATA : R3

E-link 13 – TXDATA

E-link 18 – TXDATA

1 per hybrid

E-link 24 – TXDATA

CERN AUW Week


  • Login
