  1. COMIND PRODUCTIONS CATALOG

  2. EXTENSION CABLES FOR RADIO / GPS / PHONE DESIGN AND PRODUCTION OF EXTENSIONS CABLES FOR SIGNAL TRANSPORT. ON THE BASIS OF STUDIES ON FREQUENCY AND WORK ENVIRONMENT AND THE TYPE OF CONNECTIONS, ARE USED THE MOST SUITABLE PARTS THAT THE MARKET CAN OFFER: RG174 cable @50 Ohm RG58 cable @50 Ohm 75 Ohm cable CableShield >= 98% GT5 connectors FAKRA connectors MCX & MMCX connectors RAKU/RAST connectors

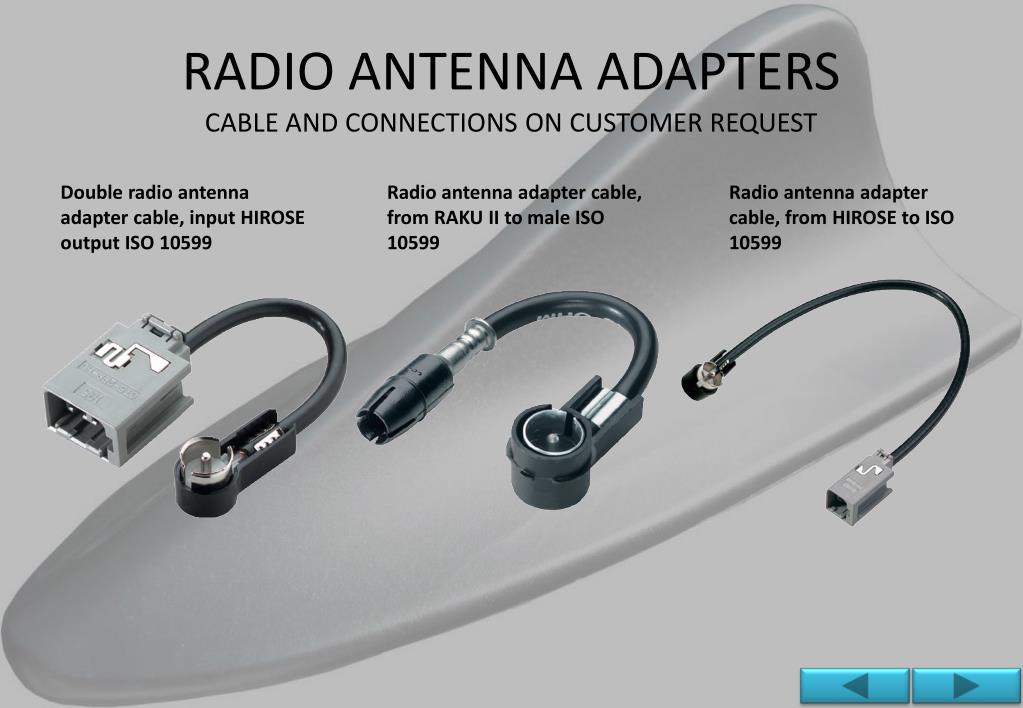

  3. RADIO ANTENNA ADAPTERSCABLE AND CONNECTIONS ON CUSTOMER REQUEST Double radio antenna adapter cable, input HIROSE output ISO 10599 Radio antenna adapter cable, from HIROSE to ISO 10599 Radio antenna adapter cable, from RAKU II to male ISO 10599

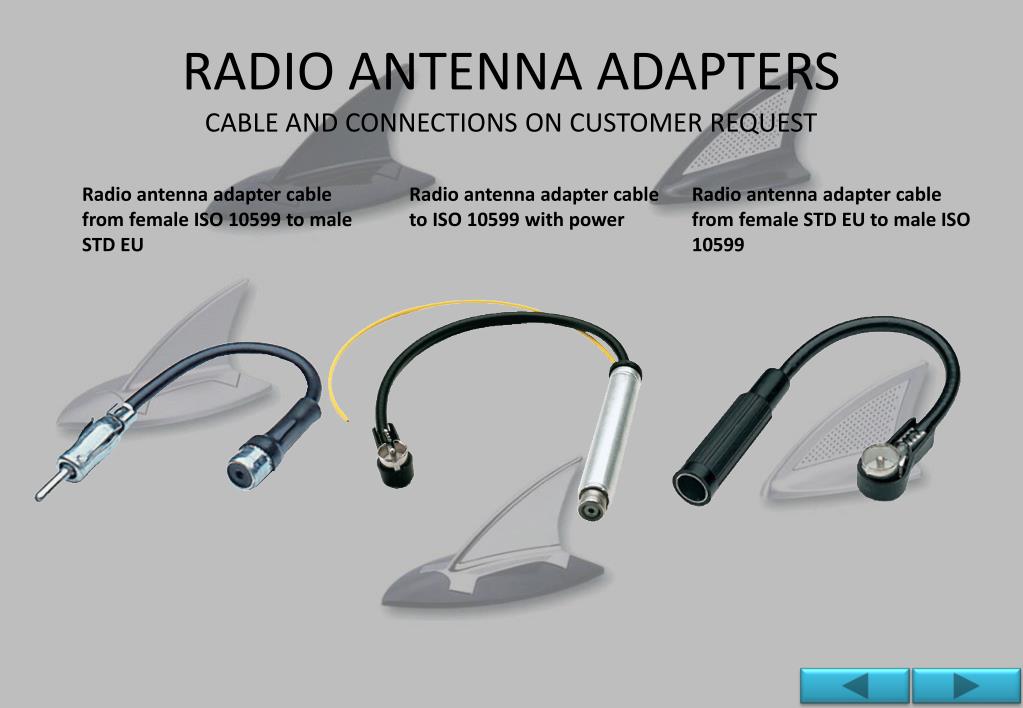

  4. RADIO ANTENNA ADAPTERS CABLE AND CONNECTIONS ON CUSTOMER REQUEST Radio antenna adapter cable from female ISO 10599 to male STD EU Radio antenna adapter cable fromfemale STD EU to male ISO 10599 • Radio antenna adapter cable to ISO 10599 withpower

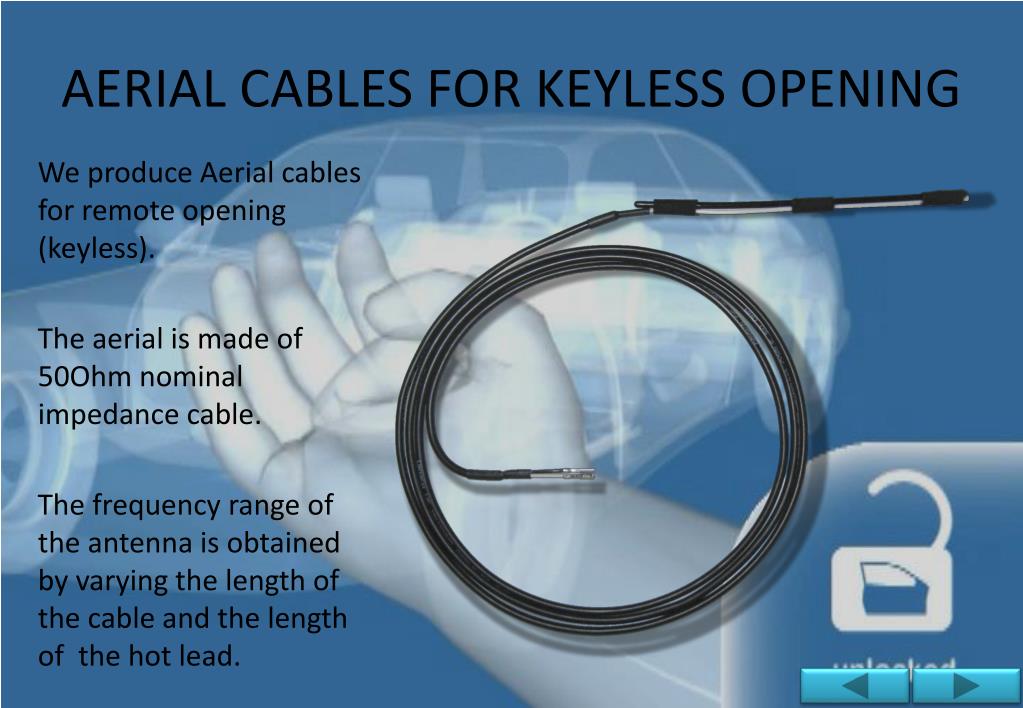

  5. We produce Aerial cables for remote opening (keyless). The aerial is made of 50Ohm nominal impedance cable. The frequency range of the antenna is obtained by varying the length of the cable and the length of the hot lead. AERIAL CABLES FOR KEYLESS OPENING

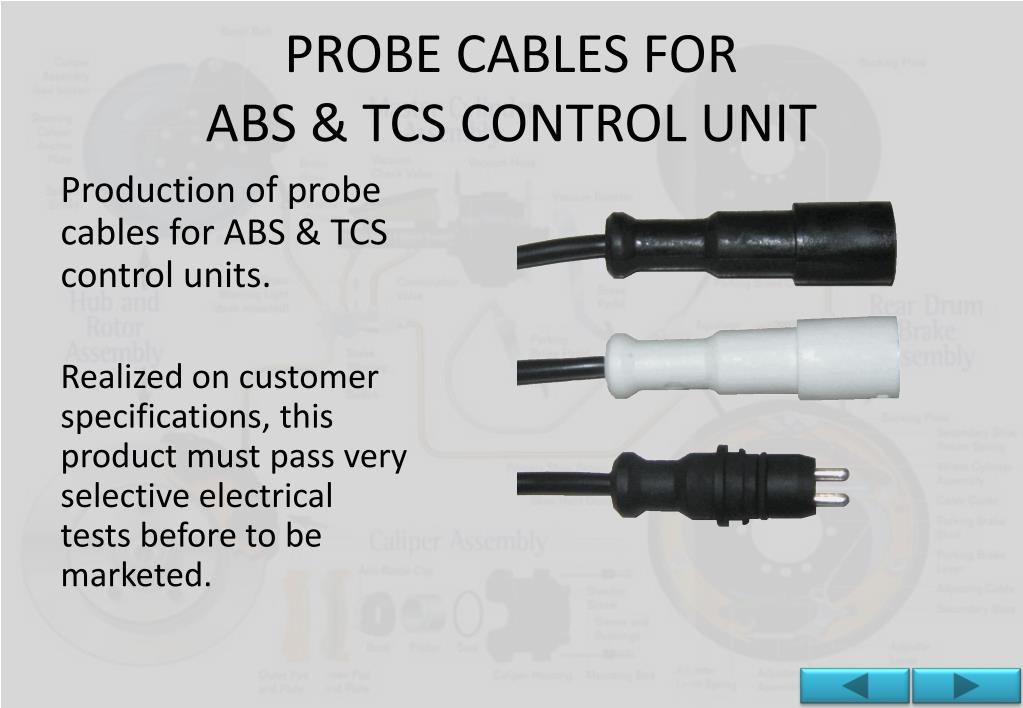

  6. PROBE CABLES FOR ABS & TCS CONTROL UNIT Production of probe cablesfor ABS & TCS controlunits. Realized on customer specifications, this product must pass very selective electrical tests before to be marketed.

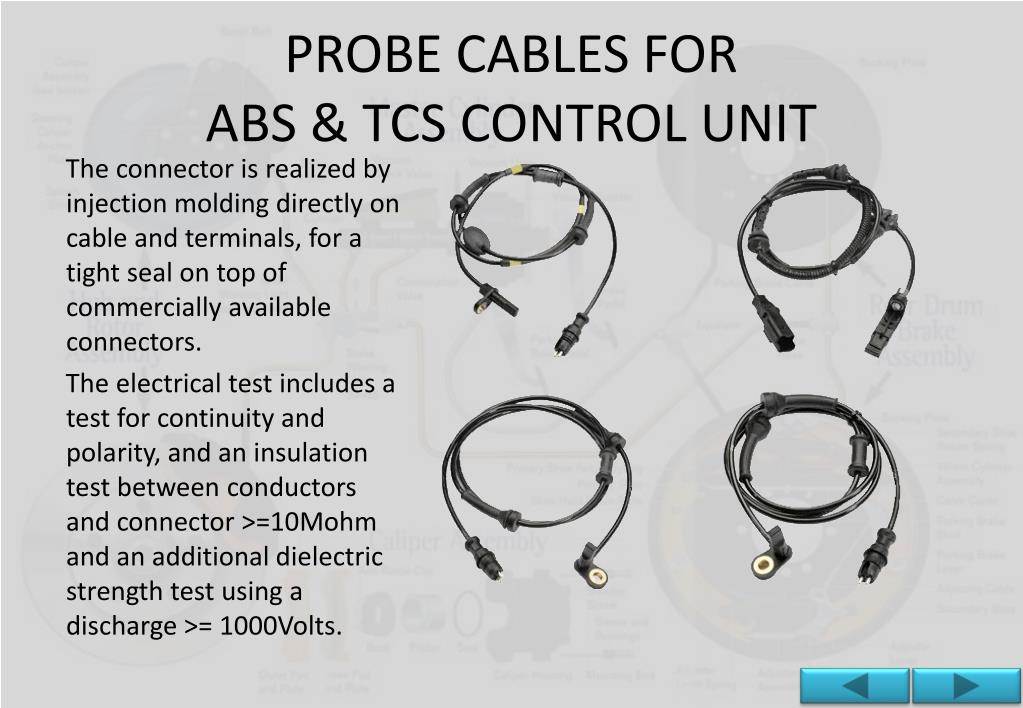

  7. PROBE CABLES FOR ABS & TCS CONTROL UNIT • The connector is realized by injection molding directly on cable and terminals, for a tight seal on top of commercially available connectors. • The electrical test includes a test for continuity and polarity, and an insulation test between conductors and connector >=10Mohm and an additional dielectric strength test using a discharge >= 1000Volts.

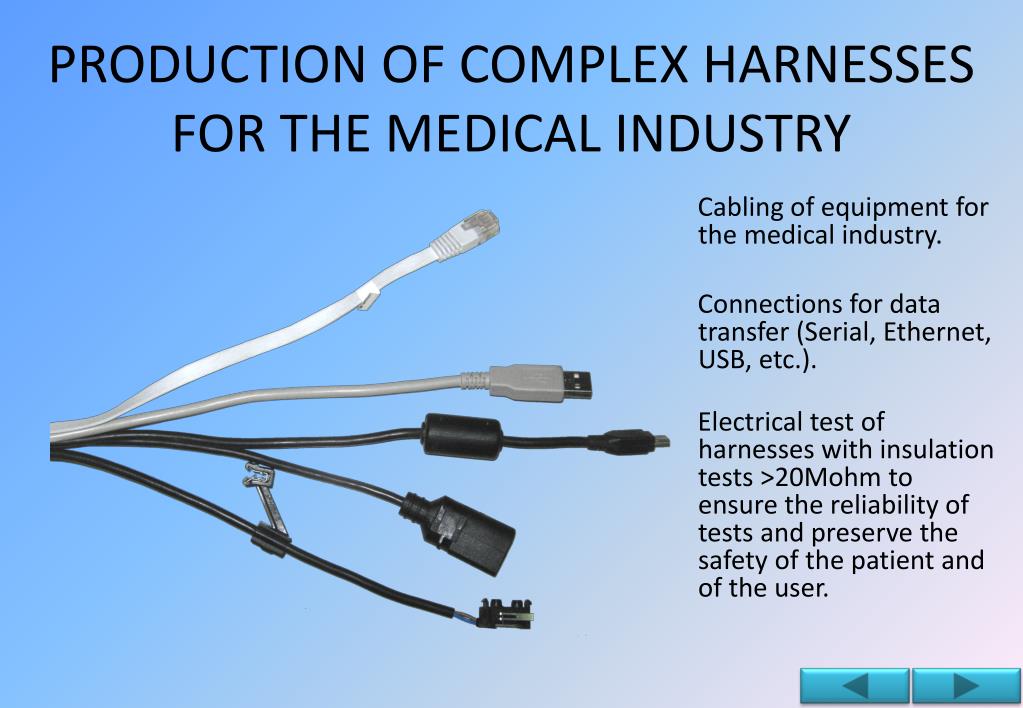

  8. PRODUCTION OF COMPLEX HARNESSES FOR THE MEDICAL INDUSTRY • Cabling of equipment for the medical industry. • Connections for data transfer (Serial, Ethernet, USB, etc.). • Electrical test of harnesses with insulation tests >20Mohm to ensure the reliability of tests and preserve the safety of the patient and of the user.

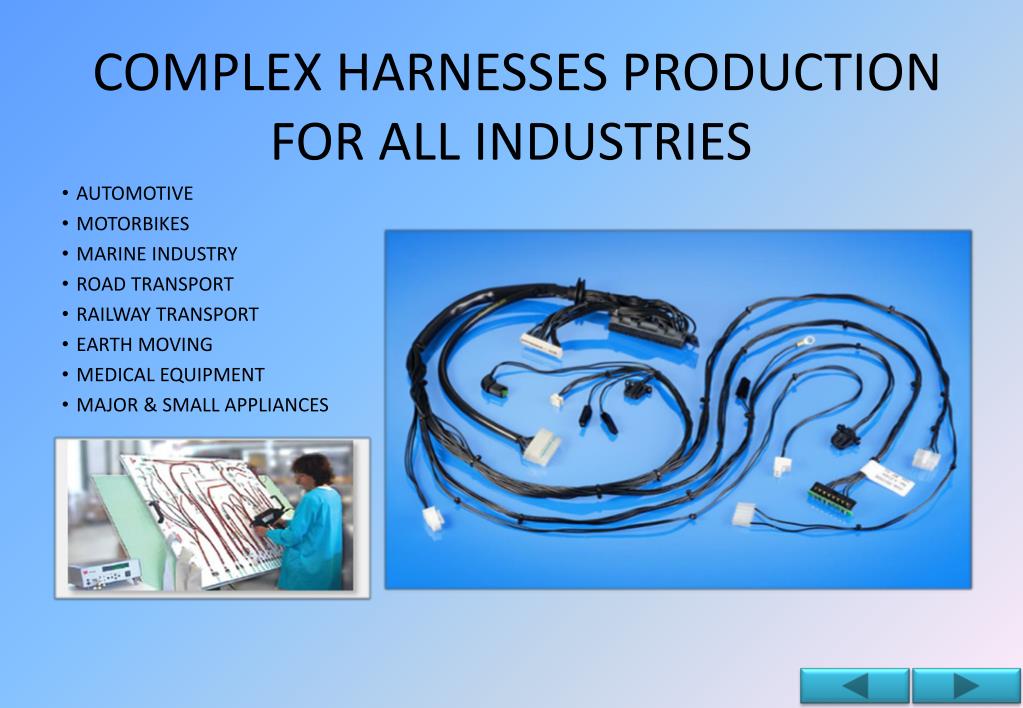

  9. COMPLEX HARNESSES PRODUCTION FOR ALL INDUSTRIES AUTOMOTIVE MOTORBIKES MARINE INDUSTRY ROAD TRANSPORT RAILWAY TRANSPORT EARTH MOVING MEDICAL EQUIPMENT MAJOR & SMALL APPLIANCES

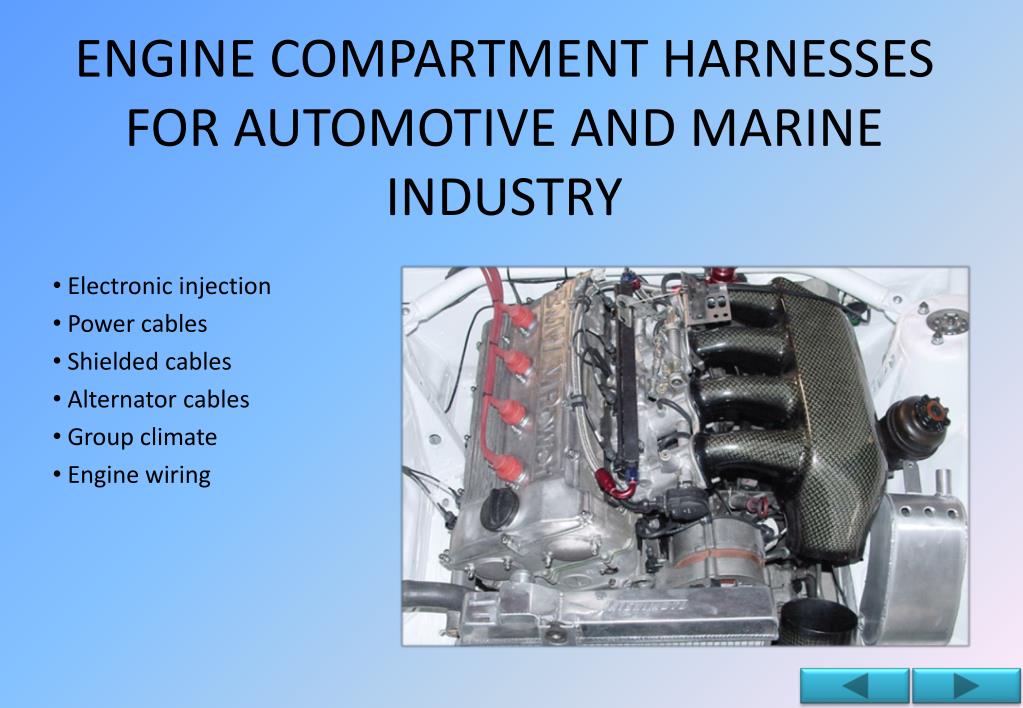

  10. ENGINE COMPARTMENT HARNESSES FOR AUTOMOTIVE AND MARINE INDUSTRY Electronic injection Power cables  Shielded cables Alternator cables Group climate Engine wiring

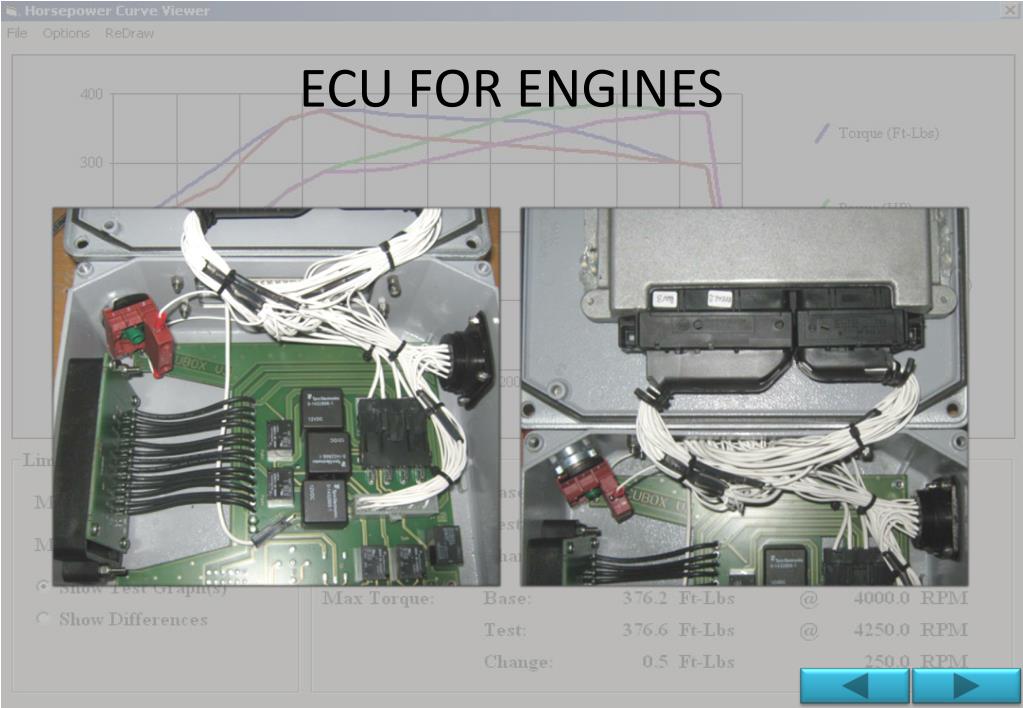

  11. ECU FOR ENGINES

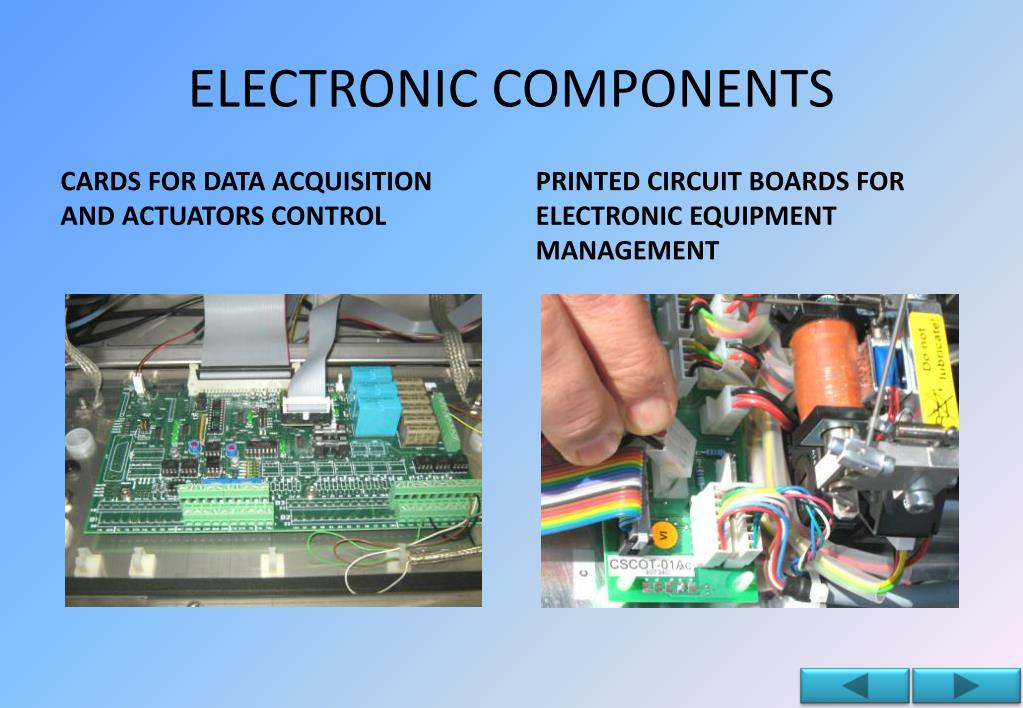

  12. ELECTRONIC COMPONENTS CARDS FOR DATA ACQUISITION AND ACTUATORS CONTROL PRINTED CIRCUIT BOARDS FOR ELECTRONIC EQUIPMENT MANAGEMENT

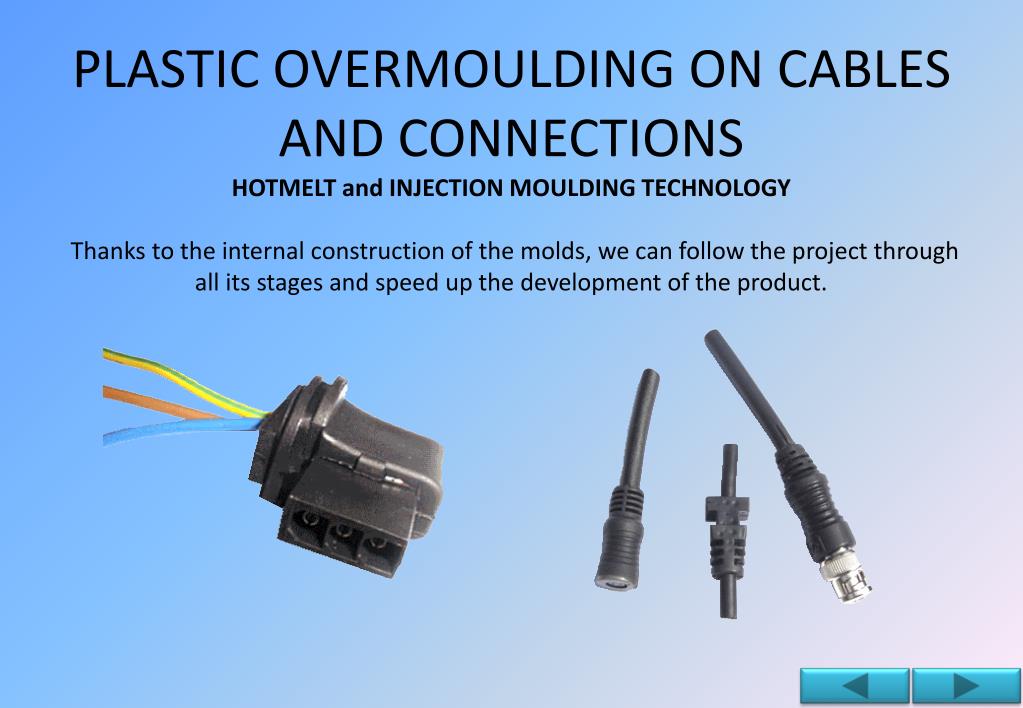

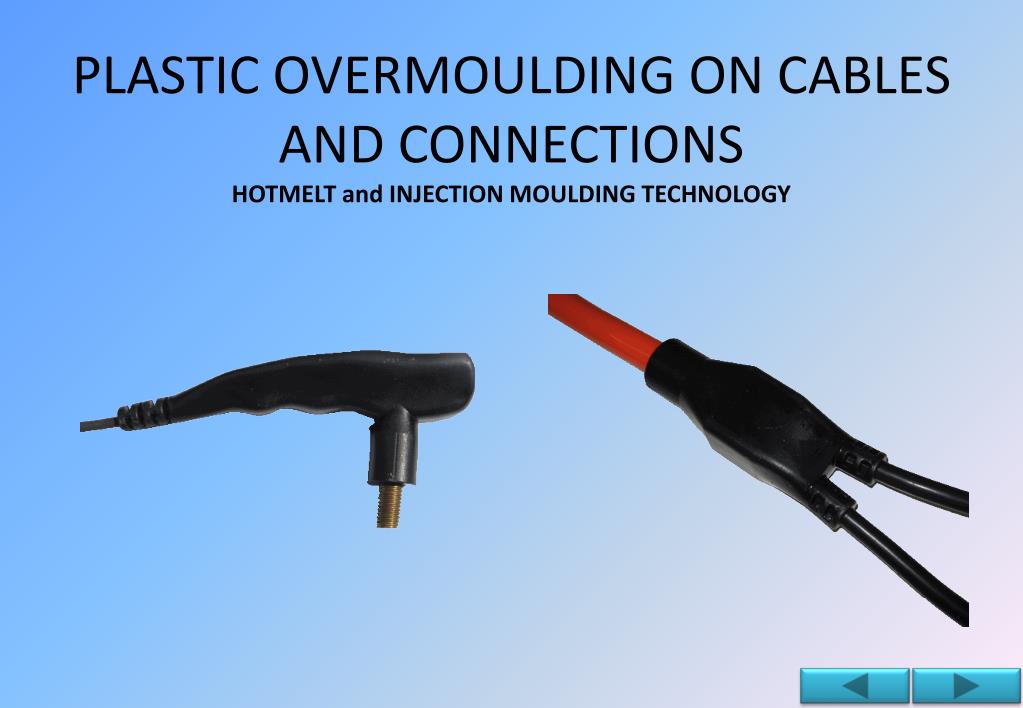

  13. PLASTIC OVERMOULDING ON CABLES AND CONNECTIONSHOTMELT and INJECTION MOULDING TECHNOLOGY Thanks to the internal construction of the molds, we can follow the project through all its stages and speed up the development of the product.

  14. PLASTIC OVERMOULDING ON CABLES AND CONNECTIONSHOTMELT and INJECTION MOULDING TECHNOLOGY

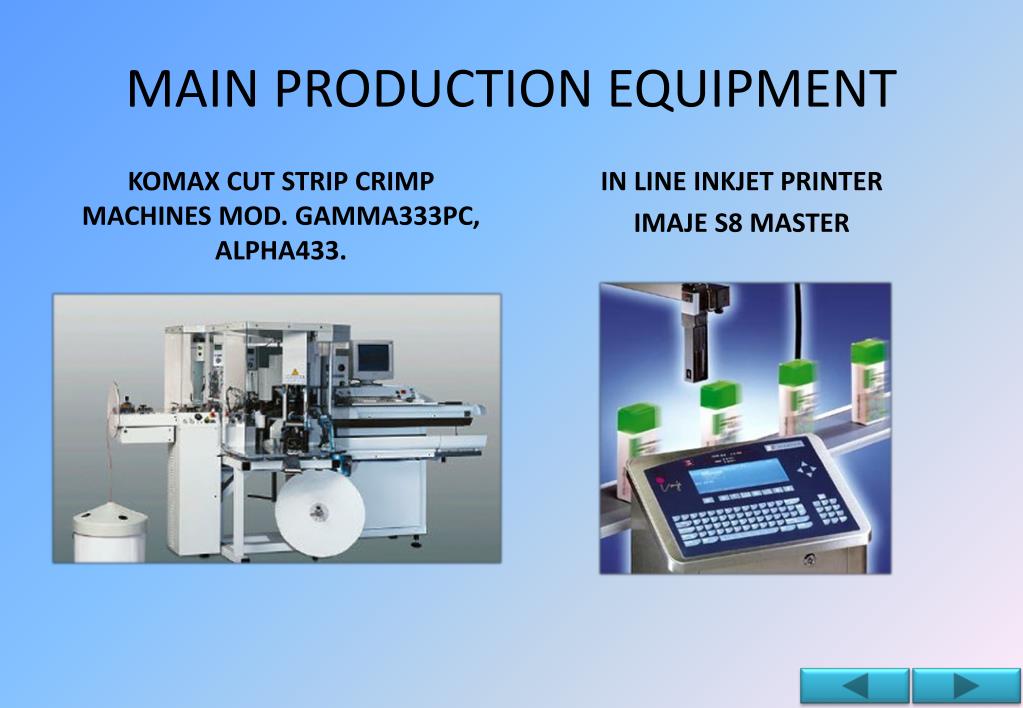

  15. MAIN PRODUCTION EQUIPMENT KOMAX CUT STRIP CRIMP MACHINES MOD. GAMMA333PC, ALPHA433. IN LINE INKJET PRINTER IMAJE S8 MASTER

  16. MAIN PRODUCTION EQUIPMENT Plastic injection molding machines EXMA PLUGMATIC ST4 ULTRASONIC WELDING MACHINE SCHUNK RK2000

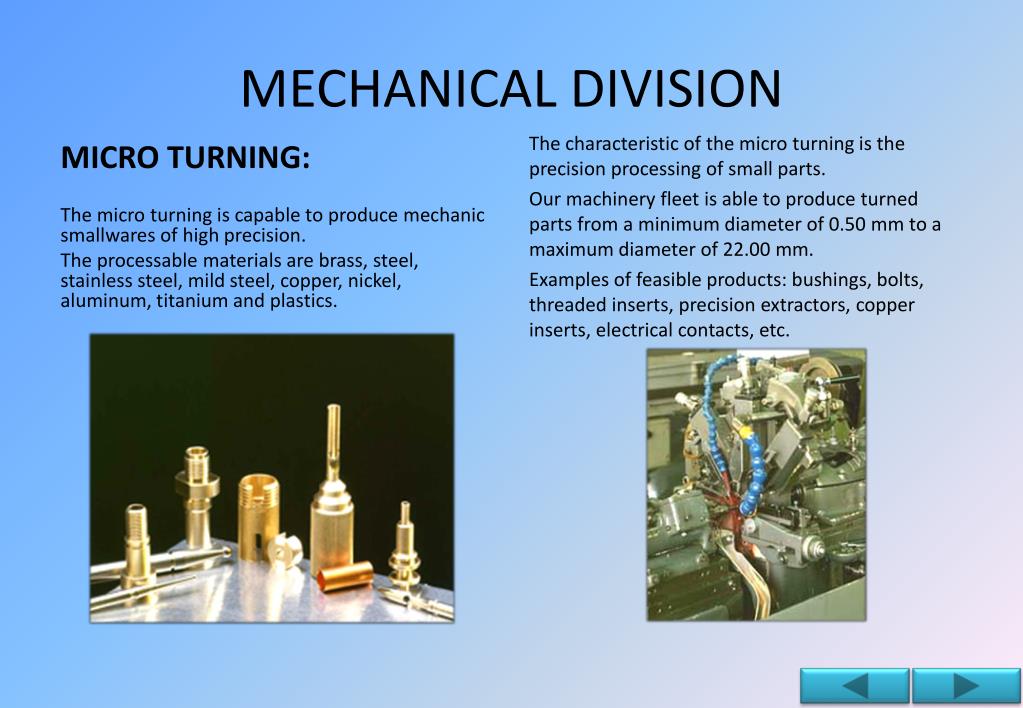

  17. MECHANICAL DIVISION MICRO TURNING: The micro turningiscapableto produce mechanicsmallwaresof high precision. The processable materials are brass, steel, stainless steel, mild steel, copper, nickel, aluminum, titanium and plastics. The characteristic of the micro turning is the precision processing of small parts. Our machinery fleet is able to produce turned parts from a minimum diameter of 0.50 mm to a maximum diameter of 22.00 mm. Examples of feasible products: bushings, bolts, threaded inserts, precision extractors, copper inserts, electrical contacts, etc.

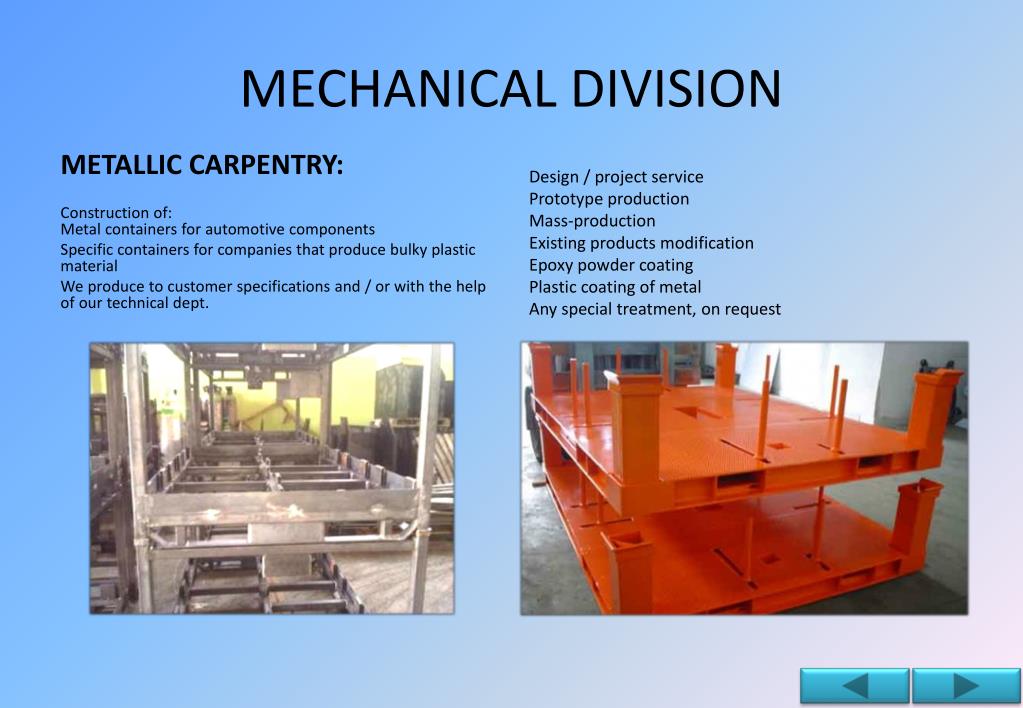

  18. MECHANICAL DIVISION METALLIC CARPENTRY: Construction of:Metal containers for automotive components Specific containers for companies that produce bulky plastic material We produce to customer specifications and / or with the help of our technical dept. Design / project servicePrototype production Mass-productionExisting products modificationEpoxy powder coatingPlastic coating of metalAny special treatment, on request

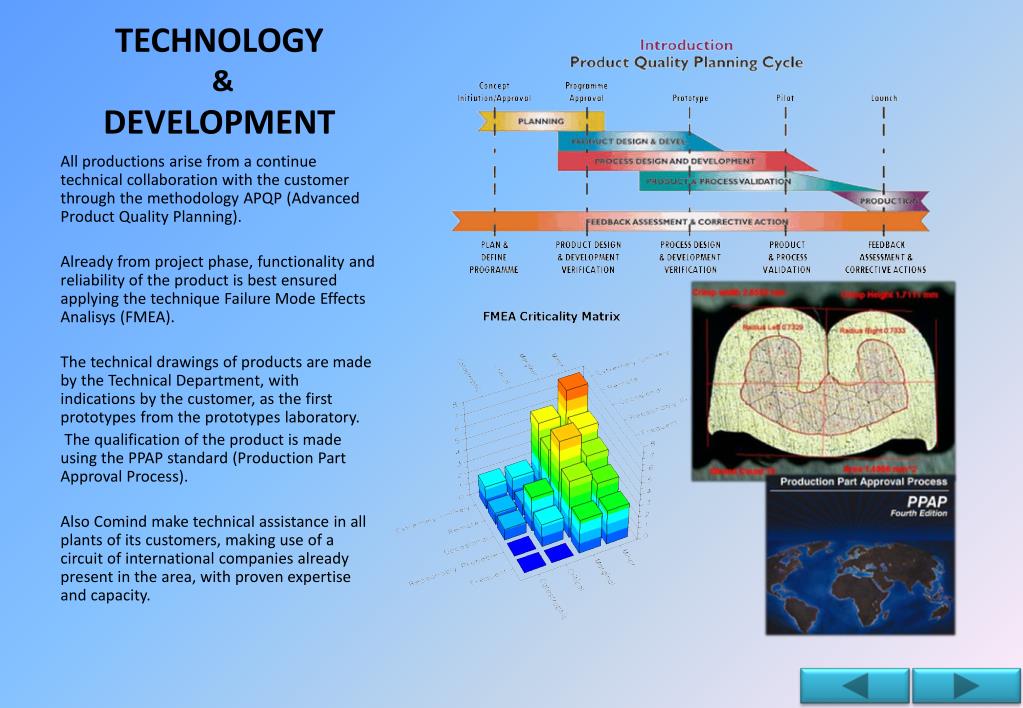

  19. TECHNOLOGY & DEVELOPMENT All productions arise from a continue technical collaboration with the customer through the methodology APQP (Advanced Product Quality Planning). Already from project phase, functionality and reliability of the product is best ensured applying the techniqueFailure Mode EffectsAnalisys (FMEA). The technical drawings of products are made by the Technical Department, with indications by the customer, as the first prototypes from the prototypes laboratory. The qualification of the product is made using the PPAP standard (Production Part Approval Process). Also Comind make technical assistance in all plants of its customers, making use of a circuit of international companies already present in the area, with proven expertise and capacity.

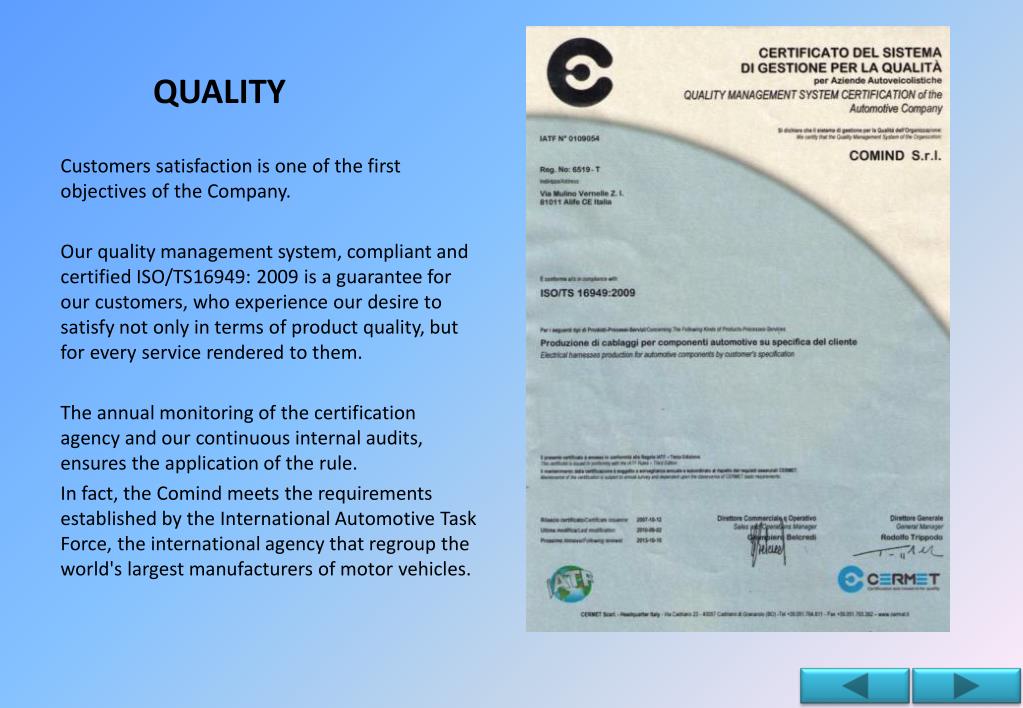

  20. QUALITY Customerssatisfactionisoneof the first objectivesof the Company. Our quality management system, compliant and certified ISO/TS16949: 2009 is a guarantee for our customers, who experience our desire to satisfy not only in terms of product quality, but for every service rendered to them. The annual monitoring of the certification agency and our continuous internal audits, ensures the application of the rule. In fact, the Comind meets the requirements established by the International Automotive Task Force, the international agency that regroup the world's largest manufacturers of motor vehicles.

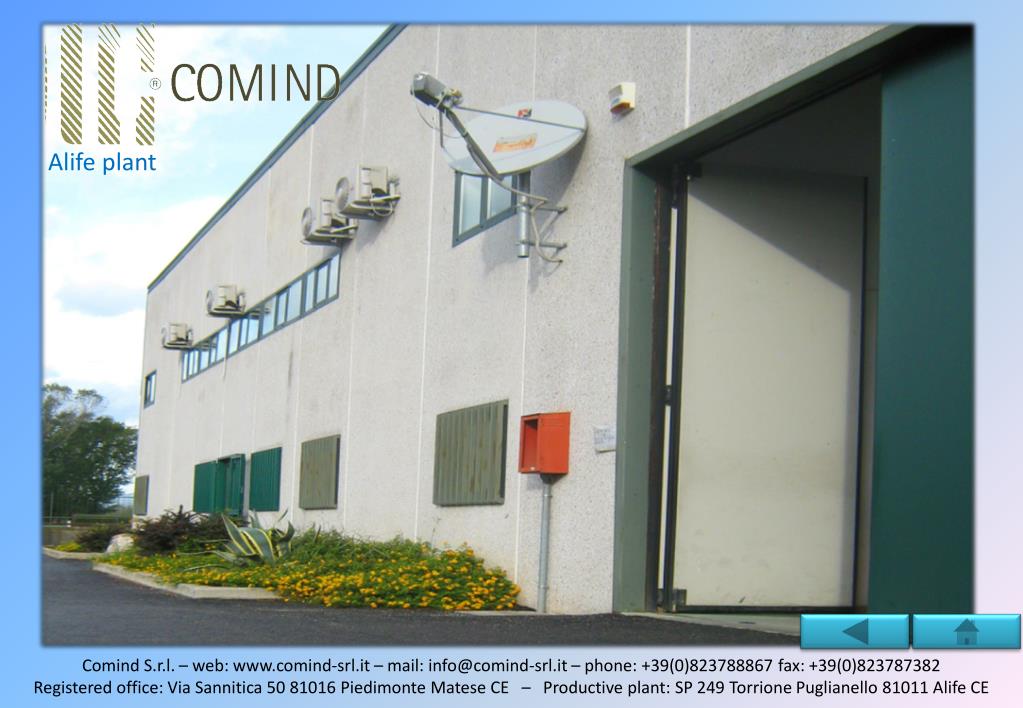

  21. Comind S.r.l. – web: www.comind-srl.it – mail: info@comind-srl.it – phone: +39(0)823788867 fax: +39(0)823787382 Registered office: Via Sannitica 50 81016 Piedimonte Matese CE – Productiveplant: SP 249 Torrione Puglianello 81011 Alife CE Alife plant
