  1. Virtual Private Network (VPN) © N. Ganesan, Ph.D.

  2. Chapter Objectives

  3. Chapter Modules

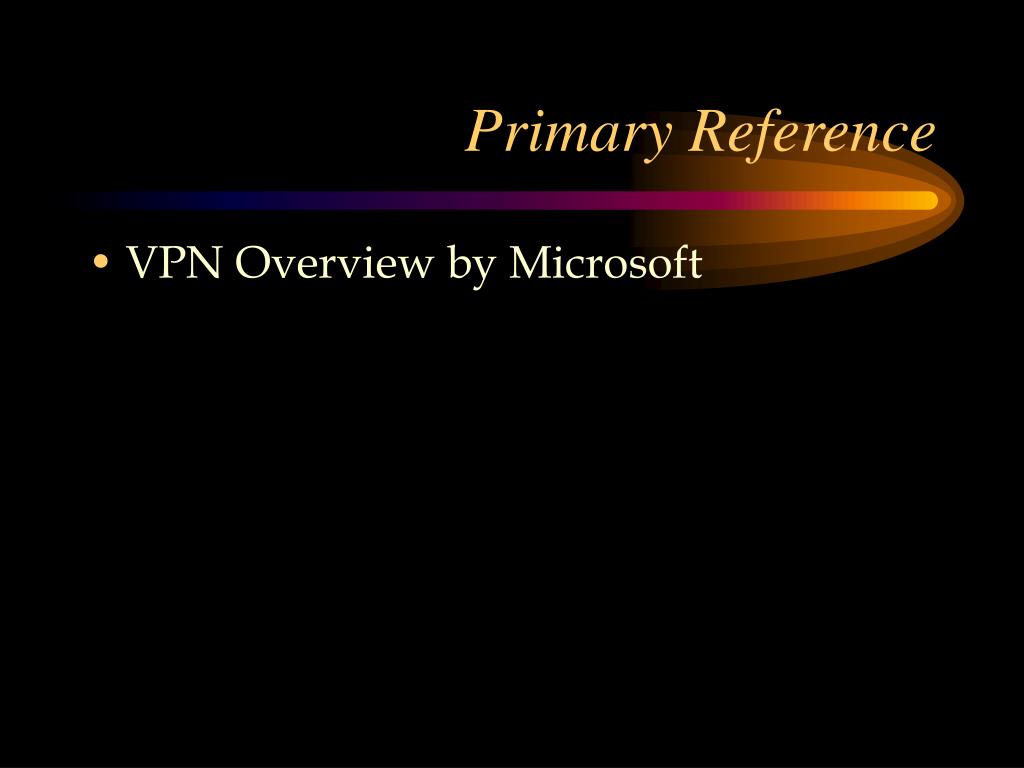

  4. Primary Reference • VPN Overview by Microsoft

  5. VPN • A virtual private network that is established over, in general, the Internet • It is virtual because it exists as a virtual entity within a public network • It is private because it is confined to a set of private users

  6. Why is it a Virtual Private Network? • From the user’s perspective, it appears as a network consisting of dedicated network links • These links appear as if they are reserved for the VPN clientele • Because of encryption, the network appears to be private

  7. Example of a VPN

  8. VPN Major Characteristics • Must emulate a point-to-point link • Done by encapsulating the data that would facilitate allow it to travel the Internet to reach the end point • Must emulate a private link • Done by encrypting the data in the data packets

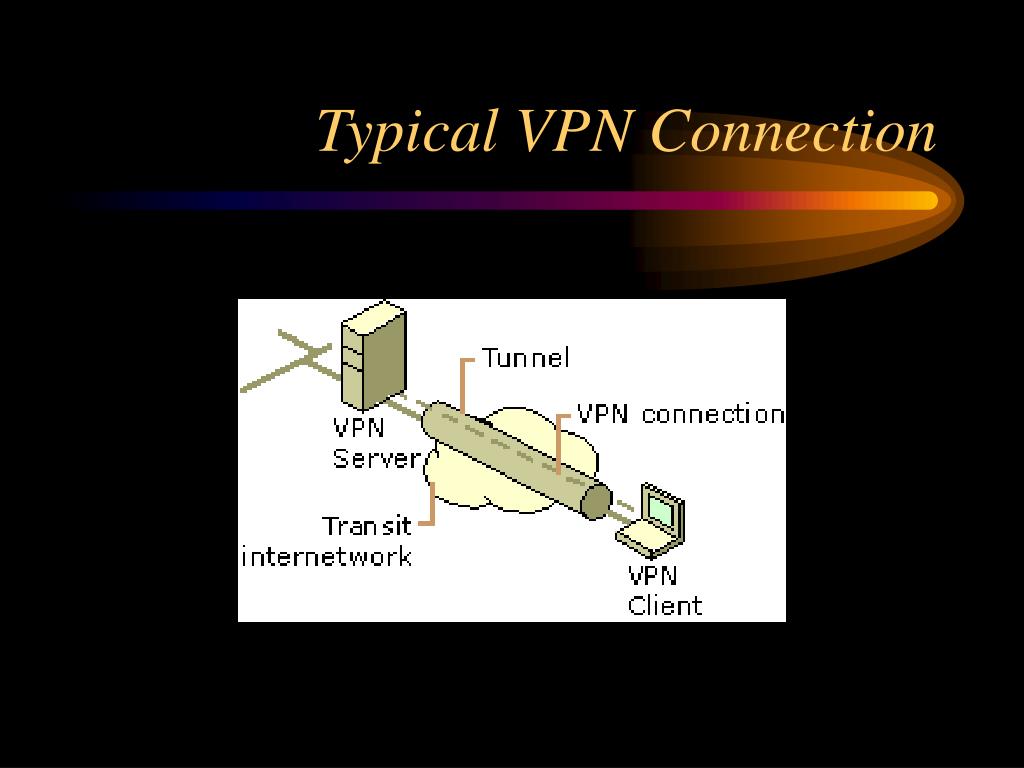

  9. Typical VPN Connection

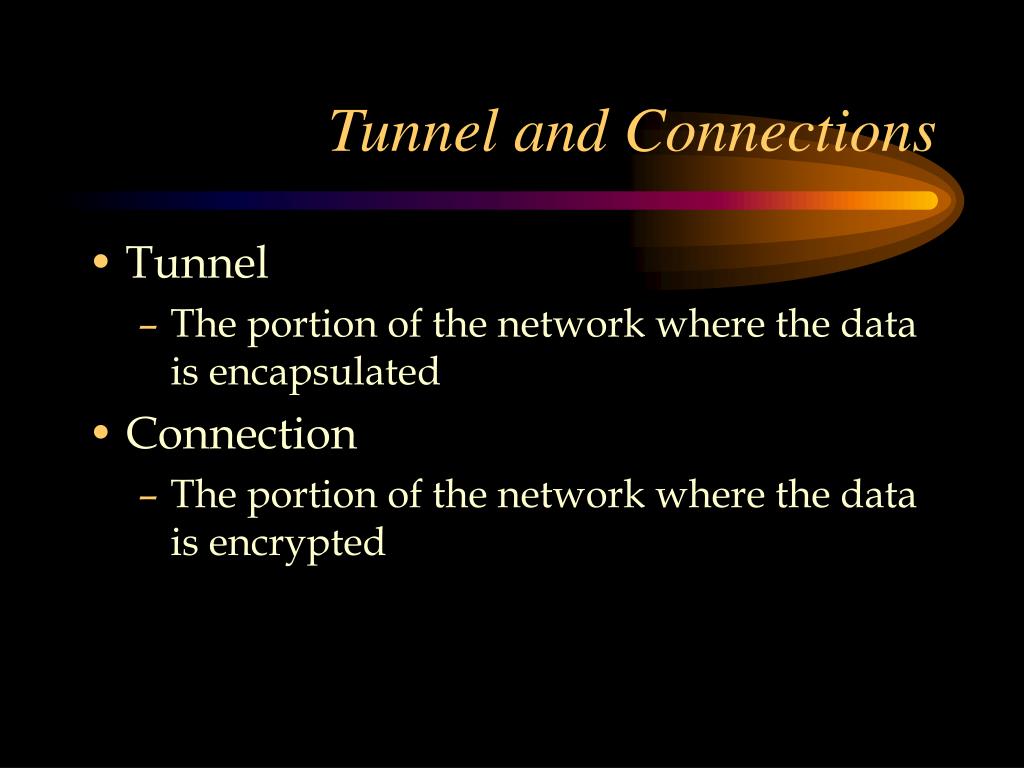

  10. Tunnel and Connections • Tunnel • The portion of the network where the data is encapsulated • Connection • The portion of the network where the data is encrypted

  11. Application Areas • In general, provide users with connection to the corporate network regardless of their location • The alternative of using truly dedicated lines for a private network are expensive propositions

  12. Some Common Uses of VPN • Provide users with secured remote access over the Internet to corporate resources • Connect two computer networks securely over the Internet • Example: Connect a branch office network to the network in the head office • Secure part of a corporate network for security and confidentiality purpose

  13. Remote Access Over the Internet

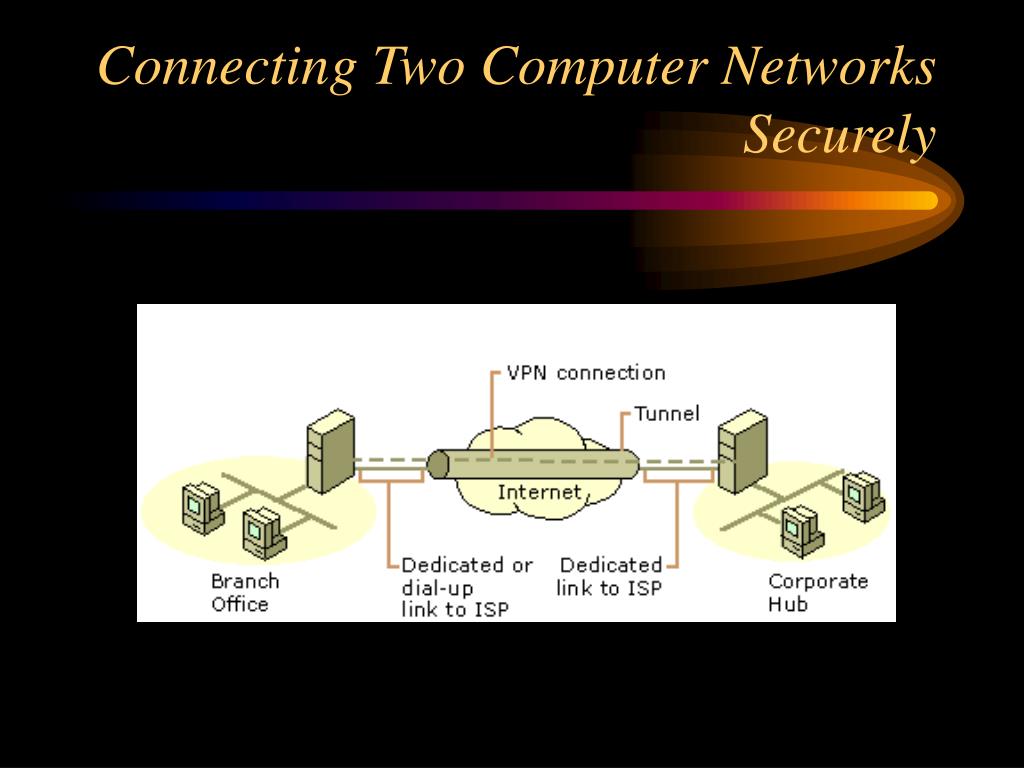

  14. Connecting Two Computer Networks Securely

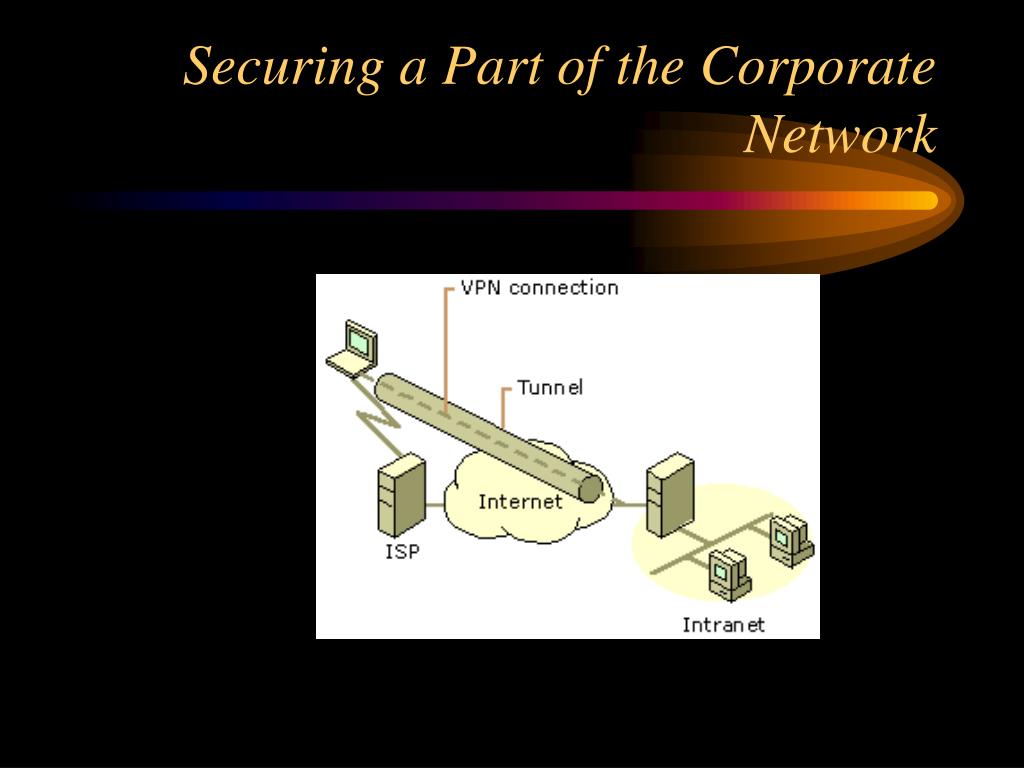

  15. Securing a Part of the Corporate Network

  16. Basic VPN Requirements • User Authentication • Address Management • Data Encryption • Key Management • Multi-protocol Support

  17. User Authentication • VPN must be able to verify user authentication and allow only authorized users to access the network

  18. Address Management • Assign addresses to clients and ensure that private addresses are kept private on the VPN

  19. Data Encryption • Encrypt and decrypt the data to ensure that others on the not have access to the data

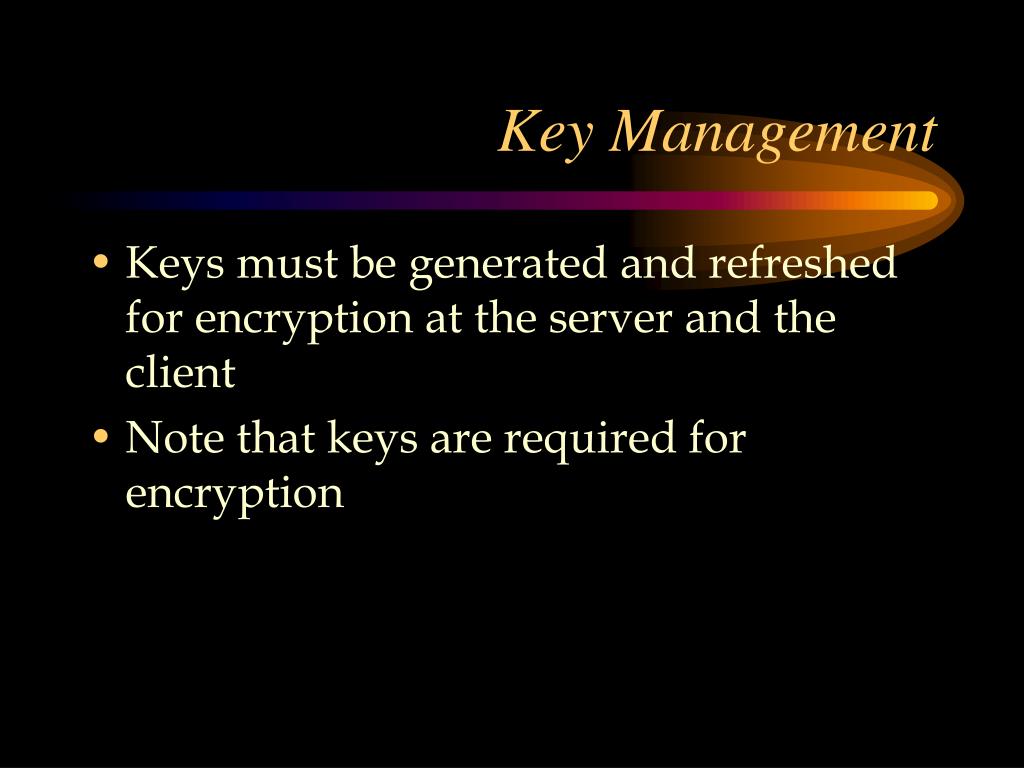

  20. Key Management • Keys must be generated and refreshed for encryption at the server and the client • Note that keys are required for encryption

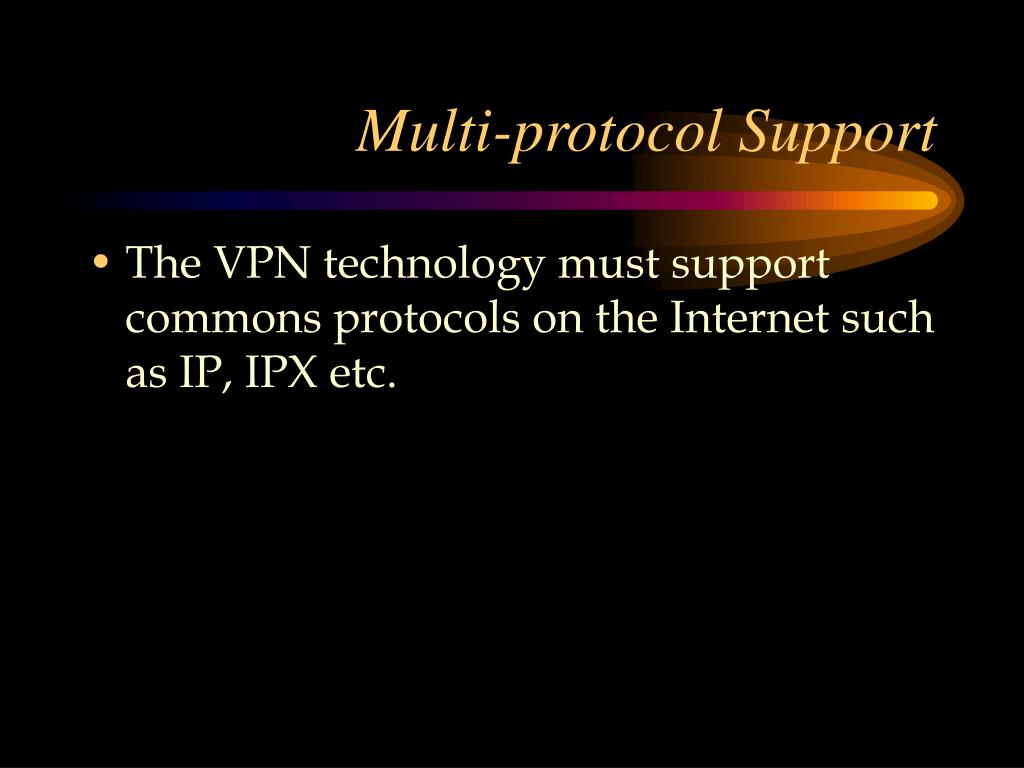

  21. Multi-protocol Support • The VPN technology must support commons protocols on the Internet such as IP, IPX etc.

  22. VPN Implementation Protocols • Point-to-Point Tunneling Protocol (PPTP) of Layer 2 Tunneling Protocol (L2TP) • IPSec

  23. More on Tunneling • Tunneling involves the encapsulation, transmission and decapsulation of data packets • The data is encapsulated with additional headers • The additional headers provide routing information for encapsulated data to be routed between the end points of a tunnel

  24. Tunneling

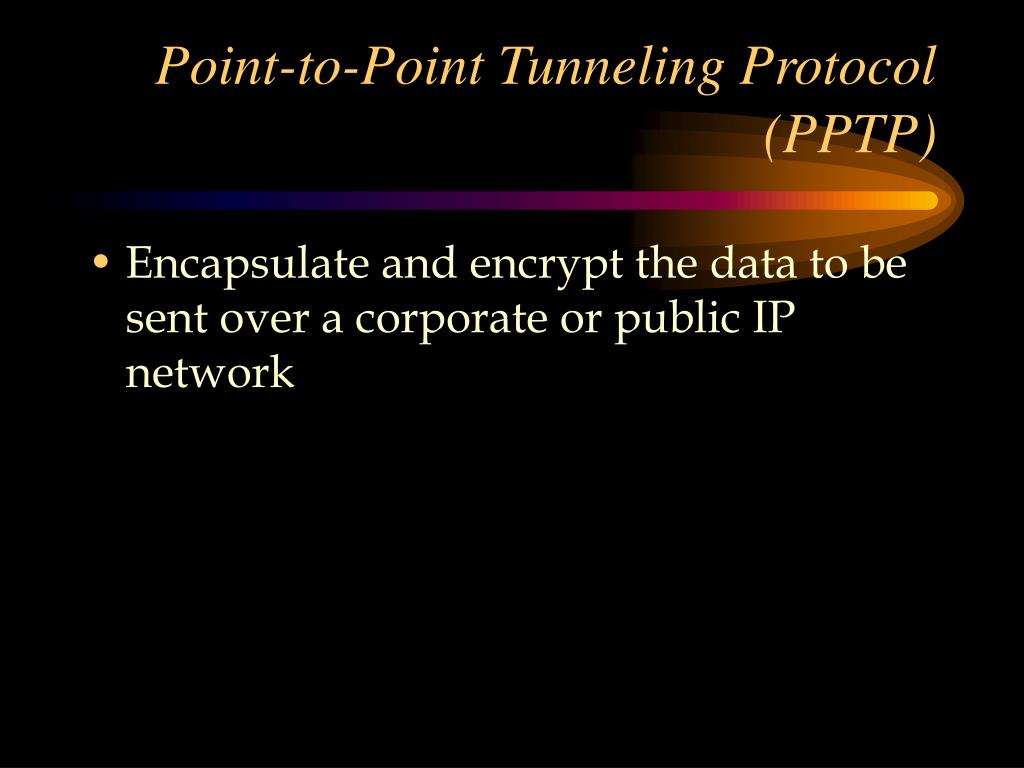

  25. Point-to-Point Tunneling Protocol (PPTP) • Encapsulate and encrypt the data to be sent over a corporate or public IP network

  26. Level 2 Tunneling Protocol • Encrypted and encapsulated to be sent over a communication links that support user datagram mode of transmission • Examples of links include X.25, Frame Relay and ATM

  27. IPSec Tunnel Mode • Encapsulate and encrypt in an IP header for transmission over an IP network

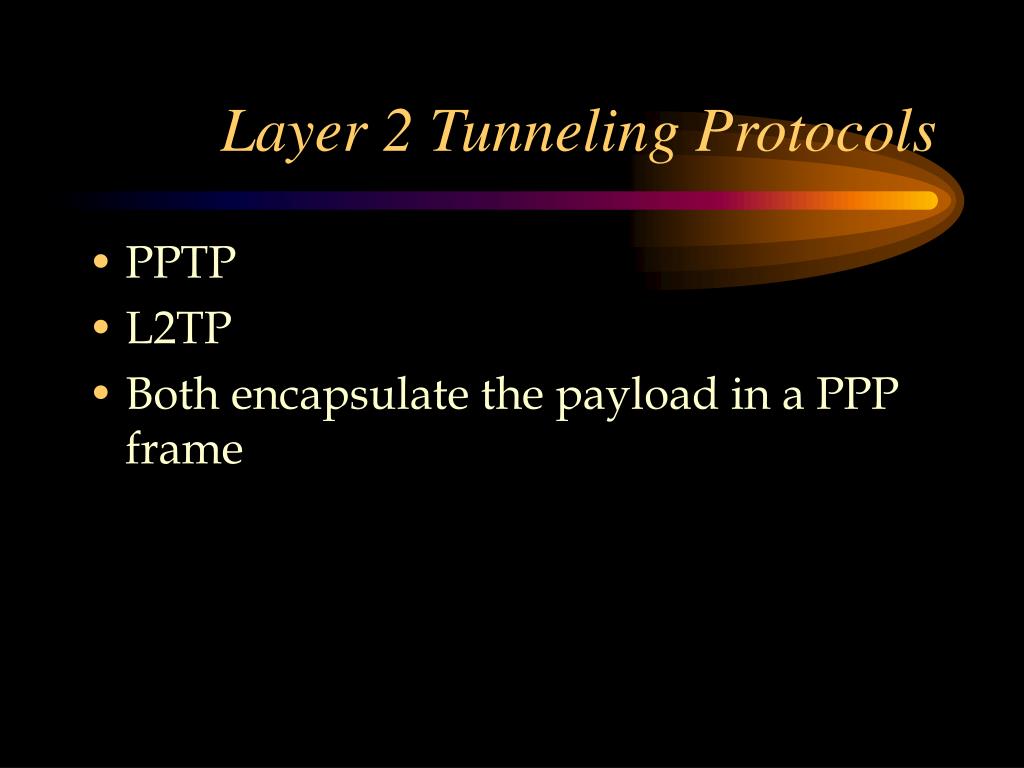

  28. Layer 2 Tunneling Protocols • PPTP • L2TP • Both encapsulate the payload in a PPP frame

  29. Layer 3 Tunneling Protocol • IPSec Tunneling Mode • Encapsulates the payload in an additional IP header

  30. PPP Format

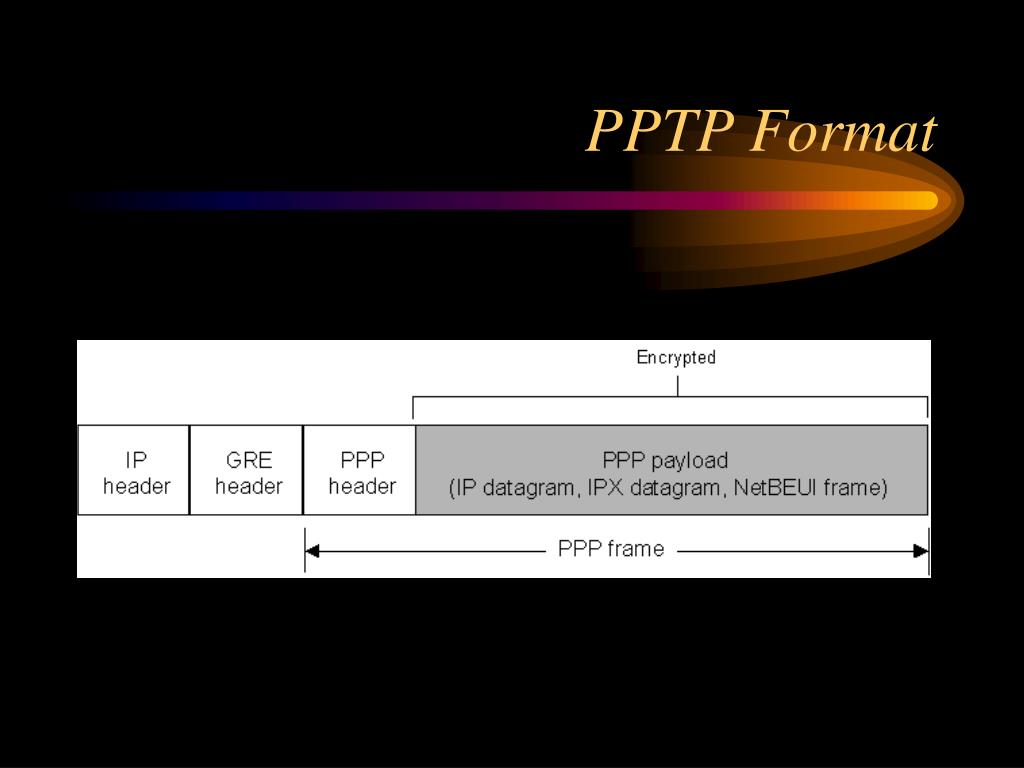

  31. PPTP Format

  32. L2TP Format

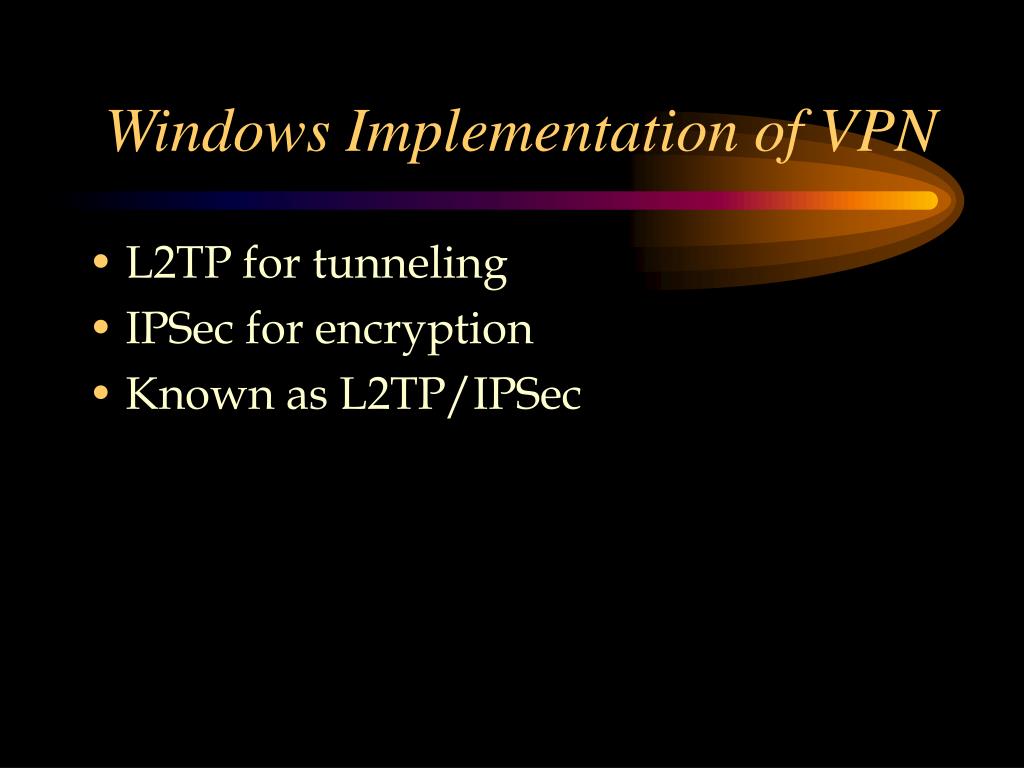

  33. Windows Implementation of VPN • L2TP for tunneling • IPSec for encryption • Known as L2TP/IPSec

  34. Windows Implementation

  35. IPSec Tunnel Mode • Supports only IP networks

  36. Tunnel Types • Voluntary • VPN request is initiated by the client • The client remains the end point • Compulsory • VPN access server creates a compulsory tunnel for the client • In this case, the dial-up access server between the user’s computer and the tunnel server is the tunnel end point that acts as a client

  37. The Choice • Voluntary tunneling is used in most applications

  38. Other Important Protocols in VPN • Microsoft Point-to-Point Encryption (MPPE) • Extensible Authentication Protocol (EAP) • Remote Authentication Dial-in User Service (RADIUS)

  39. A Note on RADIUS

  40. Keys • Symmetric Keys • Asymmetric Keys

  41. Summary

  42. End of Module

  43. VPN Scenarios © N. Ganesan, Ph.D.

  44. Chapter Objectives

  45. Chapter Modules

  46. Reference

  47. Some Example Scenarios • VPN remote access for employees. • On-demand branch office access. • Persistent branch office access. • Extranet for business partners. • Dial-up and VPNs with RADIUS authentication

  48. VPN Remote Access for Employees

  49. VPN Remote Access for Employees
