  1. ISILON SCALE-OUT NAS OVERVIEW AND FUTURE DIRECTIONS Ryan Sayre CTO-at-Large, EMEA EMC Isilon

  2. Agenda Isilon Momentum Big Data & Enterprise IT Converge To Deliver Next-Generation Applications New Isilon Scale-Out Products & Solutions

  3. EMC Isilon Momentum >6X NetApp’s Growth RateIn NAS 60% Y/Y GROWTH In 2012 “We highlight strength in EMC's mid-range portfolio which grew 24% y/y due to Isilon…” Largest Capacity EMC Deal InHistory At 28PB X 42PB Isilon #1 Scale-Out NAS Market (Gartner & IDC)

  4. Gartner Scale-out NAS Critical Capabilities Survey EMC Isilon • Isilon Was The Only Vendor To Receive An “Outstanding” Rating… • “Among the products evaluated, Isilon stands out in capacity, performance, manageability and resiliency.” Gartner Scale-out NAS Critical Capabilities Survey, February, 2013

  5. Isilon Scale-Out NAS • Simple And Easy To Use - Single File System, Single Volume • Massively Scalable – From 18 TB To Over 20 PB • World’s Fastest NAS - 1.6M SPECsfs And Over 100 GB/S Throughput • Unmatched Efficiency – Over 80% Utilization And Automated Tiering • Highly Resilient - Survives Multiple Failures • Robust Data Protection And Security Options • Operational Flexibility – Multi-protocol Support

  6. Isilon Scale-out NAS Product Family Linear Scaling Of Performance And Capacity S-Series Purpose-built For IOPs-intensive, Random Access, File-based Applications X-Series Flexible Solution For High Concurrent And Sequential Throughput Applications NL-Series • Ideal For Cost-effective, Large-capacity Storage

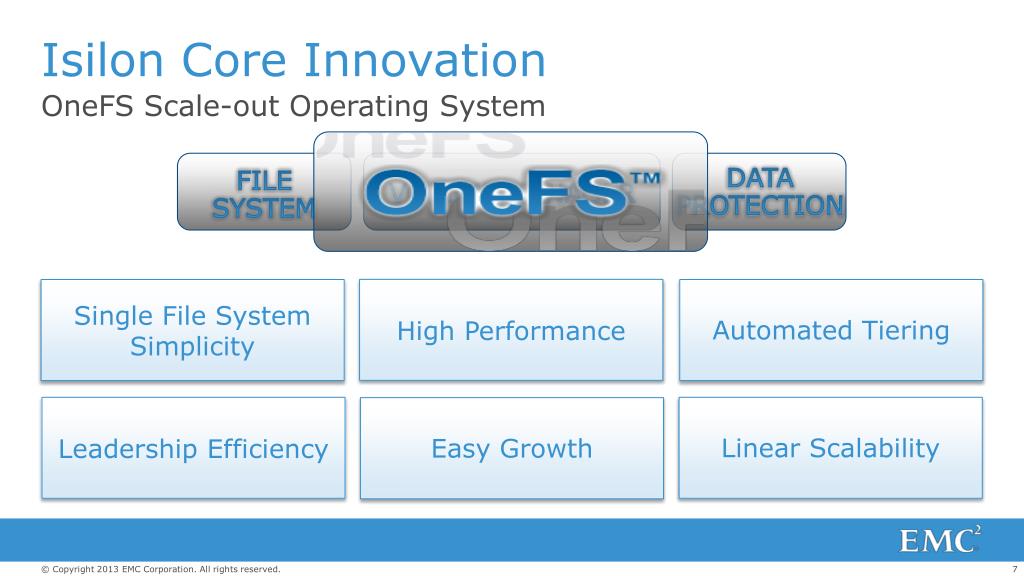

  7. Isilon Core Innovation OneFS Scale-out Operating System FILESYSTEM DATAPROTECTION VOLUME MANAGER High Performance Single File System Simplicity Automated Tiering Leadership Efficiency Linear Scalability Easy Growth

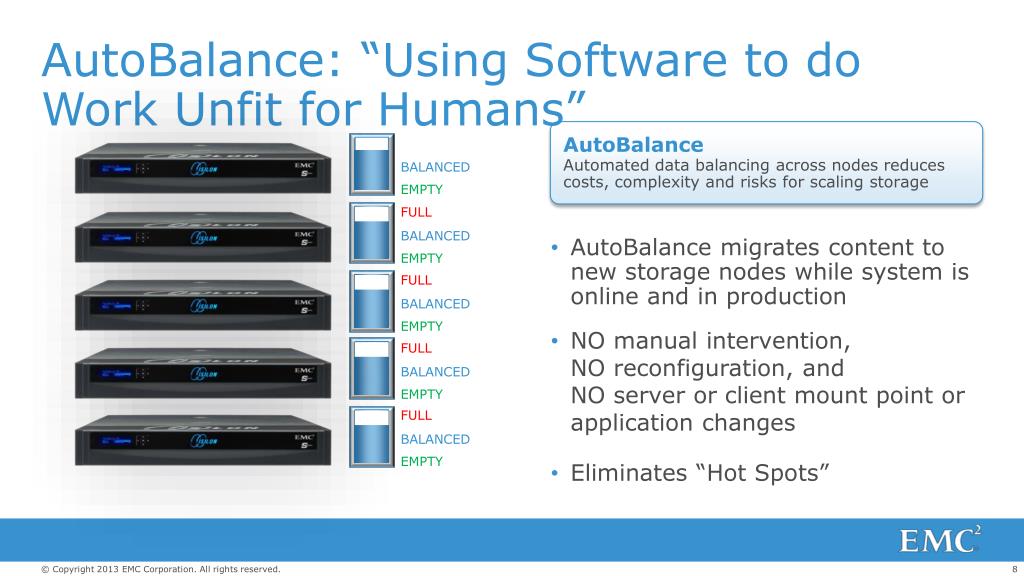

  8. AutoBalance: “Using Software to do Work Unfit for Humans” AutoBalance Automated data balancing across nodes reduces costs, complexity and risks for scaling storage BALANCED EMPTY FULL BALANCED • AutoBalance migrates content to new storage nodes while system is online and in production • NO manual intervention, NO reconfiguration, andNO server or client mount point or application changes • Eliminates “Hot Spots” EMPTY FULL BALANCED EMPTY FULL BALANCED EMPTY FULL BALANCED EMPTY

  9. Optimize Data With SmartPools Automated Tiering Archive MB/s I/Ops • Single point of management • Single file system • Single volume • Tiers of performance • Automatic data movement • Policy-based movement • Transparent reallocation • NO application-changes • Investment protection • Eliminate data migration • Scale any application • Completely transparent • Pay as you grow Innovation Reduced cost/TB I/Ops NL Archive I/Ops Throughput NL Archive I/Ops Throughput NL Archive I/Ops Throughput NL Archive Throughput Throughput NL Archive Throughput Throughput NL Archive

  10. Comprehensive Enterprise Software DATA PROTECTION DATA MANAGEMENT SnapshotIQ Fast, Efficient Data Backup And Recovery SyncIQ Fast And Flexible Asynchronous Replication For Disaster Recovery Protection SmartConnect Policy-based Client Failover With Load Balancing SmartLock Policy-based WORM Data Protection SmartPools Policy-based Automated Tiering SmartQuotas Quota Management And Thin Provisioning InsightIQ Performance Monitoring And Reporting To Manage Storage Resources Isilon for vCenter VMware Integrated Management Features

  11. The Cost Advantage Of Isilon Ease Of Use And Management Simplicity Uploading Or Re-loading Data Adding New Applications Space Reclamation Managing Backup FTE Hours per TB in Use Managing Capacity Storage Provisioning Storage Allocation 0.0 0.5 1.0 1.5 2.0 Isilon Traditional IDC: Isilon Improves IT Productivity By 48%, Reduces OPEX* * Source: “Quantifying the Business Benefits of Scale-Out NAS Solutions,” IDC White Paper, November 2011

  12. Isilon Growing Momentum3750+ Customers

  13. Out Today Isilon OneFS 7.0 Operating System Continuing To Invest In New Capabilities Enterprise Scalability Management • Data Protection • SyncIQ: Failover/Back • SnapshotIQ File Clones • Automated Provisioning • Improved Efficiency • Higher Reliability • Availability • Upgrade - 2 Minutes • Performance • Improved Throughput • Reduced Latency • Capacity • SnapshotIQ File Clones • 20 PB File System Ready • Extensibility • REST Platform API • Multi-Tenancy • Authentication Zones • Role Based Administration • VMware • Reduced I/O Latency • VAAI, VASA, SRM • Security and Archive • SmartLock v2 (SEC17a-4)

  14. Today…Two Storage Worlds Converge… Enterprise @Scale BIG DATA Enterprise IT

  15. Enterprise Storage Needs Are Evolving MOBILE ANALYTICS Applications Enterprise @Scale FILE APPLICATIONS CLOUD Storage infrastructure EMC CONFIDENTIAL—INTERNAL USE ONLY 15

  16. Enterprise Storage Needs Are Evolving MOBILE ANALYTICS Applications Enterprise @Scale FILE APPLICATIONS CLOUD EASY SECURE Storage infrastructure EFFICIENT SCALABLE EMC CONFIDENTIAL—INTERNAL USE ONLY 16

  17. Meeting The Challenge Of Next-gen Apps HTTP FTP CIFS NFS Object HDFS REST Syncplicity MOBILE ANALYTICS Applications Enterprise @Scale FILE APPLICATIONS CLOUD Storage infrastructure EMC CONFIDENTIAL—INTERNAL USE ONLY 17

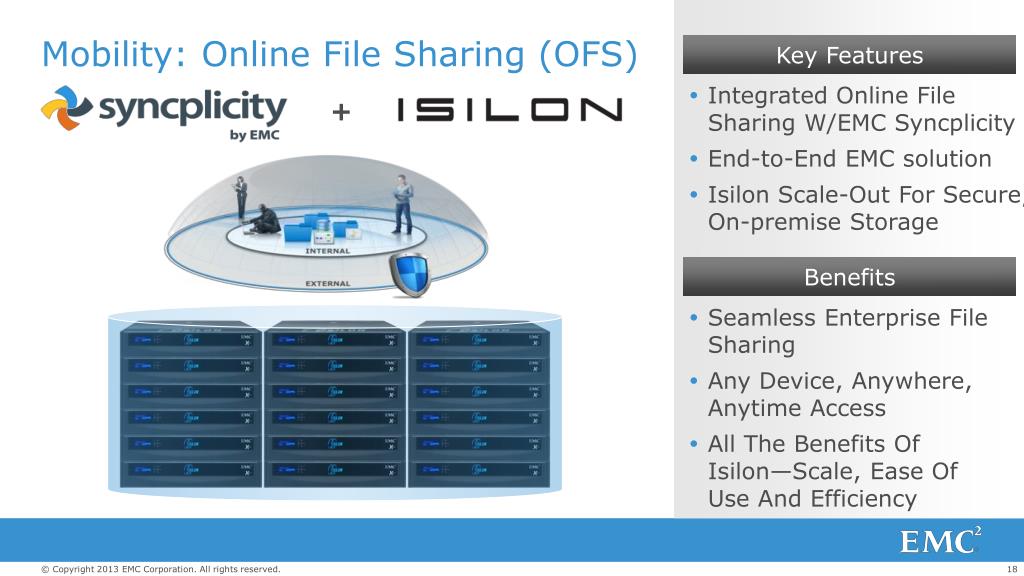

  18. Key Features Mobility: Online File Sharing (OFS) • Integrated Online File Sharing W/EMC Syncplicity • End-to-End EMC solution • Isilon Scale-Out For Secure, On-premise Storage + • Benefits • Seamless Enterprise File Sharing • Any Device, Anywhere, Anytime Access • All The Benefits Of Isilon—Scale, Ease Of Use And Efficiency

  19. Key Features Next-Gen Analytics • Hadoop 2.0 • Native HDFS Support • Pivotal HD Support • Simultaneous HDFS 1.0 & HDFS 2.0 Support • Distributed NameNode MOBILE ANALYTICS HDFS • Benefits • Support For Open Hadoop Applications • No Single Point Of Failure • Improved TCO

  20. Key Features Isilon Integrated Cloud • Multi-protocol Native Access To Files & Objects • REST-based OBJECT Access • REST-based Platform API • Same High Performance As FILE Access Platform API REST OBJECT ACCESS REST OBJECT ACCESS • Benefits • Leverage Old & New Applications Together • All The Benefits Of OneFS Data Services • Automated Provisioning And Management Of Isilon Storage

  21. Key Features EMC Software-Defined Storage • Consolidate File & Objects On A Single System • REST API’s For: • Atmos • Amazon S3 • OpenStack Swift Atmos • Benefits • Isilon’s Simplicity, Scalability, Efficiency & TCO Delivered For Object Applications • Flexible Data Access & Movement • Heterogeneous Storage Support EMC Software-Defined Storage

  22. Impending: Next Release Of OneFS 7.1 MOBILE ANALYTICS Applications Enterprise @Scale ENTERPRISE APPLICATIONS CLOUD EASY SECURE Storage infrastructure EFFICIENT SCALABLE EMC CONFIDENTIAL—INTERNAL USE ONLY 22

  23. Key Features Deduplication • Post-process • 8K Block Design • Cluster-wide & Directory Level Granularity • Pre-process Test Support FILE_2 FILE_1 FREE FREE A 101 B 102 C 103 D 104 C 105 D 106 • X • 107 • Y • 108 • Benefits • Storage Efficiency • 30% Less… • Storage Capacity • Power & Cooling • Rack Space • Improved TCO

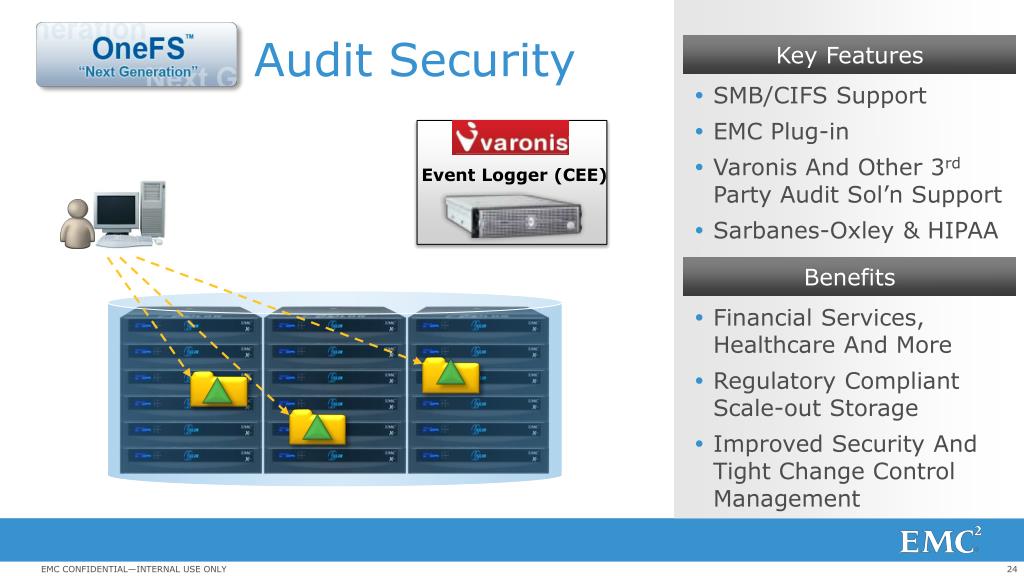

  24. Key Features Audit Security • SMB/CIFS Support • EMC Plug-in • Varonis And Other 3rd Party Audit Sol’n Support • Sarbanes-Oxley & HIPAA Event Logger (CEE) • Benefits • Financial Services, Healthcare And More • Regulatory Compliant Scale-out Storage • Improved Security And Tight Change Control Management EMC CONFIDENTIAL—INTERNAL USE ONLY 24

  25. Availability AVAILABLE NOW LATER IN 2013… Software Defined Storage Hadoop 2.0

  26. Keep in touch • @EMCIsilonfor EMC Isilon #EMCForum for today’s activities • Blog isilonblog.emc.com • Follow EMC Isilon @EMCIsilon • Read and join our discussions on thoughtfeast.co.uk • Join ECN (EMC’s Community Network) to receive latest information, engage with your peers and talk directly to EMC and partner subject experts. • Visit our stand and join ECN today.

  27. EMC CAN HELP YOU LEAD YOUR TRANSFORMATION

  28. Shorter Presentation • 30-minute presentation at normal speed • 40-minute max presentation with more details • Do not hide any slides
