Presentation Transcript


Statistical hypotheses hypothesis testing

Statistical Hypotheses

&

Hypothesis Testing


Statistical hypotheses

Statistical Hypotheses

  • There are two types of statistical hypotheses.

  • Null Hypothesis

  • The null hypothesis, denoted by H0, assumes the sample observations result purely from chance.

  • Alternative Hypothesis

  • The alternative hypothesis, denoted by H1, states the counter-assumption that sample observations are influenced by some non-random cause.

  • Note:

  • The Alternate Hypothesis is always the logical opposite of the Null Hypothesis.

  • Example: Suppose we wanted to determine whether a coin was fair and balanced.

  • A null hypothesis might be that half the flips would be Heads andhalf of the flips would be Tails.

  • The alternative hypothesis would be that the number (percent) of Heads and Tails would be very different.

  • Symbolically, these hypotheses would be expressed as:

  • H0: р = 0.5where р = Probability of Heads

  • H1: р ≠ 0.5


Hypothesis testing

Hypothesis Testing

  • Hypothesis testing is a decision making process about

  • accepting or rejecting a statement (assumption) regarding a

  • population parameter.

  • Frequently, hypothesis testing is applied to a assumption

  • about a population mean.

  • For example, test the assumption that the population

  • mean μ is equal to 120 versus μ is not equal to 120;

  • i.e., H0: μ = 120 versus H1: μ ≠ 120.


References

References

  • David Harper - Bionic Turtle

  • http://www.bionicturtle.com/learn/article/type_i_versus_type_ii_errors_9_minute_tutorial/

  • http://www.bionicturtle.com/learn/article/hypothesis_testing_9_minute_screencast/

  • http://www.bionicturtle.com/learn/article/hypothesis_testing_9_minute_screencast/

  • Null and Alternate Hypothesis

  • http://www.ganesha.org/spc/hyptest.html#hypothesis


Hypothesis testing1

Hypothesis Testing


Hypothesis testing2

Hypothesis Testing

  • Suppose we believe the average systolic blood pressure of healthy

  • adults is normally distributedwith mean μ = 120 and variance σ2 = 50.

  • To test this assumption, we sample the blood pressure of 42

  • randomly selected adults. Sample statistics are

    Mean ¿ = 122.4

    Variance s2 = 50.3

    Standard Deviation s = √50.3 = 7.09

    Standard Error = s / √n = 7.09 / √42 = 1.09


Central limit theorem

Central Limit Theorem

  • The distribution of all sample means of sample size n from a Normal Distribution (μ, σ2) is a normally distributed with Mean = μ Variance = σ2 / n

  • For our case:

    Mean μ = 120Variance σ2 / n = 50 / 42 = 1.19

    Note: Theoretically we can test the hypothesis regarding the mean and the hypothesis regarding the variance; however one usually presumes the sample variances are stable from sample to sample and any one sample variance is an unbiased estimator of the population variance. As such, hypothesis testing is most frequently associated with testing assumptions regarding the population mean.


Hypothesis testing3

Hypothesis Testing

  • Test the assumption

  • H0: μ = 120 vs. H1: μ ≠ 120using a level of significance α = 5%

  • Note: If our sample came from the assumed population with mean μ = 120, then we would expect 95% of all sample means of sample size n = 42 to be within ± Zα/2 = ± 1.96


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

a / 2 = 2.5%

a / 2 = 2.5%

95%

+Za/2 = +1.96

-Za/2 = -1.96


Calculate upper and lower bounds on

Calculate Upper and Lower Bounds on ¿

  • ¿Lower = μ – Zα/2 (s /√n) = 120 – 1.96(1.09) =117.9

  • ¿Upper = μ + Zα/2 (s /√n) = 120 + 1.96(1.09) =122.1


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

a / 2 = 2.5%

a / 2 = 2.5%

95%

μ = 120

-Za/2 = -1.96

+Za/2 = +1.96

¿Upper = 122.1

¿Lower = 117.9


Hypothesis testing comparisons

Hypothesis Testing Comparisons

  • Compare our sample mean ¿ = 122.4

  • To the Upper and Lower Limits.


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

a / 2 = 2.5%

a / 2 = 2.5%

95%

μ = 120

¿ = 122.4

-Za/2 = -1.96

+Za/2 = +1.96

¿Upper = 122.1

¿Lower = 117.9


Hypothesis testing conclusions

Hypothesis Testing Conclusions

  • Note:

  • Sample mean ¿ = 122.4 falls outside of the 95% Confidence Interval.We can reach one of two logical conclusions:

    One, that we expect this to occur for 2.5% of the

    samples from a population with mean μ = 120.

    Two, our sample came from a population with a mean μ ≠ 120.

  • Since 2.5% = 1/40 is a rather “rare” event; we opt for the

  • conclusion that our original null hypothesis is false and

  • we reject H0: μ = 120 and therefore accept vs. H1: μ ≠ 120.


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

μ ≠ 120

¿ = 122.4

Conclude μ ≠ 120


Alternate method

Alternate Method

  • Rather than compare the sample mean to the 95% lower and

  • upper bounds, one can use the Z Transformation for the sample

  • mean and compare the results with ± Zα/2.

  • Z0 = ( ¿ – μ ) / (s / √n) = (122.4 – 120) / 1.09 = 2.20


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

a / 2 = 2.5%

a / 2 = 2.5%

95%

Z0 = 2.20

+Za/2 = +1.96

-Za/2 = -1.96


Alternate method1

Alternate Method

  • Note: Since Z0= 2.20 value exceeds Zα/2 =1.96, we

  • reach the same conclusion as before;

  • Reject H0: μ = 120 and Accept H1: μ ≠ 120.


Alternate method extended

Alternate Method - Extended

  • We can quantify the probability (p-Value) of

  • obtaining a test statistic Z0 at least as large as our sample Z0.

  • P( |Z0| > Z ) = 2[1- Φ (|Z0|)]

  • p-Value = P( |2.20| > Z ) = 2[1- Φ (2.20)]

  • p-Value = 2(1 – 0.9861) = 0.0278 = 2.8%

  • Compare p-Value to Level of Significance

  • If p-Value < α, then reject null hypothesis

  • Since 2.8% < 5%, Reject H0: μ = 120 and conclude μ ≠ 120.


Hypothesis testing errors

Hypothesis Testing Errors


Hypothesis testing4

Hypothesis Testing

  • Suppose we believe the average systolic blood pressure of healthy

  • adults is normally distributed with mean μ = 120 and variance σ2 = 50.

  • To test this assumption, we sample the blood pressure of 42

  • randomly selected adults. Sample statistics are

    Mean ¿ = 122.4

    Variance s2 = 50.3

    Standard Deviation s = √50.3 = 7.09

    Standard Error = s / √n = 7.09 / √42 = 1.09

    Z0 = ( ¿ – μ ) / (s / √n) = (122.4 – 120) / 1.09 = 2.20


Statistical hypotheses hypothesis testing

Confidence Interval 95%

Level of Significance a = 5%

a / 2 = 2.5%

a / 2 = 2.5%

95%

Z0 = 2.20

+Za/2 = +1.96

-Za/2 = -1.96


Conclusion critical value

Conclusion (Critical Value)

  • Since Z0= 2.20 exceeds Zα/2 = 1.96,

  • Reject H0: μ = 120 and Accept H1: μ ≠ 120.


Conclusion p value

Conclusion (p-Value)

  • We can quantify the probability (p-Value) of

  • obtaining a test statistic Z0 at least as large as our sample Z0.

  • P( |Z0| > Z ) = 2[1- Φ (|Z0|)]

  • p-Value = P( |2.20| > Z ) = 2[1- Φ (2.20)]

  • p-Value = 2(1 – 0.9861) = 0.0278 = 2.8%

  • Compare p-Value to Level of Significance

  • If p-Value < α, then reject null hypothesis

  • Since 2.8% < 5%, Reject H0: μ = 120 and conclude μ ≠ 120.


Confidence interval 99 level of significance 1

Confidence Interval = 99%Level of Significance α = 1%

  • Z0 = ( ¿ – μ ) / (s / √n) = (122.4 – 120) / 1.09 = 2.20

  • Zα/2 = +2.58

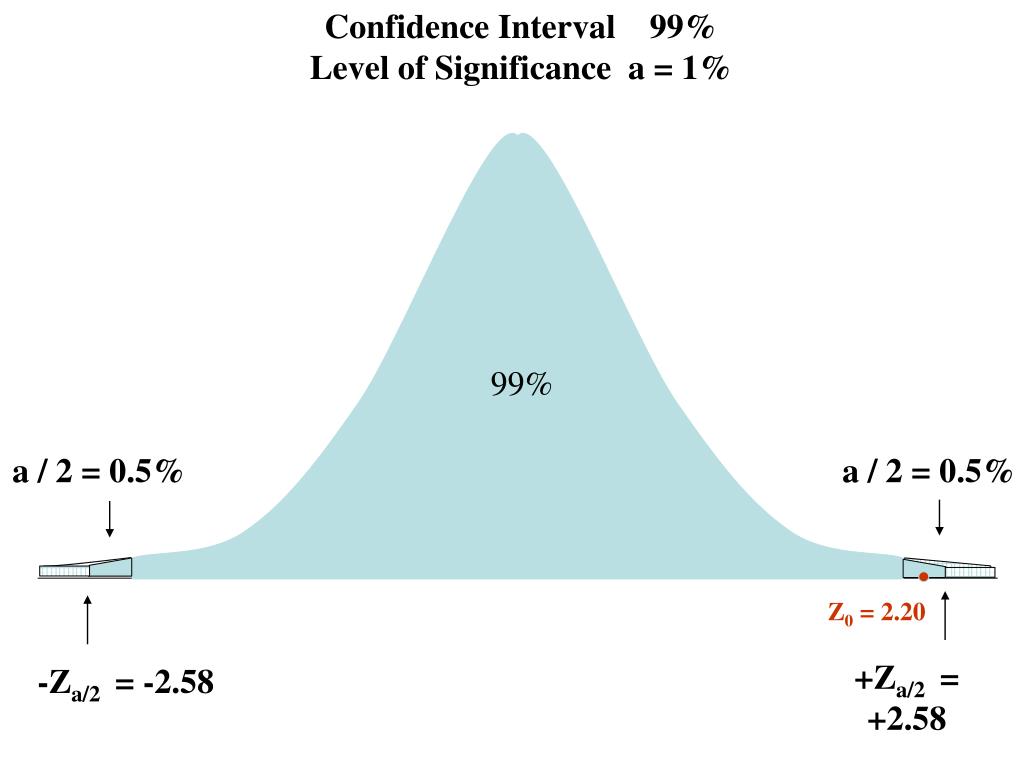

Statistical hypotheses hypothesis testing

Confidence Interval 99%

Level of Significance a = 1%

a / 2 = 0.5%

a / 2 = 0.5%

99%

Z0 = 2.20

+Za/2 = +2.58

-Za/2 = -2.58


Conclusion critical value1

Conclusion (Critical Value)

  • Since Z0= 2.20 is less than Zα/2 =2.58,

  • Fail to Reject H0: μ = 120 and conclude

  • there is insufficient evidence to say H1: μ ≠ 120.


Conclusion p value1

Conclusion (p-Value)

  • We can quantify the probability (p-Value) of

  • obtaining a test statistic Z0 at least as large as our sample Z0.

  • P( |Z0| > Z ) = 2[1- Φ (|Z0|)]

  • p-Value = P( |2.20| > Z ) = 2[1- Φ (2.20)]

  • p-Value = 2(1 – 0.9861) = 0.0278 = 2.8%

  • Compare p-Value to Level of Significance

  • If p-Value < α, then reject null hypothesis

  • Since 2.8% > 1%, Fail to Reject H0: μ = 120 and conclude

  • there is insufficient evidence to say H1: μ ≠ 120.


Hypothesis testing conclusions1

Hypothesis Testing Conclusions

  • As can be seen in the previous example, our conclusions

  • regarding the null and alternate hypotheses are

  • dependent upon the sample data and the level of

  • significance.

  • Given different values of sample mean and the sample

  • variance or given a different level of significance,

  • we may come to a different conclusion.


Null hypotheses and alternate hypotheses

Null Hypotheses

And

Alternate Hypotheses


Hypothesis testing5

Hypothesis Testing

Hypotheses are always about the population and never about the sample.

The true value of a hypothesis can never be known or confirmed.

Conclusions regarding hypotheses are never absolute and as such are susceptible to some degree of definable/calculable risk of error.

Type I Error Rejecting H0 when H0 is True

Type II Error Failing to Reject H0 when H0 is False

Probability of Type I Error = α

Probability of Type II Error = β


Power of the test

Power of the Test

Probability of Correctly Rejecting a False Null Hypothesis = 1 - β

Probability of Correctly Rejecting H0 when H1 is true = 1 - β

Probability of Rejecting H0 when H0 is False = 1 - β

Probability of Accepting H1 when H1 is True = 1 - β


Probability of type i and type ii errors

Probability of Type I and Type II Errors

The Level of Significance α establishes the Probability of a Type I Error.

The Probability of a Type II Error depends on the magnitude of the

true mean and the sample size.


Probability of type ii errors

Probability of Type II Errors

Consider

H0: μ = μ0

H1: μ ≠ μ0

Suppose the null hypothesis is false and the true magnitude of the mean is μ = μ0 + δ.

and therefore , that is to say

Z0 is normally distributed with mean and variance 1.


Probability of type ii error

Probability of Type II Error

Applied Statistics and Probability for Engineers, 3ed, Montgomery & Runger, Wiley 2003
