Presentation Transcript
Weather fronts
Weather Fronts

  • Front: the boundary that separates two different air masses.

  • There are four types of fronts.

    • Warm Fronts

    • Cold Fronts

    • Stationary Fronts

    • Occluded Fronts


Warm fronts
Warm Fronts

  • Forms when warm air moves into an area formerly covered by cooler air

  • Warm air gradually rises over the cold air  light showers that come before the warm air


Warm fronts1

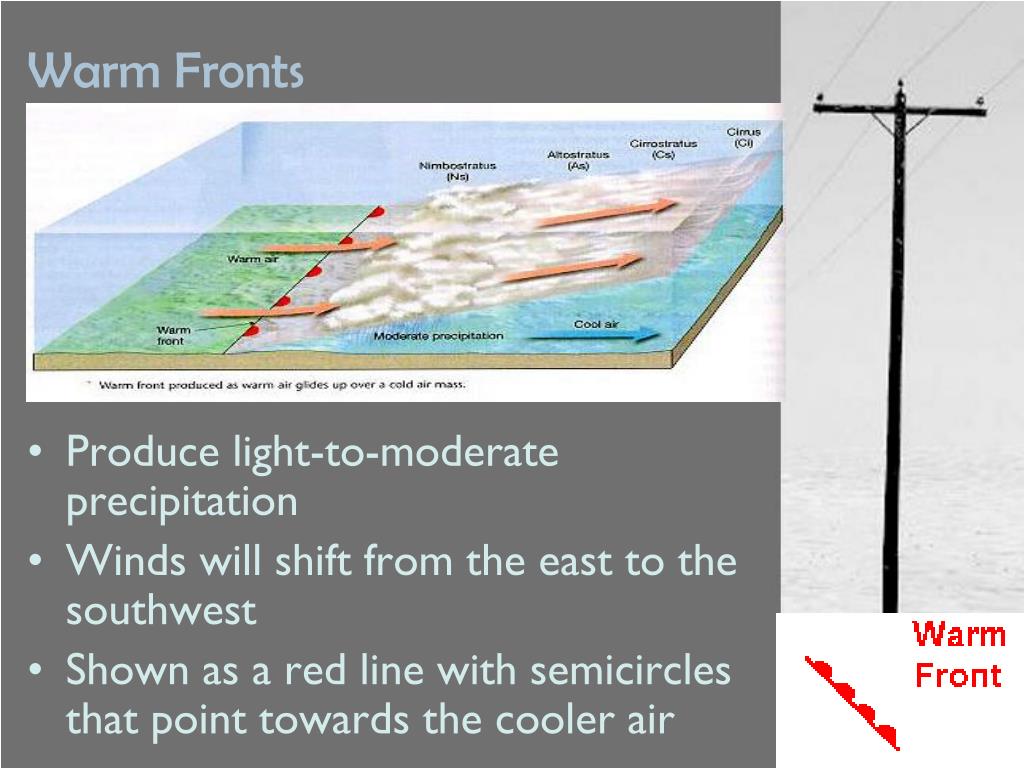

Warm Fronts

  • Produce light-to-moderate precipitation

  • Winds will shift from the east to the southwest

  • Shown as a red line with semicircles that point towards the cooler air


Cold fronts
Cold Fronts

  • Forms when cold, dense air moves into a region occupied by warmer air

  • Cold air moves quickly into the area of warmer weather  pushing the warmer air above the cold air.


Cold fronts1

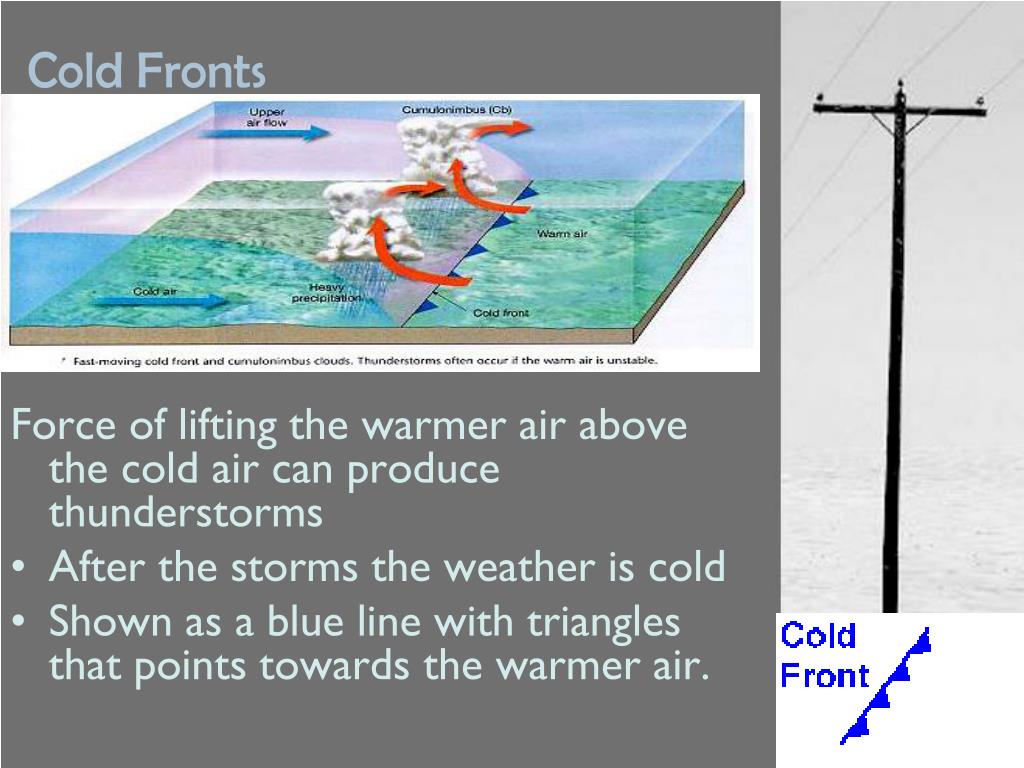

Cold Fronts

Force of lifting the warmer air above the cold air can produce thunderstorms

  • After the storms the weather is cold

  • Shown as a blue line with triangles that points towards the warmer air.


Stationary fronts
Stationary Fronts

  • Stationary Front – a cold front and a warm front move parallel and in the same direction together

    • Neither the cold air mass or the warm air mass move towards each other.


Stationary fronts1
Stationary Fronts

  • Gentle to moderate precipitation can fall along the stationary front.

  • Shown by blue triangles on one side of the line and red semicircles on the other side of the line.


Occluded fronts
Occluded Fronts

  • An active cold front takes over a warm front an occluded front forms

  • The cold front moves in where there is a warm front with a nonmoving cool front on the other side


Occluded fronts1

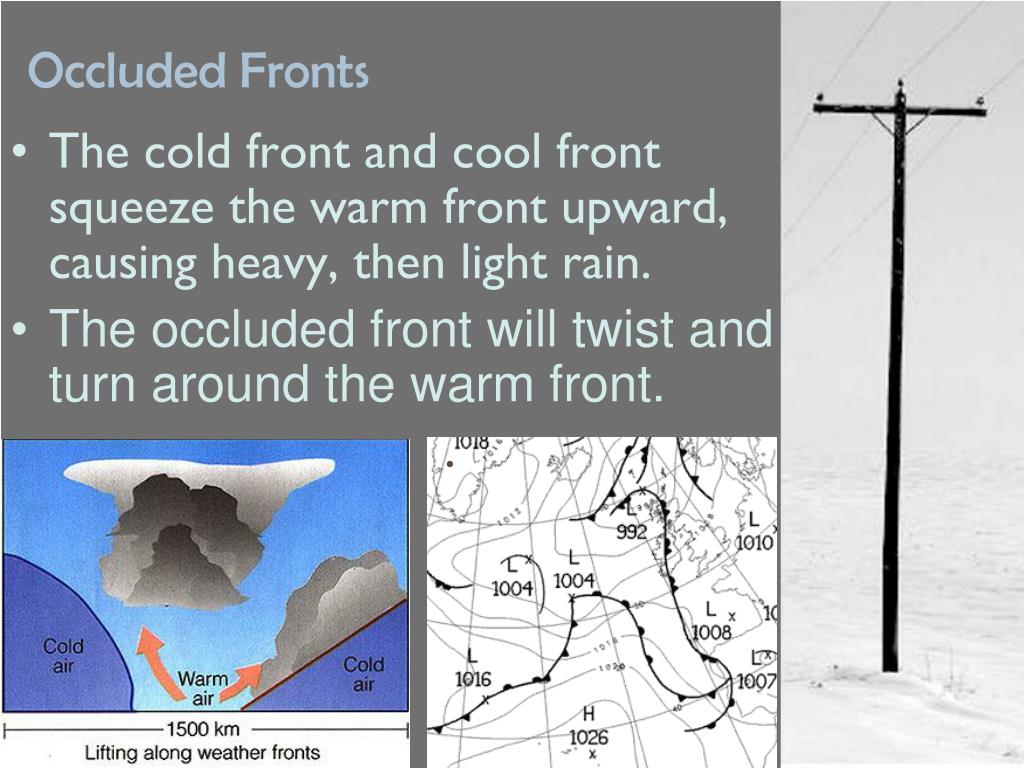

Occluded Fronts

  • The cold front and cool front squeeze the warm front upward, causing heavy, then light rain.

  • The occluded front will twist and turn around the warm front.


Middle latitude cyclones
Middle-Latitude Cyclones

  • Middle-latitude cyclones are extremely low pressure systems  heavy storms.

  • The warm front is pushed upward as the cold front moves in  occluded front

  • Occluded front grows  precipitation increases, pressure drops, and wind increases

    • Storms take one or two days to completely displaced the warm air.

  • Air higher up in the atmosphere fuels the energy for the middle-latitude cyclones

    • Hot air spreads out aloft and pulls more air upward from below  middle-latitude cyclone


Assignment
Assignment

  • Atmosphere Study Guide
