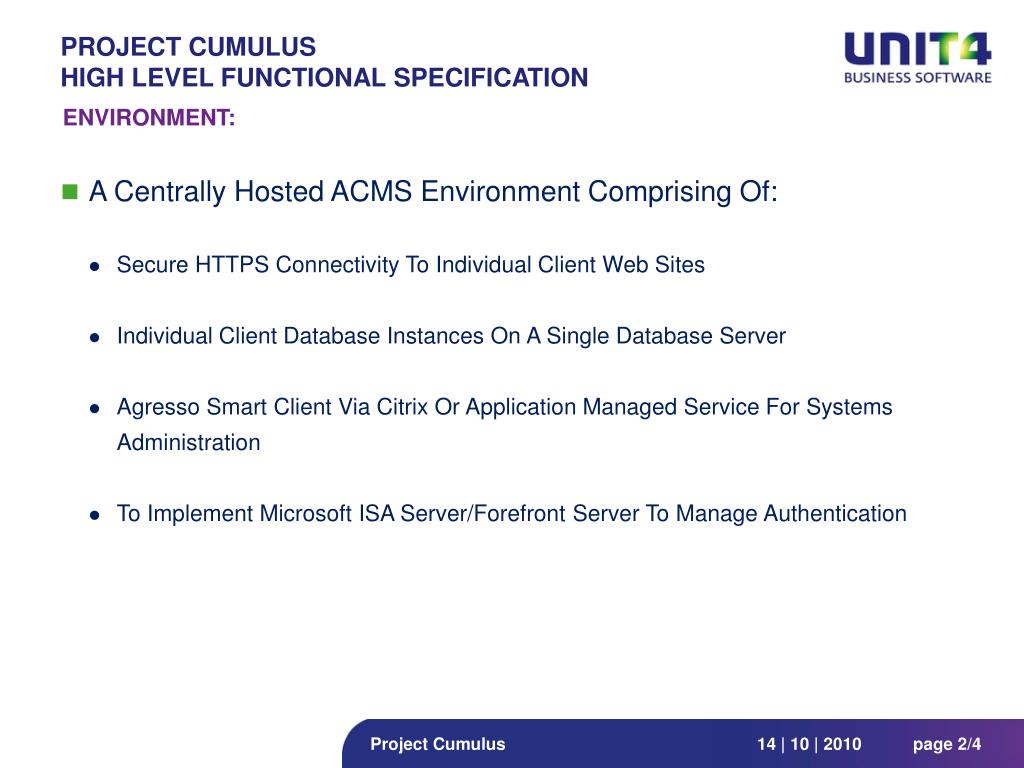

Project cumulus high level functional specification

Project CUMULUSHIGH LEVEL FUNCTIONAL SPECIFICATION

ENVIRONMENT:

  • A Centrally Hosted ACMS Environment Comprising Of:

    • Secure HTTPS Connectivity To Individual Client Web Sites

    • Individual Client Database Instances On A Single Database Server

    • Agresso Smart Client Via Citrix Or Application Managed Service For Systems Administration

    • To Implement Microsoft ISA Server/Forefront Server To Manage Authentication

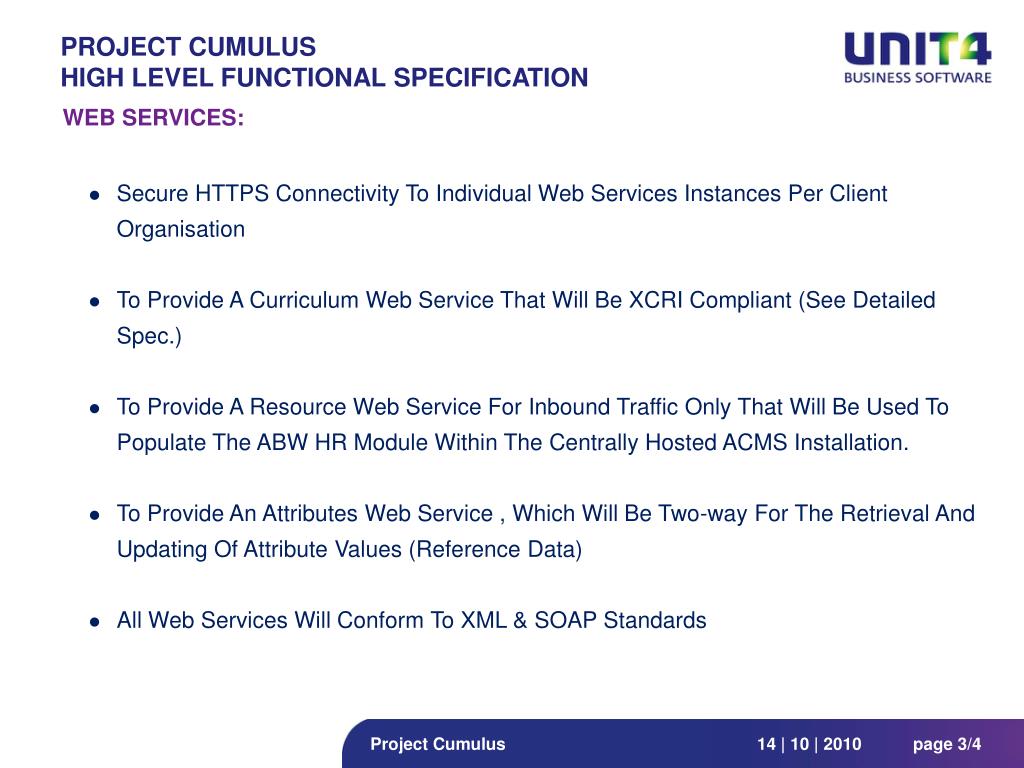

Project cumulus high level functional specification1

Project CUMULUSHIGH LEVEL FUNCTIONAL SPECIFICATION

WEB SERVICES:

  • Secure HTTPS Connectivity To Individual Web Services Instances Per Client Organisation

  • To Provide A Curriculum Web Service That Will Be XCRI Compliant (See Detailed Spec.)

  • To Provide A Resource Web Service For Inbound Traffic Only That Will Be Used To Populate The ABW HR Module Within The Centrally Hosted ACMS Installation.

  • To Provide An Attributes Web Service , Which Will Be Two-way For The Retrieval And Updating Of Attribute Values (Reference Data)

  • All Web Services Will Conform To XML & SOAP Standards


Project cumulus high level functional specification2

Project CUMULUSHIGH LEVEL FUNCTIONAL SPECIFICATION

INTEGRATION:

  • Using The Microsoft BizTalk SQL LOB Adapter We Will Monitor For Table Changes From Within ACMS

  • The BizTalk Orchestration Will Retrieve Change Data, Provide Transforms, And Allow For The Output Of Data To External Systems

    TO BE DEFINED:

  • A List Of External Systems To Be Used For The Testing Of The Proof Of Concept

  • Orchestration (Workflow) Requirements
