Presentation Transcript


Radiation protection program update the details

Radiation Protection Program Update: The Details

July 2010


Update topics

Update Topics

  • Changes mandated by Title 10, Code of Federal Regulations, Part 835, Occupational Radiation Protection (10 CFR 835)

  • How changes affect your work / dose

  • Resources

    • Code of Federal Regulations

    • Federal Registers

    • Guidance Documents

  • Additional improvements


References

References

  • 10 CFR 835

    • new regulations

  • ICRP 60/68

    • source documents that prompted most of the changes

  • Federal Register, Vol. 72, No. 110 (Friday, June 8, 2007)

    • amendments to 10 CFR 835 promulgated

    • See discussion (changes made and why)

  • Radiation Protection Programs Guide for Use with 10 CFR 835

    • Implementation Guide (G 441.1-1C)


Background

Background

  • DOE adopted the system of radiation dosimetry recommended in ICRP Publication 60 in 2007

    • Allows us to assess and record radiation dose received by DOE workers in accordance with updated accepted methods


What was changed

What Was Changed?

  • New dosimetric terminology based on ICRP 60/68 in place of ICRP 26/30

  • New ICRP 60 Tissue Weighting Factors in place of ICRP 26 Weighting Factors

  • New ICRP 60 Radiation Weighting Factors in place of ICRP 26 Quality Factors

  • Amendments to other parts of the regulations that changed as a result of adopting the ICRP 60 dosimetry system and the resultant ICRP 68 dose conversion factors


New terms

New Terms

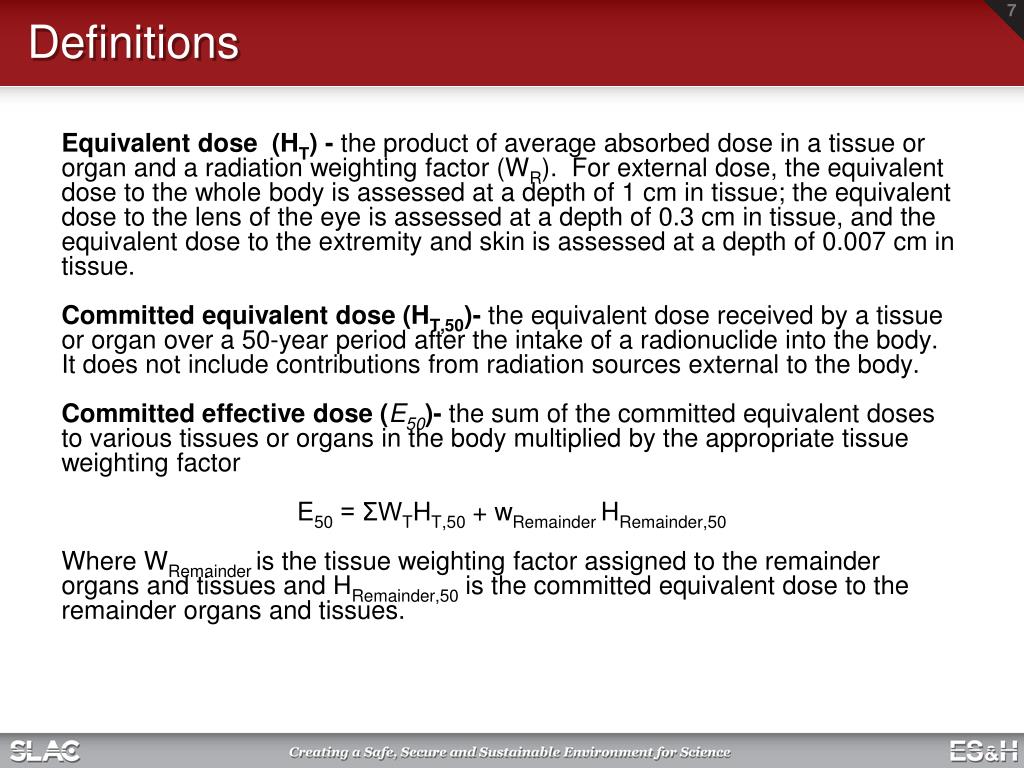

Definitions

Definitions

Equivalent dose (HT) - the product of average absorbed dose in a tissue or organ and a radiation weighting factor (WR). For external dose, the equivalent dose to the whole body is assessed at a depth of 1 cm in tissue; the equivalent dose to the lens of the eye is assessed at a depth of 0.3 cm in tissue, and the equivalent dose to the extremity and skin is assessed at a depth of 0.007 cm in tissue.

Committed equivalent dose (HT,50)- the equivalent dose received by a tissue or organ over a 50-year period after the intake of a radionuclide into the body. It does not include contributions from radiation sources external to the body.

Committed effective dose (E50)- the sum of the committed equivalent doses to various tissues or organs in the body multiplied by the appropriate tissue weighting factor

E50 = ΣWTHT,50 + wRemainderHRemainder,50

Where WRemainderis the tissue weighting factor assigned to the remainder organs and tissues and HRemainder,50 is the committed equivalent dose to the remainder organs and tissues.


Definitions1

Definitions

Effective dose (E)

The summation of the products of the equivalent dose received by specified tissues or organs of the body and the appropriate tissue weighting factor (WT)

E = Σ WTHT

Includes the dose from radiation sources internal and/or external to the body. For purposes of compliance with this part, equivalent dose to the whole body may be used as effective dose for external exposures.

Total effective dose (TED)

The sum of the effective dose (for external exposures) and the committed effective dose.

Cumulative total effective dose

The sum of all total effective dose values recorded for an individual plus, for occupational exposures received before the implementation date of this amendment, the cumulative total effective dose equivalent (as defined in the November 4, 1998 amendment to this rule) values recorded for an individual, where available, for each year occupational dose was received, beginning January 1, 1989.

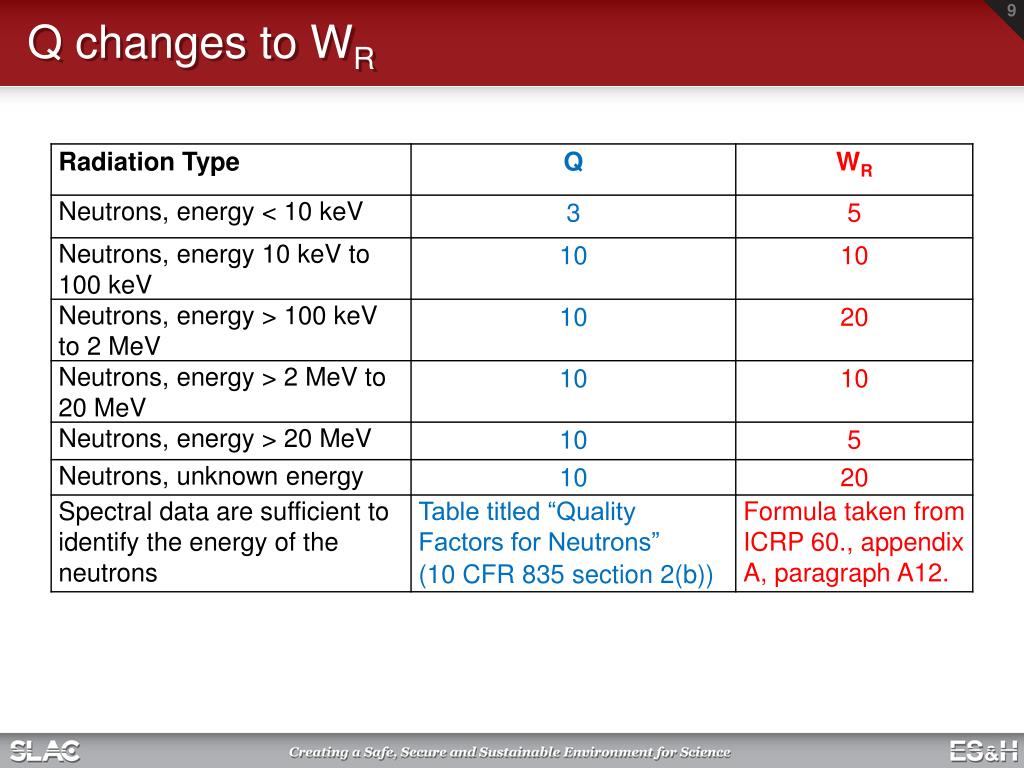

Q changes to w r

Q changes to WR


Q changes to w r1

Q changes to WR


New tissue weighting factors w t

New Tissue Weighting Factors (WT)


New tissue weighting factors w t1

New Tissue Weighting Factors (WT)

  • The remainder is treated differently:

    • Remainder = the five other organs or tissues, excluding the skin and lens of the eye, with the highest dose (e.g., liver, kidney, spleen, thymus, adrenal, pancreas, stomach, small intestine, and upper large intestine)

    • The weighting factor for each remaining organ or tissue is 0.06

    • Remainder = adrenals, brain, extrathoracic airways, small intestine, kidneys, muscle, pancreas, spleen , thymus, and uterus.

    • The equivalent dose to the remainder tissues is normally calculated as the mass-weighted mean dose to the preceeding ten organs and tissues. In those cases in which the most highly irradiated remainder tissue or organ receives the highest equivalent dose of all the organs, a weighting factor of 0.025 (half of remainder) is applied to that tissue or organ and 0.025 (half of remainder) to the mass-weighted equivalent dose in the rest of the remainder tissues and organs to give the remainder equivalent dose.


Other changes

Other Changes

  • Revised for consistency with ICRP 68 dose conversion factors and 5 μm default AMAD for particles:

    • Appendix A (DAC values for inhalation)

    • Appendix C (DAC values for immersion)

    • Appendix E (sealed source accountability values and requirements for posting and labeling radioactive material)

  • Clarify transportation exclusion

    • Radioactive material transportation not performed by DOE / DOE contractor is excluded

    • Posting and access control is not needed for radioactive material transportation performed by DOE / DOE contractor under continuous control or labeled per DOT

    • Receipt monitoring is not required for onsite shipments which have been under continuous control

  • Exclude material, equipment, and real property approved for release in accordance with DOE approved authorized limits

    • HS-20 developing guidance

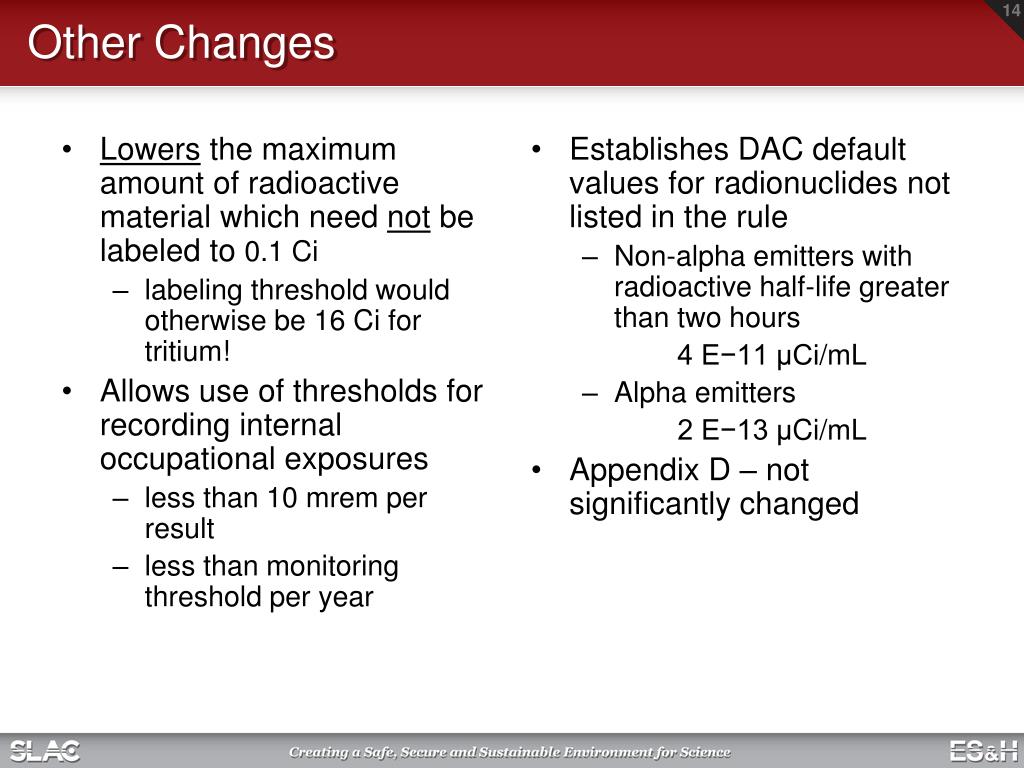

Other changes1

Other Changes

  • Lowers the maximum amount of radioactive material which need not be labeled to 0.1 Ci

    • labeling threshold would otherwise be 16 Ci for tritium!

  • Allows use of thresholds for recording internal occupational exposures

    • less than 10 mrem per result

    • less than monitoring threshold per year

  • Establishes DAC default values for radionuclides not listed in the rule

    • Non-alpha emitters with radioactive half-life greater than two hours

      4 E−11 μCi/mL

    • Alpha emitters

      2 E−13 μCi/mL

  • Appendix D – not significantly changed


Radiation protection program update the details

Full compliance required by July 9, 2010!!


References1

References

  • Slides by Peter V. O’Connell: 10 CFR 835 Amendment, Office of Health and Safety, U.S. Department of Energy. ISCORS Public Meeting, Washington, DC. October 1, 2008.


Additional rpp changes

Additional RPP Changes

In addition to the updates needed to be in compliance with 10 CFR 835, additional updates improve the rigor and quality of the Radiation Protection Program.

Changes include:

  • Dosimeter storage racks

  • Supplemental dosimetry

  • Sealed source custodians and training


Personnel dosimeters

Personnel Dosimeters

Dosimeter Use

  • Keep dosimeter away from all medical, dental, and airport radiation exposures

    Dosimeter Return

  • Promptly return your dosimeter at the end of the wear period

    Dosimeter Storage

  • Leave your dosimeter on your assigned rack at the end of the work day.

  • If your work area does not have a rack contact your POC or Henry Tran at ext. 3793.


Supplemental dosimeter

Supplemental Dosimeter

Pocket ion chambers (PICs) are prohibited for supplemental dosimetry because of calibration requirements.

Do not use a PIC when radiological controls specify the use of supplemental dosimetry (i.e. entering a high radiation area).

  • Return any PICs you have to RPD

  • Contact RPD at x4299 to request an electronic dosimeter as needed to monitor and record your dose

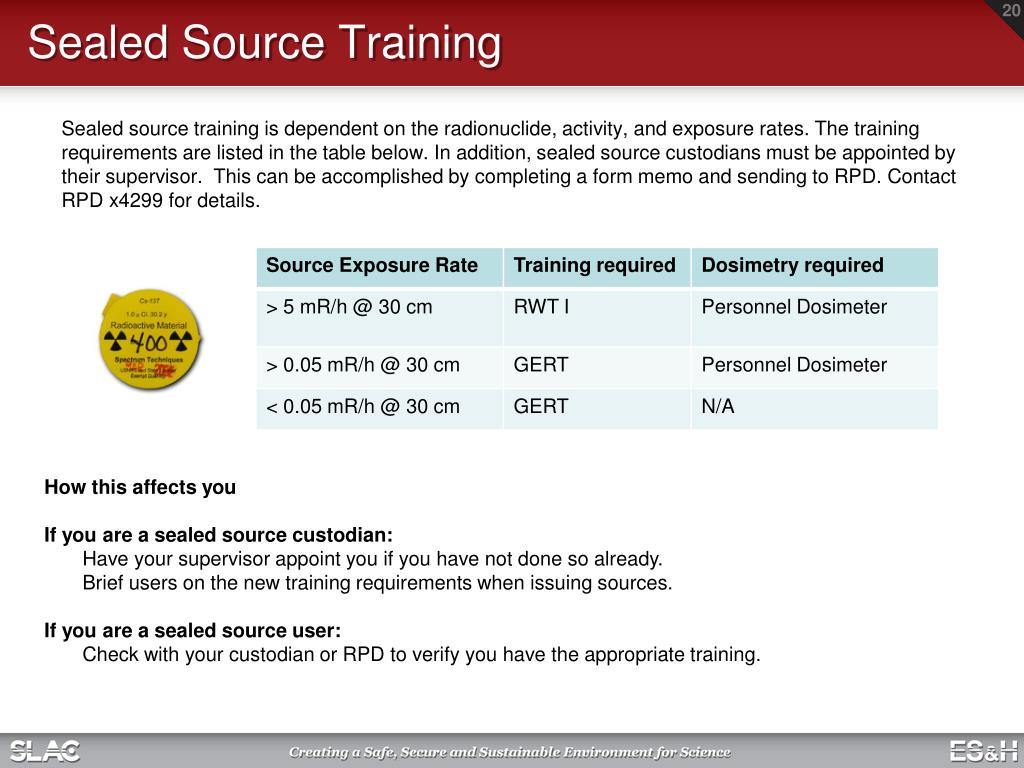

Sealed source training

Sealed Source Training

Sealed source training is dependent on the radionuclide, activity, and exposure rates. The training requirements are listed in the table below. In addition, sealed source custodians must be appointed by their supervisor. This can be accomplished by completing a form memo and sending to RPD. Contact RPD x4299 for details.

How this affects you

If you are a sealed source custodian:

Have your supervisor appoint you if you have not done so already.

Brief users on the new training requirements when issuing sources.

If you are a sealed source user:

Check with your custodian or RPD to verify you have the appropriate training.


Radioactive materials and sources

Radioactive Materials and Sources

Notify Radiation Protection at ext. 4299 prior to bringing any radioactive material onsite such as

  • Naturally occurring radioactive material, including thorium welding rods and sand blasting media

  • Sealed sources

  • Radiation generating devices such as radiography units, x ray generators, and soil density gauges


Summary

Summary
