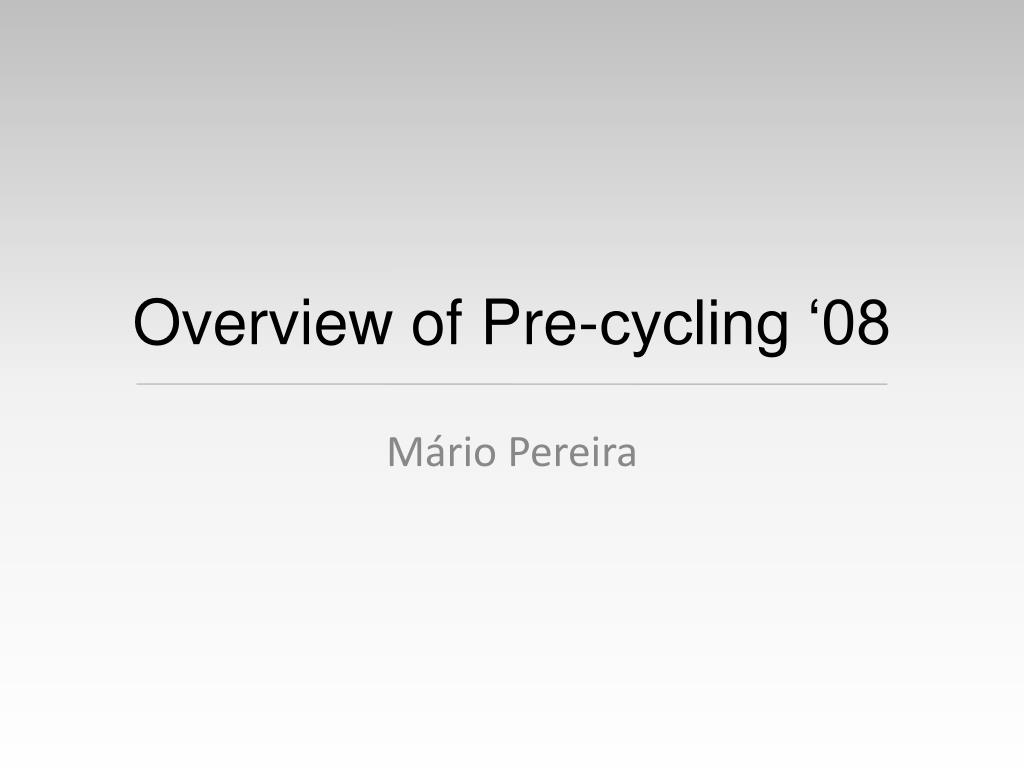

Overview of Pre-cycling ‘08

Loading in 2 Seconds...

play fullscreen
1 / 28

Overview of Pre-cycling ‘08 - PowerPoint PPT Presentation


  • 97 Views
  • Uploaded on

Overview of Pre-cycling ‘08. M ário Pereira. Agenda. Precycle generation principles Generators Database scheme Currents LSA setting Pre-cycling 2008 Example of pre-cycling in 2008 Q&A. Precycle generation principles. Precycle generator

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Overview of Pre-cycling ‘08' - wilda


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
agenda
Agenda
  • Precycle generation principles
    • Generators
    • Database scheme
  • Currents LSA setting
  • Pre-cycling 2008
  • Example of pre-cycling in 2008
  • Q&A
precycle generation principles

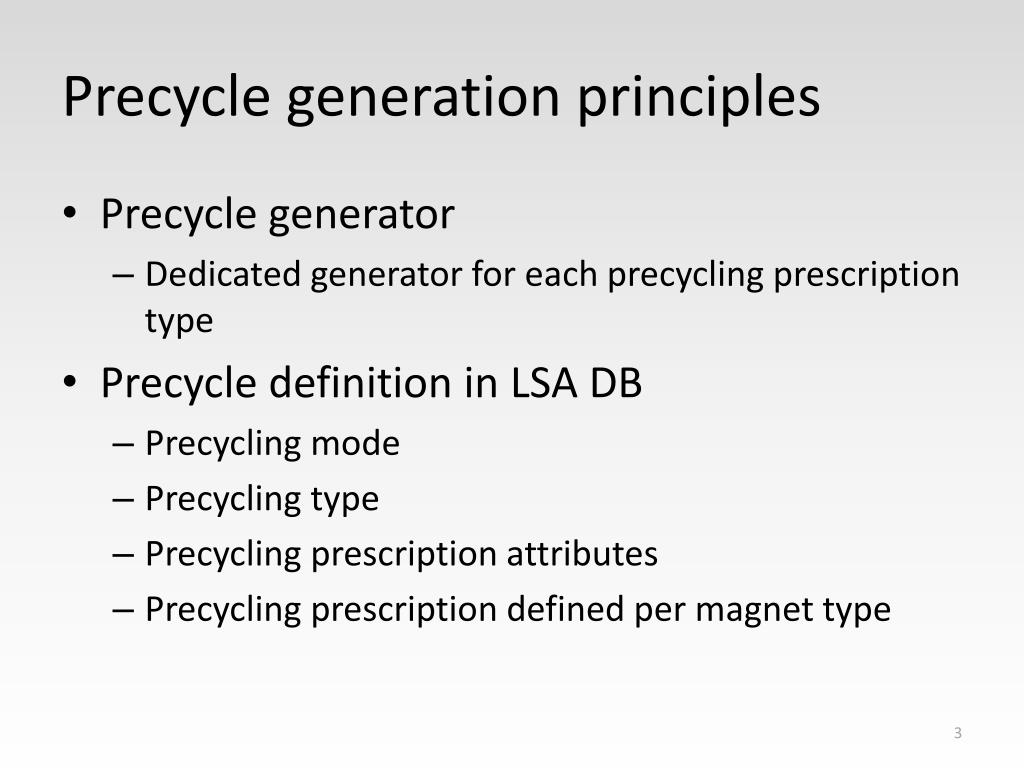

Precycle generation principles
  • Precycle generator
    • Dedicated generator for each precycling prescription type

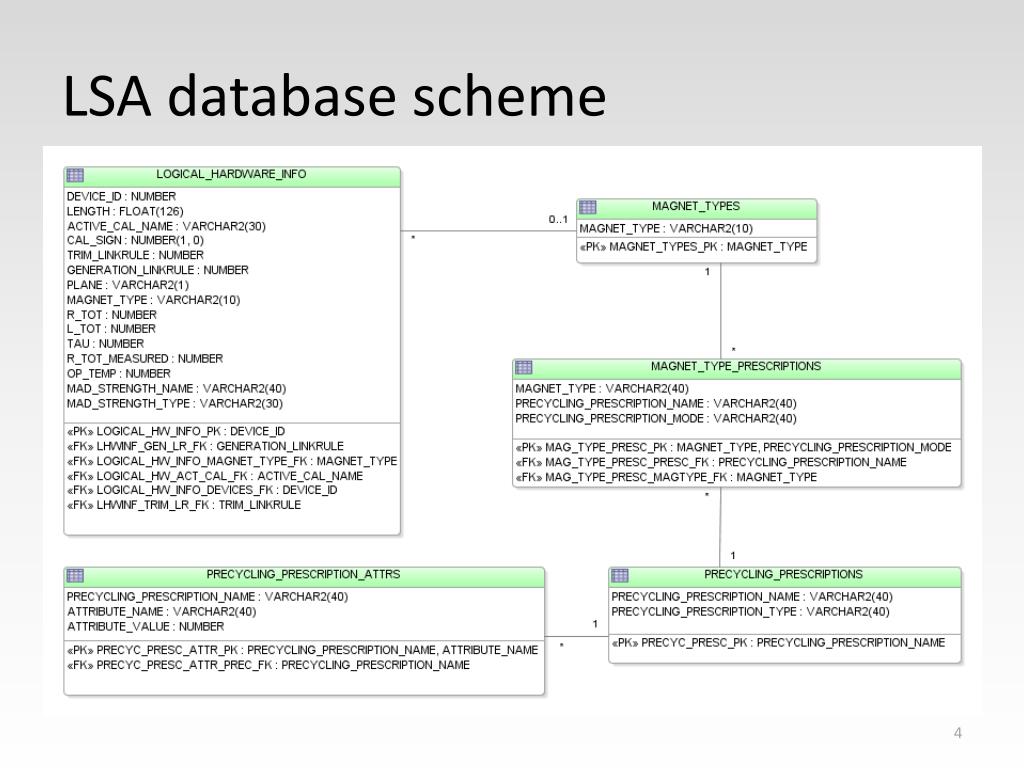

  • Precycle definition in LSA DB
    • Precycling mode
    • Precycling type
    • Precycling prescription attributes
    • Precycling prescription defined per magnet type

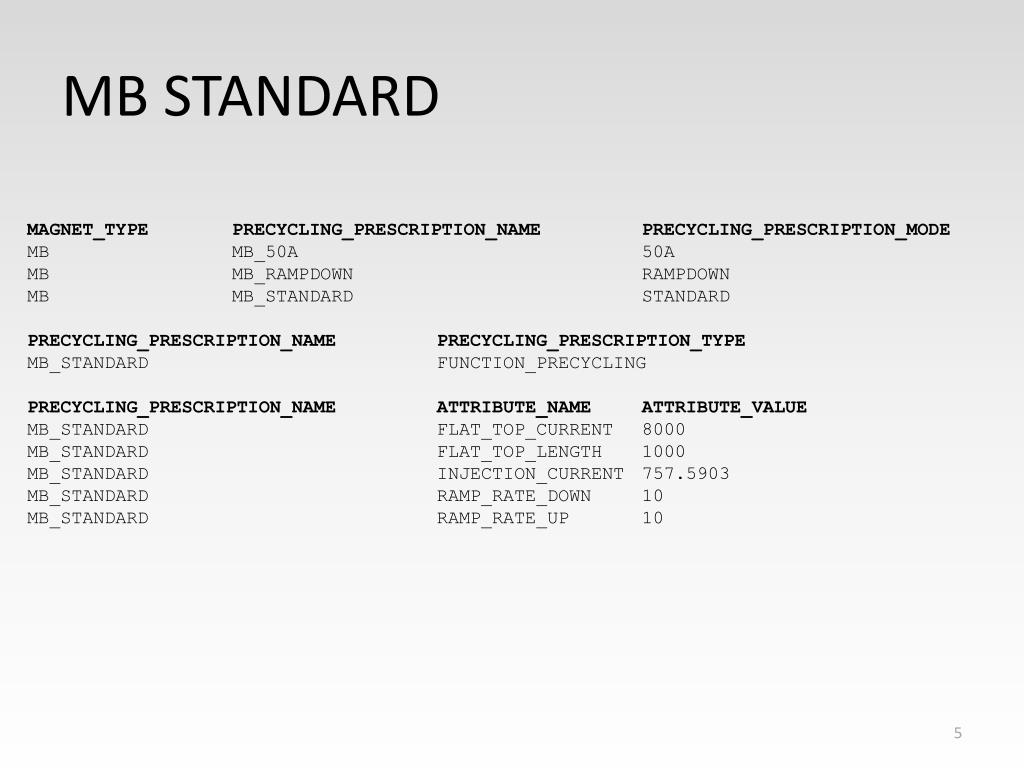

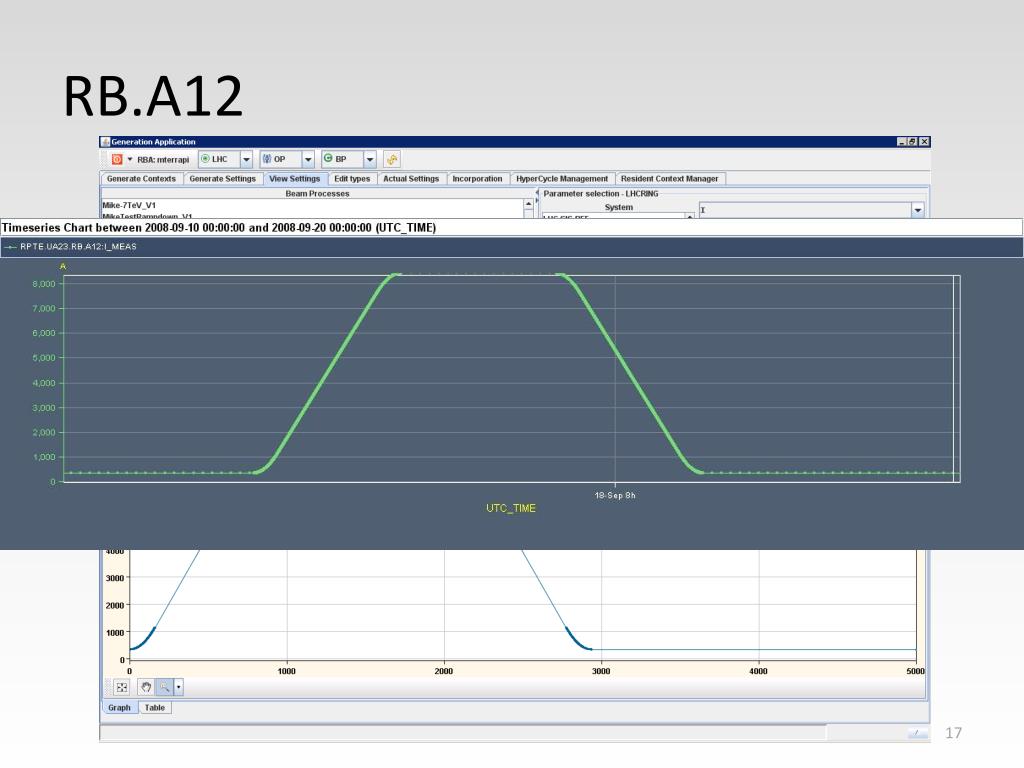

mb standard
MB STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MB MB_50A 50A

MB MB_RAMPDOWN RAMPDOWN

MB MB_STANDARD STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MB_STANDARD FUNCTION_PRECYCLING

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MB_STANDARD FLAT_TOP_CURRENT 8000

MB_STANDARD FLAT_TOP_LENGTH 1000

MB_STANDARD INJECTION_CURRENT 757.5903

MB_STANDARD RAMP_RATE_DOWN 10

MB_STANDARD RAMP_RATE_UP 10

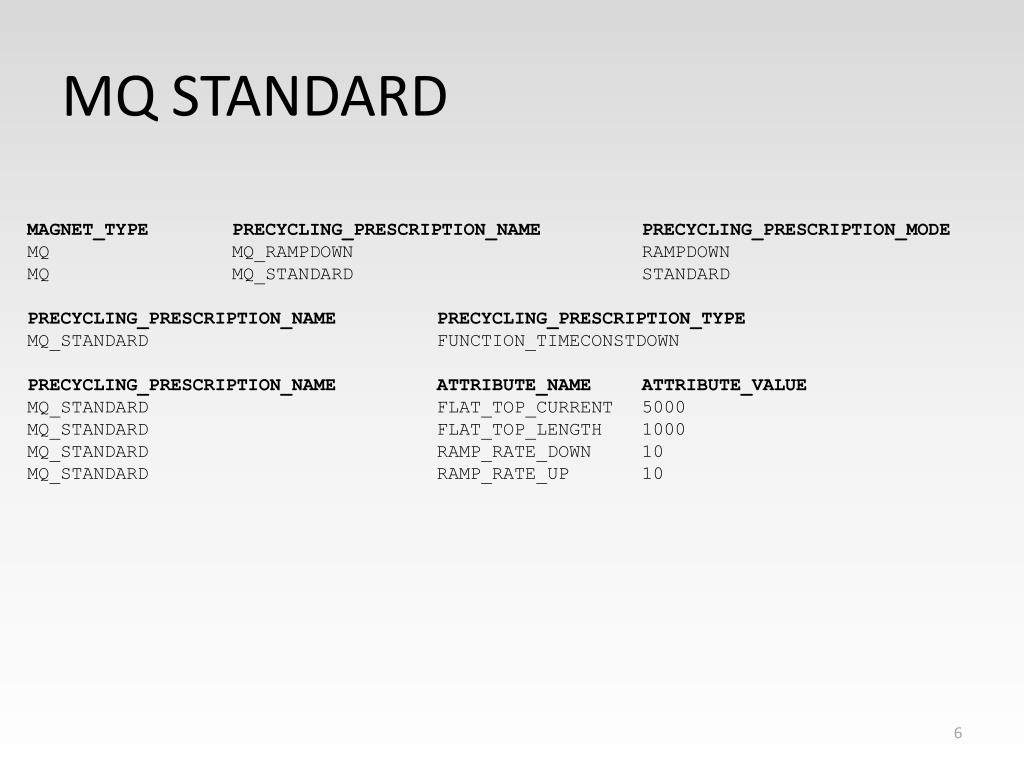

mq standard
MQ STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MQ MQ_RAMPDOWN RAMPDOWN

MQ MQ_STANDARD STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MQ_STANDARD FUNCTION_TIMECONSTDOWN

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MQ_STANDARD FLAT_TOP_CURRENT 5000

MQ_STANDARD FLAT_TOP_LENGTH 1000

MQ_STANDARD RAMP_RATE_DOWN 10

MQ_STANDARD RAMP_RATE_UP 10

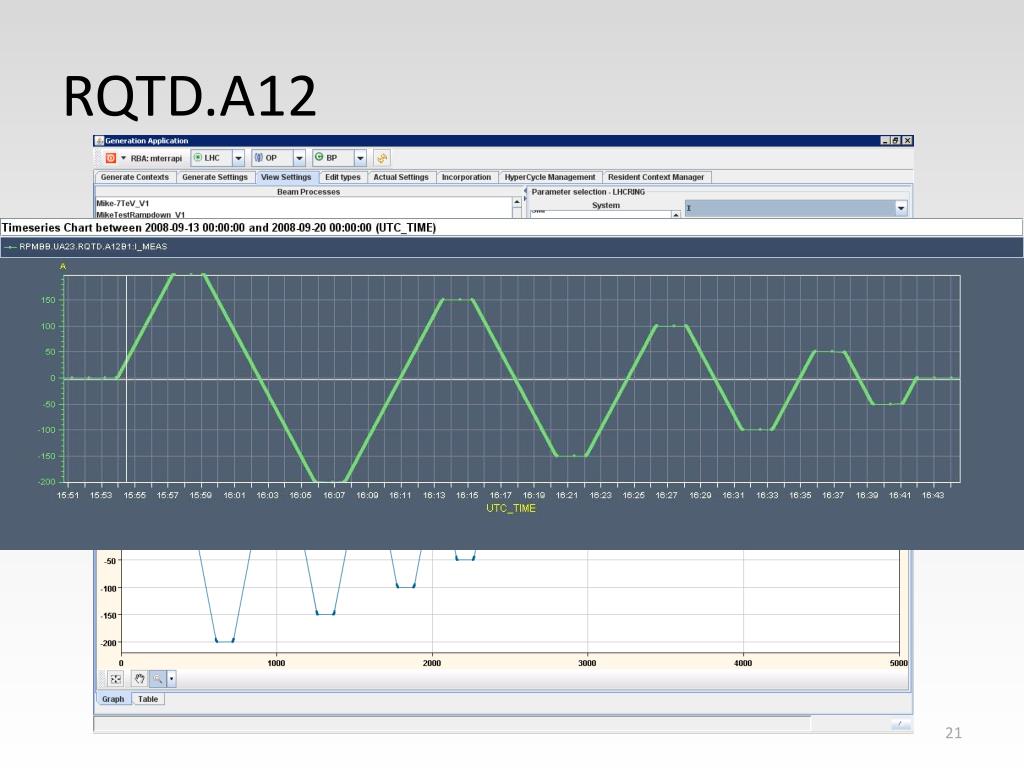

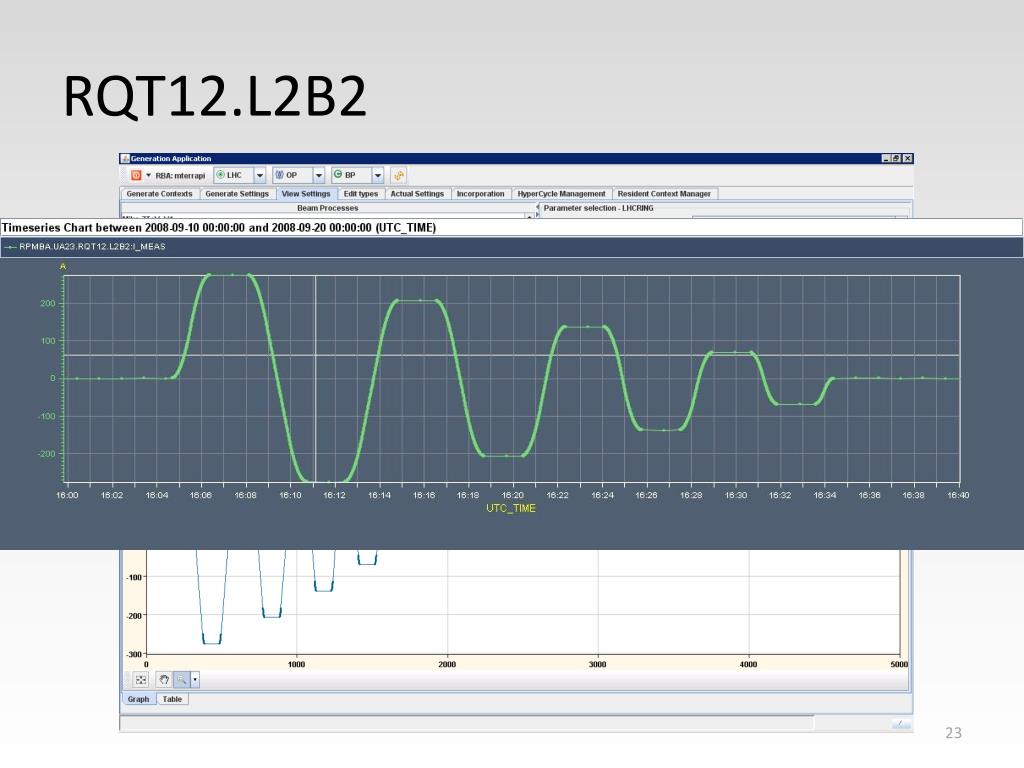

mqt standard
MQT STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MQT DEGAUSS STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

DEGAUSS FUNCTION_BIPOLAR_DEMAGNETIZE_V2

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

DEGAUSS CYCLES 4

DEGAUSS DIMINISH 1

DEGAUSS FLAT_BOTTOM_LENGTH 100

DEGAUSS FLAT_TOP_LENGTH 100

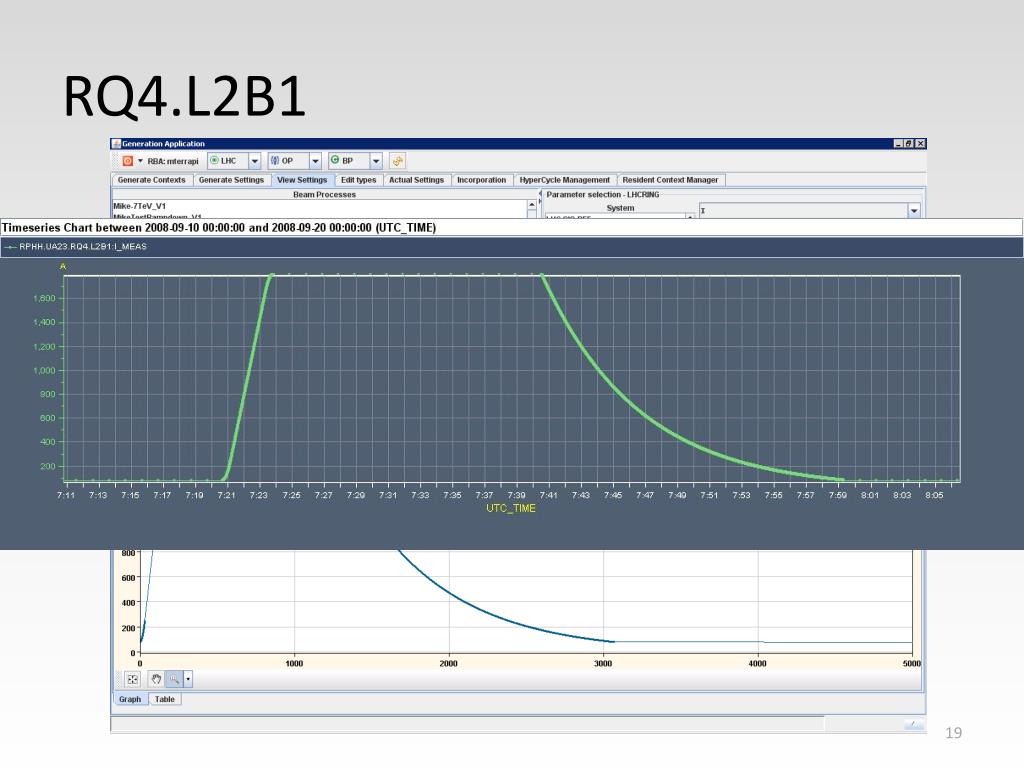

mqm standard

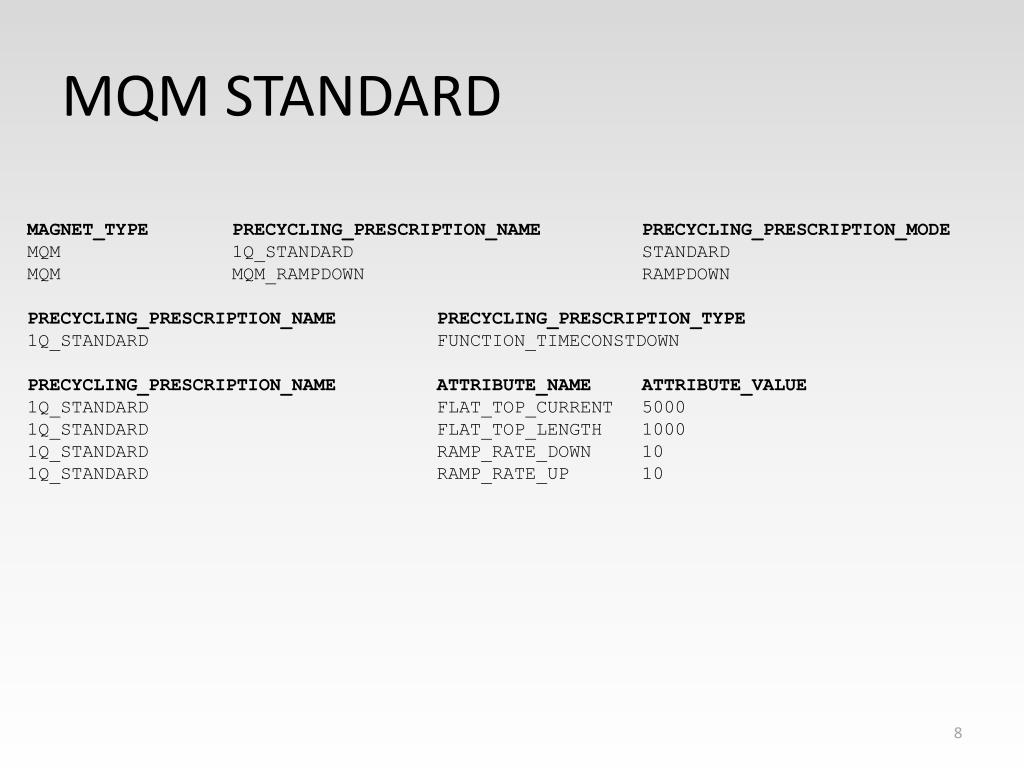

MQM STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MQM 1Q_STANDARD STANDARD

MQM MQM_RAMPDOWN RAMPDOWN

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

1Q_STANDARD FUNCTION_TIMECONSTDOWN

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

1Q_STANDARD FLAT_TOP_CURRENT 5000

1Q_STANDARD FLAT_TOP_LENGTH 1000

1Q_STANDARD RAMP_RATE_DOWN 10

1Q_STANDARD RAMP_RATE_UP 10

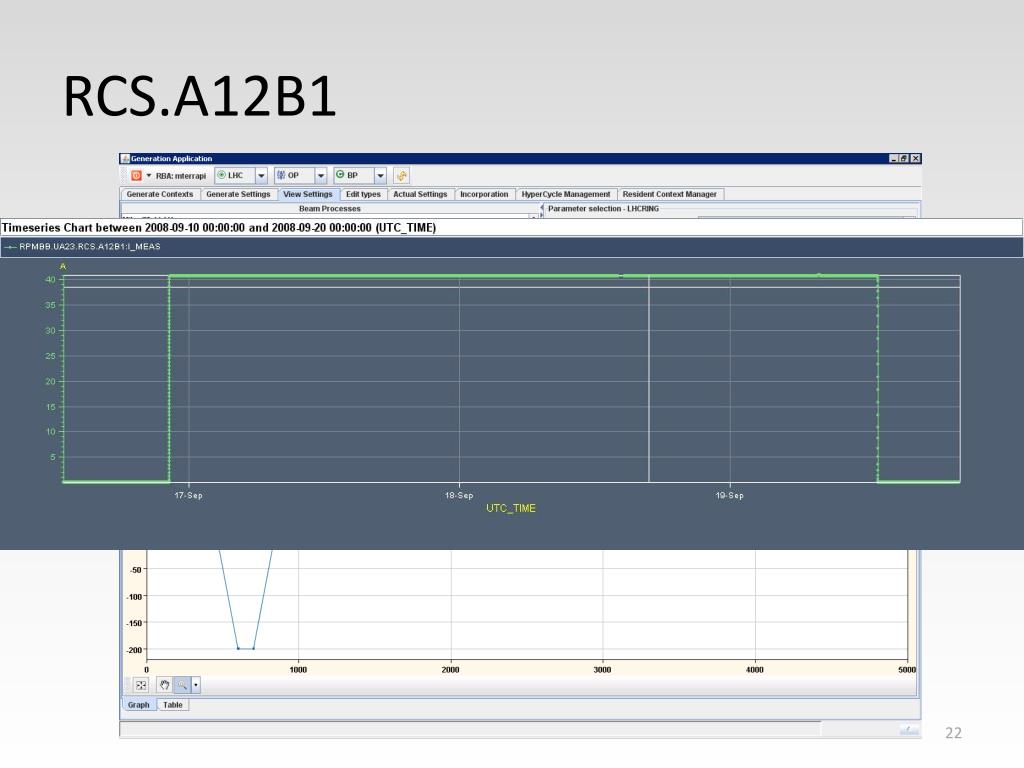

mco mcs standard

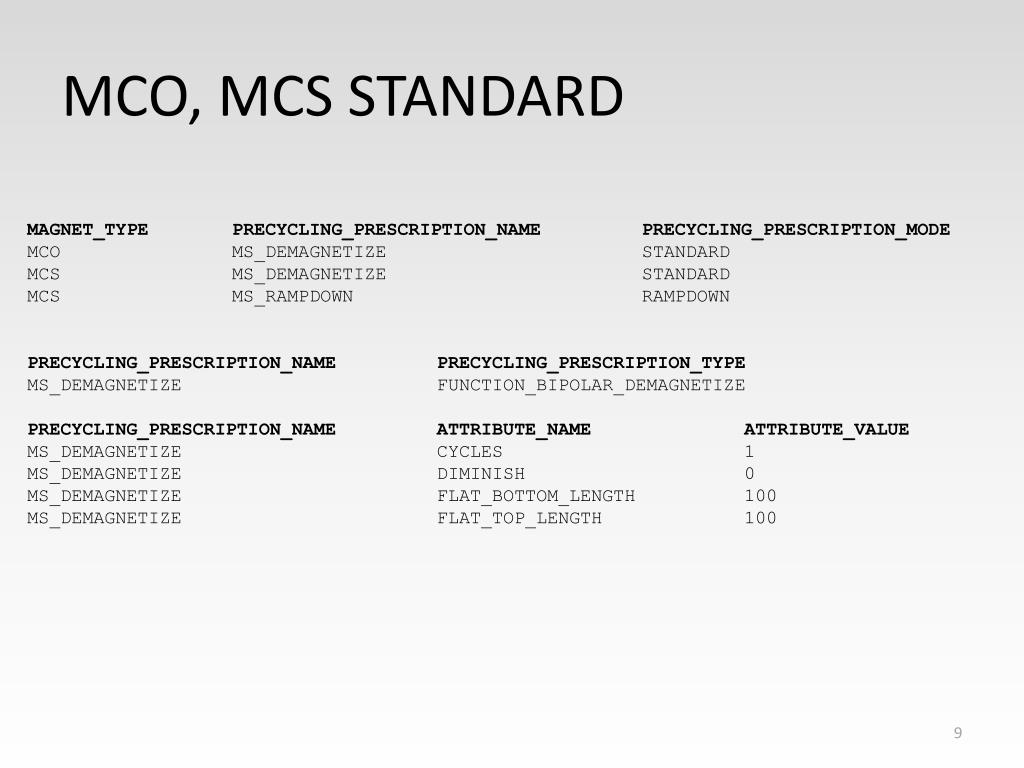

MCO, MCS STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MCO MS_DEMAGNETIZE STANDARD

MCS MS_DEMAGNETIZE STANDARD

MCS MS_RAMPDOWN RAMPDOWN

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MS_DEMAGNETIZE FUNCTION_BIPOLAR_DEMAGNETIZE

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MS_DEMAGNETIZE CYCLES 1

MS_DEMAGNETIZE DIMINISH 0

MS_DEMAGNETIZE FLAT_BOTTOM_LENGTH 100

MS_DEMAGNETIZE FLAT_TOP_LENGTH 100

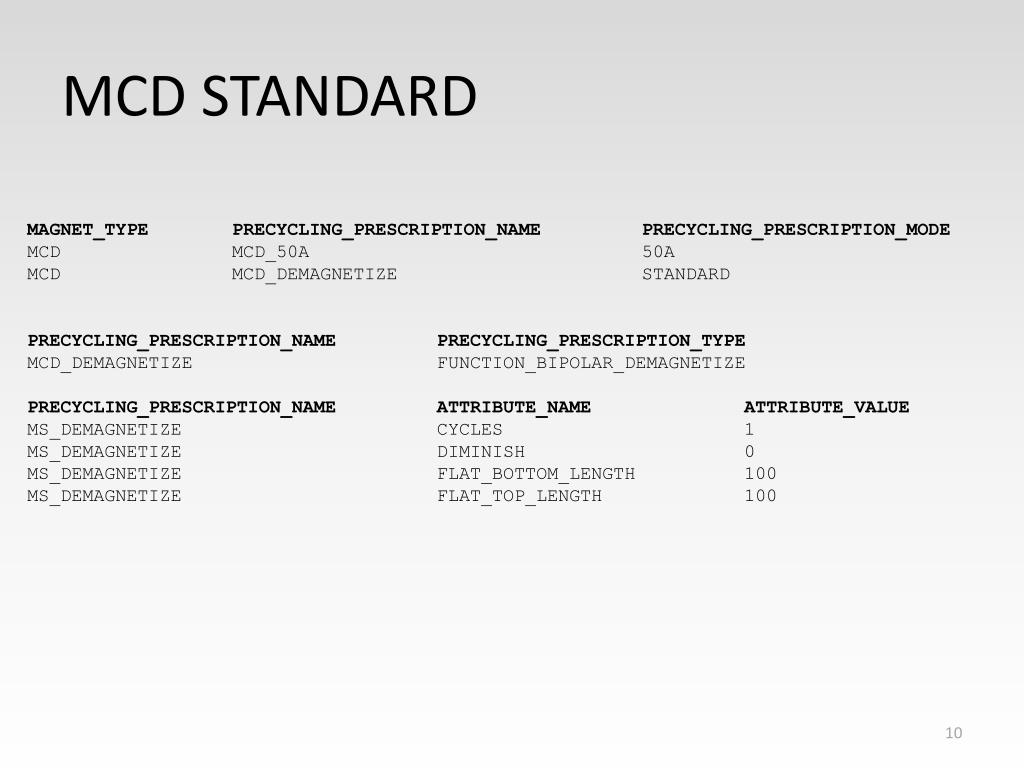

mcd standard
MCD STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MCD MCD_50A 50A

MCD MCD_DEMAGNETIZE STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MCD_DEMAGNETIZE FUNCTION_BIPOLAR_DEMAGNETIZE

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MS_DEMAGNETIZE CYCLES 1

MS_DEMAGNETIZE DIMINISH 0

MS_DEMAGNETIZE FLAT_BOTTOM_LENGTH 100

MS_DEMAGNETIZE FLAT_TOP_LENGTH 100

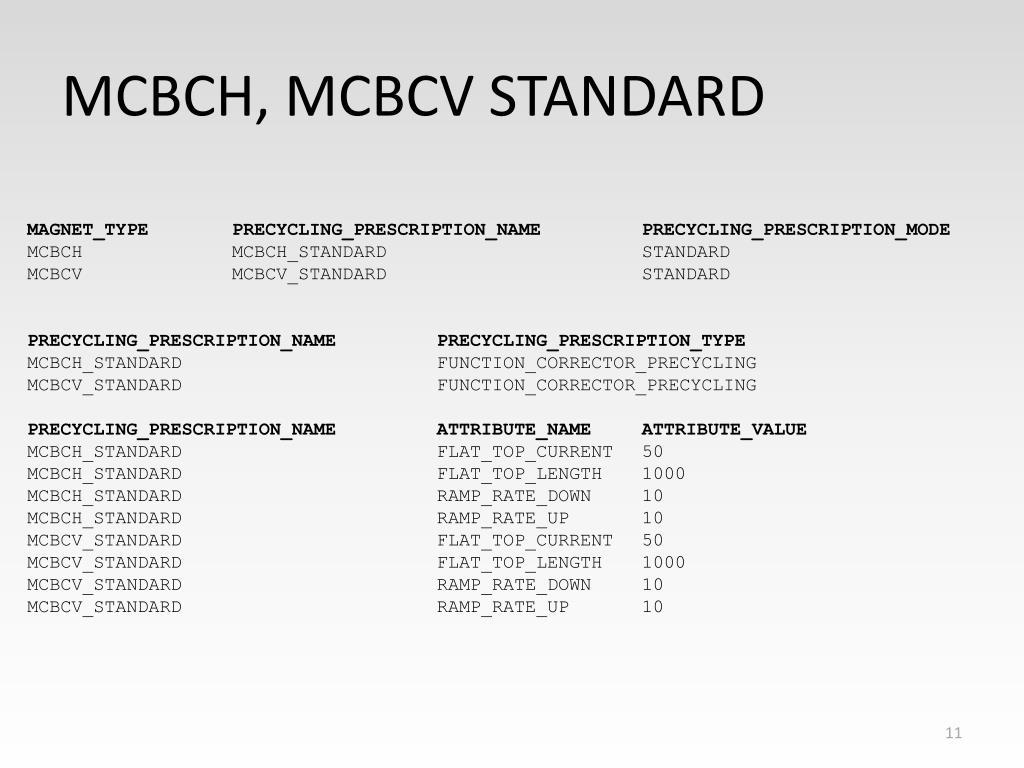

mcbch mcbcv standard
MCBCH, MCBCV STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MCBCH MCBCH_STANDARD STANDARD

MCBCV MCBCV_STANDARD STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MCBCH_STANDARD FUNCTION_CORRECTOR_PRECYCLING

MCBCV_STANDARD FUNCTION_CORRECTOR_PRECYCLING

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MCBCH_STANDARD FLAT_TOP_CURRENT 50

MCBCH_STANDARD FLAT_TOP_LENGTH 1000

MCBCH_STANDARD RAMP_RATE_DOWN 10

MCBCH_STANDARD RAMP_RATE_UP 10

MCBCV_STANDARD FLAT_TOP_CURRENT 50

MCBCV_STANDARD FLAT_TOP_LENGTH 1000

MCBCV_STANDARD RAMP_RATE_DOWN 10

MCBCV_STANDARD RAMP_RATE_UP 10

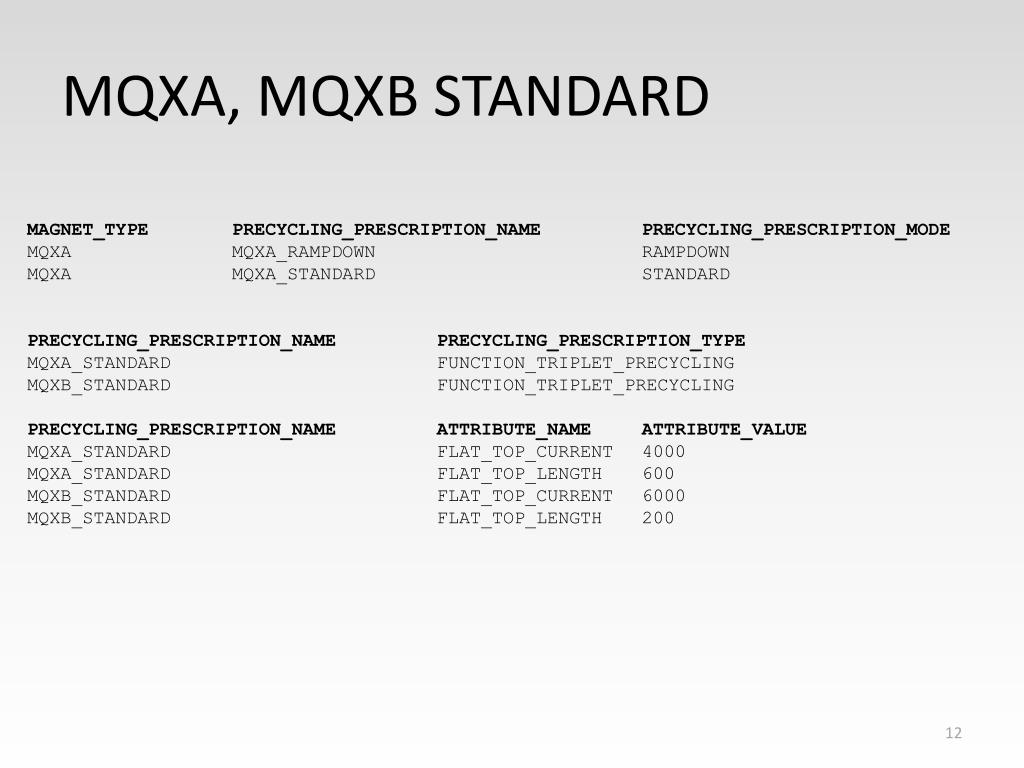

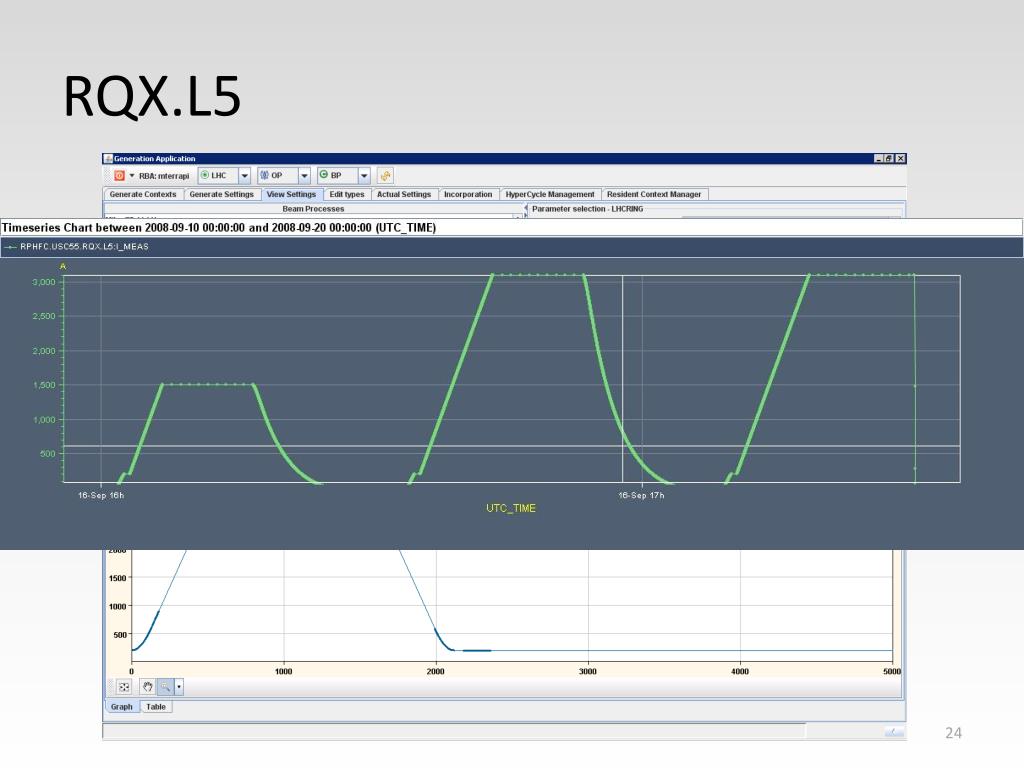

mqxa mqxb standard
MQXA, MQXB STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MQXA MQXA_RAMPDOWN RAMPDOWN

MQXA MQXA_STANDARD STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

MQXA_STANDARD FUNCTION_TRIPLET_PRECYCLING

MQXB_STANDARD FUNCTION_TRIPLET_PRECYCLING

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

MQXA_STANDARD FLAT_TOP_CURRENT 4000

MQXA_STANDARD FLAT_TOP_LENGTH 600

MQXB_STANDARD FLAT_TOP_CURRENT 6000

MQXB_STANDARD FLAT_TOP_LENGTH 200

magnet types using 4q standard
Magnet types using 4Q_STANDARD

MAGNET_TYPE PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_MODE

MCBH 4Q_STANDARD STANDARD

MCBV 4Q_STANDARD STANDARD

MCBXH 4Q_STANDARD STANDARD

MCBXV 4Q_STANDARD STANDARD

MCBYH 4Q_STANDARD STANDARD

MCBYV 4Q_STANDARD STANDARD

MCOSX 4Q_STANDARD STANDARD

MCOX 4Q_STANDARD STANDARD

MCSSX 4Q_STANDARD STANDARD

MCSX 4Q_STANDARD STANDARD

MCTX 4Q_STANDARD STANDARD

MQS 4Q_STANDARD STANDARD

MQSX 4Q_STANDARD STANDARD

MQTLH 4Q_STANDARD STANDARD

MQTLI 4Q_STANDARD STANDARD

MS 4Q_STANDARD STANDARD

MSS 4Q_STANDARD STANDARD

PRECYCLING_PRESCRIPTION_NAME PRECYCLING_PRESCRIPTION_TYPE

4Q_STANDARD FUNCTION_BIPOLAR_DEMAGNETIZE

PRECYCLING_PRESCRIPTION_NAME ATTRIBUTE_NAME ATTRIBUTE_VALUE

4Q_STANDARD CYCLES 1

4Q_STANDARD DIMINISH 0

4Q_STANDARD FLAT_BOTTOM_LENGTH 100

4Q_STANDARD FLAT_TOP_LENGTH 100

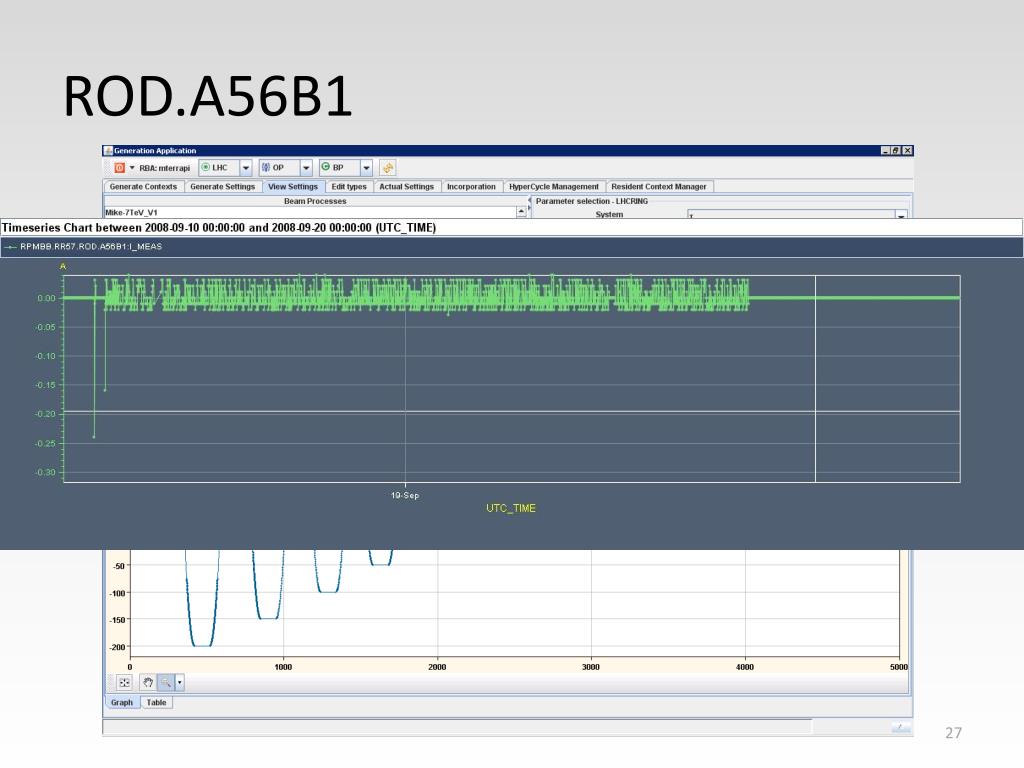

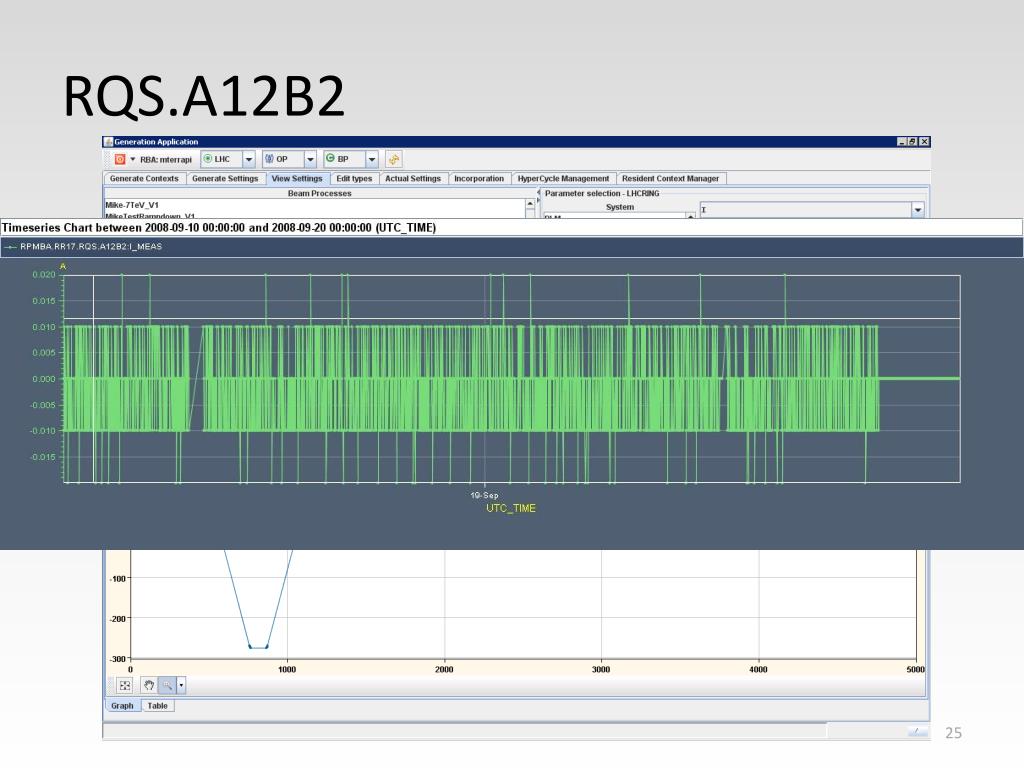

pre cycling in 2008
Pre-cycling in 2008
  • During the first days of commissioning:
    • Poor pre-cycling discipline
    • MBs cycled to different flat top currents:
        • HWC constraints
        • Pre-cycle not generated with correct current
    • MQ:
      • Due to good machine behavior pre-cycle was skipped.

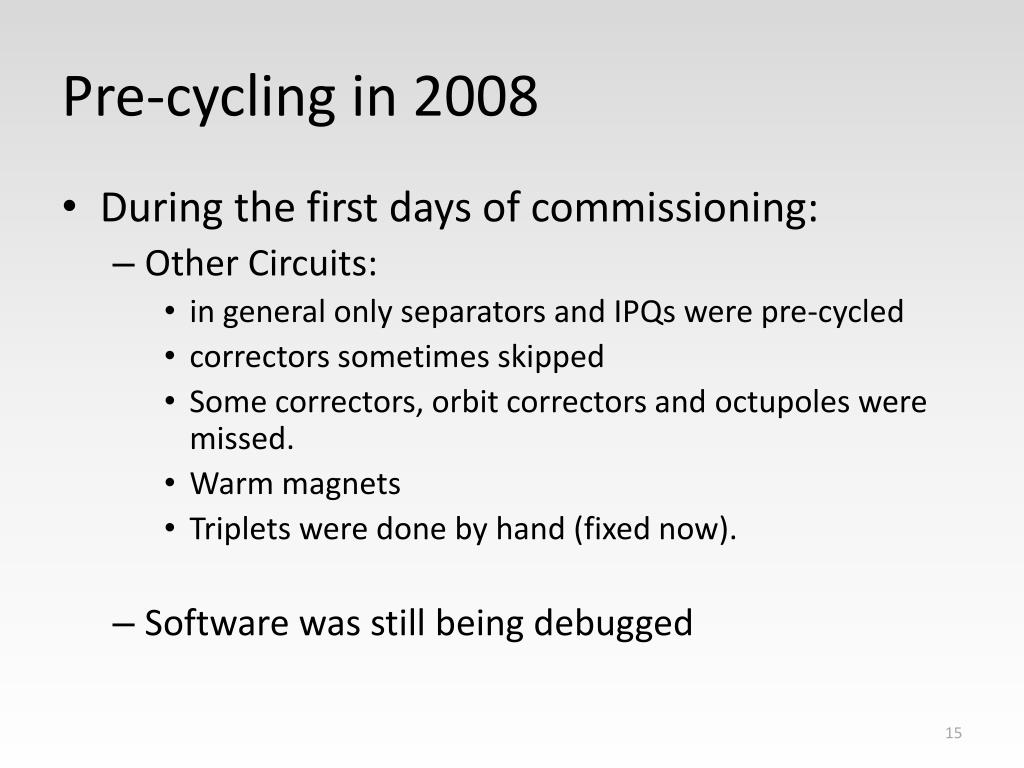

pre cycling in 20081
Pre-cycling in 2008
  • During the first days of commissioning:
    • Other Circuits:
      • in general only separators and IPQs were pre-cycled
      • correctors sometimes skipped
      • Some correctors, orbit correctors and octupoles were missed.
      • Warm magnets
      • Triplets were done by hand (fixed now).
    • Software was still being debugged
pre cycling in lsa
Pre-cycling in LSA
  • Flat top currents can be explicitly defined as an attribute
  • PNO current can also be used from LSA database as a fraction of the defined FT current.
