Presentation Transcript
Sains sukan biomekanik badminton l.jpg

SAINS SUKANBIOMEKANIK BADMINTON

ONG KONG SWEE

[email protected]

0168626509

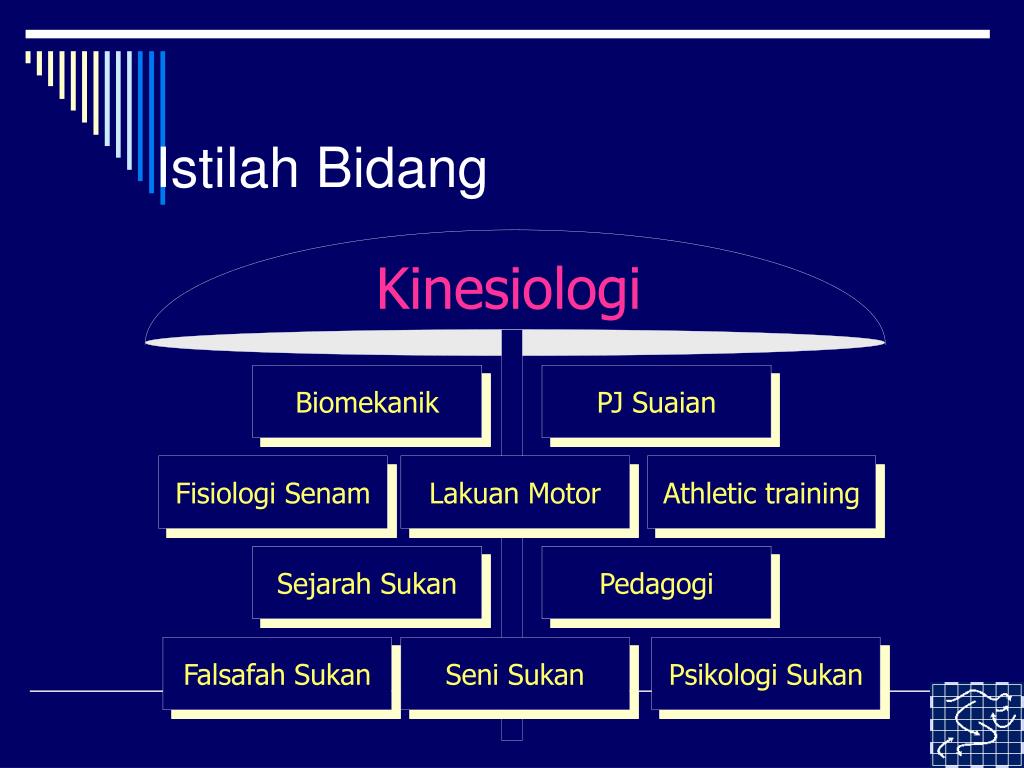

Istilah bidang l.jpg

Kinesiologi

Biomekanik

PJ Suaian

Fisiologi Senam

Lakuan Motor

Athletic training

Sejarah Sukan

Pedagogi

Falsafah Sukan

Seni Sukan

Psikologi Sukan

Istilah Bidang


Istilah bidang3 l.jpg
Istilah Bidang

Sains Sukan

Biomekanik

Fisioterapi

Fisiologi Senam

Lakuan Motor

Athletic training

Pemakanan

Pedagogi

Pengurusan Sukan

Sosiologi

Psikologi Sukan


Slide4 l.jpg

KINESIOLOGI

  • Kajian pergerakan manusia

    SAINS SUKAN

  • Kajian sistematik membabitkan sains dalam sukan

    BIOMEKANIK

  • Sintesis bidang biologi dan mekanik untuk memahami dan menjelaskan pergerakan


Biomekanik l.jpg
BIOMEKANIK

Bio – benda hidup atau sistem biologi

Mekanik – analisis daya dan kesannya

“Analisis kesan daya dalam kajian aspek anatomi dan fungsi sistem benda hidup”

“Aplikasi prinsip-prinsip mekanik dalam kajian benda hidup”


Matlamat l.jpg
Matlamat

  • Meningkatkan prestasi

    • Teknik perlakuan

    • Peralatan : Apakah perubahan yang boleh dilakukan pada peralatan sukan untuk meningkatkan prestasi ?

    • Kenapa satu teknik lebih baik daripada teknik yang lain?

    • Kenapa bentuk badan seseorang lebih baik daripada yang lain?

  • Pencegahan kecederaan dan pemulihan


Sub cabang biomekanik l.jpg
Sub-cabang biomekanik

MEKANIK

Statik

Dinamik

Kinetik sistem

pegun

Sistem velositi

konstan

Kinematik

Kinetik


Slide8 l.jpg

  • statik: kajian sistem pergerakan konstan

  • dinamik: kajian sistem pergerakan yang mempunyai pecutan

  • kinematik: kajian bentuk perlakuan atau deskripsi sesuatu pergerakan

  • kinetik: kajian tindakan daya


Keupayaan mekanikal l.jpg
Keupayaan mekanikal

  • Keupayaan mekanikal jasad adalah hasil daripada pergerakan sendi.

  • Sistem tuas rangka adalah sistem yang mempengaruhi keupayaan mekanikal jasad.

  • Tuas jasad manusia terdiri daripada:

    • Tulang – palang

    • Sendi – fulkrum

    • Penguncupan otot – daya

    • Beban - rintangan


Sistem tuas l.jpg

F

R

Kelas pertama

R

F

Kelas kedua

F

R

Kelas ketiga

Sistem Tuas

  • Tuas dikelaskan kepada kelas pertama, kedua dan ketiga

Tuas ditentukan mengikut kedudukan daya, beban, dan fulkrum


Slide11 l.jpg


Sistem tuas12 l.jpg
SISTEM TUAS (torque) dan equilibrium

  • sistem tuas membantu dalam keberkesan sesuatu pergerakan.

  • ST ialah satu struktur yang teguh yang diengselkan (fulkrum) di satu titik dan daya dikenakan kepada kedua-dua hujung struktur tersebut (daya motif dan daya rintangan.

daya rintangan

daya motif/beban

fulkrum


Slide13 l.jpg

  • ingat komponen utama ST terdiri daripada satu tuas yang teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • sistem otot rangka juga bertindak sebagai sistem tuas

  • terdapat tiga jenis sistem tuas dalam badan kita

    • Tuas kelas Satu

    • Tuas kelas Dua

    • Tuas kelas Tiga


Tuas kelas satu l.jpg
Tuas Kelas Satu teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • Daya di satu hujung

  • Baban di satu hujung

  • Fulkrum ditengah

  • (contoh) gunting

  • (contoh) kepala bergerak atas dan bawah


Tuas kelas kedua l.jpg
Tuas Kelas Kedua teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • Daya disatu hujung

  • Fulkrum disatu hujung

  • Beban ditengah

  • (Contoh) wheelbarrel

  • (Contoh) berdiri dihujung kaki


Tuas kelas ketiga l.jpg
Tuas Kelas Ketiga teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • Beban di astu hujung

  • Fulkrum di satu hujung

  • Daya di tengah

  • (contoh) using a tweezers

  • (contoh) mengangkat barang dengan lengan

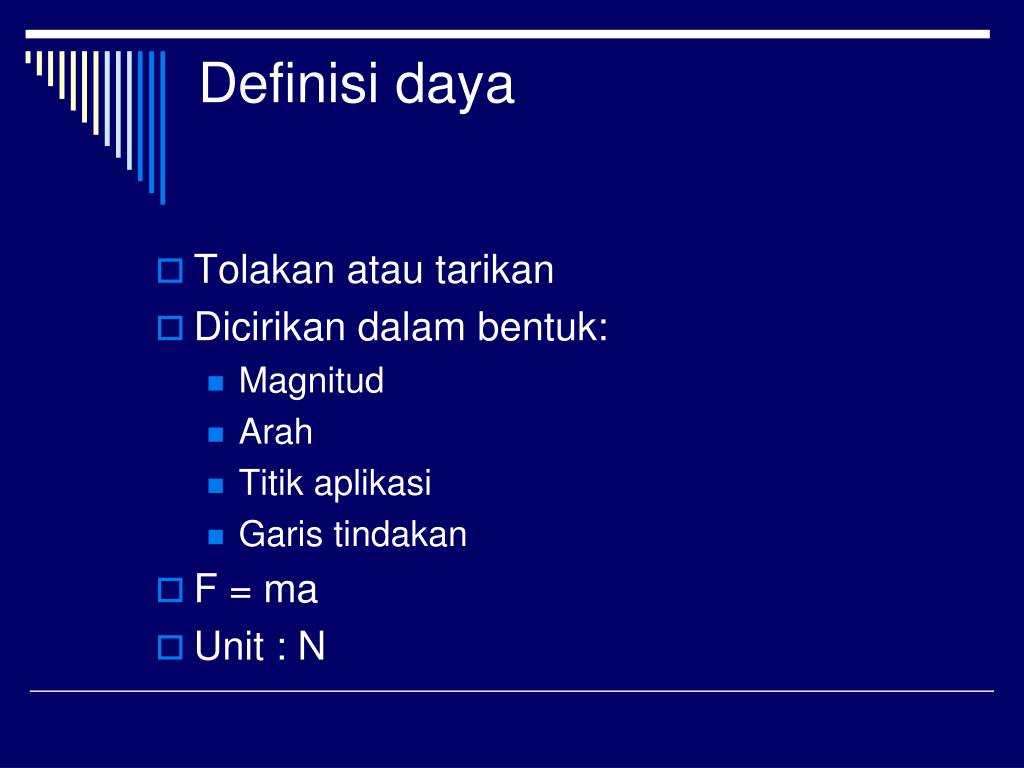

Definisi daya l.jpg
Definisi daya teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • Tolakan atau tarikan

  • Dicirikan dalam bentuk:

    • Magnitud

    • Arah

    • Titik aplikasi

    • Garis tindakan

  • F = ma

  • Unit : N


Slide19 l.jpg

Daya raket teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

Bola dipukul oleh raket

Rintangan udara

berat

Arah pergerakan bergantung kepada daya hasilan akhir daripada semua daya yang bertindak


Slide20 l.jpg

Kuantiti kinematik linear teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • kajian bentuk perlakuan atau deskripsi sesuatu pergerakan berasaskan masa

    • Linear

    • Angular/bersudut


Jenis pergerakan motion l.jpg
Jenis pergerakan/ teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.Motion

  • Linear Motion

    • Following a path along line that may be straight or curved.

    • All parts of a body move the same distance, direction and time.

    • Eg. Moving from the back from a straight smash to play a straight block.


Jenis pergerakan motion22 l.jpg
Jenis pergerakan/ teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.Motion

  • Angular Motion/Rotation

    • Movement in a curves path or circular.

    • When a body on a circular path about a central line or point.

    • All parts of body move same angle, direction and time.

    • Example : Smashing action, motion of the racquet.


Hukum newton l.jpg
Hukum Newton teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • Pertama- Inersia: jasad akan terus pegun atau bergerak dalam garis lurus kecuali suatu daya bertindak ke atas jasad tersebut

  • Kedua – Pecutan: Pecutan sesuatu jasad adalah berkadar terus dan pada arah tindakan daya serta berkadar songsang dengan jisim

    • a= F/m

  • Ketiga- Aksi Reaksi : Bagi setiap aksi wujud reaksi yang sama dan bertentangan arah


Newton s first law l.jpg

An object will continue in a state of rest teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

or uniform motion unless acted upon by

an external force.

If an unbalanced force acts on an object, it will accelerate in the direction of the unbalanced force.

If an object is given a certain initial velocity and there are no unbalanced forces acting on it, the object will continue along its original path in a straight line.

Newton’s First Law


Newton s second law l.jpg

When a force acts on an object, the teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

object is accelerated by an amount

directly proportional to the force

applied and inversely proportional

to the mass of the object (F = ma).

The greater the force being exerted on an object, the faster the object moves.

The greater the mass of the object, the

slower the object will move in relation to a

lighter object with the same force applied.

A big mass (tennis ball) is harder to accelerate than a smaller mass (table tennis ball).

Newton’s Second Law


Newton s second law hockey l.jpg
Newton’s Second Law - Hockey teguh, satu aksis(fulkurum), satu daya motif dan satu daya rintangan.

  • If a player strikes the ball, its acceleration

    is determined by the mass of the ball

    and how hard the player hits it (F = ma).

  • If the ball were heavier (larger mass), it would accelerate less.

  • If the player hits the ball harder (larger force), the ball accelerates more quickly.


Newton s second law27 l.jpg

A batter gets an advantage if he uses Newton’s Second Law before stepping onto the plate.

Newton’s Second Law

  • A baseball player on deck getting ready to bat adds weights to their bat to practise swinging, and to warm up their muscles.

  • If the total mass of the weights added is equal to the initial mass of the bat, then the weight is doubled.

  • If the batter swings at a constant speed (a), and applies a uniform force throughout (F), we can apply Newton’s Second Law.

  • When he removes the weights, the mass is cut in half, and the acceleration will be twice as fast as before.


Newton s second law28 l.jpg

Note: A bat has a mass of 2 kg. before stepping onto the plate.

Newton’s Second Law

Q1. A batter swings with 200N of force on

deck circle, with weights attached making the bat twice as heavy as usual. What is the bat’s acceleration:

a) on the on deck circle?

b) at the plate when the weights have been removed?

Q2. A bat has an acceleration of 80m/s2.

What force was applied to the bat?

Q3. A batter at the plate swings with a force

of 100N. What is the bat’s acceleration? How

does this compare to the answer to Q1.b?

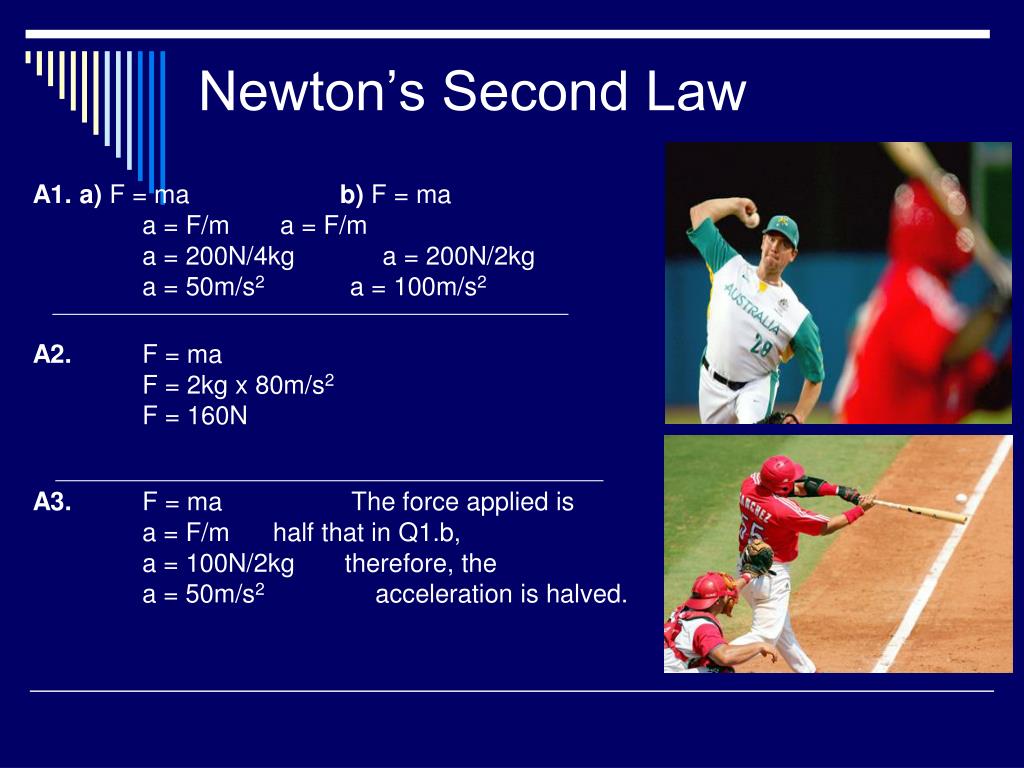

Newton s second law29 l.jpg
Newton’s Second Law before stepping onto the plate.

A1.a) F = ma b) F = ma

a = F/m a = F/m

a = 200N/4kg a = 200N/2kg

a = 50m/s2 a = 100m/s2

A2. F = ma

F = 2kg x 80m/s2

F = 160N

A3. F = ma The force applied is

a = F/m half that in Q1.b,

a = 100N/2kg therefore, the

a = 50m/s2 acceleration is halved.


Newton s third law l.jpg

For every action there is an equal before stepping onto the plate.

and opposite reaction

For every force between two objects there is always an equal but oppositely directed force.

The normal reaction force is

the support force exerted upon

an object which is in contact

with another stable object.

Newton’s Third Law

Question:

When hitting a baseball, if we call the force on the bat against the ball the action force, what is the reaction force?

Normal reaction force

Weight


Newton s third law31 l.jpg

When a swimmer turns, the pool wall pushes against the swimmer with the same force as the swimmer pushes against the pool wall.

When a weightlifter pushes against the ground, the ground pushes against the weightlifter with the same force.

When a tennis player hits a ball with their racquet, the tennis ball exerts an equal but opposite force on the player’s racquet.

Can you think of any more examples?

Newton’s Third Law

Answer:

The reaction force is the force exerted by the ball on the bat.

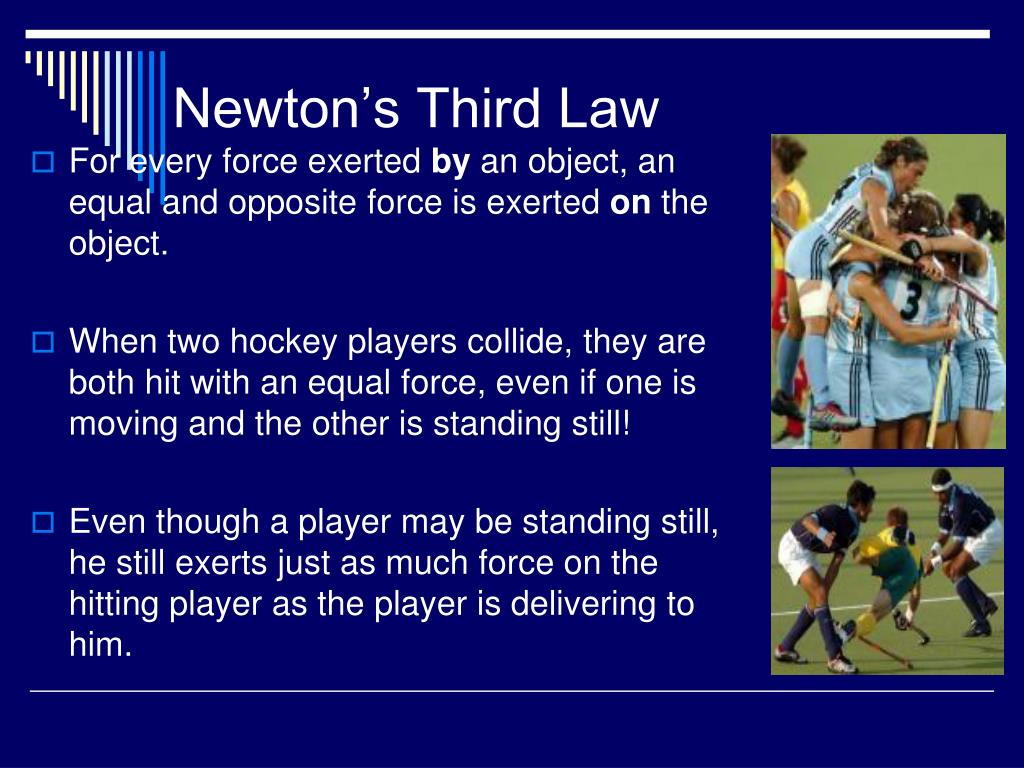

Newton s third law32 l.jpg
Newton’s Third Law swimmer with the same force as the swimmer pushes against the pool wall.

  • For every force exerted by an object, an equal and opposite force is exerted onthe object.

  • When two hockey players collide, they are both hit with an equal force, even if one is moving and the other is standing still!

  • Even though a player may be standing still, he still exerts just as much force on the hitting player as the player is delivering to him.

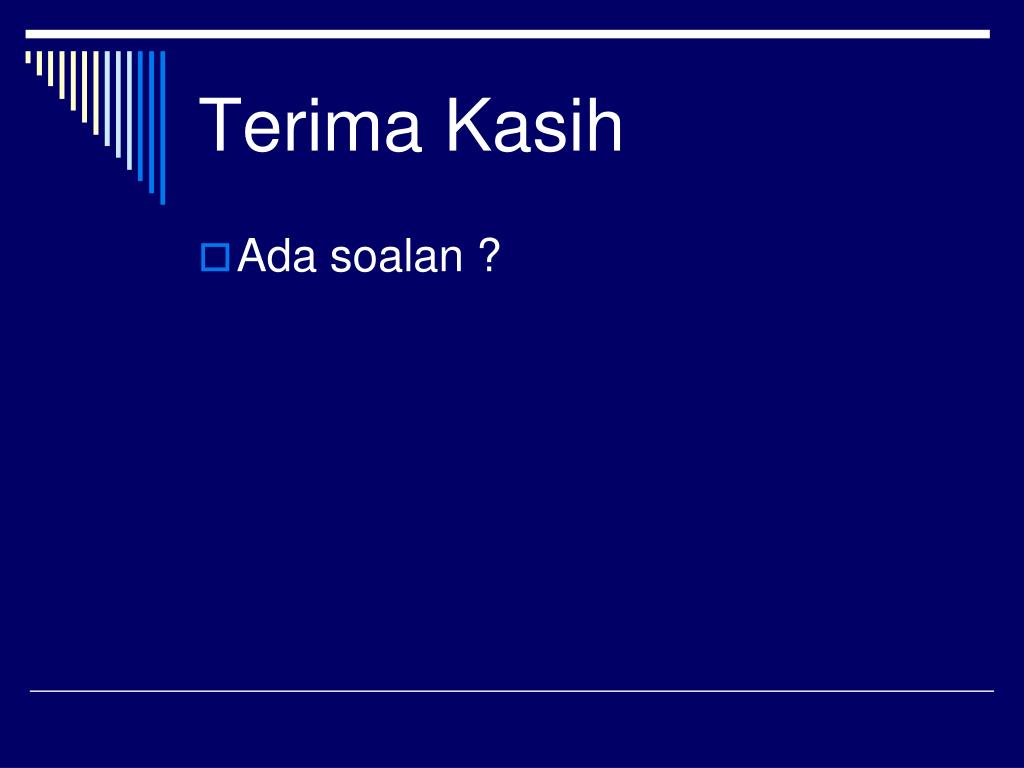

Terima kasih l.jpg
Terima Kasih swimmer with the same force as the swimmer pushes against the pool wall.

  • Ada soalan ?
