Ivory : Pairwise Document Similarity in Large Collection with MapReduce

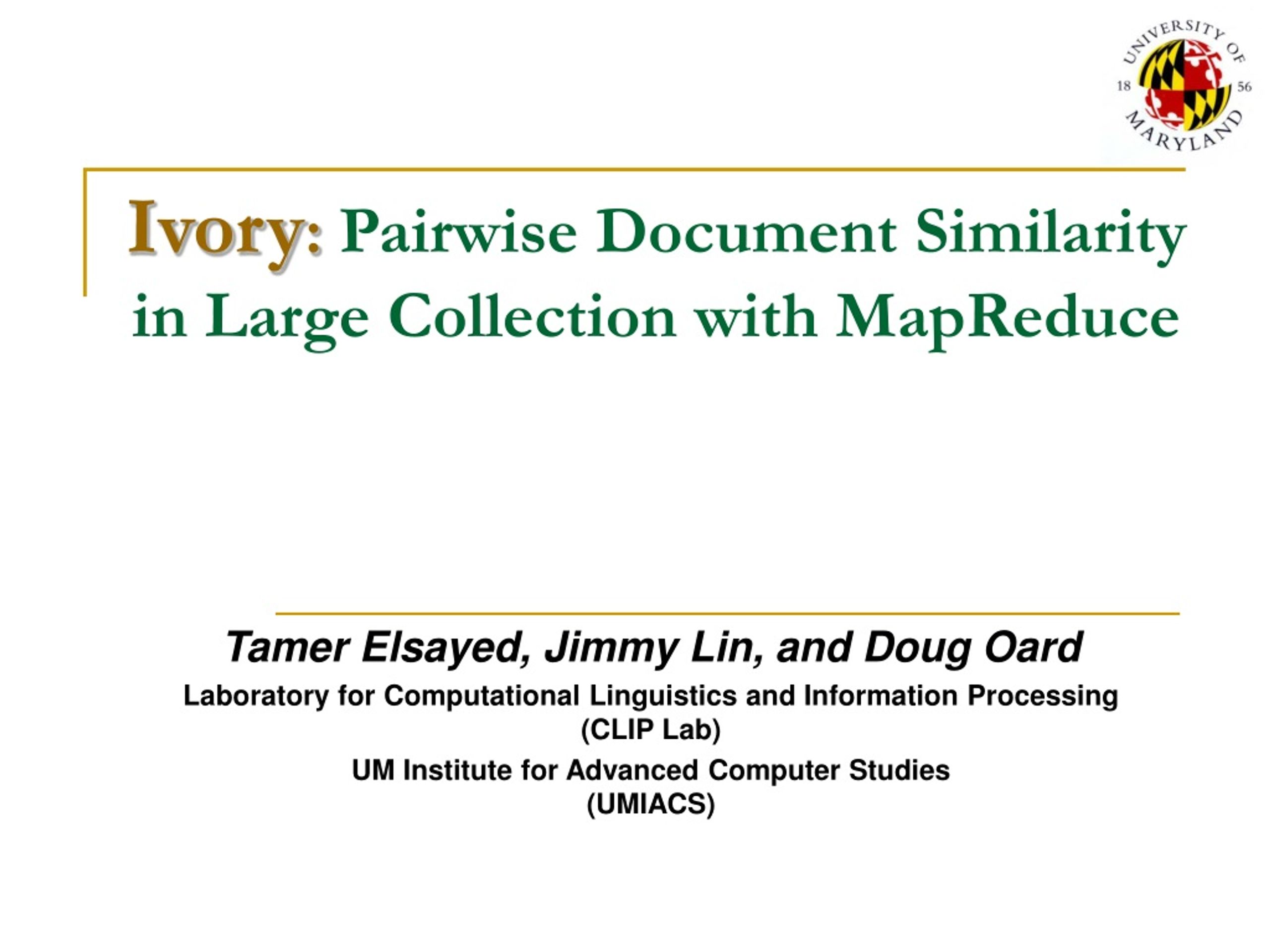

1. Ivory: Pairwise Document Similarity in Large Collection with MapReduce Tamer Elsayed, Jimmy Lin, and Doug Oard Laboratory for Computational Linguistics and Information Processing (CLIP Lab) UM Institute for Advanced Computer Studies (UMIACS)

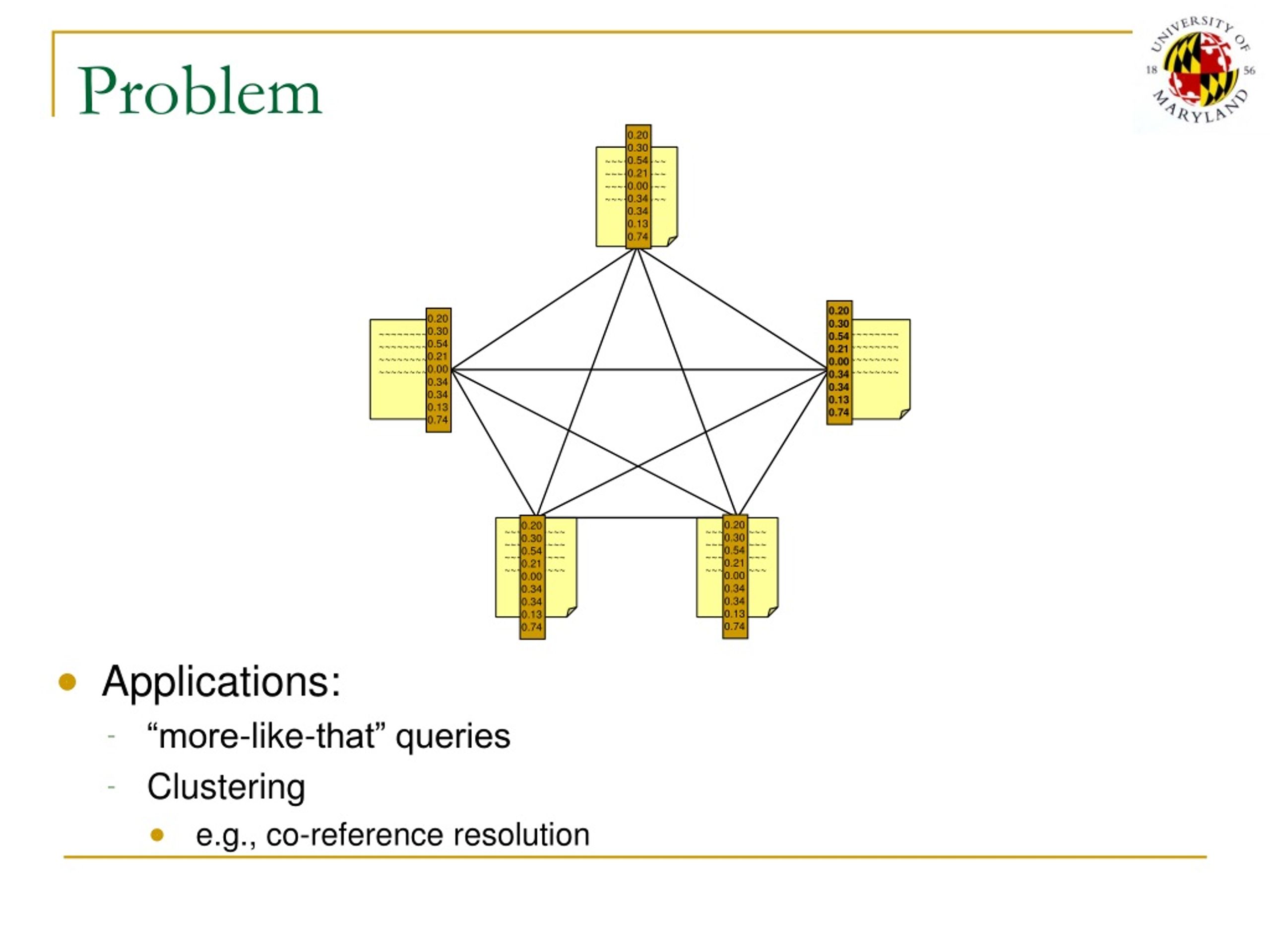

2. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 0.20 0.30 0.54 0.21 0.00 0.34 0.34 0.13 0.74 0.20 0.30 0.54 0.21 0.00 0.34 0.34 0.13 0.74 0.20 0.30 0.54 0.21 0.00 0.34 0.34 0.13 0.74 0.20 0.30 0.54 0.21 0.00 0.34 0.34 0.13 0.74 0.20 0.30 0.54 0.21 0.00 0.34 0.34 0.13 0.74 Problem • Applications: • “more-like-that” queries • Clustering • e.g., co-reference resolution

3. Solutions • Trivial • For each pair of vectors • Compute the inner product • Loads each vector O(N) times • Better • Each term contributes only if appears in

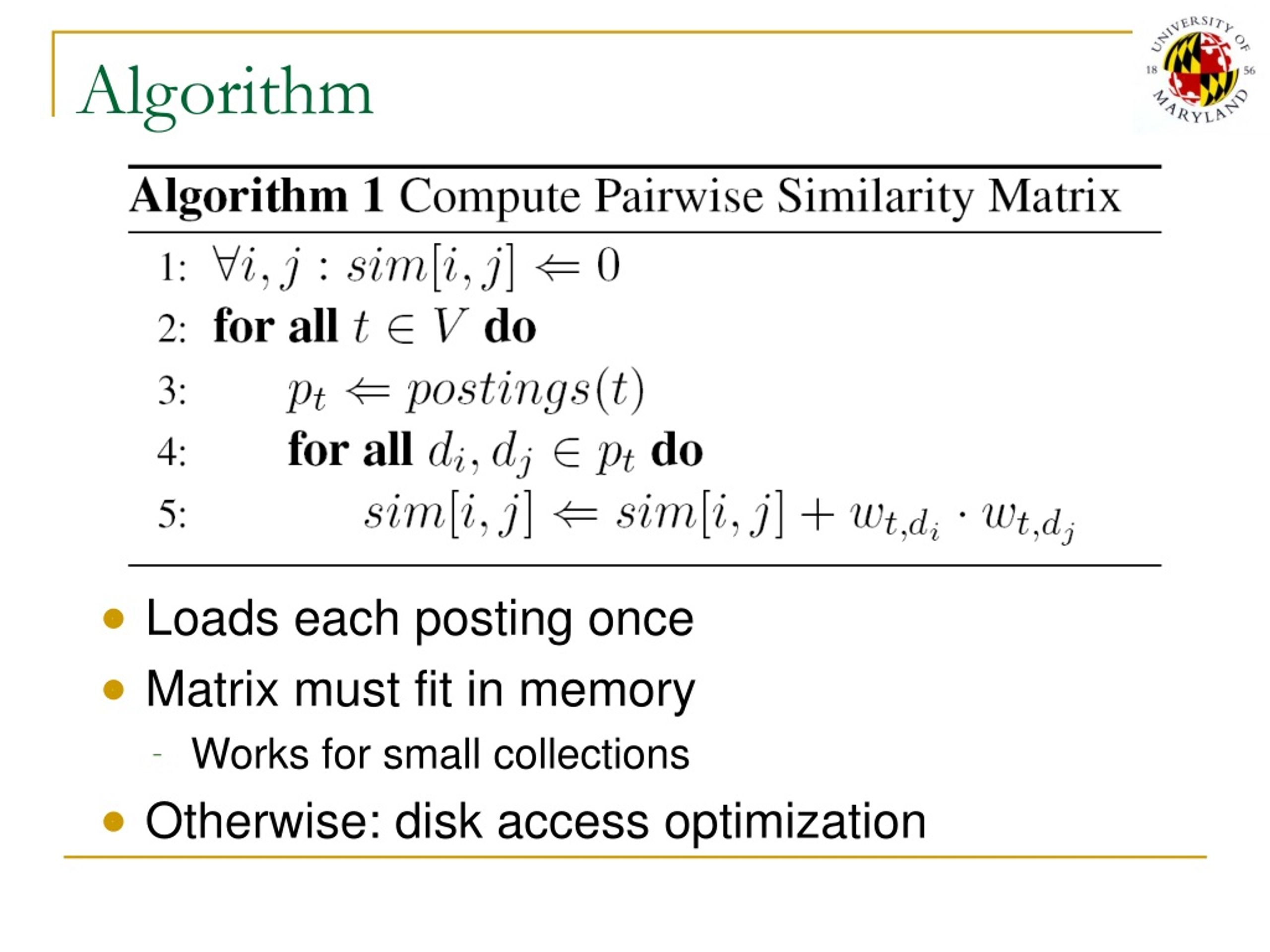

4. Algorithm • Loads each posting once • Matrix must fit in memory • Works for small collections • Otherwise: disk access optimization

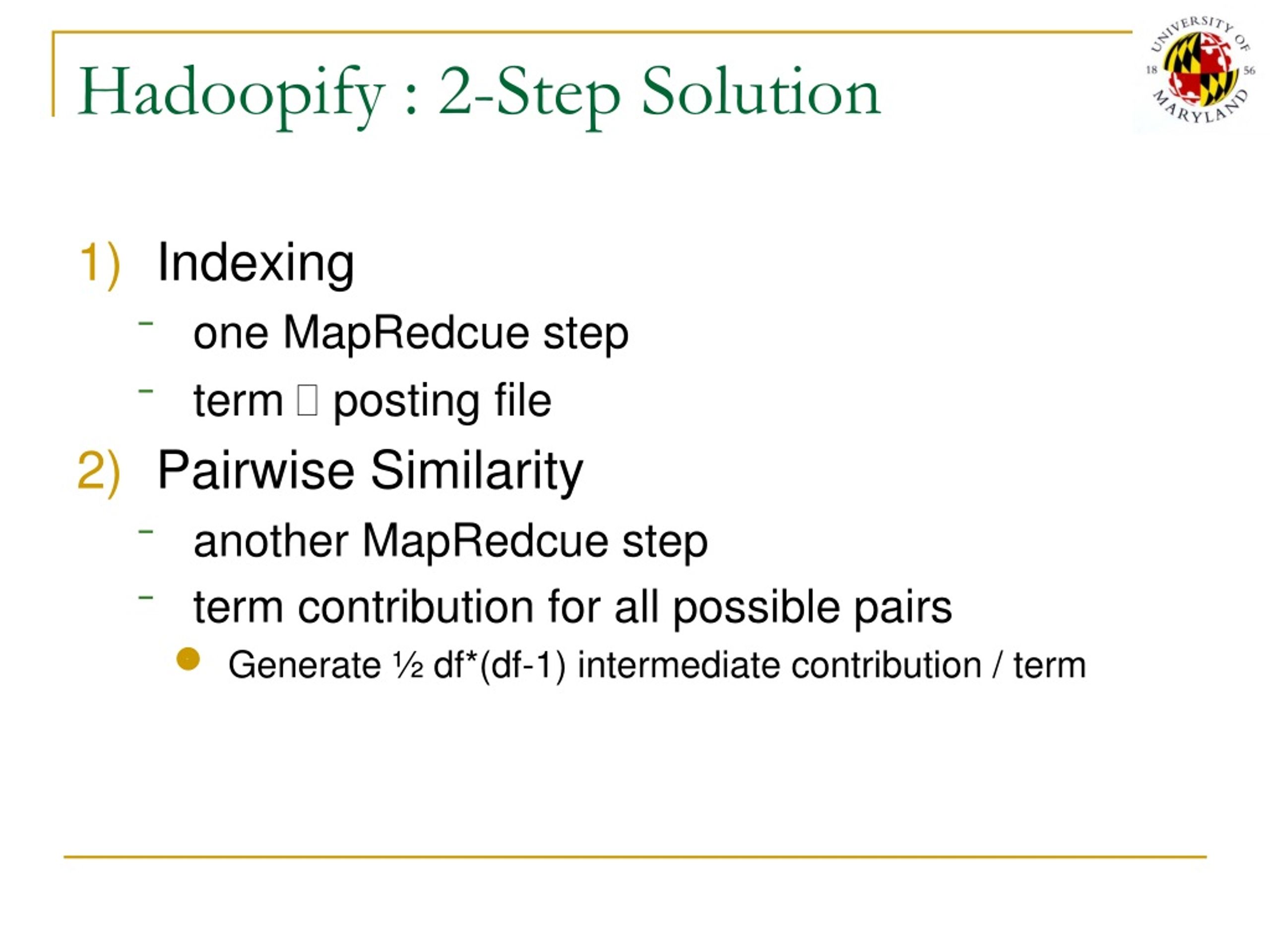

5. Hadoopify : 2-Step Solution • Indexing • one MapRedcue step • term  posting file • Pairwise Similarity • another MapRedcue step • term contribution for all possible pairs • Generate ½ df*(df-1) intermediate contribution / term

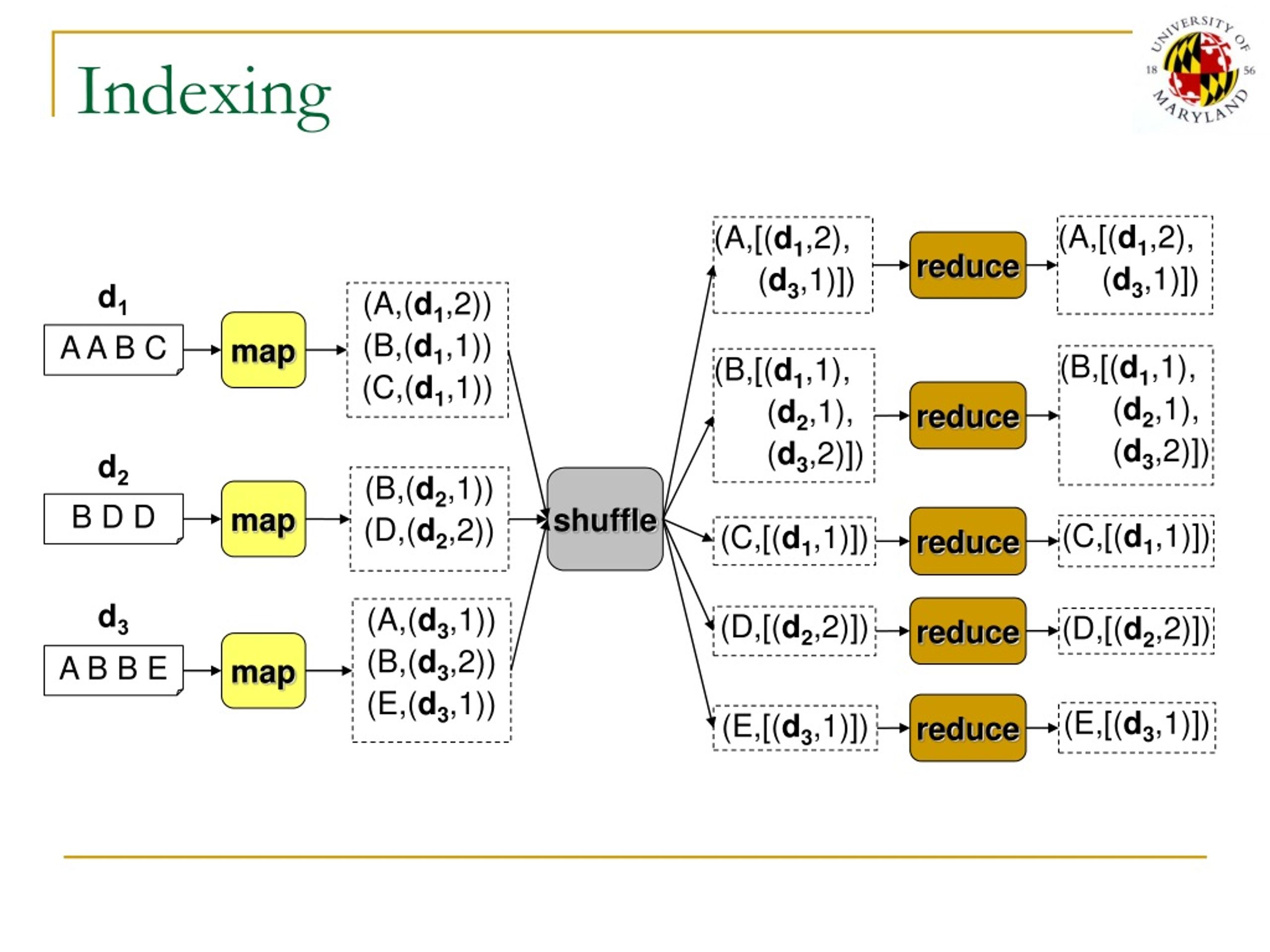

6. Indexing (A,[(d1,2), (d3,1)]) (A,[(d1,2), (d3,1)]) reduce d1 (A,(d1,2)) (B,(d1,1)) (C,(d1,1)) map A A B C (B,[(d1,1), (d2,1), (d3,2)]) (B,[(d1,1), (d2,1), (d3,2)]) reduce d2 (B,(d2,1)) (D,(d2,2)) shuffle map B D D reduce (C,[(d1,1)]) (C,[(d1,1)]) d3 reduce (A,(d3,1)) (B,(d3,2)) (E,(d3,1)) (D,[(d2,2)]) (D,[(d2,2)]) map A B B E reduce (E,[(d3,1)]) (E,[(d3,1)])

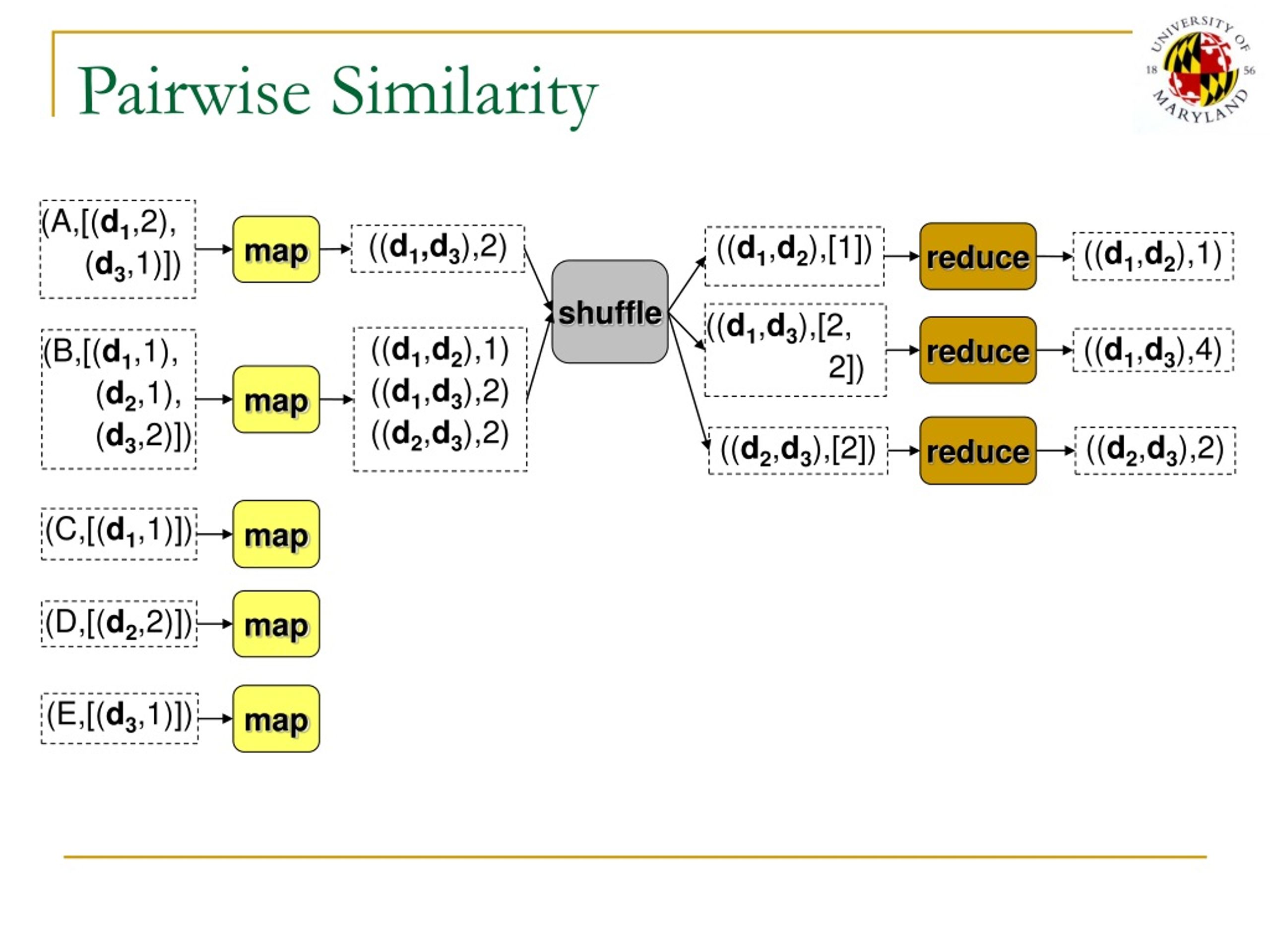

7. Pairwise Similarity (A,[(d1,2), (d3,1)]) map reduce ((d1,d3),2) ((d1,d2),[1]) ((d1,d2),1) shuffle ((d1,d3),[2, 2]) reduce ((d1,d2),1) ((d1,d3),2) ((d2,d3),2) ((d1,d3),4) (B,[(d1,1), (d2,1), (d3,2)]) map reduce ((d2,d3),2) ((d2,d3),[2]) map (C,[(d1,1)]) map (D,[(d2,2)]) map (E,[(d3,1)])

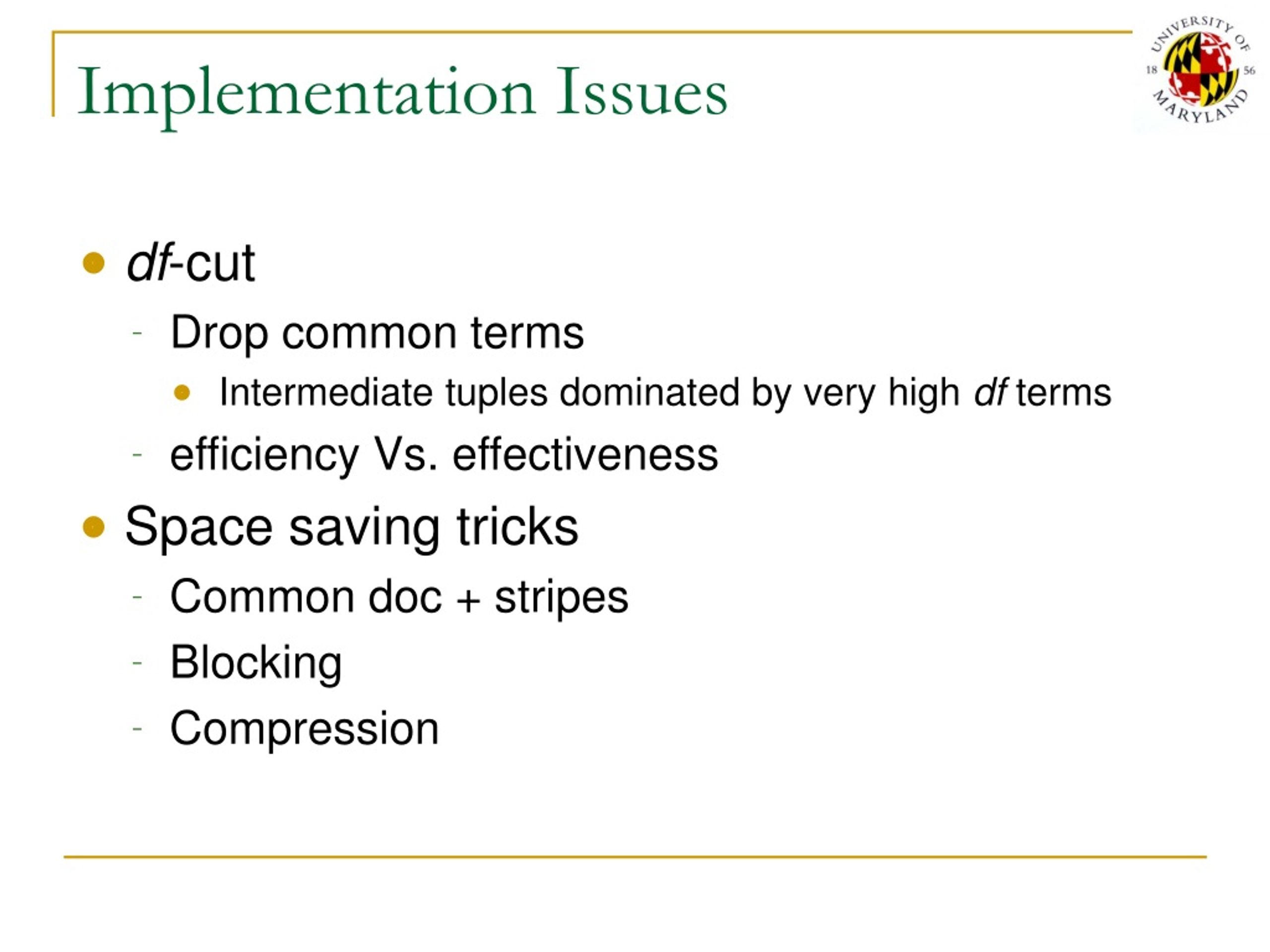

8. Implementation Issues • df-cut • Drop common terms • Intermediate tuples dominated by very high df terms • efficiency Vs. effectiveness • Space saving tricks • Common doc + stripes • Blocking • Compression

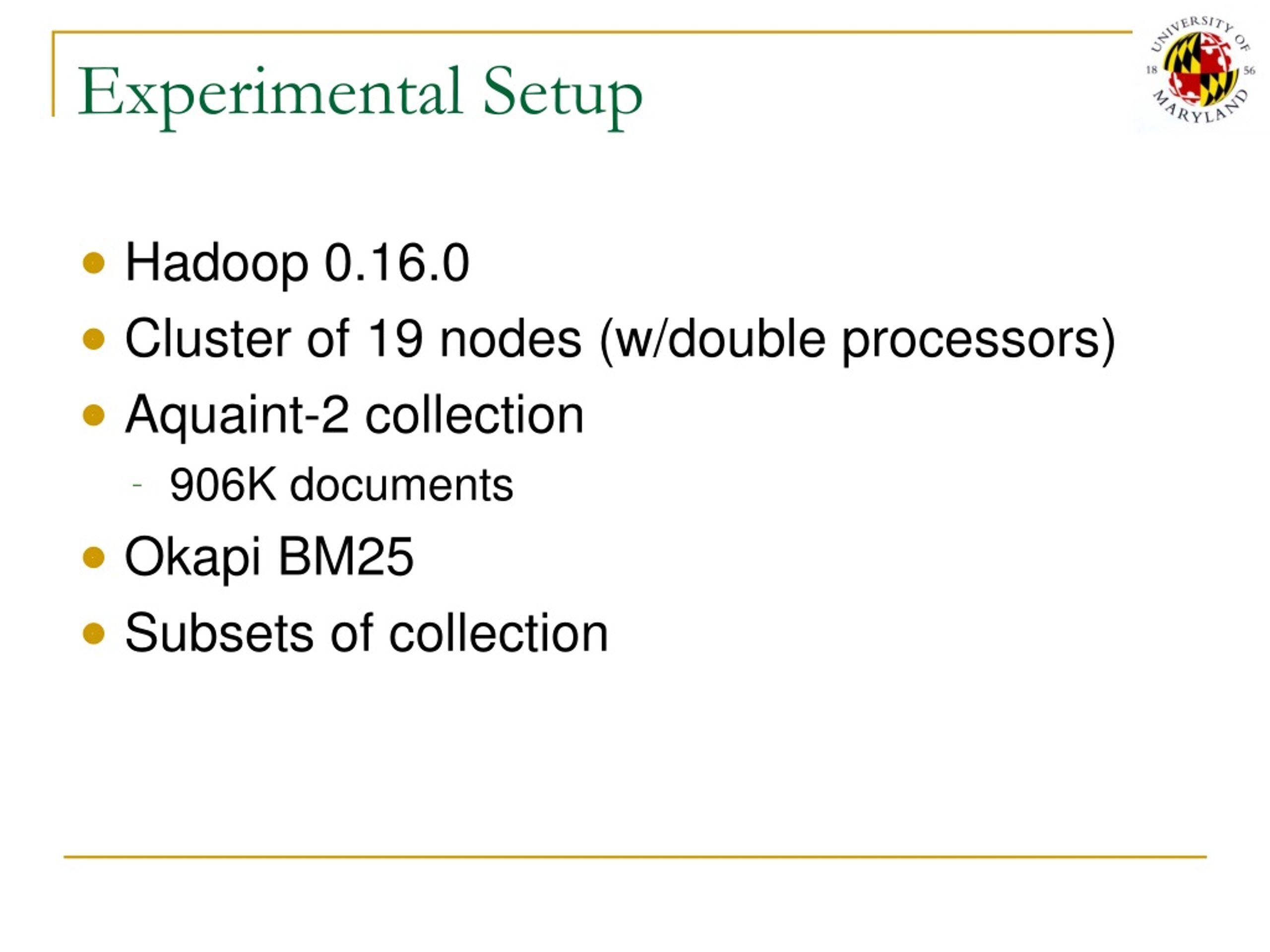

9. Experimental Setup • Hadoop 0.16.0 • Cluster of 19 nodes (w/double processors) • Aquaint-2 collection • 906K documents • Okapi BM25 • Subsets of collection

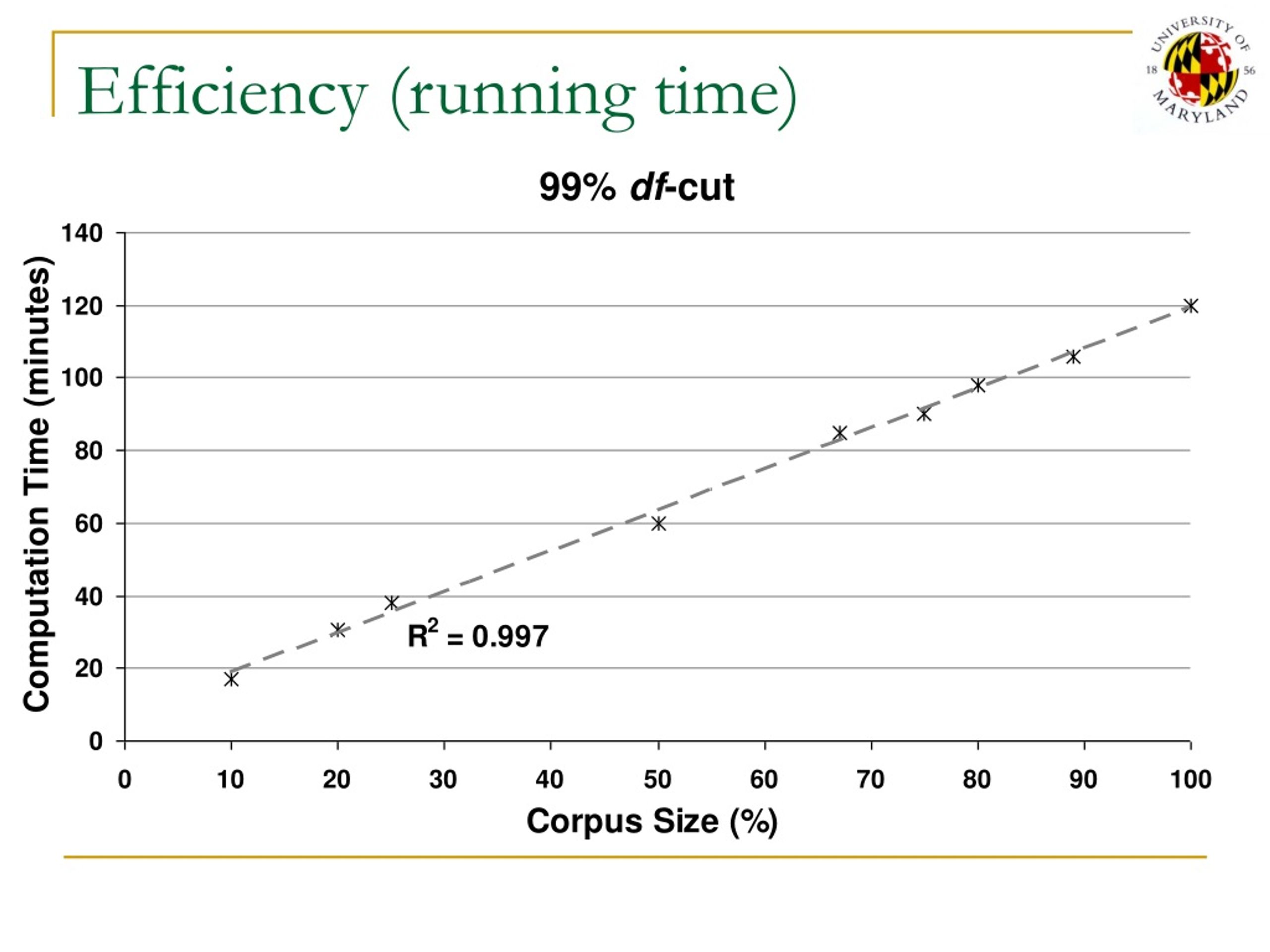

10. Efficiency (running time) 99% df-cut

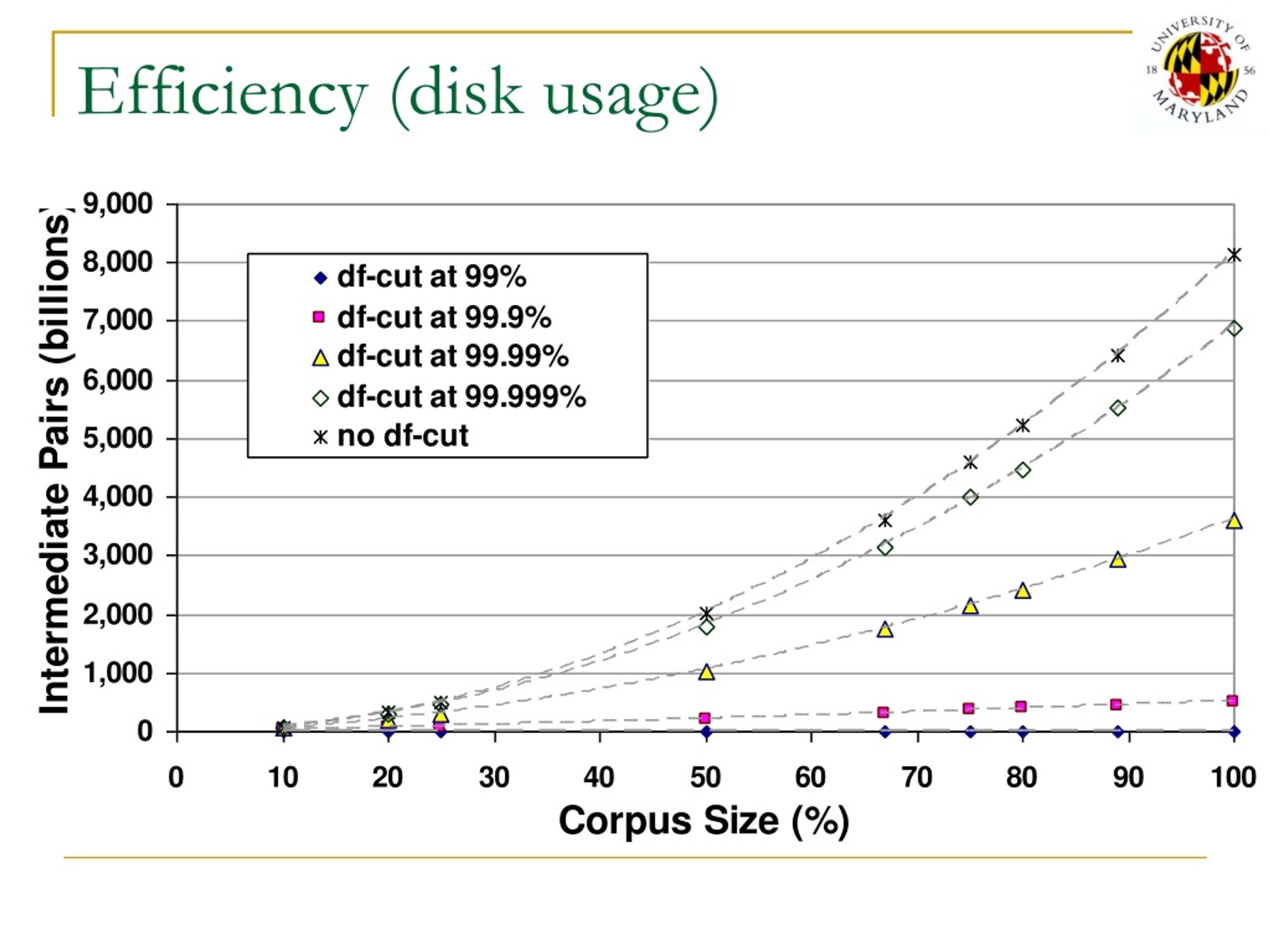

11. Efficiency (disk usage)

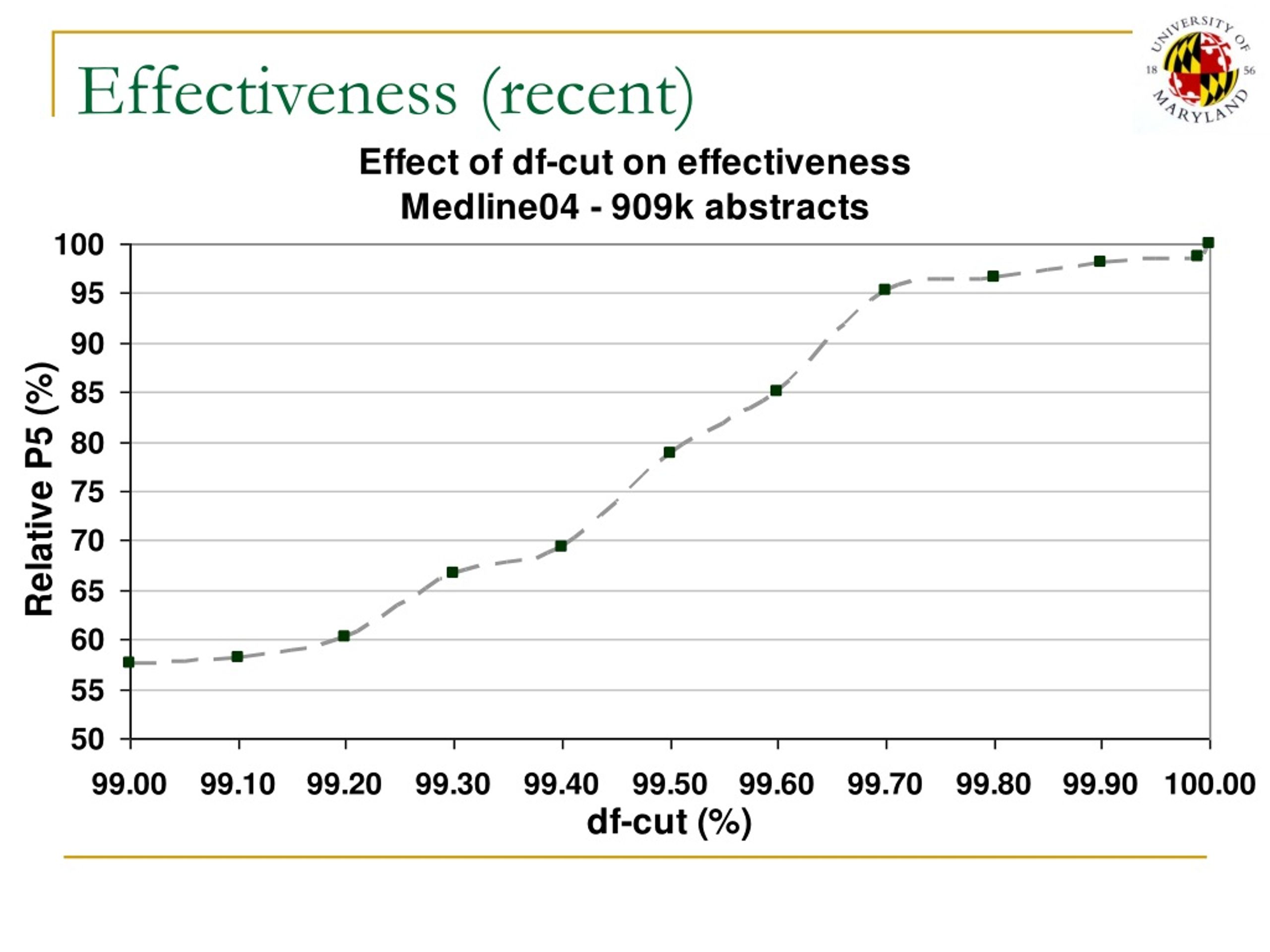

12. Effectiveness (recent)

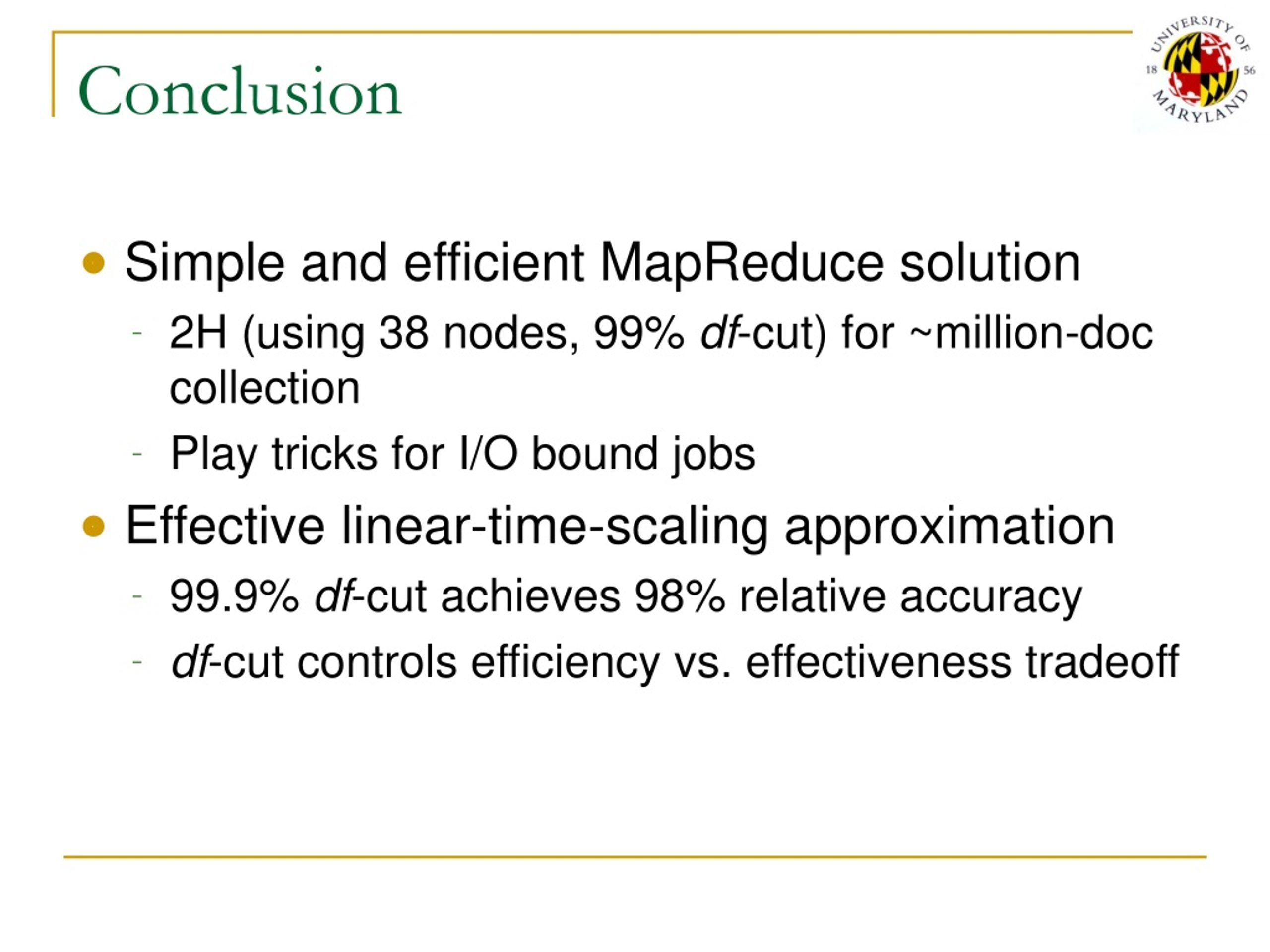

13. Conclusion • Simple and efficient MapReduce solution • 2H (using 38 nodes, 99% df-cut) for ~million-doc collection • Play tricks for I/O bound jobs • Effective linear-time-scaling approximation • 99.9% df-cut achieves 98% relative accuracy • df-cut controls efficiency vs. effectiveness tradeoff

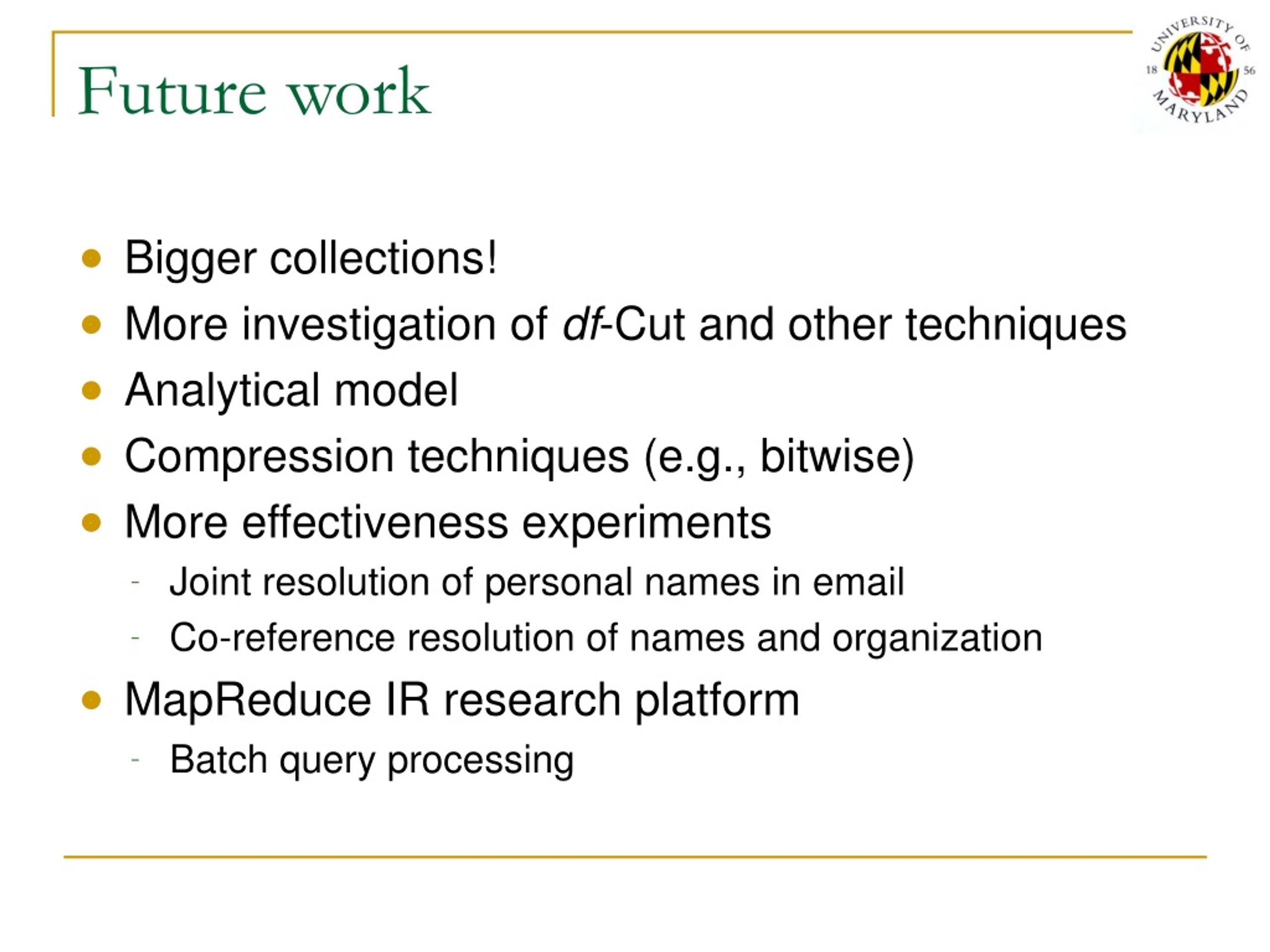

14. Future work • Bigger collections! • More investigation of df-Cut and other techniques • Analytical model • Compression techniques (e.g., bitwise) • More effectiveness experiments • Joint resolution of personal names in email • Co-reference resolution of names and organization • MapReduce IR research platform • Batch query processing

15. Thank You!

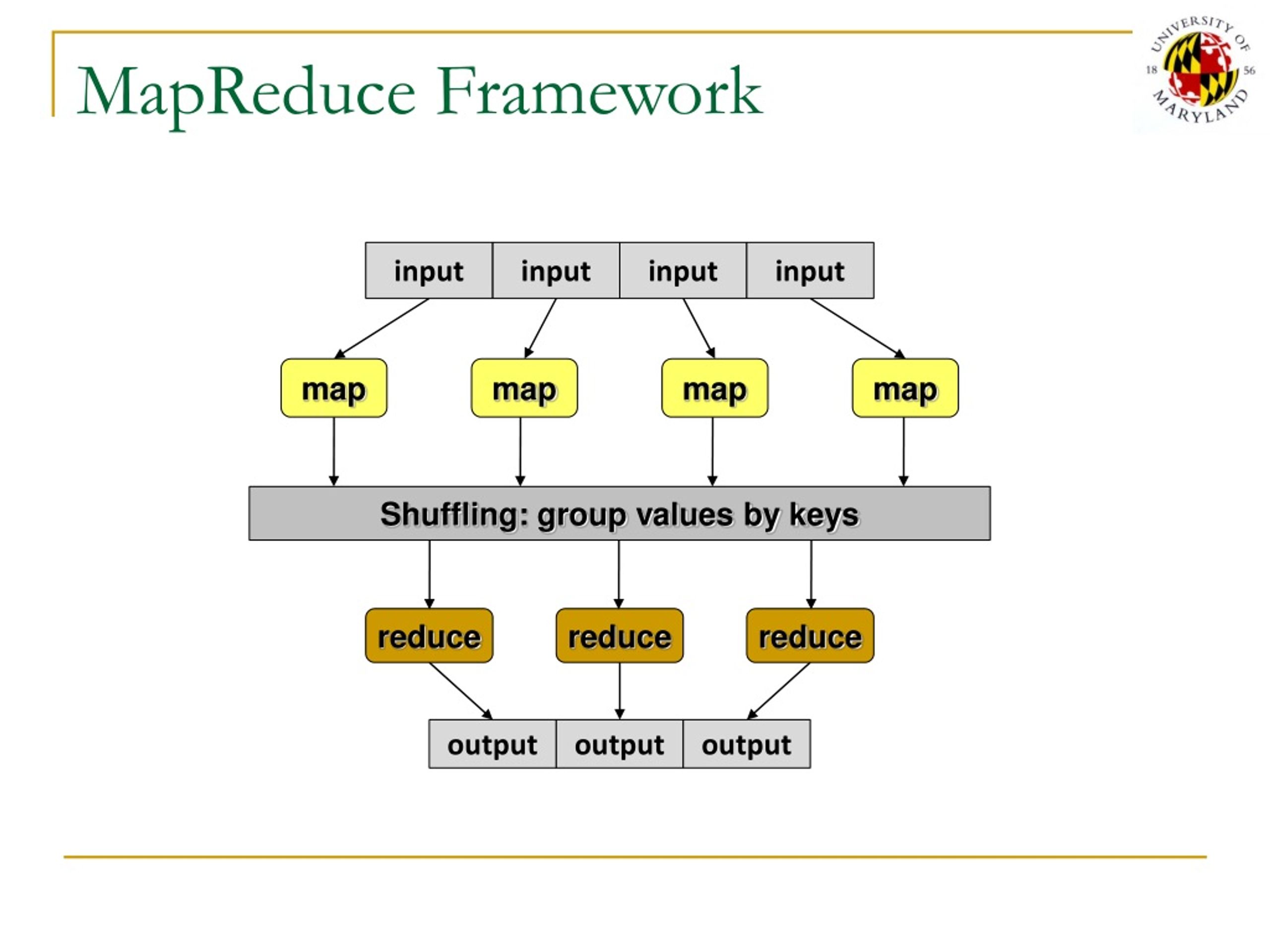

16. MapReduce Framework input input input input map map map map Shuffling: group values by keys reduce reduce reduce output output output
