  1. Bioremediation

  2. Bioremediation ? • Biology + Remediation = Bioremediation • Biological organisms (bacteria, fungi, plant) • Method used to clean the contaminated area • High toxic to less toxic (or) non toxic

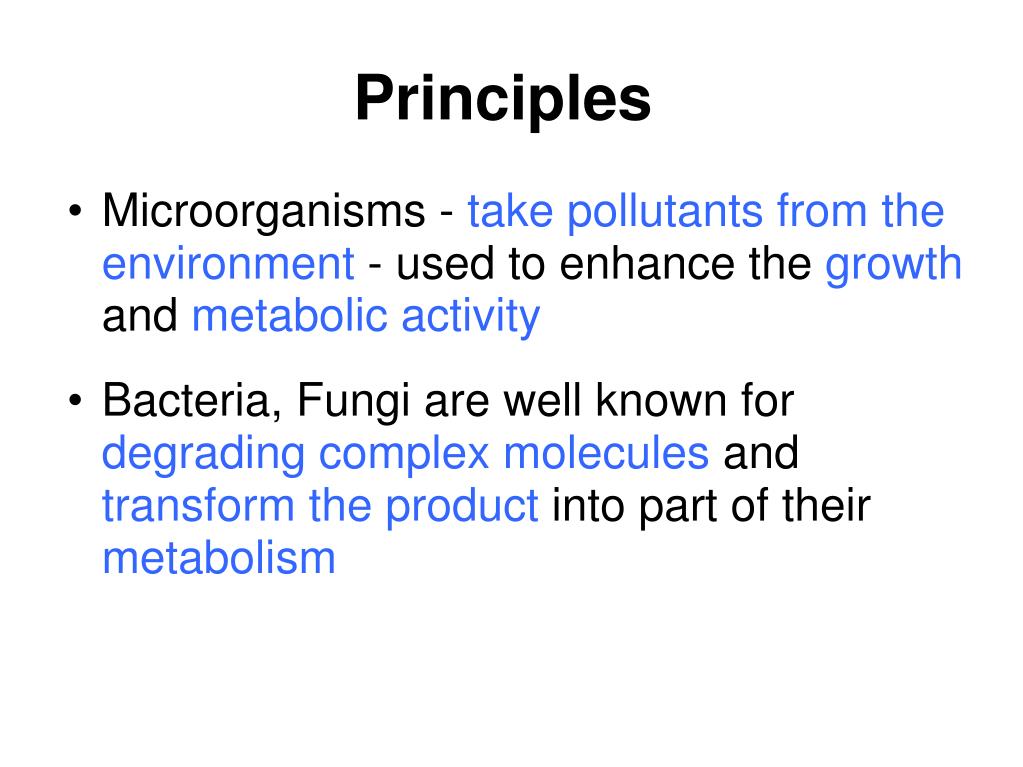

  3. Principles • Microorganisms - take pollutants from the environment - used to enhance the growth and metabolic activity • Bacteria, Fungi are well known for degrading complex molecules and transform the product into part of their metabolism

  4. Definition • The process whereby organic wastes are biologically degraded under controlled conditions to an innocuous state. • Bioremediation is the use of living organisms, primarily microorganisms, to degrade the environmental contaminants into less toxic forms.

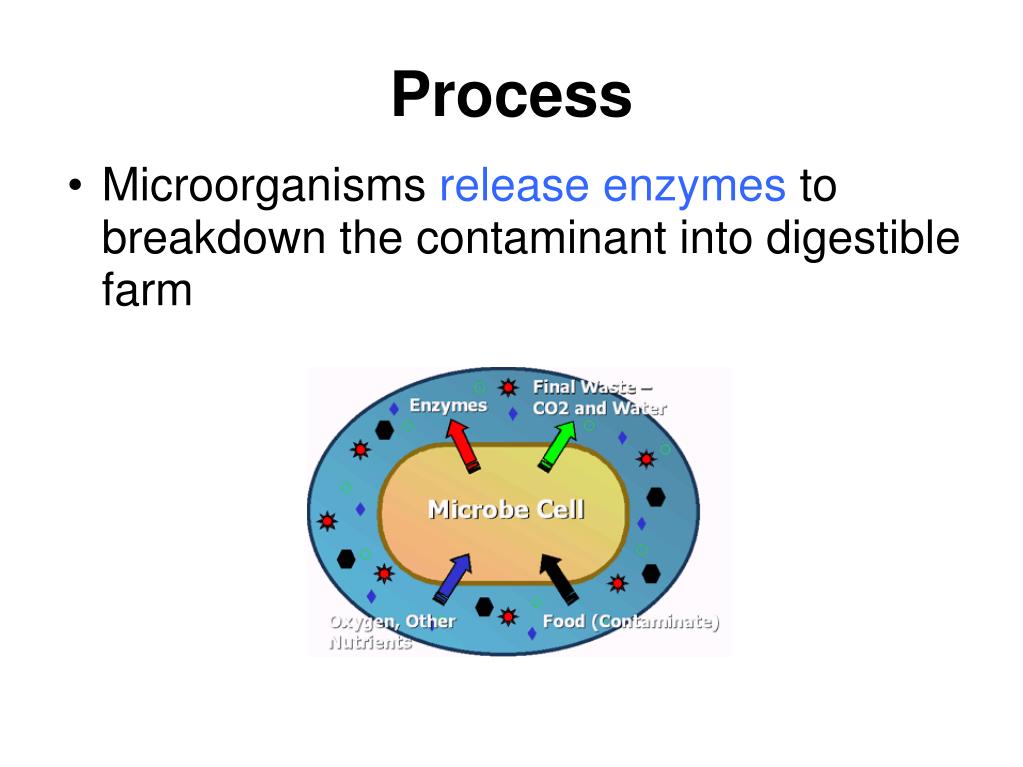

  5. Process • Microorganisms release enzymes to breakdown the contaminant into digestible farm

  6. BIOREMEDIATION Ex situ In situ Bioventing Land farming Biosparging Compost Biostimulation Biopiles Bioaugmentation Bioreactors Phytoremediation

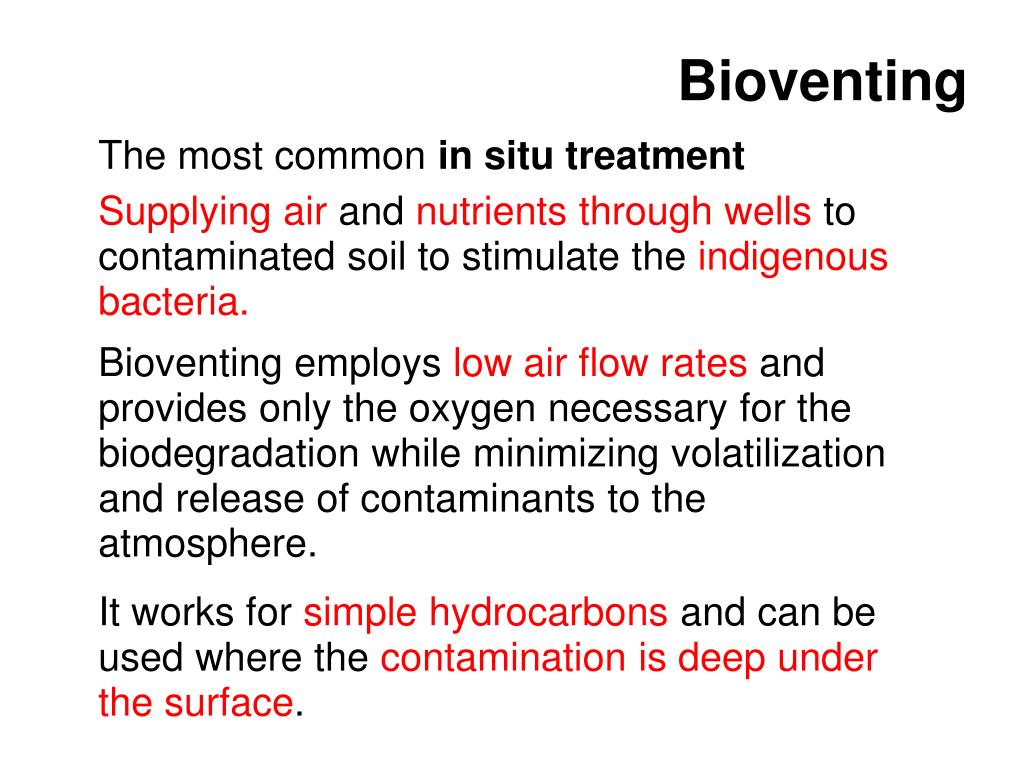

  7. Bioventing The most common in situ treatment Supplying air and nutrientsthrough wells to contaminated soil to stimulate the indigenous bacteria. Bioventing employs low air flow rates and provides only the oxygen necessary for the biodegradation while minimizing volatilization and release of contaminants to the atmosphere. It works for simple hydrocarbons and can be used where the contamination is deep under the surface.

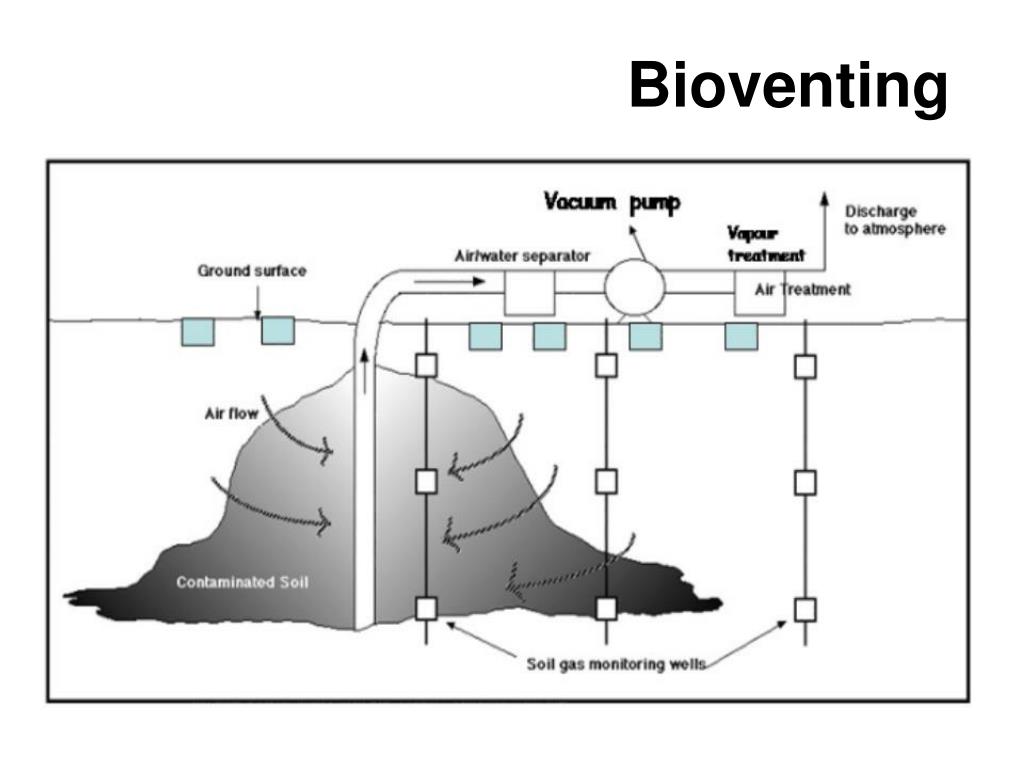

  8. Bioventing

  9. Biosparging involves the injection of air under pressurebelow the water table to increase groundwater oxygen concentrations and enhance the rate of biological degradation of contaminants by naturally occurring bacteria. • Biosparging increases the mixing in the saturated zone and there by increases the contact between soil and groundwater. • Low cost of installing small - diameter air injection points allows considerable flexibility in the design and construction of the system. Biosparging

  10. Biosparging

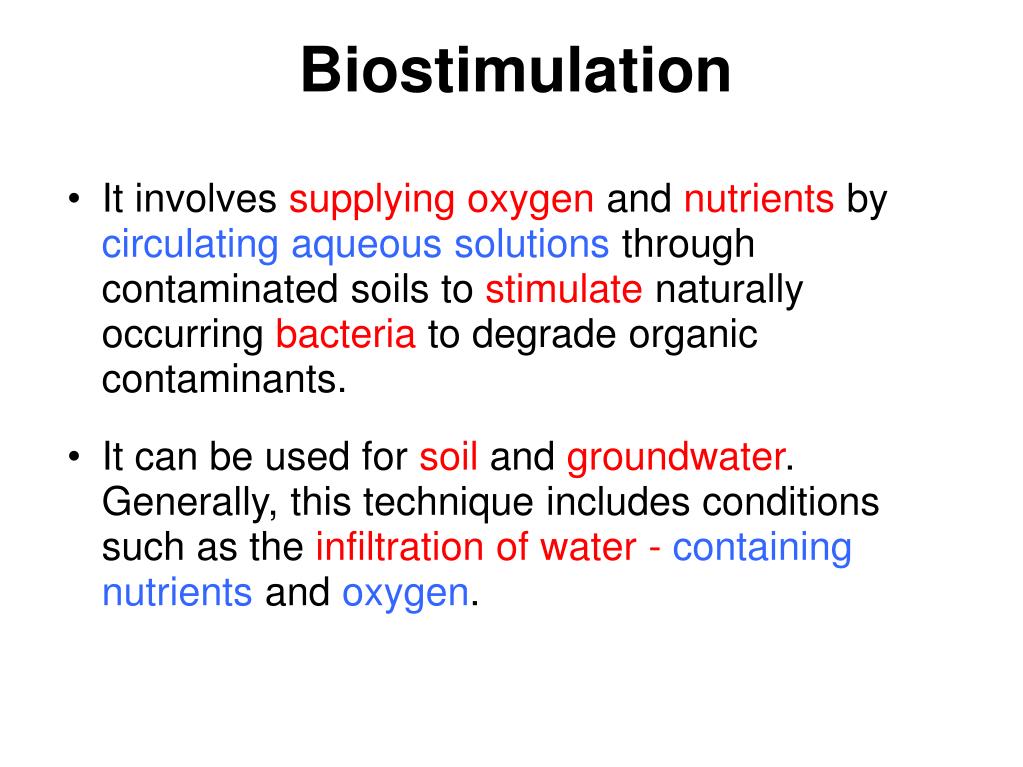

  11. Biostimulation • It involves supplying oxygen and nutrients by circulating aqueous solutions through contaminated soils to stimulate naturally occurring bacteria to degrade organic contaminants. • It can be used for soil and groundwater. Generally, this technique includes conditions such as the infiltration of water - containing nutrients and oxygen.

  12. Bioaugumentation • Bioremediation frequently involves the addition of microorganisms indigenous or exogenous to the contaminated sites. • Two factors limit the use of added microbial cultures in a land treatment unit: • 1) nonindigenous cultures rarely compete well enough with an indigenous population to develop and sustain useful population levels and • 2) most soils with long-term exposure to biodegradable waste have indigenous microorganisms that are effective degrades if the land treatment unit is well managed.

  13. It is a simple technique in which contaminated soil is excavated and spread over a prepared bed and periodically tilled until pollutants are degraded. • The goal is to stimulate indigenous biodegradative microorganisms and facilitate their aerobic degradation of contaminants. • In general, the practice is limited to the treatment of superficial 10–35 cm of soil. • Since landfarming has the potential to reduce monitoring and maintenance costs, as well as clean-up liabilities, it has received much attention as a disposal alternative. Land forming

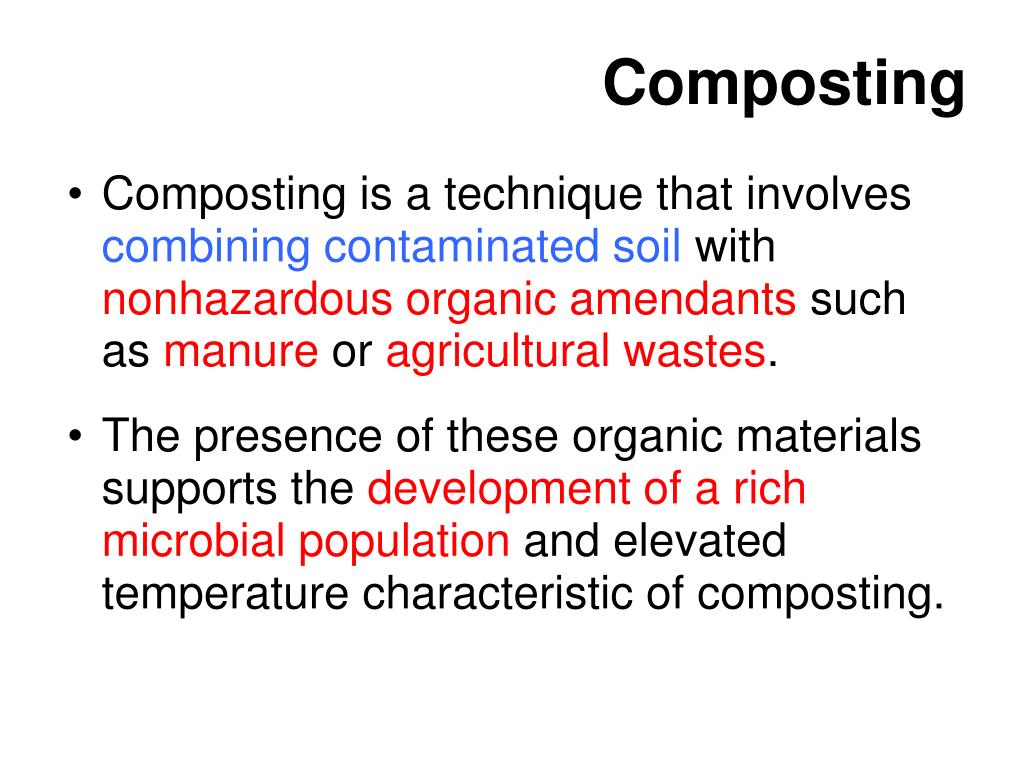

  14. Composting • Composting is a technique that involves combining contaminated soil with nonhazardous organic amendants such as manure or agricultural wastes. • The presence of these organic materials supports the development of a rich microbial population and elevated temperature characteristic of composting.

  15. Biopiles • Biopiles are a hybrid of landfarming and composting. Essentially, engineered cells are constructed as aerated composted piles. • Typically used for treatment of surface contamination with petroleum hydrocarbons they are a refined version of landfarming that tend to control physical losses of the contaminants by leaching and volatilization. • Biopiles provide a favorable environment for indigenous aerobic and anaerobic microorganisms.

  16. Bioreactors • Slurry reactors or aqueous reactors are used for ex situ treatment of contaminated soil and water pumped up from a contaminated plume. • Bioremediation in reactors involves the processing of contaminated solid material(soil, sediment, sludge) or water through an engineered containment system. • A slurry bioreactor may be defined as a containment vessel and apparatus used to create a three - phase (solid, liquid, and gas) mixing condition to increase the bioremediation rate of soil bound and water-soluble pollutants as a water slurry of the contaminated soil and biomass (usually indigenous microorganisms) capable of degrading target contaminants.

  17. Phytoremediation • Plants have been commonly used for the bioremediation process called Phytoremedation, which is to use plants to decontaminated soil and water by extracting heavy metals or contaminants. • Plants that are grown in polluted soil are specialized for the process of Phytoremedation. • The plants roots can extract the contaminant, heavy metals, by one of the two ways, either break the contaminant down in the soil or to suck the contaminant up, and store it in the stem and leaves of the plant. • Usually the plant will be harvest and removed from the site and burned. • Phytoremediation process is used to satisfy environmental regulation and costs less then other alternatives. • This process is very affective in cleaning polluted soil.

  18. Types • Phytoextraction • Phytotransformation • Phytostabilisation • Phytodegradation • Rhizofiltration

  19. Phytoextraction • The plants to accumulate contaminants into the roots and aboveground shoots or leaves. • This technique saves tremendous remediation cost by accumulating low levels of contaminants from a widespread area. • Unlike the degradation mechanisms, this process produces a mass of plants and contaminants (usually metals) that can be transported for disposal or recycling.

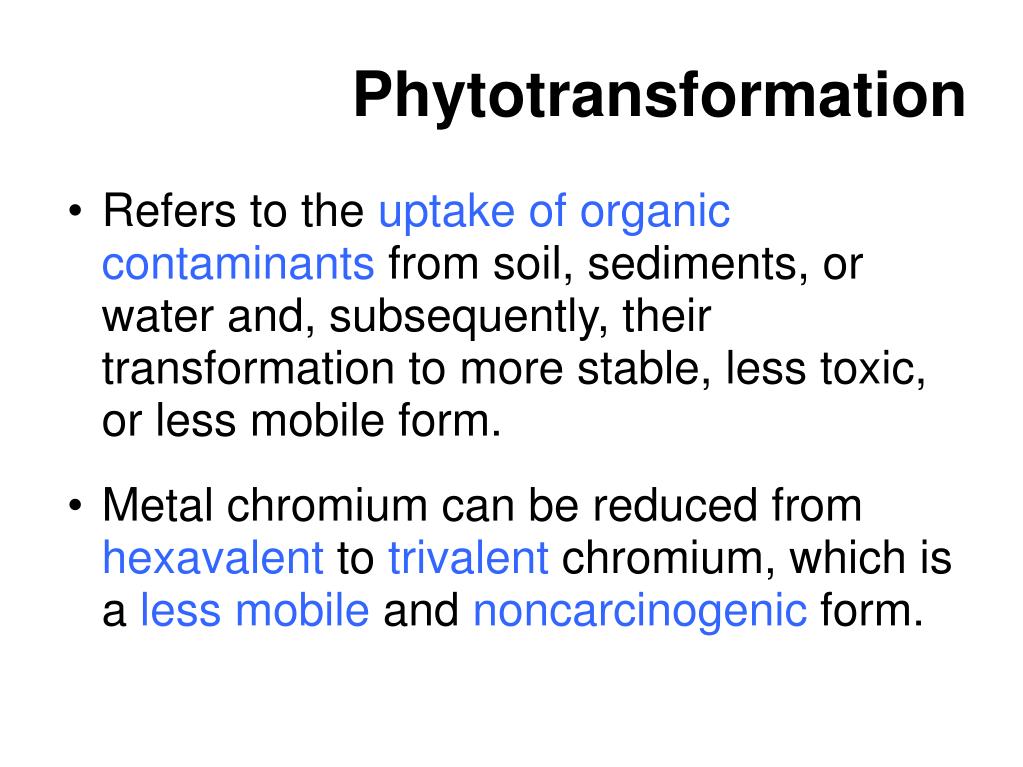

  20. Phytotransformation • Refers to the uptake of organic contaminants from soil, sediments, or water and, subsequently, their transformation to more stable, less toxic, or less mobile form. • Metal chromium can be reduced from hexavalent to trivalent chromium, which is a less mobile and noncarcinogenic form.

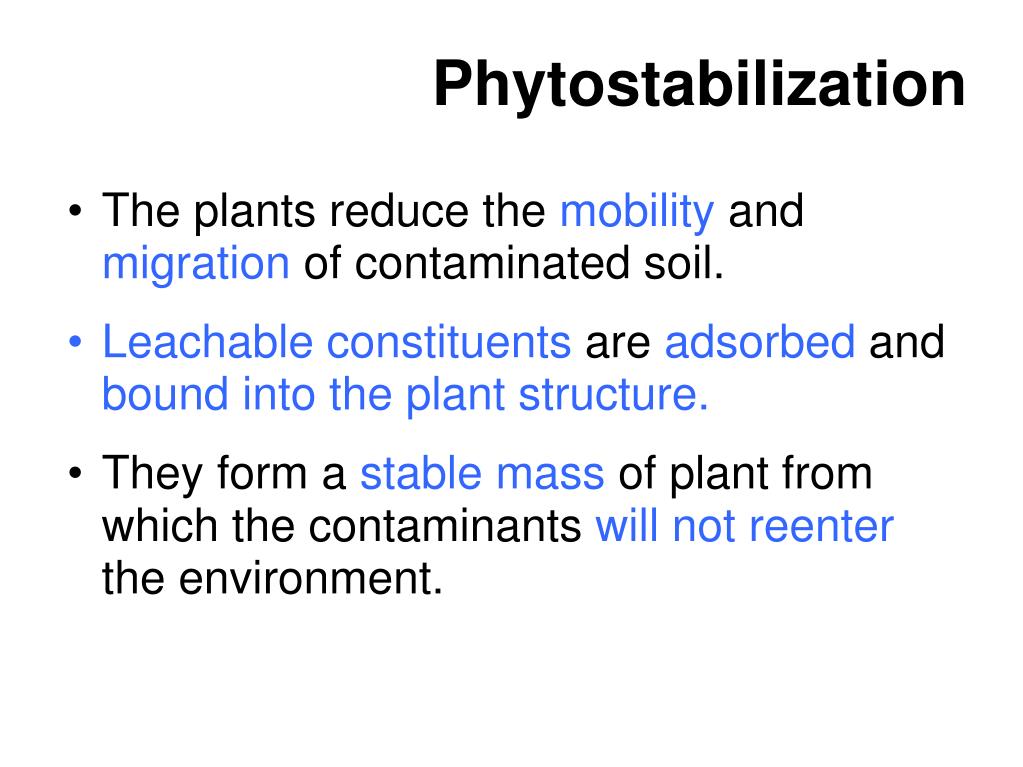

  21. Phytostabilization • The plants reduce the mobility and migration of contaminated soil. • Leachable constituents are adsorbed and bound into the plant structure. • They form a stable mass of plant from which the contaminants will not reenter the environment.

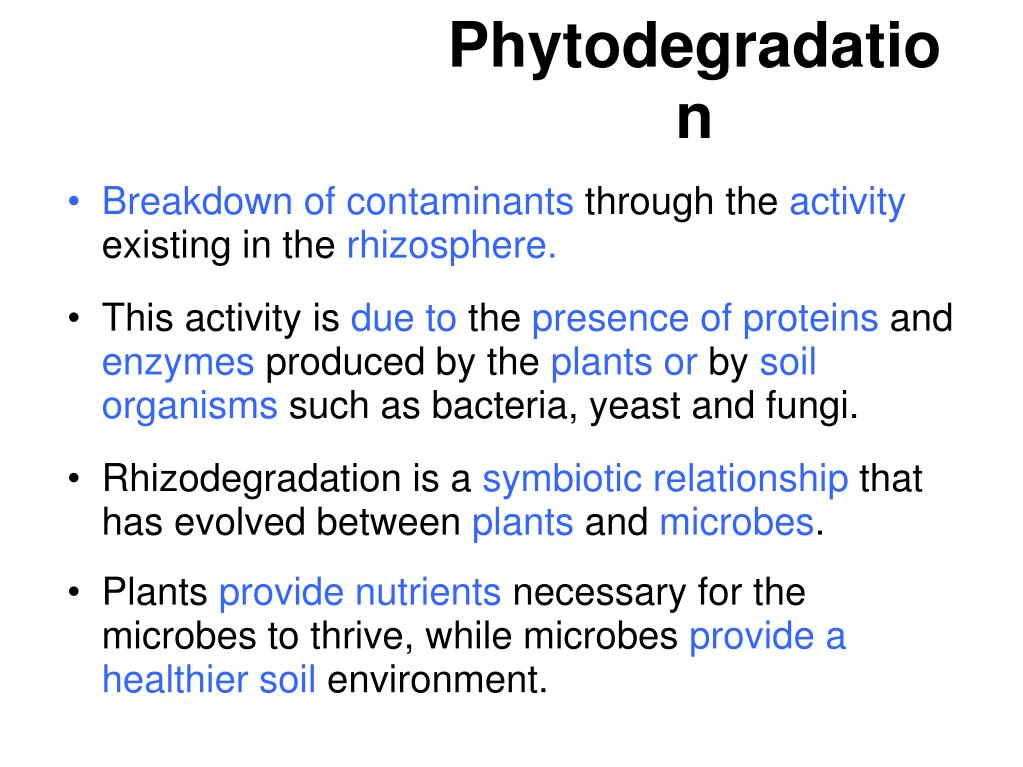

  22. Phytodegradation • Breakdown of contaminants through the activity existing in the rhizosphere. • This activity is due to the presence of proteins and enzymes produced by the plantsor by soil organisms such as bacteria, yeast and fungi. • Rhizodegradation is a symbiotic relationship that has evolved between plants and microbes. • Plants provide nutrients necessary for the microbes to thrive, while microbes provide a healthier soil environment.

  23. Rhizofiltration • It is a water remediation technique that involves the uptake of contaminants by plant roots. • Rhizofiltration is used to reduce contamination in natural wetlands and estuary areas.

  24. Limitations of Bioremediation • Contaminant type & Concentration • Environment • Soil type condition & Proximity of ground water • Nature of organism • Cost benefit ratios : Cost Vs Env. Impact • Does not apply to all surface • Length of bioremediation process

  25. Advantages • Minimal exposure of on site workers to the contaminant • Long term protection of public health • The Cheapest of all methods of pollutant removal • The process can be done on site with a minimum amount of space and equipment • Eliminates the need to transport of hazardous material • Uses natural process • Transform pollutants instead of simply moving them from one media to another • Perform the degradation in an acceptable time frame

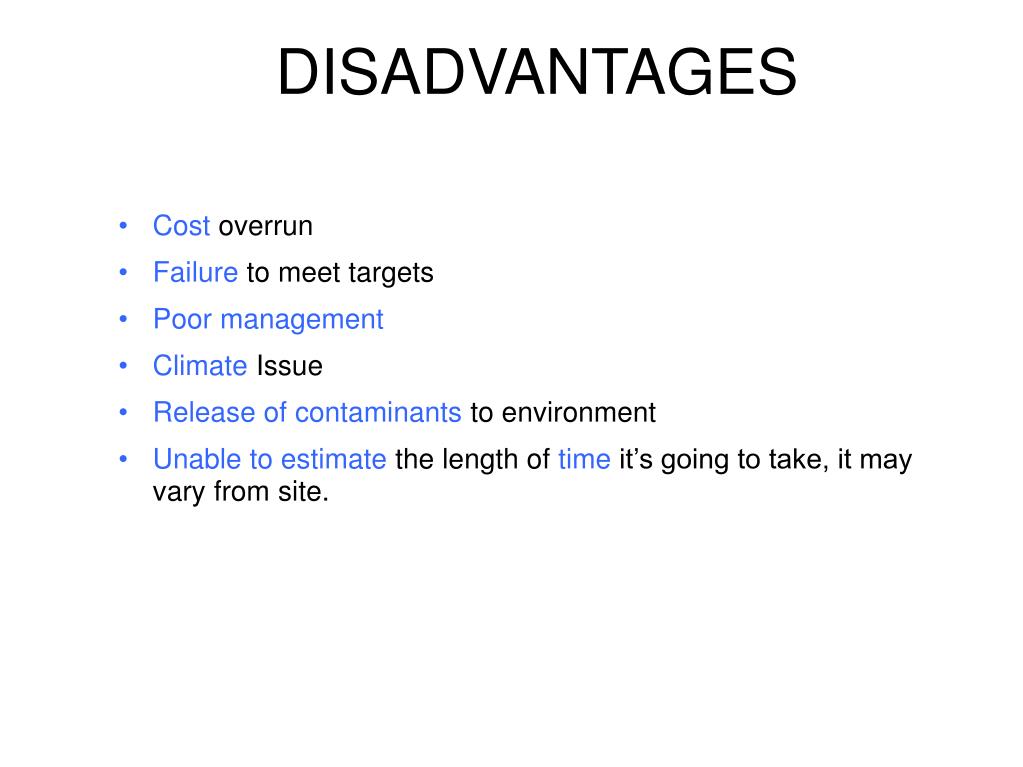

  26. DISADVANTAGES • Cost overrun • Failure to meet targets • Poor management • Climate Issue • Release of contaminants to environment • Unable to estimate the length of time it’s going to take, it may vary from site.

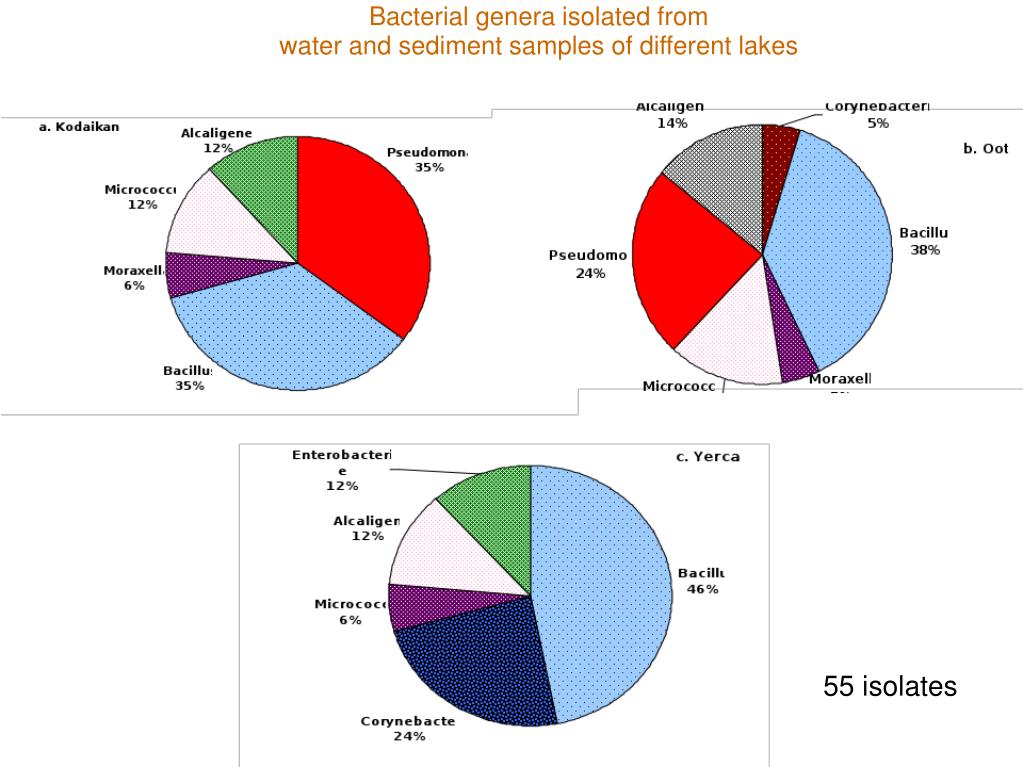

  27. Bacterial genera isolated from water and sediment samples of different lakes 55 isolates

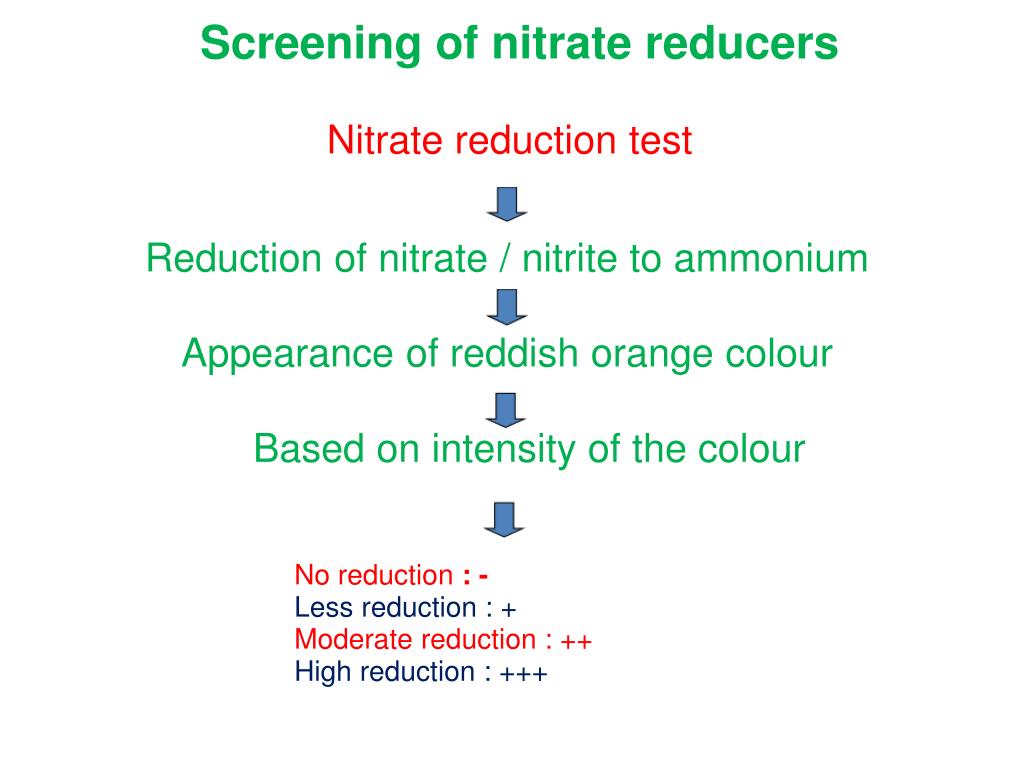

  28. Nitrate reduction test Screening of nitrate reducers Reduction of nitrate / nitrite to ammonium Appearance of reddish orange colour No reduction : - Less reduction : + Moderate reduction : ++ High reduction : +++ Based on intensity of the colour

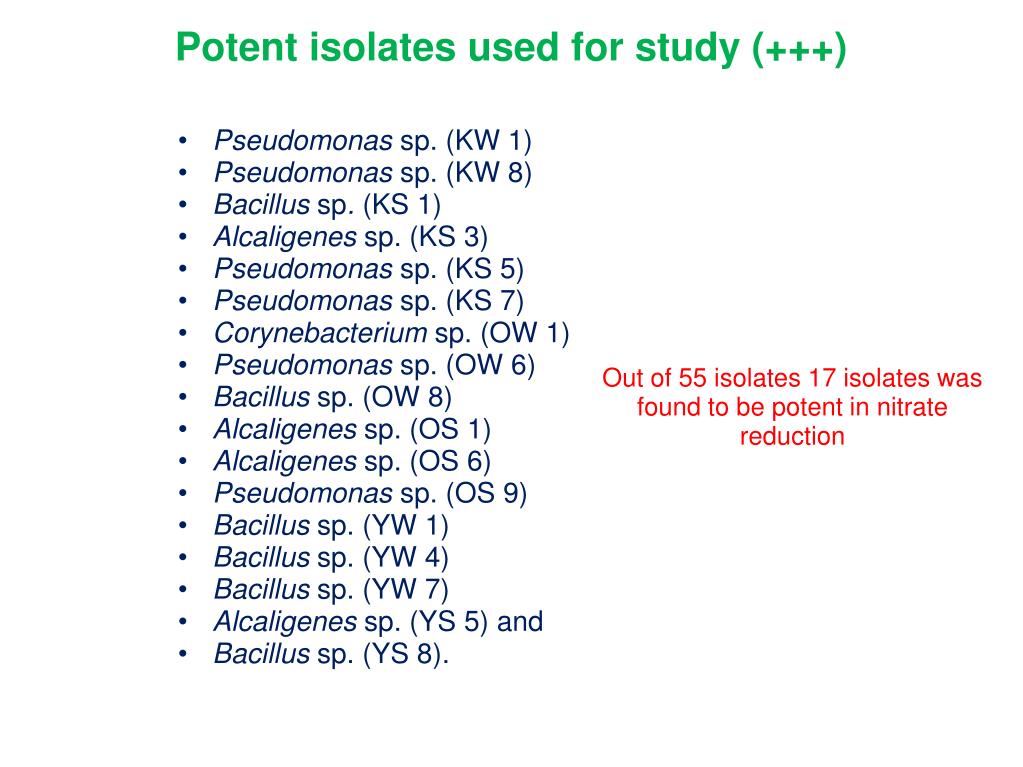

  29. Potent isolates used for study (+++) Out of 55 isolates 17 isolates was found to be potent in nitrate reduction Pseudomonas sp. (KW 1) Pseudomonas sp. (KW 8) Bacillus sp. (KS 1) Alcaligenes sp. (KS 3) Pseudomonas sp. (KS 5) Pseudomonas sp. (KS 7) Corynebacterium sp. (OW 1) Pseudomonas sp. (OW 6) Bacillus sp. (OW 8) Alcaligenes sp. (OS 1) Alcaligenes sp. (OS 6) Pseudomonas sp. (OS 9) Bacillus sp. (YW 1) Bacillus sp. (YW 4) Bacillus sp. (YW 7) Alcaligenes sp. (YS 5) and Bacillus sp. (YS 8).

  30. Nitrate reducing efficiency of bacteria in synthetic medium with 100 mg.L-1 of nitrate at 48 hrs Growth - 95 x 103 cfu.mL-1(KW1) NO3 - 80.2%, 78.9% (KW1, YW4) Nitrite - 0.75 mg.L-1 (YS8) Ammonium - 2.8 mg.L-1 (OS 1)

  31. Based on the above results (> 70%) the following isolates were selected for further analysis of nitrate removal. A - Pseudomonas sp. (KW 1) B - Bacillus sp. (KS 1) C - Corynebacterium sp. (OW 1) D - Pseudomonas sp. (OW 6) E - Bacillus sp. (OW 8) F - Alcaligenes sp. (OS 1) G - Pseudomonas sp. (OS 9) H - Bacillus sp. (YW 4)

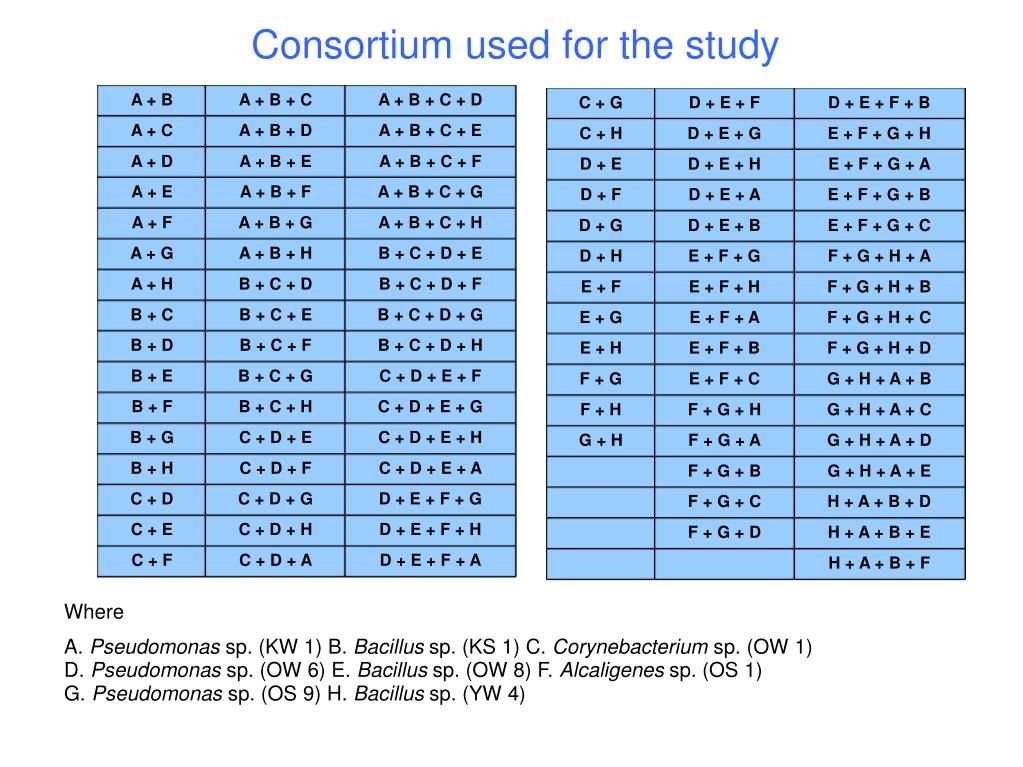

  32. Consortium used for the study A + B A + B + C A + B + C + D C + G D + E + F D + E + F + B A + C A + B + D A + B + C + E C + H D + E + G E + F + G + H A + D A + B + E A + B + C + F D + E D + E + H E + F + G + A A + E A + B + F A + B + C + G D + F D + E + A E + F + G + B A + F A + B + G A + B + C + H D + G D + E + B E + F + G + C A + G A + B + H B + C + D + E D + H E + F + G F + G + H + A A + H B + C + D B + C + D + F E + F E + F + H F + G + H + B B + C B + C + E B + C + D + G E + G E + F + A F + G + H + C B + D B + C + F B + C + D + H E + H E + F + B F + G + H + D B + E B + C + G C + D + E + F F + G E + F + C G + H + A + B B + F B + C + H C + D + E + G F + H F + G + H G + H + A + C B + G C + D + E C + D + E + H G + H F + G + A G + H + A + D B + H C + D + F C + D + E + A F + G + B G + H + A + E C + D C + D + G D + E + F + G F + G + C H + A + B + D C + E C + D + H D + E + F + H F + G + D H + A + B + E C + F C + D + A D + E + F + A H + A + B + F Where A. Pseudomonas sp. (KW 1) B. Bacillus sp. (KS 1) C. Corynebacterium sp. (OW 1) D. Pseudomonas sp. (OW 6) E. Bacillus sp. (OW 8) F. Alcaligenes sp. (OS 1) G. Pseudomonas sp. (OS 9) H. Bacillus sp. (YW 4)

  33. Nitrate reduction by consortium >86% - A+H 45 % - E+F+C < 29 % - Four

  34. From the study A+H (Pseudomonas sp. (KW1) and Bacillus sp. (YW4)) consortia showed maximum nitrate reduction Selected for further kinetic studies (carbon sources, temperature, pH,inoculum dosage) on nitrate removal

  35. Effect of various carbon sources on nitrate removal 100-0.6 mg.L-1 - Starch 86 x 104 - Starch Starch - Less 99.4 % reduction Starch - Less

  36. Effect of various temperatures on nitrate removal in MSM 30oC High reduction High Temp - Decreese > 99 % - 30oC

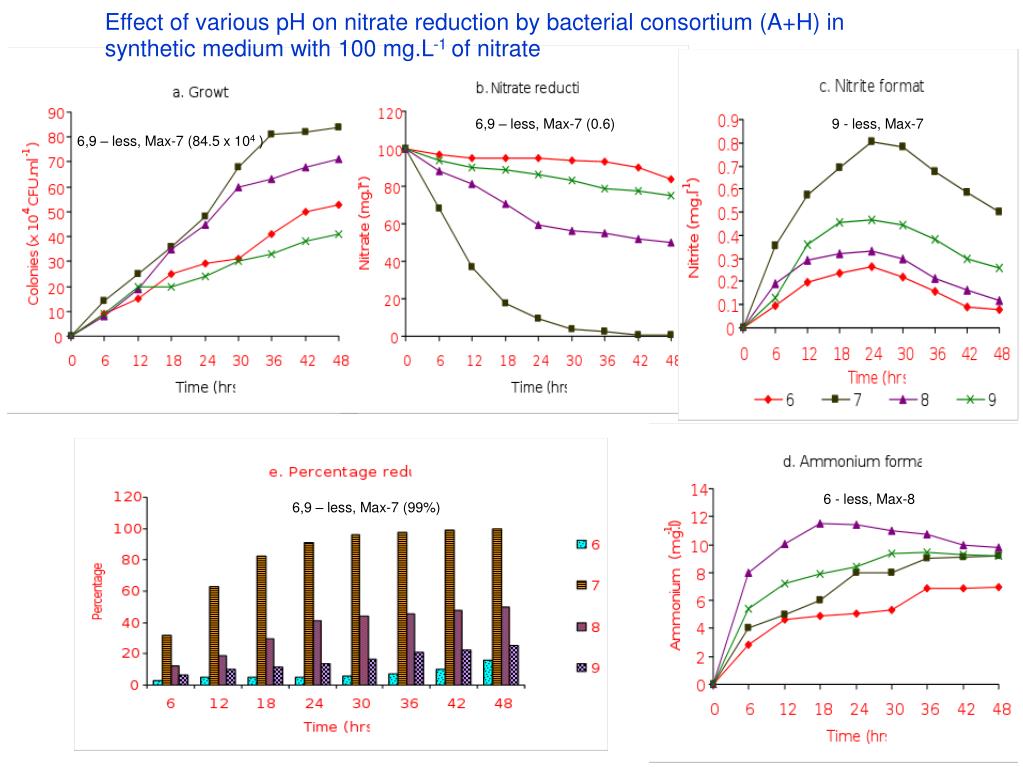

  37. Effect of various pH on nitrate reduction by bacterial consortium (A+H) in synthetic medium with 100 mg.L-1 of nitrate 6,9 – less, Max-7 (0.6) 9 - less, Max-7 6,9 – less, Max-7 (84.5 x 104 ) 6 - less, Max-8 6,9 – less, Max-7 (99%)

  38. Effect of various cell concentrations of bacterial inoculum (A+H) 5% - More Max- 5% (0.5 mgL-1) Max- 5% (105), Less – 1% (85) 5% - 99.8, 1%-99.3 2 % - max

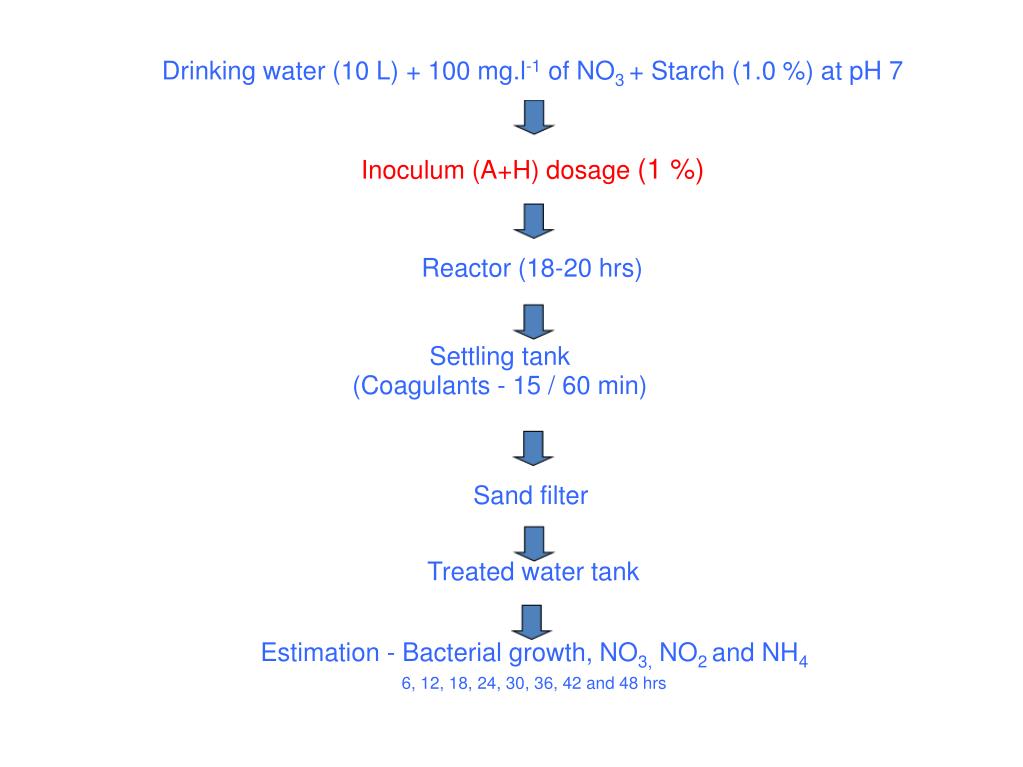

  39. Drinking water (10 L) + 100 mg.l-1 of NO3+ Starch (1.0 %) at pH 7 Inoculum (A+H) dosage (1 %) Reactor (18-20 hrs) Settling tank (Coagulants - 15 / 60 min) Sand filter Treated water tank Estimation - Bacterial growth, NO3, NO2 and NH4 6, 12, 18, 24, 30, 36, 42 and 48 hrs

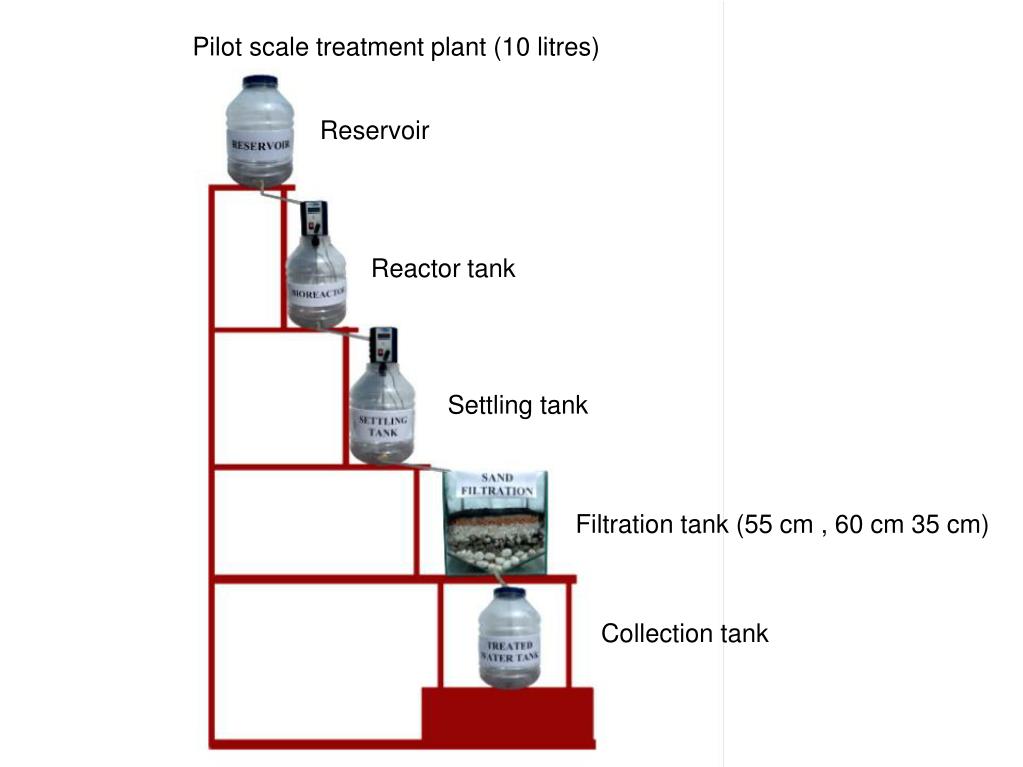

  40. Pilot scale treatment plant (10 litres) Reservoir Reactor tank Settling tank Filtration tank (55 cm , 60 cm 35 cm) Collection tank

  41. Pilot scale study for nitrate removal in drinking water 3.2 - Nitrite 8.4 - Ammonium 85 x 104 – Max 100-0.5 99 % - Nitrate

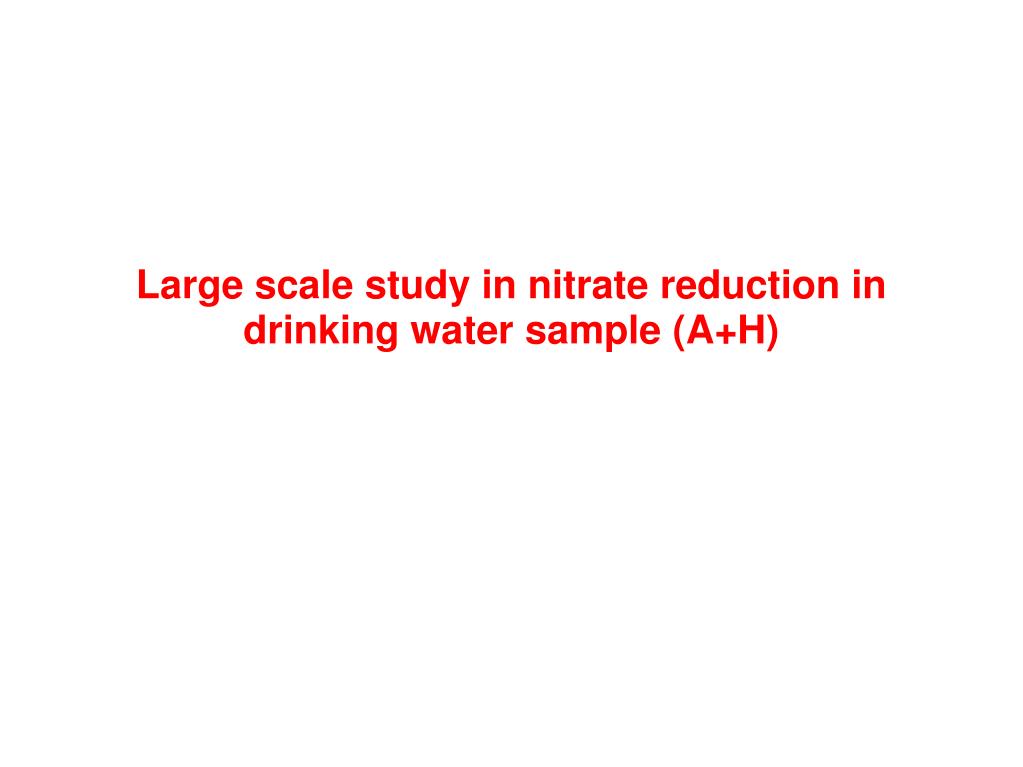

  42. Large scale study in nitrate reduction in drinking water sample (A+H)

  43. Drinking water (1000 L) + 100 mg.l-1 of NO3+ Starch (1.0 %) at pH 7 Inoculum (A+H) dosage (1 %) Reactor (18-20 hrs) Settling tank (Coagulants - 15 / 60 min) Sand filter Treated water tank Estimation - Bacterial growth, NO3, NO2 and NH4 6, 12, 18, 24, 30, 36, 42 and 48 hrs

  44. Large scale treatment plant setup used for the study ( IVC labs & Environmental Services, Chennai) 10L Aeration 75 rpm for 16 – 20 hrs 1000 L Package of filter tank Large pebbles : 2.0 - 2.5 cm (bottom) Small pebbles : 0.7 - 1.5 cm Gravel : 0.4 - 0.6 cm Coarse sand : 0.05 - 0.1 cm Fine sand : 0.15 -0.3 mm Activated carbon : 0.75 - 1.0 m

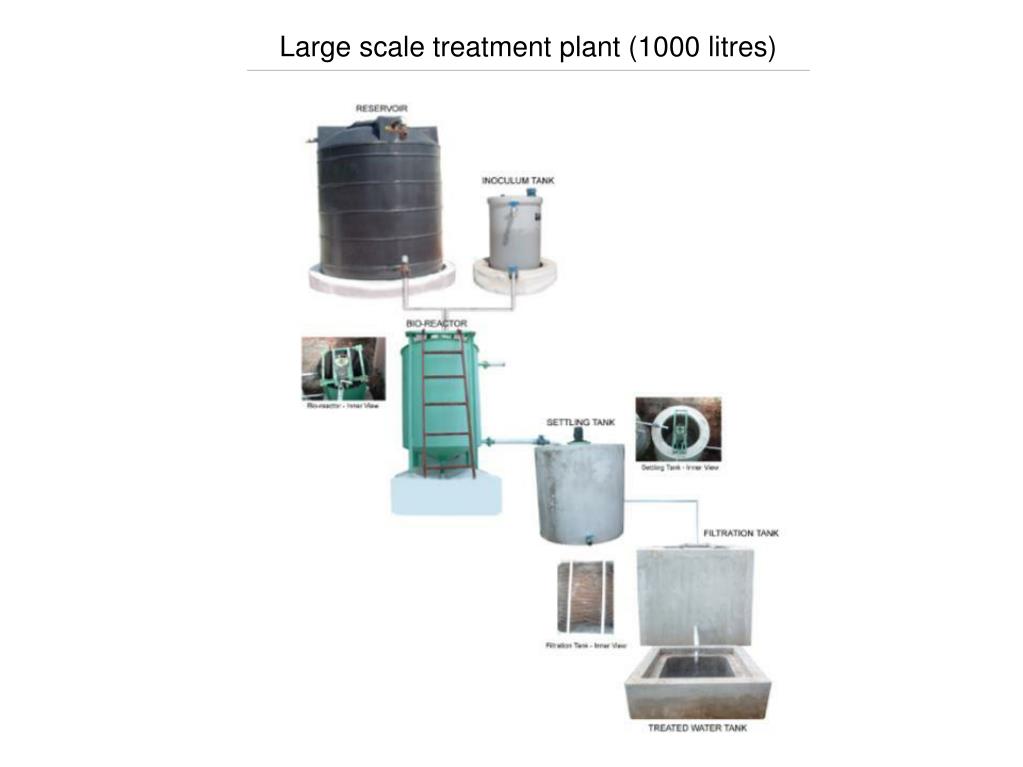

  45. Large scale treatment plant (1000 litres)

  46. Every six hoursupto 48 hrs water sample was analysed for NH4, NO2 and NO3. The water was collected from the collection tank after treatment and was subjected to its physico-chemicaland bacteriological qualityand compared with the standards for drinking water.

  47. Large scale study for nitrate removal by bacterial consortium (A + H) in drinking water 2.1 – Nitrite 7.6- Ammonium 74 x 104 – Max 100-8 92%

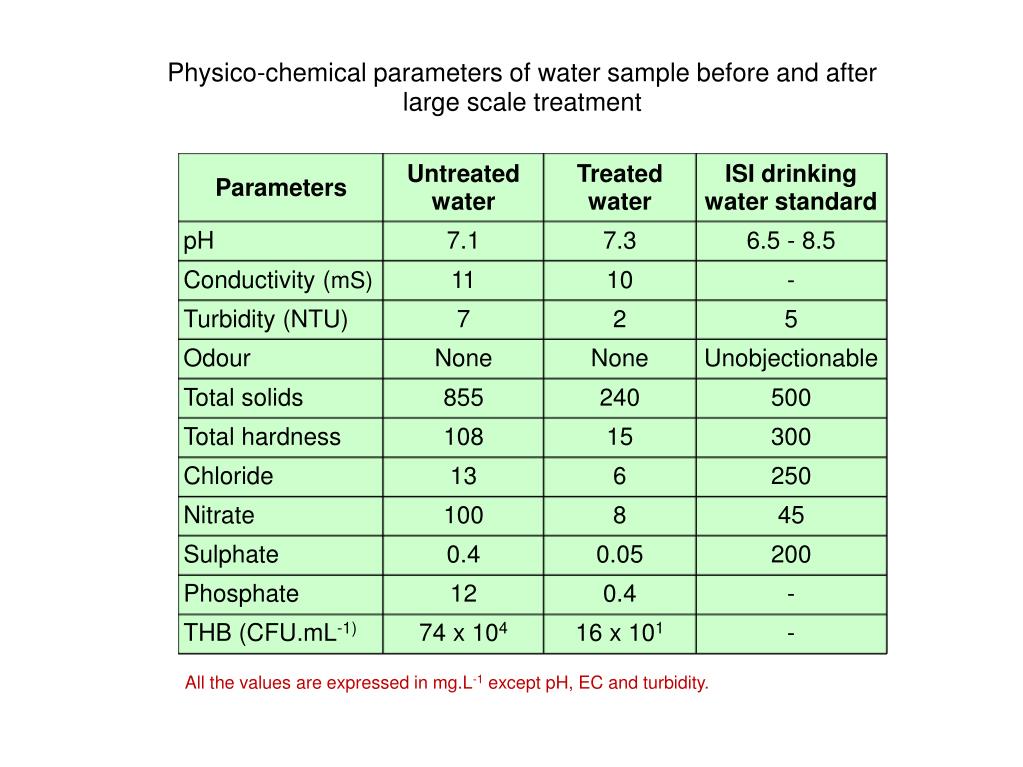

  48. Physico-chemical parameters of water sample before and after large scale treatment Parameters Untreated water Treated water ISI drinking water standard pH 7.1 7.3 6.5 - 8.5 Conductivity (mS) 11 10 - Turbidity (NTU) 7 2 5 Odour None None Unobjectionable Total solids 855 240 500 Total hardness 108 15 300 Chloride 13 6 250 Nitrate 100 8 45 Sulphate 0.4 0.05 200 Phosphate 12 0.4 - THB (CFU.mL-1) 74 x 104 16 x 101 - All the values are expressed in mg.L-1 except pH, EC and turbidity.
